The Complete Guide to Audio Electronics and How They Impact PCB Design

The field of electronics is among the most dynamic today. Electronics are of different kinds, for example, aviation electronics, automotive electronics, audio electronics, etc. However, we will look at audio electronics in this article. Audio electronics are essential to music, from recording studios to live event venues. We couldn’t listen to the music we love without audio electronics. Nowadays, music is among the most paying industries in the world. However, we would stagnate without aviation electronics at some point, probably applying traditional music equipment that did not employ power. The following details will equip us with a deep understanding of audio electronics.

A Brief History of Audio Electronics

The first commercial audio system was in 1901, after the development of early audio electronics in the late 1800s. It was the first time music could be amplified and broadcast to a broad audience using a system that amplified sound using vacuum tubes.

The first public address system to set up was in 1922, and in 1920, the world achieved its first commercial radio broadcast. In 1925, the first home stereo system worked, and later in 1930, the first portable radio.

In 1947, the invention of the first transistor happened. Later in 1958, the world created the first integrated circuit. In 1979, engineers designed the first digital audio system. Later in 1997, the first portable digital audio player worked.

What are Audio Electronics?

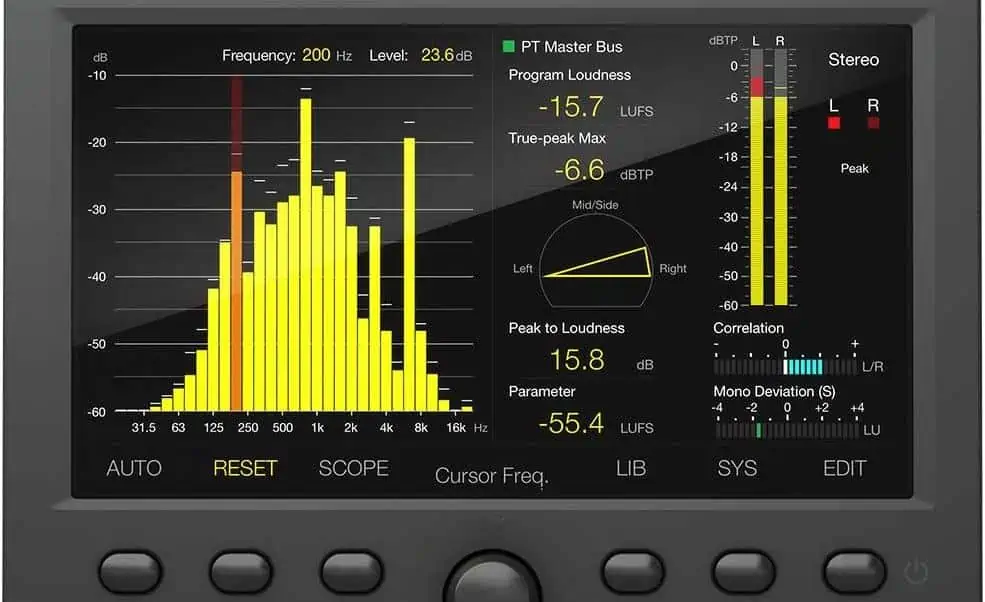

Audio Electronics hardware

Audio electronics are electronic equipment that aid in sound processing and amplification. In addition, these include amplifiers, mixers, Equalizers (EQ), and sound processors. There are numerous applications for audio electronics, including live sound reinforcement, recording studios, and home audio systems.

Audio amplifiers help to increase the signal’s amplitude and volume. On the other hand, mixers mix several signals, whereas equalizers modify a signal’s frequency response. We can alter signal properties such as delay, reverb, and pitch with sound processors.

Audio electronics are integral to any sound system and can significantly impact sound quality. Therefore, when selecting audio electronics, it is essential to evaluate the specific requirements of the system and the desired sound quality.

Categories of Audio Electronics

We can broadly categorize audio electronics into two groups:

  1.  Active audio electronics: These require power from a source of electricity, such as a battery or the mains.

The amplifier is the most prevalent kind of active audio electronics. It raises a low-level signal to a volume appropriate for driving loudspeakers. Many amplifiers are available, including field-effect transistors, bipolar transistors, or vacuum tubes (valves) (FETs).

  • Passive audio electronics: These rely on the electrical characteristics of the parts themselves to operate.

Crossovers and equalizers are examples of passive audio electronics. Equalizers amplify or reduce specific frequencies to enhance the overall sound quality. Conversely, Crossovers divide an audio signal into various frequency ranges and send each range to a different loudspeaker.

Classification of Audio Electronics

There are three broad classifications for audio-electronic devices:

Audio Input Devices

The purpose of audio input devices is to convert sound to electrical signals. Microphones are the most frequent audio input devices. Microphones transform sound waves into electrical signals that audio electronics equipment may process. Line-level sources, such as CD players and tape decks, and digital audio sources, such as computers and MP3 players, are additional audio input devices.

Audio Processing Devices

Audio processing devices modify or improve audio signals. Amplifiers and equalizers are the most common audio processing devices. Equalizers adjust the frequency response of audio signals, whereas amplifiers enhance the volume of audio signals. Other audio processing devices include noise reduction and echo cancellation devices, which reduce background noise and echoes.

Audio Output Devices

These devices convert electrical signals into sound. In addition, the most common audio output devices are loudspeakers. Loudspeakers turn electrical signals into audible sound waves for listeners. Other audio output devices include headphones and earbuds, which help us to listen to audio signals privately without disturbing others.

Characteristics of The Audio Electronics Industry

FULL PCB MANUFACTURING Quote

The audio electronics industry comprises companies designing, developing, manufacturing, and selling electronic products for sound reproduction and recording. Amplifiers, microphones, mixers, receivers, speaker systems, and turntables are some of these items.

The audio electronics industry is a global market comprised of enterprises from North America, Europe, Asia, and other regions. The sector is highly competitive, with companies always seeking to develop new and improved items to fulfill consumer demands.

For the industry to remain competitive, continuous innovation is essential. The corporations must therefore make substantial investments in research and development to bring new items to market. Here are some of the numerous defining criteria that characterize the audio electronics sector:

The audio electronics sector is capital-intensive due to the complexity of audio electronics devices, which necessitates substantial investment for their development and manufacture.

Secondly, the audio electronics sector is economically sensitive since the demand for audio electronics frequently correlates with broader economic developments. For instance, consumers may be less likely to acquire expensive audio equipment during economic downturns.

Lastly, the audio electronics business has stringent regulations to guarantee that items meet safety and quality requirements.

The audio electronics business is an integral aspect of the worldwide economy. It plays a significant role in supplying customers with goods that allow them to enjoy music and other audio content.

Characteristics Of Audio Electronics

Frequency Response

The frequency response is the frequency range the system can reproduce. For example, the frequency response of most audio-electronic systems spans the audible range of 20 hertz to 20 kilohertz.

Signal-To-Noise Ratio

 The signal-to-noise ratio is the ratio of the audio signal level to the background noise level. A more excellent signal-to-noise ratio translates to a more audible and distinct audio signal.

Distortion

Distortion refers to any alteration to the waveform of an audio signal that was not part of the original signal.

Crosstalk

Crosstalk is when an audio signal leaks from one circuit to another.

Noise

Noise is any sound picked up by the undesirable system.

Applications of Audio Electronics

Audio Electronics PCB

Audio electronics are applicable in a variety of fields, such as:

Consumer electronics

Consumer electronics, such as televisions, DVD players, and digital cameras, are intended for daily use. In addition, audio electronics are an essential component of many consumer electronics gadgets for people to enjoy their preferred music, movies, and games.

Consumer electronics use various audio electronic parts, including speakers, amplifiers, and digital-to-analog converters. While speakers transform the electrical audio signal into sound waves that the user can hear, amplifiers boost the audio signal’s volume. It is easy to convert digital audio signals into analog signals so that amplifiers and speakers can process them with digital-to-analog converters.

In addition to being a sort of consumer electronics intended for wearing over the ears, audio electronics are also applicable in headphones. Using headphones with several gadgets, including MP3 players and cell phones, enables users to listen to audio without bothering others.

Medical Electronics

From cochlear implants and hearing aids to medical imaging and diagnostics, audio electronics are highly applicable in various medical applications.

The most well-known use of audio electronics in medicine is hearing aids. These gadgets boost sound waves so that the inner ear can pick them up, enhancing hearing for those with hearing loss. In addition, physicians stimulate the auditory nerve more directly with cochlear implants, comparable to hearing aids but for inserting into the ear.

Audio signals are applicable in medical imaging systems like MRI and ultrasound scanners to provide images of the inside of the body.

Audio signals are essential for diagnosis and monitoring, as in fetal heart and sleep, apnea monitors.

Medical research also makes use of audio electronics. To investigate illnesses like epilepsy and Alzheimer’s disease, for instance, audio electronics help to capture and analyze brain waves.

Telecommunication

In terms of the hardware components employed and the signal processing done on the audio stream, audio electronics are widely applicable in telecommunication.

Microphones, loudspeakers, headphones, earphones, and other transducers are examples of audio hardware components used in telecommunication. Microphones translate Sound waves into electrical impulses, which then undergo amplification and transmission to the loudspeakers. Loudspeakers convert the electrical impulses back into sound waves so that the person on the other end of the line may hear them.

For the person on the other end of the line to hear the audio signal more clearly, headphones and earphones help to separate the audio signal from the background noise. Echo cancellers, which eliminate echoes from the audio signal, and noise reduction systems, which eliminate background noise from the audio signal, are other hardware elements applicable in telecommunication.

Audio signal processing is essential in telecommunication to enhance the audio signal’s quality. Techniques for signal processing include equalization, noise reduction, and echo cancellation. For example, we can clean the audio signal of echoes using echo cancellation and eliminate background noise using noise reduction. Moreover, we can modify the frequency response of the audio signal can using equalization.

Telephone, cell phone, VoIP, and radio systems are examples of telecommunications systems that use audio electronics.

Automotive Electronics

Automotive electronics are the electronic components found in vehicles, such as the radio, car computers, ignition, and in-car entertainment systems. Applications for audio electronics in the car industry include infotainment systems, sound systems, and security systems.

Infotainment systems are in charge of providing entertainment and information to passengers while they are in the car. A radio, CD player, DVD player, and various connectivity options like Bluetooth and USB are perfect examples. A navigation system is a common addition to infotainment systems. Infotainment systems use audio technology to deliver high-quality sound reproduction.

The vehicle’s audio system might sound better due to improved sound systems. Examples are speakers, subwoofers, and amplifiers.

The usage of security systems helps prevent and identify crime. They frequently come with an immobilizer, an alarm, and a tracking system. In addition, security systems use audio electronics to provide an audible alarm.

Benefits of Audio electronics

Home Audio Electronics

The development of audio technology has enabled the recording and reproduction of sound with unparalleled fidelity. Wax cylinders and shellac discs recorded sound in the early days of audio recording. However, the sound quality could have been better, and the tapes could only go for a few minutes. Emile Berliner invented the phonograph, which used a celluloid disc to record and reproduce sound, in the late 19th century. Consequently, this enhanced sound quality and made longer recordings possible. In the 1930s, magnetic tape recorders made it feasible to record sound with higher fidelity. Digital audio technology has enabled the recording and reproduction of sound with near-perfect commitment.

Additionally, audio electronics have enabled the amplification of sound. In the early days of the music industry, tiny, intimate venues were typical. In the early 20th century, audio amplifiers made it possible to perform music in more extensive settings. From small clubs to enormous stadiums, audio amplifiers are an integral component of live music performances today.

Additionally, audio electronics have enabled the creation of special effects. In the early days of the music industry, mechanically modified musical instruments’ sounds produced extraordinary results. The arrival of electronic devices at the beginning of the 20th century enabled the creation of a vast array of new sounds. Today, audio electronics help us produce various special effects, including reverb and distortion.

Audio electronics have also enabled the creation of new musical genres. In the early days of the music industry, music was a yard of a handful of individuals. The emergence of audio recording and playback technology at the beginning of the 20th century made it possible for a single individual to compose music. Today, a wide range of individuals, from bedroom producers to professional musicians, make electronic music.

Which Are The PCB Types Employed In Audio Electronics?

PCBs are the foundation of audio electronics. Electronic components wouldn’t communicate with one another or work correctly without them. Single-sided, double-sided, and multilayer PCBs are the three most popular varieties used in audio electronics.

The most straightforward kind of PCB is single-sided PCB. They consist of a single layer of copper or another conductive material etched to produce the appropriate circuit layout. The cheapest and most straightforward to make are single-sided PCBs; however, there are restrictions on the types of components we can use and the intricacy of the circuits we can design.

Sandwiching two layers of conductive material, usually, copper, between two insulating layers forms double-sided PCBs. We then etch the desired circuit layout onto the two layers. Double-sided PCBs have the advantage of supporting more components and intricate circuits despite being more expensive and challenging to manufacture than single-sided PCBs.

Three or more layers of conductive material, usually copper, separated by insulating layers make up multilayer PCBs. Like double-sided PCBs, we etch the desired circuit layout into the layers. Although multilayer PCBs are the most expensive and challenging to produce, they can support the most significant number of components and the most intricate circuits.

Materials Suitable For Manufacturing Audio Electronics

The application of the audio device largely dictates the kinds of printed circuit boards (PCBs) used in audio electronics. For instance, a portable music player needs a different PCB than an audio power amplifier. These are the various PCB types used in audio electronics:

FR-4 PCBs

The FR-4 PCBs are the most popular kind used in audio electronics. FR-4 is a flame-resistant glass-reinforced epoxy laminate. Printed circuit boards, such as those found in power amplifiers that may work under high temperatures, often consist of FR-4.

Rogers RO4003

Rogers RO4003, a dielectric material, has a low dielectric constant and loss tangent. As a result, printed circuit boards that need minimal signal loss, such as those in portable music players, mostly require Rogers RO4003 technology to manufacture.

Polyimide PCB

Polyimide is a dielectric material with a high dielectric constant and loss tangent. Therefore, printed circuit boards with a high signal loss requirement, such as those found in power amplifiers, mainly consist of polyimide.

Teflon

Teflon PCBs consist of a fluoropolymer with a low dielectric constant and loss tangent. The teflon is frequently applicable in printed circuit boards with low signal loss, such as those used in portable music players.

Polycarbonate PCB

Polycarbonate is a thermoplastic with a high-loss tangent and dielectric constant. As a result, printed circuit boards that need a lot of signal loss, such as those in power amplifiers, are easy to construct using polycarbonate.

Similarities Between Audio Electronics And Other Electronic Types

Audio electronics and different types of electronics share several characteristics.

Circuit Elements

For instance, semiconductor devices like transistors and diodes are present in audio electronics as well as other forms of electronics.

Movement Of Electrons

The movement of electrons is necessary for the operation of audio electronics and other electronics. In both scenarios, the movement of electrons from one location to another produces an electrical current.

Control Method

We can employ switches, sensors, and computers to control audio and other kinds of electronics. However, the control of audio electronics is frequently more intricate than other electronics since, to produce a high-caliber sound, audio electronics must respond to a wide range of frequencies.

Differences Between Audio Electronics And Other Electronic Types

Technology

The usage of audio technology is one of the most evident changes. While other electronics are applicable in various tasks like computing, lighting, and communications, audio electronics are primarily helpful in processing and enhancing sound. As a result, audio electronics require a different set of priorities compared to other types of electronics.

Frequency Range

In contrast to other forms of electronics, which may only need to reproduce a small range of frequencies or not at all, audio electronics must reproduce an extensive range of frequencies with minimal distortion.

Powering

While we can power other electronics with batteries or alternative energy sources, audio devices usually require power from mains electricity. In addition, we can only achieve high-quality sound with audio circuitry capable of handling significant quantities of power. Conversely, computing and lighting electronics, for example, often don’t require as much power and can therefore work with management from alternate energy sources.

Movement Of Electrons

Compared to other types of electronics, audio electronics slightly differ from the way different kinds of electronics move electrons. While for other electronics, the movement of electrons creates electrical signals, audio electronics use electron movement to produce sound waves.

How Has Rayming Technology Improved The Field Of Audio Electronics?

Rayming Technology is leading the way in the design and production of audio electronics. The business has a long history of invention and has made numerous significant contributions to the field of audio electronics.

In the area of audio electronics, Rayming Technology has a long history of invention. Raymond Cooke, a pioneer in the creation of audio equipment, established the business in the early 1950s. Cooke set out to create a more effective and potent method of sound amplification. He rapidly realized that creating a novel electronic component that could work as audio equipment was the key to achieving this objective.

Consequently, Cooke created the first transistor-based amplifier at the beginning of the 1960s. Compared to the vacuum tube amplifiers in use at the time, this amplifier was far more efficient. Furthermore, it was considerably more portable and petite. The transistor amplifier was, therefore, a significant development in audio equipment.

Rayming Technology created the first digital audio player in the 1970s. The player made use of a brand-new kind of storage device called a compact disc (CD), which was a significant advancement in the storage of digital audio data. The player could fit a lot of digital audio data on a tiny disc.

Later, Rayming Technology created the first portable CD player in the 1980s. The player was incredibly portable and light. It represented a significant advance in the design of mobile audio equipment.

In the 1990s, Rayming Technology created the initial DVD player. The player could fit a significant amount of digital video data on a surprisingly compact disc. The DVD player was an important development in home entertainment system design.

RayMing Technology Today

Today, Rayming Technology is a pioneer in the design and production of audio electronics. The company’s products are useful in various applications, such as portable music players, automotive audio systems, and home theater systems. The company Rayming Technology aims to advance audio electronics innovation. The business is continually creating new goods and innovations that will raise the quality of audio equipment’s sound.

Challenges Associated With Audio Electronics

The two primary divisions of difficulties in audio electronics are hardware and software issues.

Audio electronics parts’ design and production, including amplifiers, speakers, and microphones, come with various hardware problems. These elements must accurately replicate the sound and be tough enough to stand up to the demands of live performances. Audio electronics must also be able to communicate with other equipment, like computers and mixing boards.

Creating audio processing algorithms, such as those used for equalization and noise reduction, is a problem for software. Therefore, since audio electronics only have a small amount of processing capacity, these algorithms must be able to operate in real time. The software also needs to be simple to set up and run so that sound professionals can quickly achieve the optimum results.

Conclusion

In conclusion, audio electronics have transformed the music industry and how we listen to music. Furthermore, these audio electronics have enabled the recording and reproduction of sound with unprecedented fidelity, the amplification of sound, the creation of special effects, and the creation of new musical genres. Additionally, audio electronics have allowed people to enjoy music in various settings, from intimate clubs to massive stadiums.

Since the audio industry has evolved along with the rest of the world, audio fans now have more alternatives than ever due to the daily emergence of newer and more inventive audio devices. There is an audio electronics option for you, regardless of whether you want the most recent digital technology or timeless analog sound. It can take time to select the best solution for you, given the wide range of available choices. You can, however, acquire the ideal audio electronics for your requirements with the knowledge of the above details.
