How to Reduce Ripple of Switching Power Supply?

In the realm of power electronics, switching power supplies are widely utilized due to their high efficiency and compact design. However, one of the inherent challenges associated with these power supplies is the presence of ripple, which can adversely affect the performance and reliability of the system. Ripple refers to the unwanted alternating current (AC) component superimposed on the desired direct current (DC) output. This article delves into the causes of ripple in switching power supplies and presents various techniques and strategies to mitigate its effects effectively.

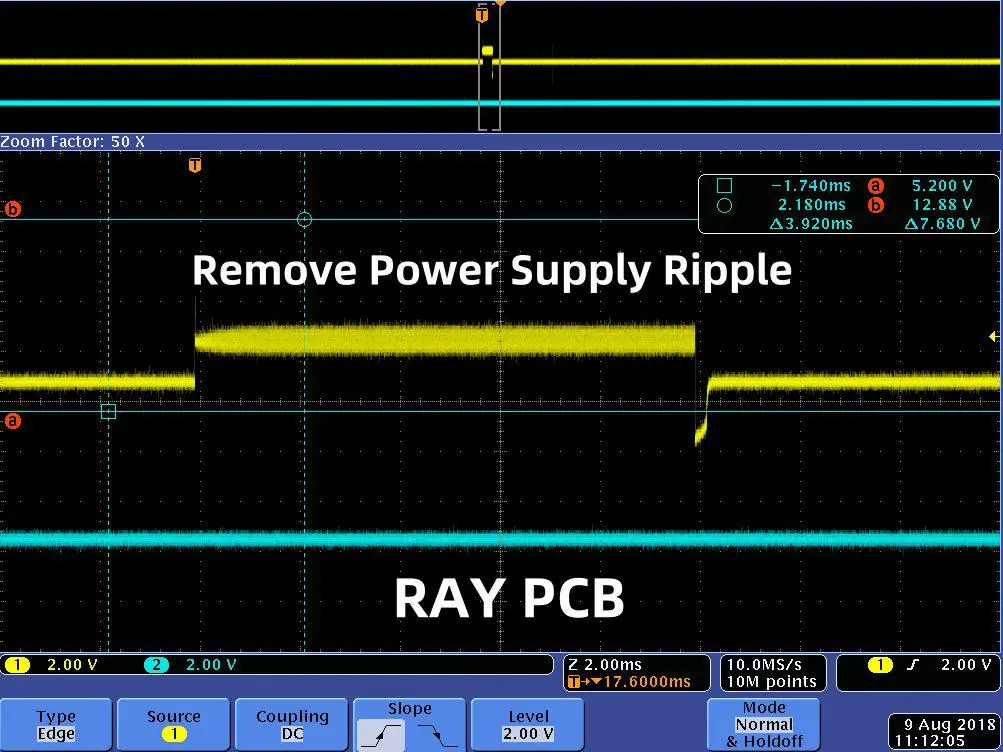

Understanding Ripple in Switching Power Supplies

Switching power supplies operate by rapidly turning on and off a switch, typically a transistor, to control the flow of current through an inductor or transformer. This switching action generates a pulsating current, which is then filtered by capacitors to produce a relatively smooth DC output voltage. However, due to the inherent characteristics of the components involved, some residual ripple remains in the output.

The primary sources of ripple in switching power supplies are:

  1. Capacitor Ripple: The output capacitor is responsible for smoothing the pulsating current from the switching circuit. However, due to its finite capacitance and equivalent series resistance (ESR), a certain amount of ripple will be present across the capacitor terminals.
  2. Inductor Ripple: The inductor used in the switching power supply also contributes to ripple. As the current through the inductor changes during the switching cycles, a small voltage ripple is induced across its winding resistance.
  3. Switching Noise: The rapid switching action of the transistor can generate electrical noise and electromagnetic interference (EMI), which can couple into the output and appear as ripple.
  4. Load Transients: When the load connected to the power supply changes rapidly, it can cause transient variations in the output voltage, leading to temporary ripple or overshoot.

The magnitude and frequency of the ripple depend on various factors, including the switching frequency, component values, and load characteristics.

Techniques for Reducing Ripple

Several techniques can be employed to mitigate the effects of ripple in switching power supplies. These methods can be categorized into three main approaches: filtering, layout optimization, and control strategies.

1. Filtering Techniques

Filtering is the most common and effective method for reducing ripple in switching power supplies. It involves the use of additional passive components to attenuate the unwanted AC components in the output.

Output Capacitor Selection

The output capacitor plays a crucial role in filtering the ripple. Selecting a capacitor with a higher capacitance value and lower equivalent series resistance (ESR) can significantly reduce the ripple amplitude. Electrolytic and tantalum capacitors are commonly used for this purpose due to their high capacitance density.

Additionally, using multiple capacitors in parallel can further reduce the effective ESR and improve ripple performance. Table 1 illustrates the relationship between capacitor ESR and ripple voltage for a typical switching power supply.

Capacitor ESR (m惟)Ripple Voltage (mV)

Inductor Selection

Choosing an inductor with a lower winding resistance and higher inductance value can help reduce the inductor ripple component. However, increasing the inductance may also result in higher physical size and cost.

Input and Output Filters

Additional passive filters can be added to the input and output stages of the power supply to further attenuate ripple. These filters typically consist of capacitors and inductors arranged in specific configurations, such as LC (inductor-capacitor) or pi filters.

2. Layout Optimization

The physical layout of the switching power supply can significantly impact its performance and susceptibility to ripple. Proper layout techniques can minimize the coupling of switching noise and reduce the effects of parasitic inductances and capacitances.

Grounding and Shielding

Implementing a robust grounding and shielding strategy is crucial for minimizing the coupling of switching noise and EMI. This can be achieved by using dedicated ground planes, separating high-frequency and low-frequency signals, and shielding sensitive components or traces.

Component Placement

Careful placement of components can minimize the loop areas and reduce the coupling of switching noise. High-frequency components, such as the switching transistor and associated drivers, should be placed as close as possible to the input and output capacitors to minimize trace lengths and loop areas.

Thermal Management

Proper thermal management is essential for ensuring stable operation and reducing temperature-related effects on ripple. Adequate heat sinking and airflow should be provided to maintain the components within their specified temperature ranges.

3. Control Strategies

Advanced control techniques can be employed to actively suppress or compensate for ripple in switching power supplies.

Interleaved Switching

In this technique, multiple switching stages are operated with their switching cycles interleaved or phase-shifted. This effectively increases the equivalent switching frequency, resulting in reduced ripple due to the cancellation of ripple components from different stages.

Active Ripple Cancellation

Active ripple cancellation involves injecting a corrective signal into the feedback loop or output stage to actively cancel out the ripple component. This technique requires additional circuitry and a precise ripple detection mechanism.

Advanced Modulation Schemes

Techniques such as pulse-width modulation (PWM) and spread-spectrum modulation can be employed to shape the switching noise spectrum and reduce the amplitude of specific ripple frequency components.
