The Guideline to Motion Sensors for Beginner


Motion sensors are essential components for building automation, security systems, and a wide variety of electronic projects. They can detect occupancy, trigger lighting control, sense intruders, and much more. With a vast range of motion sensing technologies now readily available, how do you choose the right sensor for your needs as a beginner?

This article will cover the fundamentals of how the most common motion sensor types operate, their capabilities and limitations, key specifications to understand, and examples of real-world applications. With these foundations, you will be prepared to successfully incorporate these versatile detectors into your own projects. Let’s get started!

Motion Sensing Basics

Motion sensors detect kinetic energy emitted by moving objects within their detection zone. This is accomplished by transmitting energy waves and monitoring changes in the received reflection pattern when movement occurs.

Active vs Passive Sensors

Motion sensors fall into two main categories:

Active Sensors – Emit their own energy waves and detect changes in the reflection signature. Examples are ultrasonic and microwave sensors.

Passive Sensors – Rely on detecting infrared energy emitted by objects. Passive infrared (PIR) sensors are the most common type.

Active sensors provide their own illumination source, while passive sensors leverage infrared given off by occupants and objects at room temperature.

Detection Methods

Motion is sensed by monitoring for variation in the received energy pattern:

  • Doppler Shift – Used by microwave and ultrasonic sensors to detect minute frequency changes caused by motion.
  • Infrared Change – PIR sensors detect fluctuations in received IR as warm bodies move through a zone.
  • Range Measurement – Compares successive distance readings to sense position changes.

Motion Sensor Types

Now let’s take a closer look at popular motion sensor technologies and their capabilities:

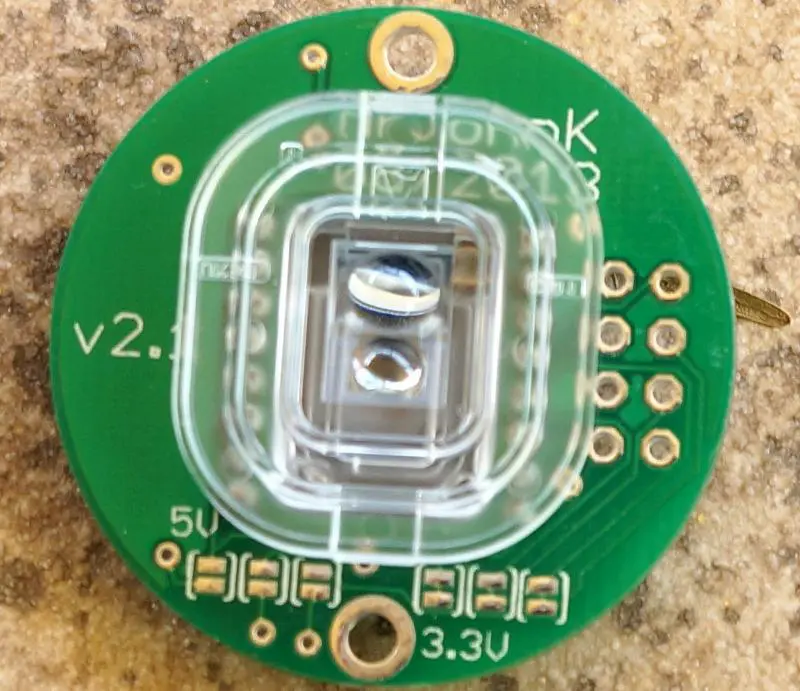

Passive Infrared Sensors (PIR)

PIR sensors detect emitted infrared radiation to discover heat signatures and occupancy.

How They Work

  • Detect changes in infrared levels received across multiple pyroelectric sensor segments
  • Monitor for sequence of signals indicating motion direction


  • Detect occupancy and motion of people, animals
  • Low power consumption
  • No emitted energy


  • Limited range up to 30 ft
  • Vulnerable to environmental interference
  • Slow response time


  • Intruder alarms
  • Automatic lighting
  • People counting

PIR’s simplicity makes them the most widely used motion detector for homes and small businesses.

Ultrasonic Sensors

Ultrasonic motion detectors measure emitting and reflecting high frequency sound waves to identify movement.

How They Work

  • Transmit short ultrasonic pulses (~50kHz)
  • Listen for pulse echo off nearby objects
  • Detect Doppler frequency shifts in echo profile when objects move


  • Precise range sensing
  • Wide scope from few inches to 30 ft
  • Minimal interference from light, glass, walls


  • Difficulty detecting slow motion
  • Crosstalk with other ultrasonic sensors


  • Intruder alerting
  • Automated lighting
  • Object proximity sensing

The excellent range precision of ultrasonic sensors suits applications needing accurate occupancy detection.

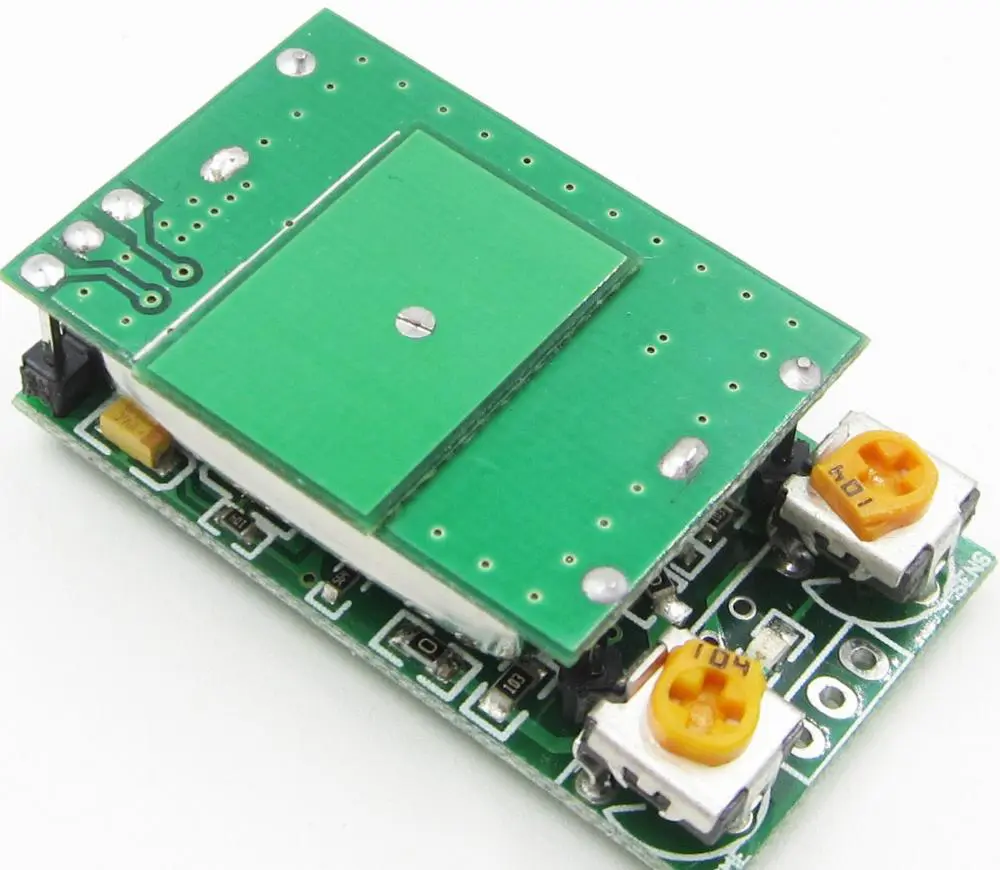

Microwave Motion Detectors

Microwave sensors emit electromagnetic waves and analyze Doppler shifts in the reflection pattern when motion occurs.

How They Work

  • Radiate polarized microwave signals (5-25 GHz)
  • Analyze frequency shift and disturbance in echo
  • Advanced models use multiple antennas and frequencies


  • Extremely fast response times
  • Reliable with minimal false alarms
  • Work through walls and obstructions


  • More complex signal processing required
  • Cannot measure exact distance/position


  • Security systems
  • Automatic doors and gates
  • Industrial automation

Microwave motion detectors provide robust occupancy detection even under challenging real-world conditions.

Camera-Based Motion Analysis

With embedded vision processors, security cameras can now perform sophisticated motion and shape analysis.

How It Works

  • Detect moving pixels between video frame differences
  • Segment objects and track trajectories
  • Analyze movements with algorithms like optical flow
  • Classify human motions through techniques like deep learning


  • Rich motion analytics data
  • Person detection, identification, tracking
  • Integration with central monitoring


  • Significant power and processing requirements
  • Limited low light performance
  • Privacy concerns with cameras


  • Video surveillance and security
  • Traffic monitoring
  • Gesture control interfaces

Video motion analysis unlocks the next level of intelligent automated response.

Key Specifications

To select an appropriate motion sensor, there are several key parameters to consider:

Detection Range

  • Distance from sensor movement can be reliably detected. Typically 1 to 30+ ft.

Field of View

  • Angle over which sensor is sensitive, such as 90° or 180° coverage.


  • Threshold of motion requred to trigger detection. Higher sensitivity sensors detect smaller movements.


  • Recommended installation height and orientation for optimal coverage.


Power Supply

  • Supply voltage, typical and maximum current draw.

Matching the detection capabilities, range, outputs, and resource constraints of the motion sensor to the application ensures optimal sensing performance.

Installation Guidelines

Proper installation and positioning helps achieve reliable motion detection:

  • Mount at recommended height with unobstructed view of monitored region
  • Tilt angle should point sensor towards central area of interest
  • Avoid sources of heat, vibration, light interference in field of view
  • Consider electrical wiring, concealed access requirements
  • Allow warm-up time before calibration and testing

Careful attention to the manufacturer’s installation guidelines prevents many sensor issues. Testing zones of interest during setup confirms configuration.

Interface Circuits

Interfacing motion sensors with other systems often requires additional circuitry:

Switching Larger Loads

Adjusting Sensitivity

  • Potentiometer on detector voltage output adjusts trigger threshold

Increasing Range

Regulating Voltage

  • Regulators convert higher supply voltages down to sensor requirements

Issolating Signals

  • Optocouplers and isolation amplifiers protect sensor outputs

Small interface circuits condition raw motion detection signals for practical use controlling devices and indicators.

Applications of Motion Sensors

Motion sensors find use in a diverse array of practical applications:

Security Systems

  • Perimeter protection with passive IR
  • Entryway alerting with ultrasonic detection
  • Video camera activation by microwave sensors

Lighting Automation

  • PIR sensors to trigger lights when zone occupied
  • Ultrasonic for precision occupancy-based dimming
  • Microwave to keep lights on while area occupied

Industrial Automation

  • Stopping machines if operator presence detected
  • Microwave area scanning for automated vehicles
  • Infrared entryway sensors to count factory foot traffic

Smart Homes

  • PIR sensors to awaken voice assistants when occupants detected
  • Ultrasonic rangefinders to map room occupancy patterns
  • Camera vision analysis to enable gesture and activity recognition

From simple lighting automation to advanced peoples tracking, motion sensors supply a critical input for automated environments.

Common Troubleshooting Steps

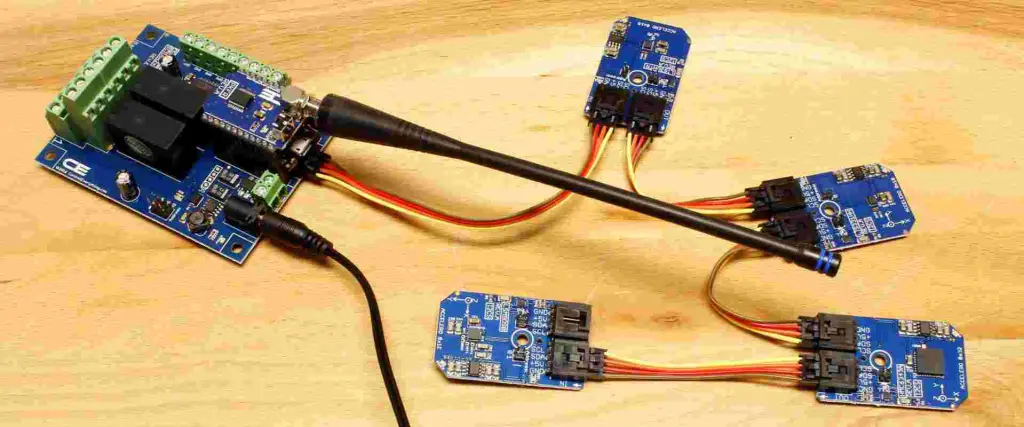

MEMS Motion Sensor

Diagnosing motion sensor issues often involves:

  • Adjusting Position – Eliminate any obstructions from field of view.
  • Tuning Sensitivity – Increase gain for insufficient range. Decrease to remove false triggers.
  • Checking Power – Verify adequate voltage under load. Consider adding capacitor.
  • Monitoring Output – Use oscilloscope or multimeter to visualize activations.
  • Testing Range – Confirm activations occur at expected distances.
  • Isolating Interference – Determine if heat sources, vibrations, EMI affects function.
  • Comparing to Datasheet – Review specifications and recommended circuits.

Simple adjustments to position, sensitivity, and wiring connections can resolve many detection problems.


Motion sensors provide a critical sensing element for adding automation, control, and analytics based on movement and occupancy detection. Passive infrared, ultrasonic, and microwave detectors each offer unique capabilities to match diverse applications. With an understanding of the available sensing technologies, typical specifications, interface needs, and installation considerations covered here, you will be prepared to effectively incorporate motion sensing into your next project. Just remember to thoroughly plan the implementation details and test detection zones during development. With motion sensors, a little extra planning goes a long way toward a successful project!

Frequently Asked Questions

Q: Which motion sensors work well outdoors?

A: Microwave and passive IR sensors are good choices for outdoor use since they are less affected by environmental conditions. Ultrasonic sensors perform poorly outdoors.

Q: How do you determine the optimal motion sensor location?

A: Review range diagrams to position the sensor centrally within the zone of interest. Mount at the recommended height with an unobstructed field of view of monitored areas.

Q: Can one motion detector cover an entire house or business?

A: For whole building coverage, plan on installing multiple strategically positioned sensors. Use range diagrams to avoid gaps in detection zones.

Q: What are common sources of false alarms with motion sensors?

A: Reflective surfaces, heat sources, and vibration can create false motion detection events. Proper installation and shielding is important.

Q: How fast do passive infrared sensors respond to motion?

A: Response time depends on the sensor, but is typically under 100ms. Faster ultrasonic and microwave detectors respond in just a few tens of milliseconds.
