What is LTCC (Low Temperature Co-fired Ceramic ) PCB ?

Low Temperature Co-fired Ceramic (LTCC) is a specialized manufacturing technology used to create high-performance, highly integrated circuit boards. LTCC PCBs, or Low Temperature Co-fired Ceramic Printed Circuit Boards, are a type of multilayer ceramic board that offers unique advantages over traditional PCBs, particularly in applications that require high frequency, high reliability, and harsh environment operation.

Overview

LTCC technology involves stacking and laminating multiple layers of ceramic green tapes, which are then co-fired (sintered) at relatively low temperatures (typically between 850°C and 950°C) to form a monolithic structure. Each layer can be patterned with conductive materials, such as tungsten or gold, creating a dense, multilayer circuit board with embedded passive components and hermetic packaging.

The key advantages of LTCC PCBs include:

  • High frequency performance (up to millimeter-wave frequencies)
  • Low dielectric loss and low signal propagation delay
  • Excellent thermal conductivity and stability
  • Hermetic sealing and resistance to harsh environments
  • Integration of passive components (resistors, capacitors, inductors)
  • High reliability and long operational life

These unique properties make LTCC PCBs well-suited for a wide range of applications, including:

Manufacturing Process

The manufacturing process of LTCC PCBs involves several critical steps:

  1. Tape Casting: Ceramic green tapes are formed by mixing ceramic powder (typically alumina or glass-ceramic) with organic binders and solvents, and then casting the mixture into thin, flexible sheets.
  2. Patterning: Individual layers are patterned with conductive materials, such as tungsten or gold, using screen printing or photolithographic techniques. These patterns form the conductive traces, vias, and component pads on each layer.
  3. Via Formation: Vias (vertical interconnect access) are created by punching or laser drilling holes through the ceramic green tapes, which will be filled with conductive materials during the next step.
  4. Stacking and Lamination: The patterned layers are carefully aligned and stacked, with conductive via-fill materials applied between layers to create vertical interconnects. The stack is then laminated under pressure and heat to form a single, integrated structure.
  5. Co-firing: The laminated stack is fired (sintered) at high temperatures (typically between 850°C and 950°C) in a controlled atmosphere. During this process, the organic binders are burned off, and the ceramic materials sinter together, forming a dense, monolithic structure.
  6. Post-firing Operations: After co-firing, additional processes may be performed, such as plating, component assembly, and encapsulation, depending on the specific application and design requirements.

Electrical Properties

The unique material properties of LTCC PCBs contribute to their excellent electrical performance, particularly at high frequencies:

  1. Low Dielectric Constant (εr): The ceramic materials used in LTCC have a relatively low dielectric constant, typically ranging from 5 to 9. This low dielectric constant helps to reduce signal propagation delay and improve high-frequency performance.
  2. Low Dielectric Loss: LTCC materials exhibit very low dielectric loss, which minimizes signal attenuation and ensures efficient signal transmission, even at high frequencies.
  3. Low Coefficient of Thermal Expansion (CTE): The ceramic materials used in LTCC have a low CTE, which matches well with the CTE of many integrated circuit (IC) packages. This compatibility reduces stress and potential failures due to thermal cycling.
  4. High Thermal Conductivity: LTCC materials have good thermal conductivity, allowing effective heat dissipation and improving the reliability of high-power components.
  5. Low Signal Propagation Delay: The low dielectric constant and low loss tangent of LTCC materials result in low signal propagation delay, which is critical for high-speed digital and RF applications.

Passive Component Integration

One of the key advantages of LTCC technology is the ability to integrate passive components, such as resistors, capacitors, and inductors, directly into the circuit board structure. This integration is achieved by patterning the desired components onto the ceramic green tapes using specialized materials and processes.

Some common passive components that can be integrated into LTCC PCBs include:

  • Resistors: Formed by patterning resistive materials, such as ruthenium oxide or lanthanum strontium manganite, onto the ceramic green tapes.
  • Capacitors: Created by patterning high-dielectric-constant materials, such as barium titanate or lead zirconate titanate, between conductive layers.
  • Inductors: Formed by patterning conductive coils or spirals onto the ceramic layers.

The integration of passive components offers several benefits, including:

  • Reduced board size and weight
  • Improved electrical performance (reduced parasitics, better component matching)
  • Enhanced reliability (monolithic structure, elimination of solder joints)
  • Potential cost savings (fewer discrete components, simplified assembly)

Applications

LTCC PCBs are widely used in various applications that demand high performance, reliability, and operation in harsh environments. Some of the key application areas include:

  1. Aerospace and Defense: LTCC PCBs are used in avionics systems, radar systems, missile guidance systems, and other military and aerospace applications that require high reliability, resistance to harsh environments, and high-frequency performance.
  2. Automotive Electronics: The excellent thermal properties and reliability of LTCC PCBs make them suitable for automotive applications, such as engine control units, sensors, and advanced driver assistance systems (ADAS).
  3. Telecommunications: LTCC technology is widely used in the telecommunication industry for high-frequency applications, such as RF front-end modules, power amplifiers, and antenna arrays for cellular base stations and satellite communications.
  4. Medical Devices: The biocompatibility and hermetic packaging capabilities of LTCC PCBs make them suitable for implantable medical devices, such as pacemakers, cochlear implants, and neural stimulators.
  5. Industrial Sensors and Controls: LTCC PCBs are used in various industrial applications, including pressure sensors, flow meters, and harsh environment monitoring systems, due to their ruggedness and resistance to extreme temperatures, vibrations, and chemicals.

Advantages and Disadvantages

Like any technology, LTCC PCBs have both advantages and disadvantages that should be considered when evaluating their suitability for a particular application.

Advantages

  • High frequency performance: LTCC PCBs exhibit excellent high-frequency performance, making them suitable for applications requiring millimeter-wave frequencies.
  • Low dielectric loss: The low dielectric loss of LTCC materials ensures efficient signal transmission, even at high frequencies.
  • Thermal stability: The ceramic materials used in LTCC PCBs have a low coefficient of thermal expansion (CTE), ensuring stability and reliability in harsh thermal environments.
  • Hermetic packaging: LTCC PCBs can be hermetically sealed, providing protection against moisture, contaminants, and harsh environments.
  • Passive component integration: LTCC technology allows for the integration of passive components, such as resistors, capacitors, and inductors, directly into the board structure, reducing size and improving performance.
  • High reliability: LTCC PCBs have a monolithic structure and lack solder joints, resulting in high reliability and long operational life.

Disadvantages

  • High manufacturing costs: The specialized manufacturing processes and materials used in LTCC technology can make LTCC PCBs more expensive compared to traditional PCBs, especially for low-volume applications.
  • Limited board size: Due to constraints in the manufacturing process, LTCC PCBs are typically limited in size, making them less suitable for large-scale applications.
  • Design complexity: The design and manufacturing of LTCC PCBs can be more complex compared to traditional PCBs, requiring specialized software tools and expertise.
  • Limited component availability: The range of available components that can be integrated into LTCC PCBs is limited compared to traditional surface-mount technology (SMT) components.
  • Thermal management challenges: While LTCC PCBs have good thermal conductivity, effective heat dissipation can still be a challenge, particularly for high-power applications.

Future Trends and Developments

As technology continues to advance, the demand for high-performance, reliable, and compact electronic systems will drive further developments in LTCC technology. Some of the anticipated future trends and developments in LTCC PCBs include:

  1. Higher integration and miniaturization: Ongoing efforts are being made to further miniaturize LTCC components and increase the level of integration, enabling even more compact and high-density circuit designs.
  2. Advanced materials: Research is ongoing to develop new ceramic materials with improved properties, such as higher dielectric constants, lower loss tangents, and better thermal conductivity, to enhance LTCC PCB performance.
  3. 3D packaging and system-in-package (SiP) solutions: LTCC technology is well-suited for 3D packaging and system-in-package (SiP) solutions, where multiple components and functionalities can be integrated into a single, compact package.
  4. New manufacturing techniques: Advancements in manufacturing techniques, such as additive manufacturing (3D printing) and direct-write technologies, may enable new design possibilities and improve the cost-effectiveness of LTCC PCB production.
  5. Emerging applications: As technology evolves, new applications for LTCC PCBs may emerge, particularly in areas such as 5G and beyond wireless communications, Internet of Things (IoT) devices, and advanced sensing and monitoring systems.

Overall, the unique properties and advantages of LTCC PCBs position them as a critical technology for high-performance, reliable, and compact electronic systems in various industries.

Frequently Asked Questions (FAQ)

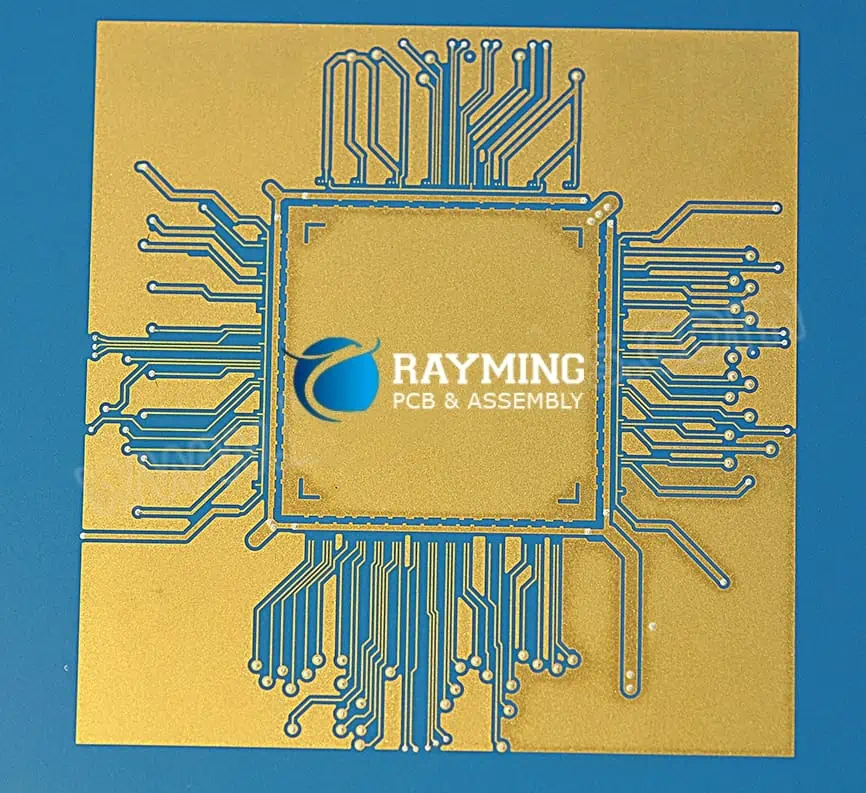

Aluminum nitride ceramic circuit board
  1. What is the difference between LTCC and traditional PCBs?

Traditional PCBs are made from glass-reinforced epoxy laminate materials, while LTCC PCBs are made from ceramic materials that are co-fired at high temperatures. LTCC PCBs offer superior high-frequency performance, thermal stability, and the ability to integrate passive components, but they are generally more expensive and have limited board size compared to traditional PCBs.

  1. What are the typical materials used in LTCC PCBs?

The most commonly used ceramic materials for LTCC PCBs are alumina (Al2O3) and glass-ceramic composites. Conductive materials like tungsten, gold, and silver are used for patterning the conductive traces and vias.

  1. Can LTCC PCBs be repaired or reworked?

Due to their monolithic structure and co-fired manufacturing process, LTCC PCBs are generally difficult to repair or rework. Any modifications or repairs would require specialized techniques and equipment, making it challenging and potentially expensive.

  1. What is the typical operating temperature range for LTCC PCBs?

LTCC PCBs can typically operate in a wide temperature range, from cryogenic temperatures (-196°C) up to temperatures as high as 400°C or even higher, depending on the specific materials used and the application requirements.

  1. Can LTCC PCBs be used for high-power applications?

While LTCC PCBs have good thermal conductivity, effective heat dissipation can be a challenge for high-power applications. Specialized thermal management techniques, such as the use of heat sinks or liquid cooling, may be required for high-power LTCC PCB designs.
