The Properties and Uses of Fiberglass PCB

Printed circuit boards are made from a variety of materials. Fiberglass is widely used to create PCB laminates. This substance has been helpful for contemporary PCBs. Fiberglass-reinforced laminate composites are incredibly advantageous for the most common uses.

The use of fiberglass PCB has increased as advances in technology have occurred. There is new fiberglass provided with the strongest resin systems as well as improved properties. This material satisfies the performance as well as price requirements of our electronic industry.

Why the Fiberglass (FR4) Substrate is Important

In addition to being the standard rating, FR4 is also a name that can be spelled as FR-4. Epoxy-laminated sheet with fiberglass reinforcing used for the manufacturing of circuit boards are referred to by this nomenclature.

Yet, this word also designates a certain grade of epoxy laminate sheets. The grade is applicable to a wide variety of designs as well as sheet materials and is typically thought to signify the fundamental quality of a laminate sheet. The “FR” inside its name denotes that the material is flame resistant, and the “4” sets it apart from others in similar category.

The chemical commonly known as FR4 is constructed from composite components. The foundation layer of the material is made of fiberglass which has been weaved into a thin sheet that resembles fabric. The fiberglass gives FR4 the necessary structural stability.

The interior fiberglass layer is then encased and joined with a flame-resistant glue. The resin can be described as what imparts rigidity to a material along with other physical properties. Electrical engineers and designers like using FR4 sheets as the foundation for PCBs. The material’s accessibility, versatility, and broad range of beneficial physical properties might be blamed for its popularity.

FR4 sheets are electrical insulators with a high dielectric strength. Moreover, they have a strong strength to weight ratio, are moisture resistant, and are light in weight. When you add its temperature resistance to their ability to perform in most environmental conditions, FR4 material is a good choice.

What Advantages Does FR4 PCB Materials Offer?


The term FR4 stands for flame retardant, and the number 4 designates a rating that distinguishes the material from others. FR4 is described as a woven, and thin fiberglass-reinforced epoxy laminated sheet used in the production of PCBs.

The substance’s FR4 composite fiberglass structure is what gives it rigidity as well as stability.

These benefits of FR4 make it a popular material with OEMs and PCB producers. Let’s look at them in the context of that.

Outstanding electrical properties

Electrical properties of a circuit board material are essential in the signal impedance as well as integrity calculations because they influence how rapidly any electrical signal moves through a specific material.

The high dielectric strength of FR4 is what gives it its electrical insulating properties. The thickness, kind of fiberglass weave, and resin employed all affect its FR4 Dk, which varies between 3.8 to 4.8 MHz.

Flammability retardant

Flame retardants can be used in a wide range of production procedures and produce reliable results. Because of its superior electrical, mechanical, and thermal properties, FR4 is indeed a preferred material for majority of electronics applications.

Moisture Absorption

This can be described as one of the most important properties of FR4 materials. When immersed in water, the material absorbs moisture at about 0.10% rate. The FR4 was primarily moisture-resistant, however it is additionally temperature resistant and can withstand a wide range of temperatures.

Efficiency of Cost

FR4 is a well-known foundation material of circuit boards because of its inexpensive cost and stable chemical as well as physical properties. This benefits a lot of PCB manufacturers and designers that are concerned about costs.

What Does Fiberglass PCB Mean?


Fiberglass is frequently used for rigid PCBs. Materials like composites and fiberglass make up a fiberglass PCB.

Moreover, the mechanical as well as dielectric properties of this PCB are excellent. It is also resistant to heat and moisture. In addition, fiberglass works incredibly well as an insulator.

It’s a common substrate for PCB manufacturing. Fiberglass also makes a composite’s polymer matrix stronger. When used to create fiberglass, a substance whose structure is strengthened by fiber, glass fiber could be thought of as a reinforced plastic. We can also refer to this as  glass reinforced plastics.

Fiberglass is also a lightweight as well as less brittle substance. However this material can be shaped into a wide range of complex forms. This is among the reasons why it is widely used in PCB fabrication. Fantastic properties of fiberglass They are corrosion-resistant thanks to the fiberglass PCBs. This circuit board does not also transport electricity. This is one reason why it gets rid of galvanic erosion as well as serves as reliable insulators.

Glass Fiberglass PCB Construction

The initial stage in making fiberglass PCB is to place the fabrics on warp beam. This beam features coils of yarn above its master beam. These strands make up the warp direction. Following that, the manufacturer runs some lubricants via the warp yarns. Due to this, it helps prevent injury during weaving.

In order to start weaving, the warp beam can also set up on the back of the loom. The maker places such fill yarns at the same time which these yarns are being transferred from the backend to the frontend of the loom. Several Draper looms has historically been available. In order to move from one of this loom’s sides to the opposite side, its wooden shuttle would be employed. This makes it simpler to insert the fill yarns.

The more modern looms use either a water or air jet to operate. The jet is transferring the fill yarns all over the loom. Moreover, this warp beam in modern looms may contain thousands of various warp strands in meters. The manufacturer weaves these glasses before washing them using water. This helps these yarns lose any excess size as well.

The warp yarns are then extensively baked by the maker. Next, the finishing treatment is applied adjacent to this fabric. After weaving the fiberglass, other resins are added by the manufacturer to further strengthen the board.

What Features are Present in the Fiberglass PCB?

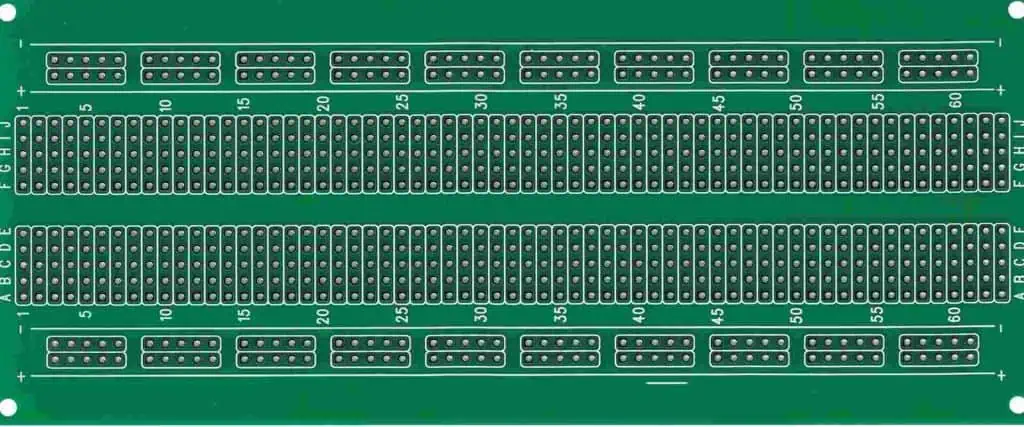

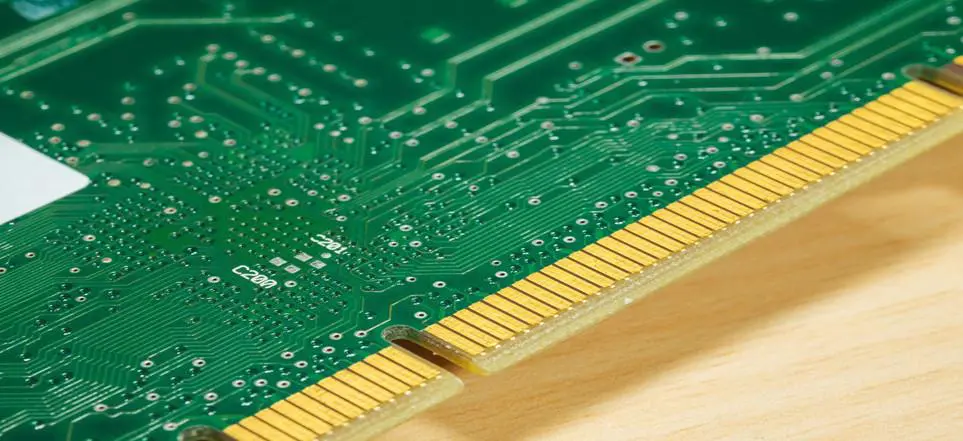

fr4 pcb

Circuit boards made of fiberglass are unique in that they are usually utilized in some applications. Moisture resistant

Fiberglass has a built-in ability to withstand moisture. Moreover, fiberglass PCB does not absorb moisture. It is what makes it perfect for environments use where there is a chance of moisture. The PCB is adaptable to each situation it encounters.

Dimensional stability

The fiberglass PCB size does not change in response to a particular temperature. The dimensional stability of the PCB is exceptionally high. Thus, high power applications are suitable for it. Its linear expansion coefficient can also be viewed as modest. It is hence resistant to almost any changes seen in hygrometry and temperature.

Chemical Resistance

The chemical resistance of fiberglass PCB is yet another excellent feature. Most chemicals have very little effect on fiberglass PCB. Nevertheless, powerful alkaline compounds might bring harm to fiberglass.

Fire resistant

Neither does fiberglass support combustion. This inorganic material is also naturally combustible. Due to this As a result, when heated, it doesn’t produce smoke. Moreover, fiberglass retains around 25% of its total strength at a temperature of 540 degrees Celsius.

Electrical characteristics

It is a great idea to use fiberglass PCB for any electrical insulation. Moreover, these boards are quite strong and have low dielectric constant. They are therefore ideal for a variety of high-end purposes and applications.

Temperature Conduction

Due to its low thermal conductivity and CTE, fiberglass PCBs is the preferred place for any high-power application. Moreover, this might easily release heat due to its poor thermal conductivity.

Superior Strength

Fiberglass boards have a great ratio of strength to its weight. They are therefore viewed as a reliable choice that suits applications requiring high strength.

What are the Applications of Fiberglass PCB?

High-temperature insulating PCBs act as thermal barriers. Fiberglass is trustworthy and secure by nature. This is because it can be regarded as a substance that is widely utilized to make PCBs. Moreover, fiberglass PCB has been utilized frequently in the applications below.

Aerospace and Defense

Fiberglass PCBs are frequently used in aerospace and defense applications. Moreover, these boards help with the manufacturing of the components for aerospace devices. The airplane sector also makes extensive use of GRP. Some examples of GRP uses are storage bins and instrument enclosures.

Consumer Electronics

Consumer devices such as computers, radios, and telephones frequently use the fiberglass PCB. Also, the electrical and mechanical properties of these boards are superb.


Fiberglass PCB, which is often used in medical equipments, is dimensionally stable and has low conductivity of heat. Also, a number of medical gadgets, like X-ray machines, are using this type of circuit board.


Boards made of fiberglass are crucial for the automotive industry. These boards are heavily used by the automotive industry. They are regularly used in the manufacturing of automotive components.


The production of electrical gadgets relies heavily on fiberglass PCB. The circuit boards can also be easily customized. They are suitable for use in a number of applications as a result.
