Why Consider Thermal Pad PCB in Manufacturing and Design?

Soldering is crucial in PCB development. Without it, we cannot ensure strong connections between the PCB parts and the boards at all. The strength that soldering provides to our PCBs is unbelievable.

Therefore producers pay close attention to the soldering process. However, since the entire PCB production is a sensitive process, we need to pay close attention to soldering as well.

Sometimes, due to some reasons, poor solder joints develop, and the heat damage can also ruin the PCB’s structure as well. Due to this reason, prolonged exposure to heat start melting the components. Therefore we need something to stop this from happening, which is thermal pad PCB.

We are going to dig deeper into its role and find out how it regulates the heat within a PCB successfully.

What is a Thermal Pad PCB?

We will mostly find the thermal pads attached to a copper surface. There are 3-4 traces, also known as spokes, that make this connection possible. This special Thermal pad PCB works and appears similar to the common pad, but the difference lies in its spokes which are made of metal that is present around the periphery of the copper plate.

Functions of Thermal Pad PCB

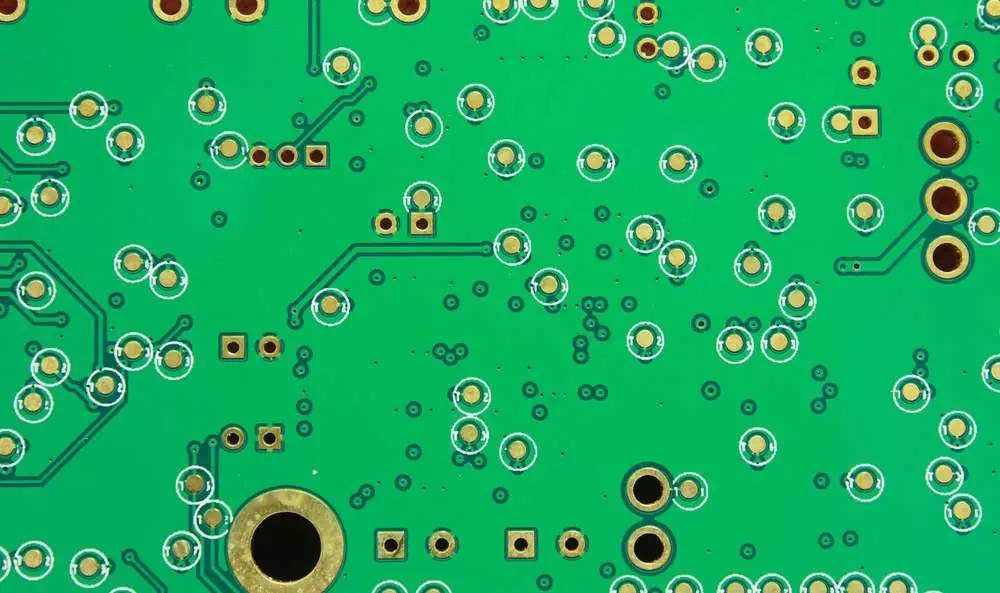

Thermal pad PCB
Thermal pad PCB

There is no doubt that a thermal pad for PCBs is a multipurpose thing. It not only regulates the heat but also protects the PCBs from possible damage. There is a huge metallic copper surface area in regular pads which lets through a lot of heat. The surface acts as a heat sink which increases the chances of quick meltdown of the sensitive components.

This unregulated heat transfer can eventually cause problems in the PCB structure and functioning ultimately. The development of poor and weak solder joints is also due to this reason. If the joints are weak, it will also cause faulty attachment of SMT parts on the boards. Chances of tombstoning are also present, and due to this reason, PCBs can undergo complete failure in no time. We can sort out all of this with a single thermal pad PCB that can easily regulate the heat for these setups. Most pads don’t have big spokes, but if we use them, we can increase their efficiency of heat regulation as well.

Importance of Thermal Pad PCB

 Problems occur when we don’t take thermal relief for PCBs seriously. Some producers don’t rely on such tactics that ensure seamless heat regulations and suffer huge losses later. When we talk about thermal pad PCB, it comes with spokes that are crucial for successful heat regulation.

These pads also have thermal reliefs because, without them, the system won’t be able to do its job efficiently. They are basically connecting the pad and plane so that the heat regulation can take place without any interruption.

The thermal reliefs always surround the green-colored copper platform, and this entire structure is responsible for protecting the PCBs from heat damage. Thermal reliefs are important to provide necessary protection and enhance the electrical performance of the PCBs at the same time. The system itself is a heat sink that controls the heat from time to time.

Considerations of Thermal Pad PCB

When we are working with technical systems, we need to follow their guidelines and considerations to drive the best results from them. The designs of these thermal pads are important because faulty designs cannot later develop into industrial thermal pads PCB at all. Producers need to pay heed to the current loads to avoid electrical failures.

Other than this, power regulation and power nets also need proper control to make these pads work at their finest. Other than this, it is better to inspect the designs and prototypes for the pads to detect faults in time.

Why Are There Thermal Pad PCBs in Manufacturing?

A thermal pad is just like a PCB raw material that works for heat regulation with the help of thermal reliefs in it. Therefore such pads are useful in precisely controlling the heat and protecting the heat-sensitive parts at the same time.

Silicone, graphite, and other heat-friendly materials are important for their functioning. These are present in the middle of the components and the boards to regulate the heat and protect them from heat damage. These are basically the heat sink for the setups.

  • Temperature control: The way these pads provide sus with efficient temperature control cannot be done with any other system. Due to this reason, producers like to rely on these pads to protect sensitive components so that they can perform seamlessly.
  • Thermal conductivity: Thermal pads consist of good thermally conductive materials, and due to this reason, materials like silicone and graphite contribute to their heat regulation function to a great extent. These pads become heat sinks and precisely reduce heat damage as well.
  • Thermal stress: If the system keeps undergoing thermal fluctuations, then it can lead the setup to ultimate failure. Therefore it is important to reduce this thermal stress to increase the longevity of the PCBs, and pads are a good option for it.
  • TIMs: These are small gaps that we create between the sensitive parts, and due to this reason, these pads are able to regulate heat and provide intermittent cooling to the entire setup.
  • Electrical isolation: Excess electric transfers can negatively impact the PCBs by producing heat, and therefore, electrical isolation provided by thermal pad PCB is a great solution to this problem.
  • Easy installation & maintenance: Thermal pads are easy to install and require less maintenance. We do not need to use advanced equipment for the installation. Therefore you won’t find producers charging extra for their installation as well.

Designing Thermal Pad PCB

Electronic components are important in the designing of thermal reliefs present in the pads. Not to forget that these are the fundamental blocks that make the pads perform easily. With the passage of time, these thermal reliefs are undergoing different advancements to make the entire pads more efficient in their working. It is important to carefully join these reliefs to the pads through soldering. Negligence in this process can easily ruin the structure and function of thermal pads PCB. If a pad has low-quality reliefs, then it will develop tombstoning, weak solder joints, and several other problems leading to PCB failure. All of this will raise the need for reworking, and therefore, a producer would have to invest extra in developing thermal pads from scratch. So if we attach the reliefs carefully with the pads, there will be no need for reworking. The correct arrangement of thermal reliefs in heat regulation will also successfully control the heat.

RayPCB help you with Designing Thermal Pad PCB

 It is obvious that you need to rely on professional help to procure industrial-grade thermal pads PCBs. There have been cases when producers were unable to cope with the problems, and it resulted in a complete loss of investment at the same time. Therefore it is better to avoid these complications; we need to rely on professionals. This is how you can select the right professional for this purpose:

  • They are experienced in the development of thermal pads, PCB.
  • They strictly follow the pad development guidelines and meet industry standards.
  • Their pads are reliable and serve longer in terms of performance and durability.
  • See if the product comes under your budget and if their thermal pads are worth it.
  • Inquire about their knowledge regarding thermal pad development
  • Cross-check their customer reviews and portfolio.
  • It will be better to check if they can deliver under pressure and meet client deadlines.
  • You also need to inquire if they can do large-volume production or not.




 We hope that now you have a good idea about thermal pads PCB and you can easily leverage them to your own advantage. In this post, we have shed light on them through different aspects. It will help you with a complete understanding of these amazing heat regulators. It is also crucial that we consider their design guidelines so that they can perform for us longer without undergoing potential damage.
