MCPCB in LED Lighting: Choose the Board Architecture Around the Lamp

Start from the LED package and optical task

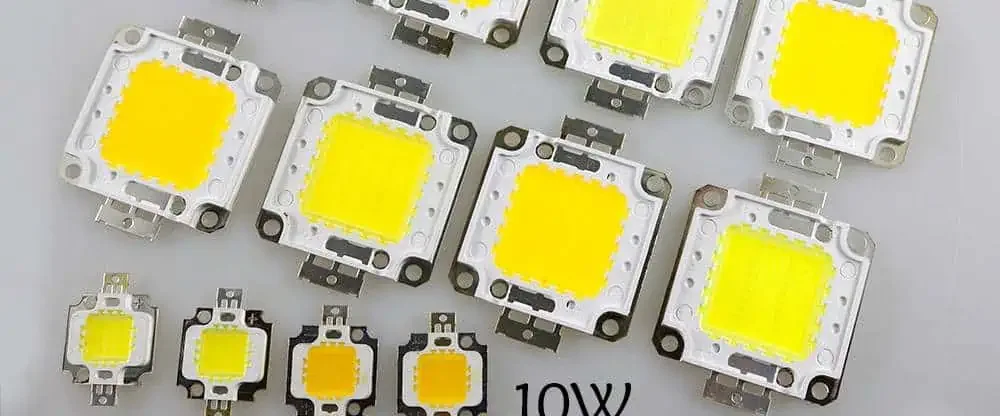

Identify the exact LED package, land pattern, electrical connection and thermal interface described by its manufacturer. A package's exposed pad may have a defined electrical potential or isolation requirement. Do not assume that all LED thermal pads can be connected to the same copper or metal surface.

For a vehicle module, also use the automotive MCPCB qualification brief. Record the required optical arrangement and the positions controlled by lenses, reflectors or light guides. Board shape and component spacing can be driven by optics as well as temperature. Include those constraints before selecting a standard-looking metal-backed panel.

Map the circuit and the heat separately

The electrical path connects LEDs, drivers and protection components. The thermal path transfers loss from packages through the board and mounting into the environment. They can overlap physically without having identical requirements. Mark both on the review drawing.

A routing bridge or connector can interrupt an otherwise convenient layout. A shared metal base may also need separation from live circuitry or accessible housing. Use high-voltage PCB design when the architecture includes an insulation barrier rather than assuming the IMS dielectric settles the issue.

LED MCPCB architecture brief

Choose circuit complexity deliberately

A simple LED string may fit a single circuit layer, while integrated drivers and controls may require more routing flexibility. More layers on a metal-backed construction introduce process and isolation questions. Compare that complexity with a separate driver board and a simpler LED board where the product allows it.

Use multilayer metal-core design for the interconnection discussion. Neither architecture is universally better. Connector count, enclosure space, thermal separation, assembly and service determine the useful comparison.

Define the mechanical interface

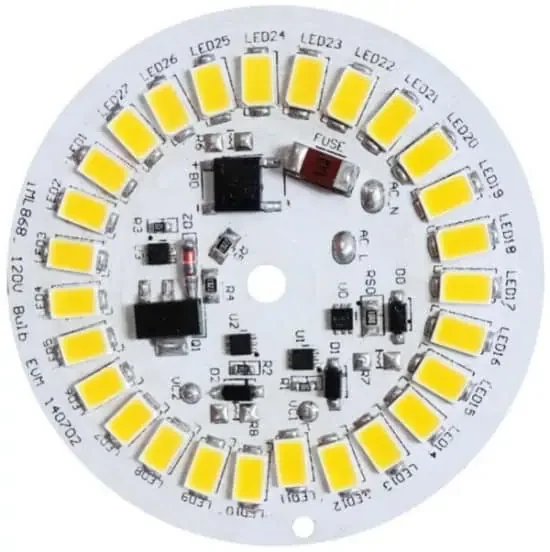

Show mounting holes, reference surfaces and the contact area to the housing or sink. Include board flatness, tolerance and how pressure is applied. A large circular board and a narrow linear strip can require different support and assembly arrangements even at similar power.

Keep optical alignment in that mechanical drawing. A board can be electrically sound and thermally acceptable yet produce poor optical results if LED position or height changes. Identify critical dimensions explicitly rather than treating all outline tolerances as equally important.

Specify a complete stack

Name copper, dielectric, base and finish requirements. A generic aluminum-board description leaves dielectric properties and thickness unresolved. Compare exact constructions against electrical insulation, heat transfer and mechanical requirements together.

The aluminum stackup worksheet helps organize the thickness schedule. It does not establish thermal suitability. When evaluating material alternatives, retain the same source footprint and mounting boundary so a change can be interpreted meaningfully.

Review assembly around the heat path

LED soldering and handling should follow the actual component and process requirements. The metal-backed board can change heating behavior during assembly. Review solder-paste deposition, support, placement orientation and the inspection criteria for critical joints.

Protect optical surfaces and component identification through the process. If the order includes only the bare board, make the boundary clear so the assembly provider receives the relevant thermal and mechanical notes. The PCB assembly service is the appropriate route for populated-board scope.

Verify the finished lamp conditions

Board temperature is one input to a product evaluation, not a direct lifetime guarantee. Record electrical operation, optical output and relevant temperatures under the intended installation conditions. A bench demonstration without the actual housing may miss the governing heat path.

Use representative component population and interface materials. If the prototype differs from production, document that difference before carrying the result forward. Keep the optical and thermal records attached to the same hardware revision.

Send an architecture brief with the files

Provide the LED part numbers, circuit, board outline, optical datums, stack proposal, mounting and acceptance plan. State whether the open decision concerns a single-layer MCPCB, another construction or a split board arrangement. Include quantity and expected repeat demand as separate commercial inputs.

Continue to LED PCB for the broader manufacturing route and metal-core PCB for construction details. The worksheet supports an informed conversation; it does not require customers to solve every design question before contacting RAYPCB.

Coordinate the board stack with the installed heat path

Prepare one cross-section that includes copper, dielectric, metal, mounting interface and the relevant housing surface. Mark the electrical potential of conductive regions and the intended heat-flow route. This drawing exposes assumptions that a board-thickness callout or a conductivity value cannot describe alone.

Add actual hole and outline features. Explain which holes provide electrical connection, which are mechanical and which require isolation from metal. Keep tolerances and the intended inspection boundary on the same revision. A simple IMS coupon is not automatically representative of a complex multilayer or machined construction.

Share the assembly and mounting conditions before final material selection. Heat transfer, soldering, flatness, fastening and insulation can pull the design in different directions. A useful manufacturing response identifies those tradeoffs and the evidence needed for the particular construction, without promising that one generic stack suits every product.

Before release, place the chosen requirement, the proposed construction and the evidence in one review record. Separate measured values from supplier nominal data and from your own assumptions. If a value is unknown, identify who will obtain it and what decision depends on it. An empty field is more honest and more useful than an invented typical figure.

During an A/B comparison, change one relevant variable where possible. Preserve the original inputs and the reason for the change. If several things change together, describe the result as a comparison between complete configurations. Do not attribute the entire difference to one material or geometry feature without supporting evidence.

For a repeat order, confirm that the relevant drawing, material and process revisions still match the accepted configuration. Record alternatives explicitly. This small discipline helps purchasing avoid an apparently equivalent substitution that changes the engineering basis of the original decision.
