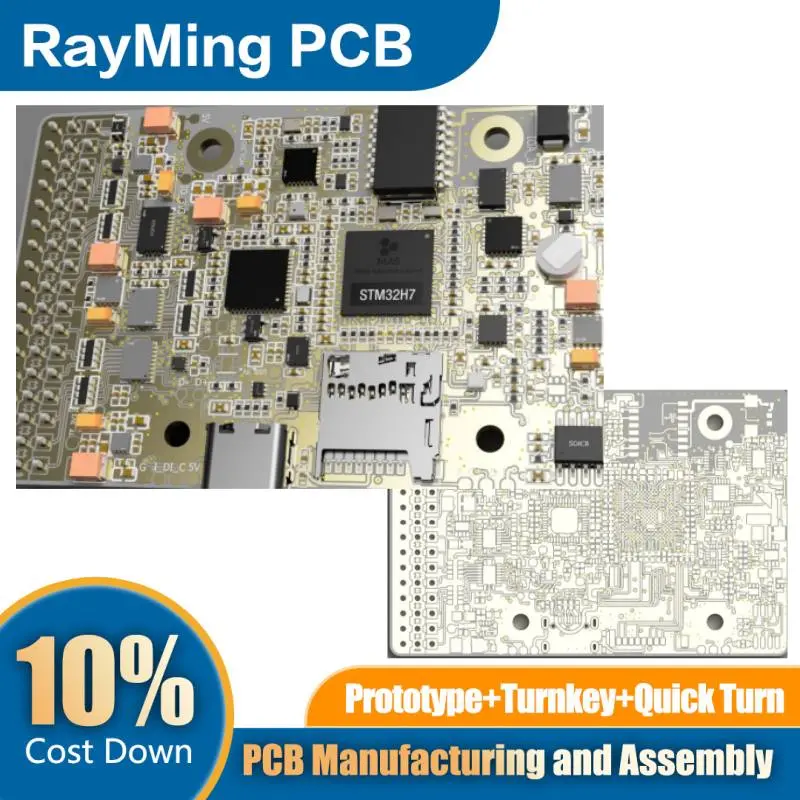

Elevate Your Unmanned Aerial Systems with Industry-Leading PCB Solutions
Our comprehensive 6-layer PCB service delivers aerospace-grade circuit boards specifically engineered for unmanned aerial vehicles. From initial design consultation through manufacturing to complete assembly, we provide end-to-end solutions that meet the rigorous demands of modern UAV applications.
Design Excellence
Our specialized engineering team creates high-density 6-layer PCB designs optimized for flight performance. We incorporate advanced signal integrity analysis, controlled impedance routing, and thermal management techniques specifically for UAV requirements. Each design undergoes comprehensive verification to ensure reliability in aerial operations.
Precision Manufacturing
Using state-of-the-art equipment, we produce 6-layer PCBs with exceptional accuracy and consistency:
- Ultra-fine trace resolution (down to 3mil)
- Specialized lightweight materials with high thermal stability
- FR-4 high-Tg, polyimide, and Rogers material options
- Automated optical inspection at multiple stages
- Strict adherence to IPC Class 3 standards for aviation applications
Expert Assembly
Our precision assembly process ensures your UAV PCBs perform flawlessly:
- Automated SMT placement with ยฑ0.02mm accuracy
- Advanced BGA/QFN mounting capabilities
- Lead-free soldering with nitrogen atmosphere
- Comprehensive functional testing
- Full environmental stress screening available
Perfect for UAV Applications
- Flight controllers
- Power management systems
- Navigation and guidance systems
- Sensor integration platforms
- Communication modules
- Payload control systems
Contact us today to discuss how our 6-layer UAV PCB solutions can take your aerial technology to new heights.
