Original price was: $205.00.$199.00Current price is: $199.00.

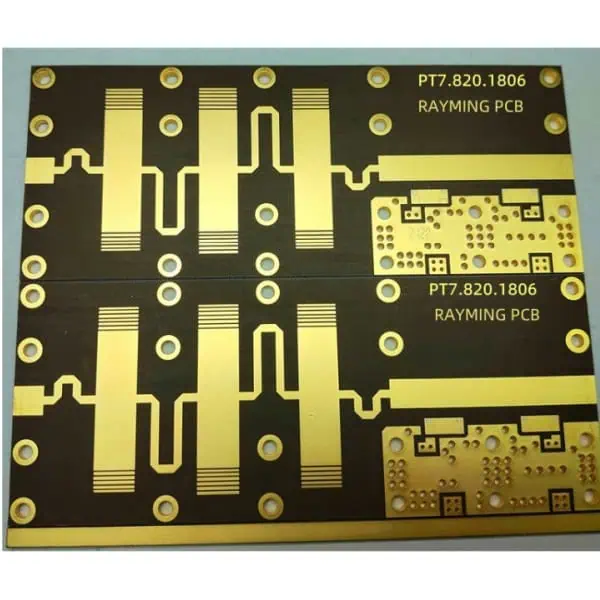

Product Name: PTFE ( Polytetrafluoroethylene ) TFA-2 high-frequency PCB
Sheet material：TFA-2
Thickness: media thickness 1.524mm, finished plate thickness 1.65mm
Number of layers: 2 layers PCB
Minimum line width/spacing: 10/10mil
Finished copper thickness: outer layer 2OZ
Acceptance standard: IPC6012 CLASS 3 level
Surface technology: immersion gold
Dielectric constant: 2.94+/-0.04
Loss Factor: 0.001
Usage: Power amplifier
