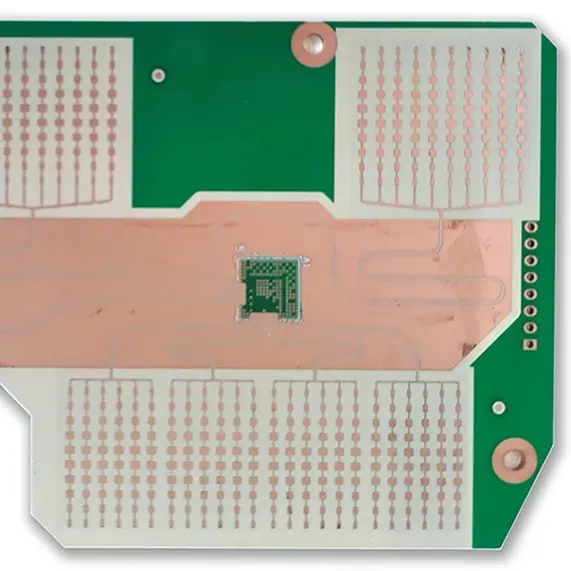

RayMing Rogers Ro3003 PCB Board 0.8 Thickness

Original price was: $540.00.Current price is: $520.00.

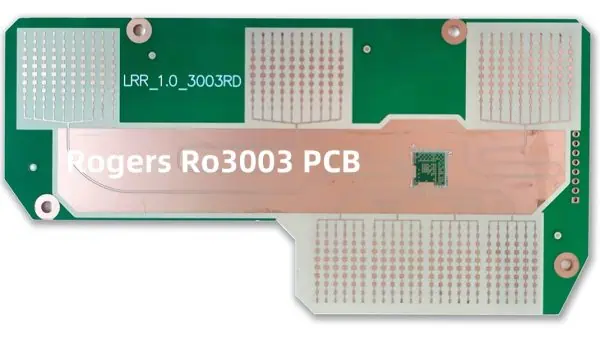

Rogers Ro3003 PCB Board

0.8 Thickness

2 Layer PCB

Dielectric Constant: 3.0

Size: 220 x 80mm

Rogers Ro3003 Laminates Datasheet

RO3000 Laminate Data Sheet RO3003 – RO3006 – RO3010 – RO3035

What is Rogers Ro3003 ?

The Rogers Ro3003 is a high-frequency laminate material widely used for printed circuit boards (PCBs) in various applications, such as wireless communications, microwave circuits, and radar systems. Here are some key points about the Rogers Ro3003 PCB board with a thickness of 0.8 mm:

  1. Material Properties:
    • Dielectric constant (Dk): 3.0 ± 0.08 (typical value at 10 GHz)
    • Dissipation factor (Df): 0.0013 (typical value at 10 GHz)
    • Reinforcement: Woven glass reinforced PTFE (polytetrafluoroethylene) composite
  2. Thickness: The specified thickness of 0.8 mm (0.031 inches) is a common choice for Rogers Ro3003 PCBs. This thickness provides good mechanical stability while maintaining favorable electrical properties for high-frequency applications.
  3. Applications:
    • Ro3003 is suitable for various high-frequency applications, including:
      • Microstrip and stripline circuits
      • Antennas and antenna arrays
      • Filters and couplers
      • Power amplifiers
      • Wireless infrastructure equipment
      • Radar systems
  4. Frequency Range: Rogers Ro3003 is designed for use in high-frequency applications, typically up to the millimeter-wave range (30 GHz and above). The low dissipation factor and stable dielectric constant make it suitable for high-speed digital and RF/microwave circuits.
  5. Advantages:
    • Low loss and consistent electrical properties over a wide frequency range
    • Excellent dimensional stability and resistance to harsh environments
    • Good thermal conductivity for effective heat dissipation
    • Suitable for various manufacturing processes, including standard PCB fabrication techniques

It’s important to note that the specific design requirements, such as operating frequency, power levels, and circuit complexity, should be considered when selecting the appropriate PCB material and thickness. Rogers Ro3003 is a popular choice for high-frequency applications where low loss and consistent electrical performance are critical factors.
