The ESP32 is a powerful and versatile microcontroller that has gained immense popularity in the world of IoT and embedded systems. One of its key features is its built-in Wi-Fi and Bluetooth capabilities, which rely heavily on antenna performance. While the ESP32 comes with an on-board PCB antenna, there are many scenarios where an external antenna can significantly improve wireless performance. This article will guide you through the process of designing an external antenna for your ESP32 board, covering everything from basic concepts to advanced techniques and regulatory considerations.

Understanding ESP32 and Antenna Basics

ESP32 RF Capabilities

The ESP32 is a dual-core microcontroller with integrated Wi-Fi and Bluetooth functionality. It operates in the 2.4 GHz ISM band for both Wi-Fi and Bluetooth, and some variants also support the 5 GHz band for Wi-Fi. Understanding these RF capabilities is crucial for designing an appropriate external antenna.

Antenna Fundamentals

Before diving into the design process, it’s essential to grasp some fundamental antenna concepts:

1. Resonant Frequency: The frequency at which the antenna is most efficient at radiating or receiving electromagnetic energy.
2. Impedance: The opposition an antenna presents to the flow of alternating current, typically aimed at 50 ohms for most RF systems.
3. Gain: A measure of an antenna’s ability to direct radio frequency energy in a particular direction, expressed in dBi (decibels relative to an isotropic radiator).
4. Polarization: The orientation of the electric field in an electromagnetic wave, which can be linear (vertical or horizontal) or circular.
5. Bandwidth: The range of frequencies over which an antenna can operate effectively.
6. Radiation Pattern: A graphical representation of the antenna’s transmission and reception properties in various spatial directions.

Understanding these concepts will help you make informed decisions when designing your external antenna for the ESP32.

Types of Antennas for ESP32

When considering an external antenna for your ESP32 board, you have several options to choose from. Each type has its own set of characteristics, advantages, and limitations. Here’s an overview of the most common antenna types suitable for ESP32 applications:

1. Monopole Antennas

Monopole antennas are simple, omnidirectional antennas that are easy to implement and offer good performance for many applications.

Pros:

• Simple design
• Omnidirectional radiation pattern
• Good bandwidth

Cons:

• Requires a ground plane
• May be physically longer than other options

2. Dipole Antennas

Dipole antennas consist of two identical conductive elements and are known for their simplicity and effectiveness.

Pros:

• Balanced design
• Good impedance matching
• Omnidirectional in the azimuth plane

Cons:

• Larger size compared to monopoles
• May require a balun for optimal performance

3. Patch Antennas

Patch antennas, also known as microstrip antennas, are low-profile antennas that can be easily integrated into PCB designs.

Pros:

• Low profile and compact
• Can be easily integrated into PCB designs
• Directional radiation pattern

Cons:

• Narrower bandwidth
• Lower gain compared to some other types

4. Chip Antennas

Chip antennas are very small, surface-mount components that can be easily integrated into compact designs.

Pros:

• Extremely compact size
• Easy to integrate into PCB designs
• Good for space-constrained applications

Cons:

• Generally lower gain
• May require careful PCB layout for optimal performance

5. Helical Antennas

Helical antennas consist of a conducting wire wound in the form of a helix and are known for their ability to produce circular polarization.

Pros:

• Circular polarization
• Good axial ratio
• Compact size for their electrical length

Cons:

• More complex to manufacture
• May require precise tuning

Here’s a comparison table of these antenna types to help you choose the most suitable option for your ESP32 project:

When selecting an antenna type for your ESP32 project, consider factors such as available space, desired radiation pattern, gain requirements, and the specific application environment. Each type has its strengths, and the best choice will depend on your project’s unique needs.

Designing Your External Antenna

Once you’ve chosen the type of antenna that best suits your ESP32 project, it’s time to dive into the design process. This section will guide you through the steps of designing your external antenna, focusing on key parameters and considerations.

Step 1: Determine the Antenna Requirements

Before starting the design, clearly define your antenna requirements:

1. Frequency Range: Typically 2.4 GHz for ESP32, but some variants support 5 GHz.
2. Bandwidth: Ensure it covers the entire Wi-Fi and Bluetooth spectrum.
3. Gain: Determine the required gain based on your application’s range needs.
4. Size Constraints: Consider the available space in your device.
5. Radiation Pattern: Decide if you need omnidirectional or directional coverage.
6. Polarization: Choose between linear and circular polarization based on your use case.

Step 2: Antenna Dimensioning

Calculate the dimensions of your antenna based on the wavelength of the operating frequency. For a 2.4 GHz signal, the wavelength (λ) is approximately 125 mm. Here are some general guidelines for common antenna types:

• Monopole: Length ≈ λ/4 (about 31.25 mm for 2.4 GHz)
• Dipole: Each arm length ≈ λ/4 (total length ≈ λ/2)
• Patch: Width and length ≈ λ/2, but exact dimensions depend on substrate properties

For more complex antennas like helical or specialized chip antennas, refer to manufacturer guidelines or use antenna design software for precise dimensioning.

Step 3: Choose Antenna Materials

Select appropriate materials for your antenna and substrate:

1. Conductor: Copper is commonly used due to its excellent conductivity and cost-effectiveness.
2. Substrate: For PCB-based antennas, consider FR-4 for its low cost and good performance at 2.4 GHz. For higher frequencies or more demanding applications, consider materials like Rogers RO4350B.
3. Dielectric: The choice of dielectric material and its thickness will affect the antenna’s performance and size.

Step 4: Simulation and Optimization

Use electromagnetic simulation software to model and optimize your antenna design. Popular tools include:

• ANSYS HFSS
• CST Microwave Studio
• FEKO
• OpenEMS (open-source alternative)

Simulate the antenna’s performance, including:

• S-parameters (S11 for reflection coefficient)
• Radiation pattern
• Gain
• Efficiency

Iterate on your design, adjusting dimensions and materials to achieve the desired performance characteristics.

Step 5: Prototyping

Once you’re satisfied with the simulated results, create a prototype of your antenna PCB. This can be done through:

1. PCB fabrication for patch, monopole, or other PCB-based designs
2. 3D printing for more complex structures, followed by metallization
3. Wire-forming for wire antennas like dipoles or helical designs

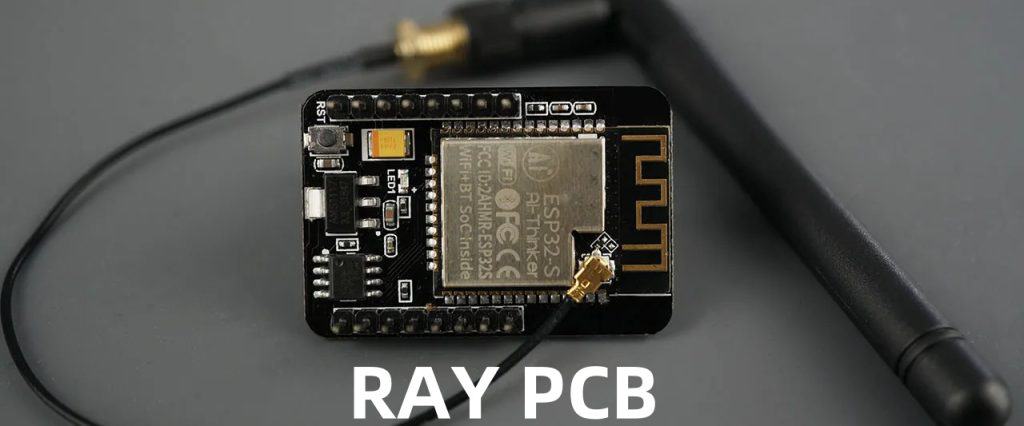

Step 6: Integration with ESP32

Design the interface between your antenna and the ESP32 board:

1. Choose an appropriate connector (e.g., U.FL, SMA) or direct PCB connection.
2. Ensure proper impedance matching (typically 50 ohms) between the antenna and the ESP32’s RF output.
3. Consider using a pi-matching network for fine-tuning the impedance match.

Here’s a table summarizing key design parameters for different antenna types at 2.4 GHz:

Remember that these are general guidelines, and the exact dimensions and performance will depend on your specific design and implementation. Always verify your design through simulation and prototyping for optimal results.

Matching Network and Impedance Matching

Proper impedance matching is crucial for maximizing power transfer between the ESP32 and your external antenna. A well-designed matching network ensures that the antenna’s impedance matches the ESP32’s RF output impedance, typically 50 ohms. This section will guide you through the process of designing and implementing a matching network.

Understanding Impedance Matching

Impedance matching aims to minimize signal reflections and maximize power transfer. When the antenna’s impedance doesn’t match the source impedance (ESP32’s RF output), a portion of the signal is reflected, reducing the overall system efficiency.

The reflection coefficient (Γ) is given by:

Γ = (ZL – Z0) / (ZL + Z0)

Where:

• ZL is the load impedance (antenna)
• Z0 is the characteristic impedance (typically 50 ohms)

The goal is to minimize Γ, ideally bringing it as close to zero as possible.

Types of Matching Networks

There are several types of matching networks you can use:

1. L-Network: Simple and effective, consists of two reactive elements.
2. Pi-Network: Offers more flexibility and bandwidth, uses three reactive elements.
3. T-Network: Another three-element network, useful for certain impedance transformations.

For most ESP32 external antenna applications, an L-network or Pi-network is sufficient.

Designing an L-Network

An L-network consists of two reactive elements (inductors or capacitors) arranged in an “L” shape. There are four possible configurations:

1. Low-Pass L-Network
2. High-Pass L-Network
3. Low-Pass Inverted L-Network
4. High-Pass Inverted L-Network

The choice depends on the specific impedance transformation required and any additional filtering needs.

To design an L-network:

1. Measure or simulate the antenna’s impedance at the operating frequency.
2. Calculate the required reactance values using Smith chart techniques or matching network calculators.
3. Choose the nearest standard component values.
4. Fine-tune the values through simulation or measurement.

Implementing a Pi-Network

A Pi-network offers more flexibility and can provide a wider bandwidth than an L-network. It consists of three reactive elements arranged in a “π” shape.

To design a Pi-network:

1. Determine the desired Q-factor (affects bandwidth and loss).
2. Calculate the required reactance values using specialized Pi-network calculators or Smith chart techniques.
3. Choose standard component values close to the calculated ones.
4. Optimize the network through simulation or measurement.

Practical Considerations

When implementing your matching network:

1. Component Quality: Use high-quality RF components with low loss and tight tolerances.
2. PCB Layout: Keep traces short and use proper RF layout techniques.
3. Tunability: Consider adding provisions for fine-tuning, such as footprints for optional components.
4. Measurement: Use a vector network analyzer (VNA) to measure and optimize the matching network’s performance.

Here’s a comparison table of L-network and Pi-network characteristics:

Remember that the specific values and configuration of your matching network will depend on your antenna’s characteristics and the ESP32’s RF output. Always verify the performance through simulation and measurement to ensure optimal results.

PCB Layout Considerations

Proper PCB layout is crucial for the performance of your ESP32 external antenna system. A well-designed layout can significantly improve RF performance, reduce interference, and ensure compliance with regulatory standards. This section covers key considerations for your PCB layout when integrating an external antenna with an ESP32 board.

General RF PCB Layout Guidelines

1. Impedance Control: Maintain consistent 50-ohm impedance for all RF traces.
2. Trace Width: Calculate and maintain appropriate trace width based on your PCB stack-up to achieve 50-ohm impedance.
3. Minimize Trace Length: Keep RF traces as short as possible to reduce losses.
4. Avoid Sharp Bends: Use curved or 45-degree traces instead of 90-degree bends in RF paths.
5. Ground Plane: Provide a solid, uninterrupted ground plane under RF traces and components.
6. Component Placement: Place RF components close to each other and to the ESP32 module.

ESP32-Specific Considerations

1. Antenna Placement: Position the antenna or antenna connector at the edge of the PCB, away from other components and metal objects.
2. Keep-Out Area: Maintain a keep-out area around the antenna free from ground plane and other metal.
3. Isolation: Separate RF traces and components from digital and power circuits.
4. Shielding: Consider using shielding for sensitive RF components or the entire RF section.

Matching Network Layout

1. Component Placement: Place matching network components as close as possible to the antenna feed point or connector.
2. Minimize Parasitics: Use short, direct connections between components to reduce parasitic inductance and capacitance.
3. Ground Connections: Ensure good, low-inductance ground connections for shunt components.

Antenna Feed Considerations

1. Microstrip vs. Coplanar Waveguide: Choose the appropriate transmission line type based on your design requirements and PCB stack-up.
2. Transition Design: Carefully design transitions between different transmission line types or to connectors.
3. Connector Footprint: If using a connector, ensure the footprint is designed for proper impedance matching and minimal discontinuities.

Layer Stack-Up Recommendations

For a typical 4-layer PCB design with an ESP32 and external antenna:

1. Top Layer: RF traces, antenna (if PCB-based), and critical components
2. Layer 2: Uninterrupted ground plane
3. Layer 3: Power planes and some signal routing
4. Bottom Layer: General routing and non-critical components

Design for Testing and Tuning

1. Test Points: Add test points for critical RF nodes to facilitate testing and debugging.
2. Tuning Provisions: Include footprints for optional tuning components in the matching network.
3. Probe Landing Areas: Designate areas for probe landing when using a VNA
