In the ever-evolving world of electronics manufacturing and repair, baking printed circuit boards (PCBs) and components has become an essential process. This comprehensive guide for 2024 will explore the reasons for baking, the various methods employed, and the best practices to ensure optimal results. Whether you’re a hobbyist working on a DIY project or a professional in the electronics industry, understanding the intricacies of PCB and component baking can significantly improve the quality and reliability of your electronic assemblies.

Understanding the Need for Baking

Moisture Sensitivity

One of the primary reasons for baking PCBs and components is to remove moisture. Electronic components, especially those with plastic packaging, can absorb moisture from the environment. This absorbed moisture can lead to various issues during the soldering process.

Common Issues Caused by Moisture

1. Popcorning: Internal steam pressure causes package cracking
2. Delamination: Separation of internal layers
3. Interfacial separation: Weakening of connections between different materials
4. Oxidation: Accelerated degradation of metallic parts

Types of Components Requiring Baking

Component Type	Sensitivity Level	Typical Baking Requirements
BGAs	High	125°C for 24 hours
QFPs	Medium to High	125°C for 16-24 hours
SOICs	Medium	125°C for 12-16 hours
Passive components	Low to Medium	80-100°C for 1-4 hours
PCBs	Varies	80-125°C for 4-8 hours

Baking Equipment

Ovens for PCB and Component Baking

Conventional Ovens

• Pros: Widely available, cost-effective
• Cons: Less precise temperature control, potential for hot spots

Dedicated Baking Ovens

• Pros: Precise temperature control, uniform heating
• Cons: Higher cost, may require specialized training

Vacuum Ovens

• Pros: Efficient moisture removal, reduced oxidation risk
• Cons: Expensive, limited capacity

Essential Features of Baking Equipment

1. Accurate temperature control (±1°C)
2. Good temperature uniformity across the baking chamber
3. Proper ventilation to remove moisture
4. Timer function for precise baking duration
5. ESD-safe design for sensitive components

Preparing for the Baking Process

Assessing Moisture Sensitivity Levels (MSL)

MSL	Floor Life	Conditions
1	Unlimited	≤30°C / 85% RH
2	1 year	≤30°C / 60% RH
2a	4 weeks	≤30°C / 60% RH
3	168 hours	≤30°C / 60% RH
4	72 hours	≤30°C / 60% RH
5	48 hours	≤30°C / 60% RH
5a	24 hours	≤30°C / 60% RH
6	TOL	≤30°C / 60% RH

Organizing Components and PCBs

1. Sort components by MSL
2. Use appropriate ESD-safe containers or trays
3. Ensure proper spacing for uniform heat distribution
4. Label containers with baking parameters and start time

Preheating the Oven

1. Set the oven to the required temperature
2. Allow sufficient time for the oven to reach and stabilize at the set temperature
3. Use a calibrated thermometer to verify oven temperature accuracy

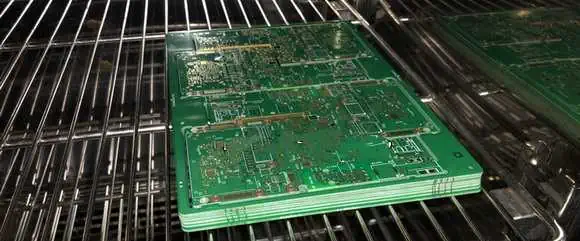

Baking Process for PCBs

Standard Baking Procedure

1. Preheat oven to 125°C (257°F)
2. Place PCBs in ESD-safe containers or on clean, non-conductive surfaces
3. Ensure proper spacing between boards for uniform heating
4. Bake for 4-8 hours, depending on board thickness and complexity
5. Allow boards to cool naturally to room temperature before handling

Special Considerations for Different PCB Types

Rigid PCBs

• Standard baking procedure usually sufficient
• Longer baking times may be needed for thicker boards

Flexible PCBs

• Use lower temperatures (80-100°C) to prevent warping
• Extend baking time to compensate for lower temperature

Rigid-Flex PCBs

• Bake at intermediate temperatures (100-115°C)
• Monitor closely for any signs of delamination or warping

Post-Baking Handling

1. Allow PCBs to cool to room temperature (15-30 minutes)
2. Handle with ESD-safe gloves
3. Store in a dry environment (preferably with desiccant)
4. Process boards within MSL floor life or rebake if necessary

Baking Process for Components

General Guidelines

1. Refer to manufacturer’s recommendations for baking parameters
2. Sort components by MSL and required baking conditions
3. Use appropriate ESD-safe trays or containers
4. Ensure proper spacing for uniform heat distribution

Baking Parameters for Common Component Types

Component Type	Temperature	Duration	Special Notes
BGAs	125°C	24 hours	Critical to follow exact specifications
QFPs	125°C	16-24 hours	Monitor for lead oxidation
SOICs	125°C	12-16 hours	Ensure proper cooling before handling
Passive components	80-100°C	1-4 hours	Group by size for uniform heating

Rebaking Considerations

• Components can typically be rebaked 3-5 times before potential degradation
• Keep track of baking cycles for each batch of components
• Extend baking time by 25% for each rebake cycle

Advanced Baking Techniques

Vacuum Baking

1. Place components or PCBs in a vacuum oven
2. Set temperature and vacuum level according to manufacturer’s specifications
3. Bake for the recommended duration (usually shorter than conventional baking)
4. Allow gradual cooling and pressure equalization before removing items

Nitrogen Environment Baking

1. Use a nitrogen-purged oven to create an inert atmosphere
2. Set temperature according to standard baking requirements
3. Maintain a slight positive pressure of nitrogen during the baking process
4. Cool components or PCBs in the nitrogen atmosphere before removal

Step-Down Temperature Baking

1. Start with a higher temperature (e.g., 125°C) for a shorter duration
2. Gradually reduce temperature in steps (e.g., 100°C, 80°C)
3. Extend baking time at lower temperatures
4. Helps prevent thermal shock while ensuring thorough moisture removal

Quality Control and Verification

Visual Inspection

1. Check for any signs of physical damage or discoloration
2. Inspect solder joints for proper wetting and appearance
3. Look for any warping or delamination in PCBs

Weighing Method

1. Weigh components or PCBs before and after baking
2. Calculate moisture loss percentage
3. Verify against expected moisture loss for the material

Electrical Testing

1. Perform basic continuity and resistance tests
2. Conduct functional tests where applicable
3. Compare results with pre-baking benchmarks

X-ray Inspection

1. Use X-ray imaging to detect internal defects
2. Particularly useful for BGAs and other complex packages
3. Compare pre- and post-baking images for any changes

Best Practices and Tips

1. Always refer to manufacturer’s guidelines for specific components
2. Maintain a clean, dry environment for post-baking storage
3. Use moisture-sensitive indicators and desiccants in storage containers
4. Regularly calibrate baking ovens and measurement equipment
5. Keep detailed records of baking parameters and results
6. Train personnel on proper baking procedures and handling techniques

Environmental and Safety Considerations

Energy Efficiency

1. Batch components with similar baking requirements
2. Use energy-efficient ovens with good insulation
3. Consider solar or other renewable energy sources for baking operations

Workplace Safety

1. Ensure proper ventilation in baking areas
2. Use appropriate personal protective equipment (PPE) when handling hot items
3. Implement safety protocols for oven operation and maintenance

Waste Reduction

1. Optimize baking schedules to minimize energy waste
2. Properly dispose of any damaged components or PCBs
3. Recycle packaging materials where possible

Future Trends in PCB and Component Baking

AI-Driven Baking Processes

1. Machine learning algorithms to optimize baking parameters
2. Predictive maintenance for baking equipment
3. Automated quality control systems

Advanced Materials

1. Development of moisture-resistant component packaging
2. New PCB materials with improved moisture handling characteristics
3. Smart materials that indicate moisture levels without baking

Integration with Industry 4.0

1. IoT-enabled baking ovens for remote monitoring and control
2. Blockchain-based tracking of component baking history
3. Virtual reality training for baking procedures

Conclusion

Baking PCBs and components remains a critical process in electronics manufacturing and repair as we move through 2024. By understanding the principles behind baking, employing the right techniques, and staying abreast of technological advancements, electronics professionals can ensure the reliability and longevity of their products. As the industry continues to evolve, so too will the methods and technologies used in PCB and component baking, making it an exciting field to watch in the coming years.

Frequently Asked Questions

Q1: How can I determine if my components or PCBs need baking?

A1: Several factors indicate the need for baking:

1. Check the Moisture Sensitivity Level (MSL) of the components. If they’ve exceeded their floor life, baking is necessary.
2. If components or PCBs have been exposed to high humidity environments.
3. When you observe issues like popcorning or delamination during soldering.
4. If you’re unsure about the storage history of the components.
5. As a precautionary measure before critical or high-reliability assemblies.

Always refer to the manufacturer’s guidelines, as some components may be damaged by unnecessary baking.

Q2: What are the risks of over-baking PCBs or components?

A2: Over-baking can lead to several issues:

1. Oxidation of component leads or PCB copper traces.
2. Degradation of plastic packages, potentially affecting their structural integrity.
3. Warping or delamination of PCBs, especially multi-layer boards.
4. Changes in the electrical characteristics of some components.
5. Reduced solderability due to excessive oxidation.

To avoid these risks, always follow the recommended baking times and temperatures, and avoid repeated baking cycles when possible.

Q3: Can I use a regular kitchen oven for baking PCBs and components?

A3: While it’s possible to use a kitchen oven, it’s not recommended for several reasons:

1. Kitchen ovens often have poor temperature control and uniformity.
2. They may introduce contaminants from food residues.
3. There’s a risk of cross-contamination with food items.
4. Kitchen ovens typically lack ESD protection.
5. They may not reach or maintain the precise temperatures required for component baking.

For hobbyists, a dedicated toaster oven for electronics use can be a more suitable alternative. For professional use, always opt for specialized baking equipment designed for electronics.

Q4: How do I handle components or PCBs immediately after baking?

A4: Proper post-baking handling is crucial:

1. Allow items to cool naturally to room temperature (typically 15-30 minutes).
2. Use ESD-safe gloves and tools for handling.
3. Transfer components or PCBs directly to a dry environment, preferably with desiccant.
4. Process the items within their MSL floor life or store them in a moisture-barrier bag with desiccant.
5. Avoid exposure to humid environments during transfer and processing.

Remember, the effectiveness of baking can be quickly negated by improper handling or exposure to moisture.

Q5: Are there any alternatives to thermal baking for moisture removal?

A5: Yes, there are alternative methods, although thermal baking remains the most common:

1. Vacuum drying: Uses a combination of vacuum and mild heat for efficient moisture removal.
2. Desiccant drying: Slow but gentle method using moisture-absorbing materials.
3. Dry nitrogen storage: Preventative method that keeps components in a moisture-free environment.
4. Chemical drying: Uses moisture-reactive chemicals, but risks contamination.
5. Microwave drying: Fast but risky due to potential component damage.

Each method has its pros and cons, and the choice depends on the specific components, time constraints, and available equipment. For most applications, conventional thermal baking remains the safest and most reliable option.
