What is Epoxy for PCB?

Epoxy refers to a class of high performance thermoset polymers valued for mechanical strength, temperature resilience, and electrical insulation.

Such attributes make epoxies ideal protecting printed circuit boards (PCBs) which serve as the backbone of electronics. Epoxy coatings shield delicate PCB components and traces from environmental stresses that could otherwise impede functionality or shorten product lifetimes.

This article explores roles of epoxy in PCB manufacturing and applications including:

  • Protecting against mechanical stresses
  • Mitigating thermal strains
  • Insulating against shorts
  • Moisture and corrosion resistance
  • Enhancing aesthetics
  • Various application methods

We’ll examine how appropriate epoxy selection allows optimizing PCB protection.

Protecting PCBs from Environmental Stresses

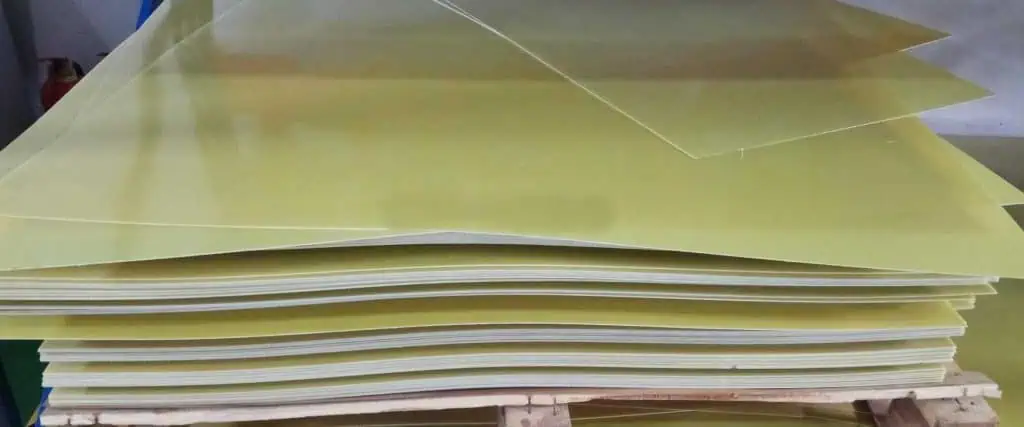

fr4 Epoxy Resin

PCBs face immense stresses that degrade performance, reliability and longevity. Just some factors include:

Temperature Cycling – Repeated heating/cooling cycles fatigue materials and joints leading to cracks or delamination.

Vibration – Sustained vibration mechanically weakens solder joints, traces, and components.

Impact Damage – Sudden impacts break delicate parts or knock components out of alignment.

Moisture Ingress – Absorbed moisture corrodes copper and leaks bias currents.

Dust/Debris – Built up contaminants can bridge circuits or impair thermal dissipation.

Table 1 summarizes common environmental stresses degrading PCBs.

Damage ModeExample Failures
Thermal CyclingJoint cracks, delamination
VibrationBroken leads, weakened joints
Impact DamageBroken components, cracked board
Moisture IngressLeakage currents, corrosion
Dust/DebrisShort circuits, blocked vents

Properly selecting and applying epoxy helps mitigate such stresses for improved reliability. Next we’ll overview popular options.

Types of Epoxy for PCBs

Many epoxy variants exist but several stand out for PCB coating applications:

Polyurethane – Tough, flexible protection against abrasion/impacts.

Silicone – Withstands extreme thermal cycling and temperatures. Resists moisture and chemicals.

Acrylic – Clarity facilitates inspections. Fast room temperature cure.

UV Curing – Cures rapidly under UV light. Enables selective application.

Solvent-Based – Flows into tiny spaces. Thin applications. Improved aesthetics.

Table 2 compares epoxy types for PCBs

TypeKey Attributes
PolyurethaneToughness, Flexibility
SiliconeExtreme Temp, Water Resistance
AcrylicOptical Clarity, Room Temp Cure
UV CuringRapid Selective Curing
Solvent-BasedThin, Uniform Coatings

Understanding strengths of each type allows matching protection needs of electronics. Tradeoffs exist between properties like cure speeds, operating temperatures, dielectric strengths, and costs.

Now let’s examine popular PCB protection applications.

PCB Protection Applications

Major epoxy applications protecting PCB integrity include:

Moisture Barriers

Exposed boards slowly absorb atmospheric moisture over time without protection. Even modest levels (under 5%) severely reduce surface insulation and enable electrochemical migration between traces. This leads to leakage currents or dendritic growths that eventually short out circuits.

Applying a thin epoxy layer over the entire populated PCB assembly seals out moisture. Conformal coatings as thin as 25 microns work well. Such barriers also help meet industry standards for moisture resistance like IPC-CC-830.

Thermal Management

Certain high powered circuits like LED drivers and converters require special thermal epoxy dispensing onto hot components to prevent overheating. Such thermally conductive epoxies contain ceramic fillers that dissipate heat efficiently from localized hotspots out across the board. Thermal epoxy can cut temperatures by over 20° C.

Dust and Chemical Resistance

Harsh industrial environments slowly accumulate corrosive films or conductive debris across exposed PCBs that can undermine performance over time. Abrasion resistant epoxy coatings shield boards from such issues. They simply wipe clean while protecting for years.

Component Securing

Vibration forces progressively weaken solder joints and loosening component leads over time. Select epoxies like acrylic and polyurethane can fully encapsulate individual chips and parts. This absorbs mechanical stresses to prevent intermittent connections or failures. Such reinforcement is popular for automotive applications.

Damaged PCB Rehabilitation

PCBs receiving localized damage during handling or assessments can often be recovered with specialty repair epoxy formulations. Careful injection under damaged components or torn traces binds damage securely. Room temperature cure variants enable such repairs without adding thermal stresses.

So in summary, versatile epoxy resins enable optimized PCB protection across a spectrum of needs from moisture sealing to thermal management and component reinforcement.

Next we’ll compare various application methods.

Epoxy Application Methods

Applying epoxy resin appropriately ensures coatings meet thickness, coverage and uniformity requirements needed for protecting PCBs.

Popular application methods include:

Spray Coating – High volume automated spraying generates smooth, thin, uniform coatings. It works well for simple board geometries.

Brush Application – Manual brushing allows selective coating and edge profiling. Useful for low volumes or touching up spray applications.

Dispensing – Precise dispensers meter exact amounts needed on localized areas like thermal pads.

Dipping – Dipping entire board enables thickness consistency even on complex 3D geometries.

Injection – Needles locally inject repair epoxy into damaged board areas.

Weighing tradeoffs helps select best approach for production needs:

SprayingModerateVery HighSimple

Table 3 compares common PCB epoxy application methods

With an overview of preparing and protecting PCBs with epoxy complete, let’s recap key points.

Conclusion and Summary

Epoxy coatings play a vital role protecting PCB integrity across demanding electrical and mechanical application environments. Main points include:

  • Epoxies shield boards from stresses including thermal cycling, vibration, impacts, moisture, and contaminant ingress that degrade performance.
  • Major variants include polyurethane, silicone, acrylic, UV cured, and solvent-based; each offers unique performance advantages.
  • Protecting PCBs involves sealing surface moisture, equalizing thermal gradients, securing components, rehabilitating localized damage, and shielding from dust/chemicals.
  • Application methods ranging from spraying to dispensing and injection enable optimized epoxy application for production needs.

In short, epoxies form a first line of defense for maintaining PCB reliability. And continued material innovations will further strengthen protection capabilities moving forward.

Frequently Asked Questions

What stresses damage uncovered PCBs?

Major risks include repeated thermal cycling fatiguing materials, vibration forcing connections loose over time, impacts instantly damaging traces, moisture enabling electrochemical corrosion, and contaminant buildup shorting circuits.

What epoxy best handles high temperatures?

Silicone epoxies retain elastomeric properties exceeding 200°C making them uniquely suited for coating boards facing extreme temperatures.

How does moisture degrade PCB performance?

Absorbed moisture reduces surface resistivity enabling leakage currents between traces. It also initiates electrochemical migration corroding copper over time. Just 5% moisture can severely impact functionality.

Can damaged PCBs be repaired with epoxy?

Yes, carefully injecting specialty epoxy formulations under torn traces or around cracked components structurally repairs boards that would otherwise require full replacement.

Does epoxy application method influence performance?

Yes, techniques like spraying or dip coating generally enable thinner and more uniform coatings than manual brushing. This matters for moisture sealing properties based on thickness. But thicker brushed epoxy better withstands mechanical damage.
