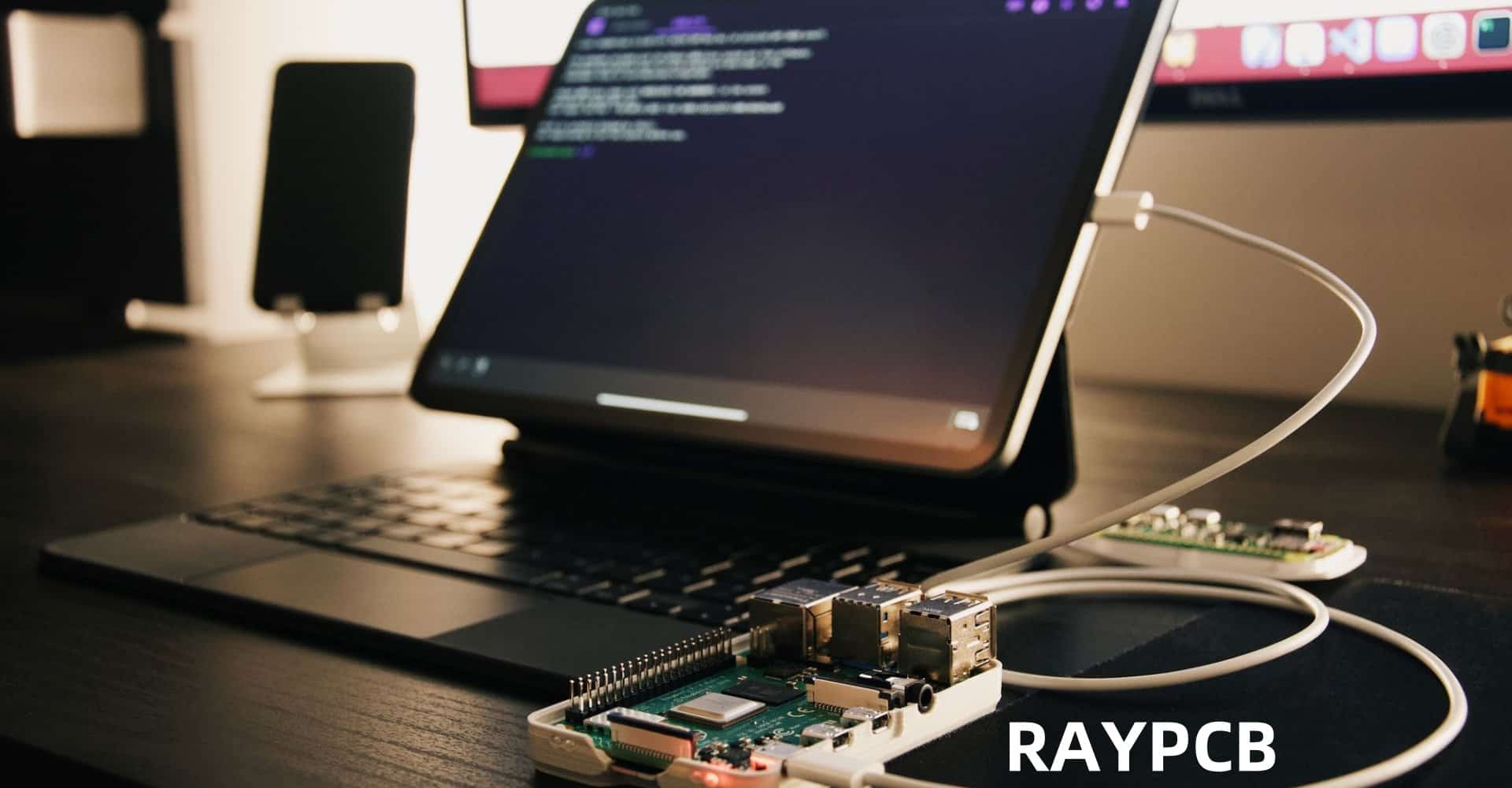

Connecting a Raspberry Pi 4 to an iPad Pro opens up a world of possibilities for tech enthusiasts, developers, and hobbyists. This powerful combination allows you to leverage the portability and touch interface of the iPad Pro while harnessing the versatility and computing power of the Raspberry Pi 4. In this comprehensive guide, we’ll explore various methods to connect these devices, discuss their potential applications, and provide step-by-step instructions to get you started on your journey.

Why Connect a Raspberry Pi 4 to an iPad Pro?

Before diving into the technical details, let’s examine the benefits of connecting these two devices:

1. Portability: The iPad Pro‘s slim profile and long battery life make it an ideal portable display and control interface for your Raspberry Pi projects.
2. Touch Interface: Leverage the iPad Pro’s responsive touchscreen for intuitive interaction with your Raspberry Pi applications.
3. Powerful Combination: Combine the iPad Pro’s processing power and apps with the Raspberry Pi’s GPIO pins and Linux-based flexibility.
4. Learning Opportunity: Explore networking, remote access, and cross-platform development.
5. Cost-Effective Solution: Create a versatile mobile workstation without investing in a separate laptop or monitor for your Raspberry Pi.

Prerequisites

Before we begin, ensure you have the following items:

• Raspberry Pi 4 (any model)
• iPad Pro (any generation)
• Power supply for Raspberry Pi 4
• MicroSD card (16GB or larger, class 10 recommended)
• Ethernet cable (optional, for direct connection)
• Wi-Fi network (for wireless connection)
• USB-C to USB-A adapter (for iPad Pro)

Connection Methods

There are several ways to connect your Raspberry Pi 4 to an iPad Pro. We’ll cover the three most popular methods:

1. VNC (Virtual Network Computing)
2. SSH (Secure Shell)
3. Direct Connection via Ethernet

Let’s explore each method in detail.

Method 1: VNC (Virtual Network Computing)

VNC allows you to view and control your Raspberry Pi’s desktop environment remotely from your iPad Pro.

Step 1: Set up your Raspberry Pi

1. Install Raspberry Pi OS on your microSD card.
2. Boot up your Raspberry Pi and complete the initial setup.
3. Ensure your Raspberry Pi is connected to the same Wi-Fi network as your iPad Pro.

Step 2: Enable VNC on Raspberry Pi

1. Open Terminal on your Raspberry Pi.
2. Run the following command to open Raspberry Pi Configuration: Copysudo raspi-config
3. Navigate to “Interfacing Options” > “VNC” and select “Yes” to enable VNC.
4. Reboot your Raspberry Pi.

Step 3: Install VNC Viewer on iPad Pro

1. Open the App Store on your iPad Pro.
2. Search for “VNC Viewer” by RealVNC.
3. Download and install the app.

Step 4: Connect to Raspberry Pi using VNC Viewer

1. Open VNC Viewer on your iPad Pro.
2. Tap the “+” button to add a new connection.
3. Enter your Raspberry Pi’s IP address (find it by running hostname -I in Terminal).
4. Give the connection a name and save it.
5. Tap the connection to initiate.
6. Enter your Raspberry Pi’s username and password when prompted.

You should now see your Raspberry Pi’s desktop on your iPad Pro screen.

Method 2: SSH (Secure Shell)

SSH provides a command-line interface to control your Raspberry Pi remotely.

Step 1: Enable SSH on Raspberry Pi

1. Open Terminal on your Raspberry Pi.
2. Run the following command: Copysudo raspi-config
3. Navigate to “Interfacing Options” > “SSH” and select “Yes” to enable SSH.
4. Reboot your Raspberry Pi.

Step 2: Install an SSH client on iPad Pro

1. Open the App Store on your iPad Pro.
2. Search for “Termius” or “Prompt 2” (both are popular SSH clients).
3. Download and install your chosen app.

Step 3: Connect to Raspberry Pi using SSH

1. Open your SSH client app on the iPad Pro.
2. Create a new host with the following details:
   • Hostname: Your Raspberry Pi’s IP address
   • Username: Your Raspberry Pi username (default is “pi”)
   • Password: Your Raspberry Pi password
3. Connect to the host.

You should now have command-line access to your Raspberry Pi from your iPad Pro.

Method 3: Direct Connection via Ethernet

This method creates a direct connection between your Raspberry Pi and iPad Pro using an Ethernet cable.

Step 1: Configure Raspberry Pi for Ethernet Connection

1. Connect your Raspberry Pi to a display and keyboard.
2. Open Terminal and edit the dhcpcd configuration file: Copysudo nano /etc/dhcpcd.conf
3. Add the following lines at the end of the file: Copyinterface eth0 static ip_address=169.254.1.1/16
4. Save the file (Ctrl+X, then Y, then Enter).
5. Reboot your Raspberry Pi.

Step 2: Connect Raspberry Pi to iPad Pro

1. Use a USB-C to USB-A adapter to connect an Ethernet cable to your iPad Pro.
2. Connect the other end of the Ethernet cable to your Raspberry Pi.

Step 3: Configure iPad Pro Network Settings

1. Go to Settings > Wi-Fi on your iPad Pro.
2. Tap the “i” icon next to the Ethernet connection.
3. Tap “Configure IP” and select “Manual”.
4. Set the following:
   • IP Address: 169.254.1.2
   • Subnet Mask: 255.255.0.0
5. Leave Router blank and tap “Save”.

Step 4: Connect using VNC or SSH

You can now use either VNC or SSH methods described earlier to connect to your Raspberry Pi using the IP address 169.254.1.1.

Comparison of Connection Methods

Here’s a table comparing the three connection methods:

Practical Applications

Now that you’ve connected your Raspberry Pi 4 to your iPad Pro, let’s explore some exciting projects and use cases:

1. Mobile Development Workstation

Use your iPad Pro as a display and input device for your Raspberry Pi, creating a portable development environment. Install your favorite IDEs and tools on the Raspberry Pi, and code comfortably using the iPad Pro’s keyboard and touchscreen.

2. Home Automation Hub

Turn your Raspberry Pi into a home automation controller, and use your iPad Pro as the interface. Control smart devices, monitor sensors, and create automation scripts, all from the comfort of your iPad.

3. Portable Media Server

Set up your Raspberry Pi as a media server using software like Plex or Kodi. Stream your media collection to your iPad Pro or use the iPad as a remote control for other devices.

4. Digital Signage Controller

Use the Raspberry Pi to drive digital signage displays, and control the content using your iPad Pro. Create and schedule content, monitor performance, and make real-time updates on the go.

5. IoT Data Visualization

Collect data from IoT devices using your Raspberry Pi, and create beautiful, interactive visualizations on your iPad Pro using web technologies or native apps.

6. Remote Camera Monitor

Connect a camera module to your Raspberry Pi and use it as a remote surveillance system. View the live feed and control camera settings from your iPad Pro.

7. Portable Retro Gaming Console

Turn your Raspberry Pi into a retro gaming emulator and use your iPad Pro as the display and controller. Enjoy classic games on a high-resolution screen with touch or external controller support.

Troubleshooting Common Issues

When connecting your Raspberry Pi 4 to an iPad Pro, you may encounter some challenges. Here are solutions to common issues:

1. Connection Failures

• Ensure both devices are on the same Wi-Fi network.
• Double-check IP addresses and port settings.
• Verify that firewalls or network restrictions are not blocking the connection.

2. Slow or Laggy Performance

• Use a 5GHz Wi-Fi network if available.
• Reduce the color depth or resolution in VNC settings.
• Consider using a direct Ethernet connection for better performance.

3. Touch Input Issues

• Calibrate the touch input in your VNC client settings.
• Use a stylus for more precise control.
• Consider using a Bluetooth mouse connected to the Raspberry Pi for precision tasks.

4. Audio Streaming Problems

• Enable audio streaming in your VNC server settings.
• Use SSH and command-line audio players for better performance.
• Consider using network audio protocols like PulseAudio for advanced setups.

Security Considerations

When connecting your Raspberry Pi to an iPad Pro, keep these security tips in mind:

1. Change default passwords on both devices.
2. Use SSH keys instead of passwords when possible.
3. Keep your Raspberry Pi OS and iPad OS up to date.
4. Use a VPN when connecting over public Wi-Fi networks.
5. Disable unnecessary services on your Raspberry Pi.
6. Implement fail2ban to protect against brute-force attacks.

Frequently Asked Questions (FAQ)

Here are answers to some frequently asked questions about connecting a Raspberry Pi 4 to an iPad Pro:

Q1: Can I use my iPad Pro as a primary display for my Raspberry Pi 4?

A1: While you can use your iPad Pro to view and control your Raspberry Pi 4’s desktop environment, it cannot function as a direct primary display. The connection is achieved through network protocols like VNC or remote desktop applications, rather than a direct video connection.

Q2: Do I need to jailbreak my iPad Pro to connect it to a Raspberry Pi 4?

A2: No, jailbreaking is not necessary. You can connect your iPad Pro to a Raspberry Pi 4 using standard apps available on the App Store and built-in networking capabilities of both devices.

Q3: Can I power my Raspberry Pi 4 using my iPad Pro?

A3: While the iPad Pro has a powerful USB-C port, it’s not recommended to power your Raspberry Pi 4 directly from it. The Raspberry Pi 4 requires a stable 5V 3A power supply, which the iPad Pro may not consistently provide. Always use the official Raspberry Pi power supply for optimal performance and stability.

Q4: Is it possible to use the iPad Pro’s touchscreen to directly control Raspberry Pi applications?

A4: Yes, when using VNC to connect to your Raspberry Pi, you can use the iPad Pro’s touchscreen to interact with the Raspberry Pi’s desktop environment and applications. However, the experience may not be as smooth as using a native touch interface, and some applications may require a mouse for precise control.

Q5: Can I transfer files between my Raspberry Pi 4 and iPad Pro?

A5: Yes, you can transfer files between the two devices using various methods:

• Use SFTP (SSH File Transfer Protocol) with an app like FileBrowser or Documents by Readdle.
• Set up a Samba share on your Raspberry Pi and access it from your iPad Pro.
• Use cloud storage services like Dropbox or Google Drive as an intermediary.
• For small files, you can use the clipboard function in VNC to copy and paste text or images between devices.

Conclusion

Connecting your Raspberry Pi 4 to an iPad Pro opens up a world of possibilities for both devices. Whether you’re a developer, hobbyist, or just curious about technology, this powerful combination allows you to create unique projects and expand your skills.

By following the methods outlined in this guide, you can establish a connection that best suits your needs, whether it’s through VNC for a full desktop experience, SSH for command-line control, or a direct Ethernet connection for optimal performance.

Remember to consider security implications and troubleshoot any issues that may arise. With some creativity and experimentation, you’ll find numerous applications for this versatile setup, from mobile development workstations to IoT projects and beyond.

As both the Raspberry Pi and iPad Pro ecosystems continue to evolve, we can expect even more exciting possibilities for integration and collaboration between these two innovative platforms. Happy tinkering!
