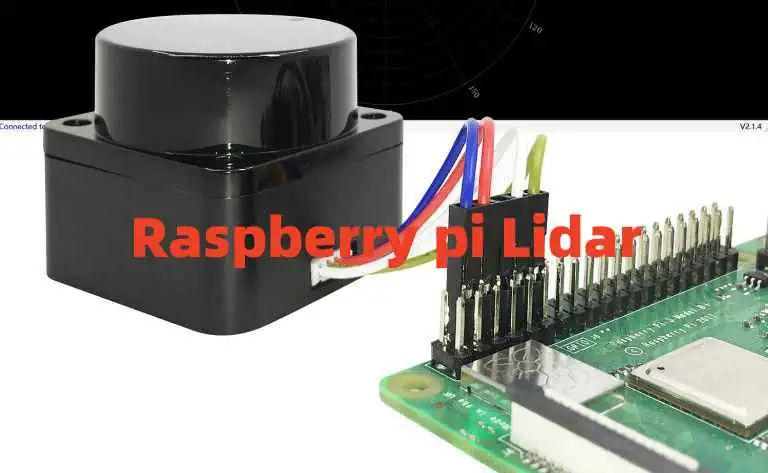

How does LiDAR for Raspberry Pi Work and does it Offer Solutions?

Essentially, LiDAR can be described as a ranging device that measures a distance from a target. This distance can be measured through the sending of short laser pulses as well as recording a time lapse in-between the light pulse (outgoing) and the reflected light pulse (back-scattered) detection.

Furthermore, the LiDAR system might make use of multiple laser beams, scan mirror, as well as other means fir scanning an object space. Furthermore, with ability to offer precise measurement of the distances, this raspberry LiDAR could be utilized for solving many problems.

For remote sensing, the raspberry LiDAR systems are utilized for the measurement of absorption, scatter, as well a re-emission from molecules or particles inside the atmosphere. Due to these purposes, these systems might have some requirements on the laser beams’ wavelength. A molecular species’ concentration in our atmosphere can also be measured. In addition, rain droplets inside the atmosphere could be measured in order to estimate a storm’s distance as well as the rate of rain fall.

The remaining LiDAR systems offer profiles for surfaces of three dimensions in object spaces. For these systems, this laser beams won’t be tied onto spectral features. Rather, the laser beams’ wavelength might be selected so as to make sure of safety to the eyes or prevent atmospheric spectral characteristics. This probing beam will encounter and would be reflected buy the “hard target” and back into the LiDAR receiver.

Also, raspberry LiDAR could be utilized in determining a target’s velocity. This could be done either via the Doppler technique or through the measurement of the distance to the target in quick succession. Take for instance, atmospheric wind velocity as well as an automobile’s velocity could be measured through the LiDAR system.

What Challenges Does LiDAR Face?

LiDAR faces some challenges with the operational LiDAR systems. These challenges are dependent on the LiDAR system type. Below are some examples and instances.

The isolation as well as rejection of the signal out of the emitted beams

Generally, the probing beam’s radiance is much greater compared to that of a return beam. You must take care to ensure this probing beam isn’t scattered or reflected by the system and into a receiver to the extent that the detector becomes saturated as well as unable to detect the external targets.

Also, spurious returns coming from the debris inside the atmosphere in-between the intended targets as well as the transmitter. This debris may cause strong spurious returns, to the extent that these intended targets aren’t detected reliably.

Other Challenges of LiDAR for Raspberry Pi

Limited optical power: Systems having more power inside the beam offer greater accuracy. However operating it is costlier.

Speed for scanning: Safety could become a problem when the source of the laser operates at a frequency, which is dangerous to the human eye. The problem is mitigated with other approached like flash LiDAR that illuminates large areas at once and operating at wavelengths that are safe for the human eye.

Device cross-talk signals coming from closeby LiDAR devices may disturb the signal. Now, the challenge is to differentiate between the emitted signals by the closeby raspberry LiDAR devices. Different approaches with the signal isolation and chirping are still developing.

Maintenance and Cost of the LiDAR systems: The systems are expensive compared to alternative sensor types. However there have been developments in overcoming high costs as well as produce systems at reduced price to ensure wider use.

Rejecting returns from the unintended objects: It is similar to rejecting atmospheric spurious signals as previously mentioned. Moreover, this could also take place in scenarios of clear air.

Finding solutions to these challenges involves reducing the beam’s size at different target distances and over the received field of view at your LiDAR receiver.

Applications of LiDAR for Raspberry Pi

The areas for application for the LiDAR are varied and deep. For atmospheric sciences, the LiDAR is utilized for detecting many atmospheric constituents. Also, it has been utilized for characterizing aerosols inside the atmosphere. In addition, it helps to investigate the upper atmospheric profile clouds, winds, allows weather data to be collected as well as several other applications.

For astronomy, LiDAR is utilized for measuring distances. This serves both near objects and distant objects. The fact is, LiDAR is an important device for the improvement of the distance measurement onto the moon as well as to millimeter precision. Also, LiDAR is important for creating guide stars for different astronomy applications.

In addition, the topographic LiDAR makes use of the near-infrared lasers to map the buildings and lands. The bathymetric LiDAR makes use of water-penetrating green lights for mapping the riverbed and seafloor. In agriculture, you can use LiDAR for mapping crop growth and topology. This can give information on the irrigation requirements and fertilizer needs. Concerning archaeology, LiDAR is used for mapping ancient systems for transportation under the thick forest canopy.

More on Applications of LiDAR for Raspberry Pi

As of today, LiDAR is utilized in creating three-dimensional models of the worlds all around the LiDAR sensor for raspberry pi. One application which makes use of the point cloud that is created by the LiDAR system is autonomous navigation. The miniature LiDAR systems could even be seen in small devices like mobile phones.

LiDAR for raspberry Pi has one great application, which is the situational awareness of our autonomous navigation. These situational awareness systems for moving vehicles should be aware of the moving and stationary objects around them.

Radar has been utilized for long for detecting aircrafts. Also, LiDAR for Raspberry Pi is very important or terrestrial vehicles. This is because of its ability to tell the distance to the objects and is extremely precise when it comes to directionality.

This probing beam could be directed to the precise angles and then quickly scanned to create point clouds for this three-dimensional model. This ability to scan very quickly is important for the applications since this is a very dynamic situation.

LiDAR for Raspberry Pi Robots

Raspberry Pi 4 vs 3

The autonomous raspberry pi robots help in navigating their environments without having to bump into things. Making use of the ultrasonic sensor like the HC-SR04 in detecting obstacles is a common tool for the Pi-based cars and robots. However, this car project, which is created buy a developer and maker, is going further by mapping a room out using the LiDAR sensor raspberry pi.

At its core, this car features the Raspberry Pi 4 4 Gigabyte. As the car is on motion, the LiDAR sensor raspberry pi data will be transmitted from the Pi and into a PC close by, which makes use of the simultaneous mapping and localization system in creating the virtual, 3D replica of the room that surrounds the Raspberry P. Also, this program provides the car’s virtual representation in unity for estimating its position inside the room.

Understanding the Raspberry Pi2 and LiDAR

Though I have given up when it comes to SRR contest, have great interest in robots. Lidar serial interfaces formed a great match to the Raspberry Pi because both of them functions at the 3V3 levels. With this, it gets rid o the USB interface. Similar efforts were put in 2014 by Thomas Jespersen who made use of the STM32F429 board, then created a Lidar video while in action.

The Lidar Physical

Lidar can be described as any sealed unit having a hanging motor from one of the ends. This motor helps in driving a turret which rotates at about 300 rpm. This turnet has the laser in it and receives sensors and through spinning, it offers a scan of 360 degrees of the area. This receive and laser sensor features two optical ports from the turret.

Two short cables having JST connectors that come from the LiDAR are present. The two-pin connector functions by providing power to the motors. Also, the four pin connectors give a power of 5V to its control circuits as well as the serial interface of 3V3.

The pinouts include the motor cable, whereby the ground is black in color, while the PWM or 3V3 is red in color. For the interface cable, the red color has 5V, the orange color is TX, while the brown color is RX.

For the vacuum, the powering of the motor is done by a source of 12V. This is possible by using the PWM at about a duty cycle of 25 percent. This indicates that the motor requires about 3V in order to operate at the proper speed. This eventually came to be true after subsequent testing.

Furthermore, the board for the USB interface runs this LiDAR from an input of 5V from your USB connector making use of the PWM controlled with the help of the proportional integral differential (PID) loop in order to maintain the speed of the motor.

Why make use of PID and PWM?

In order to be able to maintain an RPM that is constant for spinning turrets as it collects dirt, other detritus, dust, and wears, PWM and PID is used. During testing, it was noted that this motor would turn this turret in any of the directions depending on the negative and positive connection. Still, this interface works effectively; however, there would be a reversal in the data points’ sequence. Usually, this turret turns in a counter clockwise direction.

Here‘s an advice. Inside some earlier units, this interface made use of 3V3. Therefore connecting them to the 5V might destroy this interface. Our initial hook-up between the LiDAR and Pi was dirty and quick. We connected this motor to the 3V3 output of the raspberry Pi and it worked. This output gotten from the Raspberry Pi 3V3 is simply limited to the 50 mA, through the LiDAR and the specifications. According to Wiki, the motor ought to draw about 64 mA. However, we measured ours and it drew more.

The LiDAR Software

The next thing is the creation of some software so as to understand the way this works. The fact is, we made use of C++, so we installed the Raspberry Pi’s tool chain and sicove4e that the compiling speed is enough for development. We started making use of the programming editor (Geany). This is a setup I leant when working with a Python code for this LiDAR.

Also, it handles many programming languages and we have chosen it as the general purpose text editor on Raspian and Ubuntu. However, we eventually stopped using Geany and then installed the Eclipse CDT on Raspberry Pi. We did it when we discovered that it couldn’t reformat the C++ code properly after editing. Also, we discovered that Eclipse works wrll on Raspberry Pi. However, during our work, we were disappointed with the switch. This is because, while working with Geany, we were re-learning ways of working with the make files. This is a skill that we have lost when using Eclipse.

In addition, while seeking information regarding programming using GPIO with C++, we discovered Gordon Henderson’s WiringPi library. This didn’t just support the raw GPIO programming. It also supports several Raspberry Pi daughter boards. Also, another appeal is the presence of its serial port interface. Therefore, we didn’t have to get details of this on the Linux because doing this would have become very new to us. Eventually, we made use of the simple thread capability for handling the absurd user interface.


In summary, LiDAR system might make use of multiple laser beams, scan mirror, as well as other means fir scanning an object space. Furthermore, with ability to offer precise measurement of the distances, this LiDAR could be utilized for solving many problems. The areas for application for the LiDAR are varied and deep. For atmospheric sciences, the LiDAR is utilized for detecting many atmospheric constituents. Also, it has been utilized for characterizing aerosols inside the atmosphere.

Furthermore, LiDAR systems could be utilized in creating a dynamic scene’s three dimensional model like what might be encountered by the autonomous driving vehicles. You can achieve this in different ways; usually making use of the scanning technique.
