Staying Ahead of the Curve with the Latest in Aviation Electronics

The history of aircraft electronics is fascinating and full of remarkable developments since electronics is a dynamic field. It may be challenging to stay up to date with the newest advancements in technology and applications. In addition, over the last few decades, aviation electronics have become more advanced. They’re crucial today in aircraft design, development, in-flight control, and navigation. Pilots can fly safely and effectively in any weather with aviation electronics. Notably, aviation electronics have progressed from radio and radar to modern systems. Engineers have incorporated electronic communication and navigation systems in early flight. For instance, the jet engine’s increased speed and altitude have presented new obstacles for aviators. Now they must require electronic equipment to fly faster and higher while communicating and navigating. The following information talks more about aviation electronics.

A Brief History of Aviation Electronics

aviation electronics engineering

Aviation electronics have a long and fascinating history. It is jam-packed with several firsts and incredible advancements.

The radio was the first electronic gadget used in flying. It transformed how aircraft could communicate with one another and the ground in the early 1900s. That of the radar swiftly followed the development of the radio. It, therefore, revolutionized aviation by making it possible to locate and track aircraft even during inclement weather.

Other electronic breakthroughs, like the creation of the autopilot and the first electronic flight instrumentation, came after the invention of the radar. These tools, which are still in use today, significantly improved flying safety and ease.

The invention of the GPS was the next big breakthrough in aviation electronics. The technique made navigation simpler and allowed for highly accurate aircraft tracking. The creation of the electronic flight control system came after the GPS. This method, which is still in use today, increased the safety of flying.

What Are Aviation Electronics?

The term “aviation electronics” encompasses many aviation-related electronic devices and systems. Furthermore, these systems range from modest electronic devices used for navigation and communications to more complicated systems utilized for aircraft control and flight management. We can classify these electronics into the following two major categories:

  1. Flight control systems
  2. Avionics

Flight Control Systems

Flight control systems are electronic systems that regulate an airplane’s flying path. They include the autopilot, flight management, and flight control unit.

Aircraft employ autopilots to enable pilotless flight. Various automated systems, such as those that steer, throttle, and land a vehicle, are available. Aircraft with installed autopilot systems can fly autonomously with the system without the pilot’s input. By integrating auto-throttle technology into an airplane, pilots can automatically control their engine’s throttle (s). In addition, with the use of Autoland technologies, we can quickly achieve automatic Aircraft landings.

To help pilots with flight planning and navigation, airplanes employ flight management systems. Technologies such as GPS, GIS, and flight planning systems are among these systems. Planning your flight with precision is now easy using a flight planning system. In addition, aircraft rely on navigation systems to get from point one point to another. Furthermore, analyzing an aircraft’s performance requires using aircraft performance analysis systems.

Aircraft rely on flight control systems to steer them safely through the air. A few examples are air traffic control systems, ground control systems, and the systems used to direct the movements of aircraft in flight. In addition, airplanes rely on flight control systems to guide their flights. The regulation of air traffic also requires employing air traffic control systems. However, we can quickly achieve aircraft ground control by using ground control systems.

Avionics

Navigating and communicating with other planes is impossible without avionics. Examples of these systems are in-flight radios, nav systems, and communication devices. Satellite radios, data radios, and regular voice radios are examples of these avionics. For example, aircraft and ground control communicate using voice radios. In addition, pilots and ground control personnel can exchange data using data radios. Moreover, airplanes and satellites can talk to one another via satellite radios.

Aircraft rely on navigation systems to get from point to point. Among these are satellite navigation systems, those that operate in the air, and those that run on the ground. Aircraft on the ground rely on ground-based navigation systems, whereas air-based navigation systems assist in in-flight navigation.

Developed communication technology facilitates information exchange between the aircraft and ground stations. Examples are the telephone network, the internet, and satellite television. Voice communication devices allow pilots and ground crew to talk to one another while in the air. In addition, aircraft and ground stations can exchange data using data communication devices.

Types Of Aviation Electronics

FULL PCB MANUFACTURING Quote

Both military and commercial aircraft utilize a range of aviation electronics. We can broadly categorize them into four groups:

1. Navigation and communication: These systems assist pilots in maintaining radio contact with air traffic control and navigating their aircraft. Radios, transponders, and GPS receivers are common examples.

2. Flight control and guiding systems help pilots fly and steer the aircraft. Autopilots, flight directors, and electronic flight instruments are a few examples.

3. Identification and surveillance systems: These systems enable pilots to distinguish between friendly and hostile aircraft and prevent collisions with other aircraft. Radar, TCAS, and ADS-B are among these instances.

4. On-board management systems: These systems support the monitoring and managing of the aircraft’s many systems. They could be controllers for cabin pressurization, fuel management systems, and engine monitoring systems.

Characteristics Of Aviation Electronics

The following are the features of aviation electronics:

  • Aviation electronics must function dependably in an airplane’s challenging and frequently hostile environment, which is one of its primary requirements. As a result, they must comprise materials that can survive pressure, vibration, severe temperature fluctuations, and altitude.
  • Aviation electronics must also be able to communicate with other systems on the aircraft, which is another essential feature. The aircraft’s light control or navigation system may fall under this category. The user interfaces must be intuitive and straightforward, even in a demanding flight environment.
  • There are presently many “fail-safe” aircraft electrical systems on the market. Consequently, the other system components can continue to work even if one part fails. This crucial safety element lessens the possibility of an aircraft’s destruction by a single malfunction.

Benefits Of Aviation Electronics

Present-day electronics are essential to the commercial aviation industry. Whether it’s the flight management system that directs the plane’s navigation or the in-flight entertainment system that keeps passengers occupied, designers have equipped today’s commercial airplanes with cutting-edge technological technology.

Electronics in aircraft play many roles, such as ensuring that planes can fly without issues. Some of these systems are the flight management system, which keeps the aircraft on track, and the engine management system, which keeps an eye on the engines to ensure they’re working correctly.

Furthermore, aviation electronics not only make flying more secure but also make the process of flying more efficient. For instance, electronic systems can assist cut down on gas usage and pollution. Certain airlines have developed “green” projects using cutting-edge electronic aviation technology to reduce their adverse environmental effects further.

Last but not least, aviation electronics give a lot of data that enhances the efficiency of an airline. Information from the aircraft’s black box, for instance, aids in improving safety measures, while details about in-flight entertainment choices help tailor the experience for individual passengers.

What Are PCB Types Utilized In Aviation Electronics?

flight controller pcb

PCBs in aircraft electronics range from simple single-sided boards to intricate multi-layer boards. The type of PCB utilized relies on the circuit’s intricacy and the application’s needs.

Simple circuits may need a single-sided, the most fundamental PCB. A single-sided PCB contains all components and wires on a single side. Single-sided PCBs are the cheapest and easiest to build but have a limited number of elements to utilize, and the circuit needs to be more intricate.

Complex circuits may necessitate a double-sided PCB with conductors on both sides. The production of double-sided PCBs is more expensive, but they allow for more components and a more intricate circuit.

The most complex circuits may necessitate a PCB with numerous layers of conductors and components. Multilayer PCBs are the most expensive to produce yet enable the most sophisticated circuitry.

Similarities Between Aviation Electronics and Other Electronic Types

  1. Aviation electronics and other sorts of electronics have a lot of commonalities. For instance, comparable materials, like semiconductors, are in both aircraft and other electronics to make their products. Furthermore, both electronics use photolithography and other similar manufacturing techniques to produce their goods. Additionally, comparable test and measuring tools apply in aviation and other electronics to guarantee the quality of their output.
  2. The applications of aircraft and other electronics are another significant commonality. For instance, electronics in aviation and other fields find applications in data processing, communications, and navigation. Aerospace, automotive, and telecommunications are just a few of the sectors that employ both aviation and other kinds of electronics.
  3. Their control style is another commonality between aircraft and other electronics. For example, regulations from the Federal Aviation Administration (FAA) and the European Union apply to aviation and different devices (EU). Additionally, international standards like those from the International Electrotechnical Commission (IEC) apply to aircraft and other electronic forms.

Differences Between Aviation Electronics and Other Electronic Types

The following are ways through which aviation electronics differ from other electronic kinds:

  1. The Federal Aviation Administration (FAA) has established high performance and safety requirements for aviation electronics. Unlike other electronics, they must be vibration- and shock-resistant and able to function in various temperatures and altitudes.
  2. Due to the strict criteria they must adhere to, aviation electronics are often more costly than other electronics. However, they provide years of dependable service in the worst conditions.
  3. The cost of consumer electronics is often lower than that of aircraft electronics since they are mainly for indoor use. However, they are less robust and do not have to fulfill the same safety and performance requirements as aviation electronics.
  4. Manufacturing and other industrial uses require industrial electronics. They must be durable but do not require to fulfill the same performance and safety requirements as aviation electronics.
  5. The aviation industry cannot function without aviation electronics. The electronics resist the severe circumstances prevalent in airplanes and intend to fulfill high safety and performance criteria. Aviation electronics are more costly than other electronics but last for many years with little maintenance.

Top 6 Aviation Electronics Manufacturers

Rayming Technology

Rayming Technology is a prominent producer of aviation electronics, serving the aviation sector with an extensive selection of high-quality equipment.

The company places a significant emphasis on research & development and constantly innovates to bring new and better goods to market. Furthermore, the firm employs highly trained engineers who love aviation and electronics, continually pushing the limits of what is possible.

The products of Rayming find application in various aircraft, ranging from tiny private planes to huge commercial jets. The company’s products are famous for their dependability and performance, and they have worked excellently in some of the most challenging conditions.

Notably, Rayming has a long history of supplying the aviation sector with high-quality goods and services and has earned a solid reputation. The firm is devoted to providing its clients with the highest quality goods and services and exceeding their requirements and expectations.

Rayming’s products bear support from a team of knowledgeable customer care and technical support personnel who are always available to assist. Additionally, the organization has an extensive website that offers clients various information and tools.

Rayming is a widely esteemed brand in the aviation business and a reliable provider of high-quality goods and services. The organization is devoted to providing its clients with the finest solutions and exceeding their requirements and expectations.

Garmin

Garmin is a global leader in designing and producing navigation, aviation, and communication equipment.

Garmin’s headquarters are in Olathe, Kansas. The company is dedicated to quality, innovation, and customer satisfaction and has more than 12,000 workers.

Over 100 countries use Garmin’s aviation devices for civilian aviation, air transport, and military purposes. Furthermore, the company offers an extensive selection of integrated avionics, transponders, GPS navigation, and communication systems.

Integrated avionics solutions from Garmin give pilots exceptional situational awareness and cockpit safety. More than 17,000 systems are functional on more than 24,000 aircraft, making the G1000 and G3000 glass cockpits the most popular in the general aviation market.

Moreover, Garmin’s aviation transponders are the industry standard for aircraft identification and tracking. Mode S transponders are necessary equipment for all aircraft operating in controlled airspace in Europe and many other regions.

Garmin’s aviation GPS navigation systems work excellently in over 80,000 aircraft, making them the most popular worldwide. Furthermore, the company’s GNS 430W and GNS 530W GPS navigators are the industry standard for precise navigation and are suitable for all phases of flight.

Pilots worldwide utilize Garmin’s aviation communication systems for voice and data communication. Moreover, over 8,000 aircraft have the company’s GTS 800 and GTS 850 systems, making them the most popular in the general aviation market.

Garmin’s aviation products have support from an international network of authorized dealers and service locations. Additionally, the company’s website contains abundant materials for pilots, including product manuals, software updates, and customer assistance.

Rockwell Collins

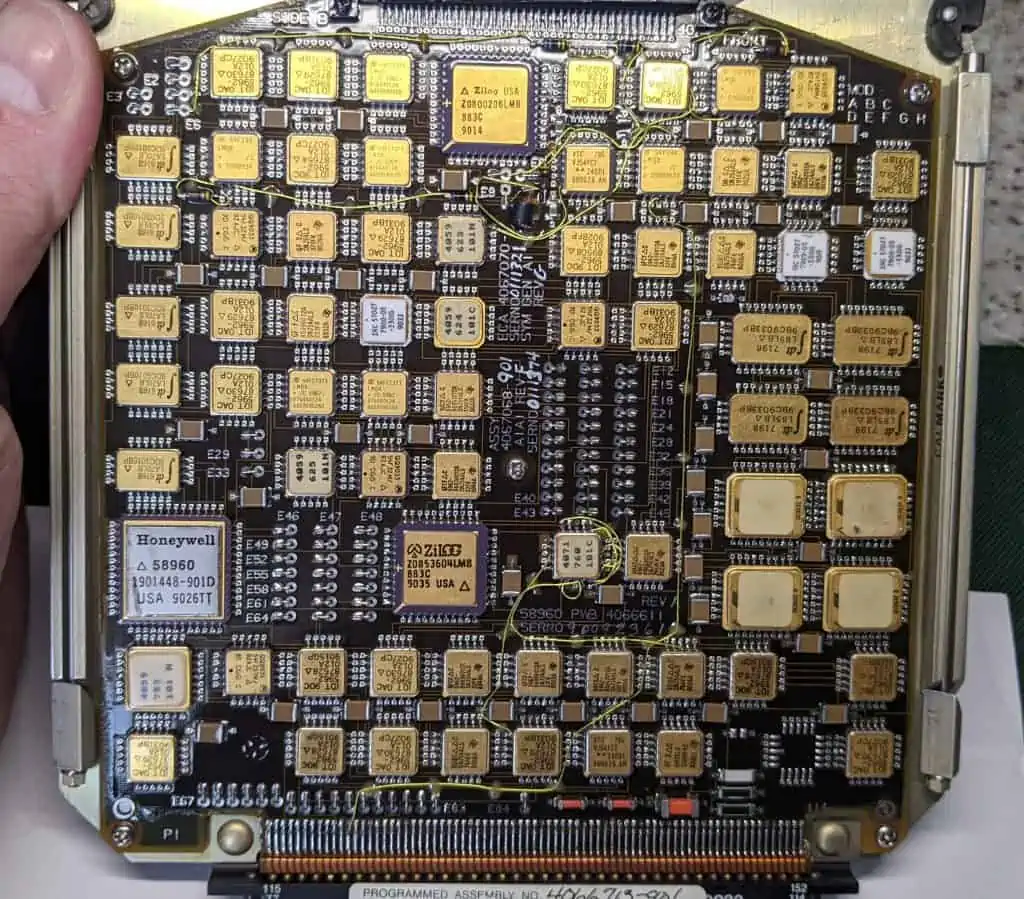

Aviation Electronics PCBA Board

Rockwell Collins is the industry leader in aviation electronics worldwide. They design, fabricate, and provide support for communications and aircraft electronics for commercial and military clients worldwide. Moreover, their goods are helpful throughout the entire flight process, from the cockpit to the cabin to the ground.

Rockwell Collins equips the cockpit with avionics and information management systems that promote safety, efficiency, and adaptability. Their inventory includes integrated flight decks, head-up displays, electronic flight bags, and collision avoidance systems. Moreover, in-cabin entertainment and connectivity options keep passengers engaged and connected during the flight. And on the ground, they provide airports and airlines with air traffic control systems and solutions that enhance operational efficiency.

Rockwell Collins has a long history of developing innovative technologies and solutions that have made air travel safer and more efficient. Created in 1933, they have consistently innovated to satisfy the aviation industry’s ever-changing demands for the past 89 years. In addition, Rockwell Collins designed the first airborne collision avoidance system, the first electronic flight bag, the first integrated flight deck, and some other unique products.

Rockwell Collins is a global leader in providing avionics and information management solutions to commercial and military clients. They prioritize safety, quality, and client pleasure. And they continue to invest in R&D to bring breakthrough products and services to market.

Toulouse

Since the early 20th century, Toulouse in southwest France has played a significant role as a hub of the European aircraft industry. In addition, for over 50 years, the business has been a top provider of avionics and other electronic equipment for commercial and military aircraft. As a result, its products are useful on a broad range of aircraft from tiny, private planes to giant airliners.

Toulouse has a long history of invention in the aerospace sector. It created the first digital flight control system for jet aircraft in the 1960s. The safety and effectiveness of air travel considerably improved due to this technology, which is now a standard feature on most commercial jetliners.

It was the first firm to provide in-flight entertainment systems on commercial aircraft, and the company has also been a pioneer in developing these systems. Today, almost all long-haul flights employ their in-flight entertainment systems.

Toulouse has recently added a wide variety of avionics to its product line. Moreover, small private planes and the most powerful corporate jets also utilize its equipment.

Toulouse is a multinational aviation electronics producer with clients in more than 100 nations. Moreover, it maintains a significant presence in Fort Worth, Texas, USA, where its manufacturing plant is.

With more than 4,000 workers, the enterprise is a significant employer in the Toulouse area. Moreover, with an annual economic effect of more than €1 billion, it also substantially contributes to the regional economy.

Raytheon

Raytheon, a significant American aerospace and defense contractor, provides goods and services to the country’s armed forces, government, and private clients. The business specializes in avionics, missile defense, radar, sonar, and other sensor systems, as well as communication and information systems.

Laurence K. Marshall and Vannevar Bush established Raytheon in 1922. When it was first known as the American Appliance Company, it sold Radios and other consumer electronics. The business later changed its name to Raytheon Manufacturing Company in 1925 to honor the newly invented vacuum tube known as the klystron, which was helpful in radar systems.

Raytheon then concentrated on creating radar equipment for the military during World War II. The company created the first shipboard radar system and mounted it aboard the USS Leary in 1942. In addition, Raytheon began the first airborne radar system in 1943 and climbed aboard Allied aircraft.

Raytheon continued to create new radar systems for military and non-military uses after the war, including air traffic control and weather monitoring. Additionally, the business expanded into new markets, including avionics, communication, information systems, and missile defense.

Raytheon is a top provider of avionics, communication and information systems, missile defense, radar, sonar, and other sensor systems. The military, governments, and commercial clients utilize the company’s goods all around the globe.

Boeing

Boeing is a top aviation electronics producer, providing commercial and military aircraft with various electronic systems and equipment. Since the early days of radio communication and navigation, Boeing has been a leader in aviation electronics innovation.

Boeing, a pioneer in developing airplane radio communication systems, was the first company to provide a full range of aviation radios. Several notable flights, including Charles Lindbergh’s first solo transatlantic flight in 1927, used Boeing radios.

Additionally, Boeing created the first aircraft radar system and mounted it aboard a US Navy plane in 1935. During World War II, this technology helped to monitor enemy aircraft.

Boeing is still a market leader in aviation electronics today, providing components for various aircraft, from tiny general aviation aircraft to huge commercial jets. In addition, Boeing produces radar systems, flight management systems, GPS navigation systems, and other items.

Boeing is a significant provider of electronic equipment for military aircraft. A broad range of military aviation employs Boeing goods, including fighters, bombers, transport aircraft, and helicopters. Some of the military goods that Boeing produces are avionics, electronic warfare systems, and communications systems.

Boeing is a prominent provider of various electronic equipment and systems for commercial and military aircraft and has a long history of innovation in the field.

Conclusion

Everywhere technology develops as time goes on. Engineers create new electronic systems and equipment in aviation to improve safety and efficiency. Modern commercial airplanes depend heavily on aviation electronics for their safe and efficient operation. They improve safety and efficiency and provide vital data that can help enhance an airline’s overall operation. Furthermore, with the creation and development of new technologies, aviation electronics are continually changing. Therefore, aircraft electronics specialists must stay updated with industry advancements. Aviation electronics, including in-cockpit displays and automated landing systems, continue to advance pilot safety and efficiency in the air. Current aviation electronics are already reasonably excellent, but there is always room for development.
