When bakers are baking, they need to get the necessary ingredients to bake bread or cake. They need ingredients like sugar, butter, and flour. Furthermore, they need to gain access to important tools such as mixers, pans, bowls, amongst others. This baker must ensure there is a list that comprises everything needed for baking before heading to a store to buy the supplies. They can remember everything to buy and how much of each item to buy thanks to this list.
Now let’s imagine this list was created by the client rather than the baker. Things may get worse if the baker rarely spoke to the client face-to-face. Therefore, the list of items to buy was the means by which the consumer disclosed what was necessary.
Additionally, this list includes necessary details for each item. This list is similar to. Bill of Material, popularly known as BoM. The distinction is that you need to create a hardware like PCB, as opposed to baking a cake.
What Does a BOM In Electronics Mean?
What the bill of material means will be covered here? The BOM can be is simply a thorough list of the sub-assemblies, bom electronic components, and raw materials for manufacturing a circuit board. Also, it includes assemblies that are needed for the manufacturing of the product. Additionally, the information in their manufacturing BOM helps manufacturers to develop or construct a particular item. Therefore, there is a great need for accuracy, precision, and good documentation.
Furthermore, if customers order circuit boards, they make use of BOMs to describe their needs to the PCB assembler. Then this PCB assembler integrates the BoM when creating the circuit boards to function according to the demands of the customer.
BOMs are crucial to Rayming PCB’s assembly services. They collaborate with PCB producers and assemblers in a similar way.
What You Should Know Before Making an Electronics BOM?
You need answers to these questions before you build or cretae your BOM.
What are you going to construct?
You must have started the PCB designing phase before beginning the BOM stage. Failure to do this might cause misunderstanding when interpreting the BoM. Also, when creating the BoM, you could start gathering accurate information about the parts required.
However, until your printed circuit board design is complete, you cannot rapidly start designing the BOM. Additionally, confirm that the Gerber file is created and that the everything is going as planned. The circuit board manufacturer can better understand the design details with the help of the Gerber file. Additionally, this stage aids in identifying the bom electronic components that you require to include in the BOM.
Who may utilize it?
The document’s content makes it ideal for use in various departments during PCB fabrication, including purchasing, design, engineering, and manufacturing. Therefore, thinking about who is in need of the BOM will help you provide precise details.
What details ought to be provided?
At this point, you need to be able to comprehend the details and get familiar with them. Understanding the categories you want to have in your document is necessary, also. All BOMs must have some basic information like amount, part name, as well as quantity. There are other optional details you can also include. It is important you decide the addition of consumables such as bolts and glue. However, you need to understand that creating a BOM that has the necessary details is the best decision you can ever make
What particular program would you employ to create it?
Before you create a BOM, you should ensure you know the program you’ll be using. The BOM list comprises a spreadsheet, a good number of businesses integrate the Excel. You will also realize that you require an excellent tool that is specifically made for BOMs, of which there are many.

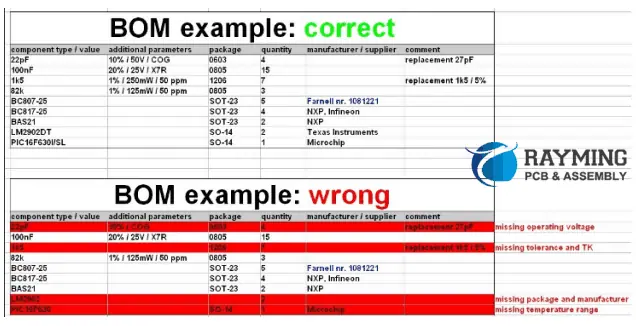

What Information Should Be in the BOM?
The BOM’s entire details for the PCB assembly could vary based on the project. Here is a list of some information a BOM usually contains.
Description
This description offers information about each component within the BOM. This includes its dimensions, color, voltage, and others. The information helps you to be sure you are ordering the best component and as well prevents any form of misunderstanding caused by similar pieces.
It is important your BOM includes all the appropriate measuring units. The choice of the items that comprise multiple units has to be constant all through the document.
The manufacturer’s name
You will need to include the name of the manufacturer of the component for enough precision. With this, it is much easier for those using the BOM to identify the best and most appropriate component to use. Additionally, it is a thoughtful decision to confirm with your manufacturer if each item on the list is available before you proceed to list it.
Additionally, make sure some factors are well considered. For instance, cost, delivery time, and specifications must be enough for your project. In the long run, it will save excessive expenses and the effort needed to get a replacement item much later all through the process of manufacturing if details are quickly examined.
Quantity
The quantity of each component required is another important detail your BOM must include. Therefore, be certain that the data is accurate and very up-to-date. This will help you gain benefit more from the price breaks provided for purchasing items in large quantities.
Type of Procurement
Ensure that you get the proper part by simply listing your type of procurement on your spreadsheet. This information reveals how to create a specific component.
The flexibility metric
You could get a better production process if you clarify the flexibility required in your BOM. This required for grouping the goods based on your flexibility with them. Some parts can be classified as critical. Therefore, the assembler has to integrate the correct specifications in such a case.
Other parts might be crucial to the design, however you might be able to replace them with some identical components made by a different company. Other requirements must be followed by the maker. With Rayming PCB, they never substitute or change a product without first consulting the client.
Replacement Parts
If the requested component isn’t available or there will be another modification, it is advisable to always include backup parts. You will be able to reduce the time you’ve wasted in each of these cases.
Level of BOM
BOMs usually feature various tiers. Each of these BOMs represent the sub-assembly or primary. In order to make navigation easier for and as well comprehend the assembly, each BOM features a distinct structure and product structure trees assigned and segmented based on their BOM levels.
Additional Files
In cases like this, you will have to generate files during the PCB production. These files include data sheets, CAD files, schematics, and instructions, which aren’t suitable for the BOM spreadsheet. In such cases, you have to include any supporting papers, and make sure there is a connection to the proper BOM level and components.
Reference Designator
When making the distinctive reference designator of each component of the circuit board assembly, be sure to indicate where each component sits on the board. Making the designator consistent with the level utilized in the PCB design docs makes it simple to cross-reference the PCB layout as well as BOM. The identifiers typically consist of a letter and a number.
Package Design
Include the materials paperwork, the description of the package, etc. These packages’ design helps to streamline production, and selecting the best packaging type could guarantee that the procedure becomes more efficient and cost-effective.
Placement Technique: Ensure the technology and the placement technique used in your PCB projects are provided.
This describes how each component is linked to a printed circuit board. Surface mount and through-hole are the techniques.
Footprint/Points
Here, you need to define the connecting points possessed by every component on its circuit board. Furthermore, it is crucial to define the footprint of each part. This usually gives more insight on the physical attachment of the connector to the printed circuit boards and subsequent electrical connection, like pads in surface mount technology and through-holes. Also, you need to pay attention when recording the footprint, points, BOM level, and separate component points.
Phase
Also, it might be necessary to add some blank space to the document. This will help you to mark the locations of the different lifecycle components.
Comments and Notations
Although this category might not be crucial, it could help in enhancing the productivity of your project, in cases when there are unforeseen issues or modifications. Any thoughts and comments that aren’t suitable in any other categories should be here.
What are the BOM Creation Tips?
We have listed some tips that you can work with when designing your electronics BOM.
Tailor your electronic bill of materials to your requirements
You have to decide what businesses you’re partnering with need from your BOM and then adjust to the design in order to meet those needs. The fact is that different businesses handle BOMs in various ways. Moreover, distinct projects need different details, organization, and feature. Also, you can customize your bom to work according to the specifications and needs of the project.
Use a template
It is possible to get BOM template form your manufacturer’s websites before obtaining a quote as well. When you make use of the template provided by the firm, you will be able to prevent problems that come with opening and reading a BOM document.
Ensure you provide important facts
Provide as much useful information as you can in your document. Keep in mind that such BOM is crucial in providing more information to those who must construct your Circuit board from scratch. It’s could be your first time of relating with these people and you need to know they don’t use precisely the same language. This is the reason why the BOM must be detailed, precise, as well as clear.
There are some particular details that aren’t useful and they can be confusing. But always use your professional judgment.
Check your information.
Before any uploading of the electronic bill of materials, ensure you make a thorough check for every piece of information. Also, be certain that the data is accurate and precise. The smallest mistake might cost you a lot when it comes to PCB manufacturing.
Monitor your alterations
Make sure there is a system is in place to help you track the modifications in your document. You may occasionally desire a history of earlier iterations. This is for reference purposes only. Make sure each version is clarified while making emphasis on the most recent one utilized for the project.
Cut back on the editing options
Despite the fact that several entities have access to a BOM, never give them the rights to edit until it is completely required. As an alternative, you ought to provide them “read-only access”. When you don’t give any rights for editing, you can minimize mistakes and unintentional modifications. For those with editing ability, you may also have to create a special ID.
Try to think about automating
You need to integrate a BOM management process might include automation-related elements. This will definitely make it easier to discover if there are any differences within the records. Furthermore, it helps to ensure improved traceability. Also, it is easier to export and import data for use in different formats.
Conclusion
The Bill of Material (BOM) is considered a thorough list that includes components, raw materials, sub-assemblies, including assemblies that are required for the manufacturing of a product. Before you begin with designing the BOM, you must have started with the designing stage of the project. If you don’t begin with this stage, the BOM you created might not be comprehendible. Additionally, as you’re creating, you could as well get accurate information about the parts needed. However, until your printed circuit board design is complete, you cannot rapidly start constructing the BOM. Additionally, confirm that the Gerber file is created and that the plan functions as planned.
