A DETAILED GUIDE TO SETTING LEAD-FREE THERMAL PROFILES FOR REFLOW SOLDERING

Reflow soldering is a critical process in the assembly of printed circuit boards (PCBs). With the global shift towards lead-free soldering, driven by environmental concerns and regulatory requirements such as RoHS (Restriction of Hazardous Substances), setting appropriate thermal profiles has become more challenging. This comprehensive guide will walk you through the intricacies of creating and optimizing lead-free thermal profiles for reflow soldering, ensuring high-quality solder joints and reliable electronic assemblies.

Understanding Lead-Free Soldering

The Shift to Lead-Free

The transition to lead-free soldering has been driven by several factors:

1. Environmental concerns
2. Health and safety regulations
3. Legislative requirements (e.g., RoHS, WEEE)
4. Market demands for eco-friendly products

Characteristics of Lead-Free Solders

Lead-free solders differ from traditional tin-lead solders in several ways:

Characteristic	Lead-Free Solder	Tin-Lead Solder
Melting Point	Higher (typically 217-220°C)	Lower (183°C for 63/37 Sn-Pb)
Wetting	Generally poorer	Better
Intermetallic Formation	Faster growth	Slower growth
Thermal Fatigue Resistance	Often better	Good
Cost	Higher	Lower

Common lead-free solder alloys include:

1. SAC305 (Sn96.5Ag3Cu0.5)
2. SAC387 (Sn95.5Ag3.8Cu0.7)
3. SN100C (Sn99.3Cu0.7NiGe)
4. SnAg (Sn96.5Ag3.5)

The Reflow Soldering Process

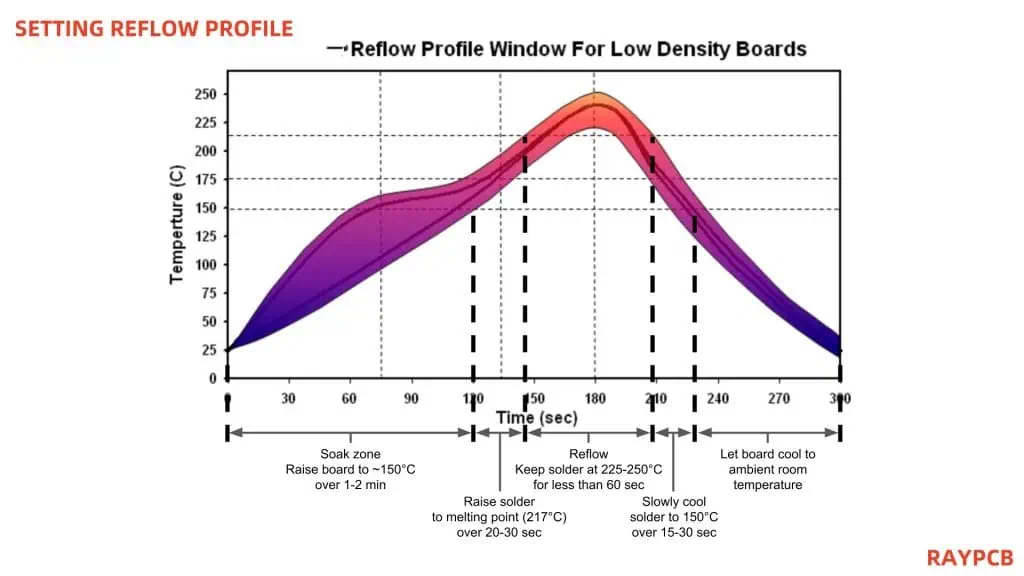

Stages of Reflow Soldering

A typical reflow profile consists of four main stages:

1. Preheat
2. Soak (Thermal Equalization)
3. Reflow
4. Cooling

Key Parameters in Reflow Profiling

When setting a reflow profile, several critical parameters must be considered:

Parameter	Description	Importance
Ramp Rate	Rate of temperature increase	Affects component stress and flux activation
Soak Time	Duration at pre-reflow temperature	Ensures thermal equilibrium across the board
Time Above Liquidus (TAL)	Time spent above solder melting point	Determines solder joint quality
Peak Temperature	Maximum temperature reached	Affects intermetallic formation and component stress
Cooling Rate	Rate of temperature decrease	Influences solder joint microstructure

Setting Lead-Free Thermal Profiles

1. Preheat Stage

The preheat stage is crucial for gradually warming the PCB and components:

• Typical ramp rate: 1-3°C/second
• Target temperature: 150-170°C
• Duration: 60-120 seconds

Objectives:

• Activate flux
• Gradually warm components to reduce thermal shock
• Begin solvent evaporation

2. Soak Stage

The soak stage allows for thermal equalization across the PCB:

• Temperature range: 150-200°C
• Duration: 60-120 seconds

Objectives:

• Complete flux activation
• Achieve thermal equilibrium across the board
• Minimize delta T between components

3. Reflow Stage

The reflow stage is where solder melting and joint formation occur:

• Peak temperature: 230-250°C (alloy dependent)
• Time Above Liquidus (TAL): 45-90 seconds

Objectives:

• Ensure complete melting of solder paste
• Form intermetallic compounds
• Achieve proper wetting and fillet formation

4. Cooling Stage

The cooling stage allows for controlled solidification of solder joints:

• Cooling rate: 2-4°C/second
• End temperature: ~50°C

Objectives:

• Control solder joint microstructure
• Minimize thermal stress on components and PCB

Factors Affecting Lead-Free Reflow Profiles

1. Solder Paste Composition

Different lead-free alloys have varying melting points and flow characteristics:

Alloy	Melting Point	Recommended Peak Temperature
SAC305	217-220°C	235-245°C
SAC387	217-220°C	235-245°C
SN100C	227°C	245-260°C
SnAg	221°C	235-250°C

2. PCB Characteristics

Board properties significantly influence the reflow profile:

• Thickness: Thicker boards require longer soak times
• Layer count: More layers increase thermal mass
• Size: Larger boards may need extended profiles
• Mixed technology: Through-hole components may require special consideration

3. Component Types

Different components have varying thermal sensitivities:

Component Type	Considerations
BGA/CSP	Require precise control of Time Above Liquidus
QFP/QFN	Susceptible to tombstoning if profile is imbalanced
Electrolytic Capacitors	Sensitive to high temperatures
Through-Hole	May act as heat sinks, requiring longer TAL

4. Flux Chemistry

Lead-free fluxes often require different activation profiles:

• Higher activation temperatures
• Longer soak times for complete activation
• Narrower process windows

Optimizing Lead-Free Reflow Profiles

1. Thermal Profiling

Use thermal profiling equipment to measure actual temperatures across the PCB:

1. Attach thermocouples to critical points on the board
2. Run the board through the reflow oven
3. Analyze the resulting profile data

Key areas for thermocouple placement:

• Center of the board (typically hottest)
• Edges and corners (typically coolest)
• Large thermal mass components
• Temperature-sensitive components

2. Profile Adjustment Techniques

Based on profiling results, adjust oven settings:

Issue	Adjustment
Insufficient preheat	Increase preheat zone temperatures
Uneven heating	Extend soak time or adjust zone temperatures
Insufficient peak temperature	Increase reflow zone temperature
Excessive TAL	Reduce reflow zone temperature or increase conveyor speed
Slow cooling	Adjust cooling zone fans or temperature

3. Oven Considerations

Different oven types have varying capabilities:

Oven Type	Characteristics
Infrared (IR)	Good for consistent board types, less flexible
Convection	More uniform heating, better for mixed technology
Vapor Phase	Very uniform heating, precise temperature control

4. Advanced Profiling Techniques

For complex assemblies or high-reliability applications:

1. Use multiple thermocouple runs to create a thermal map of the PCB
2. Implement automated profiling systems for real-time adjustments
3. Consider simulating thermal profiles using specialized software

Common Challenges in Lead-Free Reflow Profiling

1. Narrow Process Window

Lead-free solders often have a narrower process window compared to tin-lead:

• Solution: Precise oven control and regular profile verification

2. Component Warpage

Higher temperatures can cause BGA and large component warpage:

• Solution: Optimize soak stage to reduce delta T, consider vapor phase soldering

3. Tombstoning

Small components may tombstone due to uneven heating:

• Solution: Ensure balanced heating, optimize pad design

4. Excessive Intermetallic Growth

Higher temperatures and longer TAL can lead to excessive intermetallic formation:

• Solution: Carefully control peak temperature and TAL

5. Incomplete Reflow

Insufficient peak temperature or TAL can result in cold or disturbed solder joints:

• Solution: Ensure adequate peak temperature and TAL for the chosen alloy

Best Practices for Lead-Free Reflow Profiling

1. Start with Recommended Profiles: Begin with the solder paste manufacturer’s recommended profile and adjust as needed.
2. Regular Profiling: Perform regular thermal profiling, especially when introducing new products or after oven maintenance.
3. Multi-Point Profiling: Use multiple thermocouples to get a comprehensive view of thermal distribution.
4. Consider All Components: Ensure the profile is suitable for all components on the board, particularly the most sensitive ones.
5. Minimize Delta T: Aim for a maximum temperature difference of 5-10°C across the board during reflow.
6. Optimize Flux Activation: Ensure adequate soak time for complete flux activation.
7. Control Cooling Rate: Maintain a controlled cooling rate to promote optimal solder joint microstructure.
8. Document Everything: Keep detailed records of profiles, changes, and their effects on product quality.
9. Train Operators: Ensure operators understand the importance of proper profiling and how to interpret results.
10. Consider Nitrogen Atmosphere: For challenging applications, consider using a nitrogen atmosphere to improve wetting and reduce oxidation.

Future Trends in Lead-Free Reflow Soldering

1. Low-Temperature Alloys: Development of lead-free alloys with lower melting points to reduce thermal stress.
2. Advanced Profiling Software: Integration of AI and machine learning for automated profile optimization.
3. Improved Oven Technology: Development of ovens with more precise control and uniformity.
4. Green Manufacturing: Focus on energy-efficient reflow processes and environmentally friendly flux chemistries.
5. Miniaturization Challenges: Adapting profiles for increasingly dense and complex PCB assemblies.

Frequently Asked Questions (FAQ)

1. Q: How do I determine the optimal peak temperature for my lead-free reflow profile? A: The optimal peak temperature depends on several factors, including the solder alloy, component specifications, and board characteristics. As a general rule:
   1. Start with the solder paste manufacturer’s recommended peak temperature.
   2. Ensure the peak temperature is 20-30°C above the solder’s melting point.
   3. Verify that the peak temperature doesn’t exceed the maximum temperature rating of the most sensitive component.
   4. Use thermal profiling to fine-tune the peak temperature, aiming for complete reflow without excessive intermetallic growth or component damage. Remember, most lead-free profiles have peak temperatures between 230-250°C, but always consult your specific solder paste and component datasheets.
2. Q: What’s the importance of Time Above Liquidus (TAL), and how do I optimize it? A: Time Above Liquidus (TAL) is crucial for proper solder joint formation in lead-free reflow soldering. It affects wetting, intermetallic compound formation, and overall joint reliability. To optimize TAL:
   1. Aim for a TAL between 45-90 seconds for most lead-free applications.
   2. Use thermal profiling to measure actual TAL across the board.
   3. Adjust oven settings (temperature or conveyor speed) to achieve the desired TAL.
   4. Consider component types – BGAs may require longer TAL than smaller components.
   5. Balance TAL with peak temperature – a slightly lower peak temperature might allow for longer TAL without damaging components. Remember, insufficient TAL can lead to incomplete reflow, while excessive TAL may cause excessive intermetallic growth or component damage.
3. Q: How do I address uneven heating across a PCB during lead-free reflow? A: Uneven heating is a common challenge in reflow soldering, especially with lead-free profiles. To address this:
   1. Use multiple thermocouples during profiling to identify hot and cold spots.
   2. Extend the soak time to allow for better thermal equalization across the board.
   3. Adjust individual zone temperatures in the oven to compensate for uneven heating.
   4. Consider board orientation – rotating the board 90 degrees may improve uniformity.
   5. For persistent issues, consider using a convection oven or vapor phase soldering for more uniform heating.
   6. Optimize board design – spread out high thermal mass components if possible.
   7. Use thermal shields or selective preheat for areas with significantly different thermal masses. Remember, the goal is to minimize the temperature difference (delta T) across the board, ideally keeping it under 10°C during the reflow stage.
4. Q: What are the key differences in profiling for pin-in-paste (intrusive reflow) compared to standard SMT reflow? A: Pin-in-paste (also known as intrusive reflow) requires some specific considerations in profile setting:
   1. Longer soak time: This allows for better heat penetration into the through-holes.
   2. Higher peak temperature: Often 5-10°C higher than standard SMT to ensure proper reflow in the holes.
   3. Extended Time Above Liquidus (TAL): Usually 30-60 seconds longer to ensure complete hole filling.
   4. Slower ramp rates: This helps reduce the risk of solder wicking and tombstoning.
   5. Board orientation: Consider profiling in both horizontal and vertical orientations, as gravity can affect hole filling.
   6. Paste volume: Ensure sufficient paste volume in the holes, which may require stencil modifications.
   7. Flux activity: May need more active flux to maintain effectiveness over the longer profile. Always perform thorough profiling and inspection when implementing pin-in-paste processes, as they can be more challenging than standard SMT reflow.
5. Q: How does the use of a nitrogen atmosphere affect lead-free reflow profiles? A: Using a nitrogen atmosphere in lead-free reflow soldering can provide several benefits and may require profile adjustments: Benefits:
   1. Improved wetting and spread of solder
   2. Reduced oxidation of solder joints and component leads
   3. Potential for lower peak temperatures
   4. Wider process window
   Profile adjustments:
   1. Peak temperature: May be reduced by 5-10°C due to improved heat transfer
   2. Time Above Liquidus (TAL): Can often be shortened due to improved wetting
   3. Soak time: May be reduced as flux activation can be more efficient
   4. Cooling rate: May need adjustment due to changes in heat transfer characteristics
   When implementing nitrogen, start with your established air profile and make gradual adjustments while monitoring solder joint quality. Also, consider the economic factors – the benefits of nitrogen must be weighed against the additional cost of implementation and operation.
