Introduction

The proliferation of unmanned aerial vehicles (UAVs) in civilian and commercial applications has created unprecedented security challenges across critical infrastructure, public venues, and restricted airspace. As drone technology becomes more accessible and sophisticated, the need for effective counter-drone defense systems has grown exponentially. Radio frequency (RF) based counter-drone systems represent one of the most versatile and widely deployed solutions, with antenna design serving as a critical component that determines system performance, coverage, and operational effectiveness.

Counter-drone RF systems operate through multiple mechanisms including detection, classification, tracking, and neutralization of unauthorized drones. The antenna subsystem plays a pivotal role in each of these functions, requiring specialized designs that can handle diverse frequency bands, provide adequate gain and directivity, and maintain robust performance in challenging electromagnetic environments. This article examines the technical aspects of RF antenna design and production specifically tailored for counter-drone defense applications.

RF Counter-Drone System Fundamentals

Counter-drone RF systems typically operate across multiple frequency bands to address the various communication and control channels used by modern drones. The primary frequency bands of interest include:

ISM Bands: The 2.4 GHz and 5.8 GHz Industrial, Scientific, and Medical (ISM) bands are extensively used for drone control links, first-person view (FPV) video transmission, and telemetry data. These bands require antennas with moderate to high gain characteristics and the ability to handle both narrowband and wideband signals.

GPS/GNSS Bands: Global positioning system frequencies around 1.2-1.6 GHz are critical for drone navigation. Counter-drone antennas targeting these bands must provide sufficient gain and pattern coverage to effectively disrupt navigation signals while maintaining precision in spatial selectivity.

Cellular Bands: Modern drones increasingly utilize cellular communication (700 MHz to 2.6 GHz range) for beyond-visual-line-of-sight (BVLOS) operations. Antennas for these applications must accommodate multiple cellular standards and frequency allocations across different regions.

Proprietary Frequencies: Some drone manufacturers use proprietary communication protocols operating in various frequency bands, requiring broadband antenna solutions or multiple specialized antenna elements.

The operational modes of counter-drone RF systems directly influence antenna design requirements. Detection and monitoring systems require antennas with wide beamwidth patterns and high sensitivity to identify drone signals across large coverage areas. Active jamming systems need high-power handling capabilities and focused beam patterns to maximize effective radiated power toward target drones while minimizing interference to other systems.

Antenna Design Considerations for Counter-Drone Applications

Frequency Coverage and Bandwidth

Counter-drone antennas must provide adequate performance across wide frequency ranges to address the diverse communication technologies employed by different drone platforms. Broadband antenna designs are often preferred to simplify system architecture and reduce component count, but this approach requires careful optimization to maintain consistent gain and pattern characteristics across the entire operational bandwidth.

Multi-band antenna designs offer an alternative approach, providing optimized performance at specific frequency bands while potentially reducing overall system complexity. These designs typically employ multiple radiating elements or frequency-selective structures to achieve the desired multi-band characteristics.

The bandwidth requirements also depend on the specific counter-drone technique employed. Narrowband jamming systems may require antennas with more modest bandwidth characteristics but higher efficiency and power handling capability. Wideband noise jamming systems demand antennas with extremely wide bandwidth to ensure effective signal disruption across all potential drone communication channels.

Radiation Pattern and Coverage

The radiation pattern requirements for counter-drone antennas vary significantly based on the intended application and deployment scenario. Airport perimeter protection systems may require omnidirectional coverage to detect approaching drones from any direction, while point defense systems for critical facilities might employ highly directional antennas to focus energy on specific threat sectors.

Sector antennas with 60° to 120° azimuth beamwidth are commonly used to provide coverage of specific areas while allowing multiple antennas to create comprehensive protection zones. These antennas typically feature moderate gain levels (8-15 dBi) and controlled sidelobe levels to minimize interference with adjacent systems.

High-gain directional antennas (20-30 dBi) are employed for long-range detection and jamming applications, particularly in scenarios where the threat approach vectors are predictable or limited. These antennas may incorporate beam steering capabilities through electronic or mechanical means to track moving targets and maintain optimal signal engagement.

Specialized radiation patterns may be required for certain applications, such as null-fill antennas that provide coverage directly overhead to detect small drones operating at low altitudes, or antennas with shaped beams to conform to specific geographic constraints or regulatory requirements.

Power Handling and Efficiency

Counter-drone jamming systems often require significant RF power levels to ensure effective signal disruption at operationally relevant ranges. Antenna power handling capabilities must exceed the maximum transmitted power with adequate safety margins to prevent component failure or performance degradation under continuous operation.

The power handling requirements extend beyond simple average power considerations to include peak power handling for pulsed or burst transmission modes, as well as thermal management under sustained high-power operation. Antenna design must incorporate appropriate materials and construction techniques to handle the thermal stresses associated with high-power RF transmission.

Antenna efficiency directly impacts the overall system power requirements and thermal management complexity. High-efficiency antenna designs reduce the power consumption and heat dissipation requirements for the overall counter-drone system, enabling more compact and cost-effective implementations.

Environmental and Mechanical Requirements

Counter-drone systems are typically deployed in demanding outdoor environments, requiring antennas that can withstand extreme temperatures, precipitation, wind loading, and potential exposure to corrosive environments. Radome designs must provide adequate weather protection while minimizing impact on antenna performance across the operational frequency range.

The mechanical design must accommodate the dynamic requirements of scanning or tracking systems, including precise positioning accuracy, rapid movement capabilities, and long-term reliability under repeated motion cycles. For fixed installations, the mechanical design must provide stable antenna orientation under wind loading while maintaining precise electrical performance characteristics.

Size and weight constraints often limit antenna design options, particularly for mobile or rapidly deployable counter-drone systems. Antenna designs must balance performance requirements against practical constraints imposed by vehicle integration, transportation limitations, and setup time requirements.

Antenna Types and Configurations

Phased Array Systems

Phased array antennas have emerged as a preferred solution for advanced counter-drone applications due to their electronic beam steering capabilities, rapid scanning speeds, and ability to simultaneously engage multiple targets. These systems employ arrays of radiating elements with variable phase relationships to create steerable beam patterns without mechanical movement.

Active electronically scanned arrays (AESA) incorporate dedicated transmit/receive modules for each antenna element, providing the highest performance and flexibility but at increased cost and complexity. Passive electronically scanned arrays (PESA) use a centralized transmitter with phase shifters to control beam direction, offering reduced complexity while maintaining electronic scanning capabilities.

The design of phased array systems for counter-drone applications must address several unique challenges including wide-angle scanning requirements, multi-band operation, and integration of both detection and jamming functions within the same aperture. Element spacing, array geometry, and beamforming algorithms must be optimized for the specific operational requirements and frequency bands of interest.

Log-Periodic and Spiral Antennas

Broadband antenna designs such as log-periodic dipole arrays (LPDA) and spiral antennas are well-suited for counter-drone applications requiring wide frequency coverage. Log-periodic antennas provide consistent gain and radiation patterns across wide frequency ranges, making them ideal for detection systems that must monitor multiple drone communication bands simultaneously.

Spiral antennas offer circular polarization characteristics that can be advantageous for counter-drone applications, as many drone communication systems employ circular polarization to improve link reliability. The inherently broadband nature of spiral antennas simplifies system design while providing adequate gain for many counter-drone scenarios.

Design optimization for these broadband antenna types focuses on achieving the desired frequency coverage while maintaining consistent performance parameters. Balun design, feed network optimization, and structural considerations all impact the final antenna performance across the operational bandwidth.

Horn and Reflector Antennas

High-gain applications such as long-range detection and focused jamming often employ horn antennas or reflector-based designs. Horn antennas provide excellent control over radiation patterns and can handle high power levels while maintaining good efficiency characteristics. Pyramidal horns are commonly used for linearly polarized applications, while circular horns may be preferred for circular polarization requirements.

Reflector antennas, including parabolic dishes and shaped reflector designs, can provide very high gain levels for applications requiring maximum effective radiated power or sensitivity. These antennas may incorporate dual-band feeds to operate across multiple frequency ranges or multiple feeds to create multiple simultaneous beams.

The mechanical design of horn and reflector antennas for counter-drone applications must address pointing accuracy requirements, environmental protection, and integration with tracking or scanning mechanisms. Radome design becomes particularly critical for these antenna types due to their size and the need to maintain precise electrical performance.

Microstrip and Printed Circuit Antennas

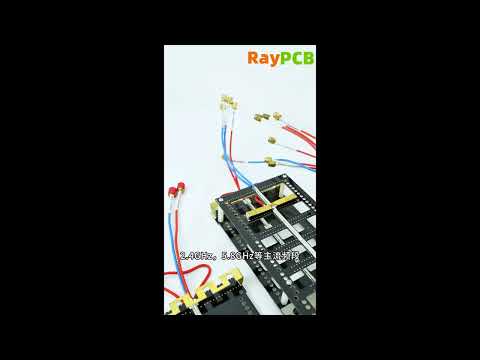

For applications requiring low-profile, lightweight, or conformal antenna solutions, microstrip patch antennas and printed circuit antenna arrays offer attractive design options. These antennas can be fabricated using standard printed circuit board manufacturing techniques, enabling cost-effective production and easy integration with electronic systems.

Patch antenna arrays can provide moderate gain levels with controlled radiation patterns suitable for many counter-drone applications. The planar nature of these antennas makes them ideal for integration into vehicle-mounted systems or architectural installations where visual impact must be minimized.

Design challenges for microstrip antennas in counter-drone applications include achieving adequate bandwidth for multi-band operation, handling power requirements for jamming applications, and maintaining performance consistency across production quantities.

Production and Manufacturing Considerations

Materials and Manufacturing Processes

The selection of materials for counter-drone antenna production must balance electrical performance, environmental durability, cost considerations, and manufacturing feasibility. Conductor materials typically include copper, aluminum, or specialized alloys chosen for their conductivity, corrosion resistance, and mechanical properties.

Dielectric materials play a critical role in antenna performance, particularly for microstrip and printed circuit antenna designs. Low-loss dielectric materials with stable electrical properties across temperature and frequency ranges are essential for maintaining consistent antenna performance. For high-power applications, thermal conductivity and power handling capabilities become additional selection criteria.

Manufacturing processes must be capable of maintaining tight dimensional tolerances to ensure consistent electrical performance across production quantities. For RF applications, dimensional variations on the order of small fractions of a wavelength can significantly impact antenna performance, requiring precision machining, controlled assembly processes, and comprehensive quality control measures.

Quality Control and Testing

Production testing of counter-drone antennas requires comprehensive verification of electrical performance parameters including gain, radiation patterns, input impedance, and efficiency across the operational frequency range. Automated test equipment and anechoic chamber measurements are typically required to verify antenna performance to specification limits.

Environmental testing must verify antenna performance under the expected operating conditions including temperature extremes, humidity, vibration, and mechanical stress. Accelerated life testing may be employed to verify long-term reliability under operational stress conditions.

For high-power jamming applications, power handling verification requires specialized test equipment and procedures to safely verify antenna performance under maximum power conditions. Thermal imaging and temperature monitoring during high-power testing can identify potential failure modes or performance degradation mechanisms.

Cost Optimization and Scalability

Production cost optimization for counter-drone antennas involves balancing performance requirements against manufacturing complexity and material costs. Design for manufacturability principles should be applied early in the development process to identify cost-effective production approaches while maintaining required performance levels.

Scalable manufacturing processes become important considerations for large-volume production, particularly for applications such as airport security systems that may require numerous antenna installations. Automated assembly techniques, standardized interfaces, and modular design approaches can reduce production costs and improve manufacturing consistency.

Supply chain considerations for specialized RF materials and components require careful planning to ensure production continuity and cost stability. Alternative material specifications and qualified supplier networks can provide flexibility in production planning and cost management.

Performance Optimization and Integration

System-Level Considerations

The integration of antennas into complete counter-drone systems requires careful attention to electromagnetic compatibility, mechanical interfaces, and thermal management. Antenna placement and orientation must be optimized to minimize mutual coupling between multiple antennas while maximizing coverage effectiveness.

Feed network design and transmission line routing significantly impact overall system performance, particularly for multi-antenna configurations. Low-loss transmission lines, proper impedance matching, and minimal insertion loss are critical for maintaining system sensitivity and efficiency.

Calibration and alignment procedures must be established to ensure consistent performance across multiple antenna installations and to maintain performance over the operational lifetime of the system. Reference antenna standards and measurement procedures enable verification of performance specifications in field installations.

Advanced Technologies and Future Trends

Emerging technologies such as metamaterial antennas and reconfigurable antenna systems offer potential advantages for future counter-drone applications. Metamaterial structures can enable antenna designs with enhanced directivity, reduced size, or novel beam shaping capabilities that may improve counter-drone system effectiveness.

Software-defined antenna systems with electronically reconfigurable characteristics can adapt to changing threat scenarios and operational requirements without hardware modifications. These systems may incorporate machine learning algorithms to optimize antenna performance based on observed drone behavior and environmental conditions.

Integration with artificial intelligence and autonomous systems represents a growing trend in counter-drone technology, requiring antennas that can support high-speed data communications and real-time coordination between distributed sensor and jamming systems.

Regulatory and Operational Considerations

Counter-drone antenna systems must comply with relevant regulatory requirements regarding RF emissions, frequency allocations, and power limitations. Different regions may have varying regulatory frameworks that impact antenna design requirements and operational constraints.

Coordination with existing RF systems such as air traffic control radar, cellular networks, and satellite communications requires careful frequency planning and antenna design to minimize interference potential. Antenna radiation pattern control and frequency selectivity become critical factors in ensuring compatible operation with other RF systems.

Operational safety considerations include RF exposure limits for personnel, protection of sensitive electronic systems from high-power RF fields, and failsafe mechanisms to prevent unintended RF emissions. Antenna design must incorporate appropriate safety interlocks and monitoring systems to ensure safe operation in populated areas.

Conclusion

The design and production of RF antennas for counter-drone defense systems represents a complex engineering challenge that requires integration of advanced RF design techniques, robust manufacturing processes, and comprehensive system-level optimization. As drone technology continues to evolve and proliferate, counter-drone antenna systems must adapt to address new threats while maintaining compatibility with existing RF infrastructure and regulatory requirements.

Future developments in antenna technology, including metamaterials, artificial intelligence integration, and advanced manufacturing techniques, will continue to enhance the effectiveness and capabilities of counter-drone defense systems. The critical role of antenna design in determining overall system performance ensures that continued innovation in this field will remain essential for maintaining effective protection against unauthorized drone activities.

Success in counter-drone antenna development requires close collaboration between RF engineers, system integrators, and end users to ensure that antenna designs meet the practical requirements of operational deployment while providing the performance characteristics necessary for effective drone defeat capabilities. As the threat landscape continues to evolve, antenna technology will remain at the forefront of counter-drone system advancement.
