Three-phase thyristor trigger board manufacturing & Assembly

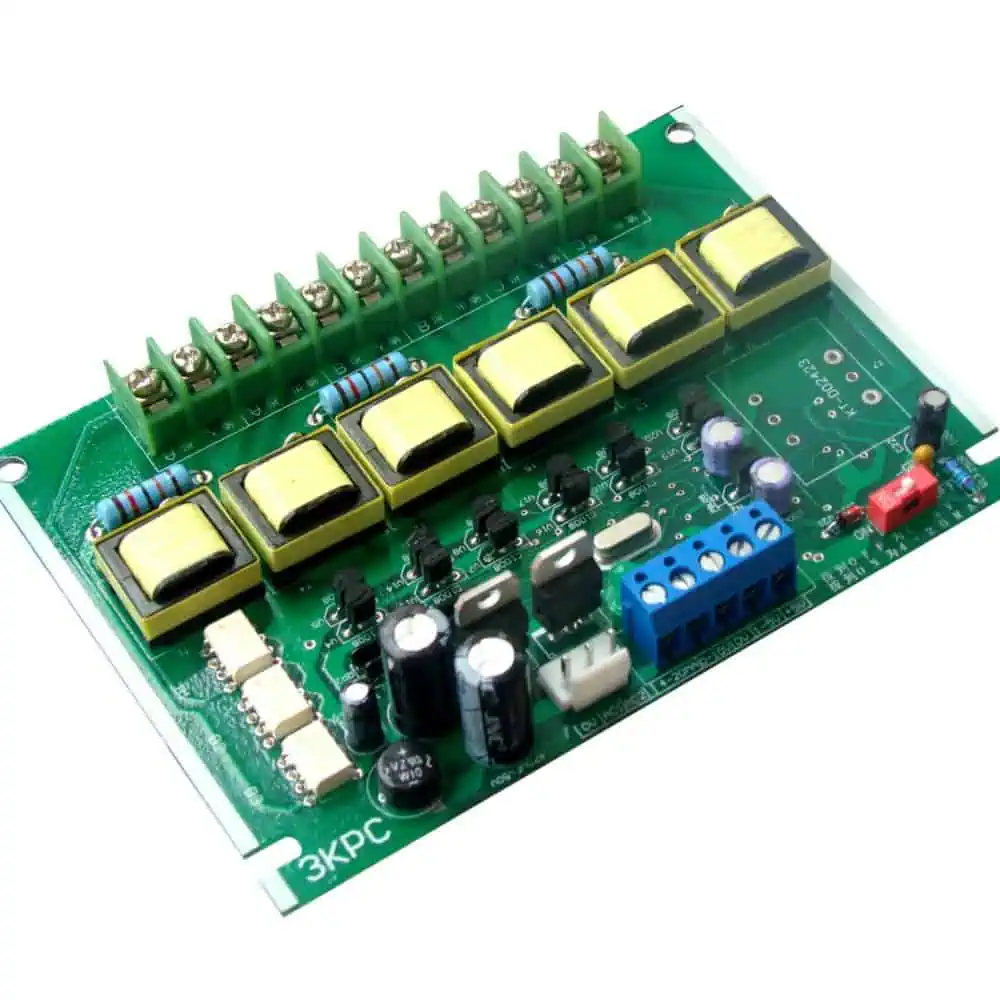

A three-phase thyristor trigger board is a crucial component in power electronics systems, particularly in applications involving motor control, power supplies, and industrial automation. This board is responsible for generating precise firing signals to control thyristors in a three-phase system, allowing for efficient and accurate power regulation.

Working Diagram

The working diagram of a three-phase thyristor trigger board typically consists of several key components:

1. Power Supply Unit: Provides the necessary DC voltage for the board’s operation.
2. Synchronization Circuit: Detects zero-crossing points of the three-phase AC input.
3. Microcontroller or Digital Signal Processor (DSP): Processes input signals and calculates firing angles.
4. Pulse Generation Circuit: Produces trigger pulses based on the calculated firing angles.
5. Gate Drive Circuit: Amplifies and isolates the trigger pulses for each thyristor.
6. Feedback and Protection Circuits: Monitor system parameters and provide safety features.

[Three-phase AC Input] --> [Synchronization Circuit]
                           |
                           v
[User Input/Control] --> [Microcontroller/DSP] --> [Pulse Generation Circuit]
                           |                         |
                           |                         v
[Feedback Signals] ------> |              [Gate Drive Circuit]
                           |                    |    |    |
                           v                    v    v    v
                    [Protection Circuit]   [Thyristor Gate Terminals]

Manufacturing Process

The manufacturing of a three-phase thyristor trigger board involves several steps:

1. PCB Design:
   • Create a schematic diagram using CAD software.
   • Design the PCB layout, considering component placement and signal routing.
   • Perform Design Rule Check (DRC) and generate Gerber files.
2. PCB Fabrication:
   • Select appropriate PCB material (e.g., FR-4).
   • Apply copper layers and drill holes.
   • Create solder mask and silkscreen layers.
   • Perform electrical testing of bare PCBs.
3. Component Procurement:
   • Source high-quality components from reliable suppliers.
   • Ensure components meet required specifications and tolerances.
4. Surface Mount Technology (SMT) Assembly:
   • Apply solder paste to PCB using a stencil.
   • Place SMD components using pick-and-place machines.
   • Reflow solder the board in a controlled oven.
5. Through-Hole Component Assembly:
   • Insert through-hole components manually or with automated machines.
   • Solder components using wave soldering or selective soldering techniques.
6. Quality Control:
   • Perform visual inspection for defects.
   • Conduct Automated Optical Inspection (AOI) and X-ray inspection for hidden defects.
   • Test board functionality using In-Circuit Testing (ICT) and functional testing.
7. Conformal Coating (Optional):
   • Apply a protective coating to shield the board from environmental factors.
8. Final Inspection and Packaging:
   • Conduct a final visual and functional inspection.
   • Package boards for shipping or further integration.

Assembly Process

The assembly of a three-phase thyristor trigger board typically follows these steps:

1. PCB Preparation:
   • Clean the PCB to remove any contaminants.
   • Inspect for any visible defects or damage.
2. Component Placement:
   • Begin with SMD components, starting from the smallest to the largest.
   • Use a pick-and-place machine for precise and efficient placement.
   • Manually place any components that require special handling.
3. Reflow Soldering:
   • Place the populated PCB in a reflow oven.
   • Follow a specific temperature profile to properly solder SMD components.
4. Inspection and Touch-up:
   • Visually inspect solder joints after reflow.
   • Perform touch-up soldering if necessary.
5. Through-Hole Component Insertion:
   • Insert through-hole components manually or with automated equipment.
   • Ensure correct orientation and seating of components.
6. Wave Soldering or Hand Soldering:
   • Use wave soldering for boards with many through-hole components.
   • Hand solder components that require special attention or can’t go through wave soldering.
7. Cleaning:
   • Remove flux residues and other contaminants using appropriate cleaning methods.
8. Final Assembly:
   • Attach any additional mechanical components (e.g., heat sinks, connectors).
   • Apply thermal paste if required for certain components.
9. Testing:
   • Perform in-circuit tests to verify component placement and connections.
   • Conduct functional tests to ensure the board operates as designed.
10. Calibration and Programming:
    • Calibrate any analog circuits for optimal performance.
    • Program the microcontroller or DSP with the required firmware.
11. Final Inspection:
    • Perform a comprehensive visual and functional inspection.
    • Verify all assembly steps have been completed correctly.
12. Packaging:
    • Place the assembled board in anti-static packaging.
    • Include any necessary documentation or accessories.

Conclusion

The manufacturing and assembly of a three-phase thyristor trigger board is a complex process that requires precision, attention to detail, and quality control at every step. From the initial PCB design to the final functional testing, each phase plays a crucial role in ensuring the reliability and performance of the finished product. As technology advances, these processes continue to evolve, incorporating new techniques and automation to improve efficiency and quality.
