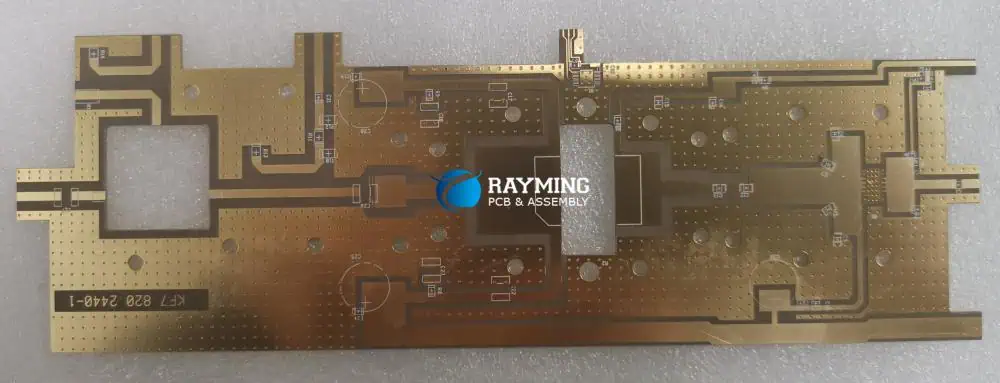

Professional High-Frequency Circuit Board Design Services for Millimeter Wave Applications
Our specialized microwave PCB design service delivers precision-engineered circuit layouts optimized for millimeter wave (mmWave) frequencies ranging from 30 GHz to 300 GHz. We provide comprehensive design solutions for applications requiring exceptional signal integrity, minimal loss, and superior electromagnetic performance at extreme frequencies.
Key Features:
- Advanced Substrate Selection: Expert material specification including Rogers, Taconic, and other low-loss dielectrics optimized for mmWave propagation
- Precision Transmission Line Design: Microstrip, stripline, and coplanar waveguide geometries with controlled impedance matching
- Via Optimization: Strategic via placement and sizing to minimize parasitic effects and maintain signal integrity
- Thermal Management: Integrated heat dissipation solutions for high-power mmWave components
- Electromagnetic Modeling: Full-wave 3D simulation and analysis using industry-leading tools
Technical Specifications:
- Frequency Range: 30 GHz – 300 GHz
- Substrate Thickness: 0.1mm – 3.2mm
- Dielectric Constants: 2.2 – 10.2
- Loss Tangent: <0.002 at mmWave frequencies
- Impedance Tolerance: ยฑ5%
- Layer Count: 2-20 layers
Applications:
- 5G/6G wireless infrastructure
- Automotive radar systems (77 GHz, 79 GHz)
- Satellite communications
- Military and aerospace systems
- Point-to-point wireless links
- Medical imaging equipment
- Industrial sensing applications
Design Deliverables:
- Complete Gerber files and drill data
- 3D electromagnetic simulation reports
- S-parameter analysis
- Thermal analysis documentation
- Assembly drawings and fabrication notes
- Design rule check (DRC) verification
Our experienced RF engineers ensure your mmWave circuits meet stringent performance requirements while maintaining manufacturability and cost-effectiveness for both prototype and production volumes.
