Superior Heat Dissipation for High-Performance Electronics
Our Copper Core PCBs deliver exceptional thermal management capabilities, featuring a solid copper core that provides maximum thermal conductivity for demanding electronic applications. Engineered for reliability and performance, these boards are the ideal solution when heat dissipation is critical to your project’s success.
Key Features
Maximum Thermal Conductivity: The solid copper core offers thermal conductivity up to 400 W/mK, dramatically outperforming standard FR4 PCBs and enabling efficient heat transfer away from critical components.
Enhanced Power Handling: Superior heat dissipation allows for higher power densities and improved component performance, extending operational lifespan and reliability.
Precision Manufacturing: Built with tight tolerances and consistent copper thickness throughout the core, ensuring uniform thermal performance across the entire board surface.
Versatile Layer Configurations: Available in single-sided, double-sided, and multi-layer configurations to accommodate diverse circuit requirements while maintaining optimal thermal properties.
High-Temperature Stability: Maintains structural integrity and electrical performance across extended temperature ranges, making it suitable for harsh operating environments.
Applications

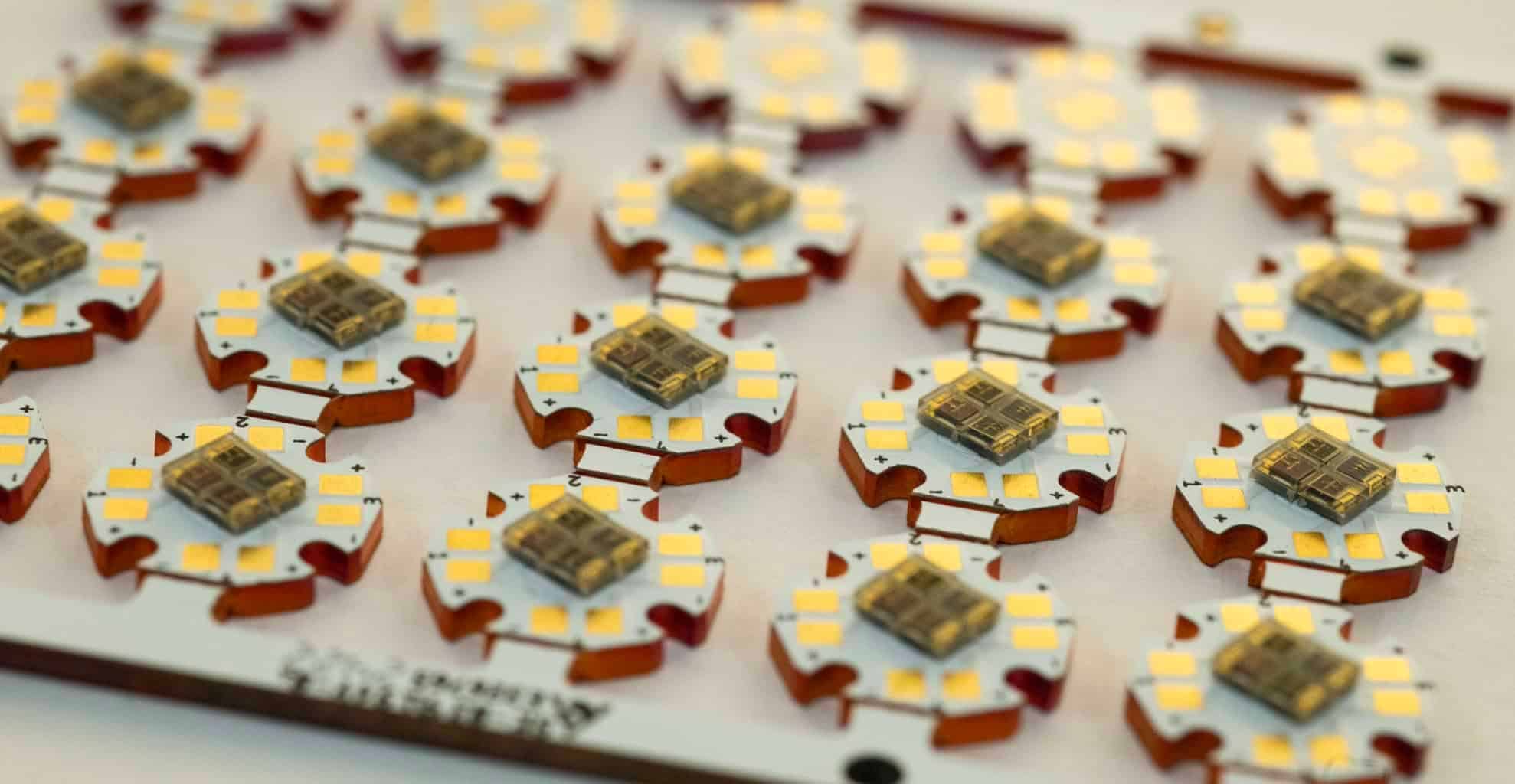

- LED Lighting Systems: Maximize LED efficiency and lifespan by effectively managing junction temperatures
- Power Electronics: Motor drives, power supplies, and voltage regulators requiring efficient heat removal
- RF/Microwave Circuits: High-frequency applications where thermal stability affects signal integrity
- Automotive Electronics: Engine control units, power modules, and other high-temperature automotive applications
- Industrial Controls: Heavy-duty equipment and machinery requiring robust thermal management
Technical Specifications
- Core Material: 99.9% pure copper
- Thermal Conductivity: Up to 400 W/mK
- Operating Temperature Range: -55°C to +150°C
- Dielectric Materials: High-performance prepregs compatible with copper core
- Standard Thicknesses: 0.5mm to 3.2mm (custom thicknesses available)
- Surface Finishes: HASL, ENIG, OSP, and immersion silver options
Transform your high-power electronic designs with the thermal performance advantage of Copper Core PCBs. Contact our engineering team to discuss your specific thermal management requirements and optimize your next project for maximum efficiency and reliability.
