A standard printed circuit board (PCB) typically uses a fiberglass base layer, which performs well under normal conditions but is prone to damage in high-power applications. Metal core circuit boards, such as copper core PCBs, provide the durability and thermal conductivity required for high-temperature environments.
At RAYMING, we specialize in crafting copper core PCBs tailored to your project, ensuring exceptional performance and reliability at a competitive cost.

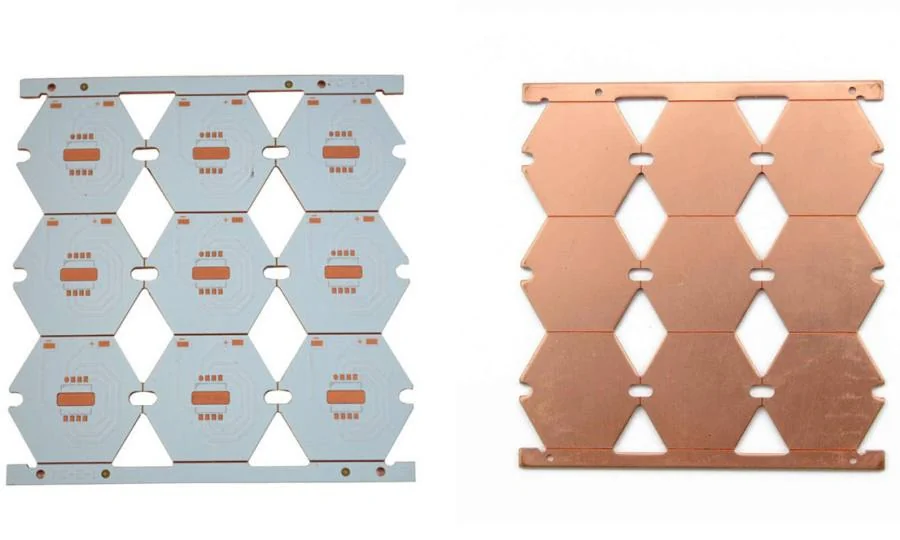

What is a Copper Core PCB?
A copper core PCB, or copper core printed circuit board, is a specialized type of PCB that incorporates a thick copper layer at its core. This copper core serves as an efficient heat spreader, dramatically improving the board’s thermal management capabilities. Unlike traditional PCBs that rely solely on copper traces and thermal vias for heat dissipation, copper core PCBs leverage the excellent thermal conductivity of copper to quickly and effectively distribute heat across the entire board.
The copper core is typically sandwiched between layers of dielectric material and outer copper layers, creating a multi-layer structure that combines thermal efficiency with electrical functionality. This unique construction allows copper core PCBs to handle higher power densities and operate at cooler temperatures compared to standard PCBs, making them ideal for applications that generate significant heat.
Learn More about:
Types of Copper Based PCB
The world of copper core PCBs is diverse, with several variations designed to meet different thermal and electrical requirements. Let’s explore the main types:
1. Standard Stack-up Copper Core PCB
The standard stack-up copper core PCB is the most common type, featuring a thermal conductivity of up to 12 W/m.K. This configuration typically consists of:
- A thick copper core (ranging from 0.5mm to 3mm)
- Dielectric layers on both sides of the core
- Outer copper layers for circuit traces
This structure provides a good balance between thermal management and circuit design flexibility, making it suitable for a wide range of applications.

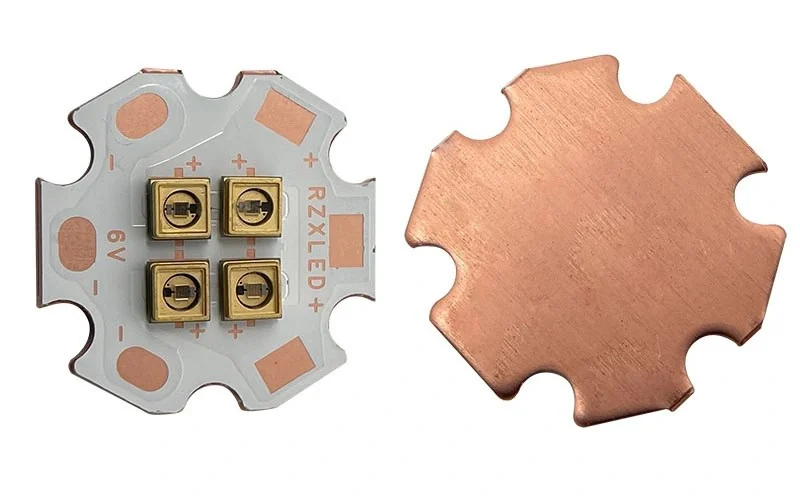

2. COB Copper PCB (Chip on Board Copper PCB)
COB Copper PCBs take thermal management a step further by directly mounting semiconductor chips onto the copper core. This approach:
- Eliminates the need for a separate chip package
- Reduces thermal resistance between the chip and the heat sink
- Allows for higher power density and improved performance
COB Copper PCBs are particularly beneficial for high-power LED applications and other heat-intensive semiconductor devices.
3. Direct Thermal Path Copper PCB
This variant of copper core PCB features no dielectric layer under the thermal path pad. By removing the insulating layer beneath critical components, it creates a direct thermal connection to the copper core. Benefits include:
- Significantly reduced thermal resistance
- Faster heat dissipation from heat-generating components
- Improved overall thermal performance
This design is ideal for applications where rapid heat transfer is crucial, such as power electronics and high-frequency RF circuits.
4. Aluminum-Copper Hybrid PCB with Direct Thermal Path
This innovative design combines the benefits of copper and aluminum to create a cost-effective thermal management solution. It features:
- A copper core for superior heat spreading
- An aluminum base for additional heat sinking
- No dielectric layer in the thermal path
This hybrid approach offers excellent thermal performance at a lower cost compared to all-copper designs, making it an attractive option for cost-sensitive applications that still require robust thermal management.
5. Embedded Copper Core PCB
Embedded copper core PCBs take thermal management to the next level by integrating the copper core directly into the PCB structure. This design:
- Allows for thinner overall board thickness
- Provides superior thermal performance
- Enables more complex circuit designs
Embedded copper core PCBs are particularly useful in applications where space is at a premium, such as mobile devices and aerospace electronics.
6. Hybrid Copper Core PCB
Hybrid copper core PCBs combine multiple PCB technologies to meet specific performance requirements. For example, a hybrid design might include:
- A copper core PCB base
- Additional layers of high-frequency material (e.g., Rogers 4350B)
- Controlled depth milling and drilling for precise impedance control
This type of PCB is ideal for applications that require both excellent thermal management and high-frequency performance, such as advanced telecommunications equipment and radar systems.
Copper Core PCB Design Guide
Designing with copper core PCBs requires careful consideration of several factors to maximize their thermal and electrical performance. Here are some key guidelines to follow:
Thermal Management Considerations
- Component Placement: Place high-power components directly over the copper core for optimal heat dissipation.
- Thermal Vias: Use an array of thermal vias to create efficient heat paths from the surface to the copper core.
- Copper Thickness: Choose an appropriate copper core thickness based on your thermal requirements.
- Thermal Simulations: Conduct thermal simulations to optimize heat spreading and identify potential hotspots.
Electrical Design Considerations
- Impedance Control: Account for the copper core’s impact on impedance when designing high-speed signals.
- EMI Shielding: Utilize the copper core as an EMI shield by properly connecting it to ground.
- Power Distribution: Leverage the copper core for power distribution to reduce resistance and improve current handling.
Manufacturing Considerations
- Material Selection: Choose appropriate dielectric materials that can withstand the higher processing temperatures of copper core PCBs.
- Layer Stack-up: Work closely with your PCB manufacturer to design an optimal layer stack-up that balances thermal and electrical performance.
- Surface Finish: Select a surface finish that complements the thermal properties of the copper core PCB.
By following these guidelines, designers can fully leverage the advantages of copper core PCBs while mitigating potential challenges.
Aluminum vs Copper Core PCB
While both aluminum and copper core PCBs offer improved thermal management compared to standard FR-4 boards, they have distinct characteristics that make them suitable for different applications.
Thermal Conductivity
- Copper: ~400 W/m.K
- Aluminum: ~200 W/m.K
Copper’s superior thermal conductivity makes it the preferred choice for applications requiring the highest level of heat dissipation.
Cost
Aluminum core PCBs are generally less expensive than copper core PCBs, making them a popular choice for cost-sensitive applications that still require improved thermal management.
Weight
Aluminum is lighter than copper, which can be an advantage in applications where weight is a critical factor, such as aerospace and portable electronics.
CTE (Coefficient of Thermal Expansion)
Copper has a lower CTE than aluminum, which can lead to better reliability in applications that experience significant temperature fluctuations.
Electrical Conductivity
Copper offers better electrical conductivity than aluminum, which can be beneficial in designs that use the core for power distribution or grounding.
The choice between aluminum and copper core PCBs ultimately depends on the specific requirements of the application, balancing factors such as thermal performance, cost, weight, and reliability.
Applications of Copper Core PCBs
Copper core PCBs find use in a wide range of applications where efficient thermal management is crucial. Some key areas include:
1. LED Lighting
High-power LED applications, such as automotive headlights and industrial lighting, benefit greatly from copper core PCBs’ ability to efficiently dissipate heat and maintain optimal LED performance.
2. Power Electronics
Devices like motor controllers, inverters, and power supplies utilize copper core PCBs to manage the high heat generated by power semiconductor components.
3. RF and Microwave Circuits
The excellent thermal and electrical properties of copper core PCBs make them ideal for high-frequency applications in telecommunications and radar systems.
4. Automotive Electronics
As vehicles incorporate more electronic systems, copper core PCBs help manage the increased heat generation in engine control units, infotainment systems, and advanced driver assistance systems (ADAS).
5. Industrial Control Systems
Copper core PCBs enhance the reliability and performance of industrial control equipment operating in harsh environments with high temperatures.
6. Medical Devices
Certain medical imaging equipment and diagnostic devices benefit from the thermal management capabilities of copper core PCBs, ensuring accurate and reliable operation.
7. Aerospace and Defense
The combination of high thermal performance and potential weight savings makes copper core PCBs attractive for various aerospace and defense applications.
Conclusion
Copper core PCBs represent a significant advancement in thermal management for printed circuit boards. By offering high thermal conductivity at a competitive cost, they enable designers to push the boundaries of electronic performance and reliability. From standard stack-ups to innovative hybrid designs, the variety of copper core PCB options allows for tailored solutions to meet specific application requirements.
As electronic devices continue to evolve, becoming more powerful and compact, the importance of efficient thermal management will only grow. Copper core PCBs, with their superior heat dissipation capabilities, are well-positioned to play a crucial role in shaping the future of electronics across various industries.
By understanding the types, design considerations, and applications of copper core PCBs, engineers and product designers can make informed decisions about incorporating this technology into their projects. As the demand for high-performance, thermally efficient electronic systems continues to rise, copper core PCBs will undoubtedly remain at the forefront of thermal management solutions in the PCB industry.
