BLE PCB antennas are specialized printed circuit board antennas designed for Bluetooth Low Energy applications. These compact antennas are etched directly onto the PCB, offering a space-efficient and cost-effective solution for BLE-enabled devices. Operating in the 2.4 GHz band, BLE PCB antennas come in various designs, including meandered, inverted-F, and monopole configurations. They’re popular in IoT devices, wearables, and smart home products due to their low profile and easy integration. While BLE PCB antennas provide benefits in terms of size and manufacturing simplicity, they require careful design consideration. Factors such as ground plane size, nearby components, and device enclosure can significantly impact performance. Proper impedance matching and layout optimization are crucial for achieving optimal range and power efficiency in BLE applications.
PCB Capabilities
PCBA Capabilities
“We’ve trusted Rayming with multiple PCB orders, and they’ve never disappointed. Their manufacturing process is top-tier, and their team is always helpful. A+ service!”
I have had excellent service from RayMing PCB over 10 years. Your engineers have helped me and saved me many times.
Rayming provides top-notch PCB assembly services at competitive prices. Their customer support is excellent, and they always go the extra mile to ensure satisfaction. A trusted partner!

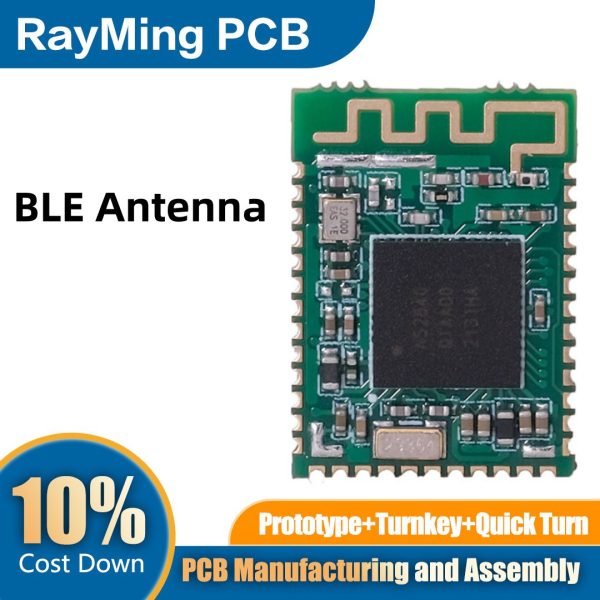

RAYMING BLE PCB Antenna
Original price was: $20.00.$19.00Current price is: $19.00.
