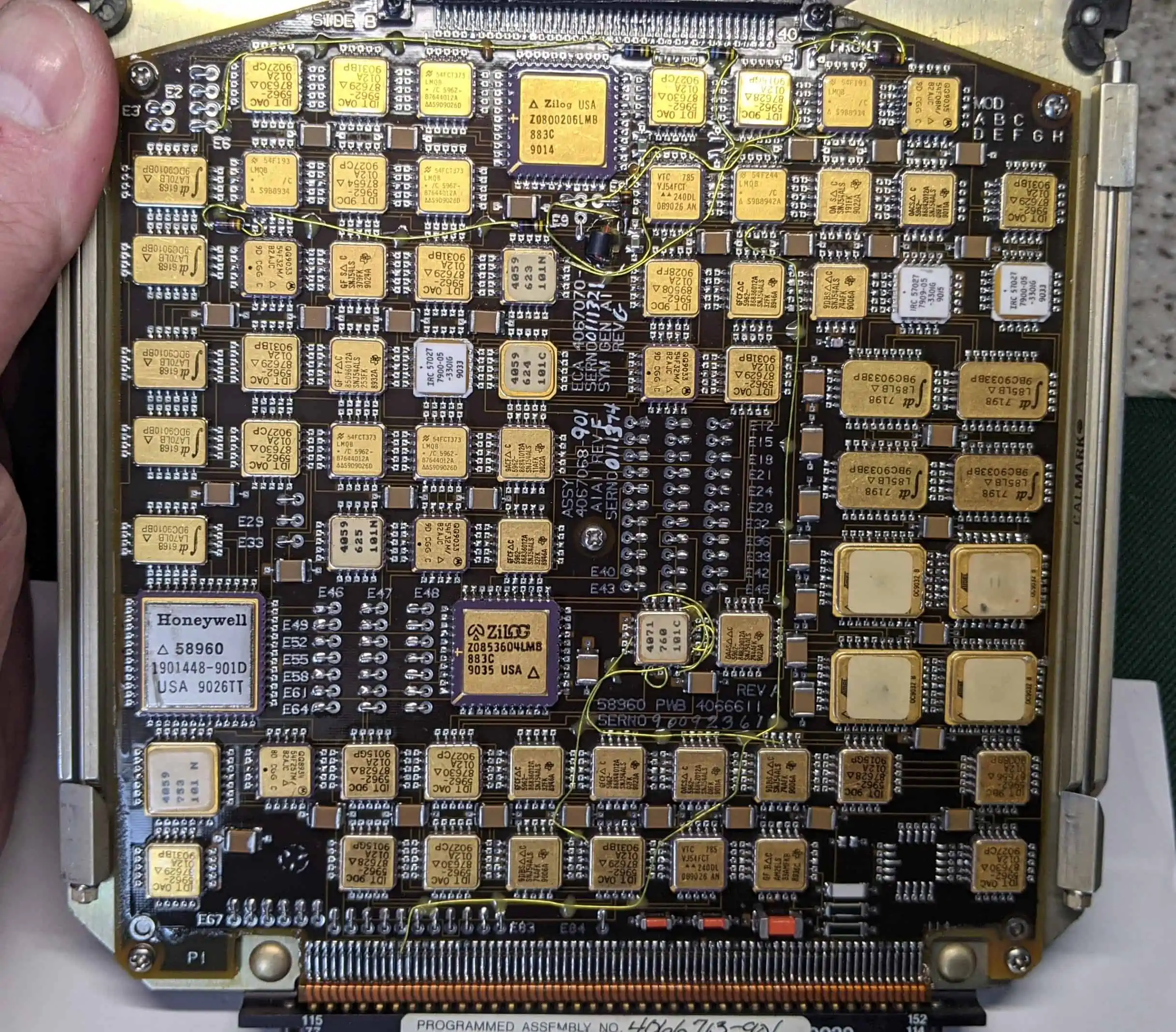

Professional-Grade Printed Circuit Boards for Critical Aviation Applications
Our Avionics PCBs deliver uncompromising reliability and performance for aircraft electronics systems, engineered to meet the stringent demands of commercial, military, and general aviation environments. These specialized circuit boards form the backbone of essential flight systems, ensuring safe and efficient aircraft operations across all flight phases.
Key Features
Aviation-Grade Durability: Manufactured to withstand extreme temperature variations (-55ยฐC to +125ยฐC), high vibration, electromagnetic interference, and altitude pressure changes encountered in aviation environments. Each board undergoes rigorous testing to meet DO-160 environmental standards.
Multi-Layer Construction: Available in configurations from 4 to 20+ layers, supporting complex routing requirements for high-density component integration. Advanced stackup designs optimize signal integrity and minimize crosstalk in sensitive avionic circuits.
Superior Materials: Constructed using high-performance FR-4, polyimide, or PTFE substrates selected for their thermal stability, low loss characteristics, and long-term reliability. Gold-plated contacts ensure consistent electrical performance over extended service life.
Precision Manufacturing: Tight tolerance control with trace widths down to 0.1mm and via sizes to 0.15mm, enabling compact designs while maintaining signal integrity. Controlled impedance routing supports high-speed digital and RF applications.
Applications
These PCBs are integral to critical aircraft systems including flight management computers, navigation equipment, communication radios, weather radar, autopilot systems, engine monitoring displays, and cockpit instrumentation. Suitable for line-replaceable units (LRUs) and embedded avionics modules.
Compliance & Certifications
Manufactured in AS9100-certified facilities with full traceability documentation. Boards support DO-254 design assurance requirements and can be qualified to RTCA/DO-160 environmental standards. Materials and processes comply with RoHS and REACH regulations while meeting flammability requirements for aircraft interiors.
Quality Assurance: Every PCB undergoes comprehensive electrical testing, automated optical inspection, and dimensional verification. Statistical process control ensures consistent quality across production runs with detailed certificates of compliance provided.
Ideal for OEMs, aircraft manufacturers, and maintenance organizations requiring dependable electronics solutions for mission-critical aviation systems.
