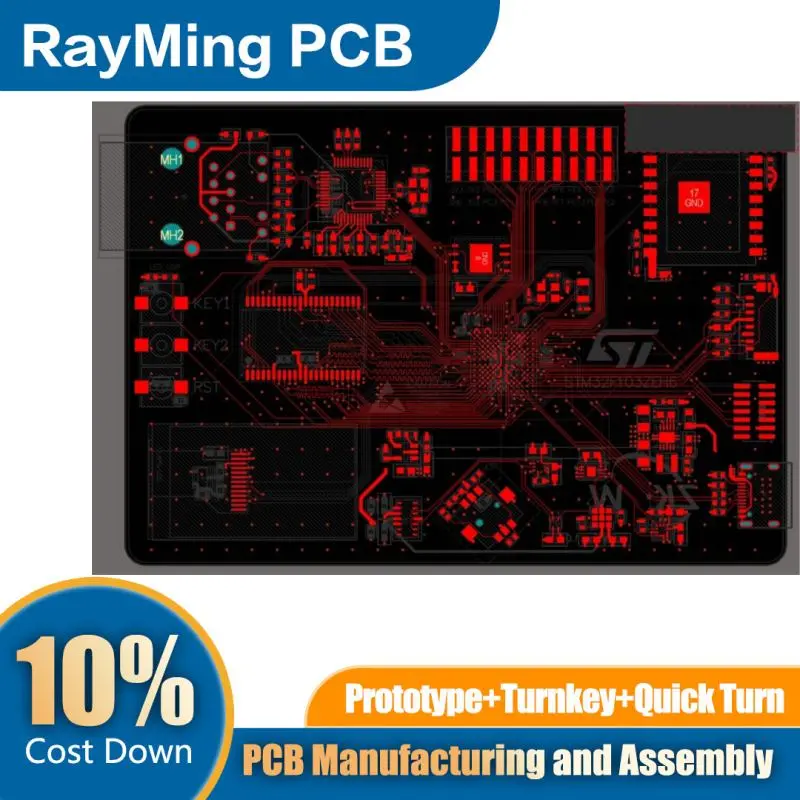

RAYMING PCB Design Guidelines for 4-Layer Boards

Introduction to 4-Layer PCB Design

Four-layer PCBs represent an ideal middle ground between simple two-layer boards and more complex multilayer designs. They offer significant advantages in terms of signal integrity, EMI/EMC performance, and routing density while remaining cost-effective for many applications.

The typical stackup for a 4-layer PCB consists of:

• Top layer (Layer 1): Components and signal routing
• Inner layer (Layer 2): Ground plane
• Inner layer (Layer 3): Power plane or split power/signal
• Bottom layer (Layer 4): Components and signal routing

This arrangement provides excellent noise immunity and controlled impedance capabilities, making it suitable for designs operating at frequencies up to several hundred MHz.

Stackup Planning and Material Selection

Stackup Considerations

The distribution of copper layers and dielectric materials critically impacts your PCB’s electrical performance. A well-designed stackup should:

• Maintain symmetry to prevent board warping during manufacturing
• Provide adequate spacing between signal layers and reference planes
• Use appropriate dielectric thicknesses for impedance control
• Consider thermal management requirements

A standard 4-layer stackup might use 1.6mm overall thickness with core thicknesses of approximately 1.2mm between inner layers, and 0.2mm prepreg between the outer and inner layers.

Material Selection

FR-4 is the most common substrate material for 4-layer PCBs, but consider these factors:

• Dielectric constant (Dk) consistency for impedance control
• Dissipation factor (Df) for high-frequency applications
• Glass transition temperature (Tg) for thermal performance
• Coefficient of thermal expansion (CTE) for reliability

For high-speed designs, consider enhanced FR-4 materials with better controlled Dk and lower Df values. For power applications, materials with higher thermal conductivity may be advantageous.

Power Distribution Network (PDN) Design

Power and Ground Planning

The arrangement of power and ground planes significantly impacts both signal integrity and EMI/EMC performance:

• Dedicate Layer 2 entirely to ground whenever possible
• Keep Layer 3 as a solid power plane for low-impedance power distribution
• For multiple voltages, partition Layer 3 with sufficient clearance between domains
• Place power-ground plane pairs close together to create low-impedance paths

Decoupling Strategy

Proper decoupling is essential for stable power delivery:

• Place decoupling capacitors close to IC power pins
• Use a mix of capacitor values (typically 0.1μF, 1μF, and 10μF)
• Connect capacitors to ground with minimal inductance (short, wide traces)
• Consider bulk capacitors near power entry points

Power Integrity

For designs with significant current demands:

• Calculate copper thickness requirements based on current density
• Use copper pours for high-current paths
• Keep power traces as short and wide as possible
• Consider thermal relief for power connections to large copper areas

Signal Integrity Considerations

Controlled Impedance Routing

For high-speed signals:

• Calculate trace width and spacing based on dielectric thickness and material properties
• Maintain consistent trace widths for impedance-controlled lines
• Use microstrip traces on outer layers and stripline on inner layers when needed
• Work with your PCB manufacturer to define achievable impedance tolerances

Critical Signal Routing

For clock and high-speed signals:

• Route critical signals on layers adjacent to ground planes
• Maintain signal return path continuity
• Avoid routing sensitive signals over plane splits
• Consider length matching for differential pairs and parallel buses

EMI/EMC Practices

To minimize electromagnetic interference:

• Keep high-frequency signals away from board edges
• Route sensitive signals between ground and power planes
• Use ground copper pour on outer layers for additional shielding
• Consider guard traces for isolating sensitive signals

Component Placement and Layout

Strategic Placement

Effective component placement is foundational to successful PCB design:

• Group related components to minimize trace lengths
• Position high-frequency components near the center of the board
• Place connectors and interface components at the board periphery
• Consider mechanical constraints and mounting points early

Thermal Considerations

For components with significant heat dissipation:

• Provide adequate copper area for heat spreading
• Use thermal vias to connect to inner planes
• Ensure adequate spacing between heat-generating components
• Consider airflow patterns in the final assembly

Component Orientation

For manufacturing efficiency:

• Orient similar components in the same direction
• Align polarized components consistently
• Consider pick-and-place machine limitations
• Provide adequate clearance for automated assembly

Routing Techniques

General Routing Guidelines

• Use 45° angles instead of 90° corners
• Maintain consistent trace widths within signal classes
• Avoid running traces under noise-sensitive components
• Use teardrops at pad connections for manufacturing reliability

Via Strategy

• Minimize via usage in high-speed signal paths
• Use appropriate via sizes based on current requirements
• Implement via fanning techniques for high-density areas
• Consider blind or buried vias only when absolutely necessary due to cost implications

Ground and Power Connections

• Use multiple vias for power and ground connections to ICs
• Implement star grounding for sensitive analog circuits
• Provide ground vias near signal layer transitions
• Consider dedicated ground returns for high-current paths

Design for Manufacturing (DFM)

Fabrication Considerations

• Adhere to manufacturer’s minimum trace width and spacing guidelines
• Maintain adequate clearance between traces and board edges
• Use standard drill sizes when possible
• Consider copper balancing across layers to prevent warping

Assembly Considerations

• Provide adequate space between components for pick-and-place equipment
• Include fiducial marks for automated assembly
• Design appropriate solder mask and paste stencil openings
• Consider test point access for in-circuit testing

Documentation

• Generate comprehensive fabrication drawings
• Specify critical dimensions and tolerances
• Include layer stackup details
• Provide notes on special requirements (impedance control, etc.)

Design Verification

Pre-Layout Analysis

• Perform preliminary signal integrity simulations
• Calculate expected power requirements
• Estimate thermal behavior
• Identify critical signals requiring special attention

Post-Layout Verification

• Run design rule checks (DRC)
• Perform signal integrity simulations for critical paths
• Verify power integrity with PDN analysis
• Check thermal performance with appropriate modeling tools

Common Pitfalls to Avoid

• Insufficient power plane copper for high-current applications
• Inadequate decoupling capacitor placement
• Routing high-speed signals over plane splits
• Insufficient consideration of return path discontinuities
• Tight bend radii in high-speed differential pairs
• Inadequate clearance for automated assembly

Industry Standards and Compliance

Consider relevant standards for your application domain:

• IPC-2221: Generic Standard on Printed Board Design
• IPC-2222: Sectional Design Standard for Rigid Organic Printed Boards
• IPC-A-600: Acceptability of Printed Boards
• Industry-specific standards (automotive, medical, aerospace)

Conclusion

Four-layer PCB design offers an excellent balance of performance, complexity, and cost. By following these guidelines, you can create reliable, manufacturable designs that meet your performance requirements. Remember that early planning of stackup, component placement, and critical signal routing will save significant time during later design stages. Always consult with your PCB manufacturer about their specific capabilities and requirements before finalizing your design.

As your designs increase in complexity and operating frequency, consider these guidelines as a foundation that may need to be supplemented with more advanced techniques and analysis.
