In industrial and commercial environments, maintaining reliable power distribution across multiple AC loads is critical for operational continuity. This sophisticated 19-channel AC power monitoring system represents a comprehensive solution for real-time electrical load supervision, combining advanced sensing technology with intelligent fault detection capabilities.
System Overview

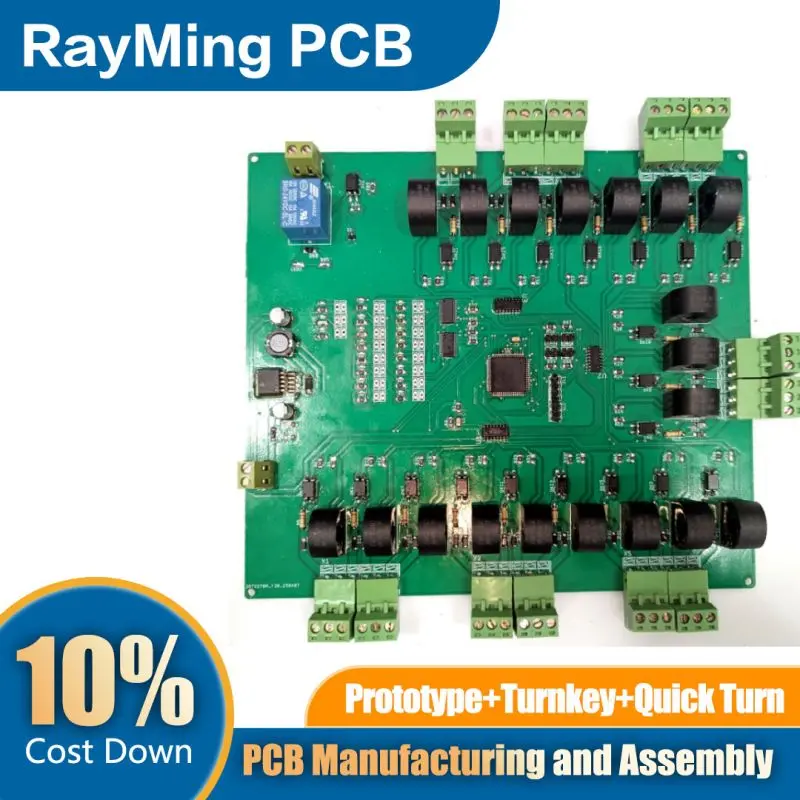

At its core, this custom-designed printed circuit board (PCB) serves as a centralized monitoring hub capable of simultaneously tracking 19 individual AC electrical loads. The system provides continuous real-time visibility into each circuit’s operational status while implementing proactive fault detection mechanisms that can identify potential equipment failures before they impact operations.
The monitoring approach goes beyond simple voltage detection by incorporating current sensing technology, enabling the system to distinguish between circuits that merely have power applied versus those where connected equipment is actively drawing current and functioning properly. This dual-parameter monitoring approach significantly enhances diagnostic accuracy and reduces false alarms.
Hardware Architecture
The system’s brain is an ATmega64 microcontroller, providing sufficient processing power and I/O capabilities to manage the complex monitoring tasks. This microcontroller coordinates all sensing operations, processes incoming data, and manages the various output devices that provide status indication and fault alerts.
Current detection across all 19 channels utilizes ZMCT103C current transformers, which are non-invasive sensors that can accurately measure AC current flow without requiring direct electrical connection to the monitored circuits. These sensors provide galvanic isolation while delivering precise current measurements essential for determining actual load operation.
Voltage sensing employs PC817 optocouplers, ensuring complete electrical isolation between the monitored high-voltage AC circuits and the low-voltage control electronics. This isolation design enhances both safety and system reliability while preventing ground loops and electrical interference.
Data acquisition is handled by three MCP3208 analog-to-digital converters (ADCs), which convert the analog signals from current and voltage sensors into digital data that the microcontroller can process. The multiple ADC configuration ensures adequate channel capacity and maintains high sampling rates across all monitoring points.
Visual status indication relies on LED arrays controlled by two PCA9685 PWM controllers. These specialized chips can independently control LED brightness and provide dynamic visual feedback for each monitored channel, making it easy for operators to quickly assess system status at a glance.
Intelligent Fault Detection
The system’s most valuable feature is its sophisticated fault detection algorithm. Traditional monitoring systems often only verify the presence of voltage, which can miss scenarios where power is available but connected equipment has failed or become disconnected.
This system implements a more intelligent approach by correlating voltage presence with current flow. When the monitoring system detects that AC voltage is present on a circuit but no corresponding current is being drawn, it identifies this as a fault condition. This scenario typically indicates that the connected device has failed, become disconnected, or developed an internal fault preventing normal operation.
Upon detecting such conditions, the system automatically activates an audible alarm through a relay-controlled buzzer, immediately alerting maintenance personnel to investigate the specific problematic circuit. This proactive notification system enables rapid response to equipment failures, minimizing downtime and preventing potential cascading failures.
The combination of comprehensive monitoring, intelligent fault detection, and immediate notification makes this 19-channel system an invaluable tool for maintaining electrical system reliability in critical applications where continuous operation is essential.
