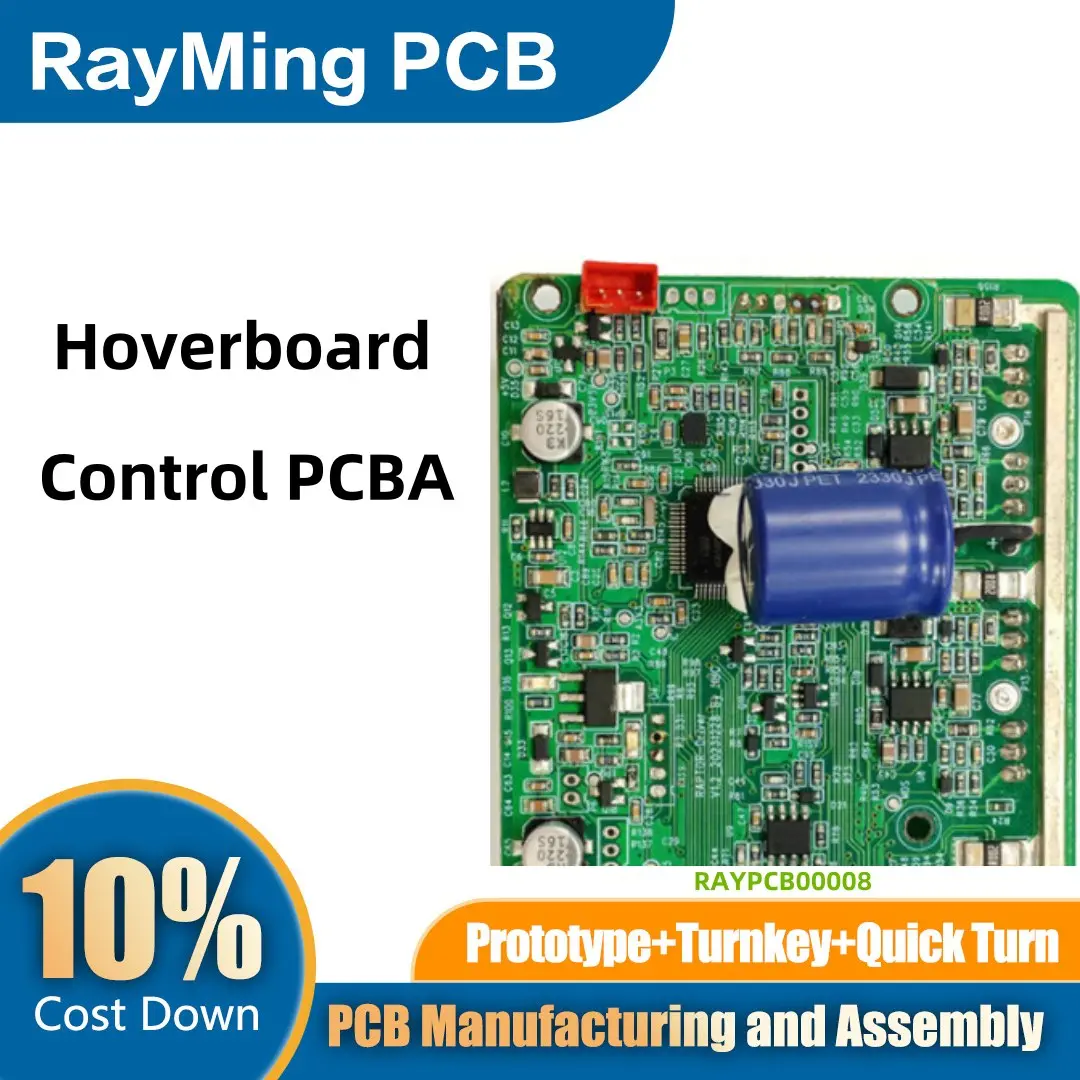

RayMing Hoverboard control PCB Manufacturing and assembly

Original price was: $100.00.Current price is: $99.00.

Hoverboards, also known as self-balancing scooters, have gained immense popularity in recent years. At the heart of these innovative personal transportation devices lies a sophisticated control system, with the Printed Circuit Board (PCB) playing a crucial role. This article delves into the intricacies of designing and manufacturing control PCBs for hoverboards.

PCB Design Considerations

1. Component Selection

The first step in designing a hoverboard control PCB is selecting the right components. Key elements include:

  • Microcontroller: Typically an ARM Cortex-M series for its balance of performance and power efficiency.
  • Gyroscope and Accelerometer: MEMS-based sensors for detecting tilt and acceleration.
  • Motor Drivers: High-current capable MOSFETs or dedicated ICs for controlling the hub motors.
  • Power Management: Voltage regulators and protection circuits for battery management.
  • Bluetooth Module: For smartphone connectivity and firmware updates.

2. Layout Design

The PCB layout is critical for optimal performance and EMI reduction:

  • Signal Integrity: Keep sensitive analog traces (e.g., from gyroscope) short and away from noisy digital lines.
  • Power Distribution: Use wide traces and copper pours for high-current paths to the motors.
  • Thermal Management: Incorporate thermal vias and copper areas for heat dissipation, especially around motor drivers.
  • EMI Mitigation: Implement proper grounding techniques and consider using a multi-layer board with dedicated ground and power planes.

3. Safety Features

Incorporating safety features is paramount:

  • Overcurrent Protection: Fuses or resettable PTC devices to prevent damage from excessive current draw.
  • Reverse Polarity Protection: Diodes or MOSFETs to protect against incorrectly connected batteries.
  • Temperature Monitoring: Thermal sensors to detect overheating and initiate protective measures.

PCB Manufacturing Process

1. Design File Preparation

Once the design is complete, prepare the necessary files:

  • Gerber Files: Industry-standard format for PCB fabrication, including copper layers, solder mask, and silkscreen.
  • Bill of Materials (BOM): Detailed list of all components, their values, and part numbers.
  • Pick-and-Place File: Coordinates for automated component placement during assembly.

2. PCB Fabrication

The bare PCB is manufactured through several steps:

  • Photolithography: Transferring the circuit pattern onto copper-clad laminate.
  • Etching: Removing excess copper to create the circuit traces.
  • Drilling: Creating holes for through-hole components and vias.
  • Plating: Applying surface finishes like ENIG or HASL for improved solderability.
  • Solder Mask and Silkscreen: Applying protective coating and component markings.

3. PCB Assembly

The populated PCB is created through:

  • Solder Paste Application: Using a stencil to apply solder paste to component pads.
  • Component Placement: Utilizing pick-and-place machines for SMD component positioning.
  • Reflow Soldering: Passing the board through a reflow oven to melt the solder paste.
  • Manual Assembly: Hand-soldering any through-hole components.
  • Inspection and Testing: Automated optical inspection (AOI) and functional testing.

Quality Control and Testing

Rigorous testing is essential for ensuring reliability:

  • In-Circuit Testing (ICT): Verifying correct component placement and basic functionality.
  • Functional Testing: Simulating real-world usage scenarios to validate control algorithms.
  • Environmental Testing: Subjecting boards to temperature cycles, vibration, and humidity tests.
  • EMC Testing: Ensuring compliance with electromagnetic compatibility standards.

Challenges and Considerations

Designing and manufacturing hoverboard control PCBs presents unique challenges:

  • Miniaturization: Balancing the need for compact design with thermal management requirements.
  • Cost Optimization: Selecting components and manufacturing processes that maintain quality while meeting target price points.
  • Firmware Integration: Ensuring the PCB design supports efficient firmware implementation and future updates.
  • Regulatory Compliance: Meeting safety standards and certifications for different global markets.
