KiCad & Altium for Rigid-Flex: Fabrication Handoff
Evaluate the documentation handoff and the features of your installed CAD version.
KiCad and Altium: compare the manufacturing handoff
Documentation basis: KiCad 9.0 PCB Editor manual and the linked Altium rigid-flex documentation, checked September 16, 2026. This is a documentation-based workflow comparison; it is not a hands-on benchmark of installed CAD versions.
| Task | KiCad 9.0 documented workflow | Altium documented rigid-flex workflow |
|---|---|---|
| Layer definition | Board Setup → Physical Stackup defines copper count and dielectric parameters | Layer Stack Manager defines substacks for different regions |
| Regional construction | Supply an explicit regional drawing in the manufacturing handoff; do not assume a global stackup describes local removal | Assign substacks to board regions and align them in the Z direction |
| Installed shape | Include an independently checked installed view with the manufacturing files | Use bend definitions and folded views; still check the intended assembly sequence |
| Release files | Plot fabrication layers and generate drill data; review outputs with the region drawing | Generate agreed fabrication outputs and review them against the regional definition |
This comparison does not establish that KiCad lacks every possible rigid-flex workflow, or that Altium automatically approves manufacturability. Features, add-ons and exported semantics must be checked for the version actually used.
- Use one example: six total copper layers, with L3–L4 continuing through a two-region bridge. Give every layer and region a stable name.
- Produce the copper, drill, profile and coverlay outputs together with a PDF regional stackup and flat/installed views.
- Open the generated outputs for review. Check the retained flex copper, holes, region boundaries, opening geometry and file revision.
- Ask the receiving CAM engineer to reconcile the file set before fabrication. Resolve discrepancies in the drawing rather than relying on the visual appearance of a CAD screenshot.
Sources: KiCad 9.0 PCB Editor manual and Altium rigid-flex documentation.
Construction reference

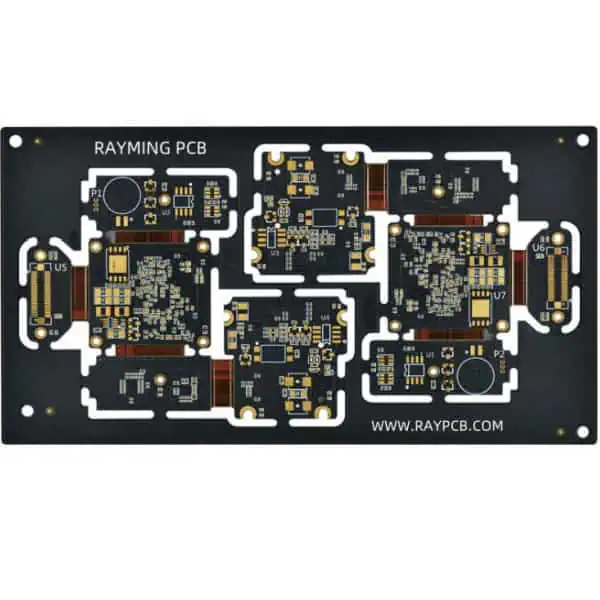

Gallery references illustrate board forms. They do not certify the construction, dimensional limits or operating life of your design.
Continue with the next engineering decision
Reference documentation
Use the documentation for your installed software version and the selected material grades. Altium rigid-flex design documentation describes its region and bending workflow. KiCad documentation provides version-specific PCB setup and export instructions. These references support design communication; they are not manufacturing approval for a particular board.
Send a complete project brief
Include the flat outline and installed view, layer/region mapping, material grades, finished thicknesses, bend duty, copper artwork, drill information and quantities. Add the BOM, placement file and acceptance requirements when assembly is included.
Mark unresolved choices rather than guessing. Download tool results if they help describe your request. Contact does not automatically receive calculator inputs.
