Everything you need to select the right high frequency PCB material. Dk/Df tables, Rogers vs. Isola vs. Taconic comparison, application recommendations, and supplier resources.

If you’ve spent any time in RF or microwave PCB design, you’ve probably heard a colleague describe it as “black magic.” That reputation isn’t entirely undeserved. The moment you push your design above 1 GHz, material selection stops being a background decision and becomes one of the most critical engineering choices you’ll make. Pick the wrong laminate, and no amount of clever layout tricks will save your signal integrity.

This guide is written from the perspective of a PCB engineer who has had to justify material costs to a product manager, explain Df values to a supply chain team, and debug mysteriously lossy boards at 28 GHz. Whether you’re specifying laminates for your first RF build or evaluating alternatives to a supply-constrained material, this buyer’s guide covers everything you need to make a confident, well-informed decision on high frequency PCB materials.

What Exactly Is a High Frequency PCB?

Before getting into materials, let’s level-set on the frequency definition. A high frequency PCB is generally understood to be a circuit board operating at frequencies above 1 GHz. Microwave PCBs push further, into the range above 3 GHz (wavelengths shorter than 100 mm). Above roughly 30 GHz you’re in millimeter-wave territory, where material choices become even more demanding.

These boards are the backbone of applications including:

• 5G wireless infrastructure (sub-6 GHz and mmWave bands)
• Automotive radar (77 GHz ADAS sensors)
• Satellite communications (Ku, Ka, and V bands)
• Military and aerospace radar
• Medical imaging (microwave-based diagnostics)
• Wi-Fi 6/6E and Wi-Fi 7 routers and access points

At these frequencies, even tiny variations in a laminate’s electrical properties can cause measurable signal distortion, phase errors, and excessive insertion loss. That’s why high frequency PCB materials are specified with a precision that standard FR4 boards never require.

Key Material Properties Every Buyer Must Understand

Getting the most out of your material selection starts with understanding the six parameters that matter most. You’ll find all of these in a supplier’s datasheet.

Dielectric Constant (Dk or εr)

The dielectric constant determines how fast an electromagnetic signal propagates through a material and directly affects the characteristic impedance of your transmission lines. A lower Dk means faster signal propagation and a physically larger board for a given frequency. A higher Dk gives you a smaller board footprint — useful in miniaturized antenna designs — but with slower propagation.

The critical issue at high frequencies isn’t just the Dk value itself, but its stability across frequency and temperature. FR4, for instance, can drift noticeably in Dk between 1 GHz and 10 GHz. Low-loss laminates like Rogers 4350B or Taconic TLX are specifically engineered to keep Dk flat over a wide frequency range.

Dissipation Factor (Df or Loss Tangent)

The dissipation factor (Df) measures how much signal energy is converted into heat as it passes through the dielectric. This is the single most performance-critical parameter for high frequency PCB material selection. A material with a Df of 0.001 will produce dramatically less signal attenuation at 10 GHz than one with Df = 0.02.

For reference:

• Standard FR4: Df ≈ 0.018–0.024 at 1 GHz
• Rogers 4350B: Df ≈ 0.0037 at 10 GHz
• Rogers RO3003: Df ≈ 0.0010 at 10 GHz

Even a difference of 0.003 in Df across a long transmission line at 28 GHz is the difference between a functioning link budget and a system failure.

Coefficient of Thermal Expansion (CTE)

CTE describes how much a material expands or contracts with temperature changes. In multilayer boards, a mismatch between the substrate’s CTE and the copper plating — especially along the Z-axis — creates mechanical stress in plated through-holes (PTHs) and vias. Over time, thermal cycling causes PTH barrel cracking and intermittent electrical failures.

For z-axis CTE, you want values as close to copper’s ~17 ppm/°C as practical, and below 70 ppm/°C as a general target for reliable PTH performance.

Glass Transition Temperature (Tg)

Tg is the temperature at which the laminate transitions from a rigid, glassy state to a softer, rubbery state. For lead-free assembly — which requires reflow temperatures around 260°C — your material’s Tg should comfortably exceed that threshold. Many specialty HF laminates have Tg values of 280°C or higher.

Thermal Decomposition Temperature (Td)

Td is the temperature at which the material begins to chemically break down. Higher Td values provide a larger safety margin for lead-free soldering and reduce the risk of Dk/Df drift from high-temperature aging over a product’s operational life.

Moisture Absorption

Water has a Dk of approximately 80 — vastly higher than any PCB laminate. Even small amounts of moisture absorption will shift the effective Dk of a substrate, detuning impedance-matched traces and antenna elements. PTFE-based materials generally perform best here, with moisture absorption below 0.02%.

High Frequency PCB Material Types: A Technical Breakdown

PTFE (Polytetrafluoroethylene / Teflon) Laminates

PTFE is the gold standard for microwave and RF applications. It offers the lowest dielectric loss of any common PCB substrate family, excellent chemical resistance, and very low moisture absorption. The trade-off is cost and manufacturability — PTFE requires specialized drilling and surface preparation techniques, and it doesn’t play as nicely with standard FR4 press cycles.

PTFE laminates come in three main varieties:

• Unfilled PTFE: Lowest loss, but poor dimensional stability. Used in very low-loss applications where tight tolerances aren’t critical.
• Glass fiber reinforced PTFE: Better dimensional stability, slightly higher Df. The most common compromise for production boards.
• Ceramic-filled PTFE: Excellent Dk stability across temperature and frequency, widely used in temperature-sensitive designs like automotive radar.

Hydrocarbon Ceramic Laminates (e.g., Rogers 4000 Series)

Rogers 4003C and 4350B are probably the most widely used specialty HF materials in the industry. They’re hydrocarbon-based (not pure PTFE), which means they’re more compatible with standard FR4 fabrication processes — same drill bits, similar press cycles, standard via preparation. This is a major advantage from a manufacturability and cost standpoint.

Thermoset/Ceramic Composite Laminates

Materials like the Arlon DiClad and 25N series, as well as some Taconic and Isola offerings, use variations of thermoset or ceramic composite matrices. These tend to offer mid-range performance between standard FR4 and pure PTFE — a useful middle ground for designs that need better-than-FR4 performance without the full cost penalty of PTFE.

Major High Frequency PCB Material Suppliers Compared

The market for high frequency PCB materials is dominated by a handful of specialized manufacturers. Here’s an honest assessment of each.

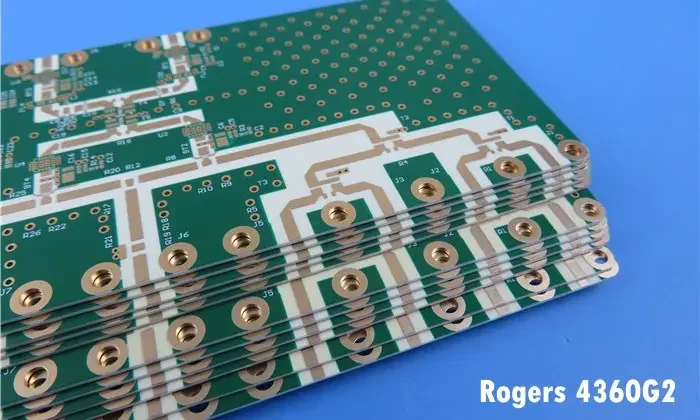

Rogers Corporation

Rogers is the de facto industry standard for RF and microwave laminates, particularly the RO4000 and RO3000 series. Their materials are extensively characterized, widely stocked by PCB fabricators globally, and have the best ecosystem of simulation models and design support.

Key product families:

Series	Base Material	Typical Dk	Typical Df (10 GHz)	Best For
RO4003C	Hydrocarbon ceramic	3.55	0.0027	Antenna, general RF
RO4350B	Hydrocarbon ceramic	3.66	0.0037	Multilayer RF, 5G
RO3003	PTFE ceramic	3.00	0.0010	mmWave, low-loss
RO3010	PTFE ceramic	10.2	0.0022	High Dk antenna miniaturization
RT/duroid 5880	PTFE glass fiber	2.20	0.0009	Aerospace, low-loss mmWave

Pros: Industry-leading characterization, excellent global supply chain, broad stack-up support, FR4-compatible processing for 4000 series.

Cons: Premium pricing, and post-2024 supply constraints have increased lead times for some grades.

Isola Group

Isola is a strong second choice, particularly for high-speed digital applications at the boundary between digital and RF. Their Astra MT77 and Tachyon 100G materials are popular in 5G network equipment and high-speed backplanes.

Key product families:

Material	Dk (10 GHz)	Df (10 GHz)	Application Focus
Astra MT77	3.00	0.0017	mmWave, 5G, antenna arrays
Tachyon 100G	3.02	0.0021	High-speed digital, RF hybrid
I-Tera MT40	3.45	0.0031	Server/networking, mid-range RF
IS420	4.10	0.0140	Mid-range RF, cost-sensitive

Pros: Excellent datasheet transparency, competitive pricing vs. Rogers, strong availability in Asia and North America.

Cons: Less universal name recognition means some fabricators may not stock all grades on the shelf.

Taconic

Taconic’s PTFE-based materials are well-regarded in the RF community for their very low Df values. The TLX series in particular achieves Df figures that beat many Rogers PTFE offerings at competitive pricing. Taconic is a solid choice when you need ultra-low loss and price is a secondary concern.

Key product families:

Material	Dk	Df	Application
TLX-8	2.55	0.0019	General RF/microwave
TLC-30	3.00	0.0030	Controlled Dk RF circuits
RF-35	3.50	0.0018	Affordable general RF
CER-10	9.80	0.0035	High Dk, antenna miniaturization

Pros: Very competitive Df values, good performance up to 20+ GHz, generally lower cost than Rogers.

Cons: Properties can shift more at frequencies above 20 GHz; fewer simulatio models available compared to Rogers.

Arlon

Arlon PCB materials occupy a niche between mainstream Rogers/Isola and pure PTFE, with a focus on reliability in harsh environments. Arlon’s 25N (PTFE/woven fiberglass) and DiClad series are popular in military, aerospace, and industrial RF applications where long-term thermal and chemical stability matters more than absolute minimum Df.

Key product families:

Material	Dk	Df	Application
25N	3.38	0.0025	Military/aerospace RF
DiClad 880	2.17	0.0009	Very low-loss microwave
AD250C	2.50	0.0016	Wideband RF

Pros: Excellent reliability credentials, well-suited for military specs, good availability through specialty distributors.

Cons: Less broadly stocked at general PCB fabricators; often requires advance ordering.

Panasonic (Megtron Series)

Panasonic’s Megtron family has earned a strong following in high-layer-count, high-speed server and networking applications. Megtron 6, 7, and 8 are frequently specified for 100G and 400G networking infrastructure.

Key product families:

Material	Dk (10 GHz)	Df (10 GHz)	Application
Megtron 6	3.40	0.0020	Server backplanes, networking
Megtron 7	3.37	0.0017	100G+ network equipment
Megtron 8	3.22	0.0012	400G, mmWave hybrid

Pros: Excellent for hybrid digital/RF stack-ups, high layer count capability.

Cons: Longer lead times, generally higher cost, not always available in smaller PCB shops.

Head-to-Head Comparison: The Most Common High Frequency PCB Materials

The table below summarizes key parameters across the materials you’re most likely to evaluate. All Dk/Df values are at 10 GHz.

Material	Supplier	Dk	Df	CTE Z-axis (ppm/°C)	Tg (°C)	Process Compatibility	Relative Cost
RO4003C	Rogers	3.55	0.0027	46	>280	FR4-compatible	High
RO4350B	Rogers	3.66	0.0037	32	>280	FR4-compatible	High
RO3003	Rogers	3.00	0.0010	~40	—	PTFE process	Very High
RT/duroid 5880	Rogers	2.20	0.0009	~150	—	PTFE process	Very High
Astra MT77	Isola	3.00	0.0017	36	250	FR4-compatible	Medium-High
Tachyon 100G	Isola	3.02	0.0021	40	210	FR4-compatible	Medium-High
TLX-8	Taconic	2.55	0.0019	~170	—	PTFE process	Medium
RF-35	Taconic	3.50	0.0018	~50	315	PTFE process	Medium
25N	Arlon	3.38	0.0025	60	>250	PTFE process	High
Megtron 6	Panasonic	3.40	0.0020	36	185	FR4-compatible	High
Standard FR4	Various	4.2–4.5	0.018–0.024	50–70	130–180	Standard	Low

FR4 vs. Specialty High Frequency PCB Materials: When Does It Matter?

This is a question engineers debate constantly, and the honest answer is: it depends on your frequency and trace lengths.

FR4 is not inherently unusable at high frequencies. Engineers have designed working Wi-Fi and sub-6 GHz 5G boards on FR4. The issues arise when:

Frequency climbs above ~6 GHz. FR4’s Df of ~0.020 produces roughly 0.5–1.0 dB/inch of insertion loss at 10 GHz. On a short RF trace, that’s manageable. On a 12-inch run, it kills your link budget.

Dk consistency matters. FR4’s dielectric constant shifts with frequency, temperature, and moisture content. Impedance-controlled traces drift, antennas detune, and filters shift in frequency. Low-loss materials maintain stable Dk within ±0.05 across wide frequency and temperature ranges.

You’re running tight impedance tolerances. 50-ohm striplines on FR4 with a ±10% Dk variation will consistently fail your impedance test. Specialty laminates hold tighter tolerances.

The assembly process is lead-free. Standard FR4 (Tg 130°C) cannot survive repeated lead-free reflow. Even high-Tg FR4 at 170°C sits close to the safety margin. High frequency laminates with Tg >280°C handle lead-free assembly reliably.

Fabrication and Manufacturability Considerations

Material choice isn’t just an electrical decision. It’s a manufacturing decision, and your PCB fabricator needs to be part of the conversation early.

PTFE Processing Challenges

PTFE-based laminates require special handling during fabrication. Standard drill bits wear faster, and the “smear” PTFE leaves during drilling must be removed with sodium treatments (sodium naphthalene or sodium ammonia etch) rather than the permanganate desmear process used on FR4. Not every fabricator has this chemistry.

Via plating adhesion to PTFE also requires surface activation steps. Skipping these leads to PTH reliability failures in the field — a problem that may not show up until thermal cycling in a deployed product.

Mixed Stack-up Compatibility

Many production designs mix Rogers or Isola HF materials on outer layers with standard FR4 core layers. This hybrid approach controls cost while preserving RF performance where it matters. The challenge is CTE mismatch between dissimilar materials under thermal stress. Always verify that your fabricator has experience with your specific material combination and can provide thermal cycling reliability data.

Lead-Free Assembly and Tg Margins

For any lead-free assembled product, your laminate’s Tg should exceed 260°C reflow by at least 20°C as a comfort margin — so Tg >280°C is ideal. Rogers RO4003C and RO4350B both achieve this. Check your Arlon and Taconic grades individually, as Tg varies significantly within each product family.

Copper Foil Selection

At frequencies above 5 GHz, the roughness of the copper foil bonded to your laminate starts to matter. Rougher copper increases conductor loss (the “skin effect” makes current flow at the surface, so rough surfaces mean longer current paths). Low-profile (LP) and reverse-treated foils (RTF) are worth specifying for demanding mmWave designs.

Cost vs. Performance Trade-offs: How to Make the Business Case

The pricing gap between standard FR4 and specialty high frequency PCB materials is real — Rogers RO4350B typically runs 5–10× the material cost of FR4. Making the business case requires framing the decision correctly.

Total cost of failure. A 5G base station antenna module that fails impedance test at integration costs far more in rework, re-spin, and schedule slip than the material premium.

Application frequency window. For a 2.4 GHz Wi-Fi module where traces are short and loss margins are wide, high-Tg FR4 may genuinely be sufficient. For a 77 GHz automotive radar with tight link margins, there is no substitute for low-loss PTFE.

Volume economics. Specialty laminates become proportionally less expensive at volume. At prototype quantities, the cost delta is highest. Request volume pricing and compare it against FR4 BOM cost at target production volumes.

Supplier collaboration. Talk to your PCB fabricator before finalizing your material spec. They can often suggest validated alternatives — for example, a stocked Isola grade that performs comparably to a long-lead Rogers grade — that save cost and lead time without compromising your electrical requirements.

Recommended High Frequency PCB Materials by Application
