Ask any experienced flex circuit fabricator what material they default to when a design can’t afford to fail โ when the assembly lives in a satellite, drives a high-frequency server backplane, or cycles through 10,000 hours of thermal stress โ and DuPont Pyralux AP comes up every time. It isn’t the cheapest flex laminate on the market. It doesn’t need to be. What it offers is a combination of dielectric consistency, thermal stability, chemical resistance, and processing reliability that adhesive-based flex laminates simply can’t match in demanding applications.
This guide covers everything a PCB engineer needs to know about the Pyralux AP product family: how the laminate is constructed, what the product codes mean, published material properties, how it stacks up against adhesive-based alternatives, and which applications justify reaching for it.

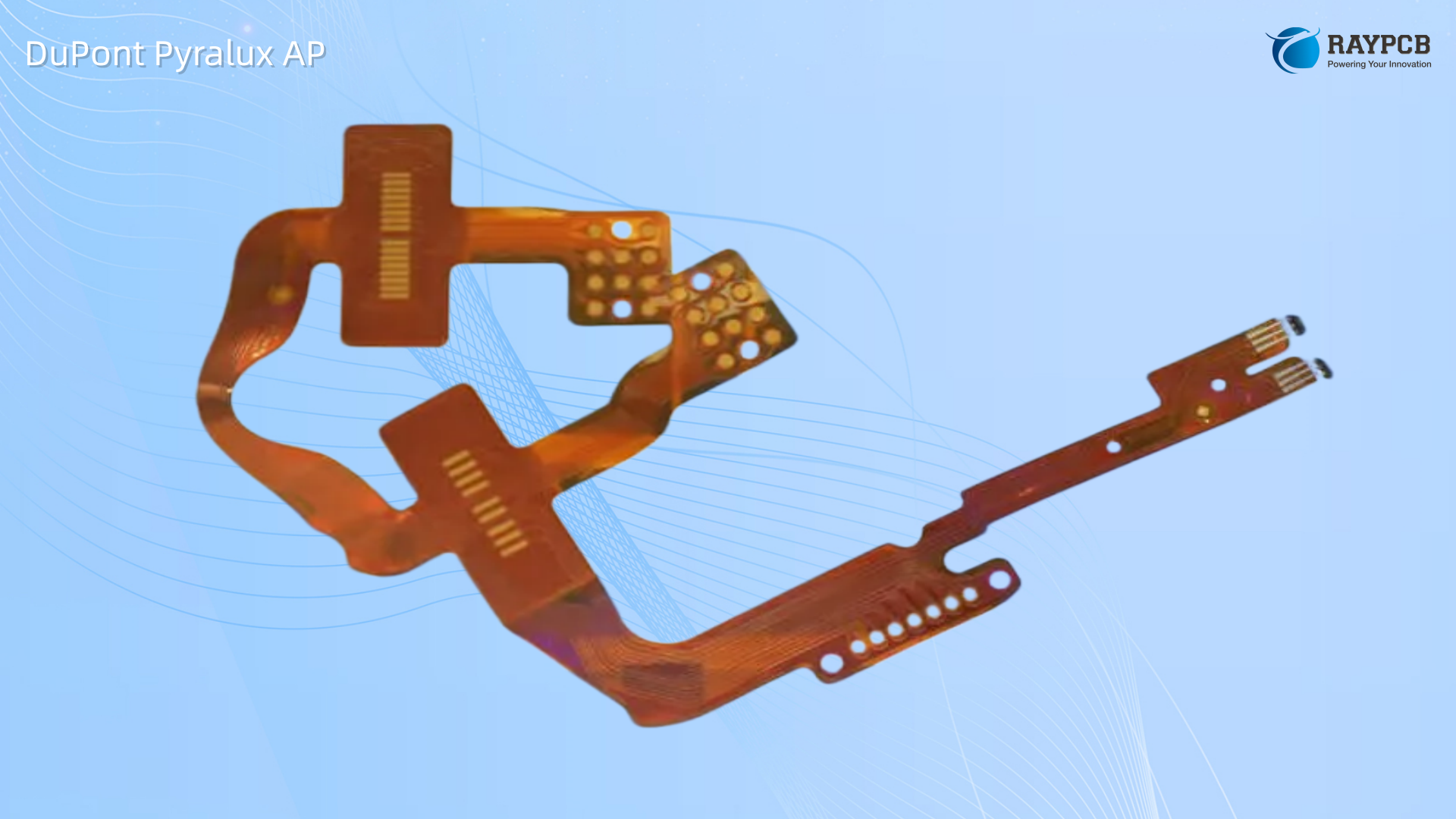

What Is DuPont Pyralux AP?
Pyralux AP double-sided, copper-clad laminate is an all-polyimide composite of polyimide film bonded to copper foil. This material system is ideal for multilayer flex and rigid flex applications which require advanced material performance, temperature resistance, and high reliability.
The “all-polyimide” designation is the critical differentiator. Traditional three-layer flex laminates bond copper foil to a polyimide base film using an adhesive layer โ typically acrylic or epoxy. That adhesive introduces a third material with its own CTE, its own moisture absorption characteristics, its own glass transition temperature, and its own degradation profile under thermal cycling. In a high-reliability design, every additional material interface is a potential failure point.
DuPont Pyralux AP is an all-polyimide double-sided copper-clad laminate that is the industry standard in terms of thermal, chemical and mechanical properties. It is ideal for use in rigid flex and multilayer flex applications which require advanced performance, such as low dissipation loss for high speed, high frequency, thermal resistance and high reliability.
Pyralux AP eliminates the adhesive layer entirely. The copper foil bonds directly to the polyimide dielectric through a proprietary chemical bonding process, producing a two-material system with a more uniform CTE profile and a dielectric layer that performs predictably from sub-zero temperatures to 180ยฐC continuous operating conditions.
The Pyralux AP Family: Variants and Their Applications
The Pyralux AP series is not a single product โ it’s a family of related all-polyimide laminates, each optimized for a specific design requirement. Understanding the variants before specifying is important because the right sub-product can meaningfully improve fabrication yield and electrical performance.
Pyralux AP: The Core Double-Sided Laminate
The standard AP product is a double-sided copper-clad laminate available across a wide range of copper and dielectric thicknesses. Pyralux AP provides designers, fabricators, and assemblers a versatile option for a wide variety of flexible circuit constructions, with low CTE for rigid flex multilayers, excellent thermal resistance, thin copper-clads with superior handling, a unique thick-core product for controlled impedance, excellent dielectric thickness tolerance and electrical performance, high copper-polyimide adhesion strength, full compatibility with PWB industry processes, IPC-4204/11 certification, and UL 94V-0 and UL 796 rating with a 180ยฐC maximum operating temperature.
Pyralux AP-PLUS: Thick-Core for Controlled Impedance
AP-PLUS targets the specific challenge of controlled impedance flex circuits where standard dielectric thicknesses force fine line geometries that stress fabrication yield. Unlike typical printed circuit boards constructed from various woven fiberglass fabrics strengthened and bound in an epoxy matrix, AP-PLUS is a “weave-free” all-polyimide profile providing a smoother surface and homogeneous medium for improved signal integrity, and provides designers a consistent dielectric constant for controlled impedance circuit requirements with minimized signal variation.
The practical benefit: copper traces with 2x greater line/space resolution can be used to achieve identical electrical performance while greatly reducing fabrication yield loss from fine line imaging. For a 50ฮฉ microstrip, moving from a 2 mil to a thicker AP core means doubling the allowable trace width โ transforming a marginal imaging process into a manufacturable one.
Pyralux APR: Embedded Resistor Variant
Pyralux APR incorporates Ticer Technologies TCR thin-film copper resistor foil as one or both of the clad foils. This material system is ideal for multi-layer flex, rigid flex and rigid PCB applications requiring reliable embedded resistor technology, advanced material performance, temperature resistance, and high reliability. Resistance values available include 10, 25, 50, 100, and 250 ฮฉ/square ranges. For designs where termination resistors consume board area, APR is worth evaluating as a stackup-integrated passive solution.
Decoding the Pyralux AP Product Code System
The product code carries all the dimensional information a fabricator needs. Once you understand the structure, ordering becomes straightforward. Here’s what the codes look like and what they mean:
| Product Code | Dielectric Thickness (mil) | Copper Thickness (ยตm / oz) | Copper Type |
| AP7163E | 1.0 | 9 (0.25 oz) | Electrodeposited |
| AP7164E | 1.0 | 12 (0.33 oz) | Electrodeposited |
| AP8515R | 1.0 | 18 (0.5 oz) | Rolled-Annealed |
| AP9111R | 1.0 | 35 (1.0 oz) | Rolled-Annealed |
| AP8525R | 2.0 | 18 (0.5 oz) | Rolled-Annealed |
| AP9121R | 2.0 | 35 (1.0 oz) | Rolled-Annealed |
| AP9222R | 2.0 | 70 (2.0 oz) | Rolled-Annealed |
| AP9131R | 3.0 | 35 (1.0 oz) | Rolled-Annealed |
| AP9141R | 4.0 | 35 (1.0 oz) | Rolled-Annealed |
| AP9151R | 5.0 | 35 (1.0 oz) | Rolled-Annealed |
Add “R” to the end of the code to specify rolled-annealed copper foil (e.g., AP9121R). Add “E” to the end of the code to specify electrodeposited copper foil (e.g., AP9121E). If rolled-annealed double-treat copper foil is specified, add the letter “D” to the end of the product code (e.g., AP9121D).
Pyralux AP is available in polyimide thicknesses of 0.5, 1.0, 2.0, 3.0, 4.0, 5.0, and 6.0 mils, with 7.0โ20 mils available upon special request. Available copper thicknesses span 6, 9, 12, 18, 35, and 70 microns, with thicker copper available upon special request.
Rolled-Annealed vs. Electrodeposited Copper: Which to Choose?
This decision comes up on every flex design. Rolled-annealed (RA) copper is the standard choice for dynamic flex applications โ circuits that will bend repeatedly in service, like hinge interconnects in laptops or flex-to-install assemblies that undergo thermal cycling. RA copper’s grain structure aligns parallel to the foil surface, giving it superior flexural endurance compared to the columnar grain structure of electrodeposited (ED) copper.
ED copper, on the other hand, is preferred where fine feature definition is the priority. The smoother surface profile of ED copper supports tighter etch tolerance for very fine lines. Ultra-thin constructions with 9 ยตm and 12 ยตm copper are only available in ED on the standard product list.
Key Material Properties of DuPont Pyralux AP
The published property data for Pyralux AP puts firm numbers behind the performance claims. The table below summarizes the critical electrical and mechanical properties that matter most in high-reliability flex circuit design.
| Property | Typical Value | Test Method |
| Dielectric Constant (Dk) @ 1 MHz | 3.4 | IPC-TM-650 2.5.5.3 |
| Dissipation Factor (Df) @ 1 MHz | 0.0020 | IPC-TM-650 2.5.5.3 |
| Dielectric Strength (kV/mil) | 3.5+ | IPC-TM-650 2.5.6 |
| Volume Resistivity (Mฮฉยทcm) | >10โถ | ASTM D-257 |
| Max Operating Temperature | 180ยฐC (356ยฐF) | UL 796 |
| UL Flammability | 94V-0 | UL 94 |
| IPC Certification | IPC-4204/11 | โ |
| Peel Strength (as-fabricated) | โฅ0.7 N/mm | IPC-TM-650 2.4.9 |
| Peel Strength (after solder) | โฅ0.7 N/mm | IPC-TM-650 2.4.9 |
| Solder Float (288ยฐC / 550ยฐF) | Pass | IPC-TM-650 2.4.13 |
One property that consistently matters in high-speed designs is how Dk behaves across frequency. The Pyralux AP dielectric values are typical for constructions 1 through 6 mils of dielectric, and dielectric constant remains consistent versus frequency. This stability is a significant advantage over adhesive-based constructions. The loss tangent for the typical adhesive value drifts up noticeably after 12 GHz, whereas Pyralux AP’s adhesiveless construction maintains low Df stability well above that threshold โ a critical factor for designs operating at 10 GHz and beyond.
Why Adhesiveless Construction Changes the Engineering Math
The entire value proposition of DuPont Pyralux AP centers on eliminating the adhesive layer. To understand why that matters, you need to think through what an adhesive layer actually costs you in a high-performance design.
Thermal Performance
Acrylic and epoxy adhesives typically have glass transition temperatures (Tg) in the 85ยฐC to 120ยฐC range. Above Tg, the adhesive softens and the CTE increases sharply. In a rigid-flex board that sees reflow temperatures, lead-free solder float at 288ยฐC, or sustained operating temperatures above 125ยฐC, the adhesive layer is the weakest thermal link in the stack. Pyralux AP’s all-polyimide construction maintains thermal stability at temperatures that would compromise adhesive-based laminates.
Dimensional Stability and CTE Matching
Low CTE for rigid flex multilayers is listed as the first key attribute in DuPont’s own product documentation โ not by accident. In a rigid-flex board, the flexible segments connect rigid zones that are laminated with FR4 or other glass-reinforced materials. If the flex laminate has a significantly different CTE from the rigid sections, thermal cycling drives stress into the transition regions. Pyralux AP’s CTE is tightly controlled and well-characterized, enabling designers to predict and manage stress in rigid-flex transitions.
Density and Layer Count
Without an adhesive layer, the polyimide/copper/polyimide stack is thinner. In a high-layer-count rigid-flex board where total board thickness is constrained, eliminating adhesive layers across multiple flex layers can free up meaningful stackup budget for additional signal layers or thicker copper.
Processing and Fabrication Compatibility
Fabricators who are new to Pyralux AP sometimes worry about process compatibility with their existing flex line. The concern is understandable but largely unfounded. Pyralux AP clads are fully compatible with all conventional flexible circuit fabrication processes including oxide treatment and wet chemical plated-through-hole desmearing. Fabricated circuits can be cover-coated and laminated together to form multilayers or bonded to heat sinks using polyimide, acrylic, or epoxy adhesives.
Pyralux AP is fully cured when delivered. This matters for press lamination: unlike some materials that require additional cure cycles, AP arrives ready to process. However, ventilation is important. Lamination areas should maintain fresh air supply because trace quantities of residual solvent can volatilize during press cycles โ a standard precaution for polyimide materials.
Storage requirements are straightforward: store in original packaging at 4โ29ยฐC (40โ85ยฐF) below 70% relative humidity. Do not freeze. Under compliant storage conditions, DuPont’s material quality warranties remain in effect for the specified shelf life period.
Fabricators experienced with DuPont PCB materials will find the process inputs for Pyralux AP consistent with their broader experience in polyimide-based flex circuit manufacturing.
Pyralux AP vs. Three-Layer Adhesive-Based Flex Laminates
Engineers evaluating material selection frequently ask for a direct comparison. Here’s where Pyralux AP wins, and where three-layer adhesive laminates remain competitive.
| Parameter | Pyralux AP (Adhesiveless) | Three-Layer Adhesive Laminate |
| Max Operating Temp | 180ยฐC (356ยฐF) | ~120โ130ยฐC (adhesive Tg limited) |
| Dielectric Loss (Df) | ~0.002 | ~0.020 (adhesive-influenced) |
| Thermal Cycling Performance | Excellent | Moderate (adhesive fatigue) |
| CTE Uniformity | Superior (homogeneous PI) | Lower (mixed material interfaces) |
| Fine Line Capability | Higher (tighter Dk tolerance) | Adequate for standard designs |
| Layer Count / Thickness | Thinner per layer | Additional adhesive layers add thickness |
| Cost | Higher | Lower |
| Best For | Aerospace, military, high-speed digital, RF | Consumer electronics, cost-sensitive designs |
For straightforward single or double-sided flex circuits in consumer electronics with benign operating environments, a three-layer acrylic-adhesive laminate is perfectly adequate and significantly more cost-effective. The Pyralux AP premium is only justified โ and typically necessary โ when operating conditions, reliability requirements, or electrical performance targets exceed what adhesive-based materials can reliably deliver.
Applications Where Pyralux AP Is the Right Material
Aerospace and Defense Electronics
The combination of thermal stability, chemical resistance, and proven reliability under extreme environmental exposure makes Pyralux AP a natural specification for aerospace interconnects. This material system is ideal for multilayer flex and rigid flex applications which require advanced material performance, temperature resistance, and high reliability. Military specifications for flex circuit laminates, including those governed by IPC-4204, align directly with Pyralux AP’s certified properties.
High-Speed Digital and RF Circuits
Above 10 GHz, adhesive loss tangent becomes a real system performance issue. Pyralux AP’s consistent Dk (stable across frequency) and low Df make it a preferred substrate for RF antenna flex interconnects, high-speed chip-to-chip interconnects in server and networking hardware, and backplane flex sections in routers and telecom equipment. The thick-core AP-PLUS variant provides additional capability for controlled-impedance designs requiring wider traces for higher-frequency operation.
Medical Devices
Implantable and patient-contact medical devices face strict biocompatibility and sterilization requirements that many flex materials cannot meet. Pyralux AP’s chemical inertness and the absence of adhesive chemistry makes it compatible with gamma sterilization processes and relevant biocompatibility standards. Note that DuPont cautions against use in applications involving permanent implantation in the human body โ always confirm suitability with your regulatory team.
Industrial and Automotive Electronics
Flex circuits exposed to hydraulic fluids, fuel, solvents, or temperature extremes in automotive and industrial environments benefit from the all-polyimide construction’s resistance to the chemicals that degrade adhesive-based laminates over time. Under-hood automotive applications and industrial control systems that cycle between cold storage and operating temperatures are good candidates.
Certifications and Quality System
The clads are certified to IPC-4204/11. Complete material and manufacturing records, which include archive samples of finished product, are maintained by DuPont. Each manufactured lot is identified for reference and traceability. The packaging label serves as the primary tracking mechanism in the event of customer inquiry and includes the product name, batch number, size, and quantity.
IPC-4204/11 certification is the key industry qualification for flexible metal-clad dielectrics used in high-reliability flex circuits. UL 94V-0 flammability rating and UL 796 listing round out the compliance profile for most commercial and defense programs.
Frequently Asked Questions About DuPont Pyralux AP
Q1: What is the key difference between Pyralux AP and Pyralux AC?
Pyralux AP is a double-sided copper-clad laminate; Pyralux AC is the single-sided version of the all-polyimide family. Both share the adhesiveless construction and polyimide dielectric. AP targets multilayer rigid-flex designs where copper is needed on both faces of the core dielectric. AC is used in single-sided flex circuits where one copper layer suffices and the reverse side serves as a plain polyimide surface.
Q2: Can Pyralux AP be used as a bondply for laminating multilayer flex circuits?
Yes, with the appropriate bondply product. DuPont offers a dedicated 3-mil Pyralux AP bondply specifically for laminating multilayer stacks together. The bondply provides a polyimide-based adhesive layer consistent with the all-polyimide construction philosophy, maintaining the thermal performance advantages that would be lost if an acrylic bondply were used between AP cores.
Q3: Is rolled-annealed or electrodeposited copper better for dynamic flex designs using Pyralux AP?
Rolled-annealed copper is strongly preferred for dynamic flex โ circuits that flex repeatedly in service. RA copper’s grain structure aligns with the rolling direction, giving it dramatically better flexural endurance than ED copper. ED copper is better suited to static flex applications where fine feature resolution is the priority, or rigid-flex zones that don’t undergo dynamic bending.
Q4: How does Pyralux AP handle lead-free reflow soldering at 260ยฐC peak?
The solder float test at 288ยฐC (550ยฐF) is a pass condition in the published material properties. The all-polyimide construction handles lead-free reflow profiles well, including peak temperatures of 260ยฐC with multiple passes. The absence of an adhesive layer eliminates the primary delamination risk that adhesive-based laminates face during aggressive thermal excursions.
Q5: What’s the minimum dielectric thickness available in Pyralux AP for thin-profile designs?
Polyimide thicknesses of 0.5 mil are the thinnest standard offering, with 1.0, 2.0, 3.0, 4.0, 5.0, and 6.0 mils covering the standard range, and 7.0โ20 mils available upon special request. The 0.5 mil dielectric construction paired with ultra-thin copper (9โ12 ยตm) delivers the thinnest possible all-polyimide laminate for package-level interconnect and fine-pitch HDI flex applications.
Useful Resources for Engineers Specifying Pyralux AP
| Resource | What You’ll Find |
| DuPont Pyralux AP Official Product Page | Product overview, thickness combinations, ordering guidance |
| Pyralux AP Datasheet (Becker-Mueller PDF) | Full material property tables, product code listing |
| Pyralux AP-PLUS Datasheet (Cirexx PDF) | Thick-core variant specs, impedance design guidance |
| Pyralux APR Datasheet (Cirexx PDF) | Embedded resistor foil variant, resistance tables |
| Pyralux AP Processing Guide (Flexiblecircuitry.com) | Fabrication process notes, lamination parameters |
| IPC-4204 Standard | Flexible metal-clad dielectric specification governing Pyralux AP |
| IPC-2223 Design Standard for Flexible PCBs | Flex and rigid-flex design guidelines relevant to Pyralux AP usage |
| Insulectro Pyralux Distribution | North American stocking distributor with application engineering support |
Final Thoughts: When to Specify Pyralux AP
From a design engineering standpoint, Pyralux AP earns its higher cost in a clearly defined set of conditions: operating temperatures above 130ยฐC, high-frequency signals above 5 GHz where adhesive loss becomes a system problem, rigid-flex constructions where CTE mismatch at the adhesive interface creates reliability risk, and any application where the qualification program or customer specification explicitly calls for IPC-4204/11 certified all-polyimide construction.
The product line’s depth โ spanning 0.5 to 20 mil dielectric thickness, multiple copper weights, RA and ED copper options, and specialty variants for thick-core impedance control and embedded resistors โ means that once you’re designing in Pyralux AP, the family covers virtually every flex circuit construction requirement without forcing material changes partway through a design.
For engineers who want the benchmark flex laminate that the rest of the industry measures itself against, Pyralux AP is what that benchmark looks like.
