A Closer Look at the Basics of Capacitive Circuits

An actual capacitor circuit refers to a type of circuit that comprises a pure and actual capacitor along with the C farads capacitance. The capacitor capacitance is a type of effect that occurs on strong electrical current in an electric field. It also serves as a condenser. It contains a dielectric substrate that separates both conductive plates and creates a capacitor. This dielectric substrate comprises mica, oxide layers, paper, glass, and other materials. Moreover, the current in the AC capacitor conducts the voltage at the right 90 degrees.

What Are Capacitive Circuits?

When the voltage passes through the plates of the capacitor, it creates an electric field around it. However, the current does not follow them. However, when an inconsistent voltage source device connects across the plates of a capacitor, the discharging and charging of a capacitor flow the current through the voltage source.

Definition Of Capacitive Circuits

A capacitor consists of two plates of dielectric material that separate from each other through the dielectric source. The capacitor stores the electrical energy in them. Thus reacting as a medium storage application. It charges when the device power turns on and discharges when the device power turns off. The charging directly connects to the voltage applied to it when connected to a power supply directly.

How Capacitive Circuits Behave In Alternative Current Circuits?

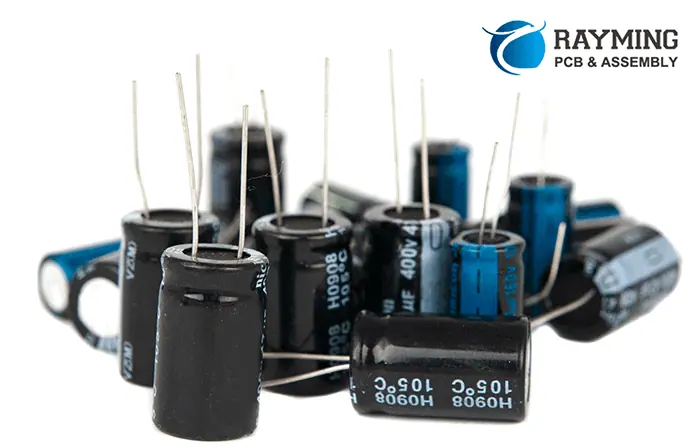

Choose a large capacitor or a small capacitor
Choose a large capacitor or a small capacitor

The capacitor behaves and reacts differently when an Alternating Current applies to it. Capacitors operate differently from resistors. Resistors allow electrons to flow through them, which are directly rational to the drop in voltage. At the same time, the capacitor does the opposite of it. It does not allow the voltage to drop. In fact, when the current is supplied to it, it charges or discharges the current into a new level of voltage.

In a direct current supply, when the voltage supply remains constant, the capacitor starts charging up to the supplied voltage value. Where it acts as a storage device and stores the charge indefinitely. The flow rate of charging current in the capacitor equals the change rate of electronic charge present on the dielectric plates against any voltage change.

In an AC supply connection, the voltage and current of a capacitor contain a right 90-degree angle difference in which the current reaches the tip of 90 degrees before the voltage. The AC supply produces an oscillating type of voltage.

If the current is higher, it flows a greater charge to create a specific voltage over the dielectric plates, which enhances the capacitance. Whereas, if it has less time to alter the voltage, it enhances the voltage frequency, which needs greater current. However, as the frequency and capacitance increase, it automatically increases the current.

Capacitive AC Circuits

A complete capacitive Alternating Current circuit contains a capacitor and an Alternating Current-voltage supply. The capacitor directly connects with the Alternating Current-voltage supply. Moreover, the capacitor keeps charging and discharging based on voltage supply changes. The current in the circuit keeps changing its direction in two ways continuously. At the same time, the capacitor does not flow any current. The dielectric plates just attract the electrons from one plate to the other. Thus, showing off that current is passing through the capacitor insulator while separating the dielectric plates.

Capacitive Circuits Reactance

The capacitor rate of voltage change is directly proportional to the electrons flow across it. While in a complete AC circuit, the capacitive reactance of a capacitor is inversely proportional to the flow of current. This happens because reactance also refers to resistance which is measured in units of ohms.

However, it has the value of X, which makes it separate from the basic resistive value. The equation of capacitive reactance depends on both the Alternating Current waveform frequency and the value of the capacitor in farads.

The equation simply shows that increasing capacitance or frequency can reduce the capacitor’s capacitive reactance. When the value of frequency reaches infinity, it decrees the value of capacitance reactance to zero.

AC Capacitance With A Sinusoidal Supply

When the circuit encloses the switch, it starts flowing high current across the capacitor because the plate does not have any charge at t = 0. The supply of sinusoidal voltage (V) starts rising at the max rate in the positive path as it passes the zero axis in a given time. It gives the value of 0 degrees. As the plate’s rate of potential difference change reaches its max value, it takes the capacitor current flow at the max rate when the electrons keep moving at a max amount from one dielectric plate to another dielectric plate.

When the supply voltage of sinusoidal reaches 90 degrees, it starts slowing down. Here, in fact, for a very short time, the value of potential difference stops increasing or decreasing. Thus it decreases the current to zero because the voltage stopped changing for a while. However, at 90 degrees, the capacitor potential difference has the max value (Vmax), with zero flow of current across the capacitor. Because the capacitors are fully charged, and the dielectric plates do not have any electrons over them.

When that specific short time finishes, the voltage supply starts decreasing in the negative direction back to the zero axis at 180 degrees. However, the voltage supply is still positive here; the capacitor automatically starts discharging some of the electrons from its dielectric plates to keep the voltage constant. Thus resulting, the current flows in the negative and opposite directions in a capacitor.

Capacitive Circuits Reactance Against Frequency


The capacitive reactance of capacitors decreases when the frequency in dielectric plates increases. Thus, it makes the capacitive reactance inversely proportional to the frequency. The charges over the dielectric plates oppose the flow of current, whereas the capacitive reactance over the dielectric plates stays constant.

This simply implies that the capacitor can have enough time to absorb the electrostatic charge change over the dielectric plates in every half cycle. Additionally, when its frequency increases, the flow of current also increases because of the increased change of voltage across the dielectric plates.

What Is The Difference Between Capacitive Circuits And Inductive Circuits?

Both capacitors and inductors simultaneously determine the load system’s equivalent impedance. A load of inductors contains positive equivalent impedance, whereas a load of capacitors contains negative equivalent impedance and loads of resistors contain zero equivalent impedance.
