How Do You Layout a Breadboard?


A breadboard is an essential tool for building and testing electronic circuits. It allows you to prototype circuits without having to solder components together. But before you can start building circuits, you need to understand how to properly layout and organize a breadboard. A well laid out breadboard will make your projects go together smoothly and efficiently.

In this guide, we will cover everything you need to know about laying out a breadboard, including:

  • What is a breadboard and how does it work?
  • Breadboard layout tips and best practices
  • Organizing components on a breadboard
  • Wiring methods for neat and orderly breadboards
  • Testing continuity on a breadboard
  • Common breadboard mistakes to avoid

Properly laying out your breadboard is a foundational skill for any electronics hobbyist or student. Let’s get started!

What is a Breadboard and How Does it Work?

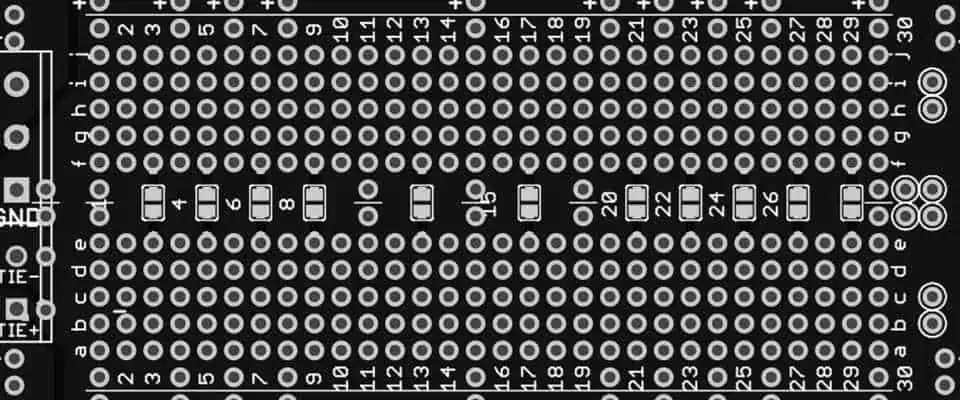

Solderable Breadboard

A breadboard, also known as a protoboard or prototyping board, is a construction base for building and testing electronic circuits. It consists of a plastic board with a grid of holes that are connected underneath in a specific pattern. The grid of holes allows you to insert components like resistors, capacitors, and integrated circuits. Underneath the board, metal clips connect certain holes together. This allows you to build circuits without having to solder components together.

Features of a Breadboard

  • Grid of holes for inserting components
  • Underlying metal clips connect holes in a certain pattern
  • Allows building circuits without soldering
  • Used for prototyping and testing circuits quickly
  • Reusable – components can be inserted and removed

Power Rails

Breadboards have two long strips running vertically on the left and right side, often labeled red and blue. These are called the power rails. The holes in each power rail strip are connected horizontally to each other. This allows you to easily connect voltage and ground to your circuit by plugging wires into the rails. The red rail is commonly used for positive voltage (VCC) while the blue rail is used for ground (GND). However, you can use them for any two voltages required in your circuit.

Main Working Area

The main working area consists of short 5-hole rows split by a center gap, forming a rectangular grid. The holes in each 5-hole row are connected horizontally to each other. But there are breaks in between each row, columns across the center gap, and columns along the power rails. This pattern allows you to insert components and create a circuit by connecting rows with jumper wires without shorting paths together.

Breadboard Layout Tips and Best Practices

Laying out your breadboard properly will make building and testing circuits much easier. Here are some tips and best practices to follow:

  • Orient components across the center gap – Place positive pin/lead in one row, negative pin/lead in a row across the gap. This prevents short circuits.
  • Keep layout consistent from one section to the next – Maintain alignment and organization across the entire board.
  • Leave space between components – Don’t crowd parts together too tightly. Leave a hole or two between components.
  • Run wires cleanly along rows – Use jumpers to connect rows, not haphazard diagonal wires between holes.
  • Label rows used for signals – Identify inputs, outputs, control lines, etc using masking tape.
  • Use breadboard row numbering – Refer to row numbers when wiring up circuits from schematics.
  • Connect power and ground rails cleanly – Run a red wire to red rail, blue wire to blue rail. Avoid twisting wires.
  • Check for continuity and shorts – Verify connections are good and there are no shorts before powering up.

Following these breadboard layout guidelines will give you neat, orderly and properly functioning circuits.

Organizing Components on a Breadboard

Keeping your breadboard clearly organized goes hand-in-hand with proper layout. Here are some tips on organizing parts and wires on a breadboard:

Group Related Components

  • Keep all parts for individual sub-circuits grouped together in one section. For example, group all resistors and transistors for an amplifier circuit together.
  • Draw boxes on masking tape to define sections if needed.

Align ICs Properly

  • Position integrated circuits (ICs) across the center gap, with a leg on each side of the gap.
  • Align notches on ICs with the top and bottom power rail rows.

Orient polarized components properly

  • Position polarized caps and diodes with their positive and negative legs in different rows.

Cut jumper wires to length

  • Use wires only as long as necessary between connections. Cut excess wire lengths.

Label jumper wires

  • Use small pieces of masking tape to identify signals on jumper wires. For example, “Clock”, “Data”, “Reset”.

Organizing components properly on your breadboard will make your circuit much easier to assemble, troubleshoot and modify.

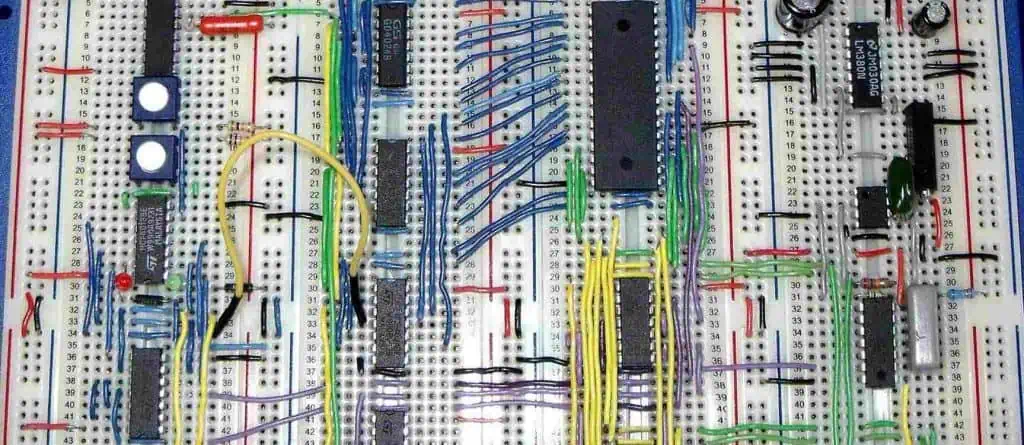

Wiring Methods for Neat and Orderly Breadboards

How you wire up your breadboard can greatly affect the orderliness and appearance of your project. Here are some techniques for neat and orderly breadboard wiring:

Run wires along rows

  • Run jumper wires along breadboard rows, not diagonally between random holes. This keeps everything straight and parallel.

Use different row paths for signal lines

  • Run different signal lines through different rows. If two signal lines overlap, cross them in an “X” pattern.

Insert wires into tidy rows

  • When inserting component leads or wires into the breadboard, align them into straight, tidy rows. Avoid haphazard insertion.

Secure components and wires

  • Use masking tape or other adhesive to secure IC bodies and jumper wires to keep them in place.

Avoid wire tangles

  • Be mindful of wire connections as you insert components into the board to avoid tangled masses of wire connections.

Cut wire lengths

  • Clip jumper wires to only necessary lengths between connections for tidiness.

Check alignments

  • Periodically check that components and wires are still aligned properly and securely as you build your circuit.

Following these tips as you assemble your breadboard will result in an orderly layout that looks neat and professional.

Testing Continuity on a Breadboard

Once you’ve completed your breadboard layout, it’s crucial to test for continuity to verify proper connections before powering up your circuit. Here is the process for testing continuity:

Visual Inspection

  • First visually inspect that components appear to be inserted into the appropriate rows and aligned properly. Verify wires are along rows.

Use a Multimeter

  • Set your multimeter to continuity check mode – this makes it beep when a connection is detected.

Check Each Wire and Connection

  • Touch the multimeter probes to both ends of each wire and component connection to ensure they are properly connected with continuity.

Verify Power and Ground

  • Check continuity from power and ground rails out to each part of your circuit that should connect to the supplies.

Look for Short Circuits

  • Probe different points in your circuit that should NOT be connected to see if shorts exist, indicated by unwanted continuity.

Fix Any Issues

  • If any defects are identified, fix miswirings, shorts, or poorly inserted components.

Only after you have visually inspected your layout and verified with multimeter tests that the circuit matches the schematic, should you connect power and begin functional testing. This will ensure basic wiring issues don’t damage components when power is first applied.

Common Breadboard Mistakes to Avoid

Even experienced electronics hobbyists make breadboarding mistakes now and then. Being aware of common errors will help you avoid them in your projects:Not Aligning ICs Properly

  • Be sure to align any integrated circuits across the center gap, following pinout diagrams.

Not Confirming Polarity of Polarized Parts

  • Diodes, LEDs, caps and more are polarized. Verify orientation!

Inserting Jumpers or Components Messily

  • Take care to align jumper wires along rows and neatly insert each component.

Connecting Incorrect Rows to Schematic

Failing to Identify Rows or Jumpers

  • Labeling rows and wires avoids confusion on complex boards.

Crowding Too Many Parts Together

  • Spread components out with space between parts for easier assembly and debugging.

Avoiding these common pitfalls will ensure your breadboard wiring is laid out properly and your circuit has the best chance of functioning correctly on the first try.


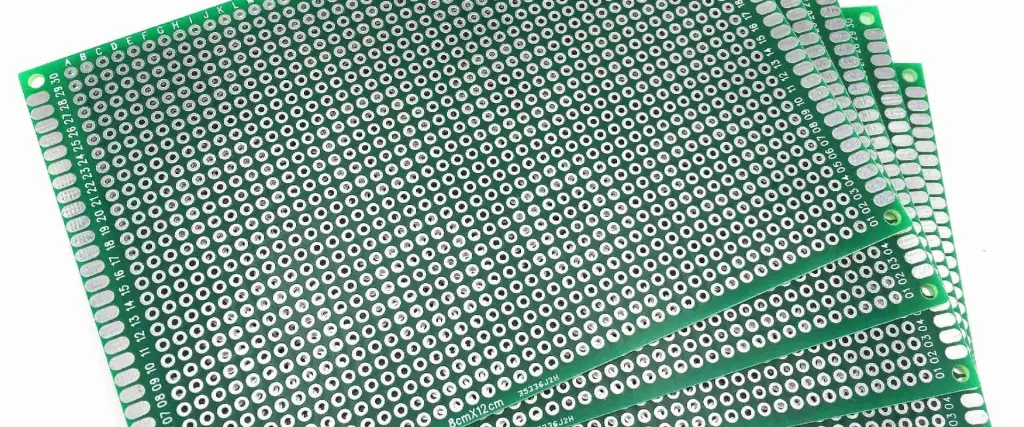

Bread Circuit Board

Laying out a breadboard properly is key to building and testing circuits successfully. By following breadboard layout best practices, neatly organizing parts, wiring intelligently, verifying connections, and avoiding mistakes, you can assemble functioning circuits in no time.

The gridded layout and lack of soldering allows flexible prototyping, but introduces challenges in layout that don’t exist for permanent PCBs. Carefully planning breadboard arrangements will give you a smooth electronics project workflow.

So grab your breadboard, multimeter, jumper wires and components and start creating your next electronics design using these breadboard tips!


What are the main parts of a breadboard?

The main parts of a breadboard are:

  • Power rails – Long vertical strips for connecting power and ground.
  • Binding posts – Terminals to connect external power to the rails.
  • Main grid area – Contains short 5-hole rows connected horizontally underneath to allow component and wire insertion.
  • Center gap – Splits the grid into two sections for separating circuits.

Why are breadboards designed with two separate halves?

The split grid design of breadboards, with a gap down the middle, is to prevent short circuits between two circuits or circuit elements that should not be connected. The gap provides isolation between the two grid halves.<h3>How should you arrange ICs on a breadboard?

Integrated circuits should straddle the center gap of the breadboard, with half the IC legs on one side of the gap and the other half on the opposite side. Align notches on the IC package with the top and bottom rails. This prevents shorting power and ground connections.

Why should you use short jumper wires between connections?

Excess long jumper wires can lead to tangled messy rats nests on a breadboard. Using the shortest wire possible between connections results in a cleaner layout. It also reduces noise pickup and voltage drops along wire lengths.

What is the best way to document and label a breadboard?

Use small pieces of masking tape to label rows used for important signals. Draw boxes on sections of the board used for separate circuits. Clearly label inputs, outputs and power connections. This makes the layout easy to understand and debug.
