How to Solder the Chip Components


Soldering chip components like resistors, capacitors, and integrated circuits represents an essential skill for assembling printed circuit boards. While seemingly simple, properly soldering chips requires care and proper technique to avoid damaging delicate components or creating unreliable solder joints.

This guide covers everything needed to successfully hand solder chip components of any size onto PCBs. We’ll explore soldering small SMDs under a microscope, soldering leads on through-hole parts, avoiding common mistakes, and inspection steps to ensure quality soldering. With the right tools and methods, assembling chip components can become an easy, rewarding process.

Soldering Tools

Having quality tools makes soldering chip components significantly easier and ensures reliable results.

Soldering Iron

The soldering iron forms the heart of any soldering setup. For chip work, look for:

  • Fine conical or chisel tip sizes from 0.5mm to 1.5mm
  • Temperature control for adjusting heat
  • Power rating from 15W to 65W
  • Lightweight and ergonomic handle

Temperature control allows matching heat to the size and thermal mass of components. Too little heat risks cold joints while too much damages parts.

Solder Wire

For most electronics work, lead-containing rosin core solder is preferred:

  • Alloys of 60/40 or 63/37 tin/lead preferred
  • Diameter from 0.5 to 1.0mm
  • Rosin core lightly fluxes while soldering

Lead-free solders require higher heat which can damage components.

Hand Tools

Useful hand tools include:

  • Fine tip tweezers to position and remove parts
  • Flush diagonal cutters for trimming leads
  • Vacuum pickup tool for handling tiny SMDs
  • Optical inspection tools like microscope, magnifier, etc.

Quality hand tools improve precision and avoid damaging PCBs or components.

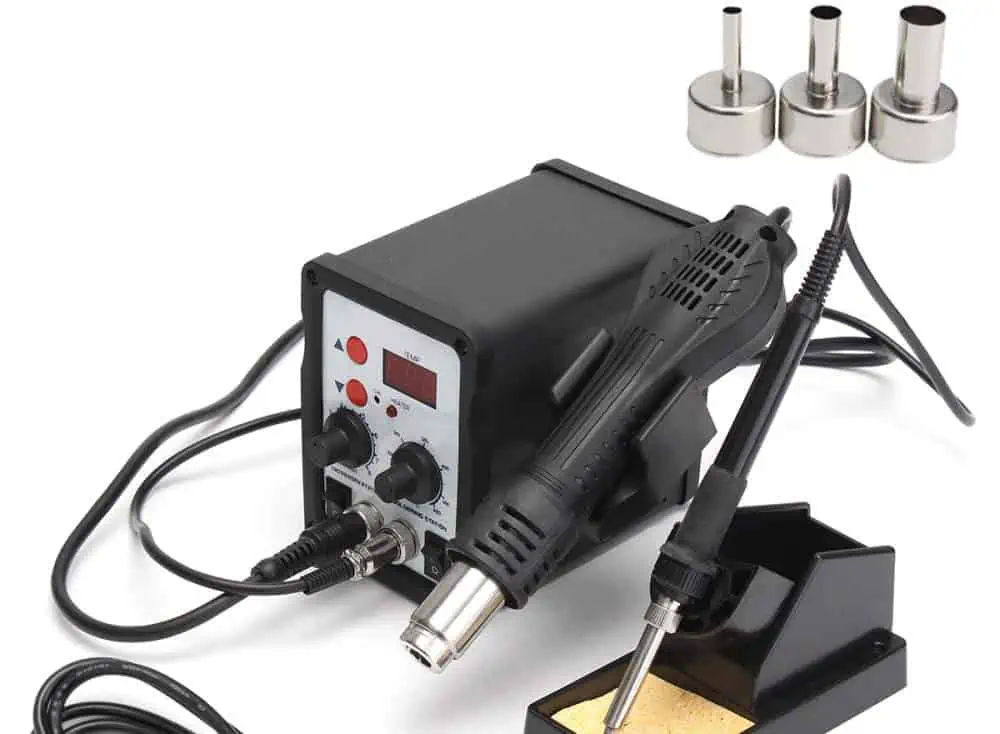

Soldering Stand and Base

A soldering station helps keep the workspace organized and equipment ready:

  • Holder safely stores iron when not in use
  • Stand positions board at convenient angle
  • Brass wool for tip cleaning
  • Parabolic tip cleaner
  • Non-slip rubber base

Spending a bit more for a quality soldering station improves the experience tremendously.

Soldering Technique

With the right equipment, applying proper technique ensures reliable soldering results:

Prepare Components

Any parts like leads or termination pads should be clean and oxide-free for good solder wetting. Use flux or isopropyl alcohol to remove debris. Pre-tinning leads can improve adherence.

Prepare Soldering Iron

The iron tip should be clean, tinned, and set to the appropriate temperature for the part being soldered. Standard tip temperatures range from 650°F to 700°F for most chip work. The iron should reach temperature fully before use.

Heat the Joint, Not the Iron

Place the iron tip simultaneously on the part lead and PCB pad. Give it a few seconds to heat both up before introducing solder. This prevents cold solder joints from insufficient preheat.

Apply Solder

Touch solder against the joint opposite the iron once it is heated. The solder should melt and flow smoothly onto the joint. Use just enough solder to fully coat the joint without excessive buildup. Remove iron and allow the joint to cool undisturbed.

Inspect Joints

Visually inspect each solder joint under magnification after cooling. Look for complete wetting and smooth appearance. Resolder any joints with holes, pits, incomplete coverage, or other defects.

Clean Flux Residue

Remove any residual flux left from soldering using isopropyl alcohol, swabs, and a brush. This prevents corrosion or electrical leakage over time.

Proper technique comes with practice – creating quality solder joints should become second nature after some experience.

Soldering Through-Hole Components


Through-hole (THD) chip components like resistors and capacitors have long axial leads passing through PCB holes. The leads provide mechanical anchoring and allow conduction from both sides of boards. Here is how to approach soldering common THD parts:

Bend Leads

Bend the component leads slightly outward at a 10-20° angle so the body rests flush against the board surface while soldering.

Insert and Align

Insert the leads through corresponding PCB holes. Ensure the part is fully seated against the board surface and properly oriented.

Apply Solder

Heat the joint by touching the iron tip to the lead and pad simultaneously. Apply solder to form a fillet shape until fully covering the joint. Repeat for remaining terminations.

Trim Excess Length

Inspect the joint thoroughly then use flush cutters to trim any excess lead length extending beyond the bottom of the PCB.

With practice, through-hole chips can be quickly installed and soldered for reliable mechanical and electrical termination.

Soldering SMD Components

Soldering tiny surface mount device (SMD) components requires additional care compared to through-hole parts. Follow these guidelines for success with SMDs:

Position Component

Use tweezers or a vacuum pickup tool to precisely place the SMD in the centered in the appropriate PCB footprint. Ensure correct orientation.

Secure Component

To prevent movement while soldering, tack down one pad with minimal solder to hold the component in place. Reheat and adjust position if needed.

Limit Solder Application

Carefully heat each pad and apply a small amount of solder for SMD joints. The solder should wet to the termination and PCB pad without bridging.

Inspect Under Magnification

Thoroughly inspect each individual joint under magnification after soldering. Reflow any joints with insufficient wetting, coverage, or blobs of excess solder.

Taking extra care pays dividends for producing reliable soldering results with tiny SMDs.

Avoiding Common Errors

With attention and care, chip soldering errors can be minimized. Watch out for these potential mistakes:

Insufficient Heat – Not preheating pads enough before applying solder can lead to weak cold joints with poor adhesion.

Excess Solder – Too much solder will blob, bridge, or wick up component leads causing shorts. Use the minimum needed.

Solder Bridges – Solder flowing between adjacent pads creates shorts. Use less solder and inspections can catch any bridge defects.

Overheating – Applying heat too long damages components or PCB pads. Quickly in and out prevents lifting pads.

Cold/Disturbed Joints – Allow every joint to cool undisturbed to prevent cracks, voids, or disturbances weakening the termination.

Flux Residue – Remaining flux left after soldering can lead to corrosion or electrical leakage in the long term if not cleaned.

Catching errors early and reflowing any faulty solder joints prevents headaches down the road after assembly is complete.

Integrated Circuit Packages

Proper soldering technique varies slightly depending on the exact IC package being used:


  • Ensure pins are aligned properly before soldering
  • Heat individual pins quickly without overheating
  • Inspect for solder bridges between pins
  • Use desoldering wick if corrections are needed

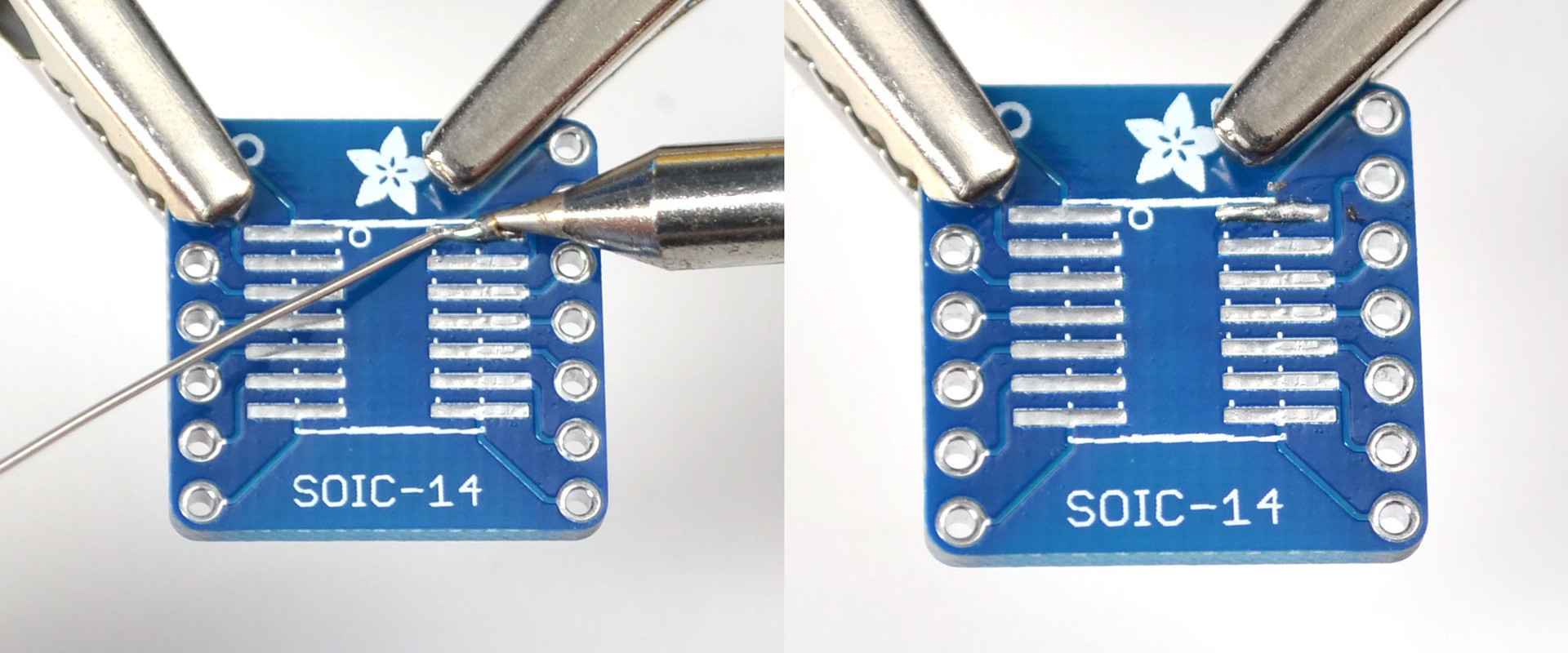

SOIC / SOP Packages

  • Minimize solder amount to avoid bridging leads
  • Inspect thoroughly for hidden solder bridges
  • Be quick when soldering to avoid heat damage

QFP / TQFP Packages

  • Tack corner pins first to properly align package
  • Double check all pins are making contact before soldering
  • Inspect closely for hidden solder bridges under package

BGA Packages

  • Precisely control solder amount on pads
  • X-ray inspection often needed to verify joint quality
  • Avoid placing BGAs on dense PCB regions

With practice, even challenging components like BGAs can be hand soldered successfully.

Rework and Repair

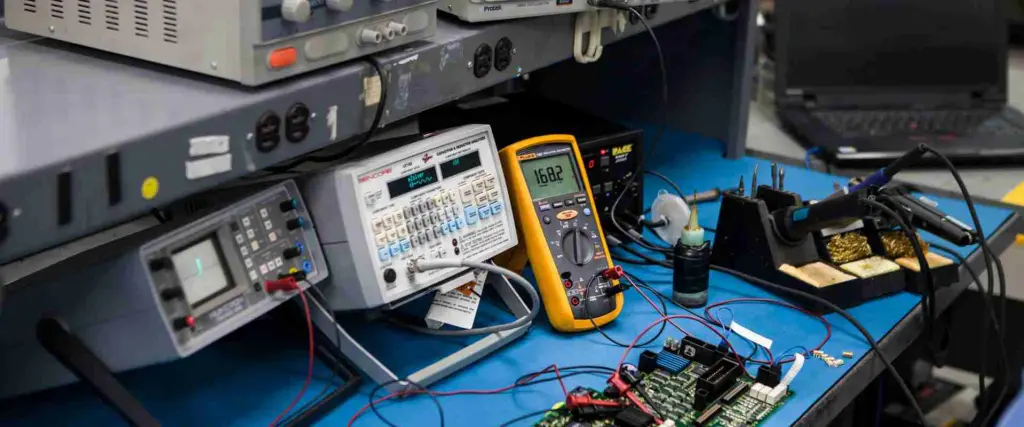

Repairing PCB

Despite best efforts, repairing mistakes or reworking soldered chips may become necessary:

Adding More Solder

Apply the iron tip directly to the faulty joint and introduce a small amount of additional solder. This reflows the joint and allows fixing issues like incomplete wetting.

Removing Excess Solder

Use a solder sucker or desoldering braid to remove any excess solder from bridged joints. Carefully reheat the joint and suck up excess material.

Removing Components

For defective or misaligned parts, fully desolder all pins then gently ease the component out while heating the joints. Ensure pads are clean before attempting to reuse.

Repositioning Parts

Likewise, resoldering the joints allows straightening a misaligned part. Take care to avoid lifting pads when reheating and repositioning components.

Developing component rework skill reduces waste and saves projects when minor errors occur.

Post-Assembly Inspection

After soldering all chip components for a PCB assembly, conduct the following quality control checks:

  • Visual inspection of every joint under magnification
  • Verify even solder fillet and termination
  • No cold joints, holes, flags, or excessive amounts
  • Confirm no leftover flux residue
  • Inspect for any solder bridges present
  • Shake board listen for any loose parts
  • Confirm proper polarization and values
  • Netlist testing of assembly versus schematic
  • Functional testing to validate operation

Thoroughly verifying quality soldering ensures the circuit works reliability into the future.


Soldering chip components requires finesse, patience, and quality tools. With care taken preparing parts and boards, proper soldering technique, and inspecting work, assembling chip components can become an easy and rewarding process. The skills take practice to master, but enable assembling high reliability PCBs.

Frequently Asked Questions

Q: What is the ideal tip size for soldering various chip components?

A: 0.5 to 1 mm conical tips work well for soldering most SMDs and precision work. 1 to 1.5 mm chisel tips allow quick heat transfer for larger pads, DIPs, and THDs.

Q: Is flux required when soldering components with rosin core solder?

A: The flux inside the solder wire core negates need for additional flux in most standard assembly. Added flux can assist with rework or soldering metals like nickel.

Q: What is the proper soldering iron temperature for ICs and semiconductors?

A: 350°F to 400°F offers a good range for soldering temperature sensitive semiconductors without risk of heat damage. Increase temperature for larger joints.

Q: Can soldering chip components reliably be automated?

A: Yes, pick-and-place machines and precision solder reflow ovens automate placing and soldering chips for mass assembly. But careful setup is required.

Q: What magnification is recommended for inspecting solder joints on chip components?

A: A stereo microscope or high quality magnifier in the 10x magnification range allows properly verifying solder fillets, wetting, and bridges on fine chip joints.

How to solder the chip components ?

There are two types of soldering methods for chip electronic components:One is manual soldering by soldering the pad with an electric soldering iron, then clamping the end of the chip component with a tweezers, and fixing the other end of the component to the corresponding pad of the device with a soldering iron. After the solder is cooled, remove the tweezers. Then solder the other end of the component with a soldering iron.The second type is machine welding by making a stencil screen, printing the solder paste on the circuit board, and then placing the soldered chip components by hand or machine mounting.

The high temperature soldering furnace solders the chip components.Circuit board, circuit board, PCB board, pcb soldering technology In recent years, the development process of the electronic industry process, we can notice that a very obvious trend is reflow soldering technology. In principle, conventional inserts can also be reflow soldered, which is commonly referred to as through-hole reflow soldering. The advantage is that it is possible to complete all solder joints at the same time, minimizing production costs. However, temperature sensitive components limit the application of reflow soldering, whether it is a plug-in or SMD. Then people turn their attention to selective soldering. In most applications, PCB selective soldering can be used after reflow soldering. This will be the economical and efficient way to complete the   soldering of the remaining inserts and is fully compatible with future lead-free soldering,What equipment is needed for board soldering?  Solder patch components require a tin spray gun, clip, magnifier, solder paste, rosin oil or paste, etc.SMD component welding diagram

How to solder the chip components

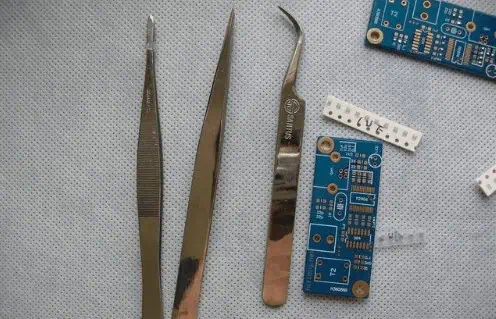

This is an essential tool for soldering patches

How to solder the chip components- Assembly tool for soldering patches

This is an essential tool for soldering patches

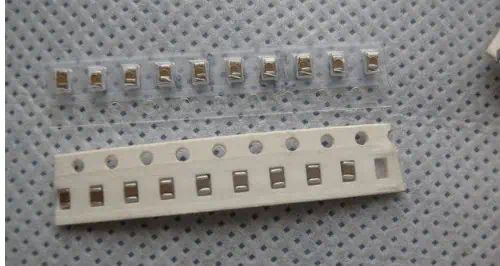

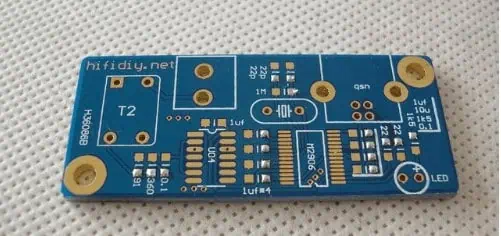

How to solder the chip components- components

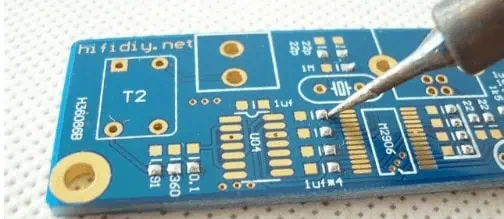

First solder the solder joint with a soldering

How to solder the chip components-Soldering the Chip Components

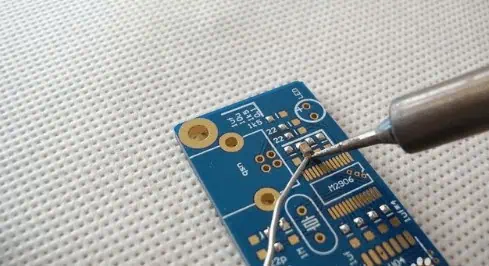

Then clip a patch and go right away.

How to solder the chip components-Fix the Patch

After the patch is fixed, solder the other side!

How to solder the chip components-Soldering IC

Solder IC, first fix one foot of the chip IC on PCB

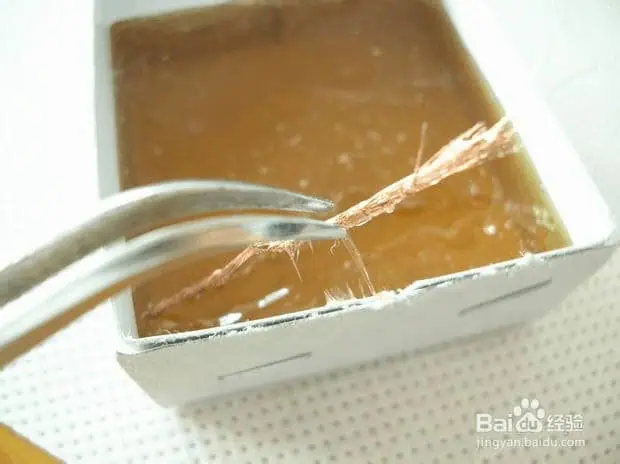

How to solder the chip components-Soldering IC Solder Resist
How to solder the chip components-Solder Resist
How to solder the chip components-Cleaning Solder Resist

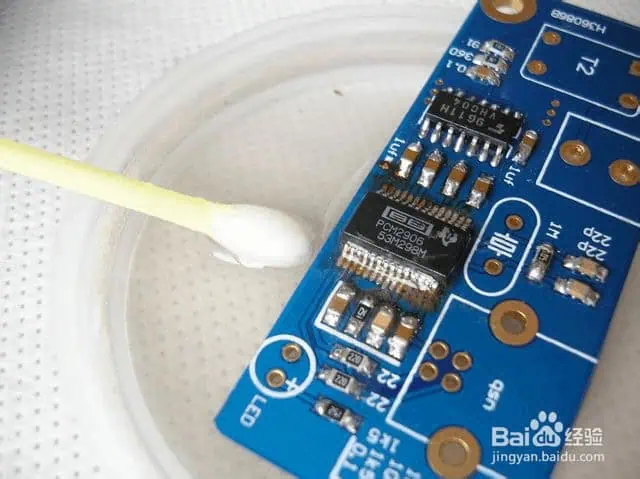

Finally cleaned with alcohol (with a cotton swab)

You will find that the rosin will melt and disappear without seeing it!
