How Does Automotive Alternator Work?

An alternator is a crucial component in modern automobiles that is responsible for generating electricity to power the electrical system while the engine is running. The alternator charges the battery and powers the ignition system, lights, entertainment systems and other electrical components.

Understanding how an automotive alternator works helps drivers appreciate this vital engine component. This article will provide a comprehensive overview of alternator design, function and operation.

What is an Automotive Alternator?

An alternator is an electrical generator that converts mechanical energy from the engine into electrical energy through electromagnetic induction. Alternators generate alternating current (AC) electricity which is then converted to the direct current (DC) electricity needed to charge the battery and power vehicle electronics.

The key components of an automotive alternator include:

  • Rotor – The rotating part consisting of a coil winding surrounding an iron core. It is mounted on the drive shaft and rotates within the stator.
  • Stator – The stationary part consisting of three sets of windings surrounding an iron core. When the rotor rotates, it induces alternating current in the stator which is fed to the diodes.
  • Diode Rectifier – Converts AC current generated in the stator to the DC current needed for the battery and vehicle system.
  • Voltage Regulator – Controls the field current to maintain a constant voltage output as engine RPM varies.
  • Brush Assembly – Contains slip rings and carbon brushes that conduct current to the rotor coil windings.
  • Cooling Fan – Cools the alternator to prevent overheating.
  • Front and Rear Housing – Contains the components and allows convenient mounting.

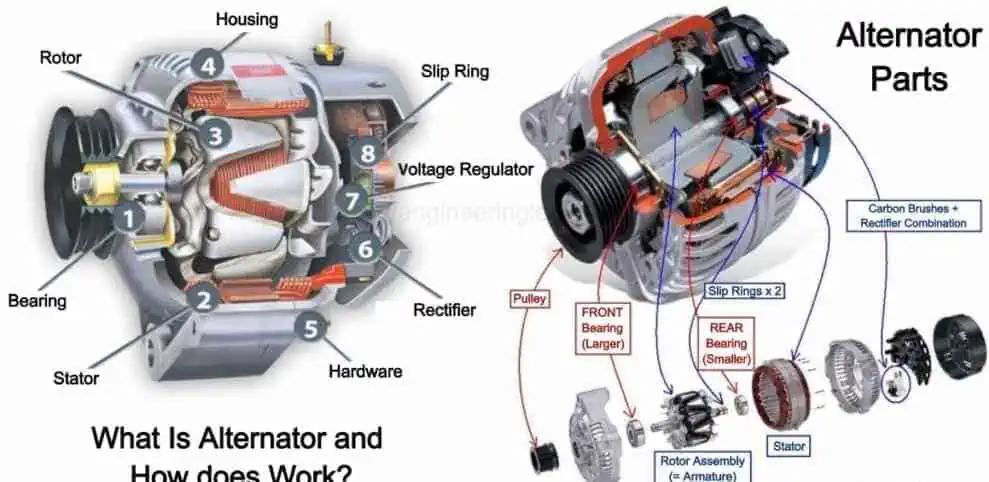

Diagram of the main components in a typical automotive alternator.

How Does an Automotive Alternator Produce Electricity?

Alternators generate electrical energy using the principles of electromagnetic induction discovered by Michael Faraday. Here are the key steps in the power generation process:

1. Mechanical Energy from the Engine

  • The alternator is belt-driven by the engine’s crankshaft via a serpentine belt. This rotates the rotor at engine speed.

2. Magnetic Field Induced in the Rotor

  • As the rotor spins, a small electric current is passed to the rotor windings through the slip rings and carbon brushes.
  • This creates a magnetic field around the rotor coils.

3. Alternating Current Induced in the Stator

  • As the rotor magnetic field rotates around the fixed stator windings, it induces an alternating current in the stator windings.
  • This is caused by Faraday’s Law of electromagnetic induction. Faster rotor motion induces greater voltage.

4. Conversion to Direct Current

  • The alternating current produced in the stator windings is converted into direct current by the diode rectifier bridge.
  • The rectifier uses semiconductor diodes which allow current to flow in only one direction resulting in DC output.

5. Voltage Regulation

  • The voltage regulator controls the rotor magnetic field strength to maintain a constant output voltage, typically around 14V, as engine rpm varies.
  • It senses voltage at the battery terminal and adjusts current flow into the rotor.

6. Battery Charging

  • The DC output current of the alternator recharges the vehicle’s battery. This provides electricity when the engine is off.
  • The battery acts as a voltage stabilizer smoothing out transients in alternator output.

This alternating current (AC) to direct current (DC) conversion process takes place continuously while the engine is running. This provides the electricity needed for proper vehicle operation.

Main Types of Automotive Alternators

While alternator designs vary by manufacturer and application, they typically fall into two main configurations:

Claw Pole Alternator

This uses a claw-shaped pole piece in the rotor rather than windings. The claw pole rotor is pressed onto the shaft and surrounded by the stator. Benefits include simple design, low cost and high efficiency. Claw pole alternators are common in many late model vehicles.

Wound Field Alternator

This uses an electromagnetic coil winding in the rotor for the magnetic field like a traditional generator. It allows variable control of the rotor field current, enabling better voltage regulation. Wound field alternators are more expensive but commonly used on older vehicles.

The claw pole design is dominant today due to its simplicity, performance and cost-effectiveness for high output electronic charging systems. However, both provide the essential DC electricity generation function.

Major Components of an Automotive Alternator

Now let’s take a closer look at the major components that make up a typical modern high-output alternator.


This is the rotating component that generates a moving magnetic field to induce current in the stator windings.

  • On claw pole alternators, the rotor consists of a steel claw-shaped pole piece pressed and shrink-fitted onto an iron core which is mounted on the driveshaft.
  • On wound field alternators, the rotor uses coil windings fed with DC current to generate the magnetic field.
  • The rotor spins within the fixed stator, typically at up to 15,000 rpm on engine speeds. Faster rotor speed induces higher voltage in stator.


The stator is the stationary component containing electrical windings surrounding an iron core. The windings are composed of copper wire coils that are placed into slots in the laminated core.

  • The stator core is made of many thin steel laminations for low hysteresis losses.
  • The stator windings generate three-phase alternating current when rotating magnetic field of rotor sweeps past them.
  • Each stator winding is connected to the rectifier diodes to convert AC to DC output current.

Diode Rectifier

The diode rectifier bridge converts the AC voltage generated in the stator windings into the DC voltage needed for the vehicle electrical system.

  • It contains six diodes arranged as a bridge circuit. Each diode allows current flow in only one direction.
  • The diodes only allow the half of the AC cycles where current flows towards the battery to pass, resulting in DC pulses.
  • The rectifier is typically mounted on the alternator rear housing. Diodes are actively cooled to handle high current.

Voltage Regulator

The voltage regulator controls the field current entering the rotor to generate the required voltage output.

  • It monitors battery voltage through a sensing wire connected to the battery terminal.
  • When output voltage drops below the target level (e.g. 14V), the regulator increases field current which boosts induced voltage.
  • This process keeps output voltage constant even as rotor speed varies with changing engine rpm.
  • The regulator may be mounted internally or externally. Modern alternators have built-in regulators.

Brush Assembly

Brushes conduct electric current between the spinning rotor and the stationary contacts.

  • Slip rings mounted on the rotor shaft are contacted by carbon brushes which have spring loading tension.
  • Current is conducted through the brushes to excite the rotor magnetic field. Brushes wear over time and need periodic inspection.
  • Brush assembly design aims to maximize contact surface area for high current and minimal friction.

Cooling Fans & Vents

Fans and vents provide critical cooling air circulation over and through the alternator.

  • Cooling fans pull in outside air, improving heat dissipation from hot components.
  • Vents allow air flow to reach internal components like diodes and windings.
  • Proper cooling prevents alternator failure from overheating which reduces output.

Front & Rear Housings

  • Sturdy front and rear die-cast aluminum housings enclose and protect the alternator components.
  • They have mounting points to install the alternator on the engine securely.
  • The housings allow easy access when disassembling the alternator for servicing.
  • Vents, cooling fans and other attachments bolt on to the housings.

Alternator Design Variations

While the basic components described above make up the core of most automotive alternators, there can be variations in design:

  • Single or Dual-Voltage – Some alternators have switchable voltage settings for 12V or 24V system applications.
  • External or Internal Regulator – Older alternators had external regulators while modern ones have built-in regulators.
  • Lundell and Salisbury Pole Rotors – Based on the shape and construction of the rotor pole pieces. Salisbury type has lower magnetic losses.
  • Number of Stator Windings – Can be 12-pole or 24-pole stator designs. More poles typically means higher output current.
  • Claw Pole or Wound Field – Fundamental rotor design difference as described earlier.
  • Diode Bridge Design – Diode count, arrangement and cooling method can differ. Some use hybrid bridge regulators.
  • Brush Configuration – Brush quantity, materials, tensioning and slip ring design affect performance.

So while basic working principle remains the same, alternators are engineered with variations to provide optimized performance for different vehicles and applications.

Alternator Drive Methods

Automotive Alternator
Automotive Alternator

Output current capacity is directly related to how fast the alternator spins. Therefore, proper drive design is critical. Here are the main alternator drive types:

Belt Drive

  • Most common method using a serpentine v-belt running on pulleys connected to the crankshaft and alternator.
  • Typically drive ratio of 2.5 to 3:1 relative to crank. Turning at engine idle speed generates sufficient voltage.
  • Needs proper belt tension. Over or under-tightening reduces output and belt life.

Chain Drive

  • Roller chain drive can be more durable and withstand higher loads than belt drive.
  • Allows greater distance between crank and alternator mounting points.
  • Requires periodic chain tensioning adjustment and lubrication.
  • Noisy operation and cost make it less common than belt drive today.

Gear Drive

  • Spur gearset provides constant meshing for robust drive and fixed ratio speed increase.
  • Allows very high speed alternator shaft rotation up to 24,000rpm for max output.
  • Needs precision gear machining and can be noisy in operation.
  • Added cost limits use to high performance and racing applications.

Proper belt tensioning with idler pulleys is the most common and cost-effective drive today. But other drive options allow ultra-high output when needed.

How Voltage Output is Controlled

Maintaining steady charging system voltage as engine rpm varies is critical to avoid overcharging or undercharging the battery. Here’s how voltage regulation works:

Sensing Battery Voltage

  • The voltage regulator monitors battery voltage through a sense wire connected to the positive terminal.
  • If output voltage drops below the desired level, typically around 14 volts, the regulator activates.

Adjusting Field Current

  • The regulator can electronically adjust current flow into the rotor field winding.
  • Higher current strengthens rotor magnetic field which induces higher AC voltage in stator.
  • Lower current weakens rotor field and decreases AC voltage generation.

Maintaining Constant Output Voltage

  • By controlling rotor field current, the charging voltage can be held steady even as engine rpm changes.
  • This prevents excessive or inadequate charging as driving conditions vary.
  • If external power loads are added, the regulator further boosts field current to compensate load.

Limiting Maximum Voltage

  • The regulator has overload protection if voltage spikes occur.
  • It limits maximum field current input to prevent dangerously high voltage generation.
  • This protection prevents damage to vehicle electronics from voltage surges.

Modern electronic regulators allow very precise and responsive voltage control tailored to match alternator design and output curves.

Alternator Charging Process Explained

Let’s walk through the key steps that take place as the alternator charges the battery:

  1. Engine cranking rotates alternator rotor through drive belt. Rotor magnetic field is initially residual.
  2. As rotor picks up speed, residual magnetism generates small AC voltage in stator windings.
  3. Initial AC is converted to DC by rectifier diodes. This begins charging the battery which applies DC to rotor through brushes.
  4. Rotor electromagnetism builds up from battery current flow through windings. Rotor field strengthens.
  5. Stronger rotor magnetic field induces higher AC voltage in stator as it cuts across windings faster.
  6. Higher AC voltage is rectified into stronger DC output. Battery charges faster and sends more current to rotor.
  7. The cycle escalates until nominal voltage level is achieved, typically 14V. Regulator then holds it steady.
  8. If battery state of charge decreases, regulator boosts rotor field current to increase output voltage to recharge.

This self-exciting process automatically builds charging voltage to the preset target level needed to keep the battery fully charged.

Troubleshooting Alternator Problems

Here are some common symptoms indicating alternator issues and likely causes:

Dead Battery

Fully discharged battery while driving points to the alternator not charging properly.

  • Check for loose, broken or slipping drive belt. Tighten belt to spec.
  • Inspect for poor wiring connections, damaged diodes or faulty voltage regulator.
  • Test that rotor produces adequate magnetic field. Check brushes and slip rings.
  • If battery keeps going dead, test alternator output voltage. Might need rebuild or replacement.

Dimming Headlights

If headlights and other lights dim noticeably at idle but brighten when revved, the alternator is weak.

  • Belt may be loose or worn. Adjust belt tension.
  • Faulty diodes, stator windings or regulator may need replacement.
  • Check for high resistance on power output terminal causing voltage drop.

Whining Noise

High pitched whining or squealing noises usually come from drive belt or bearing issues.

  • If noise varies with revs, belt is likely loose or misaligned on pulleys.
  • Adjust belt tension or alignment. Replace belt if worn or glazed.
  • Constant noise indicates worn bearings starting to fail. Alternator rebuild needed.

Smell or Smoke

Burning smell or visible smoke/sparks points to severe internal overheating failure.

  • Immediately shut off engine to prevent greater damage.
  • Check for jammed cooling fans, blocked ventilation and debris buildup causing overheating.
  • Severe faults like grounded windings require complete alternator replacement.

Early detection of minor issues based on unusual noises, smells or operating changes can help prevent more extensive damage and avoid breakdowns.

Alternator Maintenance Tips

Routine prevention maintenance is key to maximize longevity of your vehicle’s alternator. Follow these alternator care tips:

  • Check drive belt – Inspect belt periodically for cracks, glazing, fraying and tension. Replace belt if worn.
  • Check belt alignment – Make sure belt runs straight on alternator, crank and idler pulleys. Misalignment causes excess wear.
  • Check mounts – Ensure alternator mounting brackets are tight and free of cracks. Loose mounts cause misalignment.
  • Check wiring – Clean and tighten electrical connections, especially positive and negative output terminals. Fix damaged wiring insulation.
  • Check ventilation – Ensure cooling air ducts, fans and ventilation holes are not blocked by dirt or debris.
  • Listen for noise – Take note of any unusual grinding, squealing or bearing rattle noises which indicate wear.
  • Consider overhaul – For higher mileage vehicles, having the alternator rebuilt periodically will extend its life.
  • Test output annually – Use a digital multimeter once a year to verify alternator is generating proper voltage.

Well-maintained alternators can last 150,000 miles or more. But neglecting basic component checks increases the chances of being left stranded when it fails.

Alternator Output Testing

If you suspect charging system issues, alternator output voltage and amperage should be tested. Here is one common testing method:

Test Equipment Needed

  • Digital multimeter (DMM) with DC voltage and current capacity
  • Jumper wires with alligator clips
  • Load bank (such as a 12V headlamp)

Testing Procedure

  1. Attach positive (red) DMM lead to alternator output terminal nut and negative (black) lead to battery negative terminal.
  2. With engine off and keys out of ignition, check battery voltage. A well-charged battery will show 12.4 – 12.6V.
  3. Start engine and turn on all loads (headlights, blower fan, rear defogger etc). Run engine at 1500 rpm.
  4. Measure voltage at alternator output terminal again. Should show approx. 14V. If not, regulator may be faulty.
  5. Turn off all loads. Then turn on load bank connected to battery positive terminal.
  6. Gradually increase load resistance while observing amp output. Output should increase to meet demand.
  7. Check for smooth voltage regulation back to 14V after load is removed. Erratic voltage indicates faulty diodes or bad rotor ground.
  8. If output voltage or amperage is outside spec, the alternator may need overhaul or replacement. Consult a shop.

This test procedure checks key characteristics to determine if the alternator is performing properly or if repairs are needed.
