What are the Features of ADAS PCB?

The primary focus of ADAS or advanced driver assistance systems is on driver aids like night vision or driver awareness, as well as adaptive cruise controls as well as collision avoidance techniques like lane departure warnings with blind-spot applications. The majority of ADAS features are integrated into the car, however suppliers are starting to sell aftermarket products. In order to provide better value, next-generation ADAS PCB will increasingly rely on a network connectivity that is wireless.

The phrase “advanced driver assistance systems” is relatively recent and refers to contemporary safety features seen in our automobiles and trucks. Safety is a shared characteristic, but convenience seems to be the primary outcome. With all these new systems, the quantity of circuit boards have increased significantly.

ADAS PCB, which makes use of a number of in-car sensors, gathers environmental data from both outside and inside of the vehicle for the first-ever time in order to identify, and detect both static and moving objects. Technical procedures, like tracking, help to draw attention and increase safety by allowing the driver to identify potential dangers as quickly as feasible. Cameras, lasers, radars, as well as ultrasonic sensors make up the majority of ADAS’s sensor arsenal. They are capable of detecting heat, light, pressure, as well as other elements used to gauge the condition of the vehicle.

How Does ADAS PCB Work?


ADAS PCB helps in warning the driver of impending risk or even intervenes to avert an accident. The ADAS-equipped vehicles are able to sense their surroundings, quickly process the information in an accurate manner, and then provides the driver with the right output.

ADAS-equipped vehicles include a variety of cutting-edge sensors that support the human driver’s ears, eyes, as well as decision-making. Do you have night vision? While it’s not well, RADAR can. Before putting your vehicle in reverse, could you echolocate just like a dolphin or bat to check whether there is a kid behind it? But the SONAR sensors could, and so no. Do you see everything at once? Nope, but LiDAR sensors and cameras can. Also, d o you always know your precise longitude and longitude? No, but a number of satellite constellations that provide global positioning services can send the data and more to your vehicle.

A number of interfaces, sensors, and a strong computer processor which integrates them all make up the architecture of the ADAS system.

The onboard ADAS computer use this data to prioritize and take appropriate action after these sensors continuously scan the area around this vehicle. By averting accidents which would have occurred without ADAS, they are already saving lives. These innovations will eventually enable fully autonomous automobiles.

To improve security as well as response times, ADAS technology was created through potential early warning alarm systems. These technologies were developed to automate as well as enhance driving operations in order to solve human errors and associated driving habits, which account for the majority of traffic accidents. These safety technologies are designed to increase traffic safety and decrease injuries by decreasing the overall frequency of the traffic accidents.

What are the ADAS Types?


Two categories of advanced driver assistance systems exist:

ADAS passive systems

No matter how many or what sort of sensors are used in the passive ADAS PCB system, a computer will nonetheless warn the driver of a potentially dangerous situation. The driver must take action to prevent an accident brought on by this situation.

Flashing lights, sirens, and occasionally tactile feedback, like steering wheel which vibrates to notify the motorist that the area they are approaching has already been taken by some other automobile, are examples of common warning systems. Critical information is sent to the driver, enabling him to be able to make the most informed choices possible while driving. Through a human-machine interface, passive ADAS gives real-time information about the environment of driving and then warns of potential threats (HMI). Visual, haptic, and auditory are the three ways of data transmission.

The structure of ADAS PCB data display has typically made considerable use of audible and visual alarms. Intuitive visual cues can be utilized to convey a variety of messages utilizing color and symbolic information. The main strategy for disseminating information is this one. Systems can provide visual alerts on the center or dashboard console of a car. However, this can cause gaps in the driver’s attention known as “eyes off the road.”

ADAS active systems

In such ADAS systems, the vehicle actively behaves. The car may operate independently to avert worst-case circumstances. Emergency braking recognizes an impending collision and automatically applies its brakes. Lane centering   lane-keeping assist, and the traffic jam assists are examples of functional features.

What is the Significance of ADAS PCB?

Advanced driver assistance systems (ADAS) are active and passive safety features that remove human error out of driving different kinds of vehicles. Innovative technology is used by ADAS systems to assist drivers while they are driving and improve driver performance. In order to monitor any environment surrounding this vehicle, ADAS makes use of a variety sensor technologies. It then sends the driver the information or takes the necessary action. They play the following roles in an interconnected Internet of Things (IoT):

Automates the improvement of security measures

Driving populations are improved through automated adoption as well as safety initiative upgrades. By alerting drivers to the potential hazards as well as assuming control of their vehicle to prevent them, ADAS aims to reduce the likelihood of crashes.

Features that adjust to actions

Navigation systems such as automated illumination, collision avoidance, as well as cruise control alert drivers to potential dangers such as lane exits and vehicles in blind spots.

Aids with the understanding of the traffic context

This cycle of traffic-driver-vehicle is centered on the driver. The traffic situation is input to the perception system of the driver, which leads it to function as a stimulant of that driver’s purpose. This intention inference technique will consequently be improved by being aware of the current traffic situation.

Recognizes and evaluates driving behavior

The most important signals for lane changes come from driver activities like checking mirrors. The motorist must carry out a number of checks in order to make sure they are fully aware of what is happening before lane changes.

Analysis of driving behavior is therefore essential for figuring out driver intent. Understanding the human intention process, including how this purpose is created and whatever these intention’s triggers were, is crucial for predicting driver intention to change lanes. The first problem that needs to be solved is the driver intention’s nature.

Offers preventative maintenance solutions

By combining edge computing, cloud computing, as well as data collection from sensors, as well as analytics, predictive technology analyzes risks and sends the data over the cloud so as to alert customers of potential car problems. To warn the driver of any repair issues and ensure safety, in-vehicle sensors have been installed to track metrics like tire pressure, fuel level, engine status, speed, navigation route, temperature, and others.

ADAS PCB Applications

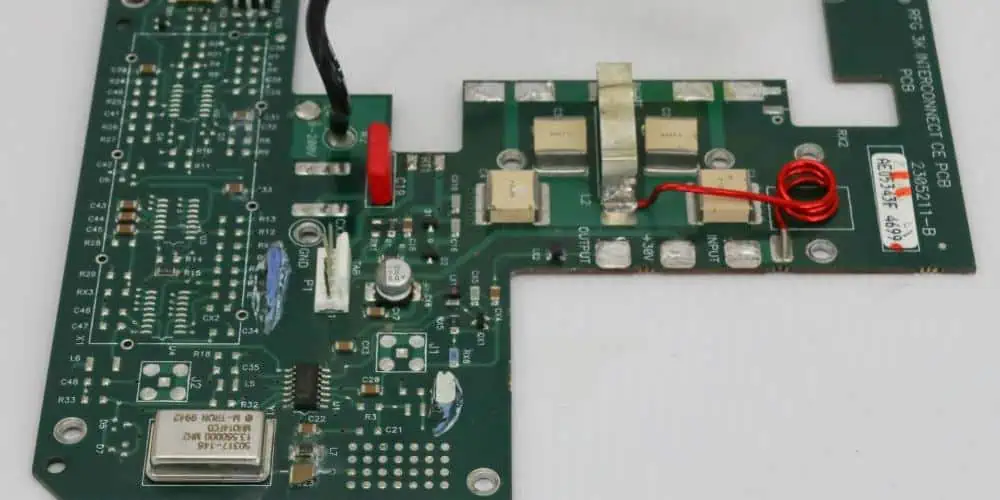

ADAS Circuit board

The installation of cameras inside the car requires the development of new AI parts that employ sensor fusion for recognizing and assessing objects. Large volumes of data can be merged using sensor fusion, lidar, radar, ultrasonic sensors, and image recognition softwares.

This technology could physically react more quickly than the human driver by watching live streams of videos, analyzing whatever it sees, as well as deciding how to respond. The most well-known ADAS systems are used in the applications below:

Autonomous cruise control

This is particularly useful on highways wherein drivers frequently find it difficult to sustain their speed’s awareness and other vehicles for extended periods of time. This  cruise control can automatically speed up, slow down, as well as occasionally halt the vehicle depending on the movements of surrounding objects.

Blind-spot monitoring

Sensors from blind spot sensing devices give drivers access to information that would normally be inaccessible. Certain systems emit a clear warning. When they spot a thing in the blind zone of the driver (e.g. the attempts of the driver to enter any occupied lane). In 78% of the lane-change accidents, the driver was not aware of the risk inside the new lanes.

Adaptive headlights

These follow the path of such road and improve night vision through lighting of the roadside instead of the actual road by responding to the vehicle’s speed as well as steering wheel movement. The projectors located infront of your headlight housing would sync whenever a lock gets engaged, changing the beam towards following the road while focusing lights downward in order to reduce the glare for the oncoming cars. The headlights of a car are adjusted to the lighting environment by adaptive lighting systems.


ADAS is currently a standard feature in cars all over the world, coming standard with the majority of contemporary automotive versions. According to a Consumer Reports study conducted in 2022, ADAS technologies including backup cameras (69%), blindspot alerts (64%), as well as adaptive cruise controls (63%), are well-liked by car owners. ADAS systems may gather information from the linked world surrounding them to allow even larger functionality as urban surroundings increasingly transform to smart cities.
