The 47 pF capacitor (code 470) is used in crystal oscillators, VHF filters & RF matching. Learn decoding, C0G vs X7R, load calculations, and PCB layout tips.

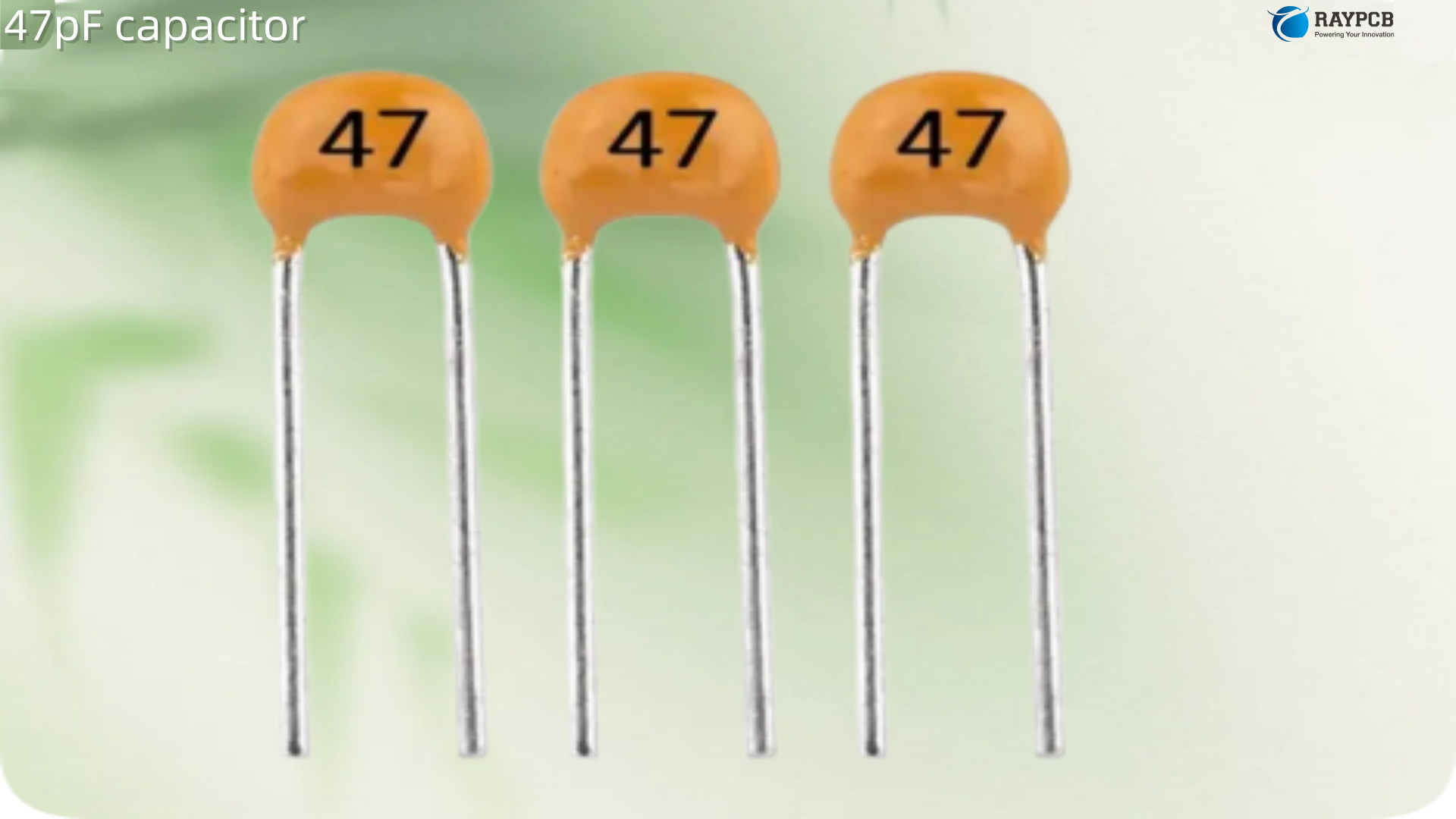

Pull a ceramic disc capacitor out of your parts bin marked “470” and you might instinctively reach for a meter to verify the value — because that marking trips up engineers more than almost any other passive component code. The three-digit code 470 means 47 pF, not 470 pF. A “471” is 470 pF. Confuse the two and your crystal will run at the wrong frequency, your RF filter will be completely detuned, and you will spend an afternoon staring at a spectrum analyzer wondering where things went wrong. If that scenario sounds familiar, this article is for you.

The 47 pF capacitor sits in a useful middle ground in the picofarad range — large enough to be a meaningful load for a high-CL crystal, reactive enough to play a serious role in VHF and low-UHF filter and matching networks, and available in C0G/NP0 dielectric from every major distributor. Here is a complete, engineer-level breakdown of its decoding, specifications, and every circuit role it occupies.

Decoding the 47 pF Capacitor: What “Code 470” Actually Means

Before getting to applications, it is worth spending time on the marking system because this is the top question engineers search for when they encounter a “470” stamped ceramic capacitor in a legacy PCB.

The EIA Three-Digit Capacitor Code System

Ceramic, film, and tantalum capacitors use a three-digit code where the first two digits are significant figures and the third digit is the power-of-ten multiplier for picofarads:

Code = [D1][D2][multiplier] where value = D1D2 × 10^multiplier pF

Code	Calculation	Value
470	47 × 10⁰	47 pF
471	47 × 10¹	470 pF
472	47 × 10²	4,700 pF (4.7 nF)
473	47 × 10³	47,000 pF (47 nF)
474	47 × 10⁴	470,000 pF (470 nF = 0.47 µF)

The multiplier “0” means ×1 (10⁰), so 470 is simply 47 × 1 = 47 pF. No zeros are added to the significant figures — the third digit is purely the exponent. A tolerance letter often follows: J = ±5%, K = ±10%, F = ±1%, and so on.

Common Unit Equivalents for 47 pF

Notation	Value
Picofarads (pF)	47 pF
Nanofarads (nF)	0.047 nF
Microfarads (µF)	0.000047 µF
EIA 3-digit code	470
Tolerance code (typical)	470J = 47 pF ±5%

Keeping these conversions in mind prevents the common mistake of substituting a 470 pF (code “471”) when the schematic calls for a 47 pF, a factor-of-10 error that rarely produces an obvious failure — but quietly corrupts every frequency-dependent performance parameter.

Electrical Characteristics: What 47 pF Does at RF Frequencies

Like all picofarad-range capacitors, the 47 pF becomes useful once frequency climbs high enough to push its reactance into a practical range. Capacitive reactance follows:

Xc = 1 / (2π × f × C)

Frequency	Application	Xc of 47 pF
10 MHz	Crystal reference, IF	~338 Ω
27 MHz	CB radio, ISM	~126 Ω
50 MHz	VHF, 6-meter amateur	~68 Ω
100 MHz	FM band, VHF	~34 Ω
144 MHz	2-meter amateur, VHF	~23 Ω
433 MHz	ISM, LoRa	~7.8 Ω
500 MHz	UHF low end	~6.8 Ω
900 MHz	GSM, LPWAN	~3.8 Ω

At 144 MHz the reactance is around 23 Ω — directly useful in VHF antenna matching networks and LC filter networks where 50 Ω system impedance is being transformed. At 433 MHz the 47 pF becomes a near-short to RF, making it effective as a supply bypass element for low-UHF circuits. This is why the value is a staple in VHF and low-UHF transceiver designs.

The 47 pF Capacitor in Crystal Oscillator Load Tuning

When CL Calculations Point to 47 pF

The Pierce oscillator used in virtually every microcontroller and timing IC requires two matched external load capacitors (CL1 and CL2), one from each crystal pin to ground. The formula for calculating these is:

CL1 = CL2 = 2 × (CL_crystal − Cstray)

Where CL_crystal is the crystal manufacturer’s specified load capacitance and Cstray is the combined stray capacitance from IC pin capacitance and PCB trace capacitance (typically 3–7 pF on a multi-layer board).

Altium’s crystal oscillator design guidance notes that crystals commonly specify load capacitances in the 20–50 pF range, and each external capacitor should be approximately double the required CL minus the stray budget. Here is where 47 pF shows up:

Crystal CL	Estimated Cstray	Required CL1 = CL2	Nearest E12 Value
25 pF	3 pF	44 pF	47 pF
27 pF	4 pF	46 pF	47 pF
30 pF	7 pF	46 pF	47 pF
32 pF	5 pF	54 pF	56 pF

The 47 pF external load capacitor is the correct calculated answer for crystals with CL in the 25–27 pF range on boards with typical stray capacitance values. Legacy HC49/U and HC49/S crystals with 30 pF specified load capacitance frequently use 47 pF external caps on boards with moderate stray capacitance — which is why older oscillator schematics often show a pair of 47 pF capacitors flanking the crystal.

Impact of Getting Crystal Load Capacitors Wrong

Error	Frequency Effect	Practical Consequence
Caps too large (e.g., 100 pF instead of 47 pF)	Crystal runs below nominal frequency	System clock too slow, UART baud rate errors
Caps too small (e.g., 22 pF instead of 47 pF)	Crystal runs above nominal frequency	System clock too fast, startup reliability reduced
X7R instead of C0G	Frequency drifts with temperature	Oscillation wanders ±5–15 ppm over temperature
Mismatched CL1 ≠ CL2	Asymmetric phase shift	Increased jitter, poor frequency stability

Dielectric Requirements for Crystal Load Capacitors

For any crystal load application, C0G (NP0) is mandatory. C0G delivers ±30 ppm/°C temperature stability and virtually zero capacitance change with DC voltage. X7R, despite being cheaper and more available in higher capacitance values, changes capacitance by up to ±15% over the operating temperature range — directly translating to frequency drift in the oscillator. At 47 pF, C0G is readily available from all major manufacturers at standard pricing, so there is no economic reason to compromise.

The 47 pF Capacitor in RF Circuits

VHF and Low-UHF LC Filter Design

At 100–500 MHz, 47 pF delivers 6–34 Ω of reactance — a range that appears frequently in the capacitor element calculations for LC bandpass, low-pass, and notch filters in VHF receiver front-ends, amateur radio transceivers, and ISM-band modules. A three-pole Chebyshev bandpass filter designed for 144 MHz with a 50 Ω system impedance typically uses shunt capacitors in the 33–100 pF range, making 47 pF a natural fit.

Mica capacitors rated at 47 pF are also used specifically in high-power RF applications — including pallets for HF/VHF/UHF amplifiers — where low inductance, high voltage ratings, and minimal loss are critical. Silver-mica and NPO-mica constructions at 47 pF are found in RF power amplifier output filters operating at hundreds of watts.

RF Impedance Matching Networks

In sub-500 MHz impedance matching, the L-network shunt element for matching a lower-impedance load to a 50 Ω source can calculate to values between 33 pF and 100 pF depending on frequency. At 144 MHz, matching a 10 Ω PA output to 50 Ω through an L-network frequently produces a shunt capacitor of around 47–56 pF. The close proximity of this value to the E12 series 47 pF makes it the practical component choice.

Antenna Coupling and Signal Coupling

In VHF transmitter designs using crystal oscillators with frequency multiplier stages — such as wildlife tracking transmitters operating at 150–173 MHz — 47 pF capacitors appear in the RF filter and antenna matching sections. The capacitor needs to handle the harmonic content generated by the oscillator-multiplier chain, and the combination of low ESR, stable capacitance, and appropriate reactance at VHF makes 47 pF C0G a standard choice.

More broadly, 47 pF appears as an AC coupling element at frequencies where blocking DC while passing RF is needed and where a larger capacitor would excessively load the circuit. In RF stages where the source or load impedance is tens of ohms, a 47 pF coupling capacitor at VHF provides enough reactance below the pass band to block DC without attenuating the RF signal significantly.

Package Selection, Dielectric, and Tolerances

Choosing the Right Package for the Frequency

Package	Typical ESL	SRF for 47 pF	Best Application
0201 (0603M)	~0.3 nH	~3.4 GHz	UHF bypass, 433–900 MHz circuits
0402 (1005M)	~0.5–0.7 nH	~2.6–3.1 GHz	VHF/UHF matching, crystal load
0603 (1608M)	~0.8–1.0 nH	~2.3–2.6 GHz	Crystal load, VHF filter
Through-hole disc	~2–5 nH (lead)	<1.5 GHz	Prototype, legacy HF/VHF circuits
Silver mica	Very low	>3 GHz typical	High-power RF, precision tuning

For crystal load capacitors on boards with standard digital MCUs running at 4–32 MHz, the 0402 or 0603 package works perfectly — the SRF of the 47 pF is in the gigahertz range, well above the crystal frequency and its harmonics. For 433 MHz RF bypassing, 0402 is preferred to keep ESL low and SRF safely above the operating band.

Dielectric Comparison

Dielectric	Temp Stability	Q Factor	Voltage Dep.	Crystal Load OK?	RF Filter OK?
C0G / NP0	±30 ppm/°C	>1000	None	✅ Required	✅ Best
X7R	±15% over range	100–500	Moderate	❌ No	⚠️ Limited
X5R	±15% over range	<300	High	❌ No	❌ Avoid
Silver mica	±50 ppm/°C	>1000	None	✅ Yes	✅ HV/HPower

Tolerance Selection

For crystal load capacitors, ±5% (J tolerance) is the standard minimum. Tighter ±1% or ±2% (F or G tolerance) is available in C0G and is worth using when the crystal’s frequency accuracy is critical — for example, in GPS-disciplined clocks or LoRaWAN devices with tight frequency offset requirements. For RF filter shunt elements where you have the freedom to tune the filter during design, ±5% is generally sufficient.

PCB Layout Guidelines for the 47 pF Capacitor

Crystal load application: Place CL1 and CL2 within 1–2 mm of the crystal pins with short, equal-length traces. Route no other high-frequency or switching signals near the crystal loop. Avoid copper fills under the crystal traces — the added stray capacitance shifts the effective CL from your calculated value and will pull the oscillation frequency. Verify the actual oscillation frequency on the first prototype using the MCU clock output and a frequency counter; tune from there.

RF filter and matching: Minimize trace length between the capacitor and the next RF node. For a shunt element, the ground via for the capacitor’s ground pad must be placed immediately adjacent to the pad — not routed away. Each millimeter of trace and every via adds inductance that detunes the filter. In tight VHF designs, a ground via in the pad (via-in-pad) can be justified.

Pad sizing: Follow the component manufacturer’s recommended land pattern precisely. Extending pad size adds parasitic capacitance to ground. For a 47 pF component, even 0.5 pF of extra pad capacitance is a 1% shift — comparable to the component tolerance, and enough to detune a narrowband VHF filter.

Conformal coating and moisture: In outdoor or high-humidity applications, a 47 pF ceramic capacitor’s value can shift slightly if moisture bridges across the traces. Conformal coating of the oscillator circuit area is good practice in any humidity-exposed design.

47 pF Capacitor Specification Checklist

Parameter	Recommended Specification
Capacitance	47 pF
EIA Code	470
Tolerance	±1% to ±5% (C0G/NP0 for RF/crystal use)
Dielectric	C0G / NP0
Voltage rating	≥ 25 V; 50 V standard MLCC stock
Package	0402 for RF; 0402–0603 for crystal load
Operating temp	−55°C to +125°C
SRF	Must exceed application frequency by ≥ 2×
ESR at Fop	< 0.3 Ω
Special requirement	AEC-Q200 for automotive; silver mica for high-power RF

Useful Resources for 47 pF Capacitor Selection

Resource	Type	Link
Kaizer Power Electronics – Capacitor Code Table	Code decoder reference	kaizerpowerelectronics.dk
kiloohm.info – 3-Digit Capacitor Code Calculator	Online tool	kiloohm.info/3-digit-capacitor/470
Electronics Tutorials – Capacitor Colour & Codes	Learning reference	electronics-tutorials.ws
Altium – Crystal Oscillator PCB Layout Guide	PCB design guide	resources.altium.com
ECS Inc. – Crystal Load Capacitance Calculator	Online tool	ecsxtal.com
Murata SimSurfing – S-parameter & Impedance Tool	Component database	ds.murata.co.jp/simsurfing
Newark – 47 pF RF Capacitors	Distributor database	newark.com
RayPCB – Capacitors in PCB Design	PCB design guide	raypcb.com/pcb-capacitor

Frequently Asked Questions

1. A capacitor in my parts bin is marked “470” — is it 47 pF or 470 pF?

It is 47 pF. The three-digit EIA code works as: first two digits are significant figures (47), third digit is the power-of-ten multiplier (0, meaning ×1). So 47 × 10⁰ = 47 pF. A 470 pF capacitor carries the code 471 (47 × 10¹ = 470 pF). This confusion is one of the most common value misidentification errors in PCB rework. If in doubt, measure with an LCR meter or use a capacitor code calculator before populating.

2. My legacy crystal schematic shows “47 pF” for the load capacitors. My crystal datasheet says CL = 20 pF. Should I still use 47 pF?

Probably not without verification. If the crystal specifies CL = 20 pF and your PCB stray capacitance is around 3–5 pF, the formula gives CL1 = CL2 = 2 × (20 − 4) = 32 pF. Using 47 pF would overload the crystal, dropping the oscillation frequency and potentially reducing startup gain margin. Always recalculate using the actual crystal CL and your estimated board stray capacitance, then confirm on the first prototype.

3. Can I use a 47 pF X7R capacitor in a VHF bandpass filter?

With caveats. For a fixed-frequency, room-temperature prototype, X7R may work well enough to confirm filter topology. But in production, the capacitance shift of X7R with temperature (up to ±15%) will detune the filter as ambient temperature changes — shifting center frequency, degrading insertion loss, and potentially violating regulatory spectral mask requirements for transmitters. Use C0G/NP0 for any RF filter element where frequency accuracy matters across temperature.

4. How do I verify a 47 pF capacitor is performing correctly in my VHF circuit?

For filter verification, use a vector network analyzer (VNA) and measure insertion loss and return loss across a frequency sweep bracketing your design band. If the filter response peaks at the wrong frequency, the most likely culprits are capacitor value error, excessive pad/trace inductance, or ground via placement. For crystal oscillator verification, measure the oscillation frequency via the MCU clock output pin with a frequency counter. If it is off by more than a few ppm, adjust CL1/CL2 — add capacitance if frequency is too high, remove if too low.

5. Is silver mica still worth specifying for a 47 pF capacitor in a modern VHF RF circuit?

In most SMD-based designs, no — a quality C0G MLCC in 0402 or 0603 performs comparably at a fraction of the cost and in a much smaller footprint. Silver mica retains a practical advantage in high-power RF applications (amplifier output filters handling tens to hundreds of watts) and high-voltage circuits where its combination of low inductance, high voltage rating, and negligible temperature coefficient makes it hard to beat. For low-power transceiver circuits, antenna matching networks, and crystal oscillators, C0G MLCC is the engineering-optimal choice.

Conclusion

The 47 pF capacitor occupies a well-defined niche in the picofarad spectrum. Its EIA code “470” is one of the most misread markings in the parts bin, so decode it carefully every time — 47 pF and 470 pF differ by a factor of ten, and in a crystal oscillator or RF filter that factor is catastrophic. In practical circuit work, 47 pF delivers the right reactance for crystal load matching at 25–30 pF CL specifications, VHF LC filter shunt elements, VHF-to-low-UHF impedance matching networks, and supply bypassing at sub-500 MHz. The dielectric specification is not negotiable for precision work: C0G/NP0 only for any application where frequency stability, temperature performance, or low ESR matters. Choose the right package for your target frequency to keep the SRF safely above the operating band, keep traces short, ground vias close, and verify on the first prototype before committing 47 pF to production BOM.
