PRODUCT DETAILS

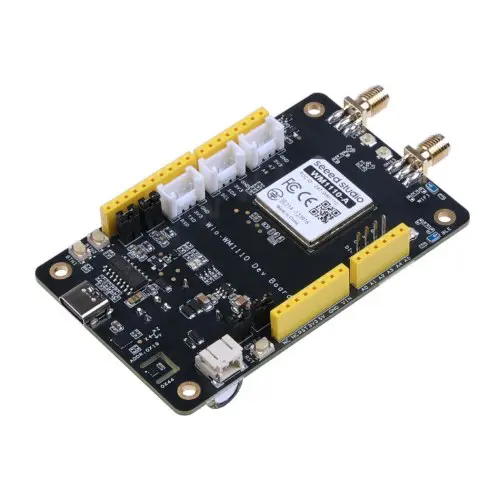

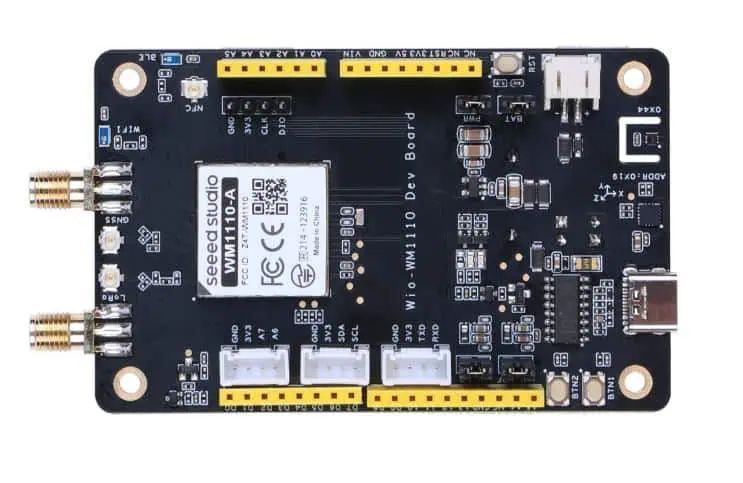

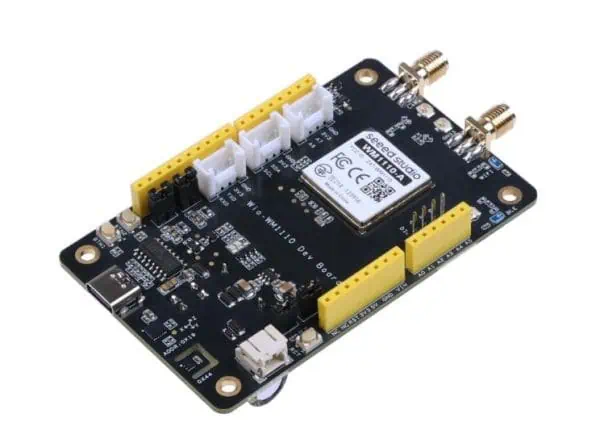

The WM1110 development kit is based onย Wio-WM1110 Wireless Moduleย and integrates Semtech’s LoRaยฎ transceiver and a multi-purpose radio front-end for geolocation.
The LoRaยฎ transceiver provides low-power, high-sensitivity network coverage, while GNSS (GPS/Beidou) and Wi-Fi scanning offer all-around location coverage.

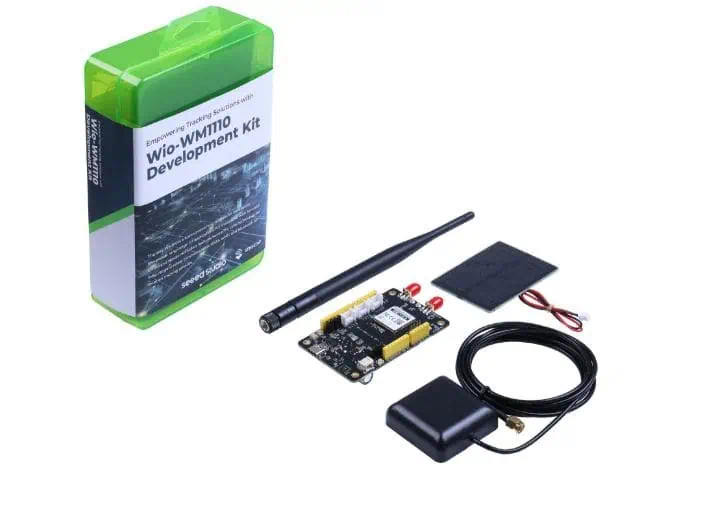

SenseCAP WM1110 Dev Kit provides a complete solution for developers looking to create IoT applications that require low-power, long-range communication, and precise location tracking capabilities, while also providing connectivity options for a variety of peripherals.
Note
- Wio-WM1110 module has been perfectly applied toย SenseCAP T1000, SenseCAP T1000 is a LoRaWANยฎ card size tracker for seamless indoor & outdoor positioning. It boasts months of battery life and is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications.
Features
- Low-Power High-Sensitivity LoRa/(G)FSK Half-Duplex RF Transceiver: Frequency bands support in the range 863- 928MHz
- Multi-Purpose Radio Front-End for Geolocation: GNSS (GPS/ BeiDou)ใWi-FiใBluetooth
- Rich GPIOsย and Compatible with Grove:ย Over 400 Grove-compatibleย for flexible expansion options.
- Open Source Platform:ย Leverage the extensive LR1110 andย nRF52840ย open-source ecosystem for infinite application possibilities.

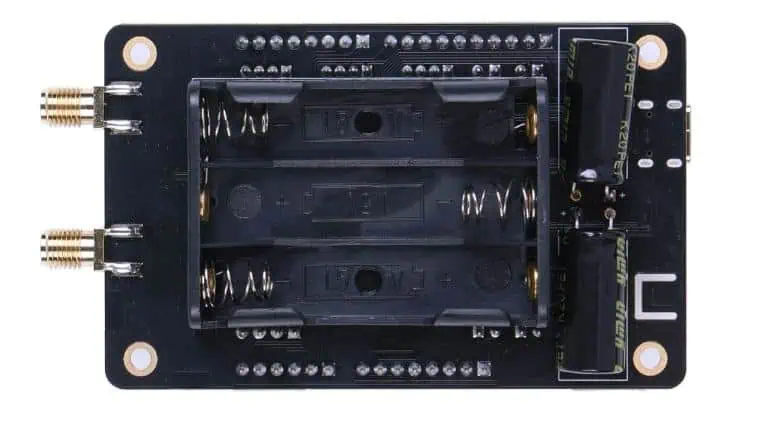

- Built-in Sensors andย Multiple Power Supply Modes:ย Temp&Humidity sensor and 3-Axis accelerometer, support both solar power and battery-powered.
Description
Low Power LoRaยฎ Transceiver
Benefiting from Semtechโsย LoRa Edgeโข LR1110, the Wio-WM1110 Dev Kit provides long-distance, low-power LoRaยฎ communication. To learn about Long Range and its features such as network architecture and applications, you can check outย An Introduction of LoRaยฎ and LoRaWANยฎ technology,ย It explains what Long Range is, how it works, and its pros and cons.
Location Service
The Wio-WM1110 Dev Kit integrates Multi-Purpose Radio Front-End Targeting Geolocation Purposes. It’s equipped with GNSS dedicated to outdoor positioning, as well as Wi-Fiย and Bluetooth scanning for indoor positioning.ย It’s able to automatically transition between outdoor and indoor activities, replacing the need to build different trackers for indoor or outdoor use, this provides all-around location coverage while reducing complexity and cost.

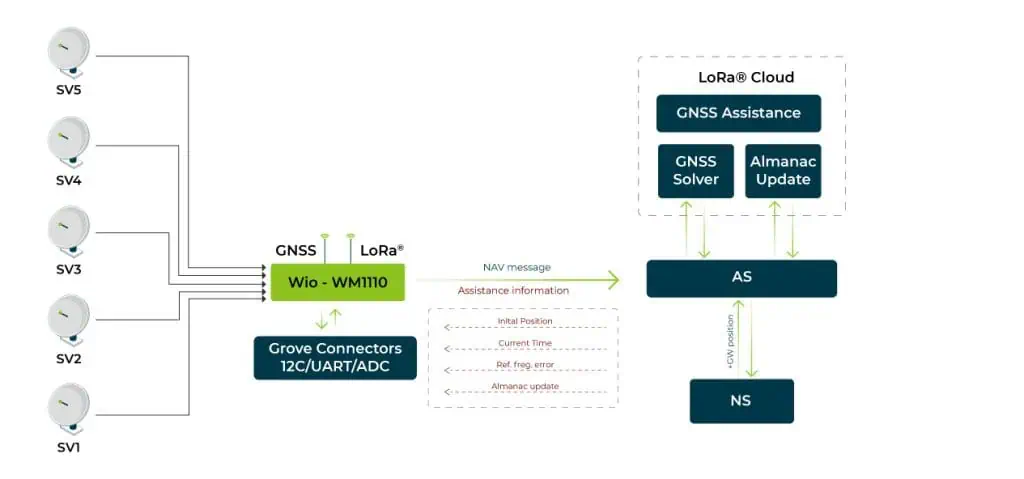

Outdoor Positioning(GNSS)
The Wio-WM1110 Dev Kit integrates GNSS (GPS/ BeiDou) low-power scanning,
getting data from satellites and sending it encrypted to the LoRaยฎ Cloud, reducing power consumption and improving security.
IPS(Wi-Fi+Bluetooth)
Complementary to outdoor GNSS, WM1110 Dev Kit also supports Wi-Fi ultra-low-power passive scanning and Bluetoothย scanning suitable for indoor positioning, it scans the MAC address and RSSI of nearby Bluetooth beacons/Wi-Fi, upload the data to the cloud services to get the accurate location.
Rich peripherals
In addition to the built-in TH sensor and 3-axis Accelerometer, this kit also includes a series of peripheral interfaces and supports ADC/UART and IIC transmission protocols, which can be connected to 400+ย Groveย modules, allowing for easy upgrades to smarter solutions. It’s also compatible with Arduino, providing developers with unlimited possibilities.
