Reliable, robust electronic assembly using time-tested through-hole technology for demanding applications.
Product Overview

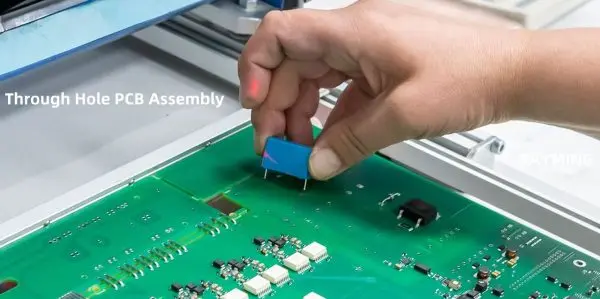

Our Through Hole PCB Assembly service provides professional mounting and soldering of traditional leaded components that pass completely through drilled holes in the printed circuit board. This proven assembly method creates strong mechanical connections and excellent electrical conductivity, making it ideal for applications requiring superior durability and reliability.
Key Features
Mechanical Strength: Components are securely anchored through the PCB with solder joints on both sides, providing exceptional resistance to vibration, thermal cycling, and mechanical stress.
Superior Heat Dissipation: Larger component bodies and through-hole connections offer better thermal management compared to surface mount alternatives, extending component lifespan in high-temperature environments.
Easy Inspection & Repair: Visual inspection of solder joints is straightforward, and component replacement or rework can be performed with standard tools, reducing maintenance costs.
Component Versatility: Accommodates a wide range of traditional components including resistors, capacitors, inductors, transformers, connectors, switches, and specialized industrial components not available in surface mount packages.
Applications
- Industrial control systems and automation equipment
- Power supplies and high-current applications
- Audio equipment and musical instruments
- Prototyping and educational projects
- Legacy system maintenance and upgrades
- Harsh environment electronics
- Applications requiring field serviceability
Technical Specifications
- Component Types: Axial, radial, and specialty through-hole components
- Hole Sizes: 0.6mm to 6.0mm diameter
- Board Thickness: 0.4mm to 6.0mm
- Soldering: Wave soldering or selective soldering processes
- Quality Standards: IPC-A-610 Class 2 or Class 3 compliance
- Testing: In-circuit testing, functional testing, and visual inspection available
Why Choose Through Hole Assembly
While surface mount technology dominates modern electronics, through-hole assembly remains the preferred choice for applications prioritizing long-term reliability, field serviceability, and robust mechanical connections. Our experienced technicians ensure precise component placement and high-quality solder joints that meet the most demanding specifications.
Contact us today to discuss your through-hole PCB assembly requirements and receive a customized quote for your project.
