Revolutionary Three-Dimensional Circuit Solutions

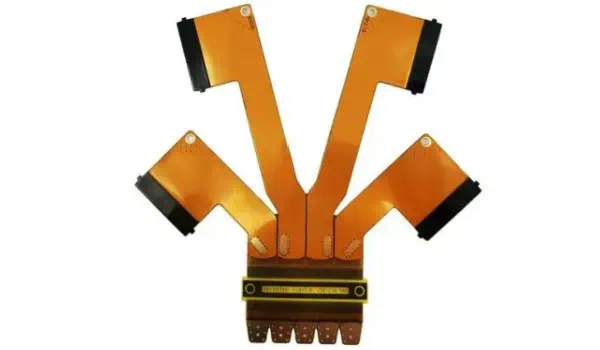

Sculptured Flex Circuits represent the next evolution in flexible circuit technology, offering unprecedented design freedom through true three-dimensional circuit architectures. These advanced flexible circuits go beyond traditional flat flex designs, enabling complex geometric configurations that conform to curved surfaces, fold into compact spaces, and integrate seamlessly into sophisticated electronic assemblies.
Key Features
Multi-Dimensional Design Capability Our sculptured flex circuits can be manufactured with controlled bends, folds, and three-dimensional shapes that maintain electrical integrity while fitting into challenging spatial constraints. This eliminates the need for multiple interconnects and reduces assembly complexity.
Enhanced Reliability Engineered with specialized materials and manufacturing processes that ensure consistent performance across temperature ranges and mechanical stress conditions. The circuits maintain signal integrity even when subjected to repeated flexing and dynamic movement.
Space Optimization The three-dimensional architecture maximizes circuit density while minimizing overall footprint, making these circuits ideal for compact electronic devices where space is at a premium.
Customizable Geometries Each circuit can be tailored to specific application requirements, with precise control over bend radii, fold angles, and complex contours that match your product’s unique mechanical constraints.
Applications
Sculptured Flex Circuits excel in demanding applications including aerospace systems, medical devices, automotive electronics, consumer wearables, and high-performance computing where traditional rigid or standard flexible circuits cannot adequately address spatial and performance requirements.
Manufacturing Excellence
Produced using advanced fabrication techniques that ensure dimensional accuracy, electrical performance, and mechanical durability. Our quality systems guarantee consistent results across production volumes from prototypes to high-volume manufacturing.
These innovative circuits enable engineers to push the boundaries of electronic design, creating more compact, reliable, and sophisticated products that were previously impossible with conventional circuit technologies.
