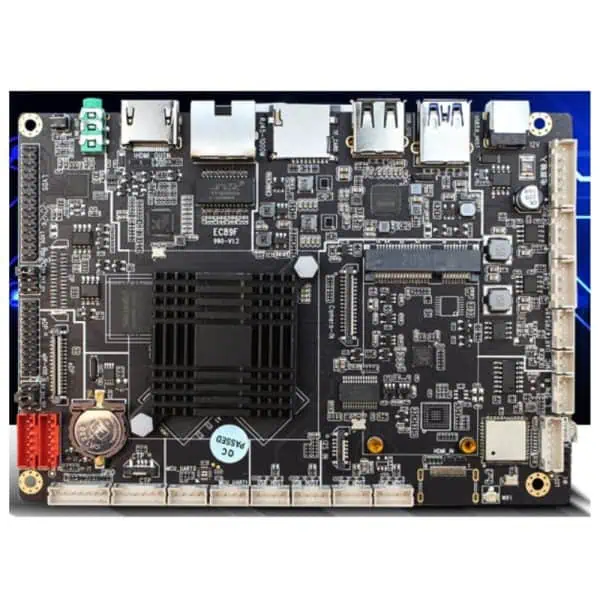

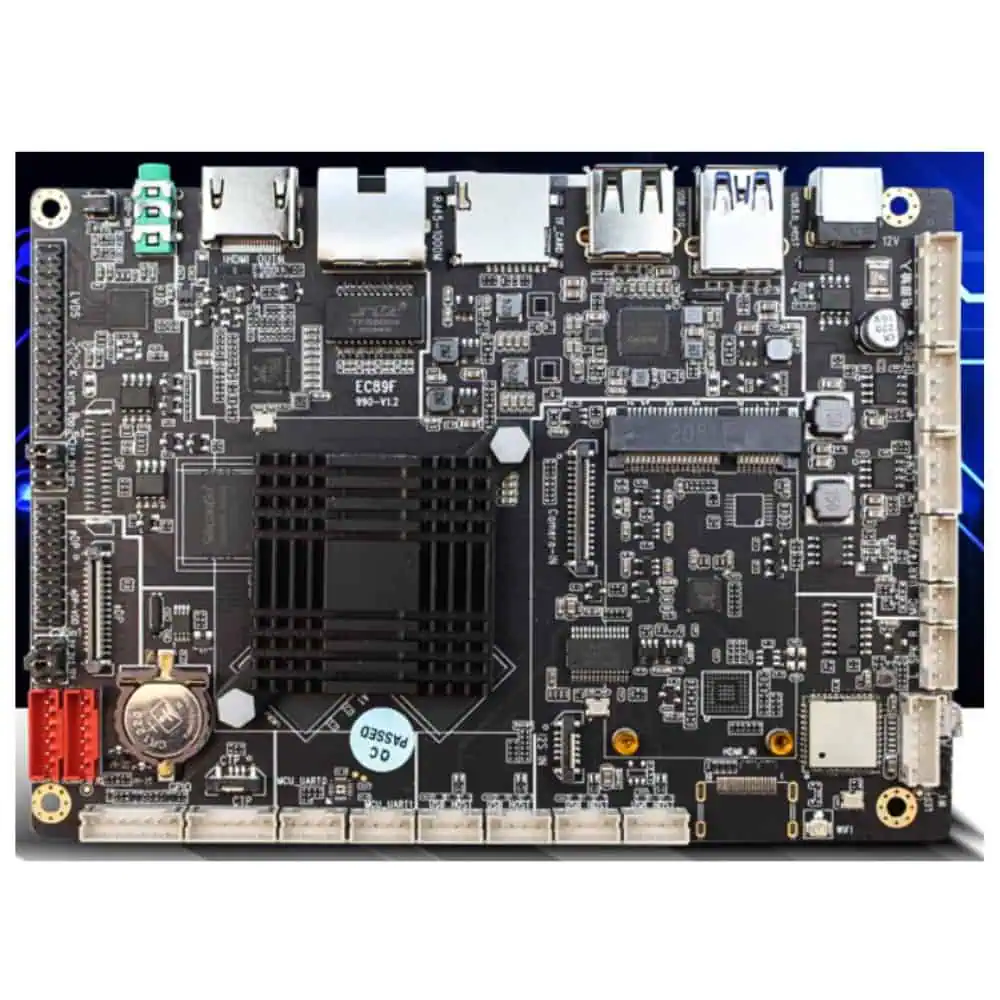

Manufacture Android Advertising Machine Control Motherboard
Sale!

Manufacture Android Advertising Machine Control Motherboard

Original price was: $298.00.Current price is: $296.00.

Category:

Designing an Android Advertising Machine Control Motherboard requires a combination of hardware and software expertise. This guide will walk you through the key considerations and steps involved in creating a robust and efficient motherboard for digital signage applications.

Designing an Android Advertising Machine Control Motherboard

1. System Requirements

Before beginning the design process, define the system requirements:

  • Processing power needed for smooth video playback and graphics rendering
  • Memory requirements for storing and buffering content
  • Storage capacity for the operating system, apps, and media files
  • Display output capabilities (resolution, refresh rate, multiple displays)
  • Network connectivity options (Wi-Fi, Ethernet, 4G/5G)
  • Power consumption and thermal management needs

2. Component Selection

2.1 Processor

Choose a System-on-Chip (SoC) that supports Android and provides sufficient performance:

  • Consider ARM-based processors from manufacturers like Qualcomm, MediaTek, or Rockchip
  • Ensure the chosen SoC supports hardware video decoding for efficient playback
  • Look for integrated GPUs capable of handling your graphics requirements

2.2 Memory

Select appropriate RAM and storage:

  • Choose DDR3 or DDR4 RAM, typically 2GB to 4GB for most applications
  • Use eMMC or UFS storage for the operating system and apps (16GB to 64GB)
  • Consider adding a microSD card slot for expandable storage

2.3 Display Interfaces

Include necessary display outputs:

  • HDMI for connecting to external displays
  • MIPI DSI for direct connection to LCD panels
  • Consider adding a DisplayPort or additional HDMI for multi-display setups

2.4 Connectivity

Incorporate various connectivity options:

  • Wi-Fi module (802.11ac or Wi-Fi 6)
  • Ethernet controller for wired connections
  • Bluetooth for peripherals and IoT integration
  • Optional 4G/5G modem for cellular connectivity

2.5 Power Management

Design an efficient power management system:

  • Choose a Power Management Integrated Circuit (PMIC) compatible with your SoC
  • Implement voltage regulators for various components
  • Consider adding a battery backup system for uninterrupted operation

3. PCB Design

3.1 Schematic Design

Create a detailed schematic:

  • Start with the SoC and its supporting components
  • Design power distribution networks
  • Layout memory interfaces and storage connections
  • Plan I/O interfaces and expansion options

3.2 PCB Layout

Carefully plan the PCB layout:

  • Use multi-layer design for better signal integrity and power distribution
  • Implement proper ground planes and power planes
  • Consider thermal management in component placement
  • Follow high-speed design guidelines for memory and display interfaces

3.3 Antenna Design

If using wireless connectivity:

  • Design or integrate antennas for Wi-Fi, Bluetooth, and cellular (if applicable)
  • Consider using PCB antennas or external antenna connectors
  • Ensure proper impedance matching and minimize interference

4. Firmware and Software

4.1 Boot Loader

Implement a secure and efficient boot loader:

  • Use a multi-stage boot process for flexibility
  • Implement secure boot features to prevent unauthorized modifications
  • Enable fast boot capabilities for quick startup times

4.2 Android BSP

Develop or adapt an Android Board Support Package (BSP):

  • Customize the Linux kernel for your hardware
  • Implement necessary device drivers
  • Optimize Android for your specific hardware configuration

4.3 Custom Features

Add custom features for advertising machine control:

  • Develop APIs for remote content management
  • Implement watchdog timers for system stability
  • Create power management profiles for 24/7 operation

5. Testing and Validation

Thoroughly test the motherboard:

  • Perform electrical testing to ensure signal integrity
  • Conduct thermal testing under various load conditions
  • Validate all hardware interfaces and peripherals
  • Test software stability and performance
  • Perform EMI/EMC testing for regulatory compliance

6. Production Considerations

Prepare for mass production:

  • Create detailed Bill of Materials (BOM)
  • Develop assembly and testing procedures
  • Consider Design for Manufacturing (DFM) principles
  • Plan for quality control and burn-in testing

7. Conclusion

Designing an Android Advertising Machine Control Motherboard is a complex process that requires careful planning and execution. By following these guidelines and iterating on your design, you can create a robust and efficient motherboard tailored for digital signage applications. Remember to stay updated with the latest technologies and Android versions to ensure your design remains competitive in the market.
