Engineered for Mission-Critical Industrial Automation

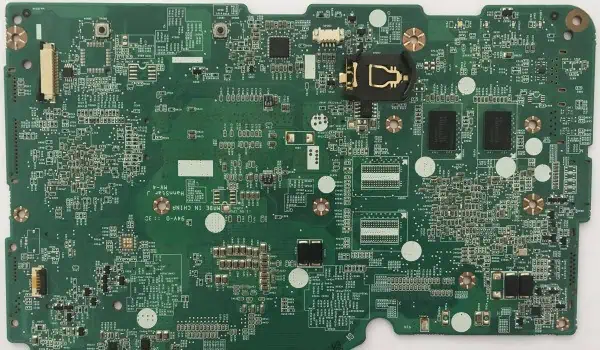

Our Industrial Control PCBs are precision-manufactured printed circuit boards specifically designed for demanding process control applications across manufacturing, chemical processing, power generation, and heavy industrial environments. These robust control boards serve as the electronic backbone for automated systems that monitor, regulate, and optimize industrial processes with exceptional reliability and accuracy.
Key Features
Industrial-Grade Durability: Built to withstand extreme operating conditions including temperature fluctuations (-40ยฐC to +85ยฐC), high humidity, vibration, and electromagnetic interference. Multi-layer construction with high-quality FR-4 substrate ensures long-term stability in harsh industrial environments.
Advanced Process Control Capabilities: Integrates seamlessly with PLCs, SCADA systems, and distributed control systems (DCS) to provide real-time monitoring and control of critical process parameters including temperature, pressure, flow rate, and chemical composition.
High-Speed Signal Processing: Features optimized trace routing and impedance control for reliable high-frequency signal transmission, ensuring accurate data acquisition and rapid response times essential for process safety and efficiency.
Flexible I/O Configuration: Supports multiple input/output configurations including analog 4-20mA current loops, digital inputs/outputs, thermocouple interfaces, and fieldbus communications protocols such as Modbus, Profibus, and Ethernet/IP.
Safety and Compliance: Manufactured to meet stringent industrial standards including IEC 61508 (SIL rated), UL recognition, and RoHS compliance. Incorporates fail-safe design principles with redundant circuits and diagnostic capabilities.
Applications
Perfect for process control systems in petrochemical plants, water treatment facilities, food and beverage production, pharmaceutical manufacturing, steel mills, and power generation facilities. Ideal for applications requiring precise control of batch processes, continuous manufacturing operations, and critical safety systems.
Technical Specifications
- Operating temperature range: -40ยฐC to +85ยฐC
- Humidity resistance: Up to 95% RH non-condensing
- Vibration resistance: 5G, 10-2000 Hz
- Dielectric strength: 1500V AC
- Insulation resistance: >10ยนยฒ Ohms
- Available in 2-16 layer configurations
- Custom form factors and specifications available
Trusted by industry leaders worldwide for uncompromising performance in the most demanding process control applications.
