Advanced semiconductor packaging solution for high-performance electronic applications

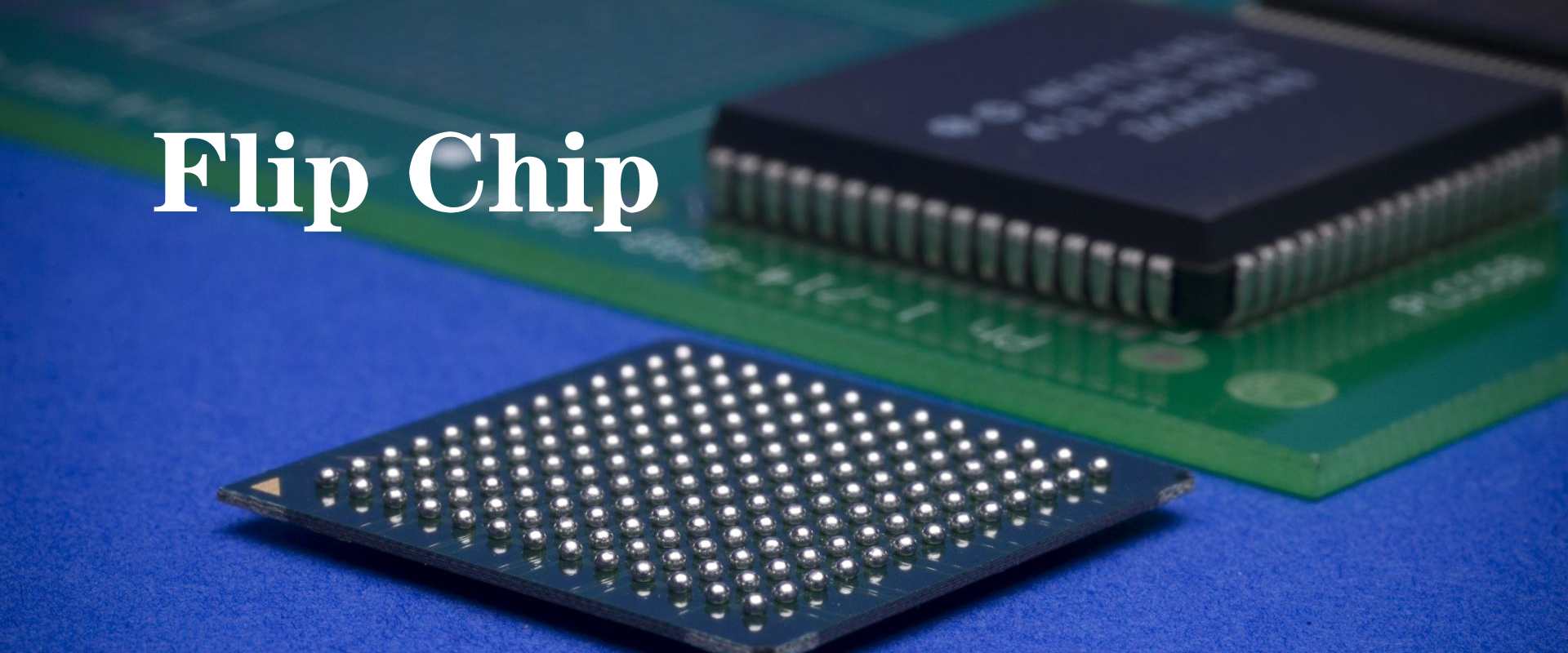

Our Flip Chip PCB with Direct Chip Attachment technology represents the cutting edge of semiconductor packaging, delivering unparalleled performance in a compact form factor. This innovative approach eliminates traditional wire bonding by directly mounting semiconductor dies face-down onto the PCB substrate using solder bumps or conductive adhesives.
Key Features
Superior Electrical Performance The direct chip attachment method creates the shortest possible electrical path between the die and PCB traces, dramatically reducing parasitic inductance and capacitance. This results in faster signal transmission, reduced noise, and enhanced high-frequency performance – critical for today’s demanding applications.
Exceptional Thermal Management Direct thermal contact between the chip and substrate enables efficient heat dissipation, allowing components to operate at higher power levels while maintaining optimal temperatures. The flip chip configuration provides multiple thermal paths, significantly improving overall system reliability.
Ultra-Compact Design By eliminating wire bonds and reducing package overhead, flip chip technology achieves the highest possible I/O density in the smallest footprint. This space-efficient design is essential for miniaturized electronics and high-density circuit boards.
Enhanced Reliability The robust solder bump connections offer superior mechanical strength compared to traditional wire bonding. The shorter interconnects reduce stress points and improve resistance to thermal cycling, vibration, and mechanical shock.
Technical Specifications
- Bump Pitch: Down to 40μm for ultra-fine pitch applications
- Operating Temperature: -55°C to +150°C
- I/O Count: Supports thousands of connections per chip
- Substrate Materials: Compatible with organic, ceramic, and flexible substrates
- Assembly Process: Lead-free and RoHS compliant
Applications
Ideal for high-performance computing processors, graphics chips, RF/microwave components, power management ICs, and advanced sensor systems where size, speed, and thermal performance are critical requirements.
Quality Assurance: Manufactured to IPC standards with comprehensive testing including X-ray inspection, electrical testing, and thermal cycling validation to ensure consistent, reliable performance.
