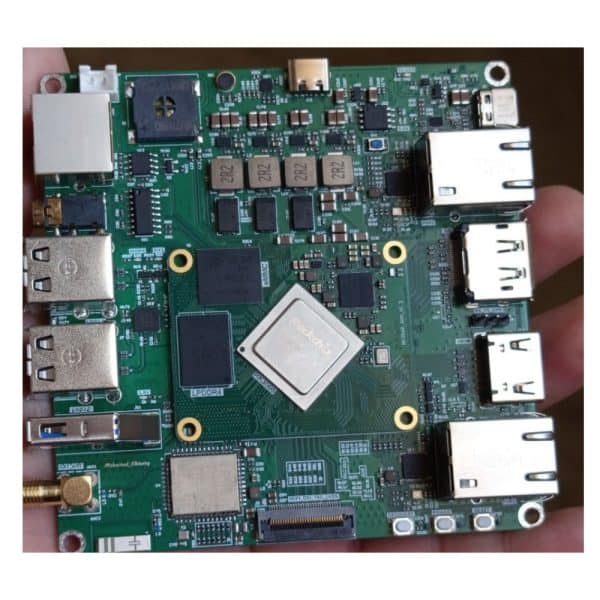

Custom Manufacturing System-on-Module powered PCB
Sale!

Custom Manufacturing System-on-Module powered PCB

Original price was: $178.00.Current price is: $176.00.

Category:

Designing and manufacturing a custom System-on-Module (SoM) powered PCB using the RK3568 quad-core 64-bit Cortex-A55 processor is a complex but rewarding process. This guide will walk you through the key steps and considerations for creating a high-performance, reliable PCB based on this powerful processor.

Understanding the RK3568 Processor

The RK3568 is a high-performance, low-power processor designed for a wide range of applications, including:

  • Industrial control systems
  • IoT gateways
  • AI edge computing devices
  • Multimedia processing units

Key features of the RK3568 include:

  • Quad-core ARM Cortex-A55 CPU up to 2.0GHz
  • Mali-G52 GPU
  • Built-in NPU for AI acceleration
  • Dual-display support
  • Multiple high-speed interfaces (PCIe, USB 3.0, SATA, etc.)

Design Considerations

1. Power Management

The RK3568 requires careful power management to ensure optimal performance and efficiency:

  • Implement a multi-rail power supply system
  • Use low-dropout (LDO) regulators for noise-sensitive components
  • Design proper power sequencing as per the RK3568 datasheet
  • Include power management ICs (PMICs) for efficient voltage regulation

2. Thermal Management

Proper thermal management is crucial for the RK3568’s performance:

  • Design an effective heat dissipation solution (e.g., heatsink, thermal pads)
  • Consider the placement of high-heat components
  • Implement thermal vias and copper pours for better heat distribution
  • Use thermal simulation tools to optimize the design

3. High-Speed Interfaces

The RK3568 supports various high-speed interfaces that require careful PCB layout:

  • Follow impedance matching guidelines for PCIe, USB 3.0, and MIPI interfaces
  • Use differential pair routing for high-speed signals
  • Minimize crosstalk by proper trace spacing and layer stackup
  • Implement proper termination for high-speed lines

4. Memory Subsystem

Design an efficient memory subsystem to maximize performance:

  • Choose appropriate LPDDR4/LPDDR4X memory chips
  • Follow memory layout guidelines for signal integrity
  • Implement proper decoupling and power distribution
  • Consider using multi-layer PCBs for better signal routing

5. Connectivity Options

Include relevant connectivity options based on your application:

  • Ethernet PHY for network connectivity
  • Wi-Fi/Bluetooth module integration
  • Antenna design and placement for wireless communication
  • Consider implementing 5G modem support if required

PCB Layout Best Practices

  1. Layer Stack-up: Use a multi-layer PCB (8 layers or more) for better signal integrity and power distribution.

  2. Component Placement: Place components logically, grouping related functions and minimizing signal path lengths.

  3. Ground Plane: Implement a solid ground plane for better EMI performance and signal return paths.

  4. Decoupling: Use appropriate decoupling capacitors near power pins of ICs.

  5. Signal Integrity: Implement controlled impedance routing for high-speed signals.

  6. EMI/EMC Considerations: Design with EMI/EMC compliance in mind, including proper shielding and filtering.

Manufacturing Considerations

  1. DFM (Design for Manufacturing): Follow DFM guidelines to ensure manufacturability.

  2. Component Selection: Choose components with consideration for availability and lead times.

  3. Testing and Validation: Design for testability, including test points and boundary scan support.

  4. Prototyping: Consider rapid prototyping techniques for initial validation.

  5. Certification: Plan for necessary certifications (e.g., FCC, CE) based on your target market.

Software Development

While focusing on hardware, consider software development aspects:

  1. Boot Loader: Implement a custom boot loader or use existing solutions (e.g., U-Boot).

  2. Operating System: Choose an appropriate OS (e.g., Linux, RTOS) based on your application.

  3. Device Drivers: Develop or adapt device drivers for custom peripherals.

  4. BSP (Board Support Package): Create a comprehensive BSP for your custom hardware.

Conclusion

Designing and manufacturing a custom SoM PCB based on the RK3568 processor requires careful planning and execution. By following these guidelines and best practices, you can create a high-performance, reliable product that leverages the full potential of the RK3568 SoC. Remember to iterate on your design, perform thorough testing, and stay updated with the latest technical documentation from Rockchip for the best results.
