Alcohol testers, also known as breathalyzers or breath alcohol testers, are devices used to measure the concentration of alcohol in a person’s breath. These devices play a crucial role in law enforcement, workplace safety, and personal use for responsible drinking. Understanding the working principle behind alcohol testers can help us appreciate their importance and limitations.
Basic Principle
The fundamental principle behind most alcohol testers is based on the relationship between alcohol in the breath and alcohol in the blood. When a person consumes alcohol, it is absorbed into the bloodstream through the stomach and small intestine. As blood circulates through the lungs, some of the alcohol evaporates into the air sacs (alveoli) and is exhaled in the breath. The concentration of alcohol in the breath is proportional to the concentration in the blood, typically at a ratio of about 2,100:1. This means that the amount of alcohol in 2,100 ml of exhaled breath is equivalent to the amount in 1 ml of blood.
Types of Alcohol Testers
There are several types of alcohol testers, each using different technologies to measure breath alcohol concentration:
- Semiconductor Oxide-based Testers
- These are commonly used in portable, personal devices.

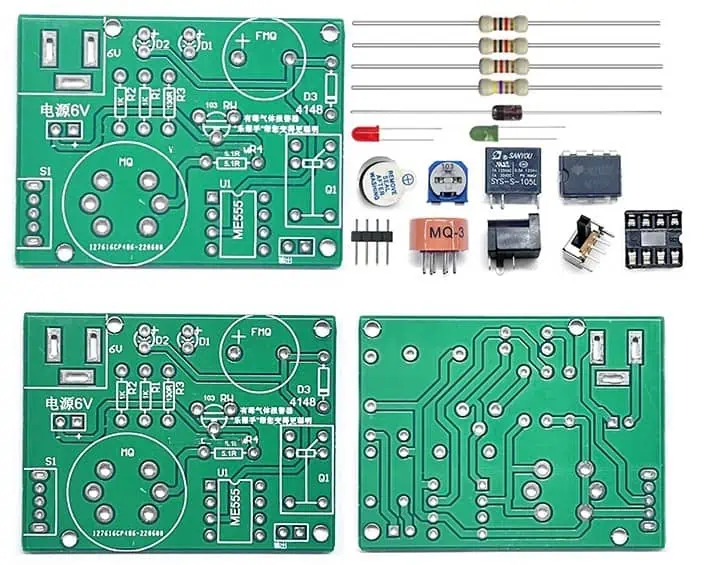

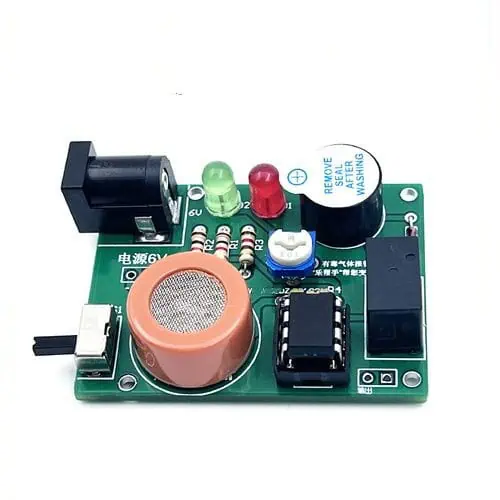

- They contain a semiconductor that changes its electrical resistance when exposed to alcohol.
- As the user breathes into the device, alcohol molecules interact with the semiconductor, causing a change in resistance that is measured and converted into a blood alcohol concentration (BAC) reading.
- Fuel Cell Testers
- Often used in professional and law enforcement settings.
- They contain two platinum electrodes with a porous acid-electrolyte material between them.
- When alcohol-containing breath passes over one electrode, it is oxidized, producing acetic acid, protons, and electrons.
- The electrons flow through a wire to the other electrode, creating an electric current proportional to the amount of alcohol oxidized.
- Infrared Spectrophotometer Testers
- These are typically larger, more expensive devices used in evidential testing.
- They work by measuring how much infrared light is absorbed by a breath sample.
- Alcohol molecules absorb specific wavelengths of infrared light, and the amount of absorption is proportional to the concentration of alcohol.
The Testing Process
Regardless of the specific technology used, the general process of using an alcohol tester involves several steps:
- Warm-up: The device is turned on and goes through a warm-up process to ensure all components are functioning correctly.
- Calibration: Many devices perform a self-calibration to ensure accuracy. Some may require periodic manual calibration.
- Sample Collection: The user blows steadily into the device for a specified period, typically 5-10 seconds, to provide a deep lung air sample.
- Analysis: The device analyzes the breath sample using one of the methods described above.
- Result Display: The alcohol concentration is calculated and displayed, usually in terms of BAC or an equivalent measure.
Factors Affecting Accuracy
While alcohol testers can provide valuable information, several factors can affect their accuracy:
- Temperature and Humidity: Environmental conditions can influence readings, especially in semiconductor-based devices.
- Interfering Substances: Some substances, like mouthwash or breath mints, can cause false positives in some types of testers.
- User Technique: Improper use, such as not providing a deep lung sample, can lead to inaccurate results.
- Device Calibration: Regular calibration is crucial for maintaining accuracy over time.
- Individual Variations: Factors like metabolism rate and body temperature can affect the breath-to-blood alcohol ratio.
Legal and Practical Implications
Alcohol testers have significant legal and practical implications:
- In many jurisdictions, breath alcohol tests are admissible as evidence in court for drunk driving cases.
- Workplaces may use alcohol testing to ensure safety, especially in industries like transportation and construction.
- Personal alcohol testers can help individuals make responsible decisions about drinking and driving.
However, it’s important to note that while these devices can provide a good estimate of blood alcohol concentration, the most accurate results come from blood tests analyzed in a laboratory setting.
Conclusion
Alcohol testers represent a remarkable intersection of chemistry, electronics, and public safety. By leveraging the relationship between breath and blood alcohol concentrations, these devices provide a non-invasive, rapid method for estimating intoxication levels. As technology continues to advance, we can expect to see even more accurate and user-friendly alcohol testing devices in the future, further enhancing road safety and promoting responsible alcohol consumption.
