Capacitor ESR explained: what causes it, why it matters for SMPS ripple and stability, typical ESR values by capacitor type, how to measure it accurately, and a full reference chart and FAQ for PCB engineers.

Walk into any electronics repair shop and ask why a switching power supply failed. More often than not, the answer is a bulging electrolytic capacitor with an ESR value that climbed from 50 milliohms to 4 ohms over three years of continuous operation. The capacitance on the meter still reads within 20% of spec. The voltage rating was never exceeded. But the board is dead because capacitor ESR — not capacitance — was the real design variable that mattered, and no one was watching it.

If you’ve ever ignored the ESR column in a capacitor datasheet, this guide will change that habit. ESR is the single most important parasitic in power electronics, and understanding it from the circuit-level up — what causes it, how it behaves across frequency and temperature, how to measure it accurately, and when it matters most — is the difference between a design that lasts ten years in the field and one that starts failing at year two.

What Is Capacitor ESR?

Capacitor ESR (Equivalent Series Resistance) is the total resistive loss inside a real capacitor, modeled as a single resistance in series with the ideal capacitance. It is not a physical resistor you can see or remove — it is the lumped representation of all energy-dissipating mechanisms inside the component.

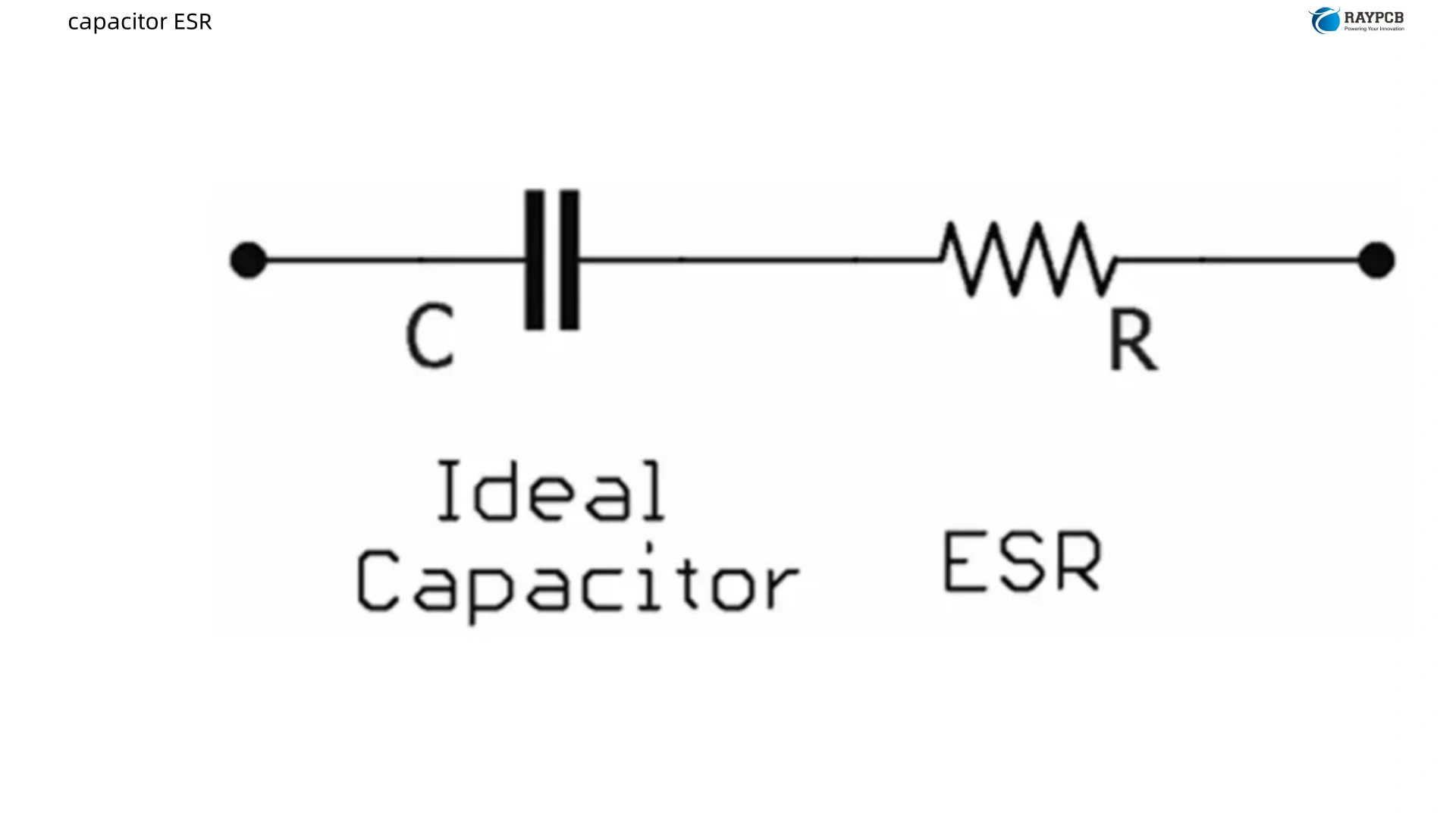

The complete equivalent circuit model of a real capacitor looks like this:

[Terminal+] ─── ESR ─── ESL ─── C (ideal) ─── [Terminal−]

Where ESL is the equivalent series inductance (from lead geometry and internal construction). At most power-supply frequencies, ESR is the dominant parasitic. At very high frequencies, ESL takes over. At DC, capacitors ideally have infinite impedance, and the only real loss is leakage resistance — which is a parallel element, not the series ESR.

Three Sources of ESR in a Real Capacitor

Every microohm of ESR originates from one of three physical mechanisms:

1. Ohmic resistance of conductors — the metal foil, electrodes, end spray, lead terminations, and solder connections. This component scales with frequency due to the skin effect: at high frequencies, current concentrates at the conductor surface, increasing effective resistance.

2. Electrolyte resistance (electrolytic capacitors only) — in aluminum and tantalum wet-electrolytic types, ionic current must flow through the liquid electrolyte. The conductivity of the electrolyte is orders of magnitude lower than metal, making this term dominant at low to mid frequencies in these capacitor types. As the electrolyte ages — drying out due to evaporation and oxygen depletion — this component increases irreversibly.

3. Dielectric losses — even solid dielectrics are not perfectly lossless. The molecular polarization of the dielectric material lags the applied AC field, dissipating energy. This is characterized by the dissipation factor (tan δ) and dominates at lower frequencies. Class II ceramics (X7R, Y5V) have noticeably higher dielectric losses than Class I (C0G/NP0) types due to their ferroelectric microstructure.

Why Capacitor ESR Matters: Four Critical Impacts

1. Ripple Voltage on Power Rails

In a switching converter, the output capacitor must absorb ripple current from the inductor on every switching cycle. That ripple current flows through the capacitor’s ESR and generates a voltage drop:

V_ripple = I_ripple × ESR

This is additive to the ripple caused by charging and discharging the capacitance. At switching frequencies above about 20–50 kHz, the ESR-induced ripple often exceeds the capacitance-induced ripple, meaning that halving the ESR is more effective than doubling the capacitance for reducing output ripple voltage. This is a non-obvious result that surprises engineers who focus only on the µF number.

2. Power Dissipation and Thermal Aging

Every ampere of ripple current flowing through ESR generates heat:

P_heat = I²_RMS × ESR

This heat accelerates aging in electrolytic capacitors — primarily by driving electrolyte evaporation. The Arrhenius relationship applies: every 10°C rise in capacitor core temperature roughly halves the remaining operational lifetime. A capacitor rated for 2,000 hours at 105°C runs at significantly less than half that life if it operates at 115°C due to ESR-driven self-heating in a high-ripple-current application.

3. Converter Control Loop Stability

In voltage-mode or current-mode PWM controllers, the output ESR creates a zero in the open-loop transfer function of the output filter. This ESR zero occurs at:

f_ESR_zero = 1 / (2π × ESR × C)

In classic designs using aluminum electrolytic output capacitors, this zero was relied upon to provide phase boost in the control loop at frequencies near the crossover, improving stability margins. When designers switched to low-ESR polymer or ceramic capacitors to reduce ripple, they sometimes inadvertently destabilized control loops that had been designed around the old ESR zero frequency. This is the classic case where lower ESR is not unconditionally better — it depends entirely on the control loop design.

Some LDO regulators explicitly require a minimum output capacitor ESR in their datasheet for stable operation. Always check before substituting a polymer type for an electrolytic in an LDO output stage.

4. Capacitor Self-Heating and Life Prediction

Manufacturers rate capacitor life at a specific maximum core temperature. The core temperature is a function of both ambient temperature and self-heating from ripple current. The self-heating calculation is:

ΔT_core = I²_RMS × ESR × R_th

Where R_th is the capacitor’s thermal resistance (°C/W), typically 10–50 °C/W for small electrolytics. At high ripple currents, ESR self-heating can add 10–30°C to the core temperature — enough to halve estimated lifetime even when ambient temperature is within spec.

Capacitor ESR by Type: Reference Values

At low frequencies below 1 kHz, aluminum electrolytic and tantalum capacitors behave similarly to film and ceramic types in terms of impedance magnitude. But above 1 kHz, the higher electrolyte resistivity in aluminum and tantalum types causes their impedance to diverge significantly from ceramic and film capacitors, which use metallic electrodes with far lower resistivity.

The table below gives typical ESR reference values measured at 100 kHz, 25°C — the standard condition for SMPS component characterization:

Capacitor Type	Typical ESR at 100 kHz	ESR Stability	Notes
Aluminum electrolytic (wet)	50 mΩ – 5 Ω	Degrades with age/temp	Higher cap value = lower ESR
Aluminum electrolytic (polymer)	5 mΩ – 50 mΩ	Very stable	10× better than wet at high freq
Aluminum polymer hybrid	10 mΩ – 80 mΩ	Stable	Better voltage rating than pure polymer
Tantalum (MnO2 electrolyte)	100 mΩ – 2 Ω	Stable but high	Failure mode: short circuit
Tantalum (polymer cathode)	4 mΩ – 100 mΩ	Excellent	Up to 8A ripple current possible
Polypropylene film	1 mΩ – 20 mΩ	Excellent, lifetime stable	Best for high-power, high-frequency
MLCC, Class II (X7R)	10 mΩ – 100 mΩ	Good; rises with frequency above SRF	Capacitance drops with DC bias
MLCC, Class I (C0G/NP0)	5 mΩ – 50 mΩ	Outstanding stability	Low capacitance per volume
Supercapacitor (EDLC)	50 mΩ – 200 mΩ	Moderate	Not suitable for fast switching

Rule of thumb: If measured ESR is more than 2–3× the nominal value for that capacitor type and value, the component is aging and replacement should be planned. More than 3× nominal means replace immediately.

For detailed guidance on how ESR, dielectric type, and package geometry interact in PCB-level component selection, the reference on PCB capacitors covers these characteristics in the context of real board design.

How ESR Changes with Frequency and Temperature

ESR vs. Frequency Behavior

In actual capacitors, the impedance-versus-frequency curve forms a characteristic V-shape (or U-shape depending on type). In the low-frequency capacitive region, impedance falls with increasing frequency. At the self-resonant frequency (SRF), impedance reaches its minimum value — and at exactly that frequency, impedance equals ESR. Above SRF, parasitic inductance (ESL) dominates and impedance begins rising, making the capacitor behave more like an inductor than a capacitor.

This has a critical practical implication: a capacitor is most effective as a decoupling element at or near its SRF, because that is where its impedance — and therefore its insertion loss for noise — is lowest. A 100 nF MLCC with an SRF of 50 MHz is an excellent decoupling element at 50 MHz and becomes progressively less effective at frequencies well above or below that point.

At low frequencies (50 Hz–1 kHz), dielectric and conduction losses dominate the ESR. At mid frequencies (1 kHz–10 kHz), internal construction losses including electrolyte conductivity come to the fore. Above 100 kHz, ohmic effects and the skin effect in terminations and electrodes become the ruling factors.

ESR vs. Temperature

Temperature behavior differs dramatically by capacitor technology:

Capacitor Type	ESR at Low Temp (−40°C)	ESR at High Temp (+85°C)	Trend
Aluminum electrolytic (wet)	5–10× nominal	Below nominal	ESR drops as temp rises (electrolyte warms)
Aluminum polymer	Near nominal	Near nominal	Very stable
Tantalum (MnO2)	Moderately higher	Near nominal	Stable at operating temp
Polypropylene film	Near nominal	Near nominal	Excellent stability
MLCC (X7R)	Near nominal	Near nominal	Good stability

The wet aluminum electrolytic’s cold-temperature ESR behavior is particularly important for automotive and outdoor industrial applications. A capacitor that meets its ESR specification at 25°C can have 5–10× higher ESR at −40°C, dramatically increasing ripple voltage and potentially exceeding the capacitor’s own ripple current rating during cold-start conditions. Polymer electrolytic capacitors resolve this problem — their ESR remains stable across the full operating temperature range, making them far better suited to wide-temperature-range applications than wet types.

How to Measure Capacitor ESR

Why a Standard Ohmmeter Doesn’t Work

You cannot measure ESR with a standard DC ohmmeter. Capacitors block DC, so a DC resistance measurement reads open circuit or meaningless values. ESR is an AC resistance — it requires an AC test signal at the correct frequency to measure correctly.

ESR is always an AC resistance measured at specified frequencies: 100 kHz for switched-mode power supply components, 120 Hz for linear power-supply components, and at the self-resonant frequency for general-application components.

Method 1: Dedicated ESR Meter (Most Practical)

A dedicated ESR meter injects a low-voltage (typically 250 mV or less), high-frequency (typically 100 kHz) AC signal through the capacitor and measures the real component of the resulting impedance.

The low voltage used by ESR meters is deliberately chosen to be insufficient to bias and activate semiconductor junctions in surrounding circuitry, which means the meter can often test capacitors in-circuit without desoldering — though parallel low-impedance components can affect the reading.

ESR meter procedure:

1. Power off and discharge the circuit completely. For capacitors above 50 V, discharge manually through a 10–20 kΩ resistor before connecting the meter.
2. Connect the ESR meter probes directly to the capacitor terminals — for in-circuit testing, make sure no low-impedance components are shunting the capacitor.
3. Read the ESR value and compare to the typical reference for that capacitor type and value.
4. If ESR reads near zero (below 0.1 Ω for a large electrolytic), the capacitor may be shorted — verify with a capacitance check before trusting the ESR reading alone.

Recommended ESR meters for bench use:

Instrument	Best For	Frequency Range
Peak Atlas ESR70	In-circuit electrolytic testing	100 kHz
MESR-100 (auto-ranging)	Production and repair testing	100 kHz
IET 1920 LCR Meter	Lab-grade low-ESR measurement	100 Hz – 100 kHz
Keysight E4990A Impedance Analyzer	Full impedance characterization	20 Hz – 120 MHz
Boonton 34A Resonant Line	RF capacitor ESR (high-Q)	1 MHz – 1.3 GHz

Method 2: LCR Meter

A benchtop LCR meter set to series impedance mode at 100 kHz will measure and display ESR (Rs or R) alongside capacitance. This is more accurate than a handheld ESR meter and provides frequency-sweep capability on higher-end models. Use series (Cs) mode for large capacitors with impedance below 10 Ω, and parallel (Cp) mode for small capacitors with impedance above 10 kΩ.

Method 3: Ripple Voltage/Current Ratio (In-Circuit Estimation)

If an ESR meter or LCR meter is unavailable, ESR can be estimated from operating measurements:

ESR ≈ V_ripple_pp / I_ripple_pp

Measure the peak-to-peak ripple voltage across the capacitor with a scope and the peak-to-peak ripple current through it (via a current probe or sense resistor in series). The ratio gives a reasonable ESR estimate under operating conditions, which is arguably more useful than a static measurement because it reflects the capacitor’s real behavior at operating temperature and frequency.

Important limitation: This method works best when the ripple current waveform is approximately sinusoidal or triangular and the ESR component of ripple is dominant. In designs where capacitance-induced ripple is also significant, the raw ratio will overestimate ESR.

Method 4: High-Frequency Resonant Line (For RF Capacitors)

For ceramic capacitors operated at very high frequencies (100 MHz to 1.3 GHz), the coaxial resonant line method based on the Boonton 34A standard is the most accurate ESR measurement technique. Vector network analyzer S-parameter methods are not acceptable for high-Q devices because the amplitude calibration accuracy of a typical VNA is insufficient to resolve the extremely small resistance value against the large reactive component.

ESR and Dissipation Factor: Understanding the Relationship

Capacitor datasheets often specify tan δ (dissipation factor, DF) rather than ESR directly — especially for film and ceramic types. The relationship is:

ESR = tan δ / (2π × f × C)

Or equivalently:

tan δ = ESR × 2π × f × C = ESR / X_C

Where X_C is the capacitive reactance at frequency f. Dissipation factor is dimensionless and frequency-independent for an ideal lossy capacitor — which is why it is the preferred specification for film and ceramic types. For electrolytics, ESR is the more useful practical specification because tan δ varies too much with frequency and temperature to be useful as a single design parameter.

ESR, Tan δ, and Q Factor Reference

Parameter	Definition	Best For
ESR (Ω or mΩ)	Total series resistance at test frequency	Power electronics, filter design, SMPS
Tan δ / DF	Ratio of loss to reactive energy per cycle	Film, ceramic, precision capacitors
Q factor	Reactance / ESR = 1 / tan δ	RF, resonant circuits, high-frequency decoupling

Capacitor ESR in Specific Application Contexts

SMPS Output Capacitor

The SMPS output capacitor takes the full inductor ripple current every switching cycle. ESR directly sets the high-frequency component of output ripple. In a switching power supply, even adequate capacitance cannot fix high ESR — at higher switching frequencies, ESR becomes the dominant impedance of the capacitor, and the capacitor’s ability to suppress high-frequency noise depends critically on low ESR. For a 100–500 kHz buck converter output, polymer aluminum or X7R MLCC capacitors are the appropriate choice.

Bulk Input Filter Capacitor

The input filter capacitor of an SMPS must handle the discontinuous input current from the converter’s switching. Peak currents are typically much higher than at the output. ESR losses at the input raise noise across the capacitor, reducing the effectiveness of differential-mode EMI filtering and increasing voltage stress on the converter’s input stage.

PDN (Power Delivery Network) Decoupling

In a PDN, capacitors of multiple values and types are placed in parallel to cover a wide frequency range. The key design insight is that the effective impedance of the PDN is determined by the lowest-ESR capacitor at each frequency — not by total capacitance. Understanding each capacitor’s ESR-vs-frequency profile is essential to predict and flatten the PDN impedance across the target frequency range.

LDO Output Stability

Some LDO regulators and amplifier circuits require a minimum ESR for stable operation. Excessively low ESR can cause control loop instability — this becomes especially important when adopting wide-bandgap semiconductors like GaN or SiC, whose lower circuit resistance can induce spikes and current surges that interact with the output capacitor ESR zero in unexpected ways. Always verify the minimum and maximum ESR range specified in the LDO datasheet before substituting capacitor types.

Typical ESR Values Reference Chart for Common Electrolytic Capacitors

The following approximate values apply to standard aluminum electrolytic capacitors at 100 kHz, 20°C. Low-ESR and polymer series are significantly lower.

Capacitance	16 V	25 V	50 V	100 V
10 µF	4.0 Ω	4.5 Ω	5.0 Ω	6.0 Ω
47 µF	1.5 Ω	1.8 Ω	2.2 Ω	2.8 Ω
100 µF	0.8 Ω	1.0 Ω	1.3 Ω	1.7 Ω
220 µF	0.4 Ω	0.5 Ω	0.7 Ω	1.0 Ω
470 µF	0.2 Ω	0.25 Ω	0.35 Ω	0.5 Ω
1000 µF	0.1 Ω	0.12 Ω	0.18 Ω	0.28 Ω
2200 µF	0.05 Ω	0.06 Ω	0.09 Ω	—
4700 µF	0.025 Ω	0.03 Ω	—	—

Values are approximate references. Always verify against manufacturer datasheet for specific series and lot.

Signs of High ESR Causing Circuit Problems

These symptoms in a live circuit are often the first practical indicator of elevated capacitor ESR before any component is physically damaged:

Symptom	ESR Connection	Next Step
High output ripple voltage	ESR × ripple current exceeds spec	Measure ESR; replace if >2× nominal
SMPS runs hot but load is normal	ESR self-heating in output/input caps	Check ESR on all high-ripple caps
Control loop instability / oscillation	ESR zero frequency has shifted	Measure ESR; verify against loop design
Random resets under load	Output rail drooping from high ESR transient	Scope the output rail under load step
Capacitor bulging or venting	Extreme ESR-induced overheating	Replace immediately; inspect board
PC crashes during GPU/CPU load	Degraded motherboard polymer caps	Test ESR of board decoupling capacitors

Useful Resources for Capacitor ESR

Resource	Type	Link
Murata – Impedance/ESR Frequency Characteristics in Capacitors	Technical Article	article.murata.com
DigiKey – Simple Explanation of Capacitor ESR	Reference Article	digikey.com
Wikipedia – Equivalent Series Resistance	Reference Overview	en.wikipedia.org
IET Labs – ESR of Capacitors (Application Note 035002)	Technical Paper / PDF	ietlabs.com PDF
Passive Components – ESR Mechanisms, Measurements and Applications	Deep-Dive Article	passive-components.eu
Avnet Abacus – Understanding ESR in Electrolytic Capacitors	Technical Article	my.avnet.com
AllAboutCircuits – Determining ESR of Capacitors	Technical Article	allaboutcircuits.com
EPCI – Influence of ESR and Ripple Current for Capacitor Selection	Design Guide	epci.eu
Specap – Typical ESR for Electrolytic Capacitors (Power Supply Guide)	Reference Guide	specap.com

Frequently Asked Questions About Capacitor ESR

Q1: My capacitor reads correct capacitance on a multimeter but the circuit is malfunctioning. Could ESR be the cause?

Yes — this is one of the most common diagnostic traps in power electronics. ESR can increase enough to cause circuit malfunction and even component damage even when measured capacitance remains within tolerance. A wet electrolytic that has aged badly will often measure 90–110% of its nominal capacitance while its ESR has climbed from 100 mΩ to 3–4 Ω. The capacitance test gives a false pass. Always measure ESR separately with a dedicated ESR meter or LCR meter at 100 kHz when troubleshooting power supply instability, high ripple, or thermal issues.

Q2: Is lower ESR always better?

No, and this is a critical point. For most switching power supply output and input filters, lower ESR is better because it reduces ripple and thermal losses. However, some LDO voltage regulators and op-amp circuits rely on a minimum output capacitor ESR to maintain control loop stability. In those designs, using a near-zero ESR polymer capacitor where the datasheet requires a wet electrolytic output cap can cause the regulator to oscillate. Always check the ESR range specification in the IC datasheet before substituting capacitor types.

Q3: What is the difference between capacitor ESR and dissipation factor (tan δ)?

They both describe the same underlying dielectric and conductor losses but are expressed differently. Tan δ (dissipation factor) is dimensionless and represents the ratio of energy lost to energy stored per cycle. ESR is the equivalent resistive loss expressed in ohms at a specific frequency. They are mathematically related: ESR = tan δ / (2π × f × C). For ceramic and film capacitors, datasheets often specify tan δ because it is more constant across frequencies. For electrolytic capacitors in power supply design, ESR at 100 kHz is the more useful working parameter.

Q4: Can I use multiple capacitors in parallel to achieve lower effective ESR?

Yes — paralleling capacitors reduces effective ESR in the same way resistors in parallel reduce resistance. Two identical capacitors in parallel halve the combined ESR, and also halve the combined ESL and double the capacitance and ripple current rating. This is a common and effective technique for PDN design on PCBs, where an array of smaller MLCCs often achieves lower total ESL and competitive ESR compared to a single large electrolytic. The critical caveat is that all paralleled units must have equal parasitic loop inductance from the layout — an unequal layout concentrates current in the physically closest unit, defeating the purpose of paralleling.

Q5: How do I know what ESR value to specify when selecting a replacement capacitor?

The safest approach is to match the original manufacturer’s series and part number, since the original designer would have selected that specific series for its ESR characteristics at the application frequency. If the original part is obsolete, find the ESR value in the original datasheet and ensure the replacement’s ESR at 100 kHz is within ±20% of that value. Never substitute a wet aluminum electrolytic with a polymer type without checking the control loop stability requirement — in most SMPS output stages, polymer is an improvement, but in some LDO and linear regulator designs, the drastic ESR reduction changes the stability characteristic.

The Bottom Line on Capacitor ESR

Capacitor ESR is not a footnote in the datasheet — it is often the binding design constraint in power electronics. It sets ripple voltage, determines thermal stress and component lifetime, shapes control loop behavior, and is the first parameter to degrade as a capacitor ages. Capacitance can remain within tolerance for years while ESR quietly climbs to values that destabilize power supplies, overheat components, and cause intermittent field failures that are nearly impossible to debug without an ESR meter.

The practical takeaways from a PCB engineering standpoint: always specify ESR at 100 kHz when selecting SMPS capacitors; use polymer types where ripple current and ESR stability matter; check LDO datasheets for minimum ESR requirements before substituting types; derate ripple current based on actual ESR at operating temperature; and build ESR testing into your incoming inspection process for any design where electrolytic capacitors handle significant ripple current. That single habit will prevent more field failures than almost anything else in the PCB design process.
