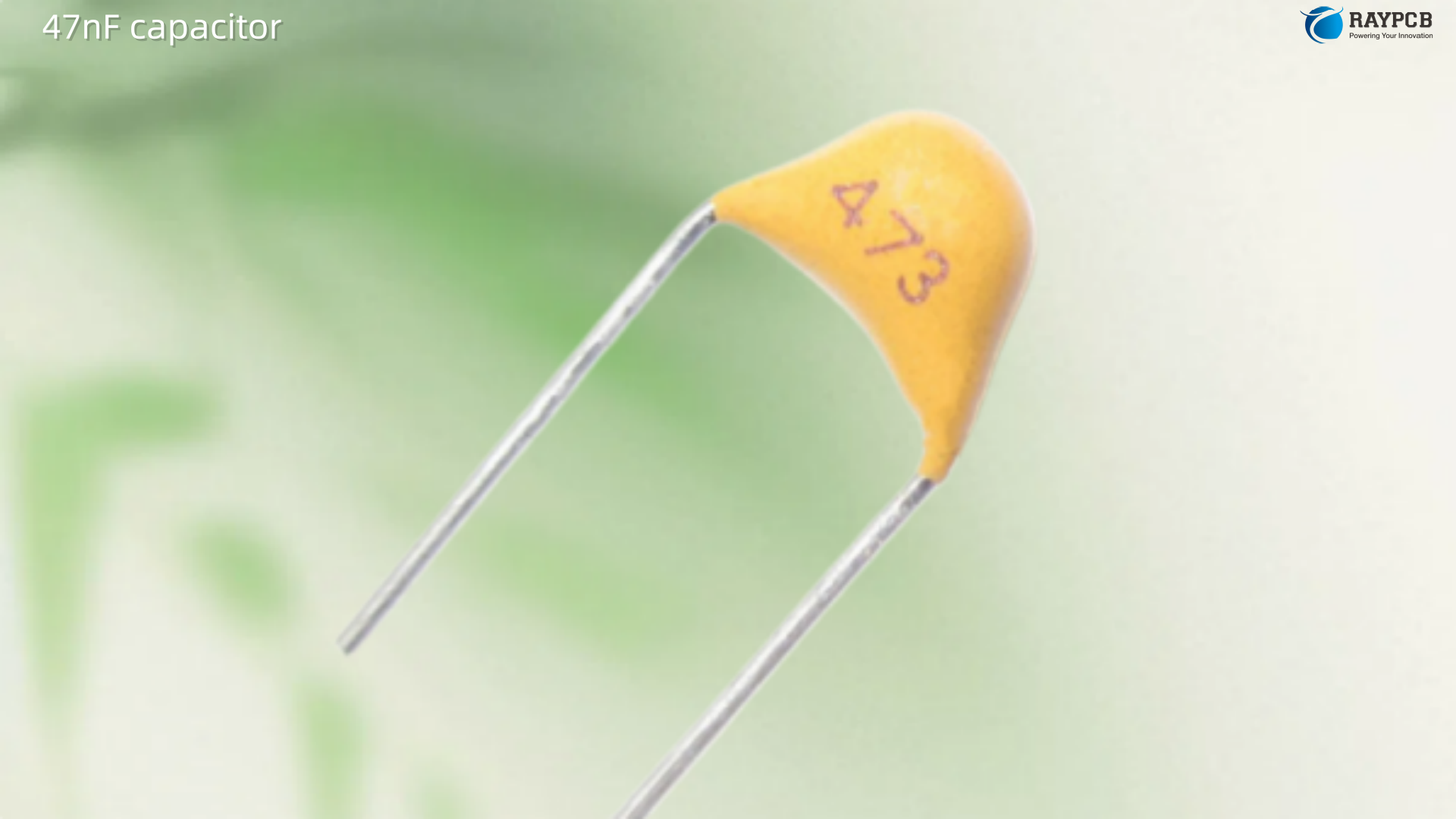

Pick up a ceramic disc or a small film capacitor stamped with 473 and there’s a decent chance you’ve held one of the most useful mid-range decoupling components in electronics. The 47nF capacitor hits a sweet spot — it’s large enough to handle sub-megahertz noise that 10nF caps miss, yet small enough to remain effective at frequencies where bulk electrolytics have already given up the fight. Understanding it properly — from reading the code to placing it correctly on a PCB — makes a real difference in how your designs perform.

Decoding the 473 Marking: What Does Code 473 Mean?

The 3-Digit Capacitor Code System Explained

Every ceramic and film capacitor marked with a three-digit numeric code follows the same decoding rule: the first two digits are significant figures, and the third digit tells you the power of ten multiplier. The resulting value is always in picofarads (pF).

For the 473 code:

• First two digits: 47
• Third digit: 3 → multiply by 10³ = 1,000
• Result: 47 × 1,000 = 47,000 pF = 47 nF = 0.047 µF

A ceramic disc capacitor stamped 473J decodes as: 4 = first digit, 7 = second digit, 3 = multiplier (three zeros in pF), giving 47 × 1,000 = 47,000 pF = 47 nF or 0.047 µF. The letter J indicates a tolerance of ±5%.

This is one of those codes that catches people out because 47 appears in both the 47pF range (code 470) and the 47nF range (code 473). When in doubt, pull up a code calculator or check with a meter before assuming.

Code 473 Compared to Neighboring Values

Code	Capacitance	Also Written As
470	47 pF	0.047 nF
471	470 pF	0.47 nF
472	4.7 nF	4,700 pF
473	47 nF	0.047 µF / 47,000 pF
474	470 nF	0.47 µF
475	4.7 µF	4,700 nF

Tolerance Letter Codes for the 47nF Capacitor

Suffix Letter	Tolerance	Typical Use Case
J	±5%	Precision RC filters, timing circuits
K	±10%	General decoupling, bypassing
M	±20%	Bulk bypass, non-critical filtering
Z	+80% / −20%	Cost-sensitive bypass only

For signal decoupling in anything approaching a production design, K grade (±10%) is the minimum acceptable tolerance. If you’re using the 47nF capacitor to set a cutoff frequency, step up to J grade.

47nF Capacitor Specifications: Dielectrics and Ratings

Choosing the Right Dielectric

The 47nF capacitor is manufactured in several dielectric materials, and the choice genuinely matters depending on where it ends up in the circuit.

C0G / NP0 Ceramic: Class 1 ceramic. Class 1 ceramic capacitors offer high stability and low losses, making them well suited for resonant circuit applications. C0G holds capacitance within about ±30 ppm/°C over its full temperature range — essentially flat. Use this dielectric whenever the 47nF is defining an RC time constant or a filter pole. The tradeoff is physical size and cost compared to X7R.

X7R Ceramic: Class 2 ceramic. Class 2 ceramic capacitors offer high volumetric efficiency for buffer, bypass, and coupling applications. X7R shifts capacitance by up to ±15% over its −55°C to +125°C operating range and also drifts with applied voltage — a 50V-rated X7R 47nF can lose 20–30% of its nominal capacitance at half the rated voltage. Fine for decoupling and bypassing; avoid it in precision filter stages.

Polyester Film (PET): The 47nF polyester film capacitor is designed for filtering, bypassing, and signal coupling applications, with high insulation resistance making it suitable for power circuits. Voltage ratings of 100V and 250V are common. The dielectric absorption is lower than ceramic, making film types preferred in audio signal paths.

Polypropylene: The highest-grade option for analog signal work. Very low dielectric absorption, minimal distortion, stable capacitance, and available rated up to 630V. Physically larger than equivalent ceramic parts but the right choice for precision RC networks and audio coupling stages.

Specification Comparison Table

Dielectric	Capacitance	Voltage Rating	Tolerance	Temp. Stability	Best For
C0G Ceramic	47 nF	25V – 100V	±5% (J)	Excellent (±30 ppm/°C)	Precision filters, RF
X7R Ceramic	47 nF	10V – 100V	±10% (K)	Good (±15%)	Decoupling, bypass
Polyester Film	47 nF	100V – 250V	±5–10%	Good	Signal coupling, audio
Polypropylene	47 nF	250V – 630V	±1–5%	Very Good	Precision analog, audio

Key specifications for the 47nF (473) ceramic capacitor include nominal voltage of 50V to 100V DC, ±10% tolerance, through-hole assembly type, X7R or C0G/NP0 dielectric for stability and low loss, and an operating temperature range of −55°C to +125°C.

Signal Decoupling with the 47nF Capacitor: A Practical Guide

What Signal Decoupling Actually Does

The term “decoupling” gets used loosely on forums and even in datasheets. Let’s be precise about what’s happening. Decoupling capacitors function as isolation between two different circuits sharing the same power distribution network (PDN), or between a local circuit and external ones, while bypass capacitors eliminate high-frequency noise entering the circuit by redirecting it to ground.

In practice, when a digital IC switches states, it momentarily demands a burst of current from the supply rail. This transient current causes a voltage drop across connecting traces due to their inherent impedance — even very low resistance or inductance in a power trace can result in significant voltage dips at high frequencies. The decoupling capacitor acts as a local current reservoir, supplying that burst instantly before the main power supply can react.

Why 47nF Specifically?

The 47nF value occupies a useful frequency range. High-frequency noise decoupling capacitor values should lie between 0.01 µF and 0.1 µF. At 47nF, you’re sitting comfortably inside that window — effective from roughly 300 kHz up to about 30 MHz depending on package parasitic inductance. That makes it a natural companion to the ubiquitous 100nF (0.1µF) bypass cap: run them in parallel and you cover a broader noise spectrum with lower combined impedance.

In practical designs, splitting decoupling duties between a 0.1µF ceramic cap and a larger tantalum or electrolytic capacitor (such as 10µF) provides coverage across both high and low frequencies. A 47nF can fill the gap between these two values or substitute for the 100nF when a slightly higher self-resonant frequency target is needed.

Self-Resonant Frequency and the 47nF Capacitor

Every capacitor has a self-resonant frequency (SRF) — the point where it transitions from behaving capacitively to behaving inductively. Below the SRF it decouples noise; above it, it actually increases impedance and makes things worse. For a 47nF capacitor, the SRF varies significantly by package:

Package	Typical Parasitic Inductance (ESL)	Approx. SRF for 47nF
Through-hole disc (5mm pitch)	~5 nH	~10 MHz
0805 SMD MLCC	~1.5 nH	~19 MHz
0402 SMD MLCC	~0.5 nH	~33 MHz
0201 SMD MLCC	~0.3 nH	~42 MHz

The lesson here: if your circuit operates above 10 MHz and you’re using through-hole 47nF caps for bypass duty, you may be doing more harm than good. Switch to 0402 or 0402 SMD and the same capacitance becomes effective at nearly four times the frequency.

RC Filter Frequencies: What Can You Build with a 47nF Capacitor?

The basic RC filter formula is f = 1 / (2π × R × C). With C fixed at 47nF (0.000000047 F), here’s what different resistor values produce:

Resistor Value	Calculated Cutoff Frequency (-3dB)	Practical Application
100 Ω	~33.9 kHz	Audio low-pass, ultrasonic filter
470 Ω	~7.2 kHz	Audio high-frequency rolloff
1 kΩ	~3.4 kHz	Active crossover mid-to-tweeter region
3.3 kΩ	~1.02 kHz	Bass-mid crossover region
10 kΩ	~338 Hz	Sub-bass filtering
33 kΩ	~102 Hz	Low-frequency power line rejection
100 kΩ	~33.9 Hz	DC-blocking at near-DC frequencies

These values make the 47nF a practical choice in active op-amp filter stages where the resistors are setting the gain and frequency simultaneously.

PCB Layout Best Practices for 47nF Decoupling Capacitors

This is where a lot of otherwise solid designs fall apart. Getting the capacitor value right is only half the job — placement determines whether that 47nF actually does anything useful in the circuit.

Placement Distance Matters More Than You Think

Ideally, place decoupling capacitors within 1–2 mm of the IC power pin. For high-speed ICs such as microcontrollers or FPGAs, this distance is even more critical. Long, narrow traces introduce additional inductance, which reduces the capacitor’s ability to respond to rapid current changes.

Every extra millimeter of trace between a 47nF bypass cap and an IC power pin adds roughly 1 nH of parasitic inductance. At 50 MHz, 1 nH of inductance has an impedance of ~0.31 Ω — small by DC standards, but enough to allow meaningful voltage bounce at the IC’s power pins during fast edge transitions.

Via Strategy for SMD 47nF Caps

When using vias to reach the power plane, connect the capacitor to the component pin first, then to the via — this ensures current flows through the capacitor before hitting the plane. The reverse arrangement (via first, then cap) means transient current from the IC hits the plane inductance before it can be shunted to ground by the cap. It’s a subtle distinction that shows up in EMC pre-compliance testing as unexplained emissions.

Using Multiple 47nF Capacitors in Parallel

Using multiple capacitors arranged in parallel provides lower effective series inductance, which is more effective than relying on a single capacitor of equivalent total capacitance. Two 47nF caps in parallel give 94nF total but — more importantly — they cut the combined ESL roughly in half, pushing the effective SRF higher and widening the useful noise-rejection bandwidth.

Separating Analog and Digital Grounds

Decoupling capacitors are also effective for isolating analog and digital signals — this can be achieved by connecting a capacitor between the AC signal and the digital PCB ground pour. On mixed-signal boards, place 47nF ceramic caps at the boundary between analog supply rails and digital supply rails to prevent fast digital switching noise from coupling back into sensitive analog circuits.

Common Applications of the 47nF Capacitor Beyond Decoupling

EMI/RFI suppression in switching power supplies: High-voltage multilayer capacitors at high frequencies exhibit low ESR and find conventional use as snubbers or filters in applications used in telecommunications, medical, military, and aerospace equipment. A 47nF cap rated at 250V or 400V placed across MOSFET drain-source junctions or diode junctions in a switching converter can dramatically reduce ringing and radiated emissions.

Timing circuits: Paired with a 47kΩ resistor, a 47nF cap gives an RC time constant of approximately 2.2 ms — a common value in timer and oscillator circuits built around the 555 timer IC or RC oscillator stages in op-amp-based designs.

Signal coupling in audio stages: A 47nF polyester or polypropylene cap in series with an audio signal path provides a highpass characteristic with a -3dB point determined by the downstream impedance. In a line-level stage driving a 10kΩ input, 47nF sets the corner at about 338 Hz — useful for eliminating low-frequency rumble or DC offset between gain stages.

Snubber circuits: The 47nF film capacitor is used in snubber circuits to reduce switching noise in power circuits. Paired with a series resistor, it absorbs the energy stored in parasitic inductance during switch transitions, suppressing voltage spikes that would otherwise stress MOSFETs and IGBTs.

Useful Resources for 47nF Capacitor Selection and Design

• 3-Digit Capacitor Code Calculator: kiloohm.info/3-digit-capacitor/473 — Decode or encode any 3-digit capacitor code instantly
• Murata SimSurfing: product.murata.com/en-global/tools/simsurfing — Model impedance vs. frequency curves for real Murata MLCC parts including 47nF values; invaluable for SRF planning
• KEMET Component Database: kemet.com — Detailed datasheets and SPICE models for ceramic and film capacitors
• TDK Product Selector: product.tdk.com — Broad MLCC catalog with package and dielectric filtering
• Altium Decoupling Design Guide: resources.altium.com — Practical PCB placement guidelines from an EDA tools perspective
• IPC-2141A Standard — Defines controlled impedance and power distribution network (PDN) design rules relevant to decoupling strategy

Frequently Asked Questions About the 47nF Capacitor

Q1: What is the value of a capacitor marked 473? Code 473 decodes as 47 × 10³ pF = 47,000 pF = 47 nF = 0.047 µF. All four expressions describe the same capacitance. When searching supplier catalogs, you’ll encounter all of these notations used interchangeably, so knowing the equivalents saves time and prevents ordering errors.

Q2: What is the difference between a 47nF decoupling capacitor and a bypass capacitor? The terms are often used interchangeably, but they address slightly different problems. A decoupling capacitor isolates a section of circuit from noise on the shared power distribution network. A bypass capacitor specifically routes high-frequency noise directly to ground at the power pin of a single IC. In practice, a 47nF ceramic cap placed between VCC and GND at an IC power pin is performing both functions simultaneously.

Q3: Is X7R or C0G a better dielectric for a 47nF decoupling capacitor? For pure decoupling duty on a digital power rail, X7R is perfectly adequate and more cost-effective. The capacitance drift with temperature and voltage doesn’t matter much when you’re just shunting noise to ground. Where C0G earns its premium is in precision RC filters, timing circuits, and analog signal paths where stable, predictable capacitance is critical. Use X7R for bypass, C0G for precision.

Q4: How close does a 47nF bypass capacitor need to be to the IC power pin? The standard guideline is within 1–2 mm of the power pin. Beyond that distance, trace inductance starts to degrade the capacitor’s effectiveness at high frequencies. For ICs with switching edges faster than 1 ns, every extra millimeter matters. In BGA-packaged devices, via-in-pad or backside placement of bypass caps is often the only way to get close enough.

Q5: Can I substitute a 47nF capacitor with two 22nF capacitors in parallel? Yes — two 22nF caps in parallel give 44nF, which is within K-grade (±10%) tolerance of the nominal 47nF value. More usefully, the parallel arrangement halves the effective ESL, which raises the combined SRF. In high-frequency bypass applications, this two-cap arrangement often outperforms a single 47nF part. Just make sure both caps share the same via connections to the power and ground planes.

From reading the 473 code correctly to placing the part within 1mm of an IC power pin, the 47nF capacitor rewards engineers who understand what it’s actually doing. It’s not the most glamorous component on the BOM — but get its placement and dielectric selection wrong, and your otherwise clean design will fail EMC pre-compliance for reasons that aren’t immediately obvious.
