This guide covers everything a working PCB engineer needs to know about the 2200uF capacitor — from why this specific value exists in the E6 series, through ESR and ripple current selection, to layout best practices and the particular demands of audio and power amplifier applications.

What Is a 2200uF Capacitor and Why This Value?

A 2200uF capacitor stores 2200 microfarads of charge — 2.2 × 10⁻³ farads. It belongs to the E6 preferred number series, which is why the value reads 2200 rather than the rounder 2000. The EIA Standards Committee defined these preferred values decades ago to allow electronic component manufacturers to cover the full range of practical capacitance values with minimum overlap, which is why you see 1000µF, 2200µF, 4700µF, and 10,000µF as the natural progression rather than 1000, 2000, 4000, 10,000.

In practical terms, 2200uF lands in the sweet spot for single-supply linear regulator filtering and medium-power audio amplifier power supply rails drawing currents in the 500mA to 3A range. Below this value — say, 1000µF — ripple becomes significant at these load currents. Above 4700µF you start paying a serious penalty in physical size, board footprint, and cost for diminishing returns in many applications. The 2200uF capacitor resolves that tradeoff cleanly for a wide range of real-world designs.

A 2200uF electrolytic typically measures anywhere from 10mm × 20mm to 16mm × 25mm in a radial through-hole package, depending on voltage rating. Surface-mount polymer types at 2200µF in lower voltage ratings are considerably smaller but command a significant price premium. For most linear PSU and amplifier work, radial through-hole aluminum electrolytic is the dominant form factor you’ll encounter and specify.

How the 2200uF Capacitor Works as a Reservoir Capacitor

Smoothing Rectified DC in Linear Power Supplies

In a transformer-based linear power supply, the bridge rectifier output is pulsating DC — not clean rail voltage. A full-wave rectified waveform from a 50Hz mains supply has ripple valleys at 100Hz intervals; at 60Hz mains, the ripple frequency doubles to 120Hz. The reservoir capacitor charges to the peak voltage during each half-cycle and then partially discharges into the load during the interval before the next peak arrives. The ripple voltage produced by this discharge is the core quantity you’re designing against.

The standard reservoir capacitor sizing equation is:

C = I × Δt / ΔV

Where:

• C = capacitance in farads
• I = DC load current (amps)
• Δt = discharge interval (0.01s at 50Hz, 0.0083s at 60Hz for full-wave rectified)
• ΔV = acceptable peak-to-peak ripple voltage

Working through the numbers for a 1A load, 50Hz full-wave rectified, with 2V of ripple tolerance: C = 1 × 0.01 / 2 = 0.005F = 5,000µF. That’s why 2200uF is often used in multiples of two, or why you’ll frequently see two 2200uF caps in parallel for a 4,400µF effective reservoir in a 1A linear supply. Single 2200uF at 1A load produces roughly 4.5V of ripple from a 50Hz source — workable when a downstream linear regulator with adequate dropout voltage absorbs it, impractical for an unregulated rail feeding sensitive circuitry directly.

Secondary Rail Filtering After the Regulator

Once a linear regulator — a 7812, LM317, or LDO equivalent — handles the bulk rectifier output, a 2200uF capacitor often appears at the regulator’s output as well. This output cap serves a different function than the reservoir cap. Its job is transient response: supplying current to the load during the brief interval between a sudden load step and the moment the regulator’s error amplifier can respond and increase output current. Most linear regulators have response times in the 10µs to 100µs range. A 2200uF cap can supply a 1A transient for approximately 2.2ms before voltage drops by 1V — enough headroom in most practical designs to keep the output rail stable during sudden load changes.

2200uF Capacitor Types: Aluminum Electrolytic, Polymer, and What to Use Where

Not all 2200uF capacitors perform identically, and the differences between construction types are not subtle at these capacitance levels. Here is the full comparison across the types you’ll actually encounter at 2200µF:

Type Comparison Table: 2200uF Capacitors

Type	Typical ESR	Voltage Range	Ripple Current	Polarity	Primary Use Case
Standard Aluminum Electrolytic	0.1Ω – 3Ω	6.3V – 450V	Low–moderate	Polarized	Linear PSU reservoir, audio rail
Low-ESR / Long-Life Aluminum	0.05Ω – 0.5Ω	16V – 100V	Moderate	Polarized	Regulated supply output, quality audio
Polymer Aluminum	10mΩ – 80mΩ	2.5V – 100V	High	Polarized	SMPS output, VRM, high-ripple rails
Snap-In Can Electrolytic	0.05Ω – 0.2Ω	25V – 450V	High	Polarized	Mains-fed amplifier reservoir, industrial

Standard Aluminum Electrolytic at 2200uF

The commodity standard aluminum electrolytic is the workhorse of linear power supplies at this capacitance value. Its strengths are wide voltage availability, low cost, and decades of reliable field history in properly derated applications. Its weaknesses are ESR (which can run from 0.5Ω to 3Ω in general-purpose grades), temperature sensitivity, and finite life driven by electrolyte evaporation.

A critical engineering reality with large-value aluminum electrolytics: ESR increases over time as the electrolyte ages. ESR rising to 2× or 3× its original value may not show up as a measurable capacitance drop — standard capacitance meters will still report 2000µF to 2400µF — but the increased ESR shows up as higher ripple voltage and internal heating. Many failed PSU designs are traced to capacitors that measured “fine” on capacitance but had severely degraded ESR. Use an ESR meter, not a standard LCR meter, when troubleshooting aging electrolytics.

Low-ESR Long-Life Aluminum Electrolytic at 2200uF

The step up from general-purpose to low-ESR, 105°C-rated aluminum electrolytic is small in cost and large in reliability. Brands like Panasonic FC, Nichicon HE, and Rubycon ZLJ occupy this tier. ESR in the 50–200mΩ range is typical, ripple current ratings are substantially higher, and rated lifetime at 105°C is typically 3,000–10,000 hours versus 1,000–2,000 hours for basic 85°C parts.

In any design running above room temperature, near heat-generating components, or in an enclosed case, the difference between an 85°C and 105°C rated 2200uF electrolytic is not a minor spec detail — it can mean the difference between 18 months of service life and 10 years. The 10°C lifetime halving rule is well established: a capacitor rated at 1,000 hours at 85°C run at 75°C gets approximately 2,000 hours. At 65°C, approximately 4,000 hours. Temperature derating is your most powerful reliability tool with aluminum electrolytics.

Polymer Aluminum at 2200uF

Polymer capacitors use a solid conductive polymer electrolyte instead of liquid, eliminating the dry-out failure mode and dramatically reducing ESR — typically to 10–80mΩ at a 2200µF value. This makes them the right choice for SMPS output filtering, VRM designs on processor boards, and any application where ripple current is high and ESR-driven voltage ripple must be minimized.

In audio power supply applications, some engineers prefer polymer 2200uF caps on regulated rails precisely because the low ESR keeps output impedance low across a wider frequency range than a wet electrolytic can manage. The tradeoff is that some LDO regulators require a minimum ESR on the output capacitor for stability — more on that below.

Snap-In Can Electrolytic at 2200uF

For mains-fed amplifier supplies operating at 50V, 63V, or higher voltage rails, snap-in can electrolytics are the practical choice at 2200µF. Their large physical construction handles higher ripple current ratings than standard radial parts, and snap-in lead format allows them to be soldered directly to heavy-gauge PCB traces or to mounting brackets. If you’re building a class AB amplifier power supply or a bench linear PSU with ±35V to ±60V rails, 2200uF snap-in cans from Kemet PEH169, Nichicon LGU, or Vishay 056 series are appropriate.

Voltage Ratings for 2200uF Capacitors: Derating Is Non-Negotiable

The single most impactful reliability decision when specifying a 2200uF capacitor is voltage rating. The rule of thumb experienced engineers apply without exception: derate operating voltage to no more than 50–67% of the rated voltage.

Running an electrolytic at or near its rated voltage accelerates dielectric stress and leakage current, dramatically shortening service life and increasing failure probability. At 2200µF the physical size penalty for selecting a higher voltage rating is real but almost always worth the reliability gain.

2200uF Voltage Rating Selection Guide

Operating Rail Voltage	Minimum Cap Rating	Preferred Rating	Notes
5V	10V	16V	Standard digital supply
12V	25V	35V	PC power, industrial
15V (amplifier rail)	25V	35V or 50V	Audio amplifier common rail
24V	50V	63V	Industrial control supply
35V (amplifier rail)	63V	80V or 100V	Class AB amplifier
48V	100V	160V	Telecom, pro audio rack
Mains rectified 120VAC	200V	250V	Transformer PSU
Mains rectified 240VAC	350V	400V or 450V	Transformer PSU

Note that “operating rail voltage” is the nominal regulated or rectified output — not the peak rectified input voltage. For an unregulated rectifier output, the peak voltage is the transformer secondary RMS voltage multiplied by 1.414. A 25V RMS winding produces approximately 35V peak DC before dropout. Your 2200uF reservoir cap must be rated for that peak, not the RMS winding voltage.

ESR and Ripple Current: The Two Parameters That Actually Matter

Capacitance value alone doesn’t determine whether a 2200uF capacitor will perform reliably in a given power supply application. ESR and ripple current rating are equally important and are frequently underspecified in budget designs.

How ESR Affects Ripple and Heat in 2200uF Applications

ESR (Equivalent Series Resistance) is the total internal AC resistance of the capacitor — contributions from the electrolyte’s ionic resistance, the aluminum foil electrode resistance, and terminal lead resistance. At the frequencies relevant to linear power supply filtering (100Hz–120Hz ripple from rectification), ESR directly adds to output ripple voltage:

ΔV_ESR = I_ripple × ESR

A 2200uF electrolytic with 500mΩ ESR carrying 500mA of ripple current contributes 250mV of ESR-driven ripple — on top of whatever capacitive ripple the 2200µF capacitance produces at that frequency. In a tightly regulated supply this might be absorbed by the regulator. In an unregulated rail feeding an audio output stage, it appears directly in the supply noise floor.

ESR also governs internal heating. Power dissipated inside the capacitor is:

P = I²_rms × ESR

At 500mA RMS ripple current and 500mΩ ESR, that’s 125mW of internal heat in a component sitting on a PCB inside an enclosure. Over time this heat drives electrolyte evaporation, which raises ESR further, which generates more heat — a positive feedback loop that ends in capacitor failure. The ripple current rating in the datasheet defines the maximum continuous RMS current the cap can handle while staying within its maximum rated core temperature rise. Always design to keep actual ripple current below the rated value, with a derating of at least 1.5× for reliability.

ESR Benchmark Table: 2200uF Capacitors at 100Hz and 100kHz

Series / Type	ESR at 120Hz	ESR at 100kHz	Ripple Current Rating	Lifetime at 105°C
General-purpose 85°C aluminum	0.5Ω – 3Ω	2Ω – 8Ω	0.5A – 1.5A	1,000–2,000h
Low-ESR 105°C aluminum (e.g., Panasonic FC)	50mΩ – 200mΩ	200mΩ – 800mΩ	1.5A – 3A	3,000–10,000h
Polymer aluminum (e.g., Panasonic FR)	10mΩ – 50mΩ	10mΩ – 80mΩ	3A – 8A+	5,000–15,000h
Snap-in can (e.g., Nichicon LGU)	30mΩ – 150mΩ	100mΩ – 500mΩ	2A – 5A	3,000–10,000h

The table makes the case for low-ESR and polymer types clearly. For applications with meaningful ripple current, the cost premium of Panasonic FC or equivalent is recovered many times over in extended service life and lower output ripple.

The 2200uF Capacitor in Audio Amplifier Power Supplies

Why Amplifier PSUs Demand High Capacitance

Audio amplifiers — particularly class AB designs driving 4Ω or 8Ω loads — draw current in pulses synchronized to the audio waveform. At low frequencies (20Hz–200Hz), the amplifier output stage demands significant current for extended half-cycles. Without adequate rail capacitance, the supply rail sags during these current peaks, reducing available headroom and introducing supply-modulated distortion into the audio signal.

The rule of thumb used in DIY and professional audio amplifier design is approximately 10,000µF per ampere of peak output current per rail, sized for the lowest frequency the amplifier must reproduce cleanly — typically 20Hz. This is why serious audio amplifiers use large banks of capacitors in parallel. A common approach for a 50W/8Ω class AB amplifier with ±35V rails draws peak currents of around 2–3A, calling for 20,000µF–30,000µF per rail in a pure theoretical model. In practice, output stage capacitors combined with the transformer’s own regulation handle a portion of this, so real-world designs often use 4× to 8× 2200uF caps per rail rather than single enormous cans.

Paralleling Multiple 2200uF Capacitors for Amplifier Rails

Paralleling 2200uF capacitors instead of using a single large-value can has concrete advantages that experienced audio amplifier engineers prefer. Five paralleled 2200uF 50V Panasonic FC capacitors (11,000µF total) produce approximately 12.4A of combined ripple current rating — which measurably outperforms a single 10,000µF 63V wet aluminum can from most manufacturers at around 9–10A. You also get lower ESL through the parallel combination, which improves transient response. Physical layout is more flexible — a bank of standard 2200uF radial cans can be arranged to minimize lead inductance to the rectifier and load connection points.

The caution with paralleling: increasing total reservoir capacitance increases inrush current at power-on, since a larger capacitor bank draws a larger charging surge from the rectifier bridge and transformer. In designs with large parallel capacitor banks, a soft-start NTC thermistor in series with the AC primary, or a dedicated inrush limiting circuit, prevents repeated stress on the rectifier bridge and transformer at each power cycle.

Audio-Specific Brand Considerations for 2200uF Capacitors

Not all 2200uF electrolytics sound the same in audio power supply applications — a claim that generates debate, but one with a measurable root cause. Different capacitor series have different ESR profiles across frequency, different lead inductance, and different self-resonant frequencies. Capacitors with higher inductance in their winding structure have degraded high-frequency impedance, which means supply noise at frequencies above the self-resonant frequency passes through to the audio stage more freely.

Well-regarded series for audio amplifier power supply use at 2200µF include Panasonic FC (a consistently specified low-ESR part widely used by DIY and professional amplifier builders), Nichicon KW and HE series, and Rubycon ZLJ. These parts combine low ESR, high ripple current ratings, and 105°C temperature ratings that make them appropriate for the demanding thermal environments inside amplifier chassis.

PCB Layout Best Practices for 2200uF Capacitors

The component specification is only half the engineering problem. Getting a 2200uF capacitor to perform as intended depends heavily on PCB layout decisions that are easy to get wrong.

Keep the reservoir cap close to the rectifier output. Every millimeter of PCB trace between the rectifier bridge and the 2200uF reservoir cap adds inductance that slows the charging current. In a well-designed linear PSU PCB, the bridge rectifier and reservoir capacitors are grouped together with short, wide copper connections. For a detailed walkthrough of how capacitors interact with PCB layout and power distribution design, reviewing established PCB engineering guidelines before finalizing your layout is time well spent.

Use short, wide traces with a solid ground plane. A narrow 0.5mm trace might carry the current in steady state but will show inductive behavior during transient current demands. For 2200uF capacitor applications carrying more than 500mA, traces should be at minimum 2–3mm wide, with ground return paths kept equally wide. On multilayer boards, the ground return for bulk capacitors should connect directly to the ground plane via multiple vias.

Two ground vias minimum per 2200uF cap. Each PCB via carries approximately 0.3–1nH of parasitic inductance. In low-frequency linear supply applications this rarely matters, but in mixed-supply designs where a 2200uF cap is also serving audio bypass duties, minimizing parasitic inductance keeps the cap effective at higher frequencies. Two vias in parallel halves via inductance.

Never place a 2200uF electrolytic directly next to a heat source. Switching transistors, rectifier diodes, and power resistors all radiate heat. An electrolytic sitting in the thermal shadow of a dissipating component runs hotter than the ambient temperature, accelerating the electrolyte aging that ultimately kills it. Leave at least 5mm clearance from heat-generating components and use a thermally aware layout that directs heat away from capacitor zones.

Mark polarity unambiguously in silkscreen. Reversed polarity on a 2200uF aluminum electrolytic does not produce a graceful failure. It produces a venting capacitor, potentially a detonation, and definitely a failed board. Silkscreen marking and a PCB footprint with a clearly asymmetric land pattern — where the negative pin pad is chamfered or distinctively shaped — prevent costly assembly errors.

Common Applications of the 2200uF Capacitor

Application	Construction Type	Key Parameter	Notes
Linear PSU main reservoir (500mA–2A load)	Low-ESR 105°C aluminum	Voltage rating, ripple current	Often in parallel pairs
Audio amplifier rail per-channel (50W class AB)	Low-ESR 105°C or snap-in	ESR, ripple current, lifetime	Parallel banks common
LDO regulator output filter	Low-ESR aluminum or polymer	ESR range per datasheet	Check LDO ESR requirement
Post-rectifier RC filter capacitor	Standard aluminum	Voltage rating	Downstream of main reservoir
Motor driver supply bulk cap	Polymer or low-ESR	High ripple current	Repetitive transient stress
Industrial 24V/48V supply rail buffer	Snap-in can	Voltage rating, high temp	105°C rated minimum

Useful Resources for Engineers Working with 2200uF Capacitors

These databases and tools are directly useful when specifying or troubleshooting 2200uF capacitor applications:

Panasonic Capacitor Selector — industrial.panasonic.com: Filter by capacitance, voltage, ESR, ripple current, and series. The FC and FR series in 2200µF are well-documented and widely stocked.

Nichicon Product Search — nichicon.co.jp/english/products/alm_elec: Comprehensive ESR tables and lifetime graphs across temperature for HE, KW, and LGU series in 2200µF.

Rubycon Capacitor Catalog — rubycon.co.jp/en/catalog: ZLJ and ZLH series are highly regarded for audio and power supply applications; full ESR and ripple current specifications available.

Kemet Capacitor Finder — kemet.com/en/us/products/capacitors/aluminum-electrolytic.html: PEH169 series is excellent for high-voltage mains-fed amplifier reservoir applications; robust construction and high ripple current ratings.

Würth Elektronik REDEXPERT — we-online.com/redexpert: Impedance versus frequency simulation including temperature variation; useful for visualizing how a 2200uF electrolytic behaves across the audio and power supply frequency range.

Electronics Tutorials — Capacitor Characteristics — electronics-tutorials.ws/capacitor/cap_3.html: Thorough explanation of working voltage, ESR, tolerance, and leakage current parameters in practical language.

Digikey Parametric Search for 2200uF Capacitors — digikey.com/en/products/filter/aluminum-electrolytic-capacitors: Cross-reference pricing, stock, temperature rating, and ESR across multiple brands and voltage ratings simultaneously.

5 Frequently Asked Questions About 2200uF Capacitors

Q1: Can I parallel two 2200uF capacitors to get 4400uF, and is it better than buying a single 4700uF?

Yes, paralleling two 2200uF caps gives you 4400µF — close to the standard 4700µF value. In many cases this is actually preferable to a single 4700µF for two reasons. First, the parallel combination halves ESR and roughly halves ESL, improving transient response and high-frequency impedance. Second, if one of the pair degrades, the circuit continues to function with degraded but not catastrophic performance. The caution: paralleling two capacitors of different types (say, one low-ESR and one general-purpose) creates an unequal ESR distribution that can cause the higher-ESR cap to carry disproportionately less ripple current — check that both caps are matched in type and series for consistent current sharing.

Q2: My 2200uF capacitor gets warm during operation. How warm is too warm?

The capacitor surface temperature should not feel uncomfortably hot to touch — a rough threshold of approximately 60°C surface temperature is a practical warning level for standard 85°C-rated parts. If the capacitor surface feels distinctly hot rather than warm, either the ripple current exceeds the rating, ESR has risen due to aging, or the ambient temperature is pushing the internal temperature above the component’s limit. Measure the actual ripple current with a clamp meter or inline shunt and compare to the datasheet ripple current rating. If the capacitor has been in service for years, check ESR directly with an ESR meter before attributing the heat to a design fault — the cap itself may be degraded.

Q3: Why does my LDO regulator oscillate when I use a 2200uF polymer capacitor at its output?

Many linear regulator designs — particularly older bipolar LDO types — rely on the output capacitor’s ESR to provide a frequency compensation zero in the feedback loop. A polymer 2200uF cap with 20–30mΩ ESR places that zero at a much higher frequency than a standard electrolytic would, removing the compensation effect and causing the regulator to oscillate. The fix is either to use a standard low-ESR aluminum electrolytic within the ESR range specified in the LDO datasheet, or to add a small series resistor (typically 0.1Ω to 1Ω) in series with the polymer cap’s positive terminal to synthesize the required ESR. Always check the output capacitor ESR range in the regulator datasheet — it is not optional information.

Q4: How long should a 2200uF 105°C electrolytic capacitor last in a typical amplifier power supply?

Electrolytic capacitor lifetime follows the Arrhenius equation — a 10°C reduction in core temperature doubles the operating lifetime. A 105°C-rated 2200uF cap with a 5,000-hour base rating at maximum temperature, operating in an amplifier where the capacitor core temperature reaches 70°C (a realistic figure for a well-ventilated chassis), theoretically extends to approximately 80,000 hours — nearly a decade of continuous operation. In practice, the real life depends on ripple current loading, actual ambient temperature, and manufacturing quality. Premium parts from Nichicon, Panasonic, and Rubycon running within their ripple current ratings at realistic temperatures routinely last 10–20 years in quality audio equipment. Budget general-purpose 85°C parts in the same conditions may fail in 3–5 years.

Q5: Can I replace a failed 2200uF 35V electrolytic with a 2200uF 50V part of the same physical dimensions?

Yes — a higher voltage rating on the same capacitance value is always a safe substitution provided the physical dimensions fit the PCB footprint and the component doesn’t touch adjacent parts or the chassis wall. Higher voltage rating means a thicker dielectric layer, which typically results in slightly lower capacitance per unit volume — but since you’re maintaining the same 2200µF value, this doesn’t apply here. The practical catch is physical size: a 2200uF 50V cap is physically larger than a 2200uF 35V cap in most series. Verify the replacement’s diameter and height against the available clearance before ordering. In many recapping situations, a slightly taller cap that still clears the PCB confines is perfectly acceptable.

Summary

The 2200uF capacitor is one of the most frequently specified values in linear power supply and audio amplifier engineering for well-justified reasons. It hits the right capacitance level for reservoir duties in medium-current supplies, provides meaningful bulk storage for audio rail bypassing, and scales practically in parallel banks for higher-demand applications. Selecting the right construction — standard aluminum electrolytic for cost-sensitive general-purpose use, low-ESR 105°C aluminum for quality power supplies and audio, polymer for high-ripple and long-life applications, and snap-in can for high-voltage mains-fed designs — matters as much as the 2200µF capacitance value itself. Correct voltage derating, ESR verification against the application requirements, careful ripple current budgeting, and disciplined PCB layout will ensure this component serves reliably across years of continuous operation.

Verify all component specifications against current manufacturer datasheets before finalizing any design. Component series, availability, and ratings change — the resources listed above are recommended starting points for your own verification process.

A PCB engineer’s complete guide to the 1000uF capacitor — covers power supply reservoir sizing, ripple current calculations, ESR selection, audio amplifier design rules, voltage derating, and PCB layout tips. Includes worked examples and comparison tables.

If you’ve ever cracked open a class AB amplifier or a linear bench supply and spotted those tall, fat cylinders sitting right after the bridge rectifier — those are your 1000uF capacitors at work. They’re the workhorses of bulk energy storage in power electronics: large enough to hold meaningful charge between rectifier cycles, robust enough to handle the ripple current that comes with real-world loads, and cheap enough that engineers have been specifying them liberally for decades.

But “big cap, put it after the rectifier” is only half the story. Choosing the right 1000uF capacitor for your application requires understanding ripple current ratings, ESR behavior, voltage derating, temperature life calculations, and the physical placement decisions that make a difference between a power supply that runs clean for ten years and one that starts bulging caps in eighteen months. This guide covers all of it — written from the bench, not from a marketing brochure.

What Makes a 1000uF Capacitor Different from Smaller Values?

At 1000 microfarads, you’ve crossed into “bulk reservoir” territory. This is a capacitor that stores a meaningful amount of joules — at 50V, a 1000uF cap holds 1.25J of energy (E = ½CV²). That’s the energy that keeps your amplifier’s output stage fed between mains cycles when the rectifier diodes aren’t conducting, which is roughly 90% of the time in a typical capacitor-input supply.

The key difference between a 100uF and a 1000uF in a power supply isn’t just that you have ten times more smoothing. It’s that the 1000uF cap can supply a sustained high current for longer before the voltage droops significantly. In audio amplifiers, where a bass transient can demand a short burst of several amperes, that reserve capacity is what separates an amplifier that clips gracefully from one that sags audibly on low-frequency peaks.

A well-known rule of thumb in amplifier design is 2,000uF per amp of load current for the main reservoir. By that metric, a 1000uF cap is the entry point for 500mA supplies, and two 1000uF caps in parallel covers a 1A supply with margin to spare.

How a 1000uF Capacitor Works as a Reservoir

The mechanism is straightforward but worth being precise about. A full-wave rectified supply from a 50Hz transformer produces a 100Hz pulsating DC waveform. Each cycle, the voltage rises to the peak (Vpeak = VRMS × 1.414) and then decays. Without a reservoir capacitor, the output tracks this pulsation directly — essentially unusable for anything analog or sensitive.

With a 1000uF cap across the output, the capacitor charges to Vpeak during the brief conducting period of the diodes (typically just 1–2ms per half-cycle) and then discharges into the load for the remaining 8ms until the next charging cycle. The residual voltage variation is the ripple voltage, and you can estimate it with:

Vripple ≈ Iload / (f × C)

For a 1A load at 100Hz ripple frequency: Vripple = 1 / (100 × 0.001) = 10V of ripple

For a 500mA load, that drops to 5V — which is why 1000uF alone is not sufficient as the only filtering element in a precision supply. But feeding a downstream linear regulator that has 60dB+ of power supply rejection? That 5–10V of ripple gets crushed to sub-millivolt levels at the output. That’s the classic topology: 1000uF reservoir → LDO regulator → clean DC rail.

1000uF Capacitor in Audio Amplifier Power Supplies

Audio is where the 1000uF capacitor becomes genuinely interesting from an engineering standpoint, because the demands on the power supply are dynamic rather than static.

Why Audio Amplifiers Demand Large Reservoir Caps

A class AB amplifier draws current from the power supply in proportion to the output signal. During a loud bass note, the instantaneous current demand from both rails spikes dramatically. The reservoir capacitor has to supply this burst of current faster than the rectifier diodes and transformer can respond — and it has to do so with minimal voltage sag on the supply rails, because that sag modulates the output signal.

During and after a bass transient, the 100/120Hz ripple voltage can increase to as much as 1V — some of which leaks through and contaminates the signal, potentially perceived as a loss of sonic detail. This is why experienced audio engineers don’t treat the reservoir cap as a one-size-fits-all component: they size it specifically to the output power, rail voltage, and the acceptable rail modulation for the application.

How Much Capacitance Do Audio Amps Actually Need?

A practical rule of thumb is that 2,000uF is the minimum per amp of load current — so a supply that delivers 5A needs at least 10,000uF total. For a modest 20W amplifier running ±25V rails drawing a peak of roughly 2.5A per rail, you need a minimum of 5,000uF per rail — meaning two or three 1000uF caps in parallel per rail gets you in the ballpark, while four gives you real headroom.

However, bigger is not unconditionally better. Adding extra reservoir capacitance increases the peak charging current that flows through the diodes as the mains voltage approaches its peak, which increases dissipation in the transformer and rectifier. If the original design was sized tightly, wholesale upsizing of the reservoir caps without upgrading the diode bridge and transformer is poor engineering.

Paralleling 1000uF Capacitors

Putting two or more 1000uF caps in parallel is a standard practice in amplifier PSU design, and it offers benefits beyond just adding capacitance. Parallel capacitors share ripple current, halving the thermal stress on each individual component. They also combine to reduce effective ESR in proportion to the number of units — which directly reduces ESR-generated ripple voltage. Two 100mΩ ESR caps in parallel give you 50mΩ effective ESR on the combined capacitance of 2000uF.

High performance amplifier supplies may use multiple smaller capacitors in parallel to attain high capacitance while overcoming inductance and ESR limitations. This is cleaner engineering than a single massive cap, particularly at higher audio frequencies where ESL starts to dominate.

1000uF Capacitor Types and When to Use Each

Type	ESR Range	Ripple Current	Voltage Range	Best Application
Standard Aluminum Electrolytic	80–400 mΩ	Moderate	6.3V–450V	Budget reservoir, general PSU
Low-ESR / Audio Grade Electrolytic	30–100 mΩ	High	6.3V–100V	Audio amp supply rails
Polymer Aluminum	8–30 mΩ	Very High	2.5V–100V	SMPS output, class D amp PSU
105°C Long-Life Electrolytic	60–200 mΩ	Moderate–High	6.3V–450V	Industrial PSU, high-temp environments
Snap-In Electrolytic	30–100 mΩ	High	10V–450V	Large-format PCB reservoir, amplifier PSU

The choice between standard and low-ESR electrolytic is often glossed over, but it matters significantly in audio applications. Changing reservoir capacitors from general purpose types to high ripple current types can produce a noticeable improvement in amplifier performance — these have lower ESR at the cost of a higher price. Brands like Nichicon KW/KG, Panasonic FM, and Rubycon ZLH are the go-to “audio grade” electrolytic series that engineers reach for when the application justifies the price premium over generic types.

ESR: The Parameter That Matters as Much as Capacitance

ESR (equivalent series resistance) is the resistance in series with the ideal capacitance inside the component. In a 1000uF reservoir cap carrying 1A of ripple current, an ESR of 200mΩ produces 200mV of additional ripple voltage on top of the capacitance-limited ripple. Drop the ESR to 50mΩ with a polymer type and that contribution shrinks to 50mV. The formula is simple: V_ESR = I_ripple × ESR.

ESR also determines how much heat the capacitor generates internally: P = I²ripple × ESR. For a 1000uF electrolytic in a 3A-ripple-current environment with 150mΩ ESR, that’s 1.35W of internal heating. In a 70°C ambient environment, this thermal stress can cut capacitor life significantly — particularly in standard wet electrolytic types where every 10°C rise above rated temperature roughly halves operational lifespan.

ESR determines ripple voltage and power dissipation. High ripple currents with elevated ESR cause thermal stress and premature failure — lifespan approximately halves for every 10°C rise above rated temperature. This is why specifying the ripple current rating from the datasheet and comparing it against your circuit’s actual ripple current is not optional. It is a required step.

Voltage Derating for Long-Term Reliability

One of the most consistent causes of premature electrolytic failure in the field is insufficient voltage derating. An engineer picks a 1000uF/16V cap for a 12V rail, the supply has a 10% regulation tolerance and moderate transients on startup, and six months later the cap is bulging. The math tells the story: 12V nominal + 10% variation = 13.2V worst-case, leaving only 2.8V of headroom on a 16V cap — that’s less than 18% margin.

The standard practice for aluminum electrolytic capacitors is to derate to 80% of rated voltage maximum under worst-case conditions. For tantalum types, the traditional guidance is 50% derating — and it’s not conservative paranoia, it reflects the physics of MnO₂ tantalum failure modes.

Supply Rail	Minimum Electrolytic Voltage Rating	Notes
5V	10V	16V preferred for transient headroom
12V	25V	Common supply; 35V gives more margin
15V (audio)	35V	Dual supply, account for initial charge spike
24V	50V	Standard industrial rail
±35V (audio)	80V	High-power audio amp; 100V is safer
48V	100V	Telecom/PoE rails

PCB Layout for Large Reservoir Capacitors

A well-selected 1000uF cap placed poorly on a PCB is a partially wasted investment. The parasitic inductance of the copper path between the cap and the rectifier — or between the cap and the load — limits how quickly the cap can respond to transient current demands.

Understanding how capacitors interact with PCB layout at a fundamental design level — including trace width, via selection, and ground plane strategy — should inform your approach before placing any reservoir capacitor footprint.

The practical layout rules that actually matter are these:

Keep the reservoir cap in the rectifier-to-load loop, not scattered elsewhere. The return current path is just as important as the positive rail — both should be short, wide copper paths.

Use the largest through-hole footprint that fits your board. Snap-in terminals and large-can electrolytic packages have lower parasitic inductance in their leads than small axial types, and they’re physically more stable under vibration.

Don’t route sensitive signal traces past the reservoir cap. The charge/discharge pulses flowing in the cap’s ground and positive leads create magnetic fields. A 3A current pulse in a 5cm loop creates a measurable magnetic field that can couple into adjacent signal traces.

Pair the 1000uF with a 100nF ceramic bypass in parallel. The electrolytic is inductive above roughly 10–50kHz due to its construction. The ceramic handles the high-frequency transients that the electrolytic simply cannot respond to fast enough. This is non-optional in any switched-mode circuit; it’s strongly recommended in audio supplies too.

Calculating Reservoir Capacitance: Two Worked Examples

Example 1: 30W Class AB Audio Amplifier, ±25V Rails, 50Hz Mains

Peak rail current ≈ 1.5A per rail (30W into 8Ω, accounting for class AB efficiency) Target ripple: 3V (12% of 25V — acceptable for a pre-LDO stage or decent PSRR amplifier)

C = I / (f × Vripple) = 1.5 / (100 × 3) = 5,000uF per rail minimum

Five 1000uF/50V caps per rail covers this with zero margin; six gives a 20% safety buffer. A practical design would use 4x1000uF/50V caps per rail with low-ESR audio grade types.

Example 2: 5V/2A Linear Supply, 60Hz Mains

Target ripple: 500mV (10% of 5V)

C = 2 / (120 × 0.5) = 33uF minimum

A single 1000uF cap is massively over-specified here — which is fine and costs pennies. What you gain is a very small ripple (~17mV), excellent transient response, and a long operational life since the cap is lightly stressed. This is the correct engineering instinct: when in doubt in a low-cost, non-space-constrained design, use more capacitance.

Common Failure Modes and How to Prevent Them

Electrolyte dry-out is the dominant long-term failure mechanism in wet aluminum electrolytic capacitors. Operating temperature is the primary driver. Specify 105°C rated types in any enclosure that will regularly exceed 40°C ambient. Avoid placing reservoir caps near heat-generating power components without adequate spacing or thermal separation.

Ripple current overload causes internal self-heating independent of ambient temperature. The ripple current produces I²R losses in the ESR. Always compare the datasheet ripple current rating (at your operating frequency) against the actual ripple current in your circuit. A safety factor of 1.5× is a minimum; 2× is comfortable.

Polarity reversal in aluminum electrolytic and tantalum types causes irreversible damage. On dual-rail amplifier supplies, double-check that the negative rail capacitor has its positive terminal connected to the circuit’s negative rail (which sits at a negative voltage relative to ground). This catches out even experienced designers on occasion.

Initial inrush current on power-up can stress both the capacitor and rectifier diodes in high-capacitance supplies. Large reservoir caps draw a massive inrush current on first charge. If your design uses 10,000uF or more of total capacitance, consider a soft-start NTC thermistor or inrush limiter relay to protect the bridge rectifier and transformer.

Useful Resources for Engineers

These are the tools and references worth saving when working with 1000uF capacitors in power supply and audio applications:

• Nichicon Capacitor Catalog — nichicon.co.jp — Full parametric data for KW (audio grade), KG, and UHW series. Start here for audio amp reservoir cap selection.
• Panasonic Capacitor Selector — industry.panasonic.com — FM and FR series low-ESR electrolytics with SPICE model downloads.
• Rubycon Capacitor Series Guide — rubycon.co.jp — ZLH, YXF, and ZLJ series; preferred by many audio engineers for reservoir duty.
• DigiKey Parametric Search — digikey.com — Filter 1000uF caps by ESR, voltage, ripple current, temperature, and can diameter simultaneously. Fastest way to compare cross-vendor options.
• Mouser Electronics — mouser.com — Full datasheet access and cross-reference tool. Useful for comparing lead time and finding second-source equivalents.
• Vishay Ripple Current Application Note (LDACRIPP) — Downloadable PDF from vishay.com — Covers ripple current calculations for electrolytic and tantalum caps at 120Hz and 100kHz. Essential reading.
• Elliott Sound Products – Power Supply Design — sound-au.com — Rod Elliott’s detailed, no-nonsense treatment of transformer-rectifier-capacitor supplies for audio applications. Highly recommended.
• LTspice — Free from Analog Devices — Simulate your reservoir capacitor with realistic ESR and ESL parasitics before committing to a PCB layout. Models available from Nichicon, Panasonic, and others.

Frequently Asked Questions

Q1: Can I replace a 1000uF/25V with a 1000uF/50V capacitor?

Yes, always. A higher voltage-rated cap with the same capacitance is a drop-in replacement and will generally be more reliable due to reduced electrical stress on the dielectric. The only downside is that higher-voltage-rated electrolytics are physically larger, so verify the footprint fits before committing. There is no electrical disadvantage to using a higher voltage rating.

Q2: Is there a maximum capacitance for a reservoir cap in an amplifier?

There is no hard upper limit on capacitance value, but there are diminishing returns and real costs to oversizing. Beyond a certain point — above about 10,000µF with modern capacitor types, increasing capacitance delivers diminishing returns — and the inrush current on power-up increases as capacitance grows, which stresses the bridge rectifier and transformer secondary winding. Very large reservoir caps also extend the time required for the supply to reach full voltage after power-up, which can interact unexpectedly with soft-start and muting circuits in amplifiers.

Q3: What is the lifespan of a 1000uF electrolytic capacitor?

Datasheet ratings are typically given as hours at maximum temperature with maximum rated voltage and ripple current. A 105°C rated cap might be rated for 5,000 hours at full stress — but derate those conditions to 70°C ambient, 80% voltage, and 50% ripple current, and that figure can extend to 50,000+ hours. The 10°C halving rule means that thermal management is the single most effective lever for extending capacitor life in any real-world design.

Q4: My 1000uF capacitor has +/- 20% tolerance. Does that matter?

For reservoir and filtering applications, a 20% tolerance is perfectly acceptable — you’re not making a precision RC timing circuit. Whether the cap is 850uF or 1150uF in practice makes negligible difference to ripple voltage performance at this scale. Tolerance matters much more in signal-path coupling and timing applications. For power supply reservoir work, just ensure your minimum acceptable capacitance (the -20% worst case) still meets your ripple voltage requirement.

Q5: Should I use a 1000uF electrolytic or a combination of smaller caps in parallel?

In audio amplifier supplies, paralleling two or more smaller caps often outperforms a single large cap of equivalent total capacitance. Two 1000uF caps in parallel halve the effective ESR, distribute ripple current stress, and provide some redundancy against single-unit failure. The tradeoff is board area and cost. In cost-sensitive, space-constrained designs, a single 2200uF unit is the pragmatic choice. In high-quality audio work where ESR and ripple current handling matter, paralleled 1000uF units is the cleaner approach.

The 1000uF capacitor is the backbone of any serious linear power supply — and in audio amplifier design, it’s the component that determines how well your output stage handles the dynamic demands of real music at real levels. Get the ESR right, derate the voltage properly, size for your actual load current rather than guessing, and place it where it can actually do its job. Everything else in the supply chain depends on the reservoir cap doing its work cleanly.

Learn how a 470uF capacitor works in PSU filtering and ripple reduction. Covers key specs, ESR, voltage derating, SMPS vs linear regulator use, manufacturer comparison tables, and PCB placement tips for engineers.

If you’ve spent any time debugging a noisy power rail or tracing an unstable supply rail on an oscilloscope, you already know how much a single well-chosen 470uF capacitor can change everything. This value sits in a sweet spot — large enough to handle meaningful bulk decoupling and ripple smoothing, small enough to be practical in tight board layouts. Let’s break down exactly what makes this component tick, where it earns its place, and how to spec it correctly for your next design.

What Is a 470 µF Capacitor and Why Does This Value Matter?

A 470uF capacitor stores 470 microfarads of charge — roughly in the middle of the electrolytic range used for power supply work. It isn’t the smallest (that’s your 10–100 µF decoupling caps) and it isn’t the largest bulk storage cap you’ll find in a PSU (those go into the thousands of µF). What it is, however, is a reliable workhorse value stocked by every major distributor and manufactured to tight tolerances by dozens of vendors.

From a PCB design perspective, 470 µF is often the first value engineers reach for when they need to filter a rectified DC rail in a linear supply, smooth the output of a switching converter, or hold up a voltage rail during brief load transients. Its capacitance is substantial enough to deliver real low-frequency filtering without demanding excessive board real estate.

How the 470 µF Capacitor Works in PSU Filtering

The Basic Ripple Problem

When AC mains power is rectified — either half-wave or full-wave — what you get on the DC side is not a clean flat line. It’s a pulsating waveform riding the DC average. This AC variation riding on top of your DC supply is called ripple voltage, and it causes noise, instability, and in audio or analog circuits, audible hum.

The capacitor’s job is to charge up during the peaks of the rectified waveform and discharge into the load during the valleys, effectively “filling in” the gaps and smoothing the output.

Ripple Reduction Formula

The peak-to-peak ripple voltage across a filter capacitor can be estimated with:

V_ripple ≈ I_load / (f × C)

Where:

• I_load = load current in amps
• f = ripple frequency in Hz (100 Hz for full-wave rectification from 50 Hz mains, 120 Hz from 60 Hz)
• C = capacitance in farads

Plugging in a 470uF capacitor (0.00047 F) with a 100 mA load at 100 Hz:

V_ripple ≈ 0.1 / (100 × 0.00047) ≈ 2.1 V peak-to-peak

Increase to 1 A load and that ripple jumps to 21 V — which is why large PSUs use multiple capacitors in parallel, or step up to 1000 µF and beyond. But for moderate loads, 470 µF is often exactly right.

Key Specifications of a 470 µF Capacitor

When you pull a 470uF capacitor from a datasheet, these are the numbers that actually matter in real circuit design:

Parameter	Typical Range	Notes
Capacitance	470 µF ±20%	Most electrolytics are ±20% tolerance
Voltage Rating	6.3V – 450V	Match to your rail with margin
ESR (Equivalent Series Resistance)	0.02 – 2 Ω	Critical for ripple current handling
Ripple Current Rating	0.5 – 3 A RMS	Derate for temperature
Temperature Range	–40°C to +105°C	105°C grades preferred for PSU use
Leakage Current	< 0.01 × C × V	Increases with age and temperature
Lifetime	1,000 – 10,000 hrs at rated temp	Key reliability parameter
Package (Radial Through-Hole)	Ø6.3mm – Ø16mm × 11–25mm	Size varies with voltage rating
Package (SMD Polymer)	D, E, V case sizes	Lower ESR, more expensive

Voltage Rating: Always Derate

Never run a capacitor at its rated voltage. Standard practice is to derate by at least 20%, and many engineers use 50% derating in harsh or high-reliability designs. A 25V-rated 470uF cap on a 12V rail? Comfortable. A 16V-rated part on a 12V rail? Too tight — even a small transient can stress the dielectric.

ESR Is Not Optional Information

Low ESR is critical in switching power supply output stages. High ESR means more of the ripple current turns into heat inside the capacitor rather than being filtered. It also adds directly to your output ripple voltage:

V_ESR_ripple = I_ripple × ESR

For a 1A ripple current through a 470uF cap with 0.5 Ω ESR, that’s an additional 0.5 V of ripple you hadn’t planned for. Polymer electrolytic or OS-CON type capacitors offer ESR values an order of magnitude lower than standard aluminum electrolytics.

Common Applications of the 470uF Capacitor

Output Filtering in Linear Regulators

Linear regulators like the LM317 or 7805 series typically recommend a 0.1 µF ceramic on the output for high-frequency stability and a larger electrolytic — often 470uF — for bulk filtering and load transient response. Without the 470uF, the output may ring or sag during sudden load steps.

Bulk Decoupling in SMPS Designs

In flyback, buck, and boost converters, the output capacitor is responsible for both filtering the switching frequency ripple and supplying instantaneous current during load transients. The 470uF value appears frequently in 12V and 5V SMPS outputs for loads up to a few amps.

Audio Amplifier Power Rails

In class-AB amplifier PSUs, 470uF capacitors are used in pairs (for positive and negative rails) at the secondary side of the transformer. Larger values improve bass performance by reducing rail sag during high-current audio peaks.

Motor Driver Hold-Up Capacitance

On motor control boards, 470uF capacitors are placed close to the H-bridge or driver IC to absorb the current spikes that occur during PWM switching and motor commutation events.

PCB Design Considerations

Placement matters enormously. A capacitor on a PCB should be placed as close as possible to the IC or circuit it’s filtering — not on the other side of the board where trace inductance defeats its purpose. For through-hole electrolytics, keep the lead length short. The parasitic inductance of even a few centimeters of trace begins to limit filtering effectiveness above a few kHz.

470 µF Capacitor Specifications Comparison Table

Series	Manufacturer	Voltage	ESR (100 Hz)	Ripple Current	Temp Rating	Use Case
EEU-FM Series	Panasonic	6.3–100V	0.06–0.3 Ω	0.9–2.1 A	105°C	General PSU
UHW Series	Nichicon	16–100V	0.05–0.2 Ω	1.0–2.5 A	105°C	High ripple SMPS
860010672013	Würth	25–63V	0.08–0.25 Ω	0.8–1.8 A	105°C	Industrial
EEHZK Series	Panasonic (Polymer)	4–16V	< 0.018 Ω	2.5–4.0 A	105°C	Low ESR SMPS
UCS Series	Nichicon (Polymer)	6.3–16V	< 0.015 Ω	3.0–5.0 A	105°C	High-frequency SMPS

Useful Resources for Engineers

Here are some genuinely useful references when working with 470uF capacitors:

• Murata SimSurfing (https://ds.murata.co.jp/simsurfing/) — Impedance simulation tool for capacitors across frequency
• Panasonic Capacitor Selector (https://industrial.panasonic.com/ww/products/capacitors) — Full series datasheets and parametric search
• Nichicon Capacitor Products (https://www.nichicon.co.jp/english/products/) — UHW, UHE, and polymer series datasheets
• KEMET Spice Models (https://www.kemet.com/en/us/capacitors.html) — Downloadable SPICE models for simulation
• Würth Elektronik REDEXPERT (https://www.we-online.com/en/tools/redexpert) — Frequency-dependent impedance and ESR modeling
• IPC-A-610 — Acceptability of Electronic Assemblies standard, covers capacitor mounting inspection criteria

5 Frequently Asked Questions About the 470 µF Capacitor

Q1: Can I replace a 470uF capacitor with a higher value, like 1000uF? In most cases, yes — more capacitance generally means less ripple and better transient response. The exception is certain linear regulators that specify a maximum output capacitance due to stability concerns. Always check the datasheet of the driving IC before upsizing.

Q2: What voltage rating should I choose for a 12V supply? A 25V-rated 470uF cap gives you a comfortable 2× derating margin on a 12V rail. For higher reliability or industrial applications, a 35V rating is even safer and often the same price.

Q3: My 470uF capacitor is getting warm during operation — is that normal? Some warmth is normal due to ripple current flowing through ESR. Excessive heat (too hot to touch) indicates either the ripple current exceeds the cap’s rating, the ESR is too high, or the ambient temperature is too high. Measure the ripple current and compare to the datasheet rating.

Q4: How do I identify a failed 470uF electrolytic capacitor on a PCB? Physical signs include a bulging top vent, electrolyte leakage (brown or dried crust around the base), and in-circuit ESR measurement significantly above the datasheet value. An LCR meter or dedicated ESR meter is the most reliable diagnostic tool.

Q5: What’s the difference between a standard aluminum electrolytic and a polymer 470uF cap? Polymer capacitors use a conductive polymer electrolyte instead of liquid electrolyte. This gives them 5–20× lower ESR, much longer operating lifetime (especially at high temperatures), and immunity to dry-out failure. They cost more but are the right choice for high-frequency SMPS output filtering.

Final Thoughts

The 470uF capacitor is one of those components that doesn’t get much attention until something goes wrong — and when you’ve watched a power supply rail collapse under load because someone specified an undersized or poor-quality filter cap, you learn quickly to take it seriously. Spec for voltage with margin, pay attention to ESR and ripple current ratings, choose 105°C parts for any PSU application, and place them properly on the PCB. Do those things and this humble capacitor will quietly do its job for the lifetime of your product.

Complete guide to the 220uF capacitor — power supply filtering, audio coupling, ESR selection, voltage derating, and PCB layout tips from a circuit engineer’s view.

Every time you trace the power rail on an audio amplifier board or inspect the output stage of a switching regulator, there’s a solid chance a 220uF capacitor is sitting right where the work gets done. It’s not a glamorous value. It doesn’t grab headlines the way a 10,000µF bulk reservoir does. But the 220uF capacitor occupies a critical tier in power distribution networks and audio signal paths that few other values can cover as cleanly. This guide breaks down exactly how it works, when to use it, and how to choose the right one without making the common mistakes that kill circuits or shorten design life.

What Is a 220uF Capacitor?

A 220uF capacitor stores 220 microfarads of charge — 220 × 10⁻⁶ farads. It falls in the upper-mid range of the capacitance spectrum, large enough to act as meaningful bulk storage on local power rails, handle significant ripple current, and serve as a coupling element in audio paths — yet compact enough to appear across dense PCB layouts without dominating the real estate budget.

The 220µF value is part of the standard E6/E12 preferred number series and is one of the most widely stocked values in aluminum electrolytic, polymer, tantalum, and bipolar electrolytic construction types. As a PCB engineer, you’ll reach for a 220uF cap when a 47uF isn’t quite enough and a 470uF would be overkill for the local rail you’re trying to stabilize.

Its three most common jobs on a PCB are:

• Bulk capacitance on intermediate power rails to absorb current transients between the main supply and fast-switching loads
• Output filter capacitor on linear regulators and SMPS converters to reduce output ripple
• Coupling or bypass capacitor in audio circuits to pass audio-frequency signals while blocking DC

Understanding which role it’s playing changes every decision you make about type, voltage rating, ESR, and placement.

How the 220uF Capacitor Works in Power Supply Filtering

Smoothing Rectified DC Rails

In a transformer-based linear power supply, the bridge rectifier output is pulsating DC — a full-wave rectified waveform with deep ripple valleys at twice the mains frequency (100Hz at 50Hz mains, 120Hz at 60Hz). A smoothing capacitor placed across this output charges to the peak voltage and slowly discharges into the load between successive peaks. The basic ripple equation:

C = I × Δt / ΔV

Where:

• C = capacitance in farads
• I = DC load current in amps
• Δt = discharge interval (approximately 0.01s for 50Hz full-wave)
• ΔV = acceptable peak-to-peak ripple voltage

A 220uF capacitor supplying a 50mA load over a 10ms discharge interval produces roughly 2.3V of ripple — workable for a regulated supply where a downstream linear regulator will knock it down further, but too much for a raw unregulated rail feeding sensitive circuitry. This positions the 220uF cap firmly in the secondary filtering tier: after a large primary reservoir electrolytic, before a regulated or sensitive load.

Secondary RC and LC Filtering

One of the most effective uses of the 220uF cap in practical PCB design is as the downstream capacitor in a simple RC or LC post-filter. The topology is straightforward: a main reservoir capacitor charges from the rectifier, a small series resistor or ferrite bead follows, and a 220uF cap sits on the clean side close to the load. The RC network forms a low-pass filter, and the 220uF cap provides local energy storage so the load sees low-impedance supply even when the series resistor limits the current delivery from the main rail.

This technique is especially effective in mixed-signal designs where an analog circuit — an op-amp, a DAC reference voltage, or an audio preamplifier stage — needs cleaner supply voltage than the shared digital rail can provide. Place a 10–100Ω resistor between the digital supply plane and the analog section’s local VCC point, then put a 220uF electrolytic right there at the analog supply node. The result is a quiet, locally buffered rail that is largely immune to the switching noise on the main power bus.

220uF Capacitor Types: Which Construction Suits Your Application?

Choosing correctly between construction types at 220µF is not optional — it directly affects ripple performance, temperature lifetime, ESR behavior, and failure mode. Here’s the full breakdown:

Comparison Table: 220uF Capacitor Types

Type	Typical ESR	Voltage Range	Frequency Response	Polarity	Key Advantage
Aluminum Electrolytic	0.1Ω – 3Ω	6.3V – 450V	Low–medium	Polarized	Cost, wide voltage range
Polymer Aluminum	5mΩ – 100mΩ	2.5V – 100V	Medium–high	Polarized	Very low ESR, no dry-out
Tantalum (solid)	20mΩ – 500mΩ	4V – 50V	Medium	Polarized	Compact, stable
Bipolar Electrolytic	0.3Ω – 2Ω	6.3V – 100V	Low–medium	Non-polarized	AC coupling in audio
MLCC Ceramic	1mΩ – 50mΩ	4V – 100V	Very high	Non-polarized	Lowest ESR/ESL

Aluminum Electrolytic: The Standard Workhorse

Standard aluminum electrolytics are the dominant choice for 220uF applications in linear power supplies, audio circuits, and general-purpose filtering. They’re inexpensive, widely available in voltage ratings from 6.3V to 450V (and above), and physically large enough to handle meaningful ripple current. Their weakness is ESR — a typical general-purpose 220uF electrolytic might show 0.5Ω to 2Ω of ESR at 100Hz, and this value climbs as the electrolyte ages and evaporates. Capacitor life is halved for every 10°C rise in operating temperature above the rating. A standard 85°C-rated part run near its thermal limit will fail within months. Always choose 105°C-rated electrolytics for anything near a heat source or in a confined enclosure.

Polymer Aluminum: The Modern Performance Choice

Polymer capacitors replace the liquid electrolyte with a solid conductive polymer, which reduces ESR dramatically — often down to tens of milliohms — and eliminates the electrolyte evaporation failure mode entirely. For SMPS output filtering, VRM designs, and any application with high ripple current, polymer is the right answer at 220µF. Since roughly 2007, better-quality motherboards and power supply designs have moved predominantly to polymer caps for exactly this reason. The tradeoff is cost and a narrower voltage range compared to aluminum electrolytics.

Tantalum: Compact but Handle with Care

Tantalum capacitors offer lower ESR than aluminum electrolytics in a considerably smaller package — useful in portable, space-constrained designs. However, tantalum has a well-documented catastrophic failure mode when subjected to reverse voltage, overvoltage, or fast voltage transients. The 50% voltage derating rule is non-negotiable with tantalum: a 220uF 10V-rated tantalum should never see more than 5V in a production design. Never place a tantalum directly at the input of a power supply without adequate inrush current limiting — the surge can detonate it.

Bipolar Electrolytic: The Audio Coupling Workhorse

Bipolar (non-polarized) electrolytics are essentially two electrolytic capacitors wired back-to-back, allowing them to handle AC signals and bi-directional voltage swings. In audio circuits, a 220uF bipolar electrolytic is commonly used at transformer input stages, as a DC offset correction element, or in speaker crossover networks where the capacitor must pass audio-frequency AC without a DC bias to set its polarity. Standard polarized electrolytics cannot be used here — a 220uF bipolar is the correct part.

Voltage Ratings for the 220uF Capacitor: The Derating Rule

One of the most reliable ways to reduce long-term reliability problems is correct voltage rating selection. The rule of thumb that every experienced engineer has internalized: derate voltage by at least 1.5× to 2× the operating rail voltage.

220uF Voltage Rating Selection Guide

Operating Rail Voltage	Minimum Recommended Rating	Preferred Rating
3.3V	10V	16V
5V	10V	16V or 25V
12V	25V	35V or 50V
24V	50V	63V
48V	100V	160V
Mains rectified (120VAC)	200V	250V
Mains rectified (240VAC)	350V	400V

Operating a capacitor at or near its voltage rating accelerates dielectric stress, leakage current, and aging. This is doubly important in 220uF electrolytics because their physically larger size means there’s more electrolyte to heat and more surface area degrading under voltage stress. Applying voltage derating costs almost nothing at the BOM level — a 220uF 35V cap versus a 220uF 16V cap is a few cents in most cases — and the reliability improvement is substantial.

ESR in the 220uF Capacitor: Why It Matters More Than You Think

Equivalent Series Resistance (ESR) is the total internal AC resistance of the capacitor — contributions from the foil electrode resistance, terminal connections, and the electrolyte’s ionic resistance. For a 220uF capacitor serving in a power supply filter or audio circuit, ESR has direct consequences for performance and device longevity.

In a switching power supply, output voltage ripple has two components: the component driven by capacitor charge/discharge (determined by capacitance value and switching frequency), and the component driven by ripple current flowing through ESR. At high switching frequencies, the ESR component often dominates entirely. A 220uF aluminum electrolytic with 1Ω ESR subjected to 200mA ripple current contributes 200mV of resistive ripple on the output rail — worse than the capacitive component in many practical designs. Switching to a polymer cap at 50mΩ drops that ESR-driven ripple to 10mV.

ESR also determines how much heat the capacitor self-generates. The power dissipated internally is P = I²RMS × ESR. At high ripple currents, this internal heating accelerates electrolyte aging, which increases ESR further — a positive feedback loop that ends in capacitor failure. The ripple current rating in the datasheet reflects the maximum continuous RMS current the cap can handle while staying within its maximum rated core temperature. Always verify that your calculated ripple current falls below the datasheet ripple current rating, derated for operating temperature.

Typical ESR Reference Values for 220uF Capacitors at 100kHz

Capacitor Series Type	Typical ESR at 100kHz
General-purpose aluminum electrolytic	0.5Ω – 2Ω
Low-ESR aluminum electrolytic	0.1Ω – 0.5Ω
Polymer aluminum (e.g., Panasonic FR/FM)	15mΩ – 80mΩ
Solid tantalum (MnO₂ cathode)	100mΩ – 500mΩ
Polymer tantalum	20mΩ – 100mΩ

If your measured ESR on an in-service capacitor is 2× to 3× the new-part specification, plan for replacement — it’s showing early signs of electrolyte degradation.

The 220uF Capacitor in Audio Circuits

Power Supply Bypassing for Op-Amp and Amplifier Stages

In audio circuit design, the power supply bypassing strategy directly affects noise floor, channel separation, and immunity to supply-coupled interference. A common and highly effective technique uses a 220uF electrolytic in parallel with a 100nF ceramic cap at each op-amp power supply pin. The 220uF handles low-frequency supply rejection below a few kHz — the range where mains-frequency harmonics, hum, and slow transient load changes occur. The 100nF ceramic covers the high-frequency range where the electrolytic’s rising ESR and self-resonance make it ineffective. Together, they provide a low-impedance supply across a wide frequency range.

For a more aggressive approach in sensitive preamplifier designs, many engineers place a 100Ω resistor in series with the supply rail feeding the op-amp stage, followed by a 220uF electrolytic to ground. This RC combination creates a simple low-pass filter with a corner frequency around 7Hz, which effectively decouples the op-amp’s local supply from noise on the main rail. The 220uF cap needs to be close — within a centimeter of the op-amp supply pin — for this to work. Layout kills this technique faster than any component selection error.

Coupling Capacitors in Audio Signal Paths

The 220uF electrolytic appears as an audio coupling capacitor in single-supply op-amp circuits, particularly at output stages where a DC offset needs to be blocked before a speaker or headphone load. The coupling capacitor forms a high-pass filter with the load impedance:

f_corner = 1 / (2π × R × C)

With a 220uF cap and an 8Ω speaker load, the corner frequency is approximately 90Hz — suitable for most full-range audio applications. Dropping to 47uF raises the corner to about 425Hz, cutting bass response. Increasing to 470uF brings it down to 42Hz. When the load is higher impedance — a 32Ω headphone or a 10kΩ line input — even a 10uF cap works fine. The 220uF value makes sense specifically when you’re driving low-impedance loads and need solid bass extension.

Use a bipolar 220uF electrolytic here rather than a standard polarized type unless a positive DC bias is always maintained across the capacitor in normal operation. An audio coupling cap regularly sees near-zero average DC voltage and audio AC swings around that point — which can momentarily reverse-bias a standard electrolytic and damage it over time.

Practical PCB Layout Tips for 220uF Capacitors

Getting the component right is one thing. Getting the layout right is another entirely.

Place the cap close to the load, not the source. A 220uF cap next to a power supply output connector does almost nothing for an IC three inches away on the other side of the board. The inductance of the PCB trace between them prevents the capacitor from delivering instantaneous current to the load. Put it within a centimeter of the IC supply pin or the circuit it’s protecting — for more detail on capacitor placement strategies, this guide to PCB capacitor design covers the critical layout rules engineers frequently overlook.

Use short, wide traces to ground. The ground return from a 220uF cap must have low inductance, which means short and wide. A narrow 0.1mm ground trace that snakes across the board is nearly as bad as no cap at all at frequencies above a few kHz.

Two vias minimum for ground connection. If the cap’s ground pin connects to an inner ground plane via vias, use at least two vias and keep them as close to the ground pad as possible. Each via has approximately 0.3–1nH of inductance — stacking them in parallel cuts that in half.

Don’t parallel a 220uF electrolytic with a small ceramic without care. A large electrolytic and a small ceramic in close parallel create an anti-resonance impedance peak at a specific frequency where the two caps interact destructively. At that frequency, the combined impedance actually rises rather than falling. Adding a small series resistance — even 0.5Ω or a short ferrite bead — between them damps the resonance. This is a real phenomenon that affects designs in the 1–10MHz range and often gets dismissed until a scope reveals unexpected noise exactly at that frequency.

Respect polarity and mark it clearly. Reversed polarity on a 220uF aluminum electrolytic doesn’t result in a polite failure — it often ends in a venting capacitor or a detonation. Mark the negative terminal clearly in silkscreen and use a PCB footprint that makes the correct orientation visually unambiguous during assembly.

Common Applications of the 220uF Capacitor at a Glance

Application	Construction Type	Voltage Rating Guide	Notes
LDO regulator output filter	Low-ESR electrolytic or polymer	2× rail voltage	Check LDO datasheet for ESR range
SMPS output bulk cap	Polymer aluminum	1.5× rail voltage min	High ripple current — verify rating
Audio op-amp supply bypass	General electrolytic	2× rail voltage	Parallel with 100nF ceramic
Audio output coupling cap	Bipolar electrolytic	2× max output swing	Use bipolar type for AC-coupled outputs
Motor driver supply	Low-ESR electrolytic	2× rail voltage	High repetitive transient stress
Transformer rectifier filter	Standard electrolytic	Exceeds peak rectified V	Secondary filtering tier, not primary

Useful Resources for Engineers Working with 220uF Capacitors

These tools and databases are worth bookmarking if you’re selecting or troubleshooting 220uF capacitors in power supply or audio designs:

Murata SimSurfing — murata.com/en-us/tool/simsurfing: Simulate capacitor impedance versus frequency, including DC bias derating for MLCC types. Essential for visualizing anti-resonance effects when paralleling capacitors.

Panasonic Capacitor Selector — industrial.panasonic.com: Filter by capacitance, voltage, ESR, and ripple current rating. The FM/FR polymer series in 220µF is particularly well-specified for SMPS applications.

Nichicon Product Database — nichicon.co.jp/english/products/alm_elec: Detailed ESR tables and ripple current ratings across temperature for aluminum electrolytic series including low-impedance (UHW/UHE) lines.

Rubycon Capacitor Search — rubycon.co.jp/en/catalog: ZLH and ZLJ low-impedance series are well-regarded in audio and power supply designs for their consistent ESR specification and long rated lifetime.

YAGEO Simulation Tools — yageo.com: Frequency-domain impedance modeling for capacitor selection with comparisons across electrolytic and polymer technologies.

Würth Elektronik REDEXPERT — we-online.com/redexpert: Impedance simulation for Würth capacitor parts, useful for both individual cap behavior and parallel combination analysis.

Electronics Tutorials: Capacitor Characteristics — electronics-tutorials.ws/capacitor/cap_3.html: Clear explanation of ESR, working voltage, tolerance, and the practical implications of each parameter for circuit design.

Frequently Asked Questions About the 220uF Capacitor

Q1: Can I substitute a 220uF capacitor with a 100uF or 470uF of the same voltage rating?

In bulk filtering and decoupling roles, increasing capacitance generally reduces ripple and improves transient response, so 470uF is a safe substitution in most filter applications. Dropping to 100uF reduces the filtering capacity and may increase ripple voltage beyond acceptable levels — always run the ripple calculation with the actual load current before substituting down. In circuits where the capacitor sets a timing constant (soft-start, power-up delay, or bias ramp) a direct substitution changes the timing behavior. Check what role the cap plays before swapping it.

Q2: Why does my 220uF capacitor get warm during operation?

Heat in a capacitor almost always comes back to ripple current and ESR. The internal power dissipated equals I²RMS × ESR. A standard 220uF aluminum electrolytic with 1Ω ESR carrying 300mA of ripple current dissipates 90mW internally — enough to noticeably warm a small component and shorten its life significantly. Solutions: switch to a low-ESR polymer 220uF, parallel multiple caps to share the ripple current, or reduce the ripple current at the source through better filtering topology.

Q3: What’s the difference between a polarized and bipolar 220uF capacitor?

A standard polarized 220uF electrolytic must always have positive voltage on its positive terminal — reverse polarity will cause catastrophic failure. A bipolar (non-polarized) 220uF is constructed with two electrolytics in series back-to-back, allowing it to handle AC signals and voltage swings in both directions. Use bipolar 220uF caps in audio coupling applications where the capacitor sits in a signal path without a sustained DC bias, in speaker crossover networks, and at any circuit node where the average DC voltage across the cap is near zero.

Q4: My LDO datasheet says to use a 10µF output cap. Can I use 220uF instead?

Not always without checking. Many LDO regulators use the output capacitor’s ESR as part of their compensation network. The datasheet typically specifies both a minimum capacitance and an acceptable ESR range (e.g., “ESR must be between 0.1Ω and 10Ω”). A 220uF polymer cap at 30mΩ ESR might actually destabilize a regulator that expects a standard electrolytic’s higher ESR to maintain phase margin. Read the output capacitor section of the datasheet carefully. If the LDO explicitly supports ceramic and low-ESR outputs, a 220uF polymer is fine. If it specifies a minimum ESR, choose a cap that stays within that window.

Q5: How do I know when a 220uF electrolytic capacitor has failed or is degrading?

Physical signs include a bulging top vent, electrolyte residue on the board around the capacitor base, or a blown pressure vent. Electrically, the first measurable sign of aging is ESR rising above 2–3× its new-part specification, which an ESR meter will detect even before capacitance has dropped outside tolerance. An aging 220uF electrolytic may still measure 200–230µF on a standard capacitance meter while its ESR has tripled — the capacitance measurement gives a false pass. If a circuit is exhibiting increased output ripple, instability, or unexpected heat near an electrolytic, check ESR first before assuming the capacitance value is at fault.

Summary

The 220uF capacitor earns its place in power electronics and audio design because it operates at a scale few other values can match cleanly — large enough for meaningful bulk energy storage and low-frequency ripple filtering, compact enough to distribute across PCBs without dominating board area. Selecting the right construction type — standard electrolytic for budget-conscious filtering, polymer for SMPS and high ripple current, bipolar for audio coupling — combined with correct voltage derating, ESR awareness, and disciplined PCB layout will make this component perform reliably across years of service. Get those fundamentals right and the 220uF capacitor will be among the most dependable components in your design.

Always verify component specifications against current manufacturer datasheets before finalizing any design. Component series and availability change — the brands and tools listed above are recommended starting points, not exhaustive sourcing guidance.

A PCB engineer’s complete guide to the 100uF capacitor — covers power supply reservoir sizing, ripple filtering calculations, electrolytic vs tantalum vs MLCC selection, ESR effects, PCB layout rules, and voltage derating. With worked examples and comparison tables.

Walk into any lab, crack open any bench power supply, or pop the lid on a consumer electronics board and there it is — a 100uF capacitor sitting right after the bridge rectifier, doing the unglamorous but critical job of smoothing out the chaos that rectified AC leaves behind. It’s one of the most frequently specified capacitor values in existence, and for good reason. At 100 microfarads, you have enough bulk capacitance to tame ripple in low-to-moderate current supplies, handle transient load demands from digital ICs, and provide the kind of energy reservoir that keeps your circuit from browning out the moment something switches on.

This guide is written from a PCB engineer’s perspective — practical, design-focused, and grounded in the kind of trade-offs you actually face during a layout session. We’ll cover what a 100uF capacitor does in a reservoir and filtering context, how to calculate the right value for your supply, which type to specify and why, placement strategy on the PCB, and the common mistakes that cause field failures.

What Does a 100uF Capacitor Actually Do?

Before getting into selection criteria, it’s worth being precise about the mechanism. When you rectify an AC signal — whether half-wave or full-wave — what comes out of the diodes isn’t clean DC. It’s a pulsating waveform that rises to the peak voltage and then collapses. Without any smoothing, the output voltage would track this waveform directly, which is useless for powering anything sensitive.

A capacitor placed across the rectifier output acts as a reservoir. During the rising portion of each half-cycle, the diodes conduct and the capacitor charges up to the peak voltage. When the waveform drops, the diodes stop conducting and the capacitor takes over — it discharges into the load, maintaining voltage while the supply “catches up” on the next half-cycle. The residual AC component that remains after this smoothing action is what engineers call ripple voltage.

The ripple voltage across the output filter capacitor can be estimated with this formula:

Vripple ≈ Iload / (f × C)

Where Iload is the load current in amps, f is the ripple frequency in Hz (twice the mains frequency for full-wave rectification — so 100Hz on a 50Hz system, 120Hz on a 60Hz system), and C is capacitance in farads.

So for a 100uF cap running a 100mA load at 100Hz ripple frequency, you’d get approximately 10mV of ripple — very manageable. Push the load to 500mA and that same capacitor delivers 50mV of ripple. The math tells the story clearly: heavier loads demand more capacitance.

How Much Ripple Is Acceptable?

This is where application context matters. A 1% ripple specification on a 12V supply translates to 120mV peak-to-peak — perfectly fine for powering a motor driver or LED array, completely unacceptable for a precision ADC reference or a low-noise analog front end.

Application	Acceptable Ripple	Notes
Motor drivers, relays	5–10% of supply	Coarse load, tolerant of noise
Microcontroller logic	1–3% of supply	Check datasheet PSRR specs
Op-amp analog circuits	0.1–1% of supply	PSRR rolls off with frequency
ADC voltage references	<0.05% of supply	Reservoir cap + post-regulator required
Audio amplifier supply	<0.5% at 100Hz	60Hz hum becomes audible

Once you know your ripple budget, you can size the capacitor directly using the formula above — or reach for a voltage regulator stage after the reservoir, which is the right call for anything below the 1% threshold.

100uF Capacitor Types: Which One for Your Application?

Not every 100uF capacitor is the same component. The dielectric technology, package, and construction determine ESR, ripple current handling, lifespan, and cost — four things that can make or break a power supply design.

Aluminum Electrolytic

The classic choice for reservoir duty. High capacitance per unit cost, available in voltage ratings from 6.3V to 450V and beyond, and physically robust enough to handle the ripple current of a typical rectifier output. The downsides are well-known: ESR in the range of 50–500mΩ depending on type and frequency, lifespan that shortens dramatically with temperature (every 10°C rise roughly halves operational life), and mandatory polarity — reverse one of these and you’ll regret it quickly.

For reservoir applications where you just need bulk energy storage on a budget, aluminum electrolytic is still the right answer in 2025. Just specify a low-ESR or “long life” grade if you’re building something that has to run for years.

Polymer Aluminum Electrolytic

Solid polymer electrolyte instead of liquid — which means dramatically lower ESR (often below 20mΩ), better high-frequency performance, and a much more benign failure mode (open circuit rather than venting or explosion). The tradeoff is cost and the fact that voltage ratings top out lower than wet types. For switching converter outputs and modern decoupling applications, polymer aluminum is increasingly the right call.

Tantalum (MnO₂ and Polymer)

High volumetric efficiency makes these attractive for space-constrained boards. A 100uF tantalum in a case D footprint takes up far less board area than an equivalent aluminum electrolytic. ESR for standard MnO₂ types runs 0.5–3Ω; polymer tantalum gets this down to 10–50mΩ, rivaling polymer aluminum at higher density. The critical limitation: tantalum capacitors are sensitive to voltage transients and require derating — typically to 50% of rated voltage for MnO₂ types. Use them on clean, well-regulated rails only.

MLCC (Ceramic)

Getting 100uF in a ceramic is now possible — X5R and X7R dielectrics in a 1210 package can hit this value at 6.3V or 10V. But be aware that DC bias derating is severe: a 100uF/6.3V MLCC in 1210 may deliver as little as 30–40µF of effective capacitance at 3.3V operating voltage. Always check the Murata SimSurfing or manufacturer de-rating curve before committing to a BOM line. For actual reservoir duties, ceramic alone is rarely the right choice at 100µF — it’s best used in parallel with electrolytic types to extend the high-frequency filtering range.

Type	Typical ESR	Ripple Current	Voltage Range	Key Risk
Aluminum Electrolytic	50–300 mΩ	Moderate	6.3–450V	Lifespan at high temp
Polymer Aluminum	10–50 mΩ	High	2.5–100V	Higher cost
MnO₂ Tantalum	500mΩ–3Ω	Low–Moderate	4–50V	Voltage transients
Polymer Tantalum	10–50 mΩ	High	2.5–35V	Cost, limited voltage
MLCC (Ceramic)	<10 mΩ	Very High	6.3–50V	DC bias de-rating

Sizing a 100uF Reservoir Capacitor: Worked Examples

Example 1: 5V, 500mA Linear Supply (50Hz Mains)

Ripple frequency for full-wave rectification: 100Hz Target ripple: 200mV (4% of 5V)

C = I / (f × Vripple) = 0.5 / (100 × 0.2) = 25µF minimum

A 100uF cap gives you four times the margin — about 50mV of ripple — which is sensible engineering. For a linear supply feeding a voltage regulator, the regulator’s PSRR will clean up the remaining ripple, so 100uF is a solid, cost-effective choice here.

Example 2: 12V, 1A Supply (60Hz Mains)

Ripple frequency: 120Hz Target ripple: 500mV

C = 1 / (120 × 0.5) = 16.7µF minimum

Again, 100uF gives substantial margin. But if this supply feeds an audio amplifier rather than a digital load, you’d typically go much larger — 1000uF or more — because the target ripple needs to stay below the noise floor of the audio chain, not just 500mV.

ESR: The Overlooked Parameter in Ripple Filtering

Most engineers think about capacitance when sizing a reservoir cap. Experienced ones think about ESR too — and it matters for two reasons.

First, ESR contributes directly to output ripple. The ripple current flowing through the capacitor creates a voltage drop across its ESR: Vripple_ESR = Iripple × ESR. In a 1A supply with a 200mΩ ESR cap, that’s 200mV of additional ripple on top of whatever the capacitance alone produces. In high-current supplies, ESR-induced ripple can dominate over capacitance-limited ripple.

Second, ESR determines how much heat the capacitor generates internally. The I²R power dissipated inside the cap has to go somewhere. Exceeding the ripple current rating causes thermal stress that accelerates electrolyte evaporation in wet aluminum types, shortening lifespan. Always verify your capacitor’s rated ripple current against your circuit’s actual ripple current — especially in SMPS designs where the switching frequency means continuous high-frequency ripple current flows through the output capacitors.

PCB Layout: Placement and Routing for 100uF Capacitors

A 100uF cap placed poorly on a PCB is partially wasted silicon. The parasitic inductance of traces between the reservoir capacitor and the load means the cap can’t respond fast enough to high-frequency transients — the inductance limits di/dt.

Understanding how capacitors interact with PCB layout — including placement strategy, via selection, and ground plane continuity — is essential before finalizing your layer stackup.

Here are the layout rules that make the real difference:

Rule 1: Place reservoir caps close to the rectifier output, not the load. The reservoir cap’s job is to smooth the rectified waveform. It should be within the rectifier-to-regulator loop, not scattered around the board.

Rule 2: Pair the 100uF with a 100nF ceramic in parallel. The electrolytic handles low-frequency ripple (50–1000Hz). The ceramic covers the high-frequency transients (1MHz+) that the electrolytic can’t see due to its ESL. Together they cover the full spectrum.

Rule 3: Keep vias out of the high-current path. Each via adds inductance (typically 0.5–1nH). In a reservoir circuit carrying several amps of ripple current, multiple vias in series start to matter. Use wide, short copper paths and multiple vias in parallel if layer transitions are unavoidable.

Rule 4: Don’t share ground return paths with noisy circuits. The ground return current from the reservoir capacitor is large and pulsed. If it shares a trace with sensitive signal grounds, the resistive drop in the shared copper creates noise coupling. Solid ground planes solve this.

100uF Capacitor Voltage Ratings: Derating Correctly

This is one of the most common causes of premature capacitor failure in the field. Engineers reach for the cheapest 100uF option and spec the voltage rating to match the supply rail exactly. Then the board runs in a 60°C enclosure, the supply has startup spikes, and the capacitor fails six months later.

A 20–50% voltage derating margin is the minimum for aluminum electrolytic types in any real-world environment. On a 5V rail, use a 10V or 16V rated cap. On a 12V rail, use a 25V minimum. For tantalum types, the standard recommendation is 50% derating — a 100uF/16V tantalum on a 5V rail, not a 6.3V one.

Supply Rail	Minimum Voltage Rating (Electrolytic)	Minimum Voltage Rating (Tantalum)
3.3V	6.3V	10V
5V	10V	16V
12V	25V	Not recommended above 35V
24V	50V	Not typically available
48V	100V	Not available — use electrolytic

Common Failure Modes of 100uF Capacitors

Knowing how these caps fail helps you design to prevent it:

Electrolyte dry-out is the most common long-term failure in wet aluminum electrolytics. Operating temperature is the key variable — keep caps away from heat sources and use 105°C rated types in any environment above room temperature.

Ripple current overload causes internal heating independent of ambient temperature. If your calculated ripple current exceeds the datasheet rating, either use a larger cap, use a low-ESR polymer type, or put two caps in parallel to split the ripple current between them.

Reverse polarity in electrolytic or tantalum caps is immediately destructive. Always double-check polarity in the schematic, verify the silkscreen matches the footprint orientation, and consider non-polarized film or polymer types for applications where polarity might be ambiguous.

Voltage transient damage in tantalum MnO₂ types can cause thermal runaway and ignition. Always apply adequate derating and consider polymer tantalum where transients are possible.

Useful Resources for Engineers

These are the tools and references worth bookmarking when working with 100uF capacitors in power supply design:

• Murata SimSurfing — product.murata.com/simsurfing — Interactive simulation of MLCC capacitance de-rating versus DC bias and temperature. Essential before finalizing any MLCC selection.
• DigiKey Parametric Search — digikey.com — Filter 100uF caps by ESR, ripple current, voltage rating, temperature range, and package simultaneously.
• Mouser Electronics — mouser.com — Cross-reference tool and full datasheet access for virtually all major cap manufacturers.
• KEMET SPICE Models — Downloadable SPICE models for aluminum and tantalum types, including ESR and ESL parasitics for LTspice simulation.
• ElectronicBase Smoothing Capacitor Calculator — electronicbase.net — Online calculator for sizing filter capacitors in rectifier circuits with adjustable ripple voltage targets.
• Analog Devices AN-202: “An IC Amplifier User’s Guide to Decoupling, Grounding, and Making Things Go Right for a Change” — Classic application note covering reservoir and decoupling capacitor placement strategy for mixed-signal systems.
• TI Power Supply Design Seminar Reference — Available on ti.com — Covers reservoir capacitor sizing, ESR effects, and switching converter output filter design in depth.

Frequently Asked Questions

Q1: Can I replace a 100uF capacitor with a 220uF in a power supply?

In most cases, yes — larger capacitance means less ripple and better transient response, which is generally harmless. The exception is in circuits where the reservoir cap is also part of an LC or RC filter with a defined cutoff frequency — increasing C shifts the frequency. Also, larger electrolytics draw bigger inrush currents from the rectifier diodes and transformer. If the original design was sized tightly, increasing cap value could stress those components. Always check the diode and transformer current ratings before upsizing significantly.

Q2: Why does my 100uF MLCC only show 35–40µF on my LCR meter?

Because you’re measuring it at zero DC bias, or the meter has a different test voltage than your actual operating conditions. X5R and X7R ceramic capacitors suffer from severe DC bias-dependent capacitance loss. A 100uF/10V MLCC running at 5V DC may retain only 40–50% of its rated capacitance. Use Murata SimSurfing or TDK’s online tool to check the effective capacitance at your actual operating voltage before finalizing the BOM.

Q3: What’s the difference between a reservoir capacitor and a decoupling capacitor?

Reservoir (or filter) caps are large-value caps — typically 10µF to several thousand µF — placed at the output of a rectifier or power supply to smooth low-frequency ripple and supply bulk charge during transient load steps. Decoupling caps are small-value caps — typically 100nF to a few µF — placed directly at IC power pins to suppress high-frequency noise and supply the fast transient currents that the reservoir cap can’t deliver due to its parasitic inductance. Both are necessary; they work at different frequency ranges and neither can replace the other.

Q4: How do I know if my 100uF cap is overheating from ripple current?

The easiest field test: touch the cap carefully during operation (after confirming it’s a safe voltage to be near). An electrolytic getting warmer than about 15–20°C above ambient is stressed. Properly, compare your circuit’s actual ripple current (measure with a current probe on the capacitor lead) against the datasheet ripple current rating at your operating frequency. If you’re above 80% of the rated ripple current, consider upsizing to a low-ESR polymer type or paralleling a second cap.

Q5: Does a 100uF capacitor have polarity?

Aluminum electrolytic and tantalum types: yes, always polarized. Connect the positive terminal to the higher voltage point. Reversing polarity even briefly can cause permanent damage, venting, or in extreme cases, rupture. MLCC ceramic capacitors: no polarity, connect either way. Polymer film types: no polarity. When in doubt, the longer lead on a through-hole electrolytic is positive, and the stripe on the body (with the negative signs printed on it) marks the negative terminal. On SMD electrolytic caps, the marked end with a stripe or band is typically the negative terminal — verify against the datasheet for your specific part.

The 100uF capacitor is one of those components where the gap between getting it right and getting it wrong shows up months or years down the line, not on day one. Size it correctly for your ripple budget, derate the voltage rating properly, select the right technology for your ESR and temperature requirements, place it thoughtfully on the PCB, and it will do its job reliably for the life of the product. Skip any of those steps and you’ll eventually be doing a field failure analysis wondering why a $0.08 cap took down a $500 piece of equipment.

Learn how the 47uF capacitor works in power supply filtering and bulk capacitance. PCB engineer’s guide covering ESR, voltage ratings, types, and layout tips.

If you’ve spent any time reviewing BOM lists or tracing power rails on a schematic, you’ve seen a 47uF capacitor more times than you can count. It’s one of those values that turns up everywhere — bulk decoupling on a 5V rail, output filtering on a linear regulator, audio coupling in an op-amp stage. But how well do you actually know it? This guide breaks down everything you need to know about the 47uF capacitor, from how it works in a power supply filter to how ESR affects your ripple, and when to swap it out for a tantalum or polymer alternative.

What Is a 47uF Capacitor?

A 47uF capacitor stores 47 microfarads of charge — that’s 47 × 10⁻⁶ farads. It sits in a mid-range sweet spot: large enough to handle meaningful bulk energy storage and low-frequency filtering, yet small enough to appear in compact board designs without hogging real estate.

The value 47µF follows the standard E6/E12 capacitor series and is one of the most manufactured capacitance values globally. You’ll find it in electrolytic, tantalum, polymer, and even ceramic form factors, each with different behavior at frequency, temperature, and load.

From a PCB design standpoint, the 47uF capacitor is typically doing one of three jobs:

• Acting as a bulk capacitor to supply instantaneous current during transient loads
• Serving as a filter capacitor to reduce ripple after rectification
• Functioning as a bypass/decoupling cap on power rails near sensitive ICs

Understanding which role it’s playing in your circuit changes how you select it, size it, and place it on the board.

How the 47uF Capacitor Works in Power Supply Filtering

The Ripple Problem in Rectified DC Supplies

When you rectify AC mains through a bridge rectifier, you don’t get clean DC — you get pulsating DC with a significant ripple voltage riding on top of it. At 50Hz mains frequency, the ripple comes in at 100Hz (full-wave rectified). At 60Hz, it’s 120Hz. That ripple will show up as audible hum in audio gear, instability in voltage regulators, and noise coupling into adjacent signal traces.

A filter capacitor placed across the rectifier output charges to the peak voltage and then slowly discharges into the load between peaks, “filling in” the valleys of the waveform. The formula that governs this:

C = I × Δt / ΔU

Where:

• C = capacitance in farads
• I = load current in amps
• Δt = half-period of the ripple (0.01s at 50Hz, 0.0083s at 60Hz)
• ΔU = acceptable peak-to-peak ripple voltage

For a light load — say, a 20mA microcontroller supply — a 47uF capacitor can keep ripple well under 100mV. For anything drawing hundreds of milliamps, you’ll need significantly more bulk capacitance, often stacking several large electrolytics in parallel.

Where the 47uF Value Fits in Filter Design

The 47uF capacitor isn’t your primary smoothing cap in a mains-fed linear supply. That job usually goes to a 1000µF–10,000µF electrolytic. Where 47uF shines is as a secondary filter stage — placed after a series resistor (RC filter) or an inductor (LC filter) to knock out residual ripple before it reaches sensitive loads.

A common topology on PCBs looks like this: a large bulk electrolytic at the rectifier output, followed by a small series resistance or ferrite bead, followed by a 47uF cap close to the load. The 47uF cap decouples the load’s local power rail from the main supply line, absorbing transients and providing the immediate current that the long PCB trace inductance can’t deliver fast enough.

47uF Capacitor Types: Electrolytic, Tantalum, Polymer, and Ceramic

Choosing the right construction matters as much as choosing the right capacitance value. Here’s a direct comparison across the types most commonly available at 47µF:

Comparison Table: 47uF Capacitor Types

Type	Typical ESR	Voltage Range	Frequency Response	Polarity	Best Use Case
Aluminum Electrolytic	0.1 – 5 Ω	6.3V – 400V	Low–medium freq	Polarized	Bulk filtering, mains supplies
Tantalum	0.1 – 1 Ω	4V – 50V	Medium freq	Polarized	Space-constrained filtering
Polymer Aluminum	5 – 50 mΩ	2.5V – 100V	Medium–high freq	Polarized	SMPS output, VRM, motherboards
MLCC Ceramic	1 – 10 mΩ	4V – 100V	Very high freq	Non-polarized	High-frequency decoupling

Aluminum Electrolytic

The standard workhorse. Aluminum electrolytics dominate in 47uF bulk capacitance applications because they’re cheap, widely available in voltage ratings from 6.3V all the way to 400V (and higher in some series), and large enough to handle significant ripple current. The tradeoff is ESR — standard aluminum caps can run from 0.1Ω up to several ohms depending on quality, frequency, and temperature. High ESR directly increases output voltage ripple and generates heat inside the capacitor, accelerating electrolyte evaporation and aging.

A cheap aluminum electrolytic may only be rated for 1,000 hours at 85°C. Higher-grade parts are typically rated for several thousand hours at their maximum temperature. In any design expected to run at elevated temperatures or high ripple currents, this distinction matters enormously.

Tantalum

Tantalum capacitors offer lower ESR than standard electrolytics in a smaller physical package. They’re popular in space-constrained portable designs. However, tantalum has a well-known failure mode: reverse polarity or overvoltage can cause them to fail catastrophically — sometimes with fire. Always apply voltage derating (50% or more) and never reverse-bias them. A 47uF tantalum should never run at its rated voltage in a production design.

Polymer Aluminum

Polymer caps use a conductive polymer electrolyte instead of liquid electrolyte, which dramatically reduces ESR — often into the milliohm range — and eliminates the electrolyte dry-out failure mode. They’re the preferred choice for high-frequency SMPS designs, VRMs on motherboards, and anywhere ripple current is high. From around 2007 onward, better-quality computer motherboards migrated almost entirely to polymer capacitors for exactly this reason.

Ceramic (MLCC)

Getting a 47uF ceramic capacitor is possible in X5R or X7R dielectric, typically in 0805 or 1206 SMD packages. Ceramic caps offer the lowest ESR and ESL of any type, making them excellent for high-frequency decoupling. However, be aware of DC bias derating — an X5R 47uF rated at 10V may only deliver 20–30µF actual capacitance at 5V due to the voltage coefficient of Class 2 ceramics. Always check the DC bias curve in the datasheet.

Voltage Ratings for 47uF Capacitors

One of the most common PCB engineering mistakes is selecting a 47uF capacitor with a voltage rating that barely exceeds the operating voltage. The rule of thumb: derate by at least 1.5× to 2×.

If your rail is 12V, don’t use a 16V-rated cap. Use 25V minimum. If you’re running a 5V rail, a 10V-rated cap is marginal; 16V or 25V gives you headroom for transients, startup surges, and reliability margin.

Common 47uF Voltage Ratings

Application Rail	Minimum Recommended Cap Rating
3.3V logic supply	10V (16V preferred)
5V logic supply	16V (25V preferred)
12V power rail	25V (35V or 50V preferred)
24V industrial	50V (63V preferred)
Mains rectifier (120/240VAC)	250V – 400V+

Exceeding the voltage rating causes dielectric breakdown, leading to leakage current, overheating, and in polarized types — explosive failure. Electrolytic capacitors that have been overvoltaged will bulge, leak electrolyte, or vent through the pressure relief score on top of the can.

ESR and Its Impact on Power Supply Performance

ESR — Equivalent Series Resistance — is the single most important parameter after capacitance when selecting a 47uF capacitor for power supply filtering.

In an SMPS (switched-mode power supply), the output capacitor’s ESR directly contributes to output ripple voltage. Every ampere of ripple current flowing through the capacitor creates a voltage drop across the ESR. High ESR means higher ripple, more heat, and shortened component life.

In a linear power supply, ESR affects how well the capacitor can handle transient current demands — a sudden load step requires the cap to deliver current immediately, and the internal resistance limits that delivery.

Low-ESR polymer and ceramic caps address this, but they introduce their own consideration: very low ESR can cause instability in some linear regulators (LDOs) that rely on a minimum ESR for phase margin in their control loop. Always check the LDO datasheet for ESR range recommendations on the output capacitor. Some LDOs specify a minimum ESR of 0.1Ω to 1Ω for stability — a polymer cap at 10mΩ will not behave the same way.

Bulk Capacitance: What It Is and Why 47uF Appears So Often

“Bulk capacitance” refers to capacitors placed at the board or module level to supply instantaneous current during load transients — before the power supply regulator loop can respond. Think of it as a local energy reservoir that bridges the gap between a sudden current demand and the supply’s response time.

PCB engineers place bulk caps at multiple levels of the power distribution network:

• Board input — large electrolytic, 470µF–10,000µF, at the power entry point
• Local supply plane — mid-size, 47µF–220µF, distributed near major load zones
• Per-IC decoupling — small ceramic, 100nF–10µF, right at the IC power pins

The 47uF capacitor occupies the “local supply plane” tier. It’s large enough to handle millisecond-scale current demands and small enough to place in multiples across a board without layout issues. When you see a cluster of 47uF electrolytics near a processor VRM or at the input of a switching regulator, that’s exactly the role they’re serving.

PCB Layout Best Practices for 47uF Capacitors

Getting the capacitor value right is only half the battle. Poor layout kills performance regardless of component quality.

Place bulk caps close to the load. PCB trace inductance is real — even a few centimeters of trace between a 47uF cap and a fast-switching IC can render the cap ineffective at the frequencies that matter. The inductance of the trace delays current delivery and can even cause resonance with the capacitor’s own ESL.

Use short, wide traces. Narrow traces add resistance and inductance. Ground returns from the capacitor should go directly to the ground plane — don’t chain capacitor grounds through shared traces.

Via placement matters. If the 47uF cap is on the top layer connecting to a ground plane beneath, use at least two ground vias and place them as close to the pad as possible to minimize inductance.

Don’t rely on a single 47uF. Paralleling multiple smaller capacitors often gives better high-frequency performance than a single large cap because each cap has its own ESL, and the parallel combination lowers total inductance. However, be aware that paralleling capacitors of very different sizes can create resonance at certain frequencies — a large electrolytic and a small ceramic in parallel will have an anti-resonance peak where impedance rises. Adding a small series resistance (even a short ferrite bead) between them helps damp this resonance.

For more on how capacitors interact with your PCB design, including placement strategy and design rules, it’s worth reviewing your layout against established PCB engineering guidelines before sending to fab.

Common Applications of the 47uF Capacitor

Power Supply Output Filtering

Whether it’s a 78xx linear regulator or a buck converter IC, a 47uF cap commonly appears at the output. For LDO regulators, the output cap is part of the stability network. The regulator’s datasheet will specify minimum capacitance and — critically — the acceptable ESR range.

SMPS Bulk Input Capacitor

At the input of a switching regulator, a 47uF cap (or several in parallel) helps supply the pulsed current demand of the switching transistor. Without adequate input capacitance, the input voltage ripple can become large enough to affect converter efficiency or trigger under-voltage lockout.

Audio Coupling and Power Filtering

In audio circuits, 47uF electrolytic capacitors serve as power supply bypass caps on op-amp rails (usually in parallel with 100nF ceramics). They handle low-frequency supply rejection while the ceramic handles HF noise. The combination covers a wider frequency span than either component alone — a technique sometimes called “decade decoupling.”

Motor Driver Supplies

Small DC motor driver circuits use 47uF bulk caps to absorb the back-EMF transients that occur when motor current commutates. These applications can be punishing on capacitors due to repetitive high-current pulses, making low-ESR polymer caps or paralleled electrolytics the right choice.

How to Read a 47uF Capacitor Datasheet: Key Parameters

Parameter	What to Look For
Capacitance	47µF ±20% (standard) or ±10% (tighter grades)
Voltage Rating	Must exceed max circuit voltage × 1.5–2×
ESR	At 100kHz for SMPS; at 120Hz for linear supplies
Ripple Current	RMS current rating must exceed your calculated ripple current
Temperature Rating	85°C standard; 105°C for demanding environments
Lifetime	Hours at max temperature (1000h = budget; 5000h+ = quality)
Leakage Current	Relevant for energy storage / low-power designs

---

Useful Resources for Engineers Working with 47uF Capacitors

Murata SimSurfing — www.murata.com/en-us/tool/simsurfing: Simulate capacitor frequency response, including DC bias derating for MLCCs

TDK Product Database — product.tdk.com: Comprehensive datasheets for aluminum electrolytic and MLCC lines in 47µF values

Panasonic Capacitor Selector — industrial.panasonic.com: Useful for filtering to polymer and electrolytic parts by ESR, ripple current, and temperature rating

Nichicon Capacitor Series Catalog — nichicon.co.jp/english/products/alm_elec/: Includes detailed ESR tables and ripple current ratings across temperature

ElectronicBase Smoothing Capacitor Calculator — electronicbase.net/smoothing-capacitor-calculator: Quick online calculator for sizing filter capacitors by ripple and load current

Würth Elektronik REDEXPERT — we-online.com/redexpert: Frequency-domain impedance simulation for capacitors across their product line

Frequently Asked Questions About the 47uF Capacitor

Q1: Can I replace a 47uF capacitor with a 100uF capacitor of the same voltage rating?

In many filtering and bulk decoupling applications, yes — a larger capacitor will generally reduce ripple further and provide more energy storage. The caveat is timing-sensitive circuits (such as oscillator RC networks or soft-start timing) where the capacitance value sets a specific time constant. In those cases, changing from 47uF to 100uF will directly alter circuit behavior. Always check what role the cap plays in the specific circuit before substituting.

Q2: Why does my 47uF electrolytic feel warm during operation?

Heat in a capacitor almost always traces back to high ripple current flowing through ESR. The power dissipated is P = I² × ESR. If you’re running a cheap electrolytic with 1Ω ESR at even 100mA of ripple current, that’s 10mW of heat in a tiny package — which adds up. Switching to a low-ESR polymer cap, paralleling multiple caps, or reducing ripple current through better filtering design all address this.

Q3: What is the difference between a 47uF bulk cap and a 100nF decoupling cap?

They serve different roles at different frequencies. The 47uF bulk cap handles low-frequency transients and stores meaningful energy for millisecond-scale load changes. The 100nF ceramic decoupling cap handles high-frequency switching noise right at the IC power pins, thanks to its very low ESL. Both are needed in most power distribution networks — they are complementary, not interchangeable.

Q4: Why do some LDO datasheets specify minimum ESR for the output capacitor?

Many LDO regulators use the output capacitor as part of their internal compensation network. The ESR of the capacitor creates a zero in the loop transfer function that improves phase margin and prevents oscillation. If you use a very low-ESR polymer or ceramic cap where the datasheet expects a higher-ESR electrolytic, the regulator may oscillate. Always read the output capacitor section of the LDO datasheet carefully and match ESR range, not just capacitance.

Q5: Can a 47uF ceramic capacitor replace a 47uF electrolytic?

Electrically, it depends on the application. Ceramic caps have far lower ESR and ESL, which is an advantage in high-frequency switching circuits. However, 47uF ceramics in X5R/X7R exhibit significant capacitance loss under DC bias — a 47uF X5R at its rated voltage may measure only 15–25µF in circuit. This effectively changes your filter behavior. Ceramic caps are also non-polarized, which removes the polarity failure mode. For bulk filtering in linear supplies, a 47uF ceramic is overkill in cost but technically valid. For SMPS high-frequency decoupling, they’re excellent. Just always verify actual capacitance under operating bias conditions using the manufacturer’s simulation tools.

Summary

The 47uF capacitor is one of the most frequently specified values in power electronics for good reason. It bridges the gap between large bulk electrolytics and small high-frequency ceramics, making it ideal for secondary filtering, local power rail decoupling, SMPS output filtering, and audio supply bypassing. Selecting the right type — electrolytic, tantalum, polymer, or ceramic — depends on the ESR requirements, operating frequency, voltage, temperature environment, and the specific behavior expected by the circuit.

As a PCB engineer, the most impactful decisions around a 47uF cap aren’t just about capacitance — they’re about ESR, voltage derating, ripple current handling, layout proximity to the load, and operating temperature rating. Get those right, and this unassuming component will serve your designs reliably for the life of the product.

Resources mentioned in this article are provided for engineering reference. Always verify component specifications against your specific application requirements and consult manufacturer datasheets before finalizing a design.

Learn how the 22uF capacitor works in voltage regulators, audio coupling, and PCB power rail decoupling. Covers electrolytic, tantalum, and MLCC types, ESR selection, LDO stability, and practical design tips from a PCB engineer’s perspective.

If you’ve been doing PCB layout for more than a few months, you’ve placed a 22uF capacitor so many times it’s practically muscle memory. But there’s more going on with that little component than most people stop to think about. The value sits in a practical sweet spot — big enough to handle bulk decoupling and audio coupling duties, small enough that you’re not fighting board space or bill-of-materials cost. This guide breaks down what a 22uF capacitor actually does in real circuits, where to reach for one versus a different value, and how to choose the right type for your application.

What Is a 22uF Capacitor?

A 22uF capacitor stores 22 microfarads of charge — that’s 22 millionths of a farad. In practical terms, it sits in the “medium bulk” category of capacitance. It’s too large for high-frequency RF bypass work (that’s where your 100nF ceramics live), but too small to serve as a main reservoir cap in a heavy-current power supply. Its sweet spot covers low-frequency filtering, audio signal coupling, LDO regulator stabilization, and power rail decoupling for moderate-current ICs.

The value also shows up constantly in reference designs and application notes from major semiconductor manufacturers — it’s a de facto standard output capacitor recommendation for a huge range of LDO and switching regulators.

Types of 22uF Capacitors

Not all 22uF caps are created equal. The dielectric and package technology you choose will determine ESR, ESL, temperature stability, physical size, and cost. Here’s a quick breakdown:

Type	ESR	Polarized?	Best For	Typical Package
Aluminum Electrolytic	Medium–High (50–200 mΩ)	Yes	Bulk decoupling, power rails	Radial, SMD
Tantalum	Low–Medium (0.1–1 Ω)	Yes	LDO output, space-constrained boards	SMD Case A–D
Polymer Tantalum / Aluminum	Very Low (<50 mΩ)	Yes	Low-noise audio, high-reliability PSU	SMD
MLCC (Ceramic)	Very Low (<10 mΩ)	No	High-frequency decoupling, compact designs	0805, 1206, 1210

Getting 22µF in an MLCC used to require a 1210 footprint at minimum. Modern X5R and X7R dielectrics in 0805 can now hit 22µF at 6.3V or 10V — but watch out for voltage coefficient derating. A 22µF/6.3V MLCC in 0805 might drop to 8–10µF of effective capacitance at 3.3V DC bias. Always check the de-rating curves in the datasheet before finalizing your design.

22uF Capacitor in Voltage Regulators

This is where the 22uF capacitor earns its keep most visibly. Open practically any LDO regulator datasheet — AMS1117, LM1117, MIC5219, TLV755P — and you’ll find a 22uF output capacitor in the typical application circuit.

Why LDOs Need an Output Capacitor

LDO regulators rely on output capacitance for loop stability. Without adequate capacitance on the output pin, the internal feedback loop can oscillate, producing noise or outright instability. The output capacitor on a linear regulator also supplies current at the regulated voltage when there’s a sudden demand from the load while the regulator attempts to compensate.

In a voltage regulator, capacitors placed at the input and output terminals filter out AC noise, suppress rapid voltage changes, and improve feedback loop characteristics — and also serve as bulk energy storage, providing instantaneous current to either the input or the load.

Output Capacitor: 22uF vs Other Values

The LM1117/AMS1117 family is one of the most widely used LDO families on the planet. For the LM1117, the datasheet recommends a minimum 10µF tantalum output capacitor — but 22µF, 47µF, or 100µF will also work fine. In practice, 22µF strikes the best balance: it provides adequate phase margin, keeps transient response tight, and won’t cause instability issues if you accidentally grab a low-ESR polymer type.

ESR: The Hidden Variable

Multilayer ceramic capacitors combine small size, low ESR, low ESL, and wide operating temperature range, making them a first-choice option for bypass capacitors — but their capacitance can vary dramatically with temperature, DC bias, and AC signal level. For LDO output capacitors that specify a minimum ESR for stability, using a pure MLCC without additional series resistance can push the regulator into oscillation. Classic LDOs like the LM317 can behave unexpectedly with very low-ESR capacitors at the output.

As an example, a 22uF output capacitor on an LM317 effectively bypasses the regulator at higher frequencies — but since the LM317 is inductive in those regions, this makes for a resonant circuit, and some damping in the form of a not-too-low capacitor ESR is required. Using a 220µF/10mΩ cap at the output can create a massive resonant peak. This is exactly why many engineers keep a tantalum or polymer cap at the LDO output rather than going straight MLCC.

Adjust Pin Bypass (LM317/LM337)

Bypassing the adjustment pin of an LM317 with a 22µF capacitor reduces output noise by approximately 20dB — a substantial improvement, particularly for audio power supply rails. If you’re building a linear supply for a preamp or DAC board, this is a mandatory step.

22uF Capacitor in Audio Circuits

Audio applications are one of the most demanding environments for any passive component. Signal integrity, low noise, and predictable frequency response all depend on choosing the right capacitor — and the 22µF value appears repeatedly in audio design for two main jobs.

DC Blocking / Signal Coupling

In signal processing, 22µF capacitors can block DC signals and allow AC signals to pass — this is crucial in audio circuits where you need to separate signal components, and the value is commonly used in amplifiers, mixers, and preamplifiers.

In practice, a 22µF coupling cap into an 8kΩ input impedance gives you a -3dB low-frequency rolloff around 0.9Hz — well below audible range. That’s why you see 22µF so often at the output stage of op-amps and buffer circuits feeding headphone jacks or line outputs. It passes the full audio band while blocking any DC offset that could damage downstream components or produce an ugly “pop” when a device powers up.

Power Supply Filtering for Audio Rails

A clean power rail is non-negotiable in audio work. Digital hash from microcontrollers and switching converters has to be kept off the analog supply. A 22µF bulk cap in parallel with a 100nF ceramic handles a broad frequency range: the 22µF covers sub-100kHz ripple, and the ceramic handles the high-frequency garbage the electrolytic can’t see due to its parasitic inductance.

Application	Recommended Cap	Notes
LDO adjust pin bypass (LM317)	22µF electrolytic	Reduces noise ~20dB
LDO output stabilization	22µF tantalum or polymer	Check min ESR in datasheet
Audio output coupling	22µF bipolar electrolytic	Non-polarized type for AC signal paths
Power rail bulk decoupling	22µF + 100nF in parallel	Covers broad frequency range
DC-DC converter output	22µF MLCC (X5R/X7R)	Verify de-rating at operating voltage

Power Rail Decoupling with a 22uF Capacitor

Beyond linear regulators, the 22µF cap shows up heavily in power rail decoupling for digital and mixed-signal ICs. FPGAs, microcontrollers, and DSPs often call for 10–22µF bulk caps near the power supply pins alongside smaller 100nF locals.

22µF capacitors employed as decoupling capacitors are placed close to integrated circuits to prevent noise and voltage drops on the power rails, ensuring components operate reliably.

Placement Matters on the PCB

As a PCB engineer, you already know that component placement is half the battle. A 22µF cap sitting 50mm from the IC it’s supposed to decouple is essentially useless at frequencies above a few hundred kHz. The inductance of the trace path kills its effectiveness. Place your bulk 22µF cap within 5–10mm of the power pin, and pair it with a 100nF MLCC as close as physically possible to the pin itself.

For information on how capacitors interact with PCB layout at a design level — including placement strategies and via stitching — that’s worth reading before you finalize your layer stackup.

How to Select the Right 22uF Capacitor

Use this checklist before placing your order:

1. Voltage Rating — Always derate by at least 50%. A 5V rail needs a cap rated for at least 10V. This is especially critical for ceramics, which experience significant capacitance loss with applied voltage.

2. ESR Requirements — Check whether your regulator requires a minimum ESR for stability. Old-school bipolar LDOs often do. Modern CMOS LDOs are often designed to work with ceramics.

3. Temperature Range — Industrial designs need -40°C to +85°C at minimum. Automotive goes to +125°C. Aluminum electrolytics lose capacitance in cold and dry out over time in high temperatures.

4. Package / Footprint — SMD polymer or tantalum for space-constrained boards. Through-hole electrolytic for prototyping or high-voltage rails where SMD options get large and expensive.

5. Polarized vs Non-Polarized — In AC signal paths (coupling caps), use bipolar electrolytics or film capacitors. In DC power paths, standard polarized electrolytics are fine — just never reverse them.

Common 22uF Capacitor Voltage Ratings

Voltage Rating	Typical Use Case
6.3V	Low-voltage digital rails (3.3V, 1.8V) — check de-rating
10V	5V digital logic rails
16V	12V rails with margin
25V	General-purpose audio and power supply use
50V	Higher-voltage rails, automotive

Useful Resources for Engineers

• DigiKey 22µF Capacitor Parametric Search — digikey.com — Filter by capacitance, voltage, ESR, and package. Includes manufacturer datasheets.
• Mouser Electronics — mouser.com — Cross-reference tool for substituting capacitors by specification.
• Analog Devices Application Note: “Why the Choice of Bypass Capacitor Matters” — Detailed analysis of ESR, ESL, and dielectric effects.
• TI LM317 Datasheet — Includes adjustment pin bypass recommendations and output cap guidelines.
• AMS1117 Datasheet — One of the most widely copied LDO reference designs; output cap section is essential reading.
• Murata SimSurfing — product.murata.com/simsurfing — Simulate MLCC capacitance de-rating versus DC bias and temperature interactively.
• KEMET SPICE Models — Downloadable SPICE models for tantalum and polymer capacitors, useful for LTspice stability simulation.

Frequently Asked Questions

Q1: Can I substitute a 22µF capacitor with a 10µF or 47µF?

It depends on the application. For LDO output caps, going larger (47µF) is usually fine and often improves transient response. Going smaller (10µF) may work but could compromise stability or ripple rejection. Always verify against the datasheet minimum. For audio coupling, changing the value shifts the low-frequency rolloff point, so the choice has a direct audible impact.

Q2: Why does my MLCC 22µF cap measure only 8–10µF on my LCR meter?

This is normal. X5R and X7R MLCCs experience significant capacitance reduction under DC bias. A 22µF/6.3V cap measured at 3.3V DC may show an effective value well below the labeled rating. This is called voltage coefficient degradation, and it’s why the datasheet de-rating curves matter. If you need a stable 22µF, use a tantalum or polymer type.

Q3: Do I need a 22µF at both the input and output of an LDO?

Most modern LDOs only mandate an output cap for stability. An input cap (typically 1–10µF) is recommended if the regulator is more than a few centimeters from the main supply capacitor — it protects against load transients traveling backward into the input pin. Check your specific IC’s datasheet, as requirements vary significantly.

Q4: Is a 22µF capacitor polarized?

It depends on the type. Aluminum electrolytic and tantalum types are polarized — connect them backwards and you risk damage or failure, sometimes dramatically. MLCC ceramic capacitors are never polarized. Bipolar (non-polarized) electrolytic 22µF caps exist specifically for AC audio coupling applications.

Q5: Can a 22µF capacitor be used in an RC timing circuit?

Yes, and it’s a common choice. With a 720Ω resistor, a 22µF cap gives an RC time constant of roughly 15.8ms — useful for debounce circuits, LED fade effects, or reset delay networks in microcontroller designs. The formula is simply τ = R × C.

The 22uF capacitor isn’t glamorous, but it’s one of those components that quietly holds a lot of designs together. Whether you’re stabilizing an LDO, blocking DC from an audio output, or anchoring a power rail against transient spikes, getting the type and placement right makes a real difference in circuit performance. The next time you drop one on a schematic, you’ll know exactly why it’s there.

A PCB engineer’s complete guide to 10F supercapacitors — covers energy storage calculations, IoT pulse power, backup hold-up sizing, series balancing, charging circuit design, and PCB layout tips. Includes worked examples, comparison tables, and brand selection guide.

Ask a PCB engineer when they first seriously looked at supercapacitors and most will point to a specific frustrating moment — a battery-backed SRAM that kept losing data on power-down, a GPS tracker that failed in its third year due to pulse-induced battery fatigue, or an industrial meter that bricked itself because the transmit pulse collapsed the supply voltage. The 10F supercapacitor — and its siblings up to 100F — solve a very specific class of problems that neither electrolytics nor lithium cells handle well: high-current short-duration bursts, maintenance-free backup power, and decade-long operation without chemical degradation.

This guide covers how 10F to 100F supercapacitors work, where they fit in real circuit designs, how to charge and balance them correctly, and how to decide when a supercapacitor is the right answer and when it isn’t.

What Is a 10F Supercapacitor and How Does It Store Energy?

A supercapacitor — also called an ultracapacitor or electric double-layer capacitor (EDLC) — stores energy electrostatically at the interface between an electrode and an electrolytic solution rather than in a chemical reaction like a battery. Two porous carbon electrodes are separated by an electrolyte and a separator. When voltage is applied, ions from the electrolyte accumulate on the electrode surfaces, forming an electric double layer on each electrode. This double layer acts as the capacitor, enabling rapid charge and discharge with virtually no degradation over time.

Supercapacitors store 10 to 100 times more energy per unit volume or mass than electrolytic capacitors, can accept and deliver charge much faster than batteries, and tolerate many more charge and discharge cycles than rechargeable batteries.

A 10F supercapacitor at 2.7V stores: E = ½ × 10 × 2.7² = 36.45 joules. Compare that to a 10,000µF electrolytic at 50V which stores 12.5 joules — the supercapacitor at a fraction of the voltage and physical size stores nearly three times the energy. At 100F, you have 364.5 joules available. That is real, usable backup energy for embedded systems.

Supercapacitor vs Battery vs Electrolytic: Knowing Where Each Belongs

This comparison comes up constantly in design reviews, and the honest answer is that these technologies rarely compete — they occupy different performance envelopes.

Parameter	Electrolytic Cap	10F Supercapacitor	Li-Ion Battery
Capacitance	10µF – 10,000µF	0.1F – 3,000F	N/A
Energy Density	Very Low	Medium	High
Power Density	Medium	Very High	Medium
Charge Time	Milliseconds	Seconds – Minutes	1–4 Hours
Cycle Life	N/A (passive)	500,000 – 1,000,000	300–1,500
Temperature Range	-40°C to +105°C	-40°C to +70°C	-20°C to +60°C
Self-Discharge	Negligible	High (weeks)	Low (months)
Failure Mode	Electrolyte dry-out	Gradual capacity loss	Thermal runaway risk
Lifespan	5–15 years (derated)	10–20+ years	2–5 years

Supercapacitors provide small form factor storage that last 2–4 times longer than batteries with high power density and no thermal runaway risk. That last point matters increasingly in industrial and medical applications where battery thermal events are a serious regulatory and safety concern.

The critical limitation to understand upfront: a supercapacitor’s voltage is not flat during discharge. Unlike a battery that holds near-constant voltage until it depletes, a supercapacitor’s terminal voltage falls linearly as it discharges. A 10F cap discharged from 2.7V to 1.35V delivers only half its stored energy, and your downstream circuit must tolerate this voltage slope or include a boost converter to regulate from the falling input.

Real-World Applications for 10F to 100F Supercapacitors

IoT Pulse Power and Battery Protection

This is arguably the most important application for 10F supercapacitors in 2025 and beyond. Standard Li-SOCl₂ batteries offer phenomenal energy density and a long shelf life due to their passivation layer. However, when the meter suddenly requires a 2-amp pulse to transmit daily usage data via a 5G or NB-IoT network, the passivation layer causes a severe voltage delay. This voltage drop can cause the meter’s microprocessor to reboot, leading to lost data and field failures.

The solution is to pair the battery with a 10F supercapacitor. The supercapacitor handles the 2A transmission burst; the battery trickle-charges it between events. The result is a system that achieves decade-long operational life without maintenance — something neither technology achieves independently. Factory testing proves that the failure rate of non-hybrid trackers jumps by 40% in year three due to pulse-induced battery fatigue. By absorbing the high-current demands, the hybrid capacitor dramatically reduces the strain on the primary cell.

SRAM and RTC Backup Power (10F–50F)

One of the oldest and most reliable uses of small supercapacitors is backing up real-time clocks and SRAM in embedded systems during power loss. A 10F supercapacitor charged to 3.3V can power an RTC drawing 1µA for: t = C × ΔV / I = 10 × (3.3 – 2.0) / 0.000001 = 13 million seconds — roughly 150 days. Even accounting for self-discharge, that is effective backup for any plausible power outage scenario. This replaces a coin cell battery entirely in many designs, removing the maintenance burden and the battery-related regulatory requirements around disposal.

Industrial Hold-Up and Graceful Shutdown (50F–100F)

In industrial automation and data acquisition systems, an unexpected power loss can cause data corruption, valve misalignment, or mechanical damage if the CPU doesn’t execute a proper shutdown sequence. Key applications include pulse power, ride-through power, graceful shutdown, hybrid energy storage systems (HESS) and backup power.

A 100F supercapacitor at 5V stores 1,250J — enough to power a 500mA microcontroller-based system for 2,500 seconds (over 40 minutes) before the voltage drops to 0V, or more realistically, several minutes of clean operation above the 3.3V minimum supply threshold. For a graceful shutdown that only needs 200ms of hold-up, even a 10F cap is massively over-specified — which is exactly the kind of comfortable engineering margin that makes products reliable in the field.

Energy Harvesting Power Management

IoT devices for various sensing and monitoring applications, particularly systems deployed to monitor pollution or ecosystem parameters, have a need for self-sustaining energy sources. In these cases, modern supercapacitor families can be used to replace batteries, which can rely on lower levels of energy harvesting to become self-sustaining fit-and-forget devices.

In solar-harvested remote sensor nodes, a 10F–50F supercapacitor buffers the harvested energy across multiple charge-discharge cycles per day without any degradation in capacity. Over a ten-year deployment, the supercapacitor will still perform at close to rated capacity while any battery in the same role would have needed replacement two or three times.

How to Calculate the Right Supercapacitor Capacity

The sizing formula depends on your application type.

For Backup / Hold-Up Applications

C = I × t / ΔV

Where I is the load current in amps, t is the required hold-up time in seconds, and ΔV is the usable voltage swing (rated voltage minus minimum operating voltage of the load).

Example: Hold-up for a 100mA system, 5 seconds, operating from 5V down to 3.0V: C = 0.1 × 5 / (5.0 – 3.0) = 0.25F minimum

A 1F coin cell supercapacitor handles this with significant margin. For a 60-second hold-up at the same current: C = 0.1 × 60 / 2 = 3F minimum — now you need a 10F cylindrical supercapacitor.

For Pulse Power / Transmission Bursts

C = I_pulse × t_pulse / ΔV_allowed

Example: 2A LoRa transmission pulse for 50ms, maximum 200mV supply droop on a 3.3V rail: C = 2 × 0.05 / 0.2 = 0.5F minimum

Again, a 10F supercapacitor provides 20× margin — sensible given that the supercapacitor is protecting a battery that has to last a decade.

Application	Load Current	Required Duration	Recommended Capacity
RTC backup	1–5 µA	Weeks	0.1F – 1F (coin type)
MCU + SRAM backup	10–50 mA	Minutes	1F – 10F
NB-IoT / LoRa pulse buffer	0.5–2A	50–500ms	1F – 10F
Graceful shutdown	100–500 mA	1–10 seconds	5F – 50F
Industrial hold-up	500mA–2A	10–60 seconds	50F – 100F
Motor soft-start buffer	5–20A	100–500ms	10F – 100F

10F Supercapacitor Voltage Ratings and Series Connections

Most commercial cylindrical supercapacitors — including 10F, 25F, 50F, and 100F sizes — are rated at 2.5V or 2.7V per cell. This is a hard limit, not a guideline. Exceeding the rated cell voltage accelerates electrolyte decomposition and shortens lifespan dramatically.

For 5V systems, you need two cells in series, giving 5.4V maximum with matched cells. For 3.3V systems, a single 2.7V cell works with a simple boost/buck converter or a direct connection if your minimum voltage tolerance is acceptable.

Cell Balancing for Series-Connected Supercapacitors

When multiple supercapacitors are connected in series to achieve higher voltage ratings, charge imbalances can occur due to manufacturing tolerances and differences in self-discharge rates. Uneven charge distribution among the supercapacitors can lead to overvoltage stress on individual cells, reducing their lifespan and potentially causing failure.

Cell balancing in series-connected capacitors ensures that the voltage across each cell is approximately equal; a lack of cell balancing in a supercapacitor may lead to overvoltage damage. Supercapacitor capacitance can vary up to ±20% of the rated value due to manufacturing variance and aging — this variance means without balancing, the cell with lower capacitance will reach its voltage limit first.

Two balancing approaches are used in practice:

Passive balancing uses a resistor in parallel with each cell to dissipate excess charge and equalize voltage. Simple and cheap, but continuously wastes a small amount of current. Resistor value is typically set so the balancing current is 3–10× the self-discharge current of the supercapacitor — around 1–10mΩ for a 10F cell.

Active balancing uses dedicated ICs such as the Texas Instruments bq33100 or the Linear Technology LTC3128 to shuttle charge between cells efficiently. Active balancing efficiently shuttles charge between the capacitors, eliminating the power losses and required subsequent recharge cycles with dissipative methods. The cost and complexity are higher, but for systems that need maximum energy availability over long hold-up periods, active balancing delivers better performance.

Charging Circuit Design for 10F Supercapacitors

To charge a supercapacitor efficiently and safely, a proper charging circuit is required. The key difference from charging a battery is that a supercapacitor’s terminal voltage rises linearly as it charges — there is no absorption phase, no chemistry to monitor. This makes the control logic simpler in principle, but inrush current management is mandatory.

A discharged 10F supercapacitor presents a near-dead short at power-up. If you connect a 5V supply directly to a discharged 10F cap through a 1Ω series resistor, the initial inrush current is 5A. Without current limiting, you will stress the supply, the protection diodes, and potentially damage the supercapacitor itself if inrush is severe enough.

The three standard approaches:

Series Resistor — simplest, cheapest. A 10Ω resistor limits inrush to 500mA from a 5V supply. Charge time to 90% is roughly 5 × RC = 5 × 10 × 10 = 500 seconds. Too slow for most applications if the resistor is left in series permanently.

Current-Limited Charger IC — the right call for most designs. The LTC3128 (Linear/Analog Devices), TI bq33100, and similar dedicated supercapacitor charger ICs provide programmable constant-current charging with overvoltage protection. A buck-boost IC supercapacitor charging solution needs to possess flexibility — it must operate efficiently in step-up or step-down modes and can perform active charge balancing with programmable maximum capacitor voltage.

Charge-then-Bypass — a resistor limits inrush until the capacitor reaches operating voltage, then a FET or relay shorts the resistor for normal operation. More hardware complexity, but gives fast charge time and zero series resistance during operation.

PCB Layout Considerations for Supercapacitors

Physically, a 10F–100F supercapacitor is a substantial component — typically 35–60mm tall in a 18–35mm cylindrical case. Unlike an electrolytic where the capacitance label is the main design variable, placing a supercapacitor correctly on a PCB involves several additional factors.

How capacitors interact with PCB layout at the trace, via, and ground plane level determines whether the supercapacitor can deliver its rated current when it matters most. For supercapacitor applications, these are the layout rules that actually matter in production:

High-current discharge paths must be wide and short. A 10F supercapacitor can deliver tens of amps in a short-circuit scenario. Even in normal operation, a 2A pulse discharge demands traces wide enough to carry current without significant resistive loss or heating. Minimum 3mm trace width for 2A on 1oz copper.

Use through-hole or snap-in footprints for physical stability. Large supercapacitors experience significant mechanical stress during vibration. SMD supercapacitors exist for smaller values but cylindrical 10F–100F types should be through-hole or provided with a PCB-mounted clamp.

Keep the supercapacitor away from heat sources. Operating temperature directly affects both self-discharge rate and long-term capacity retention. Every 10°C of unnecessary heat shortens effective lifespan. Keep reservoir supercapacitors away from power FETs, bridge rectifiers, and transformer cores.

Never omit polarity markings on the silkscreen. Supercapacitors are polarized. Reversing polarity even briefly is destructive and potentially hazardous. Mark polarity explicitly in the silkscreen, include a mechanical key in the footprint if possible, and double-check orientation in the PCB review.

Leading 10F to 100F Supercapacitor Series by Application

Brand	Series	Capacitance Range	Voltage	Best Application
Eaton	PowerStor HV	1F – 50F	2.7V–5.5V	IoT, backup, broad portfolio
Murata	SCBS series	0.1F – 10F	2.3V–5.5V	SMD, wearables, IoT
Maxwell (Vishay)	K2 Series	350F – 3,000F	2.7V	Module-level industrial
Nichicon	JJD / JJE Series	0.1F – 50F	2.7V–5.5V	Industrial, automotive
Panasonic	Gold Cap	0.1F – 70F	2.3V–5.5V	RTC backup, embedded systems
Cornell Dubilier	DSF / DGH	1F – 100F	2.7V	High-reliability industrial
Elna	Dynacap	0.047F – 47F	2.7V–5.5V	Consumer electronics, IoT

Useful Resources for Engineers

Bookmark these references before starting any supercapacitor design:

• Eaton Supercapacitor Application Guidelines PDF — eaton.com — Covers sizing calculations, ESR/capacitive discharge, series connection, and PCB soldering guidelines. Start here.
• Texas Instruments bq33100 Datasheet — ti.com — Single-chip supercapacitor management with balancing, monitoring, and protection for up to 5 cells in series.
• Analog Devices LTC3128 Datasheet — analog.com — Buck-boost supercapacitor charger with active balancing and programmable current limit. Excellent for 2-cell series designs.
• Panasonic Gold Cap Selection Guide — industrial.panasonic.com — Full parametric tables including self-discharge rates, temperature derating, and lifetime projection charts.
• Skeleton Technologies Supercapacitors 101 — skeletontech.com — Clear, technically accurate introduction to supercapacitor operating principles and application segmentation.
• DigiKey Supercapacitor Parametric Search — digikey.com — Filter by capacitance (use “Super Capacitors” category), voltage, ESR, package, and temperature range across all major suppliers.
• Cornell Dubilier Supercapacitor Technical Guide — cde.com — In-depth treatment of EDLC construction, ESR behavior, self-discharge characterization, and series/parallel configuration rules.
• Electronics Weekly: Designing a Supercapacitor Charger with Balancing — electronicsweekly.com — Practical balancing circuit design considerations with passive vs active comparison and IC recommendations.

Frequently Asked Questions

Q1: Can a 10F supercapacitor replace a battery in an IoT device?

For long-term energy storage, no — not with current technology. A 10F supercapacitor at 2.7V stores around 36J. A CR2032 coin cell battery stores approximately 2,500J. For powering a device through days or weeks of operation, the supercapacitor simply doesn’t hold enough energy. However, for protecting a primary battery from pulse-induced stress, providing backup power for seconds to minutes, or replacing a coin cell RTC backup in a continuously-powered system, the 10F supercapacitor is the better engineering choice. The two technologies complement rather than replace each other.

Q2: Why does my supercapacitor discharge so quickly when not in use?

High self-discharge is a known characteristic of supercapacitors compared to batteries. A 10F supercapacitor may lose 50% of its charge within a few days to weeks at room temperature depending on type and age. The energy density of supercapacitors, while impressive in terms of power delivery, typically falls short compared to traditional batteries. For applications requiring energy storage over weeks or months without recharging, a battery is the appropriate technology. For applications that are recharged frequently or where hold-up time is measured in minutes, self-discharge is a minor concern.

Q3: What happens if I exceed the 2.7V voltage rating on a supercapacitor cell?

Exceeding the rated cell voltage accelerates electrolyte decomposition and gas generation inside the cell. This degrades capacitance and increases ESR — initially gradually, then catastrophically. Long-term overvoltage by even 100–200mV can reduce a supercapacitor’s lifespan from 500,000 cycles to a few thousand. Always use a dedicated charger IC or voltage clamping circuit rather than relying on a fixed voltage divider with loose tolerance components to control the charge voltage.

Q4: Do I need to balance two 10F supercapacitors connected in series?

Yes, for anything beyond a prototype. Manufacturing tolerances mean two supposedly identical cells may differ by up to ±20% in actual capacitance. During charging at constant current, the capacitor that reaches first the rated voltage level could be damaged in a further charging process. At minimum, add passive balancing resistors in parallel with each cell. For precision applications, use an active balancing IC. Never run series supercapacitors without some form of voltage equalization in a production design.

Q5: How long will a 10F supercapacitor last in a real product?

Supercapacitors can achieve a cycle life as high as 1,000,000 cycles. In practical terms, a supercapacitor in an IoT device that charges and discharges once per hour achieves 8,760 cycles per year — reaching one million cycles after 114 years of operation. Lifespan is therefore dominated by calendar aging (electrolyte dry-out) and temperature rather than cycle count. At 25°C and 2.5V operating voltage (derated from 2.7V), most quality supercapacitors are rated for 10+ years of operational life. Operating at maximum rated voltage and 70°C ambient will compress that to 2–3 years. Derate voltage by 10% and keep the component cool, and you will likely outlast the rest of the product.

The 10F supercapacitor occupies a design space that electrolytics can’t reach and batteries handle poorly — high-current short-duration bursts, maintenance-free decade-long deployments, and clean non-chemical backup power for embedded systems. Sized correctly, charged with appropriate current limiting, balanced when in series, and placed thoughtfully on the PCB, a supercapacitor in the 10F to 100F range is one of the most reliable passive components you can put into a product. The key is matching the technology to the application — and understanding clearly what a supercapacitor is designed to do well, versus where a battery remains the right answer.

Discover how a 1 farad capacitor powers RTC backup, MCU hold-up, and pulse loads. Includes energy formulas, ESR specs, PCB layout tips, and manufacturer table.

Most engineers spend their careers working in the microfarad range — 100 µF here, 470 µF there. Then a project comes along that needs to keep a microcontroller alive through a 500ms power interruption, or provide a burst of current to a GPS module during acquisition, and suddenly a 1 farad capacitor enters the conversation. That number stops people. One full farad. Not microfarads. Not millifarads. A farad — the same unit that defines the base SI measure of capacitance, and a value that would have required a capacitor the size of a car using conventional electrolytic technology just decades ago.

Today, a 1F supercapacitor fits in a package roughly the size of a AA battery, costs under two dollars in quantity, and opens the door to a category of energy storage that sits between conventional capacitors and rechargeable batteries. Understanding where this component fits — and where it doesn’t — is what separates designs that work from ones that look good on paper and fall apart in the field.

What Is a 1 Farad Capacitor and How Does It Differ from Regular Capacitors?

A 1 farad capacitor is not simply a scaled-up electrolytic. It belongs to a fundamentally different component family: the electrochemical double-layer capacitor (EDLC), also called a supercapacitor or ultracapacitor. The operating principle is different, the energy storage mechanism is different, and the design implications are different.

In a conventional aluminum electrolytic capacitor, charge is stored in a thin aluminum oxide dielectric layer. In a supercapacitor, there is no dielectric in the traditional sense. Instead, charge accumulates at the interface between a high-surface-area electrode (typically activated carbon) and an electrolyte solution — an effect called electrostatic double-layer capacitance. Because the electrode surface area is measured in hundreds to thousands of square meters per gram, capacitance values that would be physically impossible with dielectric technology become routine.

Supercapacitor vs. Battery vs. Electrolytic Capacitor

Property	Electrolytic Cap	1F Supercapacitor	Li-Ion Battery
Capacitance	µF range	1F – 3000F	N/A (Wh rated)
Energy Density	Very low	Medium-low	High
Power Density	Very high	High	Medium
Charge/Discharge Cycles	Unlimited	100,000 – 1,000,000+	300 – 2,000
Charge Time	Microseconds	Seconds to minutes	Minutes to hours
Self-Discharge	Negligible	Moderate (weeks)	Low (months)
Voltage Range	Fixed (stable)	Varies with charge state	Relatively flat
Temperature Range	–40°C to +105°C	–40°C to +65/85°C	–20°C to +60°C
Cost per Farad	High	Very low	N/A

The key insight is that supercapacitors don’t replace batteries and they don’t replace bypass capacitors. They occupy a specific niche: applications that need energy delivery over seconds or minutes, with very long cycle life and the ability to charge and discharge repeatedly without degradation.

Key Specifications of a 1 Farad Supercapacitor

When you open the datasheet for a 1F supercapacitor, the numbers you need to understand are quite different from what you’d look at for a standard electrolytic. Here’s what actually matters in a real design:

Parameter	Typical Value (1F EDLC)	Engineering Notes
Rated Capacitance	1.0 F ±20%	Measured at low frequency, DC bias applied
Rated Voltage	2.5V – 5.5V	Most common: 2.7V, 5.0V, 5.5V
ESR (DC internal resistance)	80 – 400 mΩ	Limits peak current delivery
Max Continuous Current	0.5 – 2.0 A	Thermal limitation
Leakage Current	1 – 10 µA	After 30 min at rated voltage
Operating Temperature	–40°C to +65°C or +85°C	Affects capacity and ESR
Shelf Life	10 years (stored uncharged)	Stored at recommended voltage
Cycle Life	> 500,000 cycles	At rated conditions
Physical Size	Ø8–16mm coin / radial	Voltage rating affects size significantly

Voltage Rating: The Most Critical Parameter

Unlike a battery that maintains a relatively flat voltage during discharge, a supercapacitor’s terminal voltage is directly proportional to its state of charge. A 1F capacitor charged to 2.7V that discharges to 1.35V has delivered exactly half its stored energy. This is not optional knowledge — it fundamentally determines whether your circuit will function throughout the discharge cycle.

The stored energy in a 1 farad capacitor at rated voltage is:

E = ½ × C × V²

At 2.7V: E = ½ × 1 × 2.7² = 3.645 joules

At 5.5V (series pair or higher-rated device): E = ½ × 1 × 5.5² = 15.1 joules

And the usable energy — from V_max to V_min — is:

E_usable = ½ × C × (V_max² – V_min²)

If your circuit requires minimum 1.8V and you start at 2.7V:

E_usable = ½ × 1 × (2.7² – 1.8²) = ½ × (7.29 – 3.24) = 2.025 joules

These joule-level energy figures put 1F supercapacitors in a clear application space: short-duration backup, pulse energy delivery, and real-time clock (RTC) maintenance — not multi-minute holdups or sustained load supply.

Practical Applications of the 1 Farad Capacitor

Real-Time Clock and SRAM Backup

This is probably the single most common application of a 1F supercapacitor in commercial electronics. Many microcontrollers and processors have an RTC subsystem and battery-backed SRAM that draws only 1–10 µA when the main supply is removed. A 1F capacitor at 3V can supply 1 µA for:

t = C × ΔV / I = 1 × (3.0 – 1.8) / 0.000001 = 1,200,000 seconds ≈ 13.9 days

That’s nearly two weeks of RTC backup from a single 1F supercapacitor, with no battery to replace, no disposal concerns, and essentially unlimited cycle life. This is why you see supercapacitors replacing coin cells in industrial controllers, smart meters, and building automation equipment where maintenance access is limited.

Microcontroller Hold-Up During Power Interruption

A microcontroller performing a write to non-volatile memory at the moment of power loss can corrupt data or lose critical state. A 1F supercapacitor, pre-charged to the rail voltage, can power a low-power MCU (drawing say 5–20 mA at 3.3V) long enough to complete the write and shut down gracefully:

At 10 mA load, from 3.3V to 2.0V:

t = C × ΔV / I = 1 × 1.3 / 0.010 = 130 seconds

That’s over two minutes — far more than the 50–500 ms that most graceful shutdown routines require.

Pulse Power for Wireless Transmission

GSM, LoRa, and other wireless modules can demand peak currents of 1–2A during transmission bursts, far exceeding what a coin cell or thin battery can supply without heavy voltage droop. A 1F supercapacitor in parallel with the power source absorbs these transients and provides the burst current locally, allowing a smaller, cheaper primary supply to run the system between transmissions.

Energy Harvesting Buffer

In solar and thermoelectric harvesting systems that generate irregular, low-average-power energy, a 1F supercapacitor can buffer the harvested energy and release it in controlled bursts when the application needs it. The unlimited cycle life is especially valuable here — a solar-powered sensor node that charges and discharges its energy buffer thousands of times per year would destroy a lithium battery in months but leaves a supercapacitor unaffected after years of operation.

Automotive and Industrial Memory Backup

In automotive EEPROM, instrument cluster, and infotainment systems, supercapacitors maintain voltage to memory circuits during ignition switch-off transients. The 1F value is common in lower-power systems; larger modules use stacked or higher-capacitance devices.

PCB Design Considerations for 1F Supercapacitors

Placing a capacitor on a PCB that stores joules rather than millijoules demands a different level of design care. Here’s what experienced engineers pay attention to:

Inrush Current Limiting

When you first apply power to a discharged supercapacitor, it looks like a near short-circuit. The initial charge current is limited only by ESR and the impedance of your source. A 1F cap with 200 mΩ ESR connected to a 5V rail can draw 25A instantaneously. This will trip current-limited supplies, damage thin PCB traces, and stress the source.

The solution is a series inrush limiting resistor — typically 10–100Ω — during initial charge. Once charged, this resistor can be bypassed with a FET or left in circuit if the IR drop is acceptable for your application. Purpose-built supercapacitor charger ICs (like the Texas Instruments TPS61225 or Maxim MAX38888) handle this automatically with controlled current ramp-up.

Polarity and Voltage Clamping

Supercapacitors are polarized. Reversing polarity, even briefly, can permanently damage the device. On a PCB where reverse polarity events are possible (automotive environments, field-replaceable modules), a protection diode or FET-based protection circuit is not optional.

Additionally, do not exceed the rated voltage. A 2.7V-rated device connected to a 3.3V rail without a voltage clamp will degrade rapidly. A simple Zener or a dedicated voltage clamp circuit keeps the supercapacitor within its safe operating area.

Self-Discharge and Leakage

Supercapacitors have significantly higher self-discharge than batteries. A charged 1F supercapacitor left on the shelf loses charge over days to weeks, depending on temperature and the specific device. For backup applications where the device may sit charged but unused for months, validate the leakage current specification against your minimum required voltage at end of standby period.

Layout and Thermal Placement

Keep the supercapacitor away from hot components. Elevated temperature accelerates aging and increases leakage current. ESR also increases at low temperatures, reducing peak current capability — important for cold-start automotive applications.

Popular 1 Farad Supercapacitor Series and Manufacturers

Series	Manufacturer	Voltage	ESR	Temp Range	Form Factor
BCAP0001	Maxwell (now Vishay)	2.7V	180 mΩ	–40 to +65°C	Radial
HVC0810-2R7105	Elna	2.7V	200 mΩ	–40 to +70°C	Radial
CPX3225A105	Murata	5.5V	120 Ω (coin)	–20 to +70°C	SMD Coin
SCMT22C105	Vishay	5.5V	60 Ω (coin)	–40 to +85°C	SMD Coin
FG0H105ZF	Panasonic (Gold Cap)	5.5V	50 Ω	–25 to +70°C	Radial
FS0H105ZF	Panasonic (Gold Cap)	5.5V	35 Ω	–25 to +70°C	Radial
SCP Series	Seiko (Seiko Instruments)	5.5V	150 Ω	–25 to +70°C	SMD Coin

Note: Coin-cell style supercapacitors tend to have higher ESR (ohm range) and are optimized for ultra-low current backup applications. Radial through-hole devices have much lower ESR and handle pulse currents far better. Choose based on your current requirements, not just capacitance.

Useful Resources for Engineers

Vishay (Maxwell) Supercapacitor Product Page https://www.vishay.com/en/capacitors/supercapacitors/ Includes BCAP series datasheets, application notes on charge balancing and inrush limiting.

Panasonic Gold Cap (EDLC) Lineup https://industrial.panasonic.com/ww/products/capacitors/edlc Full parametric selector for coin-type and radial EDLC devices with downloadable datasheets.

Murata Supercapacitor Products https://www.murata.com/en-us/products/capacitor/supercapacitor SMD coin-type devices optimized for RTC backup on compact PCBs.

Texas Instruments Supercapacitor Charger ICs https://www.ti.com/power-management/battery-chargers/supercapacitor-chargers/overview.html Application notes covering inrush limiting, balancing, and voltage regulation for supercapacitor systems.

Elna America EDLC Series https://www.elna-america.com/capacitors/double-layer/ Radial and SMD supercapacitors with application notes covering backup time calculations.

IEC 62391-1 — Fixed electric double-layer capacitors for use in electronic equipment. The governing international standard for supercapacitor testing and characterization.

CAP-XX Supercapacitor Design Guide https://cap-xx.com/resources/ Application notes on sizing, pulse power design, and energy harvesting with supercapacitors.

5 FAQs About the 1 Farad Capacitor

Q1: Can I use a 1F supercapacitor to replace a coin cell battery? For very low-current applications like RTC backup drawing under 5 µA, a 1F supercapacitor can replace a CR2032 for applications where the main power is available regularly enough to recharge it. The supercapacitor will not match a coin cell’s multi-year standalone backup capability, but if power is cycled at least monthly, it typically maintains enough charge to bridge power interruptions indefinitely. The big advantage is zero battery disposal concerns and essentially unlimited cycle life.

Q2: What happens if I charge a 1F supercapacitor to more than its rated voltage? The device will not fail immediately, but electrolytic decomposition begins above the rated voltage, generating gas inside the sealed housing. This causes physical swelling, accelerated ESR increase, and ultimately seal failure or case rupture. Even 100–200mV above rated voltage significantly shortens service life. Always use a regulated charge circuit with a voltage clamp set at or below the rated voltage.

Q3: Can I connect two 1F supercapacitors in series to get a higher voltage rating? Yes, and this is a common technique to achieve 5.4V or 5.5V from two 2.7V-rated cells. However, you must add a cell balancing circuit (either passive resistors or active balancing ICs) to prevent voltage imbalance between the cells. Without balancing, manufacturing variation in leakage current causes one cell to charge above its rated voltage while the other sits undercharged, damaging the overstressed cell over time.

Q4: How do I measure how much charge is left in a 1F supercapacitor? Unlike a battery where voltage is relatively flat across the discharge curve, a supercapacitor’s voltage directly indicates its state of charge. If you know V_max (charged) and V_min (discharged cutoff), and you measure the current terminal voltage, you can calculate remaining energy using E = ½ × C × V². This makes supercapacitor fuel gauging considerably simpler than battery state-of-charge estimation.

Q5: Why does my 1F supercapacitor feel warm during charging? Is it failing? Some warmth during rapid charging is normal — it’s I²R heating in the ESR. For a 100mΩ ESR device charging at 1A, that’s 100mW of dissipation. If the device becomes uncomfortably hot (above roughly 50°C case temperature), either the charge current is too high for the device’s ripple current rating, the ambient temperature is too elevated, or the ESR has degraded indicating an aging or damaged device. Check charge current against the datasheet maximum and consider a slower charge rate or higher-rated device.

Putting the 1 Farad Capacitor in Perspective

The 1 farad capacitor is not a drop-in replacement for anything you already have in your design toolkit. It’s a new tool with a specific job description: bridging the gap between capacitors and batteries for applications that need seconds to minutes of stored energy, with cycle life that makes lithium chemistry look short-lived by comparison.

Sized correctly, charged properly, and protected against overvoltage and polarity reversal, a 1F supercapacitor sitting on a well-designed PCB will quietly do its job for the life of the product — outlasting the microcontrollers it protects, the connectors it’s mounted near, and in many cases, the product itself. That’s a component worth understanding thoroughly before you put it in a design.

Focus keyword 0.1F supercapacitor leads the description, covers both backup power and memory retention search intent, and targets engineers actively designing or debugging these circuits.

Walk through the schematics of any modern embedded system — a POS terminal, an industrial sensor node, a GPS tracker, a datalogger — and somewhere in the power management section you’ll find a component that looks like a fat electrolytic but behaves nothing like one. It might be labeled 0.1F, 0.22F, or 0.47F. It’s connected between VBAT and GND near an RTC chip or a SRAM IC, with a small series resistor limiting the charge current and a diode blocking reverse current. That’s a small 0.1F supercapacitor — or one of its close siblings — doing a quiet, critical job: keeping time and memory alive when the main power goes away.

This guide is aimed at PCB engineers who are designing supercapacitor backup circuits for the first time or revisiting an existing design that isn’t performing as expected. We’ll cover the physics, the sizing math, the circuit topology choices, the gotchas that kill backup time in the field, and the component families worth actually specifying.

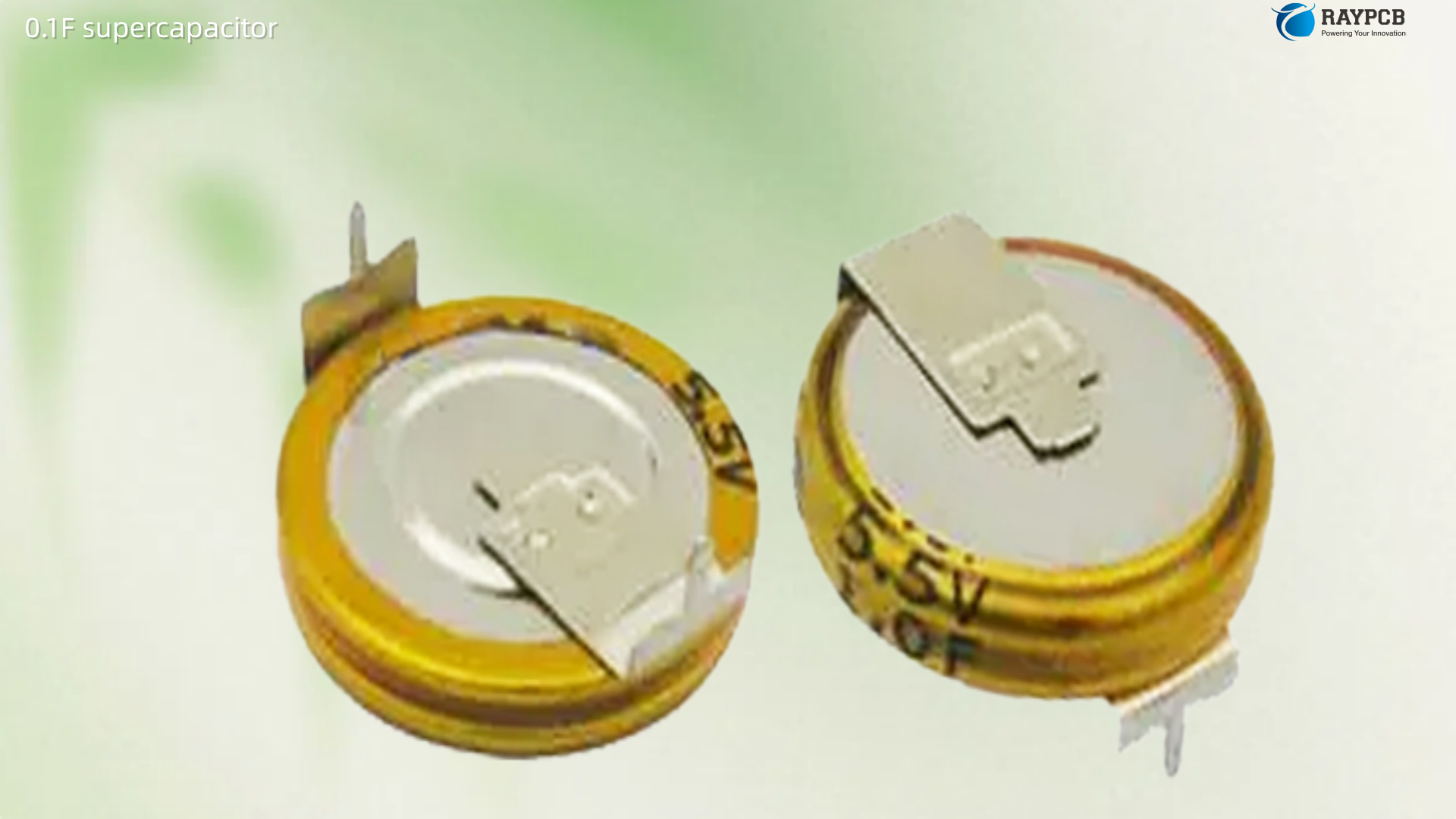

What Is a Supercapacitor and How Is It Different from a Standard Capacitor?

A supercapacitor — also called an EDLC (Electric Double-Layer Capacitor), ultracapacitor, or electrochemical capacitor — stores charge through electrostatic double-layer capacitance at the interface between activated carbon electrodes and an electrolyte, rather than through dielectric polarization like a conventional capacitor. This mechanism allows capacitance values orders of magnitude higher than anything achievable with a ceramic or electrolytic cap of equivalent physical size.

A 0.1F supercapacitor stores 100,000µF of charge — roughly 2,000 times more than a 47µF electrolytic of similar footprint. That energy density, combined with cycle life measured in hundreds of thousands of charge-discharge cycles, is what makes these devices compelling for backup applications where a coin cell battery would traditionally sit.

The tradeoff is voltage. Supercapacitors rated at 2.7V per cell are common, with stacked 5.0V and 5.5V two-cell devices widely available in the 0.1F–0.47F range. This low voltage ceiling means they are not candidates for general energy storage replacing batteries — they replace coin cells in specific low-power retention applications only.

Key Parameters That Actually Matter for Backup Design

Parameter	What It Is	Why It Matters
Capacitance (F)	Stored charge capacity	Determines backup duration at a given load
Rated Voltage (V)	Max operating voltage	Must not be exceeded; typically 2.7V or 5.5V
ESR (Ω)	Internal series resistance	Limits peak current delivery and causes voltage drop
Leakage Current (µA)	Current drawn when charged and connected	Directly shortens RTC backup time
Self-Discharge Rate	Voltage drop vs. time with no load	Sets shelf life and long-off-period backup limits
Operating Temperature (°C)	Min/max junction temperature	Affects leakage current, cycle life
Cycle Life	Charge/discharge cycles before degradation	Unlimited in most backup applications
Form Factor	Through-hole coin vs. SMD chip	Determines PCB footprint choice

Understanding the distinction between leakage current and self-discharge is essential and frequently confused in forum discussions and even some application notes. Leakage current is the steady-state current drawn by the supercapacitor while it is connected to a charge source — it represents the ion absorption current needed to maintain the capacitor in a charged state. Self-discharge is what happens to voltage when the cap is fully charged and then disconnected with no load: the voltage decays over time due to internal redistribution of ions in the activated carbon pore structure. For RTC backup design, self-discharge is the parameter that determines how long the backed-up circuit survives after main power is removed; leakage current is the parameter that determines what charge current the supercapacitor draws from the main supply during normal operation.

The 0.1F to 0.47F Sweet Spot: Why These Values Dominate RTC and SRAM Backup

The range from 0.1F to 0.47F is neither the largest nor the smallest supercapacitor footprint. Larger values (1F, 10F, and above) exist and are used for pulse power and short-duration UPS applications. Smaller supercapacitors exist in coin-cell packages but at very low capacitance. The 0.1F–0.47F range emerged as the practical optimum for several reasons specific to RTC and SRAM backup:

Modern RTC ICs draw remarkably low current during backup operation — the DS3231 draws approximately 3µA in backup mode; the PCF8563 draws under 0.25µA at 3V; Microchip’s MCP79411 family sits around 1µA. At these current levels, even a 0.22F supercapacitor stores enough energy to power an RTC for days to weeks before the terminal discharge voltage is reached.

Working through the retention time formula:

t = C × (V_initial − V_cutoff) / I_total

Where I_total includes both the RTC supply current and the supercapacitor’s own self-discharge current. For a PCF8563 RTC at 0.25µA load current plus a reasonable 1µA self-discharge from the supercapacitor, a 0.22F cap charged to 3.0V with a 1.0V cutoff voltage delivers:

t = 0.22 × (3.0 − 1.0) / 0.00000125 = 352,000 seconds ≈ 4 days

A 0.47F cap in the same circuit roughly doubles that to 8–9 days, which covers most industrial and consumer product requirements for data retention through a battery swap or a shipping period. Going to 1F or larger adds cost, board area, and physical height without proportionally extending the retention time once you factor in the self-discharge current that also scales with larger cap values.

The 0.1F value is appropriate for SRAM retention applications where the memory only needs to survive a brief power interruption — a few minutes to a few hours — and for RTC backup on circuits with slightly higher RTC supply current (3µA–10µA range). The 0.47F value is the choice when you need week-scale backup at very low RTC current, or when the system may sit powered-off in a warehouse or shipping container for extended periods.

Types of Small Supercapacitors: Coin Cell, SMD Chip, and Radial Can

Supercapacitor Form Factor Comparison

Form Factor	Typical Capacitance Range	Voltage	PCB Mount Type	Relative Cost	Key Brands
Coin cell (through-hole)	0.01F – 1.0F	2.7V / 5.5V	Through-hole radial	Low	Panasonic, KEMET, Vishay
SMD chip	0.01F – 0.47F	2.5V – 5.5V	SMD (0805, 1206+)	Medium	Murata, TDK, Taiyo Yuden
Radial can (small)	0.1F – 10F	2.7V – 5.5V	Through-hole radial	Low–medium	KEMET, Cornell Dubilier, Eaton
Prismatic (thin)	0.09F – 2.4F	2.7V – 4.2V	SMD / PCB mount	High	CAP-XX

Coin Cell Form Factor

The traditional through-hole coin-cell supercapacitor — physically resembling a large watch battery — dominates in cost-sensitive designs like consumer appliances, home routers, industrial timers, and set-top boxes. Panasonic’s ML series and the KEMET FC series are the most widely stocked. These parts are polarized and must be installed with correct orientation. Typical ESR values run from a few ohms in very compact 0.1F parts down to under 100Ω in better-specified 0.47F components — high enough that peak current delivery is limited, but inconsequential for low-current RTC backup applications where peak current demand is measured in microamps.

SMD Chip Supercapacitor

SMD supercapacitors in 0805, 1206, and larger case sizes are available in the 0.1F–0.47F range from Murata (JUWT series), TDK (CPX series), and Taiyo Yuden. They allow fully automated SMT assembly without through-hole processes, which matters in high-volume consumer electronics manufacturing. Their footprint is larger than a 0402 or 0603 ceramic decoupling cap but comparable to a small electrolytic. The tradeoff is cost — SMD supercapacitors at 0.22F typically cost two to five times more than equivalent through-hole coin types. In volume production at hundreds of thousands of units per year, this cost difference is significant; in low-volume industrial designs, it often isn’t.

Prismatic and Thin-Profile Types

CAP-XX and similar manufacturers offer thin prismatic supercapacitors in the 0.1F–0.47F range for applications where PCB height clearance is constrained — handheld devices, wearables, thin embedded modules. These command a substantial premium and are specified in designs where form factor constraints explicitly override cost optimization.

RTC Backup Circuit Design: The Three Topologies Every Engineer Should Know

Topology 1: Simple Diode + Resistor (Low Cost, Lowest Complexity)

The most common RTC backup circuit connects the supercapacitor through a current-limiting resistor from the main VCC rail, with a diode preventing backfeed from the supercapacitor to the main rail when power is removed. The supercapacitor connects directly to the RTC VBAT pin.

Charging resistor value: R = (VCC − V_cap_max) / I_charge_max

For a 3.3V supply charging a 5.5V-rated supercap (which we’ll cap at 3.0V for safety margin), with a desired charge current of 1mA: R = (3.3 − 3.0) / 0.001 = 300Ω.

The diode choice matters. A standard silicon diode drops 0.6–0.7V, which means the supercapacitor charges to only VCC − 0.7V, reducing available backup energy. A Schottky diode (BAT54, BAT85) with 0.3V forward voltage charges the cap closer to the rail voltage, delivering more usable energy. In 3.3V systems, this 400mV difference between Schottky and silicon diode translates to a meaningful percentage of the usable voltage window.

Topology 2: Ideal Diode / P-Channel FET Switch (Better Efficiency)

A P-channel MOSFET configured as an ideal diode eliminates the forward voltage drop of a physical diode, allowing the supercapacitor to charge all the way to VCC minus the FET’s on-state drop — typically under 50mV at microamp currents. This is worth the additional component cost in systems where every millivolt of stored energy matters for backup duration. The gate drive circuit to switch the PMOS off when VCC falls below the cap voltage is simple: a resistor divider and a small signal NPN to pull the gate high when VCC disappears.

Topology 3: Dedicated Supercapacitor Charger IC (Best Control)

For designs where charge current control, cell balancing (for stacked 5.5V devices), and precise cutoff voltage management are needed, dedicated supercapacitor charger ICs from Texas Instruments (BQ33100), Maxim/ADI (MAX1505), and Linear Technology (LTC4425) provide clean, well-characterized charging behavior. These ICs include inrush current limiting, overvoltage protection, power-fail detection, and status outputs — making them appropriate for designs where a failed backup charge would have serious consequences, such as industrial data loggers or automotive RTC modules.

For a more detailed treatment of how capacitors integrate into PCB power design including backup circuit layout considerations, reviewing board-level design guidelines before committing your layout is time well spent, especially around the placement and routing of the supercapacitor’s charge/discharge path.

Critical Design Pitfall: Leakage Current Kills Your Backup Time

The single most common reason small supercapacitor backup designs fail to meet backup time specifications in the field is underestimating total leakage and self-discharge current. Engineers calculate the backup time using only the RTC supply current from the IC datasheet, then discover the actual backup time is 30–50% of what they calculated.

Self-discharge characteristics have a direct impact on backup time and must be considered alongside the RTC circuit’s supply current when sizing the supercapacitor. The total effective discharge current is the sum of the RTC supply current and the supercapacitor’s own self-discharge current, and for supercapacitors in the 0.1F–0.22F range, self-discharge current can easily match or exceed the RTC current.

Temperature compounds this problem significantly. Leakage current has a temperature dependency — higher temperatures result in higher absorption current and leakage current. A 0.22F supercapacitor specified at 1µA leakage at 25°C may draw 3–5µA at 60°C, which is a relevant consideration for designs installed in enclosures exposed to summer ambient temperatures or located near heat-generating components.

The practical mitigation: always calculate backup time using the worst-case sum of RTC supply current at maximum temperature plus the supercapacitor’s self-discharge current at the same temperature, with both values taken from the respective datasheets’ worst-case columns rather than typical values. Then add a 50% safety margin on top of that calculation.

Sizing the Supercapacitor: Step-by-Step Calculation

Here’s the complete calculation sequence for sizing a small supercapacitor for RTC or SRAM backup:

Step 1 — Determine the total discharge current: I_total = I_RTC (from IC datasheet, worst-case at max temp) + I_selfdischarge (from supercap datasheet at max temp)

Step 2 — Determine the usable voltage window: ΔV = V_charged − V_cutoff V_charged = VCC − V_diode_drop (or VCC with ideal diode topology) V_cutoff = minimum operating voltage of the RTC/SRAM IC (typically 1.0V–1.8V)

Step 3 — Calculate required capacitance for desired backup time: C = I_total × t_backup / ΔV

Step 4 — Apply a 1.5× to 2× safety margin: C_selected ≥ C × 1.5

Worked Example — DS3231 RTC, 3.3V system, 7-day backup target:

• I_RTC = 3µA (DS3231 worst case backup mode)
• I_selfdischarge = 2µA (typical 0.22F coin supercap at 40°C operating)
• I_total = 5µA
• ΔV = (3.3 − 0.3) − 1.0 = 2.0V (using Schottky diode, 1.0V cutoff)
• t_backup = 7 days = 604,800 seconds
• C = (5 × 10⁻⁶ × 604,800) / 2.0 = 1.51F

At 7-day backup with a DS3231, a 0.22F or even 0.47F supercapacitor is insufficient — a 1.5F or 2F part is needed. This is exactly why datasheets recommending 0.22F for “weeks” of backup are based on RTCs drawing sub-1µA current, not the DS3231’s relatively hungry 3µA. Match the calculation to the specific IC being backed up.

Small Supercapacitor vs. Coin Cell Battery: When to Use Each

Criterion	0.1F–0.47F Supercapacitor	CR2032 Coin Cell Battery
Cycle life	500,000+ cycles	~500 cycles (charge) / one use (primary)
Charge/recharge	Automatic from VCC	Requires manual replacement
Self-discharge over years	High — months to empty	Very low — 10-year shelf life
Energy capacity	Low (mWh range)	High (~225 mAh)
Backup duration at 1µA load	Days to weeks	Years
Cost at volume	Low ($0.20–$1.00)	Low ($0.15–$0.50)
RoHS / hazmat concerns	None	Some battery shipping restrictions
Failure mode	Gradual voltage decay	Sudden depletion
PCB integration	Soldered, no holder needed	Requires battery holder or solder tabs
Suitable backup duration	Minutes to weeks	Weeks to years

The supercapacitor wins decisively on cycle life, elimination of battery replacement, automated charging from the main supply, and regulatory simplicity. The coin cell battery wins on energy density and shelf life. For products with 2+ year backup requirements, a coin cell or rechargeable lithium battery remains the right choice. For products with days-to-weeks backup requirements, automatic recharging, and high-volume manufacturing where a battery holder adds cost and assembly time, the 0.1F–0.47F supercapacitor is the better engineering answer.

PCB Layout Considerations for Small Supercapacitor Backup Circuits

Place the supercapacitor close to the VBAT pin. The RTC’s VBAT pin draws microamp currents, so resistance and inductance in the trace from the supercapacitor are not a practical concern — but keeping the connection short protects against ESD coupling and board-level noise pickup on the sensitive backup supply node.

Keep the charge current path separate from the VBAT path. The charge resistor and series diode connect from the main VCC rail to the supercapacitor. If this trace is shared with the VBAT line running to the RTC, any noise on the VCC rail can couple directly into the backup circuit. Route the charge path and the VBAT supply trace as separate nets from the junction point, and place a small bypass ceramic (100nF) right at the RTC VBAT pin to ground.

Respect polarity. Supercapacitors are polarized components. Reversed polarity causes gas generation inside the cell, swelling, and potential rupture. Coin-cell form factor parts typically have the positive terminal marked with a “+” or a longer lead. SMD types have standard polarity marking per manufacturer convention. Mark polarity clearly in silkscreen and confirm it matches the footprint orientation.

Thermal placement. As noted above, leakage current increases substantially with temperature. Don’t place a backup supercapacitor adjacent to voltage regulators, switching MOSFETs, power resistors, or other heat-generating components. A few centimeters of separation from heat sources makes a measurable difference in actual backup time achieved in field conditions.

Series charging resistor placement. The current-limiting resistor should be placed in series between the main VCC rail and the supercapacitor, not between the supercapacitor and the VBAT pin. If the resistor is on the VBAT side, the resistive drop between the supercapacitor and the RTC will reduce available backup voltage and waste the energy advantage of having a low-dropout diode or ideal diode topology.

Useful Resources for Engineers Designing with Small Supercapacitors

Engineers working with 0.1F–0.47F supercapacitors in backup applications will find these manufacturer resources directly useful — they go substantially deeper than the product pages:

KEMET Supercapacitor Application Notes (Mouser PDF) — mouser.com/pdfDocs/KEMETSupercap_Leakage_Selfdischarge-Q3FY18.pdf: Authoritative treatment of the leakage vs. self-discharge distinction with measurement circuits, temperature curves, and a worked RTC backup example using the KEMET FC series.

Eaton Supercapacitors for RTC & Memory Backup Application Note — eaton.com: Covers cell balancing in 5.5V stacked devices, backup time calculation methodology, and circuit topology comparison.

Murata SimSurfing Supercapacitor Selector — murata.com/en-us/tool/simsurfing: Simulate impedance, self-discharge, and backup duration for Murata JUWT SMD supercapacitor series including the 0.1F–0.47F range.

Panasonic Industrial Supercapacitor Products — industrial.panasonic.com: Panasonic ML series coin-type supercapacitors with full leakage current and self-discharge data — a standard reference for RTC backup design.

Microchip Application Note — Backup Power Sources for RTCCs and SRAMs — microchip.com: Practical circuit examples for connecting supercapacitors to Microchip’s MCP79xxx RTC family, including diode and FET topologies with specific component recommendations.

Texas Instruments PMP9766 Supercapacitor Backup Reference Design — ti.com/tool/PMP9766: Full reference design with schematics, BOM, and test data for a supercapacitor backup circuit using the TPS63020 buck-boost converter. Relevant for designs requiring regulated output voltage during backup.

Renesas Low Power Backup with Supercapacitor Reference Design — renesas.com: ISL85403-based design supporting 3V–40V input range with supercapacitor energy extraction down to 0.3V.

Digikey Supercapacitor / EDLC Parametric Search — digikey.com/en/products/filter/supercapacitors-ultracapacitors-edlcs: Filter by capacitance, voltage rating, ESR, form factor, and temperature range across multiple stocking brands. Useful for cross-referencing alternatives when a specific series is out of stock.

Frequently Asked Questions About 0.1F Supercapacitor Backup Design

Q1: Can I use a 0.1F supercapacitor to replace a CR2032 coin cell for RTC backup?

Sometimes yes, often no — it depends entirely on the required backup duration and the RTC’s supply current. A CR2032 stores roughly 225mAh of energy; a 0.1F supercapacitor stores approximately 0.9mWh at 3V, which is orders of magnitude less. For an ultra-low-power RTC drawing 0.5µA or less, a 0.1F supercap can provide weeks of backup. For an RTC drawing 3µA or more, the same cap delivers only a few days. If your product requires months to years of backup power when unplugged, the CR2032 or a rechargeable lithium cell is the right choice. The supercapacitor’s advantage is automatic recharging from the main supply — no manual battery replacement — which suits products that are regularly powered on and need to survive only brief power interruptions.

Q2: My RTC backup time is much shorter than my calculation predicted. What’s going wrong?

The most common culprit is underestimating total discharge current. Check three things: first, verify you used the worst-case supply current from the RTC datasheet, not the typical value, and at your maximum operating temperature not at 25°C. Second, obtain the self-discharge current for your specific supercapacitor from its datasheet — many designs use only the RTC current in their calculation and ignore the cap’s own self-discharge, which may equal or exceed the RTC current. Third, verify your diode forward voltage drop hasn’t reduced the initial charged voltage more than you assumed, compressing the usable voltage window and reducing stored energy.

Q3: Why does my 5.5V rated supercapacitor use only 3.3V when my supply is 3.3V — am I wasting most of its capacity?

Yes, but this is normal and expected. A supercapacitor’s voltage rating is the maximum it can safely be charged to, not a target operating voltage. In a 3.3V system, your supercapacitor charges to approximately 3.0V (with a Schottky diode drop) and discharges to the RTC’s minimum operating voltage (typically 1.0V to 1.8V). The energy stored is proportional to V², so the usable energy is proportional to (V_charged² − V_cutoff²). Using a 5.5V rated part on a 3.3V supply only accesses roughly 30% of its maximum theoretical energy, but the 5.5V rating is chosen for its internal construction quality and to provide voltage derating margin, not because you’ll reach 5.5V in this circuit. A 2.7V rated coin supercap may actually be a better physical match for 3.3V systems if you use a Schottky diode — just ensure the initial charged voltage never exceeds the 2.7V rating, which means VCC should be regulated below 3.0V at the charging node.

Q4: Can I connect two 0.22F supercapacitors in series to handle a higher voltage rail?

Yes — two 0.22F supercapacitors in series produce an effective 0.11F capacitor rated at 5.4V (for 2.7V-rated cells) or 11V (for 5.5V-rated stacked cells). The total capacitance halves with series connection, and each cell sees only half the applied voltage. The critical consideration is cell voltage balancing: if the capacitors have different capacitances or leakage currents (which all real parts do to some degree), one cell will charge to a higher voltage than the other during charging, and the higher-charged cell may exceed its voltage rating. A passive balancing resistor across each cell (same resistance value for both) forces equalization — but this resistor continuously draws current and shortens backup time. For designs requiring higher voltage operation, using a purpose-built 5.5V stacked two-cell supercapacitor from KEMET or Panasonic with internal cell balancing is cleaner than building series strings from individual cells.

Q5: How long does a small supercapacitor physically last, and will it degrade in service?

Supercapacitors don’t age the same way aluminum electrolytics do — there’s no liquid electrolyte to evaporate and no oxide layer that degrades with reverse voltage. Rated cycle life for EDLCs in the 0.1F–0.47F range is typically 100,000 to 500,000 cycles, which is effectively unlimited for an RTC backup application that may cycle once per day. Shelf life at room temperature is typically rated at 10 years for stored, uncharged parts. Degradation in service shows up primarily as capacitance loss (typically 20–30% after the rated operating period at maximum temperature) and slight ESR increase. For most RTC backup applications, neither matters much — a 20% capacitance drop still leaves plenty of backup capacity. The conditions that genuinely shorten supercapacitor life are sustained operation at or above the maximum voltage rating and sustained operation at maximum temperature. Staying within the voltage rating with appropriate derating and keeping the device cool are the two most impactful things you can do for long field life.

Summary

The 0.1F supercapacitor and its siblings in the 0.22F and 0.47F range occupy a specific, well-defined niche in PCB power design: automatic, maintenance-free backup power for low-current RTCs and SRAMs, covering backup durations from hours to weeks without batteries, battery holders, or manual replacement procedures. Sizing them correctly requires accounting for both RTC supply current and supercapacitor self-discharge current at maximum operating temperature, applying a meaningful safety margin, and selecting the right circuit topology — diode-resistor for simplicity, PMOS ideal diode for efficiency, or dedicated charger IC for critical applications. Get those fundamentals right, choose a quality component from KEMET, Panasonic, Murata, or Eaton, and keep it cool and within its voltage rating, and this deceptively simple component will run silently and reliably for the life of your product.

All technical values cited are representative of typical parts at time of writing. Always verify specifications against current manufacturer datasheets for your selected component series.
