Learn how to choose the right capacitor voltage rating and derate correctly by type — MLCC, electrolytic, tantalum, and film — with tables, worked examples, and derating rules every PCB engineer needs.

Every PCB engineer has been there — you grab a 16V electrolytic for a 12V rail and think, “16 is greater than 12, we’re good.” Then six months into field deployment, you get a batch of failures. The problem wasn’t the capacitance value. It was the capacitor voltage rating and how it was applied.

This guide cuts through the confusion. We’ll cover what capacitor voltage rating actually means, how different capacitor types behave under voltage stress, the correct derating rules for each type, and the real-world mistakes that cause premature failures on production boards.

What Is a Capacitor Voltage Rating?

The capacitor voltage rating — often printed as WV (Working Voltage) or WVDC (Working Voltage DC) — defines the maximum continuous voltage that can be safely applied across the capacitor’s terminals without degrading the dielectric or causing failure.

It is not a hard cliff where everything below is fine and everything above instantly fails. It’s more of a stress threshold. Operating near the rated voltage accelerates dielectric aging, increases leakage current, and in some capacitor types dramatically reduces effective capacitance. Operating well below the rated voltage extends service life significantly.

The voltage rating is established by the manufacturer based on:

• The dielectric material’s breakdown field strength
• The dielectric layer thickness
• Acceptable capacitance stability within the rated range
• Long-term reliability targets at rated temperature

One critical point most engineers miss: the voltage rating is a starting point for design, not a safe operating limit.

Why Exceeding the Capacitor Voltage Rating Causes Failure

When voltage stress approaches or exceeds the rated maximum, several degradation mechanisms kick in simultaneously.

Dielectric breakdown is the primary failure mode. The insulating layer between the capacitor plates begins to conduct, creating leakage paths that widen over time. In ceramic capacitors this can result in a low-resistance short. In electrolytic capacitors it causes the oxide layer to rupture.

Increased leakage current follows from partial dielectric breakdown. Current flowing through the dielectric generates heat internally, which further accelerates degradation — a self-reinforcing failure loop.

Overheating is particularly pronounced in electrolytic capacitors, where excess voltage causes internal heating that accelerates the evaporation of the liquid electrolyte, shrinking the effective capacitance and eventually causing venting or rupture.

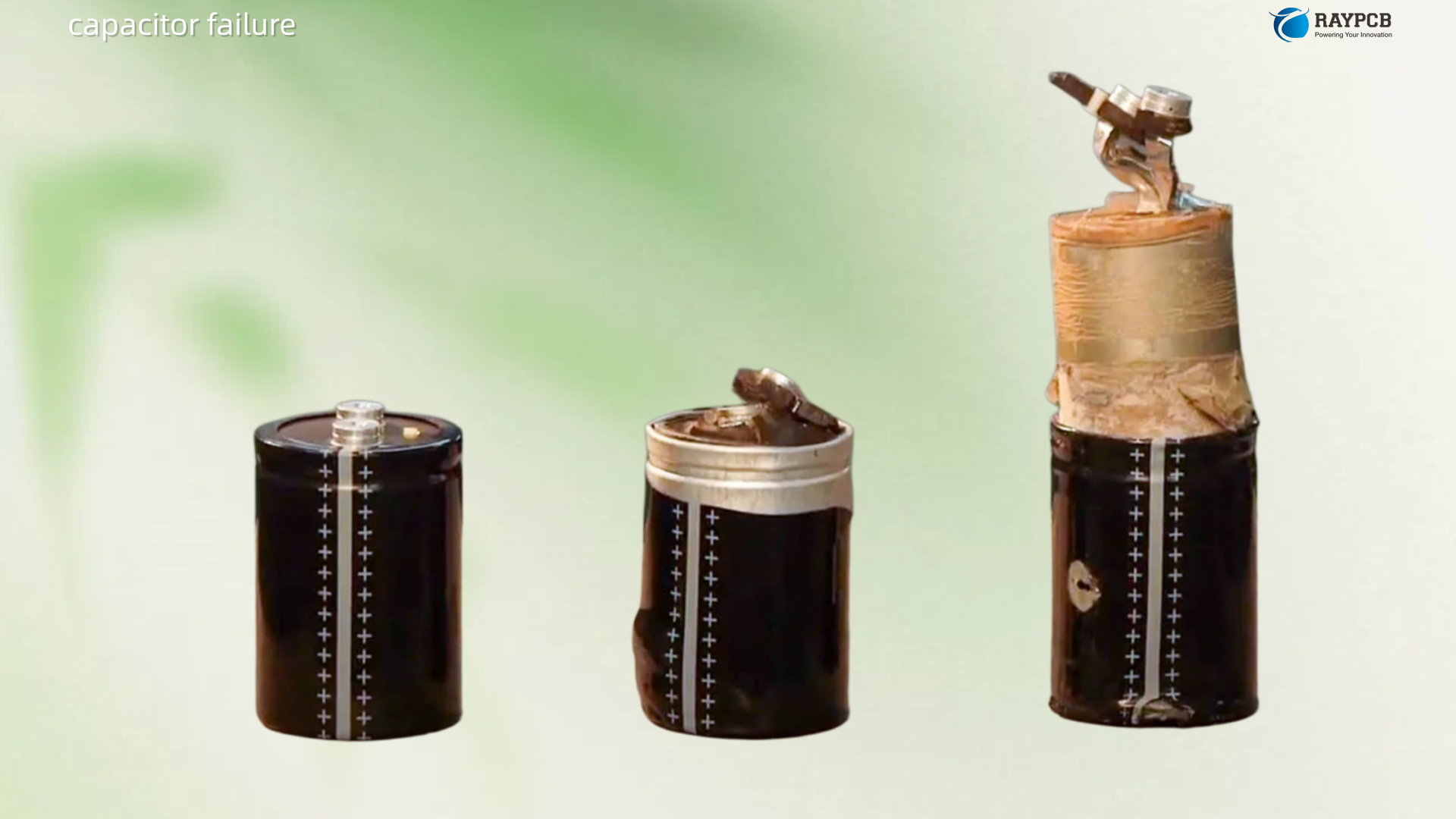

Physical damage differs by type: electrolytic capacitors may bulge, leak, or burst; ceramic capacitors may crack internally or arc between layers; tantalum capacitors can enter catastrophic thermal runaway.

Capacitor Voltage Rating by Type: What You Need to Know

Not all capacitors respond to voltage stress in the same way. Understanding the failure characteristics of each type is the foundation for correct derating.

Ceramic Capacitors (MLCCs)

Ceramic capacitors are the most common passive component on virtually any modern PCB. Their non-polarized construction makes them versatile for AC and DC circuits, but their voltage behavior is more complex than most engineers realize.

The key issue is the voltage coefficient of capacitance (VCC). Class II ceramics using high-K dielectrics such as BaTiO₃ (X7R, X5R, Y5V) experience significant capacitance loss as the applied DC voltage approaches the rated voltage. In the worst cases — particularly Y5V dielectric parts — capacitance can drop by 80% or more at the rated voltage. An MLCC labeled 10µF may only provide 2–4µF at its full working voltage.

X7R capacitors are significantly better behaved than Y5V, but still experience notable DC bias-induced capacitance reduction. Always check the manufacturer’s DC bias derating curves — the datasheet nominal capacitance value is measured at 0V DC bias, not at your operating voltage.

Beyond capacitance loss, fast voltage transients within the rated voltage limit can also degrade ceramic dielectrics over time, even when peak voltages stay below the maximum.

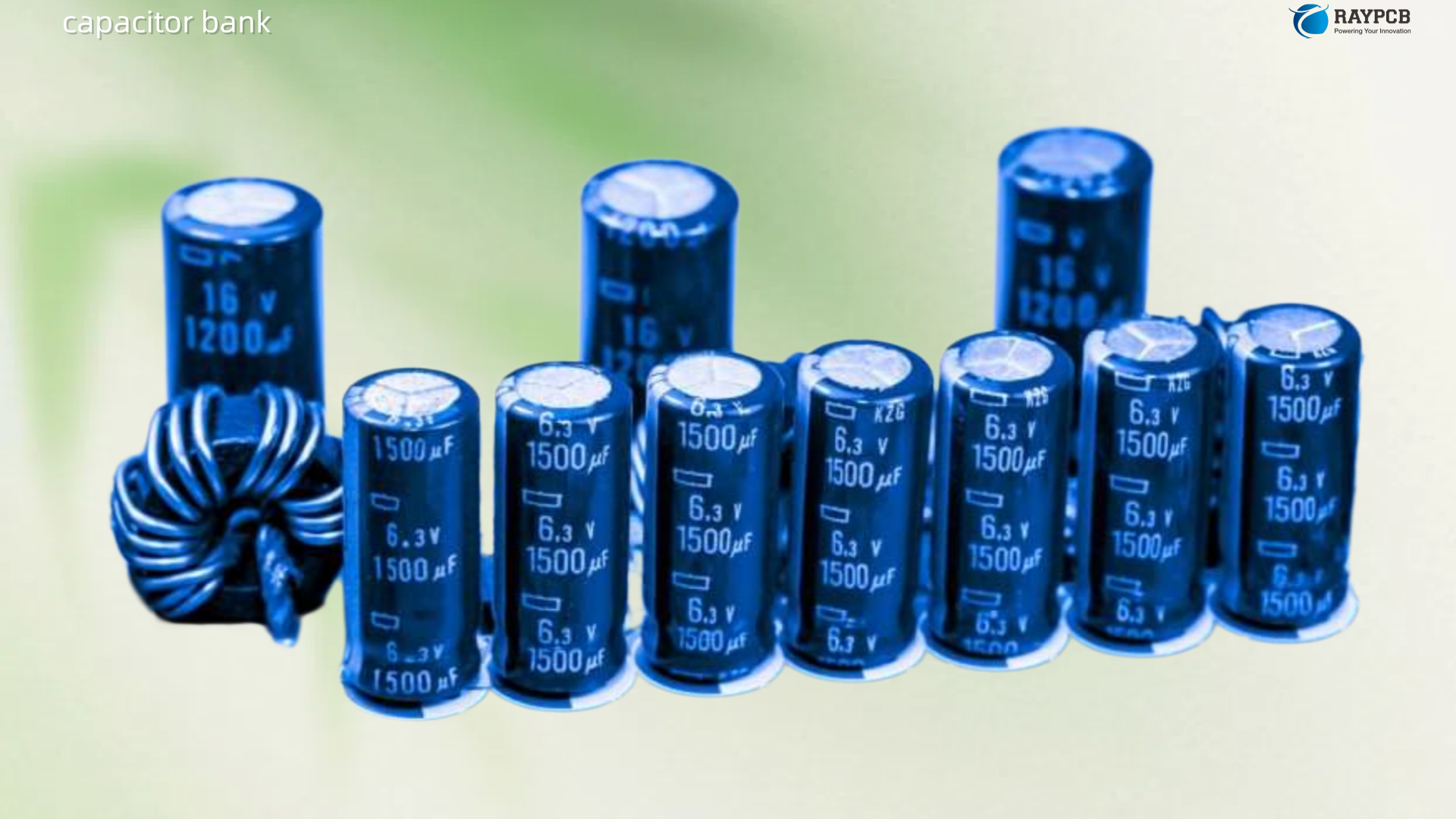

Aluminum Electrolytic Capacitors

Aluminum electrolytics use an oxide layer on aluminum foil as the dielectric. This oxide layer is formed electrochemically and its thickness — and therefore the voltage rating — is directly proportional to the formation voltage used during manufacturing.

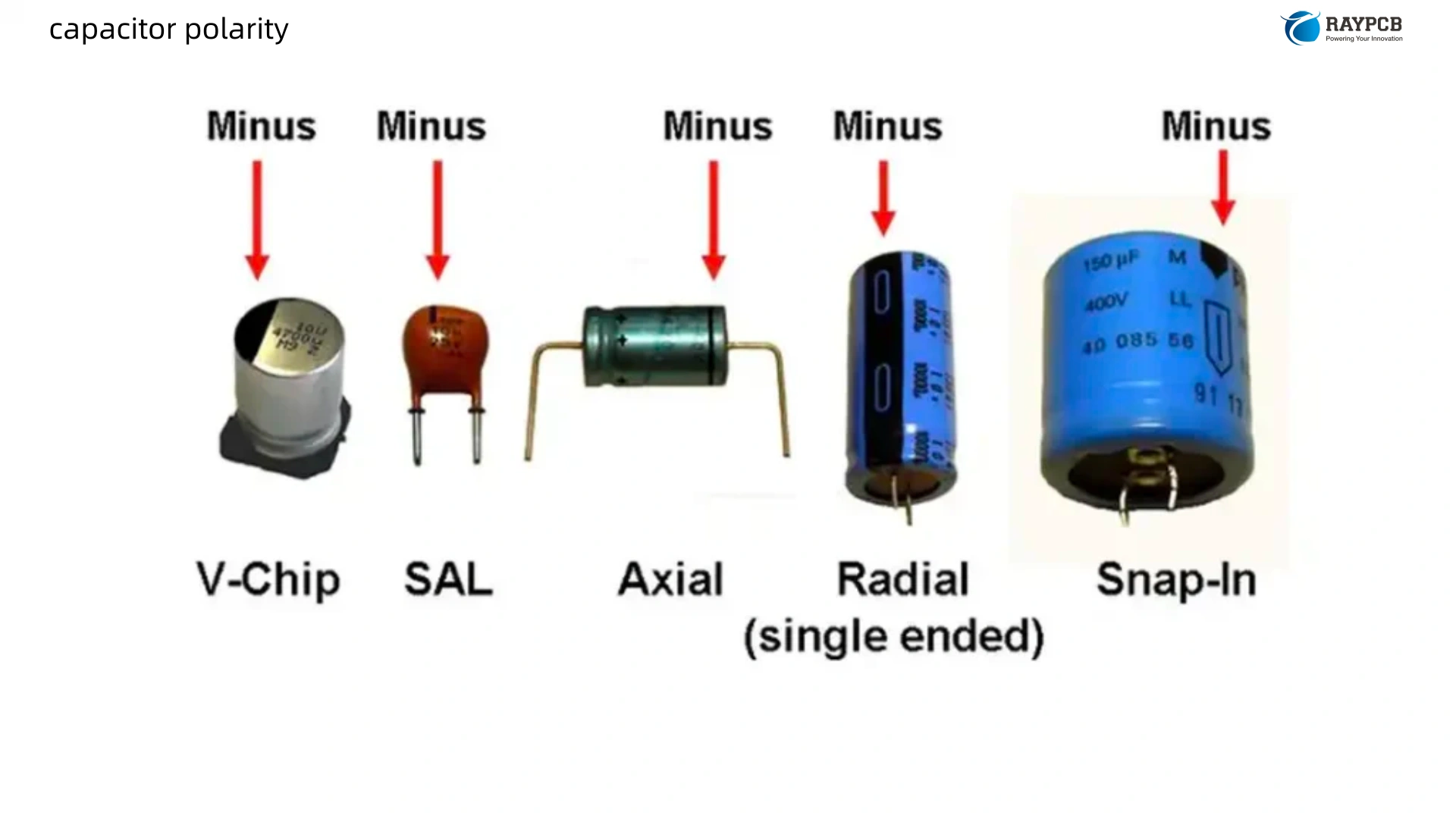

These capacitors are polarized. Reverse voltage events, even brief ones from supply sequencing or inductive back-EMF, damage the oxide layer and reduce voltage rating. Repeated small reverse voltage events accumulate as latent damage before catastrophic failure.

Capacitor lifetime in aluminum electrolytics is strongly voltage-dependent and even more strongly temperature-dependent. The Arrhenius relationship means that every 10°C increase in operating temperature roughly halves the service life. When voltage stress and thermal stress combine, lifetime reduction is multiplicative.

Tantalum Capacitors

Tantalum capacitors offer excellent volumetric efficiency and stable electrical parameters, but they carry a uniquely hazardous failure mode that demands respect. When tantalum pentoxide dielectric breaks down under voltage stress, localized defects can develop into conducting filaments. The subsequent current flow generates intense heat, and the tantalum-MnO₂ combination can sustain an exothermic reaction — sometimes producing smoke and flame.

Traditional MnO₂ tantalum capacitors require 50% voltage derating with no exceptions in commercial designs. This is not a conservative recommendation — it reflects the actual failure physics of the component. Polymer tantalum capacitors have a safer failure mode and require less derating (10–20%), but they should not be treated as drop-in replacements without verifying ESR and circuit stability.

Inductive loads on rails where tantalum capacitors are used for decoupling are a serious design hazard. Inductive kick from relay coils, motor windings, or solenoids frequently generates transients that exceed the 50% derating limit even when the nominal rail voltage appears safe.

Film Capacitors

Polypropylene and polyester film capacitors have a valuable property: self-healing. A localized dielectric puncture causes the metallized electrode to vaporize around the fault, clearing it and restoring insulation. This allows film capacitors to survive occasional transient overvoltage events that would destroy ceramic or electrolytic types.

However, each self-healing event consumes electrode material and slightly reduces capacitance. Sustained operation near the rated voltage exhausts the self-healing capacity over time. Film capacitors in AC mains applications should be specifically rated for AC use (X-rated or Y-rated safety capacitors) — a DC voltage rating is not equivalent.

Voltage Derating Rules: A Practical Reference Table

The following table summarizes standard voltage derating guidelines by capacitor type. These reflect typical commercial design practice; safety-critical, aerospace, and mil-spec applications often apply stricter derating.

Capacitor Type	Standard Derating	Notes
Ceramic (Class II: X7R, X5R)	50% of rated voltage	Check DC bias curves for actual capacitance at operating voltage
Ceramic (Class I: C0G/NP0)	25–50% of rated voltage	More stable under voltage; lower derating acceptable
Ceramic (Y5V)	Avoid if possible	Severe capacitance loss; consider X7R or better
Aluminum Electrolytic	80% at 25°C; 60–70% at 85°C	Electrolytic aging doubles per 10°C; check ripple current limits
Tantalum MnO₂	50% for all applications	No exceptions; risk of thermal runaway above this threshold
Tantalum Polymer	10% for Vr ≤ 10V; 20% for Vr > 10V	Safer failure mode; confirm ESR compatibility
Film (polypropylene/polyester)	50–70% for DC circuits	Self-healing but finite; check AC vs DC rating
Supercapacitors / EDLCs	75–80% of rated voltage	Electrolyte decomposition accelerates above rated voltage

How to Calculate the Correct Capacitor Voltage Rating for Your Circuit

Selecting the correct capacitor voltage rating is not as simple as finding the nominal supply voltage and picking a part above that value. The actual peak voltage across the capacitor must be calculated, then derating applied on top.

Step 1: Identify the True Peak Voltage

For DC circuits with ripple — such as power supply output filters or DC bus capacitors in switching regulators — the peak voltage is:

V_peak = V_DC + V_ripple_peak

For AC circuits, remember that RMS voltage is not peak voltage. A 230V AC mains circuit has a peak voltage of 230 × √2 = 325V. A DC-rated capacitor placed in this circuit would need to be rated for at least 325V DC, with derating applied on top.

For circuits with transient events — inductive loads, hot-plug, load switching — add a transient margin based on your measured or simulated worst-case spike.

Step 2: Apply the Appropriate Derating Factor

Once you have the true peak voltage, apply the derating percentage for your capacitor type from the table above.

Minimum rated voltage = V_peak ÷ derating factor

Example for a ceramic bypass capacitor on a 3.3V rail with up to 200mV ripple:

• V_peak = 3.3V + 0.2V = 3.5V
• 50% derating: minimum rated voltage = 3.5V ÷ 0.5 = 7V
• Select a 10V rated MLCC (next standard value above 7V)

Example for a tantalum on a 5V rail:

• V_peak including transients = 5.5V (conservative estimate)
• 50% derating: minimum rated voltage = 5.5V ÷ 0.5 = 11V
• Select a 16V rated tantalum capacitor

Step 3: Verify Temperature Derating

If the capacitor operates above 85°C, consult the manufacturer’s voltage-temperature derating curves. Most standard-grade aluminum electrolytics are only rated for 80–85% of their full voltage at maximum temperature. At 85°C ambient with self-heating from ripple current, you may be looking at effective body temperatures of 95°C or higher, which requires additional voltage margin or improved thermal management.

Step 4: Check DC Bias Curves for Ceramic Capacitors

For MLCC decoupling capacitors, confirm that the actual capacitance at your operating voltage meets your circuit’s requirements. Use the manufacturer’s simulation tools — Murata SimSurfing, TDK Product Advisor, Samsung SPEC — to pull the DC bias derating curve for the specific part you’re considering.

A 10µF X7R MLCC at 10V rated voltage may only provide 5–6µF at 3.3V operating voltage. If your design needs a reliable 10µF for bulk decoupling, you may need a 22µF or 47µF rated part to achieve that effective capacitance in circuit.

Capacitor Voltage Rating Selection: Worked Examples

The following table shows how derating works in common design scenarios.

Application	Rail Voltage	Transients / Ripple	Capacitor Type	Minimum Rated V	Recommended Selection
3.3V logic decoupling	3.3V	~100mV ripple	MLCC X7R	7V	10V MLCC, check DC bias at 3.3V
5V rail bulk filter	5V	~500mV ripple	Aluminum electrolytic	13.75V	16V or 25V electrolytic
5V rail decoupling (tantalum)	5V	Inductive load transients	Tantalum MnO₂	≥12V	16V tantalum; add transient suppression
12V rail bulk filter	12V	1V ripple, thermal stress at 75°C	Aluminum electrolytic	32.5V (with thermal)	35V or 50V at 105°C rating
230V AC mains filter	230V RMS (325V peak)	Mains transients	X2 film capacitor	AC-rated 275V+	Use X2-rated film, not DC-rated
48V telecom bus	48V	Supply transients to 60V	Film or high-V ceramic	150V+	100V or 200V film or ceramic

Common Capacitor Voltage Rating Mistakes (and How to Fix Them)

Mistake 1: Choosing the Rated Voltage Based on Nominal Supply Voltage Alone

Selecting a 16V electrolytic for a 12V rail looks reasonable on paper. But if the 12V rail has 1V of switching ripple, inrush transients, and operates with the capacitor body at 75°C, the effective voltage stress and thermal stress combined dramatically reduce service life. Bump the voltage rating to 25V or 35V.

Mistake 2: Ignoring DC Bias Derating in MLCCs

The most commonly missed specification in ceramic capacitor selection. A 10µF 0402 X7R rated at 10V is almost certainly providing less than 5µF at your 3.3V or 5V operating voltage. Always pull the DC bias curve from the manufacturer’s simulation tool — never trust the nominal value alone.

Mistake 3: Using the Same Derating for All Tantalum Types

MnO₂ tantalum and polymer tantalum have very different failure modes and derating requirements. Over-derating polymer tantalum forces you into unnecessarily high voltage ratings, reducing available capacitance in a given package size. Under-derating MnO₂ tantalum is a fire risk.

Mistake 4: Forgetting Reverse Voltage on Polarized Capacitors

Aluminum electrolytic and tantalum capacitors have essentially zero reverse voltage tolerance. Supply sequencing errors, hot-plug events, and back-EMF from inductive loads are all real sources of brief reverse voltage. In circuits where reverse voltage is possible, use non-polarized capacitors or add protective diodes.

Mistake 5: Applying DC Ratings to AC Circuits

A capacitor rated 250V DC is not suitable for 230V AC mains use. Peak AC voltage is 325V, and continuous AC stress on a DC-rated capacitor is a different degradation mechanism entirely. Use properly rated X1, X2, Y1, or Y2 safety capacitors for any connection across or to mains voltages.

Temperature and Voltage Derating: How They Interact

Voltage and temperature stress do not add linearly — they multiply. A capacitor running at 70% of rated voltage at room temperature may have a comfortable service life. The same capacitor at 70% voltage with a body temperature of 85°C from ripple current self-heating has dramatically shorter life, because the Arrhenius temperature acceleration factor and the voltage stress acceleration factor apply simultaneously.

For aluminum electrolytic capacitors in enclosed power electronics:

• At 75°C body temperature: apply 60% voltage derating
• At 85°C body temperature: apply 50% voltage derating
• Above 85°C body temperature: improve thermal management first, then address voltage derating

For ceramic capacitors, elevated temperature increases dielectric aging rate and leakage current under voltage stress. High-reliability designs should always consult the manufacturer’s voltage-temperature derating curves rather than assuming the rated voltage applies uniformly across the full temperature range.

Capacitor Voltage Rating for AC Circuits: A Special Case

When a capacitor operates in an AC circuit or in a DC circuit with substantial AC ripple, peak voltage — not RMS or average voltage — is the relevant stress parameter.

For a DC rail with AC ripple, peak voltage = V_DC + V_AC_peak. For a pure AC circuit, peak voltage = V_RMS × √2. The capacitor’s voltage rating, with derating applied, must exceed the peak instantaneous voltage at all times.

Safety capacitors (X and Y types) carry additional requirements beyond voltage rating. X2 film capacitors rated at 275V AC account for continuous AC voltage stress including peaks. These ratings are established through rigorous safety certification testing and should never be substituted with DC-rated equivalents in mains-connected designs.

Useful Resources for Capacitor Voltage Rating Research

The following tools and documents are directly useful for real design work:

Resource	Type	Use Case
Murata SimSurfing	Online simulation tool	MLCC DC bias derating curves, impedance vs. frequency
TDK Product Advisor	Component database	DC bias, temperature characteristics for TDK MLCCs
Kemet K-SIM	SPICE simulation	Capacitor SPICE models including parasitics
Nichicon Selection Tool	Aluminum electrolytic database	Lifetime calculations, ripple current derating
Vishay Polymer Derating Guide (PDF)	Application note	Polymer vs. MnO₂ tantalum derating comparison
NASA NEPP MLCC Rating Guide (PDF)	Technical paper	MLCC derating for high-reliability applications
IPC-9592B	Industry standard	Requirements for power conversion devices
MIL-STD-981	Military standard	Capacitor derating for mil-spec designs
Manufacturer datasheets	Primary source	Always check voltage-temperature curves for specific part numbers

FAQs: Capacitor Voltage Rating

Q1: Can I use a higher voltage-rated capacitor than required?

Yes, and in most cases it improves reliability. A higher voltage rating means less dielectric stress at your operating voltage, which extends service life. The trade-offs are size and cost — higher voltage ratings generally require a larger physical package for the same capacitance value. For MLCC decoupling capacitors, going to a higher voltage rating in the same package often means less capacitance, so check the specific part’s DC bias curve before assuming a higher-voltage part is a direct substitute.

Q2: What happens if a capacitor exceeds its voltage rating briefly?

The answer depends heavily on capacitor type and severity. Brief transient exceedance by a few percent for microseconds may cause no immediate damage in film capacitors (which self-heal) but can create latent damage in ceramic and electrolytic types. Sustained operation above rated voltage — even by 10–20% — accelerates dielectric degradation progressively. Significant overvoltage (30%+ above rated) typically causes rapid failure: electrolytic capacitors vent or rupture, tantalum capacitors can catch fire, ceramic capacitors develop low-resistance shorts.

Q3: Does a higher voltage rating improve the actual capacitance value I get in circuit?

For ceramic capacitors: yes, significantly. Because DC bias derating is less severe at a lower percentage of rated voltage, a higher-voltage-rated MLCC will deliver more of its nominal capacitance at your operating voltage. For example, a 10µF 25V X7R may deliver 8–9µF at 5V, while a 10µF 10V X7R might only deliver 5–6µF at the same voltage. This is one of the strongest practical arguments for voltage derating in MLCC selection beyond just reliability concerns.

Q4: How do I derate a capacitor for high-temperature environments?

Consult the manufacturer’s voltage-temperature derating curves for the specific component — do not interpolate from general guidelines alone. For aluminum electrolytics, a useful approximation is to reduce the voltage derating by an additional 10% for every 20°C above 85°C ambient. For ceramic capacitors, elevated temperature increases dielectric aging rate; use X7R or C0G dielectrics rather than X5R or Y5V in designs exceeding 85°C ambient. Tantalum capacitors operating above 85°C require additional voltage margin beyond the standard 50% derating.

Q5: Is voltage derating different for switching power supply applications?

Yes. Switching power supply circuits introduce AC ripple voltage, fast transients from switching transitions, and inrush current events that do not exist in simple DC bias applications. The peak voltage across output filter capacitors must account for ripple amplitude in addition to DC bias. For bulk output capacitors and ceramic decoupling on switching regulator outputs, apply the standard derating rules to the peak voltage including ripple, not the nominal DC output voltage. Also verify that ripple current does not exceed the capacitor’s rated ripple current — this is an independent failure mechanism from voltage stress.

Summary: Capacitor Voltage Rating Derating Quick Reference

Getting capacitor voltage rating selection right comes down to three things: knowing the true peak voltage in your circuit (not just the nominal supply), applying the correct derating percentage for your capacitor technology, and verifying that thermal conditions do not require additional margin on top of voltage derating.

Use 50% derating for ceramic MLCCs and MnO₂ tantalum capacitors as a baseline. Apply more conservative derating for high-temperature environments. Always check DC bias derating curves for MLCC parts — nominal capacitance values are measured at zero DC bias and are almost never what you get in circuit. And never apply a DC voltage rating to an AC circuit application.

A component that costs a few cents more in a higher voltage rating or physically larger package is orders of magnitude cheaper than a field failure, a warranty return, or a safety incident. Choose the voltage rating correctly the first time.

Understand capacitor temperature coefficient codes — NP0, X7R, and Y5V decoded, compared, and applied correctly in PCB design with real data and selection tables.

Walk into any electronics lab and you will find the same debate replaying itself: someone swapped an X7R for a Y5V to hit a cost target, and now the circuit behaves strangely above 60°C. Or worse — a product passed room-temperature testing, went through six months of production, then returned from the field with mysterious failures in cold-climate deployments.

The root cause in both cases is almost always the same: the capacitor temperature coefficient was not properly understood or specified.

This is not an exotic failure mode. It is one of the most routine and preventable sources of circuit instability in PCB design, and it affects both new graduates and experienced engineers who have been selecting ceramic capacitors for years based on habit rather than datasheet discipline.

This guide explains exactly what the capacitor temperature coefficient means, how to decode the three-character EIA code from any MLCC datasheet, what the real-world behavior of C0G/NP0, X7R, and Y5V actually looks like, and how to choose the right dielectric for your application the first time.

What Is a Capacitor Temperature Coefficient?

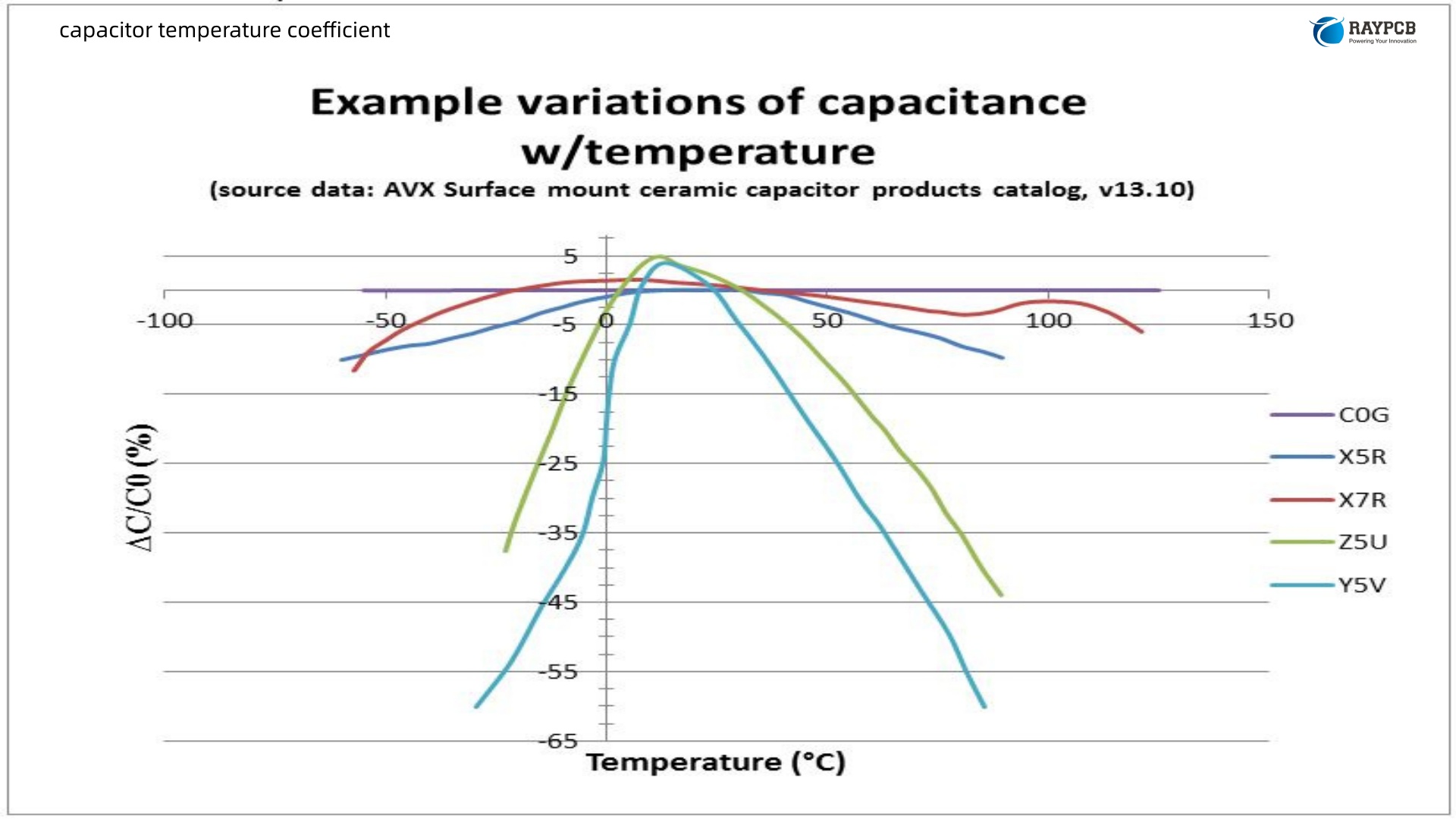

The capacitor temperature coefficient describes how much the capacitance value changes as temperature rises or falls from a standard reference point (typically 25°C). It quantifies the sensitivity of the dielectric material to thermal variation.

For Class I ceramics, the temperature coefficient is expressed in parts per million per degree Celsius (ppm/°C) — a precise, linear description of capacitance drift. For Class II and Class III ceramics, it is expressed as a percentage change over a specified temperature range, and the relationship is nonlinear and far less predictable.

Why does this matter in practice? Because every capacitor in your design sits inside a thermal environment it never experienced on the characterization bench. A board in an automotive ECU may see −40°C on a cold start and +105°C at the engine control module after an hour on the highway. A board in consumer electronics may sit in a parked car in summer and hit 85°C. If the capacitors selected for timing, filtering, or power conditioning change their values by 30%, 50%, or even 80% across that temperature range, the circuit behavior changes with them.

How to Read the EIA Temperature Coefficient Code

The EIA (Electronic Industries Alliance) standard defines a three-character code for Class II and Class III ceramic capacitors that encodes three pieces of information directly into the part description. Class I types use a separate coding system, with C0G being the dominant example.

Decoding the Three-Character Code

Each character in the code has a specific meaning:

First character (letter): Sets the lower operating temperature limit.

Letter	Minimum Temperature
X	−55°C
Y	−30°C
Z	+10°C

Second character (number): Sets the upper operating temperature limit.

Number	Maximum Temperature
4	+65°C
5	+85°C
6	+105°C
7	+125°C
8	+150°C

Third character (letter): Specifies the maximum allowable capacitance change over the entire temperature range from minimum to maximum.

Letter	Maximum ΔC/C₀
P	±10%
R	±15%
S	±22%
T	+22% / −33%
U	+22% / −56%
V	+22% / −82%

So X7R means: operating range from −55°C to +125°C, with a maximum capacitance change of ±15% across that range. Y5V means: operating range from −30°C to +85°C, with a maximum capacitance change of +22% to −82%. The asymmetry in that last figure — +22% upside and −82% downside — should immediately communicate that Y5V capacitors are dramatically unstable dielectrics.

C0G and NP0: The Precision Standard

What C0G and NP0 Actually Mean

C0G and NP0 are two designations for the same dielectric type. C0G is the EIA standard code; NP0 is the designation used in U.S. military specifications (MIL-PRF-55681), where NP0 stands for Negative-Positive-Zero, describing the essentially flat temperature response. In some European documentation, the designation is written as NPO. In all three cases, the underlying dielectric and performance standard are equivalent.

Both designations specify a temperature coefficient of ±30 ppm/°C or better over the −55°C to +125°C range. To put that in perspective: across the full 180°C temperature span from minimum to maximum operating temperature, the total capacitance change is less than ±0.54%. This is not just stable — it is remarkably stable, and it is the fundamental reason C0G/NP0 is specified in every application where capacitance stability matters to circuit function.

The Physics Behind C0G Stability

C0G dielectrics are based on titanium dioxide (TiO₂) with various rare-earth oxide additives including neodymium, samarium, and other elements. Unlike barium titanate-based dielectrics, TiO₂ does not exhibit ferroelectric behavior. There are no polarizable domains that can be aligned by an electric field and no phase transitions near room temperature that cause abrupt capacitance changes.

The result: the dielectric constant of C0G ceramic does not meaningfully change with temperature, applied voltage, or time. This means C0G capacitors also have essentially zero voltage coefficient of capacitance (no DC bias effect) and negligible aging.

C0G Limitations: The Volumetric Efficiency Trade-Off

The dielectric constant (K) of C0G ceramics is typically in the range of 20–100, compared to values of 3,000–18,000 for Class II ferroelectric dielectrics. This difference means that for any given package size, C0G capacitors cannot achieve high capacitance values. C0G is practical for values in the picofarad to low nanofarad range and up to a few hundred nanofarads in larger packages. Finding a C0G capacitor above 100nF in a 0402 package is essentially impossible. Finding one at 10µF in any SMD package is not realistic.

When to Use C0G/NP0

C0G is the correct choice for:

• Crystal oscillator load capacitors, where even small capacitance shifts change the oscillation frequency
• RF tuning and matching networks, where capacitance precision directly affects frequency response
• Precision RC timing circuits used in analog control loops or timing applications
• Anti-aliasing filters and signal-path capacitors in ADC and DAC circuits
• Any capacitor position where a ±15% swing in capacitance would cause a circuit specification to be violated across temperature

X7R: The PCB Engineer’s Workhorse

What X7R Actually Guarantees

X7R is the most commonly specified Class II dielectric for general-purpose MLCC use. The code tells us: operating range from −55°C to +125°C, with a maximum capacitance change of ±15% anywhere in that range. The dielectric constant for X7R is typically around 3,000, which is why X7R parts can be found in the microfarad range in small packages.

The X7R temperature characteristic is specified as a maximum tolerance band. The actual capacitance curve over temperature is nonlinear — it typically has a broad, shallow hump shape across the operating range, with the largest deviations occurring at the temperature extremes. It is not a constant percentage offset from nominal at every temperature; it is a curve that stays within the ±15% guardbands across the full range.

X7R and Voltage Coefficient: The Necessary Warning

X7R’s temperature coefficient specification says nothing about voltage behavior. Engineers sometimes assume that selecting X7R guarantees stable capacitance under all operating conditions. It does not.

X7R capacitors exhibit significant DC bias-induced capacitance reduction — the same fundamental problem as all Class II ferroelectric dielectrics — though less severely than X5R or Y5V. An X7R capacitor at its rated voltage may retain only 30–50% of its nominal capacitance. This is a separate effect from temperature coefficient and must be evaluated independently. The temperature coefficient code tells you how the capacitance varies with temperature at a fixed voltage (typically 0V bias). It tells you nothing about voltage-induced changes.

X7R Aging Rate

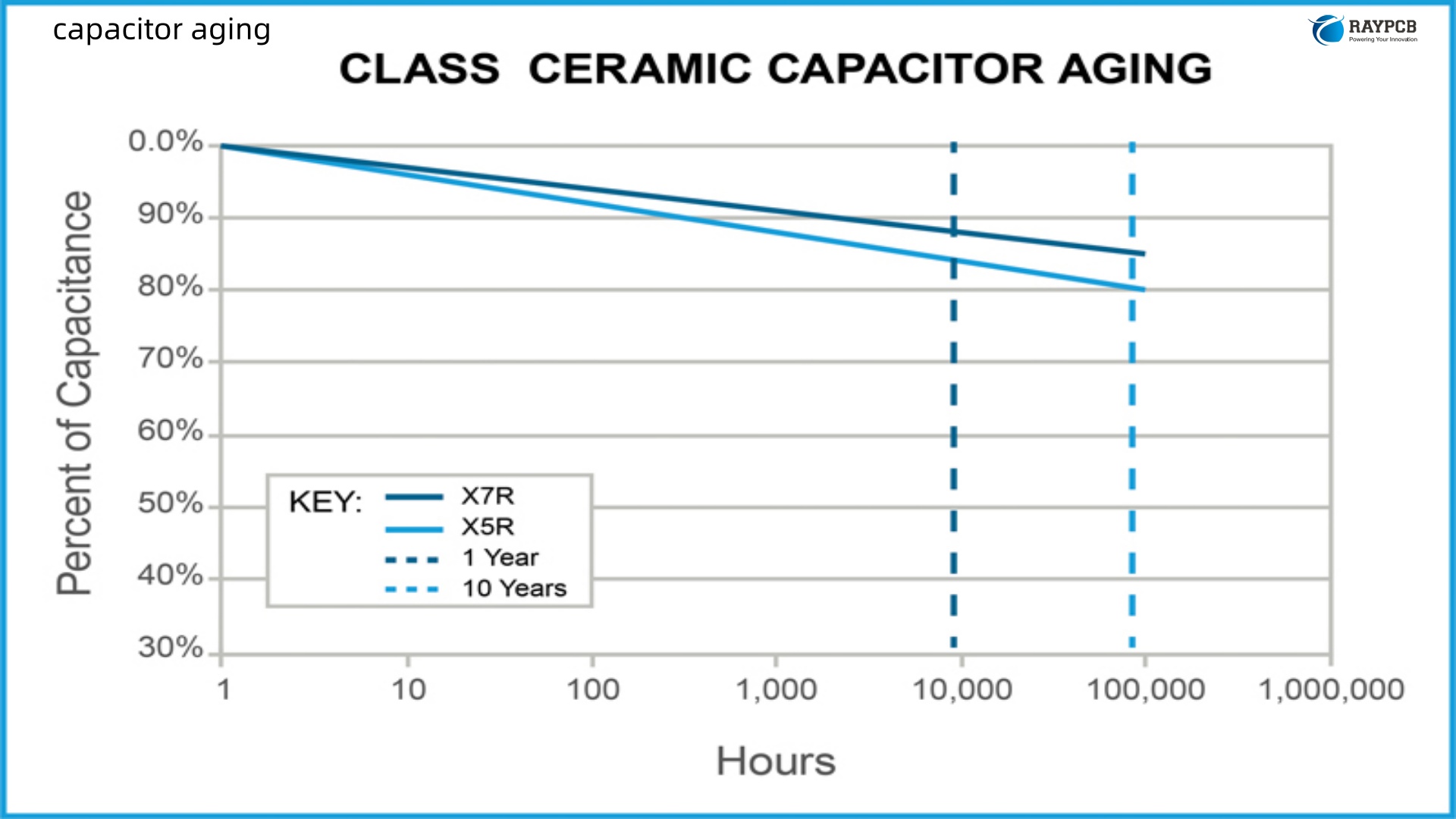

Class II ceramic capacitors lose capacitance over time as ferroelectric domains relax toward lower-energy states. For X7R, the aging rate is typically 1–2% per time decade — meaning approximately 1–2% capacitance loss between the first and tenth hour, another 1–2% between the tenth and hundredth hour, and so on. For most commercial designs with product lifetimes of thousands of hours, this aging accumulates to perhaps 5–10% over the product lifetime and is usually within acceptable margins. Designs where this matters should account for aging in the worst-case analysis.

When to Use X7R

X7R is the correct choice for:

• Bypass and decoupling capacitors in logic power rails, where ±15% capacitance variation across temperature is acceptable
• Switching regulator output filter capacitors where loop stability is verified with effective capacitance (accounting for DC bias)
• General-purpose signal coupling and AC blocking where precision is not required
• Any application operating up to 125°C that needs more capacitance per package than C0G can provide

X5R: X7R’s Lower-Temperature Sibling

X5R uses the same ±15% capacitance change specification as X7R but is only rated to +85°C rather than +125°C. The dielectric constant is similar to or slightly higher than X7R, allowing similar capacitance density. X5R capacitors typically exhibit greater DC bias sensitivity than X7R because the ferroelectric formulation is optimized for higher capacitance density rather than stability.

X5R is appropriate for consumer electronics and low-voltage applications in controlled-temperature environments — 3.3V and 5V rails in desktop computers, mobile devices, and similar products where ambient temperatures above 85°C are not expected. For automotive, industrial, and other elevated-temperature applications, X7R is the correct choice because X5R is simply not rated for the operating temperature range.

Y5V: What the Datasheet Is Actually Telling You

Y5V Temperature Behavior in Plain Numbers

Y5V is a Class II ferroelectric dielectric with extremely high dielectric constant — typically 10,000–18,000 — which enables the highest capacitance values per package size of any common MLCC type. A 100µF capacitor in a practical SMD package is possible only with Y5V or similar high-K dielectrics.

The cost is severe instability. The EIA specification for Y5V allows capacitance to change from +22% to −82% across the temperature range of −30°C to +85°C. In practice, this means at the upper end of the operating range (85°C), a Y5V capacitor may retain only 18–30% of its nominal room-temperature capacitance. At cold temperatures, it rises above nominal before falling off sharply at the temperature extremes.

This is not a manufacturing defect or a corner-case failure. This is the designed, specified, and tested behavior of Y5V dielectric. A 4.7µF Y5V capacitor rated for 6.3V and operated at 5V, 85°C, will in fact deliver approximately 0.33µF of effective capacitance — about 14 times less than the label states. This figure, published by Analog Devices, is representative of real Y5V behavior and not an outlier.

Why Y5V Exists at All

Y5V has a valid use case in a narrow application window: non-critical bulk decoupling in consumer electronics that operates close to room temperature, where cost, size, and BOM simplicity outweigh precision. Mass-produced consumer gadgets, cheap toys, and similar products sometimes use Y5V because it provides the highest capacitance per cent in the smallest package. At room temperature with low DC voltage, it does function adequately as a bypass capacitor — it just cannot be relied upon to remain functional across temperature or voltage variation.

For any serious design — industrial control, automotive electronics, medical devices, communications infrastructure, test equipment — Y5V is unsuitable for any position where the capacitance value affects circuit performance. The temperature coefficient alone eliminates it from any application where the product must operate reliably outside a narrow band around room temperature.

Side-by-Side Comparison: C0G vs X7R vs X5R vs Y5V

Parameter	C0G / NP0	X7R	X5R	Y5V
EIA Class	I	II	II	II (High-K)
Dielectric constant (K)	20–100	~3,000	~3,000–4,000	10,000–18,000
Operating temp range	−55°C to +125°C	−55°C to +125°C	−55°C to +85°C	−30°C to +85°C
ΔC over temp range	±0.54% (±30 ppm/°C)	±15%	±15%	+22% / −82%
DC bias effect	None	Moderate	Significant	Severe
Aging rate	Negligible	~1–2%/decade	~1–2%/decade	>5%/decade
Max practical capacitance (SMD)	~1µF (large package)	Up to 47µF	Up to 100µF	Up to 100µF
Typical max package	1210 or larger for >100nF	0402 and larger	0402 and larger	0402 and larger
AEC-Q200 automotive qualified?	Yes	Yes	Conditionally	No
Suitable for precision circuits?	Yes	With caution	No	No
Suitable for automotive/industrial?	Yes	Yes	No (>85°C)	No
Price relative to X7R	Higher	Baseline	Similar	Lower

Real-World Temperature Coefficient Impact on Common Circuits

Understanding the temperature coefficient matters most when you think through what it does to specific circuit functions:

RC Timing Circuits

An RC oscillator or timing network produces a time constant τ = R × C. If the capacitor is Y5V and temperature changes by 40°C, the capacitance can drop by 50% or more. The time constant drops by the same percentage, directly shifting the operating frequency, trigger threshold, or timeout period. For any precision timing application — watchdog timers, frequency-setting resistor-capacitor networks, or oscillator circuits — C0G is the only defensible choice.

Power Supply Filtering and Decoupling

For bypass capacitors on digital logic supply rails, ±15% variation from X7R is generally acceptable. The capacitor is providing low-impedance decoupling for transient load currents, and a 15% change in capacitance has a minimal impact on this function as long as adequate total capacitance remains on the rail. X7R is appropriate here.

For switching regulator output filter capacitors, the temperature coefficient combines with DC bias loss, meaning the effective capacitance could be 30–50% lower than nominal at elevated temperature and operating voltage combined. This must be verified with actual derating curves, not estimated from the temperature coefficient code alone.

Anti-Aliasing and Signal-Path Filters

A low-pass filter with a −3 dB cutoff frequency set by an RC or LC network has a cutoff that is directly proportional to 1/C. If the capacitor value drifts ±15% with temperature, the cutoff frequency shifts by approximately ±15% as well. Whether this is acceptable depends entirely on the filter specification. For a wide-tolerance anti-aliasing filter this may be fine; for a precision measurement channel in a data acquisition system it is almost certainly not. Use C0G for signal-path filter capacitors in any precision application.

RF Matching and Tuning Networks

At RF frequencies, small capacitors set impedance matching conditions and resonant frequencies. A 5 pF capacitor in a 2.4 GHz antenna matching network that changes by even 1–2% with temperature can shift the resonant frequency by tens of megahertz. C0G is the only ceramic dielectric type used in RF tuning applications. The ±30 ppm/°C coefficient of C0G produces frequency shifts that are manageable; X7R with ±15% capacitance variation would make precise RF tuning impossible.

Capacitor Temperature Coefficient Selection Guide by Application

Application	Recommended Dielectric	Reason
Crystal oscillator load capacitors	C0G / NP0	Any capacitance shift changes oscillation frequency
RF tuning and matching	C0G / NP0	Frequency stability requires ppm-level C precision
Precision RC timing	C0G / NP0	Time constant directly proportional to capacitance
ADC/DAC input filtering	C0G / NP0	Cutoff frequency must be stable across temperature
Logic decoupling (3.3V, 5V)	X7R	±15% acceptable; verify DC bias curves
Switching regulator output filter	X7R (verify DC bias)	X5R insufficient above 85°C; check effective C
Industrial/automotive decoupling	X7R (AEC-Q200)	X5R not rated beyond 85°C
Consumer bulk decoupling (non-critical)	X5R or X7R	Cost trade-off; X5R acceptable in benign environments
High-capacitance bypass (cost-critical)	Y5V only if C stability non-critical	Acceptable at room temp only; never in industrial/auto
High-frequency RF bypass	C0G (low value)	Stable at frequency; no DC bias effect

The Automotive Special Case: AEC-Q200 and Capacitor Temperature Rating

Automotive electronics introduces a demanding combination of requirements that makes the capacitor temperature coefficient directly critical to product approval. AEC-Q200 is the qualification standard for passive components in automotive applications, and it requires that MLCCs demonstrate specified performance across the full automotive temperature range.

For powertrain and under-hood applications, the required operating temperature range is typically −40°C to +125°C or even +150°C. This immediately eliminates X5R (rated only to +85°C) from these applications, and it demands X7R at minimum. High-temperature automotive applications use specialized dielectrics — some manufacturers offer X8R (to +150°C) or equivalent proprietary grades — that extend the stable operating range beyond standard X7R limits.

Y5V capacitors do not meet AEC-Q200 requirements for automotive applications. Their −30°C lower temperature limit fails to cover the −40°C automotive cold-start requirement, and their −82% worst-case capacitance variation is incompatible with any safety-critical or performance-critical function in a vehicle.

Common Mistakes When Specifying Capacitor Temperature Coefficient

The most frequent errors engineers make when dealing with temperature coefficients are not obscure edge cases — they are routine decisions made without enough information:

Treating all X7R parts as equivalent. X7R is a performance specification, not a material recipe. Two different manufacturers’ X7R capacitors of the same nominal value and package can have meaningfully different temperature coefficient curves within the ±15% band, different DC bias behavior, and different aging rates. When qualifying an alternative source, re-verify behavior at operating temperature and voltage — do not assume equivalence from the EIA code alone.

Using X5R in elevated-temperature environments. X5R has the same ±15% tolerance band as X7R but is only specified to +85°C. Equipment that operates in enclosures, near heat sources, or in outdoor summer environments can easily exceed 85°C. Specifying X5R because it offers slightly higher capacitance density in a given package and then deploying the product in a warm environment is a reliability problem waiting to develop.

Specifying Y5V in circuits that operate outside 20–30°C. A Y5V capacitor in a consumer product that spends most of its life between 10°C and 35°C may deliver acceptable performance. The same capacitor in a product that sees −10°C in winter or +60°C in a car can behave as if the capacitor barely exists. Never use Y5V for anything other than non-critical bulk decoupling in controlled-temperature environments.

Confusing temperature coefficient with overall capacitance stability. The temperature coefficient code specifies only one dimension of capacitance variation. Voltage coefficient (DC bias), aging, and manufacturing tolerance all contribute independently. A complete capacitance budget must account for all four: manufacturing tolerance + temperature drift + DC bias loss + aging. In a worst-case analysis, these factors multiply — not add.

Useful Resources for Capacitor Temperature Coefficient Research

Resource	Type	Why It’s Useful
Murata SimSurfing	Online simulation tool	Enter temperature, voltage, frequency to get actual capacitance curves for any Murata MLCC
TDK Product Advisor	Component database	Temperature coefficient curves and DC bias data for TDK MLCCs
Kemet K-SIM	SPICE simulation	Full SPICE models including temperature and DC bias behavior for Kemet parts
Knowles Capacitor Fundamentals Series	Technical article series	Thorough explanation of dielectric classifications, aging, and loss mechanisms
Analog Devices: Temperature and Voltage Variation of Ceramic Capacitors	Technical article	Real measured data on Y5V and X7R capacitance at operating conditions with no-holds-barred analysis
Passive Components Academy: MLCC Stability	Technical article	Combined treatment of temperature, bias, and aging with real vendor data
Samsung SPEC Tool	Component database	DC bias and temperature characteristics for SEMCO MLCCs
AEC-Q200 Standard Summary (JEDEC)	Industry standard	Automotive passive component qualification requirements
Manufacturer datasheets	Primary source	Always check the ΔC/C vs. temperature curve for your specific part — EIA codes are guaranteed minimums, not descriptions of actual curves

FAQs: Capacitor Temperature Coefficient

Q1: C0G and NP0 — are they the same part? Can I substitute one for the other?

Yes, they are electrically equivalent. C0G is the EIA designation; NP0 is the MIL designation. Both specify a temperature coefficient of ±30 ppm/°C over the −55°C to +125°C range, no significant DC bias effect, and negligible aging. Some manufacturers use both terms, and TDK uses them to distinguish slightly different temperature ranges for their internal product line — NP0 extended to +150°C versus C0G at +125°C. Unless your application requires the extended temperature range, they are interchangeable. When substituting any component, confirm the voltage rating, package, and capacitance tolerance in addition to the dielectric code.

Q2: My X7R capacitor says ±15% temperature coefficient. Does that mean the capacitance is always within 15% of the nominal value?

The ±15% is the maximum allowable capacitance change from the value measured at 25°C, measured at any temperature within the rated range (−55°C to +125°C for X7R). It does not account for DC bias-induced capacitance reduction or manufacturing tolerance. A capacitor at the edge of its manufacturing tolerance (typically ±10% or ±20%), under DC bias, and at the temperature extreme could have an effective capacitance substantially below 15% of nominal — all without violating any specification. This is why worst-case analysis for critical capacitor positions must combine all four sources of variation: tolerance + temperature drift + DC bias + aging.

Q3: Why does Y5V even exist if its capacitance is so unstable?

The honest answer is that Y5V maximizes capacitance density at minimum cost for applications that only care about bulk bypass function at or near room temperature. A Y5V capacitor that provides 100µF in a 0805 package at room temperature may only deliver 20µF at 85°C, but for a non-critical decoupling application in a consumer product that rarely sees temperatures above 40°C, it might be “good enough” — and it costs less than equivalent X7R or X5R parts. The problem is that this trade-off is only valid within a very narrow set of conditions, and those conditions are rarely documented explicitly in design requirements. When the operating environment is undefined or variable, Y5V’s instability becomes a reliability liability rather than a cost saving.

Q4: Can I use the temperature coefficient code to compare capacitors from different manufacturers?

You can use it to confirm that two parts meet the same minimum stability specification — but not to assume they have identical temperature behavior. The EIA code guarantees the outer bounds of performance; it does not specify the shape of the capacitance-versus-temperature curve within those bounds. Two X7R capacitors from different manufacturers can have very different actual temperature curves while both remaining within ±15%. For critical applications, always verify the actual temperature coefficient curve from the manufacturer’s simulation tool or datasheet graphs, not just the EIA code.

Q5: I need more capacitance than C0G can provide in my package size, but I need better stability than X7R offers. What are my options?

Several options exist depending on your specific requirements. First, consider X7S or X8R dielectrics — some manufacturers offer these as proprietary grades with tighter temperature tolerance than X7R while achieving higher capacitance density than C0G. Second, consider polymer tantalum or aluminum polymer capacitors, which offer stable capacitance with essentially no temperature coefficient or DC bias effects, in large-value ratings well above what C0G can provide. Third, review whether a slightly larger package size for a C0G part could achieve adequate capacitance for your application — C0G is available up to several microfarads in 1210 packages from some manufacturers. Fourth, if the capacitance variation is the primary concern and DC bias is manageable, X7R with careful DC bias and temperature derating at the system level may still meet your specification.

Summary: Choosing the Right Capacitor Temperature Coefficient

The capacitor temperature coefficient is not a secondary specification to be noted and forgotten — it is a primary performance parameter that directly determines whether your circuit meets its specifications across the operating temperature range.

C0G/NP0 is for precision. Use it anywhere that capacitance stability over temperature directly matters to circuit function: oscillators, timing, RF, precision analog. X7R is the general-purpose workhorse for decoupling, filtering, and bulk bypass across a wide temperature range — use it for most positions that C0G cannot serve economically, but always verify DC bias behavior for voltage-sensitive applications. X5R offers similar performance to X7R in benign thermal environments and is appropriate for consumer electronics that stay below 85°C. Y5V belongs only in non-critical bulk decoupling in controlled-temperature consumer products, and it should never appear in industrial, automotive, medical, or any precision application.

The three-character EIA code is your starting point — not your complete answer. Read the actual temperature coefficient curve in the datasheet, check the DC bias derating, and budget all sources of capacitance variation together before signing off on a component selection that your circuit will depend on across its entire operating life.

Learn to identify capacitor polarity on electrolytic, tantalum & SMD types. Covers markings, PCB silkscreen symbols, multimeter testing & common polarity mistakes.

If you’ve spent any time on the bench debugging a blown PCB, there’s a decent chance a backwards electrolytic capacitor was somewhere in the story. Capacitor polarity is one of those fundamentals that trips up beginners and occasionally bites experienced engineers too — especially when you’re staring at a 105°C bulk capacitor with worn markings under fluorescent lighting at midnight.

This guide walks through everything you need to know: what capacitor polarity means, which capacitor types are affected, how to read the physical markings, how to interpret PCB silkscreen symbols, and how to test polarity with a multimeter when the markings are gone.

What Is CapacitorArity and Why Does It Matter?

Capacitor polarity refers to the orientation requirement of certain capacitors — specifically, which terminal must connect to the higher voltage (positive) and which must connect to the lower voltage (negative or ground). Install one the wrong way around and you’re looking at reduced capacitance, excessive leakage current, internal gas buildup, and in worst-case scenarios, a capacitor that vents, bulges, or explodes.

This isn’t theoretical. Reversed electrolytic capacitors are a leading cause of field failures in consumer electronics power supplies. The damage is often silent at first: the cap degrades over weeks before the circuit starts misbehaving.

Not all capacitors are polarized. The distinction is critical before you even pick up your soldering iron.

Polarized vs. Non-Polarized Capacitors

Understanding which capacitor types require correct polarity orientation is step one.

Capacitor Type	Polarized?	Typical Use Case
Aluminum Electrolytic	✅ Yes	Bulk power filtering, decoupling
Tantalum (solid)	✅ Yes	Low-profile power filtering
Niobium Oxide	✅ Yes	Alternative to tantalum
Ceramic (MLCC)	❌ No	High-frequency decoupling
Film (polyester, polypropylene)	❌ No	Audio, timing, filtering
Mica	❌ No	RF, precision circuits
Supercapacitor / EDLC	✅ Yes	Energy storage, backup power
Bipolar Electrolytic	❌ No	Audio crossovers (special case)

The key takeaway: if it has an electrolyte inside — liquid or solid — it almost certainly has a polarity requirement. Ceramics and films are inherently symmetric and can be placed in either direction.

How to Identify Capacitor Polarity: The Markings Explained

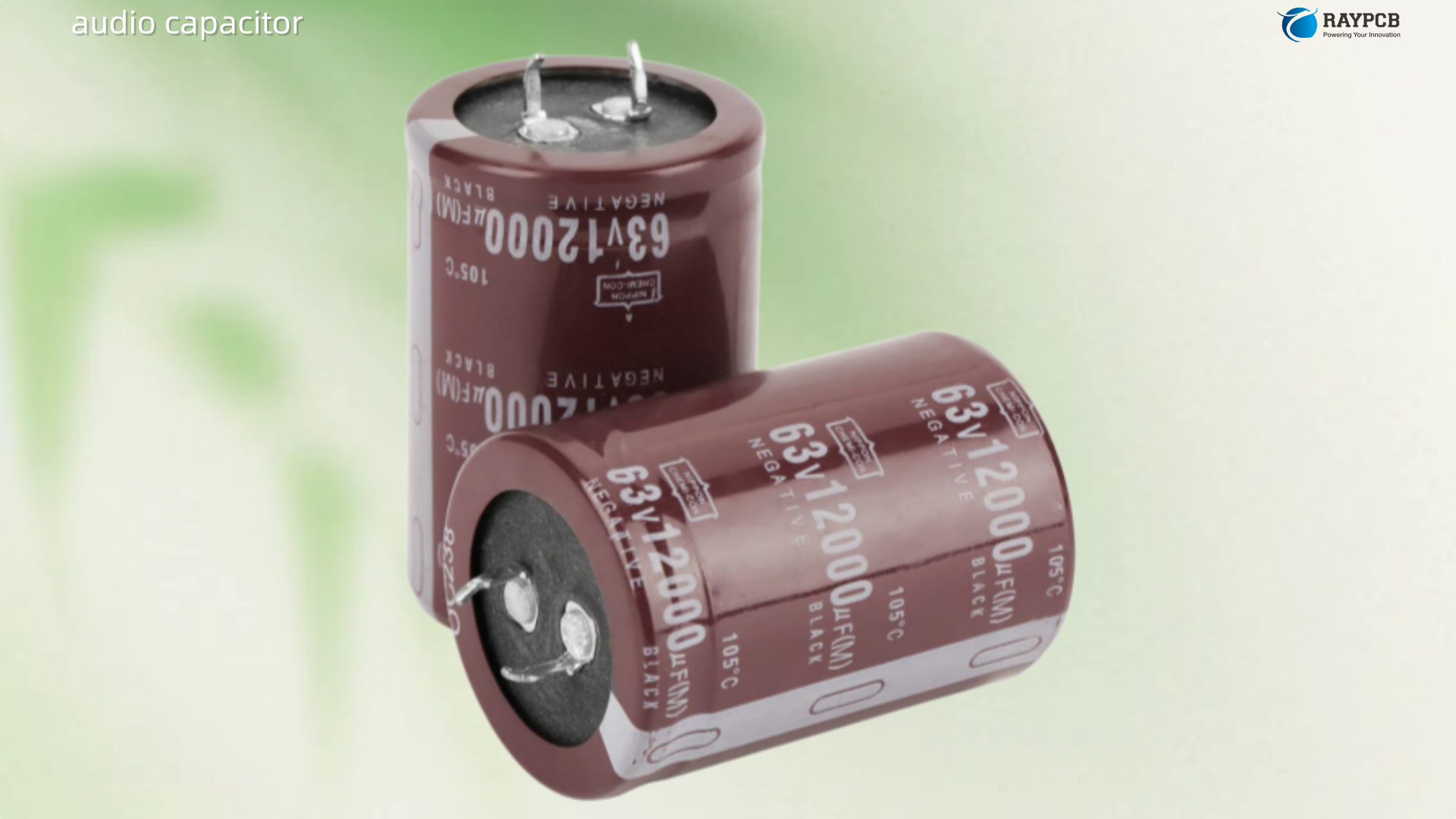

H3: Through-Hole Electrolytic Capacitors

Through-hole aluminum electrolytics are the easiest to read once you know the conventions. Manufacturers use multiple overlapping cues, which helps when one marking gets obscured.

Negative stripe: The most universal marking is a prominent stripe — usually white or light gray — running vertically along the body of the capacitor. This stripe marks the negative (−) lead. The stripe typically contains repeated “−” symbols or chevrons pointing toward the negative terminal.

Lead length: On a brand-new, untrimmed capacitor, the longer lead is positive (+). This mirrors the convention used for LEDs and diodes. Once leads are trimmed during assembly, this method becomes unreliable — use the stripe instead.

Flat side on the base: Some capacitors (especially smaller radial types) have a slight flat edge on the bottom plastic ring, indicating the negative terminal side.

Markings summary table:

Marking Method	Positive (+) Indicator	Negative (−) Indicator
Lead length (untrimmed)	Longer lead	Shorter lead
Body stripe	Opposite side	Stripe side
Base flat	Opposite side	Flat edge side
Printed symbol	“+” printed on body	“−” or stripe

H3: SMD Electrolytic Capacitors (Radial SMD / Can Style)

Surface-mount aluminum electrolytics follow the same stripe convention but the implementation varies slightly. Look for:

• A notch or indent on the top of the can — this marks the negative terminal
• A light-colored stripe on the body wrapping toward the negative pad
• PCB silkscreen will show a “+” marker on the positive land

Because SMD electrolytics are tiny, always cross-reference with the PCB silkscreen before soldering.

H3: Tantalum Capacitors (Through-Hole and SMD)

Tantalum capacitors are the exception to the “stripe = negative” rule that trips people up constantly.

Through-hole tantalum: The longer lead is positive, and the positive terminal is usually marked with a “+” symbol directly on the body. Some older teardrop-shaped tantalums have a band at the positive end — the opposite of electrolytic convention.

SMD tantalum (chip style): A line or bar marking at one end indicates the POSITIVE terminal. This is the reverse of what you’d expect coming from electrolytic experience. The positive end often has a colored band or a stripe on the top of the component. This catches engineers out regularly.

Capacitor Type	Stripe/Band Meaning
Aluminum Electrolytic	Stripe = NEGATIVE
Tantalum SMD	Stripe/Bar = POSITIVE
Supercapacitor	Stripe = NEGATIVE (follows electrolytic)

Commit that table to memory. The tantalum reversal has caused more than a few smoke-testing incidents.

H3: Supercapacitors (EDLCs)

Supercapacitors follow the same convention as aluminum electrolytics: the stripe indicates the negative terminal, and the longer lead (when untrimmed) is positive. Given that supercapacitors can store significant energy, reversed installation isn’t just a component failure — it can be a safety hazard.

Reading Capacitor Polarity on a PCB

Even if you can’t read the component markings clearly, the PCB itself carries polarity information.

H3: Silkscreen Symbols

The silkscreen layer on a properly designed PCB will indicate polarity in several ways:

• A “+” symbol next to or inside the component footprint pad
• A filled or shaded semicircle inside the circular outline — the filled half indicates the negative side (this is the most common electrolytic symbol)
• A longer line on one pad in the component outline
• Some designs add explicit “+” and “−” labels on the copper or silkscreen

H3: Component Footprint in PCB Design Software

If you’re designing the PCB yourself, the capacitor footprint in your EDA tool (KiCad, Altium, Eagle) will designate Pin 1 as positive by IPC convention for polarized capacitors. The silkscreen should be generated automatically to reflect this, but always verify — library footprints are not always reliable on polarity markings.

H3: Checking Polarity on an Assembled PCB

When reworking an existing board where silkscreen is unclear:

1. Locate the ground plane connection using continuity mode on your multimeter — the negative lead of a bulk electrolytic almost always ties to ground
2. Check the schematic if available
3. Use circuit context: the positive rail goes to the positive terminal

How to Test Capacitor Polarity with a Multimeter

When physical markings are worn, obscured, or simply absent (it happens with salvaged components), you can use a multimeter to determine polarity.

Method — Diode/Resistance Mode:

1. Set your multimeter to resistance (Ω) or diode mode
2. Touch the red probe (positive) to one lead, black to the other
3. Record the resistance reading
4. Swap the probes and record again
5. The orientation that gives the higher resistance has the red probe on the positive lead

This works because polarized electrolytic capacitors have a slightly forward-biased oxide layer when correctly oriented, producing asymmetric leakage behavior.

Method — Capacitance Mode (for confirmation):

Most modern multimeters with a capacitance function show a stable, accurate reading when the capacitor is inserted with correct polarity, and may show an erratic or lower reading when reversed. This isn’t definitive but can confirm your resistance-mode finding.

Test	Result	Interpretation
Red on Lead A → High resistance	Red probe = +	Lead A is positive
Red on Lead B → Lower resistance	Correct polarity confirmed	Lead B is negative

Common Capacitor Polarity Mistakes (And How to Avoid Them)

From a board-level perspective, here are the failure patterns that come up repeatedly:

1. Assuming all stripe conventions are the same. The tantalum vs. electrolytic reversal catches even experienced engineers. Always check the datasheet for the specific component.

2. Trusting lead length on pre-assembled boards. Leads get trimmed. The length is meaningless once the component has been cut.

3. Ignoring silkscreen on dense boards. On tightly packed boards, the “+” marker might be hidden under a nearby component. Always check before soldering.

4. Reusing salvaged capacitors without verification. If you don’t know the history of a component, test it before trusting it.

5. Forgetting polarity on SMD tantalums during hand assembly. The bar marking is subtle. Use a magnifying lens and orient the component in good lighting before placement.

Capacitor Polarity Marking Standards Reference

Standard	Scope	Key Guidance
IEC 60062	Component marking codes	Color and alphanumeric marking
EIA-198	Ceramic capacitors	Non-polarized, no polarity marking required
JIS C 5101	Aluminum electrolytics	Negative terminal marking requirements
EIA-717	Tantalum capacitors	Positive terminal indicated by marking band
IPC-7351	PCB land patterns	Pin 1 = positive for polarized footprints

Useful Resources for Capacitor Polarity

• Murata Capacitor FAQ — murata.com — Detailed technical notes on MLCC and electrolytic behavior
• Nichicon Application Notes — nichicon.co.jp — Aluminum electrolytic construction and reliability data
• KEMET Tantalum Capacitor Handbook — kemet.com — Comprehensive SMD tantalum polarity and handling guide
• IPC-7351B Standard — PCB footprint and land pattern standard including polarity conventions
• All About Circuits Capacitor Reference — allaboutcircuits.com — Community-reviewed component guides
• Digi-Key Capacitor Parametric Search — digikey.com — Filter by type, polarity, voltage, capacitance

FAQs About Capacitor Polarity

Q1: What happens if I install a polarized capacitor backwards? At best, the capacitor will have reduced capacitance and higher leakage current, causing circuit malfunction. At worst, internal gas pressure builds up and the capacitor vents (usually through a scored vent on top of aluminum electrolytics) or ruptures. Reversed tantalum capacitors can fail catastrophically and catch fire. Always double-check polarity before powering up.

Q2: Can you use a non-polarized capacitor in place of a polarized one? In principle, yes — a non-polarized capacitor of equivalent capacitance and voltage rating will work in the same position. However, non-polarized types (ceramics, films) of equivalent capacitance and voltage rating are physically much larger and more expensive for values above ~10µF. It’s not a practical swap for bulk filtering applications.

Q3: How do I identify capacitor polarity on an old, worn component? Use the resistance method with a multimeter: the orientation giving higher resistance has the red (positive) probe on the positive lead. Cross-reference with the PCB silkscreen or schematic if available.

Q4: Do ceramic capacitors have polarity? Standard ceramic MLCCs are non-polarized and can be installed in any orientation. The only exception is certain specialty types used in specific filter applications — always check the datasheet if you’re unsure.

Q5: Why does the tantalum capacitor stripe indicate positive while electrolytic stripe indicates negative? Historical convention from different manufacturing traditions. Tantalum marking standards followed a “this is the important terminal” philosophy and marked the anode (positive). Electrolytic manufacturers chose to mark the cathode sleeve (negative) for safety reasons — indicating which terminal must not go to high voltage. Both conventions coexist today, which is why you always need to check the specific component datasheet.

Final Thoughts

Capacitor polarity is a small detail with large consequences. Whether you’re designing a new board, reworking a failed unit, or sourcing replacement components, taking sixty seconds to verify polarity with the datasheet, silkscreen, and physical markings is always worth it. The tantalum stripe-equals-positive convention alone has caused more circuit smoke than it should have — now that you know it, you won’t be caught out.

When in doubt: check the datasheet, check the silkscreen, and test before you power up.

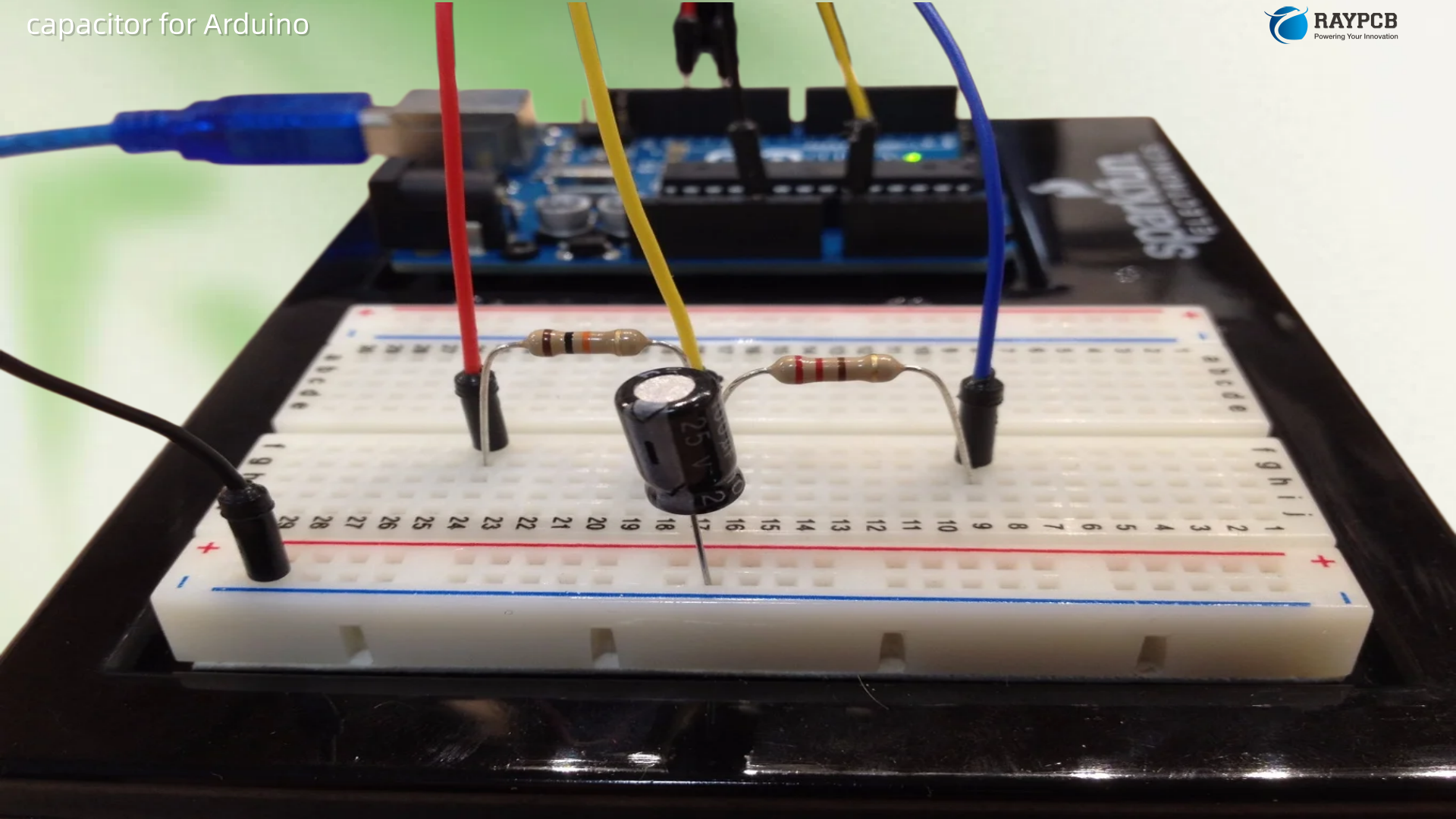

Capacitor for Arduino guide: decoupling values, crystal loading caps, reset circuits, motor noise filtering, and PCB layout rules every maker should know.

If you’ve ever had an Arduino randomly reset when you turned on a motor, seen an ADC reading jump all over the place for no obvious reason, or watched a sketch upload fail inconsistently — congratulations, you’ve already experienced what happens when capacitors are missing or wrong. The capacitor for Arduino and microcontroller circuits isn’t a “nice to have.” It’s a fundamental part of making the circuit work reliably.

This guide walks through every practical role capacitors play in Arduino and microcontroller designs, from decoupling and bypass to crystal loading, reset circuits, and motor noise suppression. Whether you’re building on breadboard, designing a custom PCB, or troubleshooting a board that misbehaves under load, this is the reference you’ll want to hand.

Why Capacitors Are Critical in Microcontroller Circuits

Microcontrollers like the ATmega328P at the heart of Arduino Uno switch millions of logic states per second. Every time an output pin changes state or an internal logic block switches, it draws a brief spike of current from the supply rail. These spikes happen in nanoseconds — far faster than any power supply or voltage regulator can respond to.

Power supplies, including good LDO regulators, have a bandwidth of roughly 10–100 kHz. That means they take approximately 10 microseconds to react to a sudden change in load current. In that time, a 16 MHz ATmega328P has already executed 160 clock cycles. During that 10 µs window, the supply voltage droops as charge is pulled from the parasitic capacitance of the PCB traces alone. If that droop is deep enough, the microcontroller can misread an I/O pin, corrupt a register, or — in extreme cases — trigger a brown-out reset.

A capacitor placed physically close to the microcontroller’s power pins acts as a local energy reservoir. It supplies the burst of charge the IC demands during switching transients, keeping the local supply voltage stable until the regulator catches up. That is the core job. Everything else in this guide is a variation on the same idea applied to specific circuits.

Decoupling Capacitor for Arduino: The Foundation

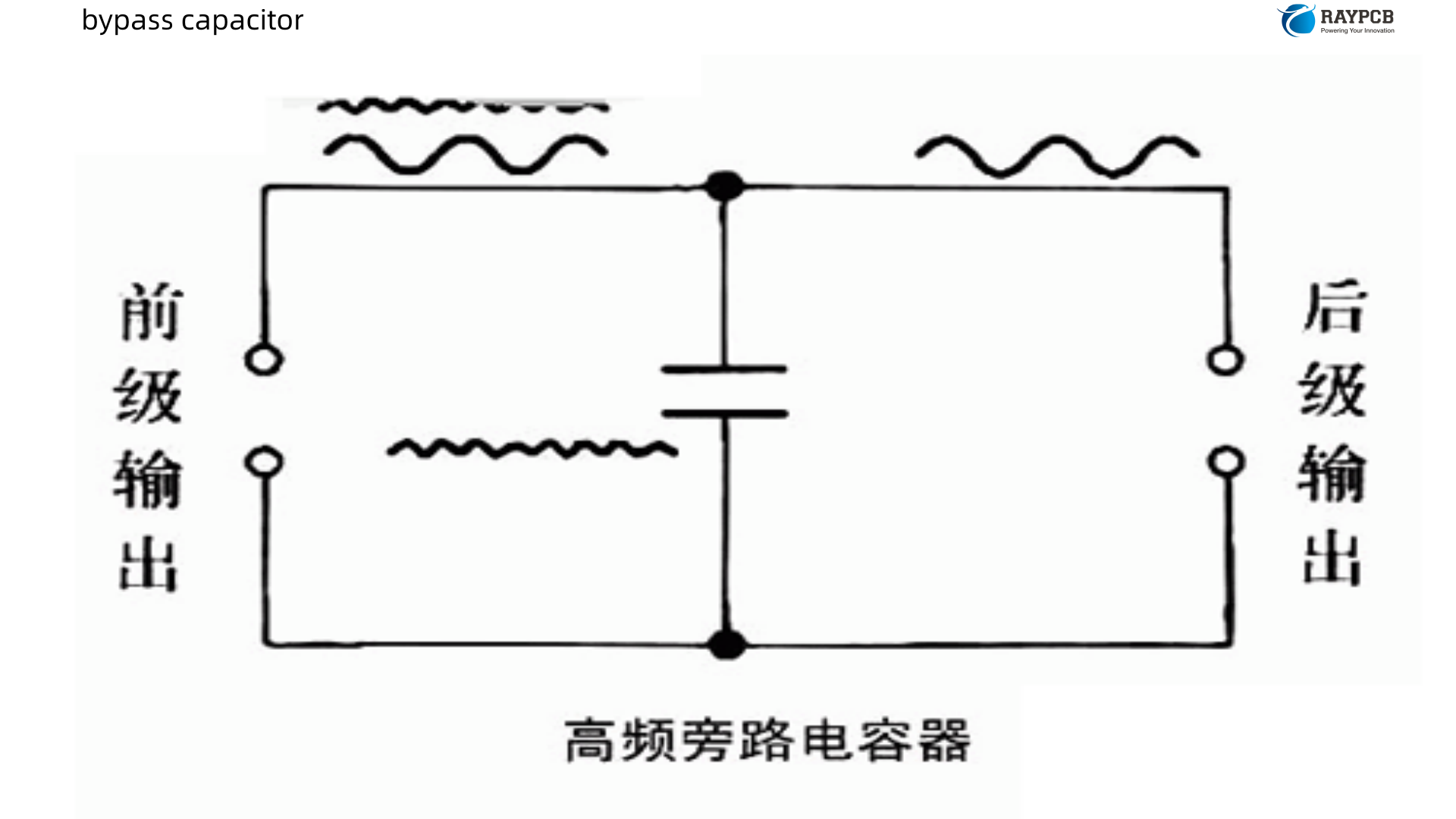

What a Decoupling Capacitor Does

A decoupling capacitor sits between the VCC (or 3.3V) and GND pins of the microcontroller, as close to those pins as possible. When the microcontroller demands a burst of current, the capacitor discharges into the supply pin instead of pulling that current through the inductance of long supply traces. This prevents a voltage dip at the IC power pin, and it also prevents the current spike from propagating back along the supply rail and disturbing other components.

There is a second job running simultaneously: high-frequency noise on the supply rail — generated by motors, switching regulators, relays, or RF transmitters on the same board — is shunted to ground through the low-impedance path of the capacitor before it can enter the IC’s power pin. The capacitor acts as a low-pass filter with the trace inductance between the noisy supply and the IC forming the series element.

Recommended Values for ATmega328P and Arduino

The ATmega328P has two VCC pins (pins 7 and 20) and two GND pins (pins 8 and 22). Best practice, reflected in the official Arduino Uno schematic and most professional ATmega-based designs, is to place decoupling capacitors on both VCC pins:

• 100 nF (0.1 µF) ceramic on each VCC pin — handles high-frequency noise up to ~100 MHz
• 10 µF electrolytic or tantalum on at least one VCC pin — handles lower-frequency load transients and provides bulk charge storage

This two-tier approach covers a broad frequency range. The ceramic handles the fast, high-frequency switching transients. The larger electrolytic handles slower, larger current demands — like when you turn on a relay, enable a servo, or start a wireless transmission.

Decoupling Capacitor Placement: The Rule That Actually Matters

The physical placement of decoupling capacitors determines how effective they are. Placing a 100 nF cap 5 cm from the IC with a thin trace to the power pin is almost useless — the inductance of that trace (roughly 1 nH per mm) creates an impedance at high frequencies that negates the capacitor’s benefit.

The rule is: place decoupling capacitors as physically close to the IC power pins as possible, with the shortest possible traces to VCC and GND. On a PCB, this means within 1–2 mm of the IC’s power pins. On a breadboard, place the capacitor in the power rail immediately adjacent to the rows containing the IC’s VCC and GND connections.

When routing the capacitor on a PCB, the capacitor should sit between the power trace and the IC pin — not tapped off a long trace that first goes to the IC. The current path should be: supply trace → capacitor → IC power pin, with the ground side returning to the nearest ground plane via.

Decoupling Capacitor Values: Quick Reference Table

Capacitor Value	Type	Frequency Coverage	Where It Goes
10 pF – 100 pF	C0G/NP0 ceramic	>100 MHz (RF/GHz range)	RF ICs, high-speed oscillators
10 nF	X7R ceramic	~10–100 MHz	High-speed digital ICs, ADCs
100 nF (0.1 µF)	X7R ceramic	~1–100 MHz	Every IC power pin — the standard decoupling cap
1 µF	X5R/X7R ceramic or tantalum	~100 kHz–10 MHz	Alongside 100 nF for better mid-frequency coverage
10 µF	Electrolytic or polymer	~1 kHz–1 MHz	Bulk bypass, per supply rail or per power-hungry IC
100 µF+	Electrolytic	<1 kHz	Board-level bulk reservoir, motor supply filtering

The 100 nF ceramic is the single most important capacitor in any microcontroller design. If you only add one capacitor per IC, make it a 100 nF ceramic placed as close to the power pin as possible.

Crystal Oscillator Capacitors: Why 22 pF Matters

Most Arduino-compatible designs using an external 16 MHz crystal require two small ceramic capacitors — one from each crystal pin (XTAL1, XTAL2) to ground. The purpose is to set the correct load capacitance for the crystal, which determines its precise oscillating frequency.

The standard value specified for the ATmega328P with a 16 MHz crystal is 22 pF for each capacitor. This sets the effective load capacitance seen by the crystal at approximately 11 pF (two 22 pF caps in series), which matches the 18 pF typical load capacitance of standard HC-49 style crystals, accounting for stray PCB capacitance of around 5–7 pF.

Getting this wrong causes the crystal to oscillate at a frequency slightly off from 16 MHz — which matters if your sketch relies on accurate timing for UART communication, I2C, precise PWM, or real-time clock calculations. Using 0 pF (no capacitors) causes the crystal to run high; using excessively large capacitors (100 pF) causes it to run low or fail to start.

Use C0G/NP0 ceramic capacitors for crystal loading. Their capacitance is stable over temperature and voltage — critical for a timing reference. X7R types will change slightly with temperature and could affect timing accuracy in precision applications.

Crystal Capacitor Selection Table

Crystal Type	Nominal Load Cap	Recommended Capacitors	Notes
16 MHz HC-49 (Arduino Uno)	18 pF	22 pF each (C0G)	Accounts for ~5 pF PCB stray
SMD crystal, low CL spec	8–10 pF	12–15 pF each (C0G)	Check crystal datasheet CL spec
Ceramic resonator	Built-in	Usually none needed	Resonator has integral caps
RTC crystal 32.768 kHz	7–12 pF	12 pF each (C0G)	Very sensitive to PCB stray

The Reset Pin Capacitor: What It Does and When to Use It

The 100 nF capacitor on the Arduino’s RESET pin is one of the most commonly misunderstood components in the circuit. It serves two different functions depending on where it’s placed.

Auto-Reset Circuit for Programming

On the standard Arduino Uno, a 100 nF capacitor connects between the DTR line of the USB-to-serial converter and the RESET pin of the ATmega328P. When the Arduino IDE uploads a sketch, it toggles the DTR line low, causing the capacitor to briefly pull the RESET pin low (active-low reset), which resets the ATmega328P and starts the bootloader. This is AC coupling — the capacitor only passes the brief transient, then blocks the DC level, allowing the reset pin to float back to its HIGH idle state.

Without this capacitor, the RESET pin would follow the DTR line’s DC state, holding the ATmega in reset continuously when a serial connection is active, or failing to pulse it at the right moment for programming. The 100 nF value gives roughly a 1 ms pulse duration with the 10 kΩ pull-up resistor, which is sufficient to trigger the bootloader handshake.

Noise Filter on the RESET Pin

In custom ATmega designs operating in electrically noisy environments — near motors, relays, or switching power supplies — the RESET pin can pick up interference and cause unintended resets. A 100 nF capacitor from RESET to ground, combined with a 10 kΩ pull-up to VCC, creates an RC filter with a time constant of about 1 ms. This filters out brief noise spikes while still allowing intentional reset pulses from a pushbutton to work normally.

This capacitor is not part of the standard Arduino Uno auto-reset circuit. It is an addition for standalone ATmega circuits in noisy environments.

AREF Capacitor: Cleaning Up Analog Readings

The ATmega328P’s AREF pin is the reference voltage for the on-chip ADC. In the default configuration, AREF is internally connected to VCC through the microcontroller, giving a reference of 5V (or 3.3V on 3.3V Arduinos). Adding a 100 nF ceramic capacitor from AREF to GND filters noise on this reference voltage.

Why does this matter? The ADC measures input voltage as a fraction of VREF. Noise on VREF directly appears as noise on every ADC reading. If your analog readings are jumping around even with a stable input signal, a dirty AREF is often the culprit. Adding 100 nF to AREF is cheap, takes minimal board space, and typically reduces ADC noise significantly.

For precision analog measurements where 10-bit resolution needs to be usable, consider adding 10 µF in parallel with the 100 nF for better low-frequency filtering of the reference voltage.

Capacitors for Motor and Relay Noise Suppression

This is where many Arduino beginners first encounter noise problems. DC motors generate significant electrical interference when their brushes commutate — the rapid making and breaking of current through the brush-commutator interface creates voltage spikes that propagate across the power supply and radiate as EMI. Relays create a similar inductive kickback spike when their coil is switched off.

Motor Bypass Capacitor

The standard motor noise suppression technique uses three ceramic capacitors placed directly at the motor terminals:

• One 100 nF ceramic capacitor between each motor terminal and the motor case (ground)
• One 100 nF ceramic capacitor between the two motor terminals

This creates a low-impedance path for high-frequency noise directly at the source, before it can travel along supply wires to the Arduino. Use ceramic capacitors rated for the motor supply voltage with some margin — a 12V motor supply calls for 25V or 50V rated ceramics. Place the capacitors physically at the motor terminals, not at the Arduino end of the supply wires.

Power Supply Decoupling for Motor Circuits

When a motor shares a supply rail with an Arduino, its starting current surge causes a voltage dip that can reset the microcontroller. The fix is a large bulk capacitor (100 µF to 1000 µF electrolytic) on the motor supply rail, combined with a separate filtered supply for the Arduino if the interference is severe.

A practical approach for breadboard and prototyping builds: add a 100 µF electrolytic and a 100 nF ceramic in parallel directly at the motor driver module’s supply pins. This combination handles both the initial inrush and the ongoing high-frequency noise.

Relay Flyback and Snubber Capacitors

A relay coil is an inductor. When switched off, it generates a large reverse voltage spike (inductive kickback). The standard protection is a flyback diode in parallel with the coil. For applications sensitive to the brief spike that occurs before the diode conducts, a small RC snubber (typically 100 Ω in series with 10 nF) in parallel with the relay coil contacts further reduces switching transients.

ESP32, ESP8266, and Other 3.3V Microcontrollers

The capacitor requirements for 3.3V microcontrollers like the ESP32 and ESP8266 are more demanding than for the ATmega328P, primarily because these modules draw substantial peak currents during WiFi and Bluetooth transmission — 300–600 mA peaks are common for ESP32 WiFi transmissions, compared to the 50–200 mA typical for ATmega switching transients.

The ESP8266 is notorious for resetting when connected to an Arduino’s 3.3V output pin, which typically only supplies 50 mA. Even with an adequate supply, insufficient bulk capacitance causes the supply voltage to sag during transmission, triggering the brown-out detector and resetting the module.

Recommended capacitors for ESP32/ESP8266 power supply filtering:

• 100 µF electrolytic across the 3.3V supply at the module
• 10 µF ceramic or tantalum (if available at the package size)
• 100 nF ceramic as close as possible to the VCC pin

This combination of capacitor values handles the wide range of transient frequencies from the module’s RF circuitry.

Full Reference: Capacitor Roles in Arduino/Microcontroller Circuits

Role	Location	Recommended Value	Type	Notes
IC decoupling (high-frequency)	Each IC VCC pin	100 nF	X7R ceramic	Maximum 1–2 mm from pin
IC decoupling (bulk)	Main supply rail	10–100 µF	Electrolytic or polymer	One per board at minimum
Crystal loading	XTAL1, XTAL2 to GND	22 pF (ATmega 16MHz)	C0G ceramic	Match to crystal datasheet
ADC reference filter	AREF to GND	100 nF + 10 µF	Ceramic + electrolytic	Reduces ADC noise significantly
Auto-reset (DTR coupling)	DTR to RESET	100 nF	Ceramic	Required for auto-programming
Reset noise filter	RESET to GND	100 nF	Ceramic	Only in very noisy environments
Motor terminal noise	At motor terminals	3× 100 nF	Ceramic, rated for motor voltage	Physical placement is critical
Motor supply bulk	Motor supply rail	100–1000 µF	Electrolytic	Prevents reset from motor inrush
Relay snubber	Relay coil contacts	10 nF + 100 Ω	Ceramic + resistor	Reduces switching transient
ESP32/ESP8266 supply	Module VCC to GND	100 µF + 100 nF	Electrolytic + ceramic	Prevents WiFi transmission resets
SMPS output filter	LDO/regulator output	10–100 µF	Polymer or electrolytic	Per regulator datasheet

Common PCB Layout Mistakes with Microcontroller Capacitors

Getting the value right and the placement wrong is one of the most common causes of microcontroller noise problems that pass component-level inspection but fail in the field.

Mistake 1 — Capacitor too far from the power pin. A 100 nF cap placed 20 mm from the IC pin is far less effective than one placed 1 mm away. The trace inductance between the capacitor and the power pin creates an impedance that negates the capacitor’s benefit at high frequencies. Keep decoupling caps within 1–2 mm of the IC power pins whenever possible.

Mistake 2 — Long, narrow supply traces. A 0.2 mm wide trace between the decoupling cap and the IC adds roughly 1–2 nH per mm of inductance. For a 100 MHz switching transient, that’s a significant impedance. Use the minimum trace length and maximum trace width practical.

Mistake 3 — Single via in a high-current ground path. A single small via can carry approximately 0.5–1A before thermal issues arise. The ground return from a decoupling capacitor must be as low inductance as possible — multiple vias or a direct connection to a ground plane immediately beneath the component.

Mistake 4 — No ground plane. Through-hole prototype builds on perf board without a solid ground return are the most common cause of noise problems in beginner projects. The resistance and inductance of long GND wires is significant. A copper poured GND layer on a custom PCB reduces ground impedance by orders of magnitude compared to wired point-to-point grounds.

Mistake 5 — Forgetting the second VCC pin on ATmega328P. The chip has VCC on both pin 7 and pin 20. Both pins need decoupling capacitors. Many beginner custom PCB designs add decoupling to only one VCC pin and then wonder why the chip has occasional glitches.

Useful Resources for Arduino and Microcontroller Capacitor Design

• ATmega328P Datasheet — Microchip Technology — The original source for recommended decoupling capacitor values, crystal loading caps, and AREF filtering for the ATmega328P. Required reading for any custom Arduino-compatible design.
• Arduino Uno R3 Schematic — Study the official schematic to see exactly where each capacitor is placed in a validated reference design.
• Sparkfun: Decoupling Capacitor Tutorial — Accessible introduction covering bypass, decoupling, and filter capacitor applications with circuit diagrams.
• Altium: Bypass and Decoupling Capacitor Placement Guidelines — PCB-level guidance on capacitor placement, PDN impedance, and common layout errors.
• Murata SimSurfing — Simulate actual capacitance and impedance vs. frequency for specific Murata MLCC part numbers at your operating voltage.
• DigiKey Ceramic Capacitor Search — Parametric search across all major suppliers for C0G, X7R, and X5R ceramics by value, package, and voltage rating.
• TI Application Report SLOA194: Decoupling Techniques — Texas Instruments’ detailed engineering reference on power supply decoupling methodology, with impedance analysis and layout rules.
• ESP32 Hardware Design Guidelines — Espressif — Official guidance including supply capacitor requirements for ESP32 modules, RF decoupling recommendations, and layout rules.

Frequently Asked Questions

1. Do I really need decoupling capacitors on a breadboard Arduino project?

Yes, even on a breadboard — especially if your project uses motors, servos, relays, RF modules, or drives significant LED loads. Without decoupling capacitors, current spikes from switching loads cause brief supply voltage dips that can reset the Arduino or cause corrupted ADC readings. The fix is simple: add a 100 nF ceramic and a 10 µF electrolytic across the power rails of your breadboard, physically close to the ATmega or Arduino module. This alone resolves the majority of noise and reset problems that beginners encounter.

2. What happens if I use the wrong capacitor value for the crystal?

Using incorrect crystal load capacitors causes the oscillator to run at a slightly different frequency than nominal. For most sketch purposes — blinking LEDs, reading sensors — a few ppm of frequency error is undetectable. For UART serial communication at high baud rates (115200 bps), timing errors from a wrong crystal frequency can cause character corruption. For I2C in clock-stretching scenarios, or for real-time clock applications, frequency accuracy matters more. Always use the value specified in the ATmega328P datasheet (22 pF for the standard 16 MHz crystal) and choose C0G ceramic capacitors for temperature stability.

3. My ESP8266 or ESP32 keeps resetting randomly. Can capacitors fix this?

This is one of the most common issues with ESP modules on Arduino projects, and capacitors are almost always the answer. The WiFi radio draws 300–600 mA peak current during transmission. If the 3.3V supply can’t deliver this without sagging below the brown-out threshold (approximately 2.5–2.7V), the module resets. Add a 100–470 µF electrolytic capacitor directly across the 3.3V and GND pins of the module. If using a 3.3V LDO regulator to power the module from a 5V supply, ensure the regulator is rated for at least 600 mA continuous and has adequate output capacitance per its datasheet.

4. Can I use electrolytic capacitors instead of ceramics for decoupling?

Electrolytic capacitors work reasonably well for low-frequency decoupling (bulk charge storage at tens of kHz and below) but have significant ESL (Equivalent Series Inductance) and ESR at high frequencies, which limits their effectiveness for the fast transients generated by microcontroller switching. At 16 MHz and above, an electrolytic capacitor’s impedance rises rather than falls, making it a poor choice as the primary decoupling element. The correct approach is ceramic for high-frequency decoupling (100 nF close to the pin) plus electrolytic for bulk charge storage (10–100 µF at the supply rail). Using only electrolytics without ceramics is a common source of noise problems in beginner designs.

5. How do I know if my Arduino circuit needs more decoupling capacitors?

The signs are: random resets under load, inconsistent sketch uploads, erratic ADC readings that jump unpredictably, I2C or SPI communication errors that appear intermittently, or behavior that changes depending on what else is running in the circuit. The first diagnostic step is to add 100 nF ceramic capacitors to every IC’s VCC pin and 100–470 µF electrolytic to the main supply rail, then observe whether the behavior improves. If you have an oscilloscope, probe the VCC rail at the ATmega power pins with a short probe ground lead and look for dips or spikes during load transitions — these will tell you directly whether supply decoupling is the issue.

The Practical Takeaway

The capacitor for Arduino and microcontroller circuits isn’t exotic or complicated — it’s a small number of well-understood components placed correctly to solve a fundamental problem of speed mismatch between fast ICs and slow power supplies. The 100 nF ceramic is the workhorse. The 10–100 µF electrolytic is its partner for bulk energy. The 22 pF crystal cap sets accurate timing. The 100 nF on the RESET pin enables reliable auto-programming. And a 100 nF ceramic at each motor terminal prevents the noisiest component on your board from corrupting everything else.

Get these right from the start — on both breadboard prototypes and final PCB designs — and the class of hard-to-diagnose, intermittent failures that costs designers hours of debugging largely disappears.

Written from a PCB and embedded hardware engineering perspective, based on Microchip application notes, official Arduino schematics, and hands-on design experience.

Learn every capacitor failure mode — from electrolytic leaks to MLCC flex cracks and tantalum short circuits — with causes, symptoms, and PCB design fixes.

Walk into any electronics repair shop and ask what kills more boards than anything else. Nine times out of ten, the answer is capacitor failure. Whether it’s a bulging electrolytic on a power supply PCB, a cracked MLCC hiding under a BGA, or a tantalum that decides to short-circuit at the worst possible moment — bad capacitors are one of the most consistent reliability problems engineers deal with across the entire industry.

This guide covers capacitor failure in real depth: the failure modes, the root causes, the physical symptoms, how each capacitor technology fails differently, and what you can do to prevent it in your designs. If you’re troubleshooting a field failure or trying to build more robust products, this is the starting point.

Why Capacitor Failure Is So Hard to Catch Early

The frustrating thing about capacitor failure is that it rarely announces itself cleanly. A bad resistor usually shows up as a clearly wrong voltage. A failed transistor is typically a hard on or off. But a degrading capacitor drifts — its capacitance drops, its ESR climbs, and the circuit slowly becomes less stable. Power rails get noisier. Startup behavior gets erratic. Ripple rejection suffers. And if you’re not measuring the right things with the right instruments, you can chase that fault for weeks.

Capacitors can fail without any visible symptoms at all. Since the electrical characteristics of electrolytic capacitors are the primary reason for their use, these parameters must be tested with instruments to definitively determine whether a device has failed. A standard capacitance meter is not enough — ESR measurement is the key diagnostic tool that most bench technicians skip.

Understanding how capacitor failure happens — and what drives each failure mode — is the first step to catching problems before they escape to the field.

The Five Root Causes That Drive Almost Every Capacitor Failure

Before diving into failure modes by type, it helps to understand the common driving forces. Almost every capacitor failure can be traced back to one or more of these five stress categories:

Stress Category	Description	Most Affected Types
Thermal stress	Elevated temperature accelerates chemical degradation, electrolyte loss, and dielectric breakdown	Electrolytic, tantalum
Voltage overstress	Overvoltage destroys the dielectric layer permanently or weakens it progressively	All types
Ripple current	AC current through ESR creates internal heating	Electrolytic, polymer
Mechanical stress	Board flex, vibration, and thermal cycling crack brittle dielectrics	MLCC, ceramic
Reverse polarity	Polarized caps (electrolytic, tantalum) fail rapidly when biased backwards	Electrolytic, tantalum

Failures can be the result of electrical, mechanical, or environmental overstress, wear-out due to dielectric degradation during operation, or manufacturing defects. In practice, it’s often a combination: a marginally-specified cap in a warm enclosure subjected to startup transients will fail much earlier than any single factor would predict.

Electrolytic Capacitor Failure Modes: The Most Common Culprit

Aluminum electrolytic capacitors are in everything — power supplies, motor drives, audio equipment, industrial controls. They offer high capacitance in compact packages, but they’re also the most failure-prone component type in most PCB assemblies.

Electrolyte Evaporation and ESR Rise

Most electrolytic capacitor degradation leads to a single failure pathway: the vaporization or leakage of electrolyte. The liquid electrolyte inside — typically an ethylene glycol-based solution — slowly evaporates through the rubber seal over time, and heat dramatically accelerates this process.

As electrolyte volume drops, two things happen in parallel. Capacitance falls because effective dielectric contact is reduced. ESR rises because the remaining electrolyte conducts less efficiently. The problem compounds itself: higher ESR means more Joule heating from ripple current, which drives the temperature up further, which accelerates evaporation even more.

Short Circuit Failure

Electrolytic short circuits usually result from overvoltage punching through the thin aluminum oxide dielectric layer, reverse biasing, or the dielectric deteriorating to the point where conduction paths form across it. A shorted electrolytic in a power supply rail can pull significant current and damage surrounding components, particularly when there’s no current-limiting protection in the design.

Open Circuit Failure

At the far end of the wear-out spectrum, a fully desiccated electrolytic goes open circuit. No capacitance, no function. This typically happens in very old equipment or in capacitors that have been operating at elevated temperature for years past their rated lifespan. An open cap on a power rail means zero filtering — the circuit sees full switching noise.

Catastrophic Venting and Explosion

In the worst cases, self-heating develops gases inside the electrolytic capacitor, which subsequently explode the capacitor through the pressure-relief vent. You’ll recognize a vented cap immediately by the star-shaped crack or fully open top vent. In severe cases the entire top lifts off. This typically happens from reverse polarity (rapid hydrogen generation), severe overvoltage, or a shorted load condition that prevents the cap from ever discharging.

Electrolyte Leakage and PCB Damage

If the seal degrades or a partial vent occurs, liquid electrolyte reaches the PCB. This is not a benign event. Electrolyte is both conductive and corrosive — it will attack copper traces, eat solder joints, corrode IC leads, and cause PCB laminate damage if left untreated. A common symptom is unexplained trace resistance or intermittent connection faults near failed capacitors on old boards.

Summary of Electrolytic Failure Modes

Failure Mode	Primary Trigger	Electrical Symptom
ESR rise / capacitance loss	Thermal aging, electrolyte evaporation	Output ripple increase, instability
Short circuit	Overvoltage, reverse bias, dielectric breakdown	Excess current, fuse blow, component damage
Open circuit	Full electrolyte dry-out	Loss of filtering, rail noise
Electrolyte leakage	Seal failure, aging, overvoltage	PCB corrosion, conductive residue
Case vent / explosion	Rapid gas generation, extreme overstress	Physical damage, component loss

MLCC Failure Modes: Brittle, Invisible, and Often PCB-Induced

Multi-layer ceramic capacitors (MLCCs) are everywhere in modern PCB designs. They’re compact, they don’t wear out the way electrolytics do, and they handle high frequencies beautifully. But calling them reliable without understanding their failure modes is a mistake. MLCCs do not have any intrinsic wear-out mechanism, but they are highly vulnerable to short-circuit failure caused by mechanical stress including vibration — and many of those failures are introduced during the PCB manufacturing process before the board ever reaches a customer.

Flex Cracking: The Silent Killer in MLCC Reliability

The most common MLCC failure mechanism is crack propagation in the ceramic initiating at the device end caps. MLCC ceramic is a brittle material. It can handle compressive loads reasonably well but has poor resistance to bending stress. When the PCB flexes — during depaneling, during test probe contact, during screwdriver installation, or during in-circuit test fixtures — the MLCC experiences bending stress that it may not survive.

These flex cracks typically originate at the upper and lower metallization ends and propagate inward at roughly 45°. The resulting failure is usually a partial or complete short circuit, because the cracked ceramic creates a conductive path between the electrode layers. A cracked MLCC in a decoupling application on a power rail can cause substantial localized heating or even burning if the fault current isn’t limited.

The location of MLCCs on a PCB is a significant factor in reliability. Components placed near PCB edges are subjected to excess mechanical stress during depaneling, making edge placement a design-level risk that requires deliberate attention.

Thermal Shock During Reflow

The thermal expansion coefficient of MLCC ceramic is approximately half that of standard FR4. During soldering — especially if the temperature profile ramps too quickly — different parts of the capacitor body expand at different rates, generating internal stress. This is significantly worsened when wave soldering is used instead of reflow, since wave soldering exposes the component to a far more severe thermal gradient.

Dielectric Breakdown in MLCCs

Catastrophic failure of MLCC is primarily dielectric breakdown. There are three recognized mechanisms: intrinsic breakdown from applied voltage exceeding dielectric strength, thermal breakdown where local Joule heating causes chemical reduction of the dielectric material, and ionization breakdown. In all three cases, the result is a short circuit failure that can heat rapidly and cause physical damage to the surrounding PCB area.

MLCC Failure Modes at a Glance

Failure Mode	Root Cause	PCB Symptom
Flex crack short	PCB bending, depaneling, test fixtures	Low resistance short on supply rail
Thermal crack	Rapid reflow, wave soldering, thermal cycling	Intermittent short or open
Dielectric breakdown	Overvoltage, aging in high-K dielectrics	Hard short, possible burn mark
Silver migration	High humidity + DC field in older designs	Leakage current increase
Open circuit	Crack progression, delamination	Loss of decoupling

Tantalum Capacitor Failure Modes: The Dangerous Short

Tantalum capacitors are prized for their high volumetric efficiency, low ESR, and stable performance across temperature. They’re common in military, aerospace, and medical applications for exactly these reasons. But tantalum capacitors have one failure mode that demands serious respect from any PCB engineer: the most common failure mode for dry tantalum capacitors is a short circuit.

Surge Current: The Primary Tantalum Killer

The most prevalent failure in tantalum capacitors is power-on failure driven by surge current. When a circuit powers up, the initial charging current into the capacitor — I = C × dV/dt — can be extremely high if there is no current-limiting resistance in series. If the capacitor has a weak point in the tantalum pentoxide dielectric — even microscopic — the surge current concentrates there. At temperatures between 400–500°C at the fault site, a reaction occurs between the tantalum and the manganese dioxide counter-electrode that is self-sustaining and runaway. The result is a catastrophic short.

Tantalum capacitor manufacturers universally recommend derating by 50% from the headline voltage rating in most circuit applications. In addition, a series resistor should be incorporated to limit inrush current at power-on. Without these precautions, the probability of surge-induced failure is substantial, especially in low-impedance DC circuits.

Reverse Bias

Like electrolytic capacitors, tantalums are polarized. Reverse bias — even briefly — causes rapid degradation of the tantalum pentoxide dielectric. In AC-coupled circuits or circuits where supply rails can go negative during faults, this is a real risk. The result is typically a low-resistance short that may thermally damage adjacent components.

Leakage Current Increase

Imperfections in the tantalum oxide film — from metallic impurities in the base material, surface geometry irregularities, or physical stress during PCB assembly — cause localized current concentration. This manifests as elevated leakage current. Left uncorrected under voltage stress, the leakage site can progress to full breakdown.

Tantalum Failure Modes Summary

Failure Mode	Primary Cause	Risk Mitigation
Surge short circuit	High dV/dt at power-on, no series R	Add 3–10Ω series resistor; derate voltage 50%
Reverse polarity short	Incorrect installation, AC signal path	Verify polarity; avoid in AC-coupled paths
Dielectric degradation	Impurity in tantalum powder, solder stress	Source mil-spec or screened parts
Leakage current rise	Weak dielectric sites, moisture	Proof-test post-assembly; operate within rating

Film Capacitor Failure Modes

Film capacitors are generally the most reliable passive component in a well-designed circuit. They’re non-polarized, they don’t dry out, and their dielectric doesn’t degrade the way electrolytics do. But they’re not immune to failure.

Paper and plastic film capacitors are subject to two classic failure modes: opens or shorts. The classic film capacitor failure mechanism is dielectric breakdown under overvoltage or transient conditions. Metallized film capacitors have a notable advantage here: they are self-healing. When a localized breakdown occurs, the thin metal electrode around the fault vaporizes, isolating the damaged area, and the capacitor continues operating with slightly reduced capacitance.

The notable exception is the RIFA X2 safety capacitor. These paper-dielectric capacitors, common in power supply line filters from the 1970s through the 1990s, develop cracks in their plastic casing over time. When the cracked casing allows moisture ingress to the paper dielectric, the capacitor fails noisily — and often spectacularly — with smoke and an unmistakable burned-plastic smell. Any vintage equipment with these capacitors should have them replaced proactively.

How to Identify a Bad Capacitor on Your PCB

Knowing what a capacitor failure looks like — both visually and electrically — saves hours of troubleshooting.

Visual Inspection Checklist

Visual Sign	What It Indicates
Bulging or domed top (electrolytic)	Internal gas pressure — replace immediately
Brown/yellow residue at base	Electrolyte leakage — clean with IPA, check nearby traces
Cracked ceramic body (MLCC)	Flex or thermal crack — check for short circuit
Discolored PCB beneath cap	Heat stress or electrolyte corrosion
Swollen or split sleeve	Severe overstress, reverse polarity
Burn marks around component	Short-circuit current heating

Electrical Measurement Guide

Visual inspection only catches the worst cases. For electrical diagnosis, use these methods:

Measurement Method	What It Reveals	Tool Required
ESR test	Rise in ESR indicates electrolyte loss, aging	ESR meter or LCR meter
Capacitance measurement	Drop in capacitance confirms degradation	LCR meter
DC leakage current	High leakage = dielectric damage	Bench PSU + ammeter
Resistance (in-circuit, power off)	Short circuit detection	DMM
Thermal imaging under load	Localized heating at failed caps	Thermal camera

The most important point: never rely on a basic capacitance reading alone to declare a capacitor healthy. An electrolytic can measure within 10% of its nominal capacitance while its ESR has tripled and its filtering performance has collapsed completely.

Design Rules to Prevent Capacitor Failure

Good design practice is the most cost-effective form of failure prevention. These rules address the leading root causes of capacitor failure across all types.

For Electrolytic Capacitors

Keep electrolytics away from hot components in your layout. Even 5–10°C reduction in ambient temperature roughly doubles service life per the Arrhenius rule. Use 105°C-rated parts in all designs where the ambient can exceed 60°C. Derate operating voltage to 75% or less of rated voltage. Measure actual RMS ripple current at the cap location and ensure it stays below the rated value with margin.

For MLCCs

Place high-capacitance MLCCs (1µF and above) away from PCB edges where depaneling stress concentrates. Use soft-termination MLCCs (with a flexible resin buffer in the end caps) in high-stress environments such as automotive, industrial, or any design with significant flex events. Define the reflow temperature profile carefully, especially for large-body 1206 and above. If wave soldering is unavoidable, investigate compatible MLCC grades specifically rated for it.

For Tantalum Capacitors

Always add a series resistor — typically 3–10Ω depending on capacitance value — to limit power-on surge current. Derate operating voltage to 50% of rated in all switching or low-impedance circuits. Never use dry tantalum in circuits where the voltage can go negative. If high reliability is paramount and budget allows, consider switching to wet tantalum or polymer tantalum variants, which offer significantly better surge resilience.

Useful Resources for Engineers Diagnosing Capacitor Failure

The following resources provide deeper analysis, failure data, and technical guidance on capacitor failure across all types:

• AIC Tech: Capacitor Failures — 15 Practical Case Studies — Real-world failure case studies with root cause analysis across electrolytic, ceramic, and tantalum types
• NASA NEPP: Failure Modes in Capacitors Under Time-Varying Stress (PDF) — Weibull failure data and accelerated life test results for MLCC, tantalum, and polymer capacitors
• NAVSEA Crane: Capacitor Failure Mechanisms and Anomalies (PDF) — Comprehensive military-standard failure mode reference derived from MIL-HDBK-978
• ESCIES: Capacitor Failure Modes — Lessons from Industry (PDF) — Conference paper covering ceramic, electrolytic, tantalum, and film failure modes in space applications
• Cadence PCB Blog: Causes of Electrolytic Capacitor Degradation — Design-focused overview of electrolytic degradation mechanisms
• IPC-A-610 Standard — Industry acceptance criteria for PCB assemblies including capacitor installation and inspection standards
• Gideon Analytical Laboratories: MLCC Failure Analysis — Real cross-section analysis of failed MLCCs with microscopy imagery

Frequently Asked Questions About Capacitor Failure

Q1: Can a capacitor fail and still measure correct capacitance?

Yes, and this is one of the most common diagnostic traps. An electrolytic can retain most of its capacitance while its ESR has increased two to three times from the datasheet value. The capacitance test passes; the circuit fails. Always test ESR separately, especially on any capacitor in a power conversion or filtering application.

Q2: What causes a tantalum capacitor to catch fire or burn?

The root cause is a short-circuit failure driven by surge current at power-on. When inrush current hits a weak dielectric site in the tantalum pentoxide layer, a thermal runaway reaction starts between the tantalum anode and its manganese dioxide counter-electrode. Without a current-limiting series resistor, this reaction sustains itself and generates significant heat. The component burns, and depending on fault current, may ignite adjacent PCB material. A series resistor of even a few ohms prevents this in most practical circuits.

Q3: How do I know if a cracked MLCC is causing intermittent issues on my board?

Cracked MLCCs are notoriously hard to spot. The crack may be invisible under normal lighting and only partially through the ceramic. Symptoms include an intermittent short on a power rail (often temperature-dependent as the crack opens and closes with thermal cycling), unexplained signal noise in high-speed circuits, and in severe cases a board area that gets warm during operation near a small passive component. Cross-sectional analysis by a failure analysis lab is the definitive test.

Q4: Is it safe to replace a failed capacitor with a higher voltage rating?

For electrolytic and film capacitors, yes — using a higher voltage rating generally improves reliability, and is recommended if the footprint allows. For tantalum, it’s more nuanced: a higher-voltage tantalum at the same capacitance value typically has a thicker dielectric and better surge resilience, which is beneficial. For MLCC, be aware that higher-voltage versions in the same package size often achieve their rating by using a thinner dielectric layer per layer, which may not improve reliability in the way you expect.

Q5: What’s the difference between a capacitor short-circuit failure and an open-circuit failure?

A short-circuit failure creates a low-resistance path between the capacitor terminals. On a power rail, this typically trips protection or damages the upstream supply. On a signal line, it pulls the signal to a fixed voltage. An open-circuit failure removes the capacitor from the circuit entirely — on a bypass or decoupling capacitor, this allows high-frequency noise to pass unchecked. On a timing or coupling capacitor, it stops signal transmission. Both are bad, but short-circuit failures are generally more immediately damaging to surrounding components because of the current they draw.

Capacitor failure is not random. Each type fails predictably, in response to specific stressors, and with recognizable symptoms once you know what to look for. The electrolytic that bulges is telling you its operating temperature is too high. The tantalum that shorts is telling you it needed a series resistor. The MLCC with a flex crack is telling you the board handling process needs tighter controls. Treat every failure as a data point, trace it to its root cause, and design out the conditions that caused it. That discipline is the foundation of reliable PCB engineering.

Capacitor ESR explained: what causes it, why it matters for SMPS ripple and stability, typical ESR values by capacitor type, how to measure it accurately, and a full reference chart and FAQ for PCB engineers.

Walk into any electronics repair shop and ask why a switching power supply failed. More often than not, the answer is a bulging electrolytic capacitor with an ESR value that climbed from 50 milliohms to 4 ohms over three years of continuous operation. The capacitance on the meter still reads within 20% of spec. The voltage rating was never exceeded. But the board is dead because capacitor ESR — not capacitance — was the real design variable that mattered, and no one was watching it.

If you’ve ever ignored the ESR column in a capacitor datasheet, this guide will change that habit. ESR is the single most important parasitic in power electronics, and understanding it from the circuit-level up — what causes it, how it behaves across frequency and temperature, how to measure it accurately, and when it matters most — is the difference between a design that lasts ten years in the field and one that starts failing at year two.

What Is Capacitor ESR?

Capacitor ESR (Equivalent Series Resistance) is the total resistive loss inside a real capacitor, modeled as a single resistance in series with the ideal capacitance. It is not a physical resistor you can see or remove — it is the lumped representation of all energy-dissipating mechanisms inside the component.

The complete equivalent circuit model of a real capacitor looks like this:

[Terminal+] ─── ESR ─── ESL ─── C (ideal) ─── [Terminal−]

Where ESL is the equivalent series inductance (from lead geometry and internal construction). At most power-supply frequencies, ESR is the dominant parasitic. At very high frequencies, ESL takes over. At DC, capacitors ideally have infinite impedance, and the only real loss is leakage resistance — which is a parallel element, not the series ESR.

Three Sources of ESR in a Real Capacitor

Every microohm of ESR originates from one of three physical mechanisms:

1. Ohmic resistance of conductors — the metal foil, electrodes, end spray, lead terminations, and solder connections. This component scales with frequency due to the skin effect: at high frequencies, current concentrates at the conductor surface, increasing effective resistance.

2. Electrolyte resistance (electrolytic capacitors only) — in aluminum and tantalum wet-electrolytic types, ionic current must flow through the liquid electrolyte. The conductivity of the electrolyte is orders of magnitude lower than metal, making this term dominant at low to mid frequencies in these capacitor types. As the electrolyte ages — drying out due to evaporation and oxygen depletion — this component increases irreversibly.

3. Dielectric losses — even solid dielectrics are not perfectly lossless. The molecular polarization of the dielectric material lags the applied AC field, dissipating energy. This is characterized by the dissipation factor (tan δ) and dominates at lower frequencies. Class II ceramics (X7R, Y5V) have noticeably higher dielectric losses than Class I (C0G/NP0) types due to their ferroelectric microstructure.

Why Capacitor ESR Matters: Four Critical Impacts

1. Ripple Voltage on Power Rails

In a switching converter, the output capacitor must absorb ripple current from the inductor on every switching cycle. That ripple current flows through the capacitor’s ESR and generates a voltage drop:

V_ripple = I_ripple × ESR

This is additive to the ripple caused by charging and discharging the capacitance. At switching frequencies above about 20–50 kHz, the ESR-induced ripple often exceeds the capacitance-induced ripple, meaning that halving the ESR is more effective than doubling the capacitance for reducing output ripple voltage. This is a non-obvious result that surprises engineers who focus only on the µF number.

2. Power Dissipation and Thermal Aging

Every ampere of ripple current flowing through ESR generates heat:

P_heat = I²_RMS × ESR

This heat accelerates aging in electrolytic capacitors — primarily by driving electrolyte evaporation. The Arrhenius relationship applies: every 10°C rise in capacitor core temperature roughly halves the remaining operational lifetime. A capacitor rated for 2,000 hours at 105°C runs at significantly less than half that life if it operates at 115°C due to ESR-driven self-heating in a high-ripple-current application.

3. Converter Control Loop Stability

In voltage-mode or current-mode PWM controllers, the output ESR creates a zero in the open-loop transfer function of the output filter. This ESR zero occurs at:

f_ESR_zero = 1 / (2π × ESR × C)

In classic designs using aluminum electrolytic output capacitors, this zero was relied upon to provide phase boost in the control loop at frequencies near the crossover, improving stability margins. When designers switched to low-ESR polymer or ceramic capacitors to reduce ripple, they sometimes inadvertently destabilized control loops that had been designed around the old ESR zero frequency. This is the classic case where lower ESR is not unconditionally better — it depends entirely on the control loop design.

Some LDO regulators explicitly require a minimum output capacitor ESR in their datasheet for stable operation. Always check before substituting a polymer type for an electrolytic in an LDO output stage.

4. Capacitor Self-Heating and Life Prediction

Manufacturers rate capacitor life at a specific maximum core temperature. The core temperature is a function of both ambient temperature and self-heating from ripple current. The self-heating calculation is:

ΔT_core = I²_RMS × ESR × R_th

Where R_th is the capacitor’s thermal resistance (°C/W), typically 10–50 °C/W for small electrolytics. At high ripple currents, ESR self-heating can add 10–30°C to the core temperature — enough to halve estimated lifetime even when ambient temperature is within spec.

Capacitor ESR by Type: Reference Values

At low frequencies below 1 kHz, aluminum electrolytic and tantalum capacitors behave similarly to film and ceramic types in terms of impedance magnitude. But above 1 kHz, the higher electrolyte resistivity in aluminum and tantalum types causes their impedance to diverge significantly from ceramic and film capacitors, which use metallic electrodes with far lower resistivity.

The table below gives typical ESR reference values measured at 100 kHz, 25°C — the standard condition for SMPS component characterization:

Capacitor Type	Typical ESR at 100 kHz	ESR Stability	Notes
Aluminum electrolytic (wet)	50 mΩ – 5 Ω	Degrades with age/temp	Higher cap value = lower ESR
Aluminum electrolytic (polymer)	5 mΩ – 50 mΩ	Very stable	10× better than wet at high freq
Aluminum polymer hybrid	10 mΩ – 80 mΩ	Stable	Better voltage rating than pure polymer
Tantalum (MnO2 electrolyte)	100 mΩ – 2 Ω	Stable but high	Failure mode: short circuit
Tantalum (polymer cathode)	4 mΩ – 100 mΩ	Excellent	Up to 8A ripple current possible
Polypropylene film	1 mΩ – 20 mΩ	Excellent, lifetime stable	Best for high-power, high-frequency
MLCC, Class II (X7R)	10 mΩ – 100 mΩ	Good; rises with frequency above SRF	Capacitance drops with DC bias
MLCC, Class I (C0G/NP0)	5 mΩ – 50 mΩ	Outstanding stability	Low capacitance per volume
Supercapacitor (EDLC)	50 mΩ – 200 mΩ	Moderate	Not suitable for fast switching

Rule of thumb: If measured ESR is more than 2–3× the nominal value for that capacitor type and value, the component is aging and replacement should be planned. More than 3× nominal means replace immediately.

For detailed guidance on how ESR, dielectric type, and package geometry interact in PCB-level component selection, the reference on PCB capacitors covers these characteristics in the context of real board design.

How ESR Changes with Frequency and Temperature

ESR vs. Frequency Behavior

In actual capacitors, the impedance-versus-frequency curve forms a characteristic V-shape (or U-shape depending on type). In the low-frequency capacitive region, impedance falls with increasing frequency. At the self-resonant frequency (SRF), impedance reaches its minimum value — and at exactly that frequency, impedance equals ESR. Above SRF, parasitic inductance (ESL) dominates and impedance begins rising, making the capacitor behave more like an inductor than a capacitor.

This has a critical practical implication: a capacitor is most effective as a decoupling element at or near its SRF, because that is where its impedance — and therefore its insertion loss for noise — is lowest. A 100 nF MLCC with an SRF of 50 MHz is an excellent decoupling element at 50 MHz and becomes progressively less effective at frequencies well above or below that point.

At low frequencies (50 Hz–1 kHz), dielectric and conduction losses dominate the ESR. At mid frequencies (1 kHz–10 kHz), internal construction losses including electrolyte conductivity come to the fore. Above 100 kHz, ohmic effects and the skin effect in terminations and electrodes become the ruling factors.

ESR vs. Temperature

Temperature behavior differs dramatically by capacitor technology:

Capacitor Type	ESR at Low Temp (−40°C)	ESR at High Temp (+85°C)	Trend
Aluminum electrolytic (wet)	5–10× nominal	Below nominal	ESR drops as temp rises (electrolyte warms)
Aluminum polymer	Near nominal	Near nominal	Very stable
Tantalum (MnO2)	Moderately higher	Near nominal	Stable at operating temp
Polypropylene film	Near nominal	Near nominal	Excellent stability
MLCC (X7R)	Near nominal	Near nominal	Good stability

The wet aluminum electrolytic’s cold-temperature ESR behavior is particularly important for automotive and outdoor industrial applications. A capacitor that meets its ESR specification at 25°C can have 5–10× higher ESR at −40°C, dramatically increasing ripple voltage and potentially exceeding the capacitor’s own ripple current rating during cold-start conditions. Polymer electrolytic capacitors resolve this problem — their ESR remains stable across the full operating temperature range, making them far better suited to wide-temperature-range applications than wet types.

How to Measure Capacitor ESR

Why a Standard Ohmmeter Doesn’t Work

You cannot measure ESR with a standard DC ohmmeter. Capacitors block DC, so a DC resistance measurement reads open circuit or meaningless values. ESR is an AC resistance — it requires an AC test signal at the correct frequency to measure correctly.

ESR is always an AC resistance measured at specified frequencies: 100 kHz for switched-mode power supply components, 120 Hz for linear power-supply components, and at the self-resonant frequency for general-application components.

Method 1: Dedicated ESR Meter (Most Practical)

A dedicated ESR meter injects a low-voltage (typically 250 mV or less), high-frequency (typically 100 kHz) AC signal through the capacitor and measures the real component of the resulting impedance.

The low voltage used by ESR meters is deliberately chosen to be insufficient to bias and activate semiconductor junctions in surrounding circuitry, which means the meter can often test capacitors in-circuit without desoldering — though parallel low-impedance components can affect the reading.

ESR meter procedure:

1. Power off and discharge the circuit completely. For capacitors above 50 V, discharge manually through a 10–20 kΩ resistor before connecting the meter.
2. Connect the ESR meter probes directly to the capacitor terminals — for in-circuit testing, make sure no low-impedance components are shunting the capacitor.
3. Read the ESR value and compare to the typical reference for that capacitor type and value.
4. If ESR reads near zero (below 0.1 Ω for a large electrolytic), the capacitor may be shorted — verify with a capacitance check before trusting the ESR reading alone.

Recommended ESR meters for bench use:

Instrument	Best For	Frequency Range
Peak Atlas ESR70	In-circuit electrolytic testing	100 kHz
MESR-100 (auto-ranging)	Production and repair testing	100 kHz
IET 1920 LCR Meter	Lab-grade low-ESR measurement	100 Hz – 100 kHz
Keysight E4990A Impedance Analyzer	Full impedance characterization	20 Hz – 120 MHz
Boonton 34A Resonant Line	RF capacitor ESR (high-Q)	1 MHz – 1.3 GHz

Method 2: LCR Meter

A benchtop LCR meter set to series impedance mode at 100 kHz will measure and display ESR (Rs or R) alongside capacitance. This is more accurate than a handheld ESR meter and provides frequency-sweep capability on higher-end models. Use series (Cs) mode for large capacitors with impedance below 10 Ω, and parallel (Cp) mode for small capacitors with impedance above 10 kΩ.

Method 3: Ripple Voltage/Current Ratio (In-Circuit Estimation)

If an ESR meter or LCR meter is unavailable, ESR can be estimated from operating measurements:

ESR ≈ V_ripple_pp / I_ripple_pp

Measure the peak-to-peak ripple voltage across the capacitor with a scope and the peak-to-peak ripple current through it (via a current probe or sense resistor in series). The ratio gives a reasonable ESR estimate under operating conditions, which is arguably more useful than a static measurement because it reflects the capacitor’s real behavior at operating temperature and frequency.

Important limitation: This method works best when the ripple current waveform is approximately sinusoidal or triangular and the ESR component of ripple is dominant. In designs where capacitance-induced ripple is also significant, the raw ratio will overestimate ESR.

Method 4: High-Frequency Resonant Line (For RF Capacitors)

For ceramic capacitors operated at very high frequencies (100 MHz to 1.3 GHz), the coaxial resonant line method based on the Boonton 34A standard is the most accurate ESR measurement technique. Vector network analyzer S-parameter methods are not acceptable for high-Q devices because the amplitude calibration accuracy of a typical VNA is insufficient to resolve the extremely small resistance value against the large reactive component.

ESR and Dissipation Factor: Understanding the Relationship

Capacitor datasheets often specify tan δ (dissipation factor, DF) rather than ESR directly — especially for film and ceramic types. The relationship is:

ESR = tan δ / (2π × f × C)

Or equivalently:

tan δ = ESR × 2π × f × C = ESR / X_C

Where X_C is the capacitive reactance at frequency f. Dissipation factor is dimensionless and frequency-independent for an ideal lossy capacitor — which is why it is the preferred specification for film and ceramic types. For electrolytics, ESR is the more useful practical specification because tan δ varies too much with frequency and temperature to be useful as a single design parameter.

ESR, Tan δ, and Q Factor Reference

Parameter	Definition	Best For
ESR (Ω or mΩ)	Total series resistance at test frequency	Power electronics, filter design, SMPS
Tan δ / DF	Ratio of loss to reactive energy per cycle	Film, ceramic, precision capacitors
Q factor	Reactance / ESR = 1 / tan δ	RF, resonant circuits, high-frequency decoupling

Capacitor ESR in Specific Application Contexts

SMPS Output Capacitor

The SMPS output capacitor takes the full inductor ripple current every switching cycle. ESR directly sets the high-frequency component of output ripple. In a switching power supply, even adequate capacitance cannot fix high ESR — at higher switching frequencies, ESR becomes the dominant impedance of the capacitor, and the capacitor’s ability to suppress high-frequency noise depends critically on low ESR. For a 100–500 kHz buck converter output, polymer aluminum or X7R MLCC capacitors are the appropriate choice.

Bulk Input Filter Capacitor

The input filter capacitor of an SMPS must handle the discontinuous input current from the converter’s switching. Peak currents are typically much higher than at the output. ESR losses at the input raise noise across the capacitor, reducing the effectiveness of differential-mode EMI filtering and increasing voltage stress on the converter’s input stage.

PDN (Power Delivery Network) Decoupling

In a PDN, capacitors of multiple values and types are placed in parallel to cover a wide frequency range. The key design insight is that the effective impedance of the PDN is determined by the lowest-ESR capacitor at each frequency — not by total capacitance. Understanding each capacitor’s ESR-vs-frequency profile is essential to predict and flatten the PDN impedance across the target frequency range.

LDO Output Stability

Some LDO regulators and amplifier circuits require a minimum ESR for stable operation. Excessively low ESR can cause control loop instability — this becomes especially important when adopting wide-bandgap semiconductors like GaN or SiC, whose lower circuit resistance can induce spikes and current surges that interact with the output capacitor ESR zero in unexpected ways. Always verify the minimum and maximum ESR range specified in the LDO datasheet before substituting capacitor types.

Typical ESR Values Reference Chart for Common Electrolytic Capacitors

The following approximate values apply to standard aluminum electrolytic capacitors at 100 kHz, 20°C. Low-ESR and polymer series are significantly lower.

Capacitance	16 V	25 V	50 V	100 V
10 µF	4.0 Ω	4.5 Ω	5.0 Ω	6.0 Ω
47 µF	1.5 Ω	1.8 Ω	2.2 Ω	2.8 Ω
100 µF	0.8 Ω	1.0 Ω	1.3 Ω	1.7 Ω
220 µF	0.4 Ω	0.5 Ω	0.7 Ω	1.0 Ω
470 µF	0.2 Ω	0.25 Ω	0.35 Ω	0.5 Ω
1000 µF	0.1 Ω	0.12 Ω	0.18 Ω	0.28 Ω
2200 µF	0.05 Ω	0.06 Ω	0.09 Ω	—
4700 µF	0.025 Ω	0.03 Ω	—	—

Values are approximate references. Always verify against manufacturer datasheet for specific series and lot.

Signs of High ESR Causing Circuit Problems

These symptoms in a live circuit are often the first practical indicator of elevated capacitor ESR before any component is physically damaged:

Symptom	ESR Connection	Next Step
High output ripple voltage	ESR × ripple current exceeds spec	Measure ESR; replace if >2× nominal
SMPS runs hot but load is normal	ESR self-heating in output/input caps	Check ESR on all high-ripple caps
Control loop instability / oscillation	ESR zero frequency has shifted	Measure ESR; verify against loop design
Random resets under load	Output rail drooping from high ESR transient	Scope the output rail under load step
Capacitor bulging or venting	Extreme ESR-induced overheating	Replace immediately; inspect board
PC crashes during GPU/CPU load	Degraded motherboard polymer caps	Test ESR of board decoupling capacitors

Useful Resources for Capacitor ESR

Resource	Type	Link
Murata – Impedance/ESR Frequency Characteristics in Capacitors	Technical Article	article.murata.com
DigiKey – Simple Explanation of Capacitor ESR	Reference Article	digikey.com
Wikipedia – Equivalent Series Resistance	Reference Overview	en.wikipedia.org
IET Labs – ESR of Capacitors (Application Note 035002)	Technical Paper / PDF	ietlabs.com PDF
Passive Components – ESR Mechanisms, Measurements and Applications	Deep-Dive Article	passive-components.eu
Avnet Abacus – Understanding ESR in Electrolytic Capacitors	Technical Article	my.avnet.com
AllAboutCircuits – Determining ESR of Capacitors	Technical Article	allaboutcircuits.com
EPCI – Influence of ESR and Ripple Current for Capacitor Selection	Design Guide	epci.eu
Specap – Typical ESR for Electrolytic Capacitors (Power Supply Guide)	Reference Guide	specap.com

Frequently Asked Questions About Capacitor ESR

Q1: My capacitor reads correct capacitance on a multimeter but the circuit is malfunctioning. Could ESR be the cause?

Yes — this is one of the most common diagnostic traps in power electronics. ESR can increase enough to cause circuit malfunction and even component damage even when measured capacitance remains within tolerance. A wet electrolytic that has aged badly will often measure 90–110% of its nominal capacitance while its ESR has climbed from 100 mΩ to 3–4 Ω. The capacitance test gives a false pass. Always measure ESR separately with a dedicated ESR meter or LCR meter at 100 kHz when troubleshooting power supply instability, high ripple, or thermal issues.

Q2: Is lower ESR always better?

No, and this is a critical point. For most switching power supply output and input filters, lower ESR is better because it reduces ripple and thermal losses. However, some LDO voltage regulators and op-amp circuits rely on a minimum output capacitor ESR to maintain control loop stability. In those designs, using a near-zero ESR polymer capacitor where the datasheet requires a wet electrolytic output cap can cause the regulator to oscillate. Always check the ESR range specification in the IC datasheet before substituting capacitor types.

Q3: What is the difference between capacitor ESR and dissipation factor (tan δ)?

They both describe the same underlying dielectric and conductor losses but are expressed differently. Tan δ (dissipation factor) is dimensionless and represents the ratio of energy lost to energy stored per cycle. ESR is the equivalent resistive loss expressed in ohms at a specific frequency. They are mathematically related: ESR = tan δ / (2π × f × C). For ceramic and film capacitors, datasheets often specify tan δ because it is more constant across frequencies. For electrolytic capacitors in power supply design, ESR at 100 kHz is the more useful working parameter.

Q4: Can I use multiple capacitors in parallel to achieve lower effective ESR?

Yes — paralleling capacitors reduces effective ESR in the same way resistors in parallel reduce resistance. Two identical capacitors in parallel halve the combined ESR, and also halve the combined ESL and double the capacitance and ripple current rating. This is a common and effective technique for PDN design on PCBs, where an array of smaller MLCCs often achieves lower total ESL and competitive ESR compared to a single large electrolytic. The critical caveat is that all paralleled units must have equal parasitic loop inductance from the layout — an unequal layout concentrates current in the physically closest unit, defeating the purpose of paralleling.

Q5: How do I know what ESR value to specify when selecting a replacement capacitor?

The safest approach is to match the original manufacturer’s series and part number, since the original designer would have selected that specific series for its ESR characteristics at the application frequency. If the original part is obsolete, find the ESR value in the original datasheet and ensure the replacement’s ESR at 100 kHz is within ±20% of that value. Never substitute a wet aluminum electrolytic with a polymer type without checking the control loop stability requirement — in most SMPS output stages, polymer is an improvement, but in some LDO and linear regulator designs, the drastic ESR reduction changes the stability characteristic.

The Bottom Line on Capacitor ESR

Capacitor ESR is not a footnote in the datasheet — it is often the binding design constraint in power electronics. It sets ripple voltage, determines thermal stress and component lifetime, shapes control loop behavior, and is the first parameter to degrade as a capacitor ages. Capacitance can remain within tolerance for years while ESR quietly climbs to values that destabilize power supplies, overheat components, and cause intermittent field failures that are nearly impossible to debug without an ESR meter.

The practical takeaways from a PCB engineering standpoint: always specify ESR at 100 kHz when selecting SMPS capacitors; use polymer types where ripple current and ESR stability matter; check LDO datasheets for minimum ESR requirements before substituting types; derate ripple current based on actual ESR at operating temperature; and build ESR testing into your incoming inspection process for any design where electrolytic capacitors handle significant ripple current. That single habit will prevent more field failures than almost anything else in the PCB design process.

Learn how to design a capacitor bank correctly — covering parallel and series configurations, DC link sizing, PFC resonance risks, current sharing, anti-resonance, inrush protection, and PCB layout rules. With formulas, tables, and a full FAQ.

Every experienced PCB engineer has made this mistake at least once: you need more bulk capacitance on a DC rail, you grab three identical electrolytics, solder them in parallel, and call it done. The schematic is clean. The math looks right. Then the board comes back from test with a 200 mV ripple spike you cannot explain — or worse, two of the three capacitors are running noticeably hotter than the third.

Paralleling capacitors is not as simple as adding microfarads together on paper. A capacitor bank introduces current sharing problems, parasitic resonances, inrush events, and layout-driven impedance imbalances that a single capacitor never has to deal with. This guide covers everything from the fundamental math to the practical PCB layout decisions and protection requirements that separate a reliable capacitor bank design from one that causes intermittent field failures.

What Is a Capacitor Bank and When Do You Need One?

A capacitor bank is a group of capacitors connected in parallel, series, or a series-parallel combination to achieve a voltage rating, capacitance value, or current-handling capability that a single capacitor cannot deliver on its own.

In practical terms, you build a capacitor bank when:

• No single capacitor in the right package provides the total capacitance you need
• The ripple current requirement exceeds what one capacitor can handle thermally
• You need lower effective ESL than any single large capacitor can achieve
• The bus voltage exceeds the rating of available single-unit capacitors (requiring series banks)
• You need redundancy — continued operation if one unit fails

Capacitor banks appear across an enormous range of power levels: from a cluster of MLCCs on a microcontroller’s VCC pin all the way up to multi-megavar PFC installations correcting power factor for an entire manufacturing plant. The physics are the same. The design discipline scales.

Capacitor Bank Fundamentals: Series vs. Parallel Configurations

Before getting into layout and protection, it helps to have the formulas and trade-offs clearly in one place.

Parallel Capacitor Bank

When capacitors are connected in parallel, all positive terminals share one node and all negative (or return) terminals share the other. Every capacitor sees the same voltage.

Total capacitance:

C_total = C₁ + C₂ + C₃ + … + Cₙ

Total ESR: (parallel combination, like resistors in parallel)

ESR_total = 1 / (1/ESR₁ + 1/ESR₂ + … + 1/ESRₙ)

Total ESL: (parallel combination)

ESL_total = 1 / (1/ESL₁ + 1/ESL₂ + … + 1/ESLₙ)

Paralleling capacitors adds capacitance, reduces ESR, and reduces ESL. For most power electronics applications, this is the desired outcome.

Series Capacitor Bank

Capacitors in series share the same charge but divide the voltage. Capacitance decreases while voltage rating increases.

Total capacitance:

1/C_total = 1/C₁ + 1/C₂ + … + 1/Cₙ

For identical capacitors in series: C_total = C_unit / n

Total voltage rating: approximately V_total = V_unit × n (with balancing)

Series banks are used when bus voltage exceeds what individual capacitors can withstand — common in high-voltage DC links, traction inverters, and utility-scale PFC systems. Voltage sharing between series capacitors is never perfectly equal in practice, which introduces a balancing resistor requirement covered later in this guide.

Series-Parallel Combined Bank

The full series-parallel configuration provides the most flexibility. For a bank of m rows of n capacitors in series, each capacitor rated at C_unit and V_unit:

C_total = (m × C_unit) / n V_total ≈ n × V_unit

This approach allows the designer to independently target total capacitance, total voltage rating, and current handling capability by adjusting the row and column count.

Configuration Summary Table

Configuration	Capacitance	Voltage Rating	ESR	ESL	Primary Use
Parallel only	Increases (sum)	Same as one unit	Decreases	Decreases	DC link, decoupling, bulk rail
Series only	Decreases (1/n)	Multiplied by n	Increases	Increases	High-voltage DC links
Series-parallel	Tunable	Tunable	Tunable	Tunable	Industrial PFC, inverter DC bus

Capacitor Bank Applications: Matching Design to Use Case

DC Link Capacitor Bank (Inverter and Motor Drive)

The DC link capacitor bank is one of the most common and demanding applications in power electronics. In a PWM inverter — whether driving a motor, a UPS output stage, or a grid-tie converter — the DC link capacitor bank performs two simultaneous jobs:

1. Voltage stiffening: The bank decouples the effects of stray inductance in the DC cable or bus bar. Any inductance between the DC source and the inverter bridge will cause voltage spikes during switching transitions. The capacitor bank sits directly across the inverter input and provides the instantaneous current the switches demand, preventing the DC bus from collapsing under each switching event.

2. Ripple current absorption: PWM switching generates AC ripple current components at multiples of the switching frequency. The capacitor bank absorbs these ripple currents through its internal ESR, which is why ripple current rating — not capacitance alone — is often the dimensioning constraint for DC link banks.

For DC link design, the minimum capacitance is estimated from the allowable DC bus ripple voltage:

C_min = I_load / (f_sw × ΔV_bus)

Where f_sw is switching frequency and ΔV_bus is the maximum allowable peak-to-peak bus ripple (commonly specified as 1–5% of bus voltage). Ripple current through the bank at peak load must then be checked against the combined ripple current rating of the paralleled capacitors, since ripple current thermal stress — not capacitance value — typically drives component selection and quantity.

Power Factor Correction (PFC) Capacitor Bank

In AC systems, capacitor banks supply reactive power to counteract inductive loads. Inductive loads (motors, transformers) draw reactive current that circulates in the wiring and transformer without doing useful work, lowering the power factor and forcing the utility to oversize distribution equipment.

The reactive power a capacitor bank must provide is calculated from:

Q_C (kVAR) = P × (tan φ₁ − tan φ₂)

Where P is active load power in kW, φ₁ is the existing power factor angle, and φ₂ is the target power factor angle. Most utility tariffs impose penalties below power factor 0.9, making PFC economically mandatory in most industrial facilities.

Harmonic resonance is the dominant failure risk in PFC banks. Modern facilities with variable frequency drives, switching power supplies, and rectifiers generate harmonic currents — particularly the 5th (250/300 Hz), 7th (350/420 Hz), and 11th harmonics. If the PFC bank’s natural resonant frequency coincides with a dominant harmonic, current amplification can destroy the capacitor bank within hours. The resonant frequency is:

f_res = f_fundamental × √(kVA_sc / kVAR_bank)

Any facility where non-linear loads represent more than 20% of total load should use detuned reactors (series inductors) to shift the resonant frequency below the lowest significant harmonic — typically tuned to 189 Hz (4.7th harmonic) for 60 Hz systems.

PCB-Level Decoupling Capacitor Bank

At the circuit board level, a capacitor bank is the standard architecture for power delivery network (PDN) decoupling. The strategy is to cover a broad frequency range with capacitors of different values and types placed at different distances from the load:

Stage	Capacitor Type	Value Range	Location	Purpose
Bulk	Electrolytic or tantalum	47–470 µF	Near power entry point	Low-frequency ripple, bulk charge reservoir
Intermediate	MLCC (X5R/X7R)	1–22 µF	Near device clusters	Mid-frequency transient response
High-frequency	MLCC (X7R/C0G)	10–100 nF	At IC power pins	High-frequency switching noise
Ultra-HF	MLCC (C0G)	100 pF – 1 nF	Directly at IC pins	Multi-hundred MHz decoupling

For a thorough discussion of how capacitor dielectric type, package geometry, and mounting affect performance in PCB-level bank designs, the detailed reference on PCB capacitors covers the key characteristics that scale from discrete circuit-board applications all the way up to power converter design.

The Critical Problems with Paralleling Capacitors

This is where most designs run into trouble. The equations say capacitance adds up and ESR and ESL divide — but only if current shares equally between all paralleled units. In practice, current sharing is almost never equal unless the layout enforces it.

Unequal Current Sharing Due to Layout Asymmetry

Current follows the path of lowest impedance. In a parallel capacitor bank, the capacitor physically closest to the switching node will have a shorter current path and lower parasitic inductance in its loop. That unit sees higher peak currents, higher ripple current, and higher thermal stress than the units further from the source.

Bus bars or PCB traces connecting parallel capacitors must have equal impedance to each unit. Unequal trace lengths cause unequal current sharing, concentrating stress on the closest capacitors. Symmetrical star or balanced bus bar layouts are essential.

This is not theoretical. In high-ripple-current applications (DC link banks, gate drive bypass banks), a layout-asymmetric bank can fail one capacitor every few months while the others appear fine. The root cause is always the same: unequal loop inductance in the parallel paths.

ESR Mismatch Between Parallel Units

The ripple current divides inversely proportional to ESR — a unit with lower ESR carries more current and runs hotter. In practice, use the same manufacturer, part number, and production lot for all paralleled capacitors.

Even capacitors from the same production run have ESR variation within the manufacturer’s tolerance. A capacitor whose ESR is 20% below its nominal value will carry 20% more ripple current than its neighbors. Over thousands of hours at elevated temperature, this becomes a life-limiting factor.

Anti-Resonance Between Parallel Capacitors of Different Values

When capacitors of different values are placed in parallel — as in a multi-stage PDN decoupling bank — their different self-resonant frequencies interact and can produce an anti-resonance peak: a frequency at which the combined impedance is actually higher than either capacitor alone. This happens when one capacitor’s inductive region overlaps with the other’s capacitive region at the same frequency.

Anti-resonance is the reason you cannot simply stack up a large electrolytic and several small ceramics and call it a broadband solution. The interaction between them at the transition frequency creates a local impedance peak that can amplify noise rather than suppress it. The solution is to:

• Simulate the combined impedance across frequency before finalizing values (SPICE or dedicated PDN simulators)
• Use capacitors whose self-resonant frequencies are well separated so the resonance interaction falls outside the critical frequency range
• Add a small resistor (0.1–1 Ω) in series with the larger capacitors to damp the resonance without significantly affecting its capacitive performance

Inrush Current on Power-Up

When a capacitor bank powers up into a discharged state, it looks momentarily like a short circuit. The inrush current is limited only by the source impedance and the ESR plus loop inductance of the bank:

I_peak ≈ V_bus / (ESR_bank + R_source)

For a large DC link bank at 400–800 V bus with very low ESR film capacitors, this peak inrush can reach tens of kiloamperes — enough to weld relay contacts, blow fuses, and destroy bridge rectifier diodes. Pre-charge circuits are mandatory for any capacitor bank above a few hundred microfarads at voltages above 48 V.

The standard pre-charge approach places a resistor in series with the rectifier input. The resistor limits inrush current during initial charge-up; a bypass contactor then shorts around it once the bus voltage reaches approximately 80% of nominal. Sizing the pre-charge resistor:

R_precharge = V_bus / I_max_inrush P_R ≥ (½ × C_bank × V²_bus) / t_precharge

Where t_precharge is the time allowed for the bus to charge.

Voltage Balancing in Series Capacitor Banks

Connecting capacitors in series for high-voltage applications introduces a voltage sharing problem that can kill capacitors even when the total bank voltage is well within spec.

In theory, identical series capacitors share voltage equally. In practice, manufacturing tolerances in capacitance value, leakage current, and dielectric absorption all cause unequal voltage distribution. The capacitor with the lowest leakage current will charge to the highest voltage. If that overvoltage exceeds the unit’s rating, it fails — and its failure immediately stresses the remaining capacitors.

The fix is balancing resistors — one resistor in parallel with each series capacitor — sized to dominate the voltage distribution by providing a consistent parallel leakage path:

R_balance = V_working / (10 × I_leakage_max)

A typical balancing resistor value for a series bank of electrolytics is 10–100 kΩ depending on working voltage. A bleeder effect — the bank discharges through the balancing resistors when power is removed — is a side benefit, though for safety-critical applications an explicit discharge circuit is still required.

PCB Layout Rules for Capacitor Bank Design

The layout is where the design either works or fails. Every calculation above assumes an idealized circuit — the layout determines how close you get to that ideal.

Symmetrical Layout: The Single Most Important Rule

Every parallel capacitor in a bank should have the same electrical path length from the source to its positive terminal and from its negative terminal back to the return. Star topology — where each capacitor connects back to a central bus point via equal-length traces — is the textbook approach.

Minimize Loop Area in Each Capacitor’s Current Path

Loop area drives parasitic inductance. Keep the positive and negative traces of each capacitor’s current loop as close together as possible (ideally on adjacent PCB layers with overlapping copper planes) to cancel mutual inductance through proximity.

Via Placement for Capacitor Banks

Each capacitor in a bank should have its own dedicated vias to the power and ground planes. Sharing vias with adjacent capacitors introduces common-impedance coupling — a current event in one capacitor’s loop appears in its neighbor’s loop through the shared via inductance. As a rule, never share a via between two capacitors in the same bank.

Capacitor Placement Relative to Load

For PCB-level decoupling banks, placement priority is clear: smallest-value, highest-frequency capacitors go closest to the IC power pins. Larger-value bulk capacitors go further away. This ensures the fastest-responding capacitors have the shortest loop inductance to the point of current demand.

Layout Best Practices Summary

Layout Decision	Correct Practice	Why It Matters
Trace length to parallel caps	Equal length to all units	Forces equal current sharing
Trace width	Maximize for current-carrying traces	Reduces trace resistance and inductance
Via placement	Dedicated vias per capacitor	Avoids shared-impedance coupling
Layer stackup	Power and ground planes adjacent	Minimizes loop inductance via flux cancellation
Capacitor orientation	Align pads along current flow direction	Reduces package ESL contribution
Distance from switch node	Minimize for high-frequency caps	Shorter path = lower impedance at frequency

Capacitor Type Selection for Bank Applications

Not every capacitor type is suited to bank duty. The correct choice depends on the application’s frequency range, voltage, temperature, and expected service life.

Capacitor Type	Best Bank Application	Key Strength	Key Limitation
Aluminum electrolytic	Bulk DC link, low-frequency rail	High capacitance/volume, low cost	Limited ripple current, temperature-sensitive life
Polypropylene film	High-power DC link, PFC, snubber	Low ESR/ESL, self-healing, long life	Larger volume per µF than electrolytic
MLCC (X7R)	PCB decoupling, high-frequency bank	Tiny size, very low ESL	Capacitance drops with DC bias voltage
MLCC (C0G/NP0)	Ultra-high-frequency precision bank	Stable capacitance, very low loss	Lower maximum capacitance per package
Supercapacitor (EDLC)	Energy storage banks, holdup	Extremely high capacitance	Low voltage rating; ESR not suitable for fast switching

Protection and Safety Requirements for Capacitor Banks

Discharge Resistors

A charged capacitor bank is an electrocution hazard and a source of destructive fault energy. Every capacitor bank above a few joules of stored energy — calculated as E = ½ × C × V² — should include bleed-down resistors sized to discharge the bank to safe voltage within a defined time after power removal. A typical target is to reach below 50 V within 5 seconds for operator safety.

Overcurrent Protection

Individual fuses or overcurrent relays protect against cascade failure. If one capacitor in a parallel bank fails short, it can absorb enough energy from the remaining capacitors to explode. IEC 60831-1 requires PFC capacitor bank protection to trip if current exceeds 1.3× rated current. For DC link banks, individual fusing of each capacitor branch in high-power designs allows a single failed unit to be isolated without taking down the entire bank.

Thermal Monitoring

Temperature is the dominant life-determining factor for both electrolytic and film capacitors. A 10°C rise above rated temperature roughly halves electrolytic capacitor life. For high-power banks in thermally challenging environments, thermocouple or IR thermography checks during commissioning are strongly recommended. Banks installed adjacent to heat sinks or in poorly ventilated enclosures will fail years ahead of their design life.

Useful Resources for Capacitor Bank Design

Resource	Type	Link
Specap — Capacitor Bank Design & Sizing Guide	Comprehensive Design Guide	specap.com
Cornell Dubilier — Selecting and Applying DC Link Bus Capacitors	Technical Paper	cde.com PDF
Eaton — Capacitor Bank Protection Design White Paper	White Paper	eaton.com PDF
Eaton — Inrush Currents in Single and Multi-Step Capacitor Banks	Technical Document	eaton.com PDF
Electronics Tutorials — Capacitors in Parallel	Tutorial Reference	electronics-tutorials.ws
Specter Engineering — Inverter DC Link Capacitor Selection	Practical Design Guide	specterengineering.com
EEP — Capacitor Bank PFC Calculation and Schematics	Electrical Engineering Guide	electrical-engineering-portal.com
Wevolver — Capacitors in Parallel: Theory, Design, Implementation	Deep-Dive Article	wevolver.com

Frequently Asked Questions About Capacitor Bank Design

Q1: How many capacitors should I put in parallel for a DC link bank?

Start with the ripple current requirement, not the capacitance requirement — ripple current is almost always the binding constraint. Divide the total required ripple current rating by the per-unit ripple current rating at your switching frequency and operating temperature. That gives you the minimum parallel count. Then verify the total capacitance meets your bus ripple voltage specification. Add one extra unit if the ripple current is within 10% of the limit, since any production variation in ESR will cause current concentration in the lower-ESR unit.

Q2: Can I mix different capacitor brands or production lots in the same parallel bank?

Technically yes for capacitance; practically problematic for ripple current sharing. ESR variation between different manufacturers or production dates can exceed 30%. Since ripple current divides inversely with ESR, a low-ESR unit in a mixed bank will carry disproportionately higher current and run hotter. For anything other than a low-stress bulk bypass application, use the same manufacturer, part number, and ideally the same production lot for all paralleled units in a power bank.

Q3: Why does my capacitor bank ring after each switching event despite correct component values?

Ringing after switching is almost always caused by the capacitor bank’s combined ESL forming an LC tank with the switch node’s stray inductance. If the ringing frequency is above a few MHz, the loop inductance in your capacitor bank layout is the primary culprit — not the components themselves. Check whether your capacitor placement is truly symmetric, whether you have dedicated vias, and whether any long narrow traces exist between the capacitor bank and the switch terminals. Adding a small RC snubber (typically 1–10 Ω in series with 10–100 nF) directly across the switch node will damp the ringing while you optimize the layout.

Q4: Do I need balancing resistors when paralleling capacitors?

No — balancing resistors are only required for series-connected capacitor banks. In a parallel bank, all capacitors share the same terminal voltage automatically. Balancing resistors in a parallel bank serve only as bleeder resistors (discharge paths), not for voltage equalization. However, if your parallel bank also contains units wired in series for higher voltage rating (a series-parallel bank), then the series strings within the bank do require balancing resistors.

Q5: At what energy level does a capacitor bank require a pre-charge circuit?

There is no universally mandated threshold, but practical experience sets the bar at approximately 1 joule stored energy at voltages above 48 V as the point where uncontrolled inrush starts risking component damage. For automotive and industrial inverter applications, pre-charge is essentially universal for any bank above 100 µF at bus voltages above 100 V. The calculation is straightforward: E = ½ × C × V². A 2,000 µF bank at 400 V stores 160 joules — enough to cause severe arc flash on any connector or relay contact that closes into it without pre-charge current limiting.

Putting It All Together

A well-designed capacitor bank is not a shortcut to more capacitance — it’s a system design challenge that touches layout symmetry, ESR matching, resonance management, inrush protection, and thermal planning simultaneously. The parallel combination formulas are the easy part. The hard part is ensuring that what you draw on the schematic is what the physics actually sees on the board or in the power cabinet.

Use identical components from the same lot. Make your layout symmetric. Keep loop areas small and via counts equal between parallel paths. Pre-charge high-voltage banks. Plan for thermal stress, not just rated temperature. And when you’re not certain whether your PDN impedance is flat enough across frequency, run the simulation — it is always cheaper to fix in software than in hardware.

Learn how capacitor aging degrades electrolytic capacitors over time, why ESR rises, how to use the Arrhenius equation, and design strategies to extend service life.

If you’ve ever chased a mysterious failure in a power supply that was working perfectly six months ago, there’s a good chance a degraded electrolytic capacitor was the culprit. Capacitor aging is one of the most predictable — and most overlooked — reliability threats in PCB design. Unlike a transistor that either works or blows up spectacularly, an electrolytic slowly drifts out of spec over months or years, taking your circuit’s performance down with it.

This guide covers everything a practicing PCB engineer needs to understand about capacitor aging: the physics behind it, how to calculate expected lifespan, what warning signs to look for, and how to design around it from day one.

What Is Capacitor Aging and Why Does It Happen?

Capacitor aging refers to the gradual, irreversible deterioration of an electrolytic capacitor’s electrical parameters over time and under operating stress. It’s not a sudden event — it’s a slow, chemistry-driven process that compounds on itself.

The Core Mechanism: Electrolyte Evaporation

The primary mechanism that causes the degradation and failure of electrolytic capacitors is slow evaporation of the electrolyte over time, and this process is made worse at higher temperatures. Inside every aluminum electrolytic capacitor is a liquid electrolyte — typically an ethylene glycol-based solution — that acts as the conductive medium between the aluminum oxide dielectric and the cathode foil.

The vapor pressure of ethylene glycol, a component in many electrolyte recipes, can change multiple orders of magnitude over standard capacitor operation temperatures. Depending on the temperature and the quality of capacitor construction, the solvent may readily evaporate at higher temperatures, decreasing electrolyte volume and increasing the capacitor’s ESR.

As the electrolyte dries out, two damaging things happen simultaneously:

• Capacitance drops — less electrolyte means less effective dielectric contact area
• Equivalent Series Resistance (ESR) rises — reduced electrolyte conductivity means more resistive loss

The ESR Feedback Loop: A Vicious Cycle

As ESR rises, so does any self-heating effect due to ripple currents. This can lead to significant localized temperature rises that can accelerate the problem even further. In other words, aging makes things hotter, and heat makes aging faster. This increased ESR causes a decrease in capacitance and a further increase in ESR, which increases losses and, consequently, raises temperature even more.

For power supply designers in particular, this is critical: the output filter cap that’s supposed to smooth your rail is quietly becoming a resistor, and the heat it generates is killing itself faster.

Key Failure Modes in Electrolytic Capacitors

Most electrolytic capacitor degradation leads to a common failure mode: the vaporization or leakage of electrolyte. In the worst cases, self-heating develops gases inside the electrolytic capacitor, which subsequently explode the capacitor through the vent.

Failure Mode	Primary Cause	Observable Symptom
Electrolyte evaporation	High temperature + time	Drop in capacitance, rise in ESR
Electrolyte leakage	Seal degradation, overvoltage	Brown residue around base, PCB corrosion
Dielectric breakdown	Reverse bias, overvoltage	Short circuit, catastrophic failure
Case venting / bulging	Internal gas pressure	Visible swelling of top vent
Open circuit	Complete electrolyte dry-out	No capacitance measured
Increased leakage current	Dielectric thinning	Excess current draw at idle

To prevent electrolytic capacitor degradation in critical circuits, planned maintenance, replacement, or swapping of electrolytic capacitors should be scheduled at regular intervals during their useful lifespan.

How to Read a Capacitor Aging Datasheet

Every reputable manufacturer publishes a rated lifetime for their aluminum electrolytics, but interpreting that number correctly is half the battle.

Understanding the Rated Lifetime

The lifespan of electrolytic capacitors typically ranges from 1,000 to 10,000 hours of operation at their maximum rated temperature. This range can be influenced by several factors such as operating temperature, voltage, and the specific brand of capacitor.

That “5,000 hours at 105°C” figure on the datasheet is a baseline — it assumes the worst-case operating temperature the cap is rated for. Run it cooler, and your life multiplies dramatically.

Industry-Standard End-of-Life Criteria

Industry standards specify the end-of-life of an electrolytic capacitor under thermal stress when the capacitance value decreases by 10% and the ESR value increases by 250% or more from its initial rated value. Under electrical stress conditions, end-of-life is defined by ESR increasing by 280–300% and capacitance decreasing by 20% below initial values.

In practice, many engineers treat a doubling of ESR as the practical failure threshold for noise-sensitive or high-ripple applications, since the impact on circuit performance becomes noticeable well before the datasheet EOL criteria are reached.

The Arrhenius Equation: Your Life Calculation Tool

Manufacturers provide calculations to determine lifetime based on the Arrhenius equation for temperature dependence of reaction rates. This determines that the reaction rate doubles for every 10°C rise in temperature. That means the lifetime doubles for each 10°C reduction in temperature, so a capacitor rated at 5,000 hours at 105°C would have a service life of 10,000 hours at 95°C and 20,000 hours at 85°C.

The simplified life calculation formula is:

Lx = L0 × 2^((T0 − Tx) / 10)

Where:

• Lx = expected life at operating temperature Tx
• L0 = rated life at rated temperature T0
• T0 = maximum rated temperature (e.g., 105°C)
• Tx = actual operating temperature

Practical Life Estimation Table

The table below assumes a standard 5,000-hour / 105°C rated capacitor:

Operating Temperature	Life Multiplier	Estimated Lifespan
105°C (rated max)	×1	5,000 hours (~7 months continuous)
95°C	×2	10,000 hours (~14 months)
85°C	×4	20,000 hours (~2.3 years)
75°C	×8	40,000 hours (~4.6 years)
65°C	×16	80,000 hours (~9 years)
55°C	×32	160,000 hours (~18 years)

The engineering takeaway here is obvious: thermal management is capacitor life management. A few degrees of additional cooling can add years of useful service life.

Ripple Current: The Hidden Aging Accelerant

Operating temperature isn’t the only aging driver. In the lifetime estimation of a capacitor, it is necessary to consider not only the temperature acceleration factor (KT) but also the ripple acceleration factor (KR), which accounts for the increase in internal temperature due to ripple current.

Ripple current causes Joule heating (P = I² × ESR) inside the capacitor core. Because the core temperature is always higher than the case temperature, the actual stress on the capacitor is greater than ambient measurements suggest. High-frequency switching converters are particularly harsh environments for electrolytics because they generate broadband ripple across a wide frequency range.

Ripple Derating Guidelines

Ripple Current vs. Rated	Relative Aging Acceleration
100% of rated	Baseline (1×)
80% of rated	~0.6× — extended life
60% of rated	~0.4× — significant improvement
>100% of rated	Rapid degradation, avoid

Always measure or simulate the actual RMS ripple current at the capacitor’s location in your design, across all operating modes including startup and load transients.

Capacitor Aging Under Storage (Shelf Life)

An important nuance that catches many engineers: capacitor aging doesn’t stop when the power is off. The aluminum oxide dielectric layer in an electrolytic capacitor is not perfectly stable. Without periodic voltage application, the dielectric can thin out — a process sometimes called “de-formation.”

Both AC polymeric film and DC electrolytic capacitors degrade under field operating conditions. The field aging process is slow and takes place over years, but eventually leads to capacitor failure unless the capacitors are periodically replaced.

For boards that sit in storage or are powered off for extended periods, best practice is to periodically power them up at reduced voltage (voltage conditioning) to allow the dielectric to reform. This is especially relevant for boards used in industrial standby applications or spare parts inventory.

Physical Warning Signs of Capacitor Aging

Before a capacitor fails electrically, it often gives visual clues on the board. If you’re doing a PCB inspection or repair, watch for:

Visual Symptom	What It Indicates
Bulging top vent (dome shape)	Internal gas pressure — replace immediately
Brown or yellowish residue around leads	Electrolyte leakage — check nearby components for corrosion
Discolored PCB under or around cap	Long-term heat stress or leakage
Cracked or split sleeve	Mechanical or thermal damage
Corroded or blackened leads	Electrolyte leakage over time

Never assume a cap that “measures okay” on a basic capacitance meter is healthy. ESR measurement is the critical test — a standard meter won’t catch a cap with doubled ESR and degraded capacitance. Use a dedicated ESR meter or LCR meter with ESR capability.

Design Strategies to Minimize Capacitor Aging

Good design can dramatically extend the working life of electrolytic capacitors in your PCB. Here are the most effective interventions:

1. Derate Operating Voltage

Running a capacitor below its rated voltage significantly reduces dielectric stress. Operating voltages below the rated voltage cause less stress to the dielectric layer. The closer the operating voltage approaches the rated voltage, the more electrolyte is consumed for the self-healing of small flaws within the dielectric layer. A common rule is to use capacitors rated at least 1.5–2× the expected operating voltage.

2. Improve Thermal Design

Keep hot components — power transistors, inductors, regulators — away from electrolytics in your layout. Add thermal relief, increase copper pour around hot zones, and consider airflow paths. Even 5–10°C of reduction in ambient cap temperature can double its service life.

3. Use 105°C-Rated Parts in Warm Environments

When your ambient conditions push 60°C or higher (enclosures, industrial cabinets, automotive), always specify 105°C-rated caps — not 85°C. The extra headroom pays for itself in reliability.

4. Consider Polymer Aluminum Electrolytics

For high-reliability designs, polymer aluminum capacitors (with solid electrolyte) are significantly more stable under aging than liquid electrolyte types. They trade off some maximum capacitance for dramatically better ESR stability and longer life under high-ripple conditions.

5. Schedule Proactive Replacement

Proactive replacement of capacitors every 7–10 years as a preventive measure is recommended, especially in critical applications. In industrial equipment with long service intervals, building a capacitor replacement into the scheduled maintenance plan is far cheaper than a field failure.

The Capacitor Plague: A Case Study in Aging Acceleration

No discussion of electrolytic aging is complete without mentioning the so-called “capacitor plague” of 1999–2007. During this period, an incorrect electrolyte formula caused a higher rate of premature electrolytic capacitor degradation, leading to capacitor failures in a wide range of consumer and industrial electronics. Millions of motherboards, monitors, and power supplies failed within 2–3 years instead of the expected 10+. The root cause was an unstable electrolyte formulation that generated hydrogen gas rapidly, causing caps to bulge and vent within months.

The lesson: electrolyte chemistry is everything. This is why sourcing from reputable, well-established manufacturers matters even when the off-brand parts measure identically on arrival.

Useful Resources for PCB Engineers

The following resources provide deeper technical information on capacitor aging, life modeling, and testing:

• NREL Degradation Behavior and Modeling of Capacitors (PDF) — Comprehensive review of failure mechanisms and modeling approaches from the National Renewable Energy Laboratory
• Jianghai Electrolytic Capacitor Lifetime Estimation Guide (PDF) — Practical manufacturer guide for Arrhenius-based life calculations
• EEPower Electrolytic Capacitor Life Calculator — Interactive online tool for quick Arrhenius life estimation
• Nichicon / Rubycon / Panasonic Datasheets — Always check manufacturer technical notes for application-specific derating guidance
• AIC Tech Capacitor Lifetime Estimation — Detailed treatment of ripple current effects and core temperature modeling
• NASA Technical Reports Server — Accelerated aging experiment data for electrolytic capacitors in DC-DC converter applications
• Altium: What Influences Electrolytic Capacitor Lifespan? — Designer-focused walkthrough of lifespan vs. MTBF distinction

Frequently Asked Questions About Capacitor Aging

Q1: How do I know if my electrolytic capacitors have aged too much without removing them from the board?

The most reliable in-circuit check is measuring ESR with a dedicated meter at the operating frequency. Many ESR meters work in-circuit with the power off. If ESR has more than doubled from the datasheet value at room temperature, plan for replacement. Visual inspection (bulging, residue) catches the worst cases but misses gradual electrical drift.

Q2: Does a capacitor age if it’s never been used or powered?

Yes, but more slowly than under operating stress. Electrolytics in storage still undergo slow electrolyte evaporation through the seals, and the dielectric oxide layer can weaken without periodic voltage re-forming. Caps stored more than 2 years should be voltage-conditioned before use in critical applications.

Q3: Do ceramic capacitors age the same way electrolytics do?

No — ceramics age differently. Class II ceramics (X5R, X7R) exhibit capacitance loss due to dielectric polarization decay, but this is partially reversible by heating above the Curie temperature. They don’t have liquid electrolytes, so they don’t dry out. For high-reliability filter applications, ceramics generally outlast electrolytics by a significant margin under most operating conditions.

Q4: Can I slow down capacitor aging by running at lower voltage?

Yes, meaningfully so — especially for larger snap-in and screw-terminal types. For small radial types, the voltage derating effect is less pronounced. For all sizes, temperature reduction is the single most effective aging mitigation. Voltage derating is a secondary but useful strategy, particularly when combined with a conservative thermal design.

Q5: What’s the difference between capacitor lifespan and MTBF?

These are often confused. Lifespan (endurance) describes when a single capacitor will wear out under specific conditions — it’s a wear-out mechanism. MTBF is a statistical failure rate based on random failures during the normal operating period. If you parallel multiple capacitors, the MTBF of the assembly improves, but the lifespan of each individual component stays the same. Wear-out failure of any one cap can still cause system failure.

Understanding capacitor aging isn’t just academic — it directly determines the service life of your product in the field. The Arrhenius equation gives you the tools to predict and control that degradation. Good layout, thermal management, voltage derating, and proactive replacement schedules are the engineering levers available to you. Use them, and capacitor aging becomes a managed risk rather than a mystery failure.

Bypass capacitor guide for PCB engineers: covers SRF, value selection tables, placement rules, common mistakes, and IC-specific strategies for clean power rails.

Every experienced PCB engineer has been there. The board passes simulation, the schematic looks correct, and then on the bench the microcontroller locks up randomly, the ADC readings are noisier than expected, or the digital logic occasionally throws spurious pulses. Half the time, the culprit is a missing or badly placed bypass capacitor.

Understanding what a bypass capacitor actually does—not just the textbook definition but the physical reality of why loop inductance kills its effectiveness and why “sprinkle them around the board” is genuinely bad advice—is one of those fundamentals that searates PCB designs that work reliably in production from ones that are quietly unreliable.

This guide covers the theory, the practical value selection, the placement rules that actually matter, and the common mistakes that show up repeatedly in design reviews.

What Is a Bypass Capacitor?

A bypass capacitor is a capacitor connected between a power supply rail and ground, placed close to an active component, with the specific purpose of providing a low-impedance local energy reservoir that can instantaneously supply current during fast switching transients—and simultaneously route high-frequency noise from the power rail directly to ground before it reaches the device’s supply pins.

The name comes from the function: high-frequency noise is “bypassed” around the sensitive circuitry to ground. One end of the bypass capacitor connects to the VCC (or other supply) pin of the IC, and the other end connects to the ground reference.

A clean DC voltage at the supply input of a power converter or regulator is not the same thing as a clean voltage at the power pin of an IC switching at 100 MHz or faster. The traces, vias, and power plane copper between the supply and the IC all have resistance, capacitance, and—most critically—inductance. That parasitic inductance resists instantaneous current changes. When a digital gate switches and demands a sharp spike of current, the power supply cannot respond fast enough because the parasitic inductance of the PDN (Power Distribution Network) between the supply and the IC limits the rate of current delivery.

The bypass capacitor is local to the IC. Because it is physically close, the parasitic loop inductance between the capacitor and the IC’s supply pins is very small. When the gate switches and demands current, the bypass capacitor discharges and supplies that current almost instantaneously, long before the power supply can react. After the transient, the power supply slowly recharges the bypass capacitor, ready for the next switching event.

Bypass Capacitor vs Decoupling Capacitor: Clearing Up the Confusion

These two terms are frequently used interchangeably, and in casual conversation that is often fine. In a design review, however, precision matters.

Term	Primary Function	Frequency Range	Typical Value
Bypass capacitor	Route HF noise to ground	High frequency (MHz range)	1 nF – 100 nF
Decoupling capacitor	Supply local transient current to IC	Mid frequency (kHz–MHz)	100 nF – 10 µF
Bulk capacitor	Energy reservoir for PDN	Low frequency (Hz–kHz)	10 µF – 1000 µF

In practice, the same physical component placed between VCC and GND near an IC is doing both jobs simultaneously—routing noise to ground and supplying transient current. The terminology difference is really about emphasis and scale. A 100 nF ceramic capacitor near a microcontroller’s VDD pin is typically called a bypass capacitor because its primary role at high frequency is shunting noise to ground. A 10 µF tantalum or electrolytic nearby is more commonly called a decoupling capacitor because its bulk charge storage supplies transient current demand. Both concepts describe aspects of the same power integrity challenge.

How a Bypass Capacitor Works: The Electrical Reality

To understand why placement and value matter so much, you need to think about a bypass capacitor not as an ideal component but as a real one with three parasitic elements: capacitance (C), equivalent series resistance (ESR), and equivalent series inductance (ESL).

Self-Resonant Frequency (SRF)

Every real capacitor has a self-resonant frequency (SRF), determined by its capacitance and ESL:

SRF = 1 / (2π × √(L × C))

Below the SRF, the component behaves as a capacitor—impedance decreases with frequency. Above the SRF, the ESL dominates and the component behaves as an inductor—impedance increases with frequency. This means every bypass capacitor has a frequency range where it is actually useful, and outside that range it is either doing very little or actively making things worse.

A 100 nF MLCC in a 0402 package typically has a SRF around 50–100 MHz. A 10 µF ceramic in an 0805 package might resonate at 5–10 MHz. A 100 µF electrolytic might resonate below 1 MHz. This is why a single bypass capacitor can never cover the full frequency range of a modern high-speed design—you need a network of values.

The PDN Impedance Target

The goal of bypass capacitor strategy is to keep the impedance of the power distribution network flat and below a target level across the frequency range where the IC draws current. That target impedance (Z_target) is typically calculated as:

Z_target = Allowable voltage droop / Maximum transient current

For a 3.3 V microcontroller with a 5% tolerance (165 mV droop budget) drawing 500 mA transients, the target is 165 mV / 500 mA = 0.33 Ω. The bypass capacitor network—in combination with the power and ground planes—must maintain impedance below this threshold across frequency.

Bypass Capacitor Value Selection

This is the area most often handled by rule-of-thumb rather than analysis. The rules-of-thumb are reasonable starting points, but understanding why they work helps you deviate correctly when a design demands it.

Standard Value Guidelines

Application	Recommended Value	Package	Notes
High-speed digital IC (per power pin)	100 nF (0.1 µF)	0402 or 0603	Standard starting point for most logic
High-speed IC supplementary bypass	10 nF	0402	Placed closest to pin; handles higher freq
MCU / FPGA bulk decoupling	1 µF – 10 µF	0603 or 0805	One per power rail, handles mid-freq
Board-level bulk storage	47 µF – 470 µF	Electrolytic or tantalum	Supply rail energy reservoir
Analog IC / op-amp bypass	100 nF		10 µF
RF IC / oscillator bypass	100 pF + 10 nF	0402	Use lowest-inductance package available
DDR memory VDD bypass	Per JEDEC spec, multiple values	0402/0201	Follow IC vendor layout guidelines

The 100 nF (0.1 µF) MLCC has been the dominant bypass capacitor value for decades because it resonates in a frequency range—roughly 10–100 MHz—that aligns with the switching speeds of most digital logic. It is not a magic number; it is a practical starting point that can be tuned through simulation or measurement.

Choosing the Right Capacitor Type

The capacitor type matters almost as much as the value for bypass applications. Here’s how the main types compare:

Type	ESR	ESL	Max Frequency	Temperature Stability	Cost
MLCC (ceramic X5R/X7R)	Very low	Very low	100 MHz+	Good (X7R: ±15%)	Low
MLCC (C0G/NP0)	Extremely low	Very low	100 MHz+	Excellent (±30 ppm/°C)	Medium
Tantalum	Low–medium	Low	1–10 MHz	Good	Medium
Aluminum electrolytic	Medium–high	Medium	<1 MHz	Poor at extremes	Low
Film (PP or PET)	Very low	Low	1–10 MHz	Good	Medium

For high-frequency bypass, MLCC ceramic capacitors—particularly X7R dielectric in 0402 or smaller packages—are the clear choice. Their extremely low ESL makes them effective at the frequencies where high-speed ICs need help most. C0G (NP0) ceramic is preferred in precision analog and RF bypass positions where capacitance must remain stable with voltage and temperature.

One critical note on MLCC capacitors: X5R and X7R types exhibit significant capacitance reduction under DC bias. A 100 nF X5R capacitor rated at 10 V may only deliver 60–70 nF at its actual operating voltage of 3.3 V. Always derate accordingly, or use the manufacturer’s derating curves to verify actual capacitance at the operating point.

How to Place a Bypass Capacitor: PCB Layout Rules That Actually Matter

Selecting the right value is only half the job. A correctly specified bypass capacitor placed badly—or routed sloppily—can perform worse than a poorly specified capacitor placed well. Placement is where most design errors with bypass capacitors actually occur.

Rule 1: Minimize Loop Inductance Above All Else

The parasitic inductance of the bypass capacitor loop—from the IC’s power pin, through the trace to the capacitor, through the capacitor, back through the ground trace to the IC’s ground pin, and back to the power pin—determines how effective the capacitor is at high frequency. Every nanometer of trace length adds inductance. Every via adds inductance. At 100 MHz, even 1 nH of extra loop inductance is meaningful.

To minimize loop inductance, keep bypass capacitors as close to the IC power and ground pins as physically possible. On a two-layer board, this means right beside the power pin with the shortest possible traces. On a four-layer board with inner power and ground planes, place the capacitor’s via immediately adjacent to the capacitor pads, not at the end of a long stub trace.

Rule 2: Place on the Opposite Side When Possible

Placing the bypass capacitor on the bottom side of the board, directly underneath the IC’s power pin position, is often the best option. This keeps the connection loop very short, avoids consuming routing space on the top side, and frequently allows via-in-pad construction that further reduces loop inductance. The ground return path through a device ground pin to the capacitor beneath it is shorter and less inductive than routing along the top side of the board.

Rule 3: Order Multiple Capacitors by Value

When multiple bypass capacitors of different values serve the same IC power pin, place the smallest-value capacitor physically closest to the pin. The smallest capacitor has the highest SRF and handles the fastest (highest-frequency) transients. The larger capacitors handle lower-frequency transients and can tolerate slightly more physical distance from the pin.

For example, a typical arrangement might look like:

• 10 nF (0402) — placed directly adjacent to the IC power pin, or underneath it
• 100 nF (0402) — placed next, just beyond the 10 nF cap
• 10 µF (0805) — placed nearby, slightly further away but still local to the IC

Rule 4: Keep Vias Short and Multiple

The via from the bypass capacitor pad to the power plane (or ground plane) adds series inductance. Use multiple vias in parallel when possible—each via in parallel halves the via inductance. On dense boards, via-in-pad construction (vias drilled directly through the capacitor land pads) is the gold standard for minimizing loop inductance, though it requires filling and plating the vias to provide a flat solder surface.

Rule 5: Avoid Daisy-Chaining Through the Bypass Capacitor

A routing practice that occasionally appears on older boards is “sequencing” the bypass connection: power plane → bypass capacitor → IC pin. The intent is to force all supply current through the capacitor as a filter. This is incorrect for high-speed designs. The trace from the capacitor to the IC pin adds series inductance that partially counteracts the capacitor’s effectiveness. The correct routing connects the bypass capacitor directly to the IC’s power and ground pins with the shortest possible loop, and separately connects to the power and ground planes.

Rule 6: One Bypass Capacitor Per Power Pin

ICs with multiple power supply pins—common in FPGAs, high-performance microcontrollers, and DDR memory interfaces—need at least one bypass capacitor per power pin, not one capacitor shared across multiple pins. Each power pin has its own transient current demand, and a capacitor at one pin cannot effectively supply transient current to a pin several millimeters away at switching speeds.

Bypass Capacitor Placement: Common Mistakes to Avoid

Mistake	Why It Matters	Correct Practice
Placing bypass caps far from IC	Increased loop inductance nullifies HF effectiveness	Place within 1–2 mm of IC power pin
Using one large cap instead of parallel values	One value can’t cover full frequency range	Use 10 nF + 100 nF + 1–10 µF in parallel
Long trace between cap and IC pin	~7 nH/inch on FR-4; kills HF performance	Use shortest trace possible or via-in-pad
Skipping bypass on “quiet” analog ICs	Op-amps still need supply bypassing	100 nF ceramic + 10 µF bulk per supply pin
Using electrolytic only for HF bypass	High ESR and ESL; poor above ~1 MHz	Ceramic MLCC for HF, electrolytic for bulk
Sharing one bypass cap across multiple power pins	Each pin has independent transient demand	One bypass cap per supply pin
Not derating MLCC capacitance for DC bias	X7R/X5R capacitance drops significantly under DC	Verify actual capacitance at operating voltage

Bypass Capacitor Strategy for Specific IC Types

Microcontrollers and DSPs

For most modern 32-bit MCUs (ARM Cortex-M series, for example), the datasheet will specify the recommended bypass capacitor arrangement explicitly. A typical recommendation is 100 nF ceramic at each VDD pin plus a shared 4.7–10 µF bulk ceramic or tantalum capacitor. Follow the IC vendor’s layout guidelines precisely—they test these recommendations against their specific die and package inductances.

FPGAs

FPGAs are the most demanding bypass capacitor consumers on a board. A mid-range FPGA may have dozens of VCC and VCCIO pins, each needing individual bypass. The FPGA vendor’s power guidelines (Xilinx/AMD, Intel/Altera, Lattice all publish detailed PDN application notes) will specify required capacitor values, quantities, and placement rules. Skipping this step and just “sprinkling” 100 nF caps is a reliable way to cause random fabric errors under load.

Analog ICs and Op-Amps

For analog ICs, bypass capacitor selection focuses on keeping supply noise out of the signal path. A 100 nF X7R ceramic handles high-frequency noise. A 10 µF tantalum or ceramic handles mid-frequency supply variations. For very low-noise analog front-ends, C0G ceramics are preferred because their capacitance is voltage- and temperature-independent, preventing the capacitor itself from modulating the supply impedance.

RF and High-Speed Serial ICs

RF ICs and SerDes transceivers (PCIe, USB 3.x, Ethernet PHYs) often require very small bypass capacitors—as small as 100 pF—in addition to standard 100 nF caps. These tiny capacitors handle frequencies above the SRF of the 100 nF cap. The vendor’s layout guidelines are mandatory reading; RF IC bypass layouts are often extremely specific about capacitor placement relative to the IC body.

Bypass Capacitor Value Calculator Reference

Use this quick reference table for common IC supply rails:

Supply Voltage	IC Type	Recommended Bypass Network
3.3 V	General digital logic	100 nF (0402) per power pin + 10 µF bulk
3.3 V	High-speed MCU/DSP	10 nF (0402) + 100 nF (0402) + 10 µF
1.8 V / 1.2 V	FPGA core	Per vendor PDN guide; typically 100 nF × 4–6 + 10–47 µF
5 V	TTL / legacy logic	100 nF (0603) per IC + 47–100 µF bulk per supply section
±15 V	Precision op-amp	100 nF ceramic + 10 µF electrolytic per supply rail
3.3 V	RF IC	100 pF (0402) + 10 nF (0402) + 100 nF (0402)
1.0–1.2 V	DDR memory VDD	Per JEDEC/vendor: 100 nF per device + bulk 100–470 µF

Useful Resources for Bypass Capacitor Design

These are the reference materials that belong in any serious PCB engineer’s bookmarks:

TI Application Report SLOA089 – Bypass Capacitor, Its Functions, Selection and Application — ti.com — Clear, practical Texas Instruments guide covering selection, placement, and value calculation.

Altium Designer PDN Analyzer Documentation — altium.com — In-tool PDN impedance analysis that can validate bypass capacitor networks before fabrication.

Murata SimSurfing Impedance Simulator — ds.murata.com/simsurfing — Simulate impedance vs frequency for Murata MLCC types; essential for verifying SRF and capacitance under DC bias.

Würth Elektronik REDEXPERT — we-online.com/redexpert — Excellent tool for simulating real-world capacitor behavior including DC bias derating for Würth MLCC products.

Henry Ott Consultants – Decoupling and Bypassing — hottconsultants.com — Henry Ott’s seminal work on EMC and signal integrity is required reading; his articles on bypass and decoupling remain foundational.

Digi-Key MLCC Parametric Search — digikey.com/capacitors — Real-time stock, pricing, and datasheet access with derating curve data for major MLCC manufacturers.

IPC-2141A – Controlled Impedance Circuit Boards and High-Speed Logic Design — ipc.org — Industry standard covering PCB design guidelines including power distribution and decoupling requirements.

Frequently Asked Questions About Bypass Capacitors

What value bypass capacitor should I use?

The standard starting point is 100 nF (0.1 µF) ceramic MLCC at each IC power supply pin. For high-speed designs, pair this with a 10 nF ceramic for higher-frequency bypassing placed closer to the pin, and a 1–10 µF bulk capacitor for lower-frequency decoupling placed nearby. Always check the IC vendor’s datasheet and layout guidelines—many modern ICs specify their required bypass network explicitly, and deviating from it can cause reliability issues that are difficult to debug.

How close to the IC does a bypass capacitor need to be?

As close as physically practical—ideally within 1–2 mm of the IC’s power pin. The critical metric is the loop inductance of the bypass path, which increases with trace length at roughly 7–10 nH per inch on a standard FR-4 board. Even a short 5 mm trace adds 1.5–2 nH of series inductance, which can meaningfully degrade the capacitor’s effectiveness above 50–100 MHz. On multi-layer boards with power planes, placing the bypass capacitor on the opposite side of the board directly beneath the IC’s power pin is often the most effective approach.

Can I use one large capacitor instead of multiple small bypass capacitors?

Not effectively for high-frequency bypassing. A single 10 µF capacitor has a lower self-resonant frequency than a 100 nF capacitor, so it becomes inductive—and therefore ineffective as a bypass—at the high frequencies where digital ICs need help most. Parallel combinations of capacitors with different values cover a broader frequency range. The 10 nF + 100 nF + 10 µF combination provides overlapping coverage from roughly 1 MHz to several hundred MHz, which a single large value cap simply cannot match.

Why does my circuit still have noise even with bypass capacitors installed?

The most common reason is placement—the bypass capacitors are the right value but are positioned too far from the IC’s power pins, allowing too much parasitic inductance in the bypass loop. Other causes include incorrect routing (traces that are too long or too narrow between the cap and the IC pin), insufficient via connections to the ground plane, absence of a solid ground plane, or the capacitance value being mismatched to the frequency of the noise problem. Measure the noise frequency with a scope and verify that the bypass capacitor’s self-resonant frequency actually falls in that range. If the dominant noise is at 200 MHz, a 100 nF cap with an SRF of 50 MHz won’t help—you need smaller-value, lower-inductance caps.

Is a bypass capacitor the same as a decoupling capacitor?

Functionally, they are related but not identical, though the terms are often used interchangeably in schematics and BOMs. A bypass capacitor specifically routes high-frequency noise from the power pin to ground. A decoupling capacitor acts as a local charge reservoir that supplies transient current to the IC, keeping supply voltage stable during fast switching events. In practice, a single capacitor placed between VCC and GND near an IC performs both functions simultaneously. The distinction becomes meaningful mainly when designing a layered bypass strategy—small ceramics for high-frequency bypass, larger ceramics or tantalums for mid-frequency decoupling, and bulk electrolytics for low-frequency energy storage.

Summary

The bypass capacitor is one of those components that gets taken for granted until the design is on the bench and something is clearly wrong. Getting bypass capacitor strategy right means thinking through three things together: the right value (or set of values) for the frequency range that matters, the right capacitor type with appropriately low ESR and ESL, and—most critically—the right placement with minimal loop inductance.

A 100 nF MLCC placed 10 mm from the IC with a long trace connecting it is far less effective than the same 100 nF cap placed 1 mm away with a direct via to the ground plane. The physics are the same whether you are designing a simple single-supply MCU board or a multi-rail FPGA platform. Loop inductance is the enemy, proximity is the solution, and layered bypass networks are what make the strategy complete across frequency. Understanding your capacitor choices at this level of depth is what separates designs that pass first-article testing from designs that need another revision spin.

Choosing the right audio capacitor for coupling, bypass, or crossover? Compare polypropylene, polyester, electrolytic, and ceramic with practical selection tables.

Ask ten audio engineers which capacitor sounds best and you’ll get ten different answers—some informed by measurement, some by legend, and a few by genuine listening experience on revealing systems. The truth, as usual, sits in the engineering data rather than the mythology. Understanding what an audio capacitor actually does in each circuit position, and why certain dielectric types perform better than others in those positions, cuts through most of the noise.

This guide covers the three main audio capacitor applications—coupling, power supply bypass, and speaker crossover—with practical selection guidance grounded in what the datasheets, impedance measurements, and physics actually tell us.

Why Audio Capacitors Are a Separate Conversation

Most of the time, choosing a capacitor is a straightforward exercise in matching value, voltage rating, and package to a circuit position. Audio design adds a layer of complexity because capacitors in the signal path are working with dynamic, frequency-sensitive electrical signals that a loudspeaker or headphone driver converts directly into mechanical motion that a human ear evaluates. Several capacitor characteristics that are irrelevant in a digital power rail position become audible—or at least measurable—in an audio signal path.

The three parameters that drive audio capacitor selection, beyond the basic value and voltage specification, are equivalent series resistance (ESR), dissipation factor (DF), and dielectric absorption (DA). Understanding each is the starting point for making defensible component choices.

ESR in Audio Circuits

ESR represents the total resistive loss inside a real capacitor. In a crossover network, a capacitor’s ESR adds series resistance that slightly shifts the crossover frequency and introduces frequency-dependent losses. Measurements using an impedance analyzer show that electrolytics have high series resistance compared to polypropylene—an amount that is not negligible in crossover design, comparable to the series resistance that designers routinely model in inductors. Polypropylene film capacitors have ESR values low enough that they are typically below the noise floor of most measurement instruments in audio frequency bands.

Dissipation Factor

Dissipation factor (DF) is the ratio of energy lost per cycle to energy stored. Notice how capacitance drops with frequency and dissipation factor rises in electrolytic capacitors—electrolytics show around a 10% change in capacitance from 100 Hz to 10 kHz, while polypropylene capacitors are fairly linear in capacitance with frequency and most have dissipation factors too low to reliably measure. In a coupling capacitor carrying a small signal voltage, the practical consequences of DF are debated. In a crossover capacitor handling watts of power, a high DF means the capacitor heats up internally—shortening its life and shifting its capacitance value as temperature rises.

Dielectric Absorption

Dielectric absorption is the tendency of a capacitor’s dielectric to retain a residual charge after it has been discharged, releasing it slowly afterward. Low dielectric absorption keeps transient responses—like the attack of a snare drum or the pluck of a guitar string—reproduced clearly. Polypropylene’s DA is typically below 0.02%. Polyester runs around 0.2%. Standard electrolytics can be 2–5%. In a sample-and-hold circuit this difference is decisive. In an audio coupling capacitor with a small AC signal riding on DC bias, the effect is small and contested; in a crossover carrying significant signal power the effect is larger and more defensible.

Audio Capacitor Types: What’s Actually Available

Before getting into application-specific guidance, here is a practical comparison of the main capacitor types used in audio work and their key characteristics.

Type	ESR	Dissipation Factor	Dielectric Absorption	Polarity	Audio Signal Path?
Polypropylene film & foil	Very low	<0.02%	<0.02%	Non-polar	Excellent
Metallized polypropylene (MKP)	Low	<0.1%	<0.05%	Non-polar	Very good
Polyester / PET (MKT)	Low-medium	1.0–1.5%	~0.2%	Non-polar	Acceptable
Non-polar electrolytic (NP)	Medium–high	2–15%	1–5%	Non-polar	Budget only
Polar electrolytic	High	2–50%	2–5%	Polarized	Power supply only
C0G / NP0 ceramic	Very low	<0.1%	Negligible	Non-polar	Bypass/decoupling only
X7R ceramic	Low	~1.0%	Moderate	Non-polar	Decoupling only
Polystyrene	Extremely low	<0.02%	<0.02%	Non-polar	Excellent (legacy)

High-k ceramic capacitors such as X7R and Z5U are perfectly suited for bypassing and decoupling op-amp supply rails, but should never be used for audio coupling, in filters, tone controls, or anywhere else in the signal path—these caps are designed for supply rail decoupling, not to replace film caps. They exhibit a piezoelectric effect where they vibrate under AC current and generate a small voltage when mechanically disturbed, which shows up as audible distortion called microphonics.

Coupling Capacitors in Audio Amplifiers

A coupling capacitor sits in series with the audio signal path, passing AC audio frequencies while blocking any DC offset between circuit stages. The DC bias of a transistor, FET, or op-amp output stage must not reach the next stage’s input—it would shift the operating point, cause distortion, or in the case of a speaker output, drive the driver to one extreme of its travel.

How to Calculate Coupling Capacitor Value

The coupling capacitor forms a high-pass filter with the input impedance of the following stage. The –3 dB cutoff frequency is:

f = 1 / (2π × R × C)

For a 20 Hz lower frequency limit (the bottom of human hearing) with a 10 kΩ input impedance following stage:

C = 1 / (2π × 10,000 × 20) = approximately 800 nF → use 1 µF

For a 2 kΩ input impedance, you’d need 4 µF to maintain the same lower cutoff. In practice, coupling capacitor values in amplifier stages run from around 470 nF to 10 µF depending on source and load impedances.

What Capacitor to Use for Audio Coupling

For small-signal coupling in a line-level or preamplifier stage—where the signal voltage across the capacitor is small—a well-chosen polyester (MKT) film capacitor is entirely adequate for most designs. Polypropylene is better on measured parameters and preferred in high-performance designs, but the signal voltage across a coupling capacitor in normal operation is so small that the difference in distortion is largely theoretical at typical listening levels.

For large-signal coupling—output coupling in a power amplifier stage, or tube amplifier coupling where the capacitor sees significant signal voltage—the choice matters more. Polypropylene film-and-foil is the correct dielectric. When it comes to high current applications such as passive loudspeaker crossover networks, there will be significant voltage across the capacitor and current through it, and the devices used need to be stable with time and temperature—this generally means polypropylene, polyester, or paper-in-oil.

One practical issue with large coupling capacitors in tube amplifiers is that polypropylene film-and-foil types become physically large and expensive above about 2–4 µF. A common engineering compromise is to use a smaller-value polypropylene capacitor for the high-frequency signal path and bypass it with a larger-value bipolar electrolytic for the low-frequency extension—keeping the polypropylene cap in the dominant signal path where it matters most.

Coupling Capacitor Selection Table

Stage	Signal Level	Recommended Dielectric	Typical Value Range
Phono preamp input	Very small (mV)	Polypropylene (PP)	100 pF – 10 nF
Line-level preamplifier	Small (100 mV – 1 V)	PP or polyester (MKT)	470 nF – 2.2 µF
Tube amplifier interstage	Medium (1–10 V)	PP film & foil	1 µF – 10 µF
Solid-state power amp output	Large (1–30 V)	Non-polar electrolytic or PP	1000 µF – 10,000 µF
Headphone amp output	Small–medium	PP film	100 µF – 470 µF (or DC-coupled)
Tone control network	Small	Polyester (MKT) acceptable	10 nF – 100 nF

Bypass Capacitors in Audio Power Supplies

The bypass capacitor in an audio context refers primarily to the capacitors used to decouple the power supply rails of op-amps and audio IC stages. This is where the ceramic capacitor discussion enters—and where understanding the distinction between signal-path and supply-path decisions matters enormously.

Op-Amp Supply Bypass in Audio Circuits

Every op-amp used in an audio circuit needs bypass capacitors on its supply pins. The op-amp draws transient currents as it responds to audio signals, and without a local energy reservoir, the supply voltage droops, injecting supply noise into the output. The standard approach is to place a 100 nF X7R ceramic MLCC directly at each supply pin, possibly supplemented by a 10 µF tantalum or electrolytic further away for bulk energy storage.

X7R multilayer ceramic capacitors are perfectly alright for bypassing and decoupling op-amp supply rails, and that is what they were designed for—don’t believe anyone who claims otherwise. The ceramic capacitor’s low ESR and low ESL make it effective at the high frequencies where op-amp supply rejection degrades. The fact that X7R has relatively poor capacitance stability with DC bias is irrelevant here because it is working against an AC supply impedance, not as a precision signal component.

Audio-Specific Power Supply Bypass Strategy

Supply Position	Recommended Bypass Capacitor	Notes
Op-amp VCC/VEE pin (HF)	100 nF X7R ceramic (0402/0603)	Place within 1–2 mm of supply pin
Op-amp VCC/VEE pin (LF)	10 µF electrolytic or tantalum	Bulk charge reservoir
Audio IC power rail	100 nF ceramic + 100 µF electrolytic	Standard dual-value approach
Voltage regulator output	100 nF ceramic + 10–22 µF electrolytic	Check regulator’s minimum ESR requirement
Reference bypass (precision DAC)	1–10 µF C0G or film	Noise-sensitive; avoid X5R/X7R here
Phantom power rail (microphone preamp)	10 µF + 100 nF	Low-noise supply essential

For the reference voltage bypass on a high-precision DAC or ADC, C0G ceramic or a small film capacitor is preferred over X7R, because C0G has no capacitance variation with voltage or temperature—keeping the reference impedance precisely defined across operating conditions.

Crossover Capacitors: The Most Demanding Audio Application

The passive loudspeaker crossover network is where capacitor selection has the clearest, most measurable impact on audio performance—and where getting it wrong has the most direct consequences. Unlike a small-signal coupling capacitor that sees millivolts, a crossover capacitor in a 100-watt speaker system may carry several amps of AC current at audio signal voltages up to tens of volts. The dielectric is working hard.

How a Crossover Capacitor Works

In a first-order crossover high-pass filter feeding a tweeter, the crossover capacitor is in series with the tweeter. Below the crossover frequency the capacitor’s impedance is high, attenuating low frequencies. Above the crossover frequency the capacitor passes freely. The crossover frequency is:

f_crossover = 1 / (2π × C × Z_speaker)

For an 8 Ω tweeter with a 10 µF capacitor:

f = 1 / (2π × 0.000010 × 8) ≈ 2,000 Hz

Any resistance in the capacitor (ESR) adds to this 8 Ω load, shifting the crossover frequency upward and introducing power dissipation. Any non-linearity in the capacitor’s behavior causes harmonic distortion in the audio signal passing through to the tweeter.

Why Ceramics Fail in Crossover Positions

Ceramic capacitors are susceptible to microphonic effects—converting mechanical vibrations into electrical signals that can significantly distort audio signals. Moreover, the low insulation resistance and relatively high ESR of ceramic capacitors make them unsuitable for crossover networks. Inside a speaker cabinet that is vibrating at acoustic frequencies, a ceramic MLCC will generate noise voltages. This is not a subtle effect—it is directly measurable and in a tweeter position, directly audible.

Why Standard Electrolytics Are Problematic

The performance of a standard non-polar aluminum electrolytic capacitor creates distortion when it is used in audio AC applications. Off-the-shelf single non-polar design capacitors have an extremely high dissipation factor ranging from 2% to 150%, which results in excessive heating and shortened life in audio applications.

Beyond DF, electrolytics exhibit capacitance that drifts with frequency, temperature, and age. After 10–15 years, electrolytic capacitors in crossovers often no longer hold their rated value—and they can explode with overvoltages from powerful amplifiers. For a high-end loudspeaker expected to perform accurately for decades, an electrolytic crossover cap is a design compromise that accumulates interest over time.

The Case for Polypropylene in Crossovers

Polypropylene capacitors stand out as the preferred choice for high-end audio crossover applications. Their low dielectric absorption keeps transient responses reproduced clearly. Polypropylene film is stable during temperature fluctuations, so speakers will sound consistent whether in a cold basement or a warm dedicated listening room. Ultra-low ESR and minimal inductance allow them to pass high frequencies with minimal phase shift or energy loss.

Film capacitor selection is extremely important for acceptable quality sound reproduction. The ESR and dielectric absorption of film capacitors must be as low as possible to avoid distortion, and film-and-foil polypropylene constructions are designed specifically for audio applications, providing low ESR, low DA, high insulation resistance, and wide temperature range.

Film-and-foil types (where both electrodes are separate sheets of metal foil, not vacuum-deposited metallization) offer the lowest ESR of any film capacitor construction. Their price is significantly higher, but in tweeter positions of serious loudspeaker designs, they are the accepted standard.

Crossover Capacitor Selection by Speaker Position

Speaker Position	Signal Level	Recommended Type	Notes
Tweeter (high pass)	High	PP film & foil, or metallized PP	Most revealing position; use highest quality
Midrange (bandpass)	Medium–high	Metallized PP (MKP)	Good performance at moderate cost
Woofer (low pass, shunt)	High	NP electrolytic + PP bypass	Large values; mixed approach works
Budget full-range	Any	Non-polar electrolytic (NP)	Accept performance trade-off
High-end 3-way system	All positions	PP film & foil throughout	Consistent performance across system

Crossover Capacitor Value Formula

C (µF) = 159,000 / (f_crossover_Hz × Z_speaker_Ω)

For a 3,000 Hz crossover into an 8 Ω tweeter: C = 159,000 / (3,000 × 8) = 6.625 µF → use 6.8 µF standard value

For a 2,500 Hz crossover into a 6 Ω tweeter: C = 159,000 / (2,500 × 6) = 10.6 µF → use 10 µF standard value, or parallel values to reach exact target

Voltage Rating for Crossover Capacitors

For most passive crossover applications it does not matter whether the capacitor is rated at 100, 200, 250, 400, 630, 800 or 1200 V DC—what matters is the RMS AC rating of the speaker system. A 100-watt amplifier into an 8 Ω load produces up to 28 V RMS. Select a crossover capacitor rated for at least twice the maximum expected RMS voltage—so 63 V AC or 100 V DC minimum for most home systems. Never use a part just at its limit; derating is good engineering practice in audio as much as in industrial electronics.

Choosing the Right Audio Capacitor: Full Decision Framework

Understanding how a capacitor fits into an audio circuit is not just about selecting a dielectric—it requires matching the component’s full specification to the electrical stresses and performance requirements of the specific circuit position. Use this framework when making audio capacitor selections:

Circuit Position	Priority Parameter	Secondary Parameter	Avoid
Small-signal coupling (preamp, DAC)	Low ESR, low DA	Value stability over temperature	X7R/X5R ceramic
Large-signal coupling (power amp)	Low DF, voltage rating	Physical size	Standard polar electrolytic
Supply bypass (op-amp, IC)	Low ESR at HF	Value under DC bias	Film caps (overkill, wrong tool)
Precision reference bypass	Value stability vs. voltage	Low ESR	X5R/X7R ceramic
Tweeter crossover	Low DF, low DA, low ESR	AC voltage rating	Any electrolytic, all ceramics
Midrange crossover	Low DF, low ESR	Cost per µF	Standard polar electrolytic
Woofer crossover (budget)	AC voltage rating, value accuracy	DF acceptable	Class Y or X capacitors (safety types)
Tube amplifier signal path	Low DA, low DF	Physical size and cost	Standard electrolytic, X7R ceramic

Useful Resources for Audio Capacitor Selection

These reference sources are worth bookmarking for any serious audio PCB or loudspeaker project:

Elliott Sound Products – Capacitor Characteristics – sound-au.com/articles/capacitors.htm — One of the most technically rigorous and honestly written articles on capacitor behavior in audio circuits. Essential reading before specifying any signal-path capacitor.

Jantzen Audio – Capacitor Types and Where to Use Them – jantzen-audio.com/faq — Practical guidance from one of the premier European audio capacitor manufacturers, with hierarchy from entry-level to reference grade.

Electrocube Technical Bulletin – Capacitors in Crossover Networks – electrocube.com — Detailed technical bulletin with measured data on electrolytic vs. film performance in speaker crossover applications.

Passive Components Industry Forum – Capacitor Selection for Coupling and Decoupling – passive-components.eu — Technical industry-level overview of dielectric properties and selection criteria.

Digi-Key Film Capacitor Parametric Search – digikey.com/film-capacitors — Real-time stock, pricing, and datasheet access across all major PP, MKP, and MKT film families.

Parts Express Crossover Design Resources – parts-express.com — Practical supplier with crossover capacitor stock from major audio brands including Dayton, Jantzen, and Mundorf.

Vishay Film Capacitor Selection Guide – vishay.com — Comprehensive technical datasheet covering dissipation factor, temperature coefficients, and voltage derating curves for metallized film types.

Frequently Asked Questions About Audio Capacitors

Can I use a ceramic capacitor in an audio signal path?

For supply bypassing and decoupling of op-amp power rails, yes—X7R ceramics are the right tool for that job and work well. For the audio signal path itself—coupling, crossover, tone control—ceramics are problematic. X7R and X5R types introduce measurable distortion from their voltage coefficient of capacitance, and most ceramics exhibit microphonics: they convert vibration into electrical noise, which is particularly bad inside a loudspeaker enclosure. Use film capacitors in any position where the audio signal passes through the capacitor.

How important is the capacitor brand in audio crossover design?

The dielectric type matters more than the brand for the fundamental performance parameters. A generic metallized polypropylene capacitor from a reputable manufacturer will outperform a premium brand non-polar electrolytic in every measured parameter relevant to audio. Within polypropylene types, film-and-foil construction generally outperforms metallized construction due to lower contact resistance at the lead terminations. Exotic and premium-priced audio capacitors from brands like Mundorf, Clarity Cap, and Jantzen do exist in a market driven partly by audiophile preference—but the biggest gains come from choosing the right dielectric family first, before worrying about which brand’s polypropylene to use.

Why do electrolytic capacitors age and what effect does it have on crossover performance?

Electrolytic capacitors age primarily because their liquid electrolyte slowly evaporates, especially at elevated temperatures. As electrolyte depletes, capacitance decreases and ESR rises. In a speaker crossover, falling capacitance shifts the crossover frequency upward—progressively reducing bass output and altering the transition band between drivers. In a tweeter high-pass filter, a significant capacitance drop could expose the tweeter to more low-frequency energy than it was designed to handle, potentially causing damage. Film capacitors age far more slowly—a well-made polypropylene crossover cap should maintain its value within tolerance for 20–30 years under normal conditions.

What is the right voltage rating for an audio coupling capacitor?

The voltage rating must cover the maximum DC bias voltage plus the peak AC signal voltage that will appear across the capacitor in normal operation. For a preamp coupling cap that blocks a 15 V DC rail, the capacitor sees up to 15 V DC plus any signal swing. A 50 V or 63 V rated capacitor provides comfortable margin. For tube amplifier coupling capacitors, plate voltages can be 200–400 V, requiring capacitors rated at 400–630 V DC. Always check the worst-case bias conditions in the circuit, not just the nominal operating point. Under-rating a coupling capacitor results in dielectric breakdown over time, causing the capacitor’s insulation resistance to fall and eventually creating a DC leakage path that degrades the circuit’s operating point.

Is it worth upgrading crossover capacitors in existing speakers?

It depends on the starting quality. If the speakers came from the factory with standard non-polar electrolytic crossover capacitors, upgrading the tweeter crossover cap to a metallized polypropylene type of the same value will almost certainly produce a measurable improvement in the crossover network’s impedance flatness and could be audibly beneficial, particularly if the electrolytics have aged significantly. The tweeter position is where the improvement is most likely to be noticeable, since the tweeter handles the most revealing high-frequency information. Upgrading woofer crossover caps is a lower-priority investment—the performance difference at bass frequencies is smaller and harder to detect. Match the capacitance value precisely when upgrading; even a 5% shift in a tweeter crossover cap changes the crossover frequency noticeably.

Summary

The audio capacitor conversation is more disciplined than the audiophile community sometimes makes it appear. Ceramics belong in supply bypass positions, not in signal paths. Electrolytics belong in bulk power storage and budget large-value positions, with their limitations clearly understood. Polypropylene film—and particularly film-and-foil construction—is the correct dielectric for demanding signal-path positions: tweeter crossovers, tube amplifier coupling caps, and any application where the capacitor carries significant AC signal current. Polyester (MKT) is an entirely acceptable compromise for lower-stress signal positions in cost-constrained designs.

The engineering decision framework is straightforward: identify the electrical stresses the capacitor will see (signal voltage, current, DC bias, frequency range), match those to the dielectric type that handles them without measurable degradation, and select a value that achieves the required cutoff frequency with appropriate margin on voltage rating. When in doubt, polypropylene is almost always the right answer in the signal path—and C0G ceramic is almost always the right answer on the supply rail.
