Thick Film Ceramic PCB: design the printed functions as one material system
Plan thick film ceramic PCB conductors, resistors and protective layers. Explore firing and trimming, calculate electrical loading and build a cost brief.
Share your current requirements and open questions. Tool use is optional.

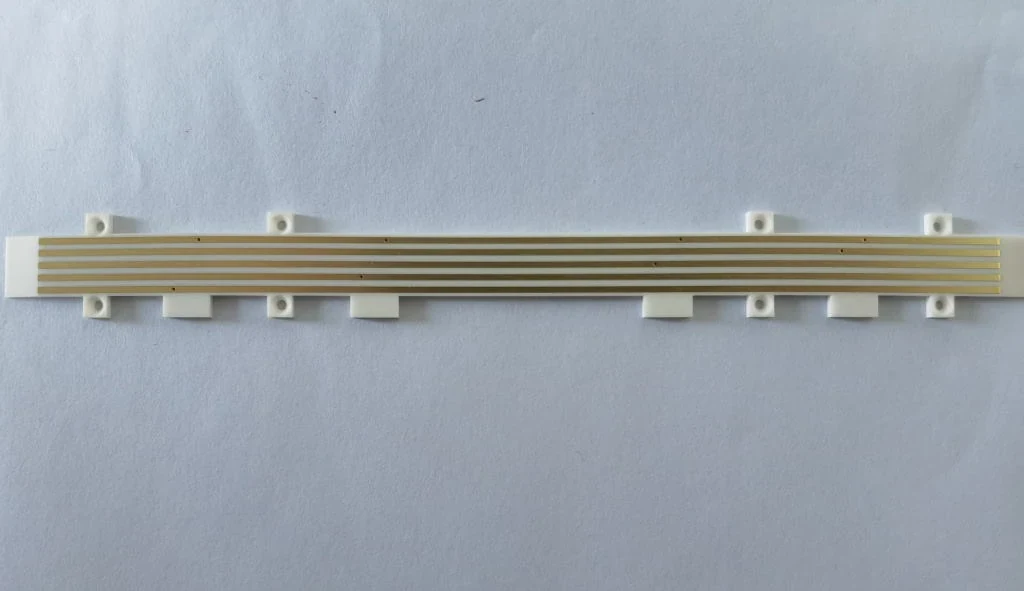

What is a thick film ceramic PCB?
A thick film ceramic PCB forms circuit functions by printing compatible materials onto a ceramic substrate and processing them into stable layers. These functions can include conductors, resistors, dielectric crossovers and protective coatings. The term describes the circuit technology; it does not simply mean a thick ceramic board or a conventional PCB with heavy copper.
The useful design unit is the complete material system. Substrate condition, conductive paste, resistor paste, dielectric and overglaze must work with the processing sequence and the later assembly. Selecting each layer independently from a different data sheet can create a construction that looks reasonable on paper but has no established compatibility basis.
This page focuses on a printed circuit on a fired ceramic substrate. LTCC multilayer construction starts with unfired ceramic layers that are assembled and co-fired. Printing may appear in both routes, but they are not interchangeable names. The Ceramic PCB hub helps choose the route before detailed design.
How the printed layers become a circuit
First establish the substrate and prepare its surface for the selected system. A patterned screen transfers a controlled deposit of paste. The print is allowed to level and is dried as specified. Firing then develops the functional film. Additional layers follow their qualified order, which may include repeated printing and thermal processing rather than one universal firing step.
Resistive features can be measured and, when specified, adjusted using a qualified trimming process. Protective layers may follow, with attention to any resistance shift or interface effect associated with later processing. Final verification should reflect the state of the part as delivered, not only an intermediate measurement before a subsequent firing or coating operation.
The Heraeus thick-film materials portfolio separates materials by function. Its heater-technology overview also describes compatible systems for different substrate families. Use this system approach; do not apply a steel or aluminum process recipe to an alumina or AlN circuit without specific evidence.
Select conductors, resistors and protection together
| Functional layer | What the designer should specify | What needs process review |
|---|---|---|
| Conductor | Net geometry, current path and attachment pads | Paste compatibility, fired thickness and joint behavior |
| Resistor | Target, tolerance, temperature basis and loading | Paste system, geometry, firing history and trim method |
| Printed dielectric | Crossing conductors and required insulation | Coverage, pinholes, overlap and electrical verification |
| Overglaze | Protected regions and exposed contacts | Compatibility, later processing and environmental behavior |
| Ceramic | Grade, thickness and finished geometry | Surface condition, preparation and thermal path |
Choose the conductor around the intended joining and operating conditions. Identify soldered regions, bond pads or other contact surfaces. A conductor paste that prints an acceptable line may still need a separate review for solder leaching, migration or repeated exposure to the chosen thermal process. Keep those requirements tied to the actual application, rather than using a generic “high reliability” description.
For protective coatings, identify what must remain exposed for connection, adjustment or sensing. The Heraeus IP9036A product description is an example of a glaze associated with specified compatible materials and processing conditions. It illustrates why an overglaze is part of the electrical process, not only a cosmetic finish.
Calculate electrical loading before asking for a power rating
The loading worksheet calculates current and power from voltage and resistance, then divides power by the entered active footprint. It also shows a time average for an ideal on/off voltage waveform. The result is an electrical demand placed on the resistor; it is not a permissible power density or a predicted temperature.
Thick Film Ceramic PCB Engineering Planner
For a 100 Ω resistor at 5 V, I = V/R = 0.05 A and P = V²/R = 0.25 W. If the active footprint is 5 mm by 2 mm, its area is 10 mm² and the average footprint loading is 0.025 W/mm². At a 20% on-state duty with zero voltage otherwise, the time-average power becomes 0.05 W, while the on-state power remains 0.25 W.
Duty alone does not define pulse severity. A long pulse and a short pulse can have the same duty and average power while producing different temperature excursions. Record pulse duration, repetition and the thermal boundary for any rating discussion. For a nonrectangular waveform, determine the appropriate RMS voltage or perform a separate waveform calculation instead of using an arbitrary duty estimate.
The worksheet uses resistance at the relevant temperature. If resistance changes appreciably during operation, a fixed-resistance result is only a starting point. Local loading around trim cuts or geometric necks can differ from the average over the footprint. A qualified derating basis and the assembled heat path are necessary for an allowable-loading decision.
Design for measurement and adjustment
Use a resistor schedule with consistent identifiers, nominal values, allowed tolerances and measurement conditions. Include the active geometry and the intended conductor overlap. Specify whether final resistance is required before assembly, after assembly or after an environmental exposure. A number without a measurement state can produce disagreement even when both parties measure accurately.
If laser trimming is required, reserve access for the beam and probes and keep adjacent features outside the agreed exclusion region. Removing resistive material generally increases resistance in a conventional trim approach, so an initial distribution below the target may be necessary. The required allowance and permitted trim geometry belong to the qualified process; do not assign a universal percentage to every paste and shape.
Consider the whole error budget. Initial resistance tolerance, temperature coefficient, tracking between resistors, aging and loading response are different requirements. A tightly adjusted initial value does not automatically satisfy long-term stability. If circuit ratios matter most, identify that requirement explicitly and agree how the ratio will be verified under relevant conditions.
Make crossovers and interfaces visible in the drawing
Printed multilayer features need an unambiguous layer order. Show which dielectric separates which conductors, where vias or openings connect layers, and which regions receive overglaze. Provide registration references and the finished outline. Avoid using one colored composite image as the only definition of several functional prints; each layer needs identifiable artwork and a clear relationship to the netlist.
For a heater, map the active heating area and the temperature-sensing arrangement. A uniform-looking resistive pattern does not prove uniform surface temperature because losses and heat extraction vary around the part. Put the required temperature distribution and measurement setup into the verification plan, rather than treating trace shape alone as a guarantee.
For a sensing element, state the exposed region, media contact and cleaning or encapsulation conditions. The material in direct contact with the environment can dominate behavior even when the ceramic substrate is suitable. Changes to overglaze openings or assembly adhesives should be controlled like other functional design changes.
Alumina, AlN and the thermal path
An alumina PCB material review is a useful starting point for many printed ceramic circuits. Specify the grade and surface requirement, then verify compatibility with the selected paste system. Do not turn a commonly used material family into approval for every available paste or firing profile.
Consider an AlN thermal-path comparison when reducing substrate resistance is relevant to the product. A change from alumina to AlN also requires a process compatibility review. The higher conductivity of one ceramic does not prove that an existing conductor, resistor or protective system can be transferred unchanged.
Mechanical support matters too. Identify mounting features, the contact region and any bending or clamping load. Keep critical printed features away from areas affected by machining or assembly stress according to the agreed process rules. The final design should connect electrical function, manufacturing allowance and mounting geometry rather than optimizing them in isolation.
Separate recurring circuit cost from setup and qualification
Cost is influenced by substrate format, number and type of printed layers, screens, material usage, process cycles, adjustment time, machining, inspection and quantity. A resistor-rich circuit may spend substantial effort in probing and adjustment; a simple conductor pattern may have a different cost structure. Counting layers alone misses these differences.
Thick Film Ceramic PCB Budget Brief
The budget brief records the actual ceramic, paste system, firing, trim and protective-layer scope. Use a dated allowance for each cost category or leave all amounts blank for a technical enquiry. No fixed thick-film rate or market price is embedded. Changing dimensions, quantity or construction invalidates the previous amounts so a stale estimate is not exported as current.
When requesting alternatives, distinguish electrical requirements from proposed geometry. A different resistor footprint or shared printing operation may simplify production, but it must preserve the required circuit behavior and acceptance. Ask for the technical effect of each change alongside the cost effect, and record approved alternatives in the released revision.
Verify the functions that were actually printed
Agree visual and dimensional checks for the pattern, electrical checks for connectivity and resistance, and any required insulation or attachment evidence. Where a resistor or sensor function is important, include its measurement temperature and relevant excitation. If environmental exposure is part of acceptance, specify what is measured before and after exposure and how drift is calculated.
Review the final processing state. A circuit measured before its last firing or coating may not represent the delivered part. Keep inspection records tied to the material system, drawing and process revision. For the relationship between printed films, deposited films and co-fired routes, use the ceramic manufacturing process guide.
Thick-film ceramic circuit questions
Is thick film the same as heavy copper PCB?
No. Thick film describes printed functional materials and their processing. Heavy copper describes conductor thickness in a different construction context. Select a route from the electrical, thermal and assembly requirements rather than the shared word “thick”.
Is every thick-film ceramic circuit an LTCC board?
No. A printed circuit on an already-fired tile is a post-fired construction. LTCC assembles green ceramic layers and compatible patterns before co-firing. The two routes can use printing while having different dimensional and process controls.
Can the tool tell me whether a resistor will survive?
It calculates the imposed current, power and average footprint loading. Survival and allowable rating require the paste system, geometry, mounting, temperature and waveform evidence. Average power alone does not qualify pulse behavior.
Should I choose thin film instead?
Compare the actual functional and geometric requirements. The thin-film design page focuses on deposited patterns and rectangular resistance estimates. Neither process name establishes the best cost or performance without the proposed construction and acceptance scope.
Request a printed circuit review
Send the ceramic grade, drawing revision, circuit layers, metallization, quantity and assembly interface. Include the measurements or acceptance criteria that matter to this build. Preliminary files and open process questions are welcome.
Attach a downloaded tool brief manually. Contact does not automatically receive these inputs. References reviewed September 2026. Illustrations use planning examples; photographs do not establish prices, delivery times or project-specific acceptance.
